title: "Data Transformation With dplyr"
author: "Dr. Hua Zhou"
date: "Jan 30, 2018"
subtitle: Biostat M280
output:
  ioslides_presentation:
    smaller: true
---

```{r setup, include=FALSE}
knitr::opts_chunk$set(fig.width = 5, fig.height = 3.5, fig.align = 'center',
  cache = TRUE)
```

##

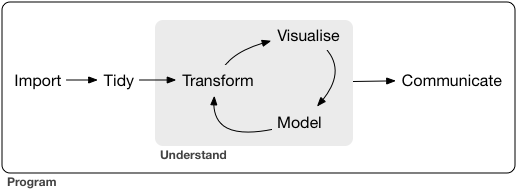

A typical data science project:

<p align="center">
<img src="./data-science.png" height="275">
</p>

## nycflights13 data

- Available from the nycflights13 package.

- 336,776 flights that departed from New York City in 2013:
```{r}
library("tidyverse")
```
```{r}
library("nycflights13")
flights
```

## dplyr basics

* Pick observations by their values: `filter()`.

* Reorder the rows: `arrange()`.

* Pick variables by their names: `select()`.

* Create new variables with functions of existing variables: `mutate()`.

* Collapse many values down to a single summary: `summarise()`.

# Manipulate rows (cases)

## Filter rows with `filter()`

- Flights on Jan 1st:
    ```{r}
    # same as filter(flights, month == 1 & day == 1)
    filter(flights, month == 1, day == 1)
    ```

----

- Flights in Nov or Dec:
    ```{r}
    filter(flights, month == 11 | month == 12)
    ```

## Remove rows with duplicate values

- One row from each month:
    ```{r}
    distinct(flights, month, .keep_all = TRUE)
    ```

## Sample rows

- Randomly select `n` rows:
    ```{r}
    sample_n(flights, 10, replace = TRUE)
    ```

----

- Randomly select fraction of rows:
    ```{r}
    sample_frac(flights, 0.1, replace = TRUE)
    ```

## Select rows by position

- Select rows by position:
    ```{r}
    slice(flights, 1:5)
    ```

----

- Top `n` rows:
    ```{r}
    top_n(flights, 5)
    ```

## Arrange rows with `arrange()`

- Sort in ascending order:
    ```{r}
    arrange(flights, year, month, day)
    ```

----

- Sort in descending order:
    ```{r}
    arrange(flights, desc(arr_delay))
    ```

# Manipulate columns (variables)

## Select columns with `select()`

- Select columns by variable name:
    ```{r}
    select(flights, year, month, day)
    ```

----

- Select columns between two variables:
    ```{r}
    select(flights, year:day)
    ```

----

- Select columns _except_ those between two variables:
    ```{r, }
    select(flights, -(year:day))
    ```

----

- Select columns by positions:
    ```{r}
    select(flights, seq(1, 10, by = 2))
    ```

----

- Move variables to the start of data frame:
    ```{r, }
    select(flights, time_hour, air_time, everything())
    ```

----

- Helper functions.

    * `starts_with("abc")`: matches names that begin with “abc”.

    * `ends_with("xyz")`: matches names that end with “xyz”.

    * `contains("ijk")`: matches names that contain “ijk”.

    * `matches("(.)\\1")`: selects variables that match a regular expression.

    * `num_range("x", 1:3)`: matches x1, x2 and x3.

    * `one_of()`

## Add new variables with `mutate()`

- Add variables `gain` and `speed`:
    ```{r, results = 'hide'}
    flights_sml <-
      select(flights, year:day, ends_with("delay"), distance, air_time)
    ```
    ```{r}
    mutate(flights_sml,
      gain = arr_delay - dep_delay,
      speed = distance / air_time * 60
    )
    ```

----

- Refer to columns that you’ve just created:
    ```{r}
    mutate(flights_sml,
      gain = arr_delay - dep_delay,
      hours = air_time / 60,
      gain_per_hour = gain / hours
    )
    ```

----

- Only keep the new variables by `transmute()`:
    ```{r}
    transmute(flights,
      gain = arr_delay - dep_delay,
      hours = air_time / 60,
      gain_per_hour = gain / hours
    )
    ```

----

- `mutate_all()`: apply funs to all columns.
    ```{r, eval = FALSE}
    mutate_all(data, funs(log(.), log2(.)))
    ```

- `mutate_at()`: apply funs to specifc columns.
    ```{r, eval = FALSE}
    mutate_at(data, vars(-Species), funs(log(.)))
    ```

- `mutate_if()`: apply funs of one type
    ```{r, eval = FALSE}
    mutate_if(data, is.numeric, funs(log(.)))
    ```

# Summaries

## Summaries with `summarise()`

- Mean of a variable:
    ```{r}
    summarise(flights, delay = mean(dep_delay, na.rm = TRUE))
    ```

----

- Convert a tibble into a grouped tibble:
    ```{r}
    (by_day <- group_by(flights, year, month, day))
    ```

----

- Grouped summaries:
    ```{r}
    summarise(by_day, delay = mean(dep_delay, na.rm = TRUE))
    ```

## Pipe

- Consider following analysis:
    ```{r, message = FALSE}
    by_dest <- group_by(flights, dest)
    delay <- summarise(by_dest, count = n(),
      dist = mean(distance, na.rm = TRUE),
      delay = mean(arr_delay, na.rm = TRUE)
    )
    (delay <- filter(delay, count > 20, dest != "HNL"))
    ```

----

- Cleaner code using pipe `%>%`:
    ```{r}
    (delays <- flights %>%
      group_by(dest) %>%
      summarise(
        count = n(),
        dist = mean(distance, na.rm = TRUE),
        delay = mean(arr_delay, na.rm = TRUE)
      ) %>%
      filter(count > 20, dest != "HNL"))
    ```

----

- Unfortunately ggplot2 does **not** use pipe.
    ```{r}
    ggplot(data = delays, mapping = aes(x = dist, y = delay)) +
      geom_point(aes(size = count), alpha = 1/3) + geom_smooth(se = FALSE)
    ```

## Other summary functions

- Location: `mean(x)`, `median(x)`.
    ```{r, result = 'hold'}
    not_cancelled <- flights %>% filter(!is.na(dep_delay), !is.na(arr_delay))
    ```
    ```{r}
    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(
        avg_delay1 = mean(arr_delay),
        avg_delay2 = mean(arr_delay[arr_delay > 0]) # the average positive delay
      )
    ```

----

- Spread: `sd(x)`, `IQR(x)`, `mad(x)`.
    ```{r}
    not_cancelled %>%
      group_by(dest) %>%
      summarise(distance_sd = sd(distance)) %>%
      arrange(desc(distance_sd))
    ```

----

- Rank: `min(x)`, `quantile(x, 0.25)`, `max(x)`.
    ```{r}
    # When do the first and last flights leave each day?
    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(
        first = min(dep_time),
        last = max(dep_time)
      )
    ```

----

- Position: `first(x)`, `nth(x, 2)`, `last(x)`.
    ```{r}
    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(
        first_dep = first(dep_time),
        last_dep = last(dep_time)
      )
    ```

----

- Count: `n(x)`, `sum(!is.na(x))`, `n_distinct(x)`.
    ```{r}
    # Which destinations have the most carriers?
    not_cancelled %>%
      group_by(dest) %>%
      summarise(carriers = n_distinct(carrier)) %>%
      arrange(desc(carriers))
    ```

----

-
    ```{r}
    not_cancelled %>%
      count(dest)
    ```

----

-
    ```{r}
    not_cancelled %>%
      count(tailnum, wt = distance)
    ```

----

-
    ```{r}
    # How many flights left before 5am? (these usually indicate delayed
    # flights from the previous day)
    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(n_early = sum(dep_time < 500))
    ```

----

-
    ```{r}
    # What proportion of flights are delayed by more than an hour?
    not_cancelled %>%
      group_by(year, month, day) %>%
      summarise(hour_perc = mean(arr_delay > 60))
    ```

## Grouped mutates (and filters)

- Find the worst members of each group:
    ```{r}
    flights_sml %>%
      group_by(year, month, day) %>%
      filter(rank(desc(arr_delay)) < 10)
    ```

----

- Find all groups bigger than a threshold:
    ```{r}
    (popular_dests <- flights %>%
      group_by(dest) %>%
      filter(n() > 365))
    ```

----

- Standardise to compute per group metrics:
    ```{r}
    popular_dests %>%
      filter(arr_delay > 0) %>%
      mutate(prop_delay = arr_delay / sum(arr_delay)) %>%
      select(year:day, dest, arr_delay, prop_delay)
    ```

# Combine tables

##

nycflights13 has >1 tables:

- We already know a lot about flights:
    ```{r}
    flights
    ```

----

- airlines:
    ```{r}
    airlines
    ```

----

- airports:
    ```{r}
    airports
    ```

----

- planes:
    ```{r}
    planes
    ```

----

- Weather:
    ```{r}
    weather
    ```

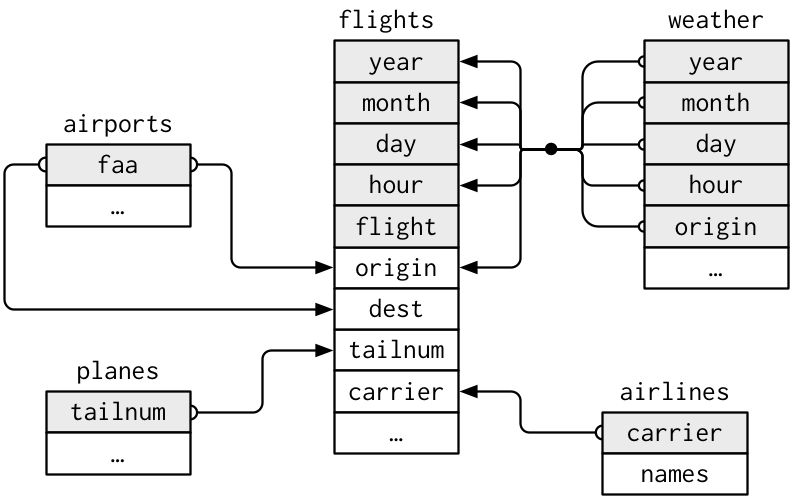

## Relational data

<p align="center">
<img src="./relational-nycflights.png" height="375">
</p>

## Keys

- A **primary key** uniquely identifies an observation in its own table.

- A **foreign key** uniquely identifies an observation in another table.

# Combine variables (columns)

## Demo tables

-
    ```{r}
    x <- tribble(
      ~key, ~val_x,
         1, "x1",
         2, "x2",
         3, "x3"
    )
    y <- tribble(
      ~key, ~val_y,
         1, "y1",
         2, "y2",
         4, "y3"
    )
    ```

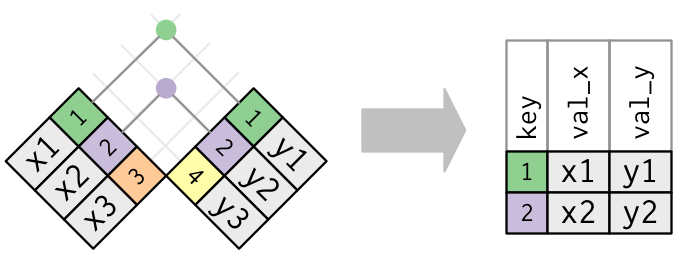

## Inner join

- An **inner join** matches pairs of observations whenever their keys are equal:

<p align="center">
<img src="./join-inner.png" height="150">
</p>

-
    ```{r}
    inner_join(x, y, by = "key")
    ```
Same as
    ```{r, eval = FALSE}
    x %>% inner_join(y, by = "key")
    ```

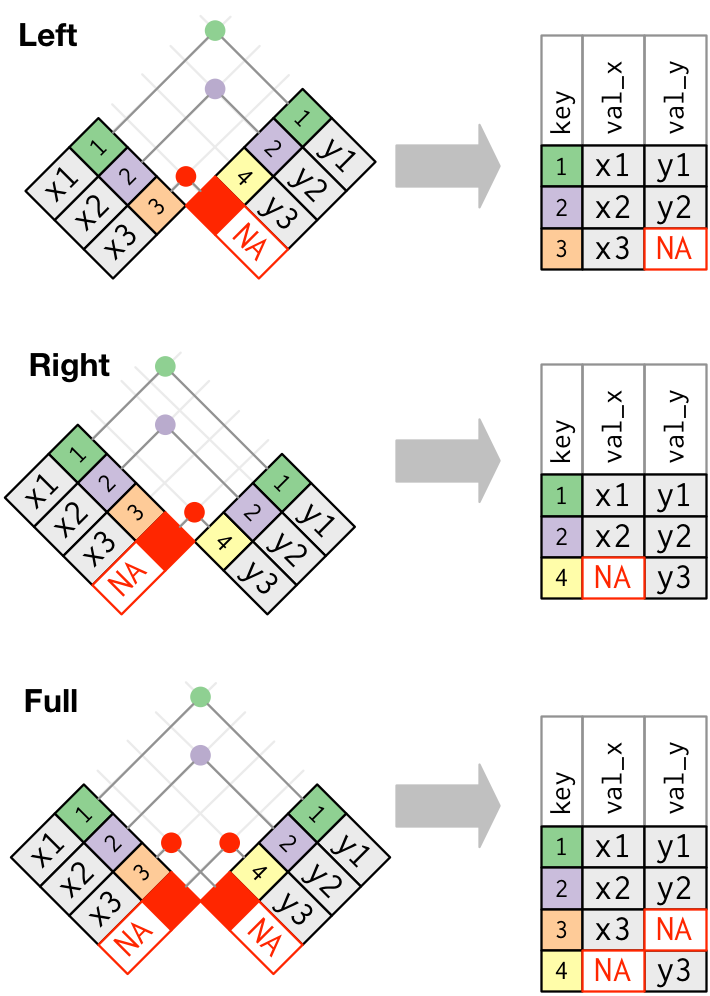

## Outer join

- An **outer join** keeps observations that appear in at least one of the tables.

- Three types of outer joins:

    - A **left join** keeps all observations in `x`.

    - A **right join** keeps all observations in `y`.

    - A **full join** keeps all observations in `x` or `y`.

    <p align="center">
    <img src="./join-outer.png" height="275">
    </p>

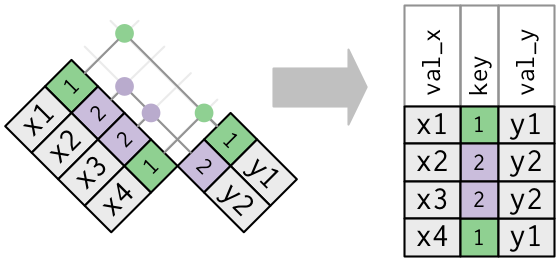

## Duplicate keys

- One table has duplicate keys.

    <p align="center">
    <img src="./join-one-to-many.png" height="200">
    </p>

----

-
    ```{r}
    x <- tribble(
      ~key, ~val_x,
         1, "x1",
         2, "x2",
         2, "x3",
         1, "x4"
    )
    y <- tribble(
      ~key, ~val_y,
         1, "y1",
         2, "y2"
    )
    left_join(x, y, by = "key")
    ```

----

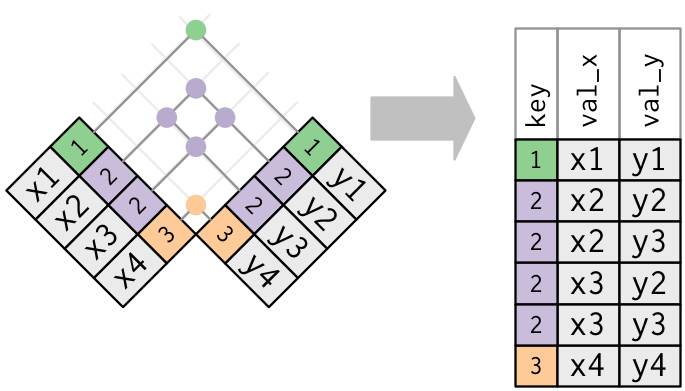

- Both tables have duplicate keys. You get all possible combinations, the Cartesian product:

    <p align="center">
    <img src="./join-many-to-many.png" height="250">
    </p>

----

-
    ```{r}
    x <- tribble(
      ~key, ~val_x,
         1, "x1",
         2, "x2",
         2, "x3",
         3, "x4"
    )
    y <- tribble(
      ~key, ~val_y,
         1, "y1",
         2, "y2",
         2, "y3",
         3, "y4"
    )
    left_join(x, y, by = "key")
    ```

----

- Let's create a narrower table from the flights data:
    ```{r}
    flights2 <- flights %>%
      select(year:day, hour, origin, dest, tailnum, carrier)
    flights2
    ```

## Defining the key columns

- `by = NULL` (default): use all variables that appear in both tables:
    ```{r}
    # same as: flights2 %>% left_join(weather)
    left_join(flights2, weather)
    ```

----

- `by = "x"`: use the common variable `x`:
    ```{r}
    # same as: flights2 %>% left_join(weather)
    left_join(flights2, planes, by = "tailnum")
    ```

----

- `by = c("a" = "b")`: match variable `a` in table `x` to the variable `b` in table `y`.
    ```{r}
    # same as: flights2 %>% left_join(weather)
    left_join(flights2, airports, by = c("dest" = "faa"))
    ```

# Combine cases (rows)

----

- Top 10 most popular destinations:
    ```{r}
    top_dest <- flights %>%
      count(dest, sort = TRUE) %>%
      head(10)
    top_dest
    ```

- How to filter the cases that fly to these destinations?

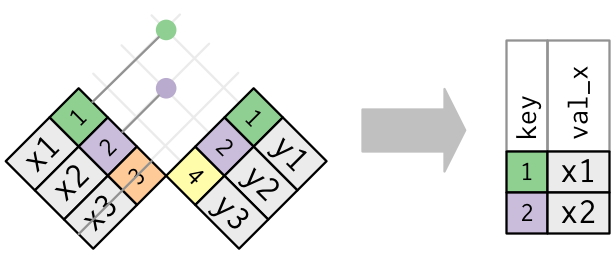

## Semi-join

- `semi_join(x, y)` keesp the rows in `x` that have a match in `y`.

    <p align="center">
    <img src="./join-semi.png" height="200">
    </p>

- Useful to see what will be joined.

----

-
    ```{r}
    semi_join(flights, top_dest)
    ```

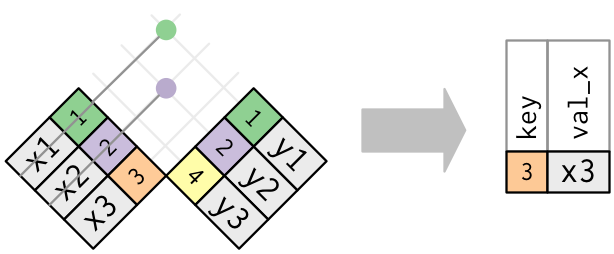

## Anti-join

- `anti_join(x, y)` keeps the rows that don’t have a match.

    <p align="center">
    <img src="./join-anti.png" height="200">
    </p>

- Useful to see what will not be joined.

----

-
    ```{r}
    flights %>%
      anti_join(planes, by = "tailnum") %>%
      count(tailnum, sort = TRUE)
    ```

## Set operations

- Generate two tables:
    ```{r}
    df1 <- tribble(
      ~x, ~y,
       1,  1,
       2,  1
    )
    df2 <- tribble(
      ~x, ~y,
       1,  1,
       1,  2
    )
    ```

----

- `bind_rows(x, y)` stacks table `x` one on top of `y`.
    ```{r}
    bind_rows(df1, df2)
    ```

- `intersect(x, y)` returns rows that appear in both `x` and `y`.
    ```{r}
    intersect(df1, df2)
    ```

----

- `union(x, y)` returns unique observations in `x` and `y`.
    ```{r}
    union(df1, df2)
    ```

----

- `setdiff(x, y)` returns rows that appear in `x` but not in `y`.
    ```{r}
    setdiff(df1, df2)
    ```
    ```{r}
    setdiff(df2, df1)
    ```
