# DBFlux Audit System

DBFlux logs all significant operations to a unified audit trail stored in SQLite. This covers query execution, connection lifecycle, hook execution, script runs, MCP governance decisions, and configuration changes.

## Storage Location

All audit events are stored in the unified database:

```
~/.local/share/dbflux/dbflux.db
```

Table: `aud_audit_events`

The same database stores all other runtime state (profiles, history, sessions). The schema is managed by the migration system in `dbflux_storage/src/migrations/`.

## Event Structure

Every audit event is an `EventRecord` (`dbflux_core/src/observability/types.rs`) with these fields:

| Field | Type | Description |
|-------|------|-------------|
| `id` | `i64` | Auto-assigned on insert |
| `ts_ms` | `i64` | Unix timestamp in milliseconds |
| `level` | `EventSeverity` | `trace`, `debug`, `info`, `warn`, `error`, `fatal` |
| `category` | `EventCategory` | Domain of the event (see below) |
| `action` | `String` | Specific action identifier (e.g., `query_execute`) |
| `outcome` | `EventOutcome` | `success`, `failure`, `cancelled`, `pending` |
| `actor_type` | `EventActorType` | Who triggered the event |
| `actor_id` | `Option<String>` | Identity of the actor (MCP client ID, hook name, etc.) |
| `source_id` | `EventSourceId` | Where the event originated |
| `connection_id` | `Option<String>` | Connection profile ID |
| `database_name` | `Option<String>` | Target database name |
| `driver_id` | `Option<String>` | Driver ID (e.g., `postgres`, `mongodb`) |
| `object_type` | `Option<String>` | Type of object affected (e.g., `table`, `collection`) |
| `object_id` | `Option<String>` | ID/name of the specific object |
| `summary` | `String` | Human-readable description |
| `details_json` | `Option<String>` | Additional structured context as a JSON object |
| `error_code` | `Option<String>` | Error code on failure |
| `error_message` | `Option<String>` | Error message on failure |
| `duration_ms` | `Option<i64>` | Execution time in milliseconds |
| `session_id` | `Option<String>` | Session correlation ID |
| `correlation_id` | `Option<String>` | Cross-component correlation ID |

### Event Categories

| Category | String | What it captures |
|----------|--------|-----------------|
| `Query` | `query` | SQL execution, MongoDB queries, scan operations |
| `Connection` | `connection` | Connect, disconnect, reconnect lifecycle |
| `Hook` | `hook` | PreConnect, PostConnect, PreDisconnect, PostDisconnect |
| `Script` | `script` | Lua, Python, Bash script execution |
| `Mcp` | `mcp` | AI client tool calls and policy decisions |
| `Governance` | `governance` | Policy evaluation outcomes |
| `Config` | `config` | Profile changes, settings modifications |
| `System` | `system` | Application startup, panics, migrations |
| `ObjectStorage` | `object_storage` | Object-storage CRUD/mutation events (upload, download, delete, presign, rename, create bucket/folder, save-back edit) |

### Actor Types

| Type | String | Meaning |
|------|--------|---------|
| `User` | `user` | Human operating the DBFlux GUI |
| `System` | `system` | Background system operation |
| `App` | `app` | Application acting autonomously |
| `McpClient` | `mcp_client` | AI agent via MCP protocol |
| `Hook` | `hook` | Lifecycle hook script |
| `Script` | `script` | User-authored script |

### Required Fields Per Category

Validation is enforced by `AuditService::validate_event()` before storage:

| Category | Required beyond `action` + `summary` |
|----------|--------------------------------------|
| `Query` | `connection_id`, `driver_id`, `duration_ms` (for execution events) |
| `Connection` | `connection_id` |
| `Hook` | `object_type`, `object_id`, `connection_id` |
| `Script` | `object_type`, `object_id` |
| `Mcp` | `actor_id`, `object_id` (tool name) |
| `Config` | `object_type`, `object_id` |
| `ObjectStorage` | `connection_id`, `object_type`, `object_id` |
| `Governance`, `System` | No additional fields |

## Privacy and Redaction

By default, `AuditService` runs with these settings:

- **`redact_sensitive = true`**: Sensitive values (passwords, tokens, connection strings) in `details_json` and `error_message` are replaced with `[REDACTED]` before storage.
- **`capture_query_text = false`**: Full query text is never stored. Instead, a SHA256 fingerprint plus the original length are stored as `[FINGERPRINT:<16-char-hex>]` with `query_length`. This prevents sensitive data in queries from leaking into the audit log.
- **`max_detail_bytes = 65536`**: Payloads larger than 64 KiB are rejected to prevent storage bloat.

These can be changed at runtime via `AuditService::set_*()` methods. The MCP server exposes some of these via governance settings.

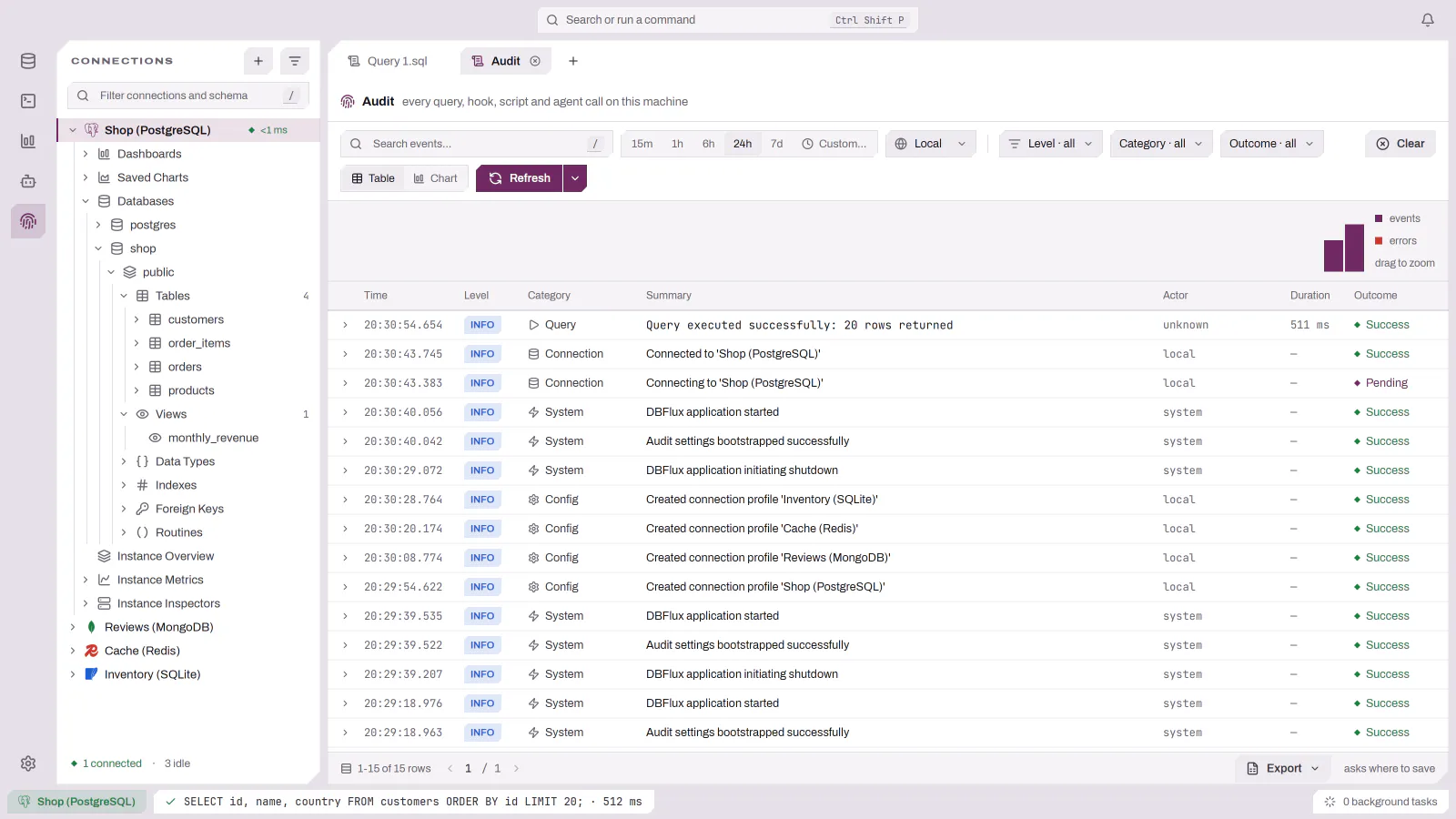

## Audit viewer

The audit viewer is the single place to review everything DBFlux logged: queries,
connections, hooks, scripts, config changes, and AI/MCP governance decisions.

<picture>
  <source media="(prefers-color-scheme: dark)" srcset="images/audit/viewer-dark.webp">
  <img src="images/audit/viewer-light.webp" alt="The audit viewer listing connection, query, configuration and startup events below its filter bar">
</picture>

### Open it

- Keyboard: **Ctrl+Shift+A** (**Cmd+Shift+A** on macOS).
- Command palette: **Open audit viewer**.

There's one audit tab; reopening focuses the existing one.

### What you see

A timeline above the list draws one bar per slice of the time range, with the
errors stacked on top of the other events. Drag across the bars to zoom the time
range to them; the custom range pickers then show the zoomed window.

Each row shows the time, a **level** badge (ERROR/WARN/INFO), the **category**,
the summary, the actor, the duration, and the **outcome**. Expand a row to see
its details (time, action, actor, connection, source, correlation id, and the
tool, classification and decision of an agent call), its error, and its
structured details. The expanded row offers **Filter by correlation**, **Copy
row as JSON**, and, for an agent call parked for approval, **Open approval**,
which opens the MCP approvals view.

Categories at a glance:

| Category | Covers |
|----------|--------|
| **Query** | Query execution and scans. |
| **Connection** | Connect / disconnect / reconnect. |
| **Hook** | Connection-hook runs. |
| **Script** | Lua / Python / Bash script runs. |
| **Mcp** | AI client tool calls. |
| **Governance** | Policy decisions. |
| **Config** | Profile and settings changes. |
| **System** | Startup, migrations, and internal log events. |
| **Object Storage** | Bucket creation and deletion, and object uploads, downloads, renames, deletions, new folders, presigned URLs, and saved edits. |

### Filter

The toolbar offers free-text **search**, the **time range** presets (the same as
dashboards, plus Custom), a **timestamp mode** (Local / UTC), and multi-select
filters for **Level** (Error/Warn/Info), **Category**, and **Outcome**
(Success/Failure/Cancelled). **Clear** resets them, and **Table / Chart**
switches between the event list and a chart of the events grouped by category,
outcome, or level. From the keyboard, activating the time presets moves to the
next one.

A row's context menu lists **Copy row as CSV**, **Copy summary**, **Copy row as
JSON**, **Filter by correlation** when the event has a correlation id, and
**Open approval** for an agent call parked for approval. Right-click a row, or
press `m` (or `Shift+F10`) on the selected one.

From the keyboard, `Ctrl+E` (`Cmd+E` on macOS) opens the export menu and
`Alt+L` / `Alt+H` switch between the table and the chart. The other viewer keys
are listed in [Keyboard shortcuts](KEYBOARD.md#audit-viewer).

### Follow an error to its audit row

When something you did fails, DBFlux shows a toast with a **View in Audit** action.
Clicking it opens the audit viewer filtered to that exact event (matched by a
correlation id shared between the toast and the audit row). The error also stays
in the notifications center under the title-bar bell, whose row has the same
**View in Audit** action. The **error badge** in the status bar opens the viewer
pre-filtered to recent user-facing failures.

### Export

The **Export** button writes the currently visible events to **CSV** or **JSON**,
using the extended schema (all fields, including structured details). A save
dialog asks where to write the file and proposes a timestamped name
(`audit_export_20260923-140507.csv`), so a second export does not replace the
first. Cancelling the dialog writes nothing. When no native file picker is
available, the file goes to `~/.local/share/dbflux/exports/` instead, as with
the other exports. A success toast reports how many events were written and
where.

### Retention

Old events can be purged on a retention schedule when configured (see
[Settings → Audit](SETTINGS.md#audit)). The audit log otherwise grows with use; it
lives in the same `dbflux.db` as everything else
([Data & Privacy](../PRIVACY.md#audit-and-privacy)).

## Viewing Audit Events

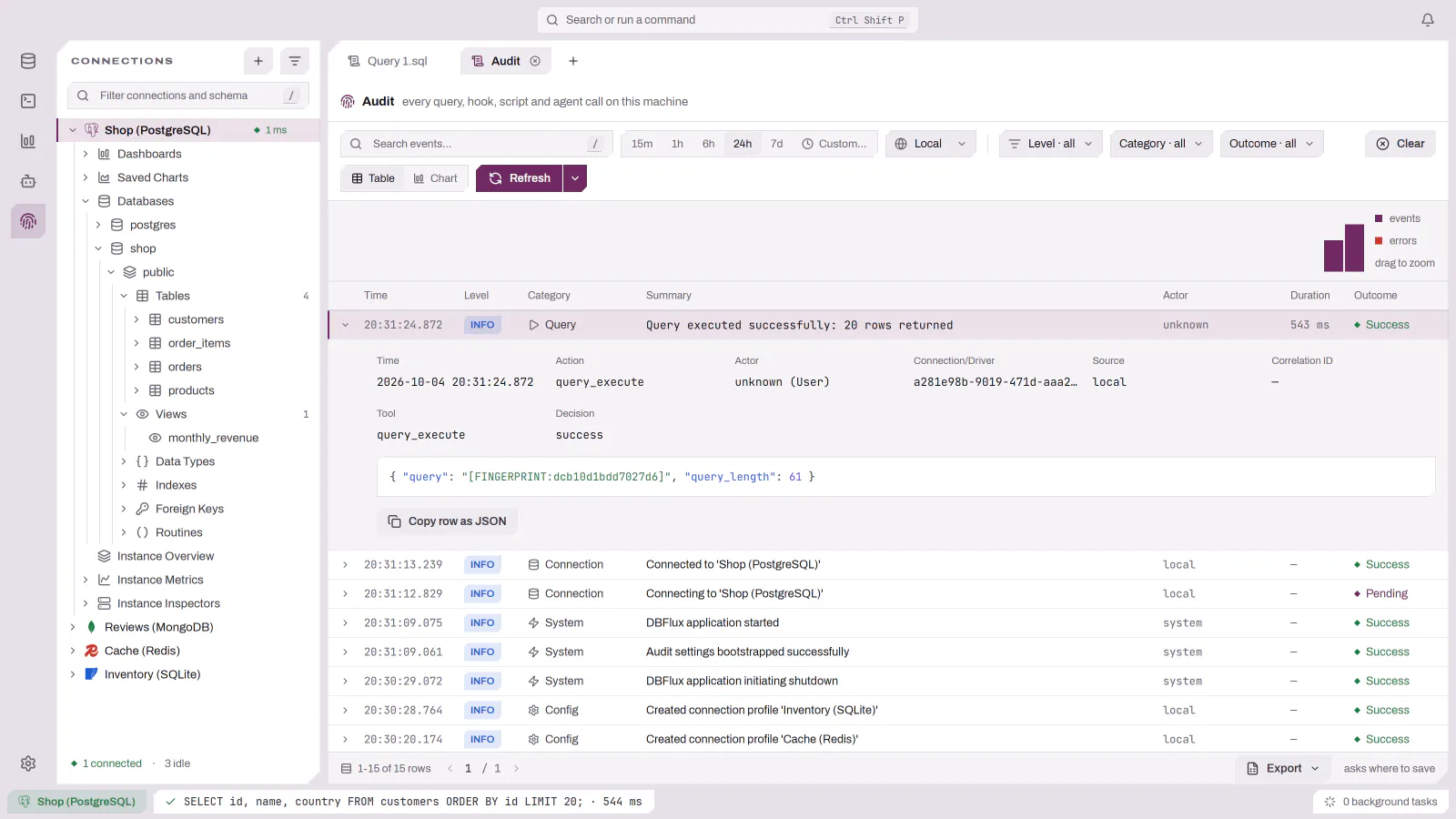

<picture>
  <source media="(prefers-color-scheme: dark)" srcset="images/audit/event-details-dark.webp">
  <img src="images/audit/event-details-light.webp" alt="An audit event expanded to show its action, actor, connection, decision and the fingerprint of the query">
</picture>

### In the DBFlux UI

The [audit viewer](#audit-viewer) above supports:

- Filtering by actor, tool/action, date range, decision, category
- Exporting filtered results to CSV or JSON

The same `AuditDocument` UI shell is also reused for driver-backed external event streams when a driver declares them through generic core abstractions (`CollectionPresentation`, `CollectionChildInfo`, `EventStreamTarget`). The UI must not special-case concrete drivers to open or render those streams.

### Directly via SQLite

The database is a standard SQLite file. Query it directly:

```bash
sqlite3 ~/.local/share/dbflux/dbflux.db
```

Useful queries:

```sql
-- All events in the last 24 hours
SELECT id, datetime(ts_ms/1000, 'unixepoch') as ts, level, category, action, outcome, actor_id, summary
FROM aud_audit_events
WHERE ts_ms > (unixepoch('now') - 86400) * 1000
ORDER BY ts_ms DESC;

-- MCP tool calls only
SELECT id, datetime(ts_ms/1000, 'unixepoch') as ts, actor_id, object_id as tool, outcome, summary
FROM aud_audit_events
WHERE category = 'mcp'
ORDER BY ts_ms DESC;

-- All failed operations
SELECT id, datetime(ts_ms/1000, 'unixepoch') as ts, category, action, actor_id, error_message
FROM aud_audit_events
WHERE outcome = 'failure'
ORDER BY ts_ms DESC
LIMIT 50;

-- Query events by connection
SELECT id, datetime(ts_ms/1000, 'unixepoch') as ts, action, driver_id, duration_ms, summary
FROM aud_audit_events
WHERE category = 'query' AND connection_id = 'your-connection-id'
ORDER BY ts_ms DESC;

-- Events grouped by category and outcome
SELECT category, outcome, count(*) as count
FROM aud_audit_events
GROUP BY category, outcome
ORDER BY category, outcome;
```

### Via MCP Tools (AI clients)

The MCP tool surface exposes three audit tools (classified as the `read` execution class):

```
query_audit_logs    — Filter events by actor, tool, date range, decision
get_audit_entry     — Retrieve a single event by ID
export_audit_logs   — Export filtered results as CSV or JSON
```

### Via Rust API

```rust
use dbflux_audit::{AuditService, AuditQueryFilter, AuditExportFormat};

let service = AuditService::new_sqlite_default()?;

// Query recent events
let filter = AuditQueryFilter {
    category: Some("mcp".to_string()),
    start_epoch_ms: Some(start_ms),
    limit: Some(100),
    ..Default::default()
};
let events = service.query(&filter)?;

// Export to CSV
let csv = service.export(&filter, AuditExportFormat::Csv)?;

// Export extended (all fields including details_json)
let json = service.export_extended(&filter, AuditExportFormat::Json)?;
```

## Generating Audit Events

### From Service Layers

Use the `EventSink` trait. All components that emit audit events accept an `Arc<dyn EventSink>`:

```rust
use dbflux_core::observability::{
    EventOrigin, EventRecord, EventSink,
    types::{EventCategory, EventSeverity, EventOutcome},
    actions,
};

// Build the event
let event = EventRecord::new(
    now_epoch_ms(),
    EventSeverity::Info,
    EventCategory::Query,
    EventOutcome::Success,
)
.with_typed_action(actions::QUERY_EXECUTE)
.with_summary("SELECT executed on users table")
.with_actor_id("my-actor-id")
.with_origin(EventOrigin::local())
.with_connection_context("my-profile-id", "mydb", "postgres")
.with_object_ref("table", "users")
.with_duration_ms(42);

// Emit through the sink (injected via constructor or DI)
event_sink.record(event)?;
```

### Canonical Action Constants

Action strings are defined in `dbflux_core/src/observability/actions.rs`. Use constants rather than bare strings:

| Constant | String | Category |
|----------|--------|----------|
| `QUERY_EXECUTE` | `query_execute` | Query |
| `QUERY_EXECUTE_FAILED` | `query_execute_failed` | Query |
| `KEY_BULK_DELETE` | `key_bulk_delete` | Query |
| `KEY_BULK_DELETE_FAILED` | `key_bulk_delete_failed` | Query |
| `CONNECTION_CONNECT` | `connection_connect` | Connection |
| `CONNECTION_DISCONNECT` | `connection_disconnect` | Connection |
| `HOOK_EXECUTE` | `hook_execute` | Hook |
| `HOOK_EXECUTE_FAILED` | `hook_execute_failed` | Hook |
| `SCRIPT_EXECUTE` | `script_execute` | Script |
| `SCRIPT_EXECUTE_FAILED` | `script_execute_failed` | Script |
| `MCP_AUTHORIZE` | `mcp_authorize` | Mcp |
| `MCP_APPROVE_EXECUTION` | `mcp_approve_execution` | Mcp |
| `MCP_REJECT_EXECUTION` | `mcp_reject_execution` | Mcp |
| `MCP_TOOL_EXECUTE` | `mcp_tool_execute` | Mcp |
| `MCP_TOOL_EXECUTE_FAILED` | `mcp_tool_execute_failed` | Mcp |
| `SCHEMA_VIZ_OPEN` | `schema_viz_open` | Config |
| `SCHEMA_VIZ_CANCEL` | `schema_viz_cancel` | Config |
| `SCHEMA_VIZ_ERROR` | `schema_viz_error` | Config |
| `SCHEMA_VIZ_LAYOUT_CHANGE` | `schema_viz_layout_change` | Config |
| `SCHEMA_VIZ_EXPORT_DBML` | `schema_viz_export_dbml` | Config |
| `SCHEMA_VIZ_EXPORT_SQL` | `schema_viz_export_sql` | Config |
| `SYSTEM_PANIC` | `system_panic` | System |

### Required Fields Checklist

Before calling `record()`, ensure:

1. `action` is set and non-empty (use a constant from `actions`)
2. `summary` is set and non-empty (human-readable, one sentence)
3. Category-specific fields are present (see table above)
4. `details_json` is a valid JSON object if provided — not an array or primitive
5. `details_json` is under 64 KiB

### Failure Events

For failures, set outcome to `EventOutcome::Failure` and populate `error_code` and `error_message`:

```rust
let event = EventRecord::new(ts_ms, EventSeverity::Error, EventCategory::Query, EventOutcome::Failure)
    .with_typed_action(actions::QUERY_EXECUTE_FAILED)
    .with_summary("Query failed: syntax error")
    .with_connection("profile-id", Some("mydb"), Some("postgres"))
    .with_error("42601", "syntax error at or near \"SELEC\"");
```

`error_message` is redacted if it contains sensitive patterns. Use `error_code` for stable machine-readable error identifiers.

## Retention and Purge

Events can be purged by retention policy:

```rust
// Delete events older than 90 days, in batches of 500
let stats = service.purge_old_events(90, 500)?;
println!("Deleted {} events in {} batches", stats.deleted_count, stats.batches);
```

The purge is batched to avoid long write transactions. It is not run automatically — add it to a scheduled background task or operator runbook.

## Tracing to Audit Bridge

The tracing bridge captures structured events emitted by `log::*!` and `tracing::*!` macros across all DBFlux crates and writes them into the same `aud_audit_events` table without requiring call-site migration.

### Event Flow

```mermaid
flowchart TD
    LOG["log::warn!(...)"] --> BRIDGE["LogTracer (tracing-log)"]
    BRIDGE --> EVENT["tracing event"]
    TRACING["tracing::info!(...)"] --> EVENT
    EVENT --> LAYER["AuditLayer::on_event"]
    LAYER -->|level gate + recursion guard| CHANNEL["bounded mpsc::sync_channel (512)"]
    CHANNEL --> DRAIN["drain thread"]
    DRAIN -->|AuditService::record| TABLE[("aud_audit_events (SQLite)")]
```

### Bridge-Allowed Category

All events captured through the bridge are assigned category `System`. This is the V1 resolution: free-form log events do not carry the structured fields (`connection_id`, `object_type`, `object_id`) that other categories require, so routing them to `Connection` or `Config` would cause `validate_event` to reject them. The `PREFIX_CATEGORY_MAP` in `dbflux_core/src/observability/tracing_bridge/category.rs` maps module prefixes to intended categories for documentation purposes, but all resolved categories coerce to `System` at runtime.

### Capture Threshold

Only events at or above the configured `log_capture_min_level` are written to the audit store. `TRACE` and `DEBUG` are hard-filtered — they are never written regardless of the configured threshold.

The threshold is stored as a `u8` ordinal in an `Arc<AtomicU8>` and updated without subscriber reinit. The mapping is:

| Severity | Ordinal |
|----------|---------|
| Trace    | 0       |
| Debug    | 1       |
| Info     | 2       |
| Warn     | 3       |
| Error    | 4       |

The default threshold is `Info` (ordinal 2).

### Setting the Threshold

In the DBFlux UI: **Settings → Audit → Log Capture → Minimum Level** dropdown. Selecting a level and pressing Save persists it to `cfg_audit_settings.log_capture_min_level` (column added by migration 014) and applies it to the bridge atomically — no restart required.

In SQLite directly:

```sql
UPDATE cfg_audit_settings SET log_capture_min_level = 'warn';
```

Valid values: `trace`, `debug`, `info`, `warn`, `error`.

### Drop Counter

When the bounded channel is full (512 events by default, configurable via `BridgeConfig::queue_capacity`), the bridge drops the incoming event rather than blocking and increments an `Arc<AtomicU64>` drop counter. This prevents the audit path from introducing backpressure into application code. The current drop count is accessible via `BridgeHandle::drop_count()` and is exposed through `AuditService::dropped_log_event_count()` for observability, but is not persisted or surfaced in the UI in V1.

### Startup Window

There is a brief gap between process start and sink installation during which events are captured into the drain channel but not yet flushed to SQLite — the sink is installed after `AppState` is constructed and the first audit settings read completes. Events in-flight during this window are held in the bounded channel and delivered once the sink is installed. If the channel fills during the startup window, events are dropped and counted.

### Recursion Guard

Events emitted from `dbflux_core::observability::tracing_bridge` are excluded from the bridge to prevent feedback loops where bridge diagnostics feed back into themselves. This is enforced by the `BRIDGE_INTERNAL_TARGET` constant checked in `AuditLayer::on_event`.

### Target Allowlist

Only events whose `target` starts with `dbflux` are mirrored to the audit store. Upstream dependencies such as `gpui`, `blade_graphics`, `naga`, `wgpu`, `hyper`, and `tokio` emit verbose `INFO`-level traces (render-loop texture and buffer lifecycle, surface present mode, HTTP request lifecycle, etc.) that would otherwise drown the audit log in operational noise without any value for after-the-fact diagnosis.

These events still flow through the fmt layer and remain visible in stderr (or the log file) per `RUST_LOG`. The gate lives in `passes_target_gate` in `layer.rs` and runs before record construction.

To audit an event from a non-`dbflux` source, wrap the emission in a dbflux module and re-emit with a dbflux target — the bridge intentionally does not let upstream targets through.

### Named Tracing Fields

The bridge recognizes these named fields on tracing events and maps them to `EventRecord` fields:

| Tracing field | `EventRecord` field |
|---------------|---------------------|
| `message` | `summary` |
| `category` | `category` (coerced to `System`) |

The fields `actor_type`, `actor_id`, `connection_id`, `database_name`, `driver_id`, `action`, `outcome`, and `details_json` are recognized as well and map to the `EventRecord` field of the same name.

Unknown fields accumulate in `details_json` as a JSON object. If the message exceeds 512 characters it is truncated with `…` and the full message is stored in `details_json["message"]`.

The bridge also maps `correlation_id` directly to `EventRecord.correlation_id` (not into `details_json`), enabling cross-component correlation between user-facing error toasts and their corresponding audit records.

### User-Facing Error Events

User-facing errors (storage failures, driver errors, network problems, config persistence failures) are reported through `report_error` / `report_error_async` from `dbflux_ui_base::user_error`. Each call emits a tracing event that flows through the bridge and also pushes a toast notification.

The tracing event shape:

| Tracing field | Value |
|---------------|-------|
| `target` | `dbflux_ui::user_error` |
| `action` | `user_error` |
| `outcome` | `failure` |
| `kind` | `ErrorKind` as string (`storage`, `network`, `auth`, `hook`, `driver`, `user`, `config`) |
| `correlation_id` | UUID v7 linking the toast to the audit record |
| `message` | The human-readable summary shown in the toast |
| `cause` | The underlying error text shown in the toast's code block. Omitted when the error has no cause; stored in `details_json` |
| `suggested_action` | The follow-up hint shown in the toast body. Omitted when unset; stored in `details_json` |

The `correlation_id` field is extracted by `AuditFieldVisitor` into `EventRecord.correlation_id`. Note that the visitor routes both `record_str` (Display sigil `%val`) and `record_debug` (Debug sigil `?val`) through the same `record_string_by_name` dispatcher, so new typed slots added in the future are picked up regardless of which sigil the caller uses.

There are two paths from the UI back into the audit document:

- **Per-toast "View in Audit" action** — emits `OpenAuditRequested(Some(correlation_id))`. The workspace opens (or focuses) the Audit document and applies the matching correlation filter so the user sees exactly the one event tied to the toast. `report_error` also records the error in the session's notifications center (`AppStateEntity::notifications`), whose row offers the same action through the same event.
- **Status-bar error badge click** — emits `OpenAuditRequested(None)`. The workspace opens the Audit document with the default user-error filter (`target = dbflux_ui::user_error` over a recent time window) so the user can browse every recent user-facing failure.

Both events flow through `AppStateEntity::request_open_audit` so the workspace subscribes once.

Severity mapping from `EventSeverity`:
- `EventSeverity::Info` and `EventSeverity::Warn` — emitted at `WARN` level; throttled (5-token bucket, 1 refill per 2 seconds, per severity)
- `EventSeverity::Error` and `EventSeverity::Fatal` — emitted at `ERROR` level; bypass throttle

### Enabling the Bridge

The bridge is enabled by building `dbflux_core` with the `tracing-bridge` feature (on by default for `dbflux`, `dbflux_mcp_server`). Call `init_tracing(BridgeConfig { .. })` once at process start:

```rust
use dbflux_core::observability::tracing_bridge::{init_tracing, BridgeConfig, FmtWriter};

let handle = init_tracing(BridgeConfig {
    include_audit_layer: true,
    fmt_writer: FmtWriter::Stderr,
    env_filter_default: "info",
    ..BridgeConfig::default()
})?;

// Later, after AuditService is ready:
handle.install_sink(Arc::new(audit_service));
```

`dbflux_driver_host` uses `include_audit_layer: false` because driver host processes are ephemeral and do not have access to the audit SQLite database.

### Key Files

| File | Role |
|------|------|
| `crates/dbflux_core/src/observability/tracing_bridge/mod.rs` | `init_tracing`, `BridgeHandle`, `BridgeConfig`, `LevelCode` |
| `crates/dbflux_core/src/observability/tracing_bridge/layer.rs` | `AuditLayer`, `AuditFieldVisitor`, level gate |
| `crates/dbflux_core/src/observability/tracing_bridge/category.rs` | `PREFIX_CATEGORY_MAP`, `resolve_category`, `BRIDGE_INTERNAL_TARGET` |
| `crates/dbflux_storage/src/migrations/mod_014_audit_settings_log_capture_min_level.rs` | Adds `log_capture_min_level` column to `cfg_audit_settings` |

## External Audit Emission (RPC drivers and auth providers)

External RPC drivers (protocol v1.2+) and auth providers (protocol v1.3+) may emit audit events back to the host as intermediate response frames. The host applies strict sanitization before writing to `aud_audit_events`.

### Host-authoritative policy

The host owns all identity, correlation, and rate-limiting fields. An external service can never forge its own identity or claim an audit category it is not permitted to use.

| Field | Source |
|-------|--------|
| `actor_type` | Always `ExternalDriver` or `ExternalAuthProvider` |
| `source_id` | Always `ExternalDriver` / `ExternalAuthProvider` with the registered `socket_id` |
| `actor_id` | Always `rpc:<socket_id>` |
| `connection_id` | Host-supplied from session context (may be `None`) |
| `database_name` | Host-supplied from session context (may be `None`) |
| `driver_id` | Always `rpc:<socket_id>` |
| `correlation_id` | Host-generated; one per session for drivers, one per request for auth providers |
| `ts_ms` | Service-supplied but clamped if drift from host wall clock exceeds five minutes |

`correlation_id` is structurally guaranteed to be host-generated because `AuditEventEmitDto` (the IPC payload type) has no `correlation_id` field. External services cannot supply one — the field was intentionally omitted from the DTO at design time (ADR-3) rather than accepted and validated away. As a result, the scenario "driver DTO carries a forged correlation_id and the host overrides it at runtime" is impossible at the type level; the stored value is always produced by the host's correlation-id allocation logic.

### Category whitelist

Drivers may emit `Connection`, `Query`, and `System` events. Auth providers may emit only `Connection` events. Any frame with a disallowed category is silently dropped.

### Rate limiting

Each external service (by `socket_id`) is limited to 100 events per 60 seconds via a token-bucket. Frames that exceed the budget are dropped and counted in `AuditService::external_audit_dropped_count()`.

### Opt-in flags

- **Drivers**: The driver must include `DriverCapability::AuditEmit` in its hello response (protocol v1.2+). Frames sent by drivers that did not advertise this capability are silently discarded.
- **Auth providers**: The provider must set `audit_emit_opt_in: true` in its hello response (protocol v1.3+). Frames from providers that did not opt in are silently discarded.

### Required fields on every emitted frame

An emitted `AuditEventEmitDto` must have non-empty `action` and `summary`. Frames failing this check are dropped silently.

### Transport mechanism

Emitted frames arrive as `done=false` intermediate frames inside a normal response sequence. The transport layer (`RpcClient` in `dbflux_driver_ipc`, `RpcAuthProvider::dispatch_request_loop` in `dbflux_ipc`) intercepts them before they reach the caller. The caller only ever sees the terminal frame.

### Key files

| File | Role |
|------|------|
| `crates/dbflux_ipc/src/audit.rs` | `AuditEventEmitDto`, `ExternalAuditEmitter` trait, `ExternalAuditSource` |
| `crates/dbflux_app/src/rpc_services/external_audit.rs` | `ExternalAuditSink`, token-bucket rate limiter, sanitization pipeline |
| `crates/dbflux_driver_ipc/src/transport.rs` | `RpcClient::send_raw` intercepts driver emit frames |
| `crates/dbflux_ipc/src/auth_provider_client.rs` | `dispatch_request_loop` intercepts auth-provider emit frames |

## Architecture

```
[Service layers]
  |  emit EventRecord via EventSink trait
  v
AuditService              (dbflux_audit/src/lib.rs)
  |  validate → fingerprint query text → redact sensitive values → enforce size limit
  v
SqliteAuditStore          (dbflux_audit/src/store/sqlite.rs)
  |  delegates to AuditRepository
  v
AuditRepository           (dbflux_storage/src/repositories/audit.rs)
  |  inserts into aud_audit_events
  v
~/.local/share/dbflux/dbflux.db
```

Key files:

| File | Role |
|------|------|
| `crates/dbflux_core/src/observability/types.rs` | `EventRecord`, all enum types |
| `crates/dbflux_core/src/observability/actions.rs` | Canonical action string constants |
| `crates/dbflux_audit/src/lib.rs` | `AuditService` — validate, preprocess, record |
| `crates/dbflux_audit/src/query.rs` | `AuditQueryFilter` |
| `crates/dbflux_audit/src/export.rs` | CSV/JSON export (basic and extended) |
| `crates/dbflux_audit/src/redaction.rs` | Sensitive value redaction logic |
| `crates/dbflux_audit/src/purge.rs` | Retention-based event purge |
| `crates/dbflux_audit/src/store/sqlite.rs` | SQLite store adapter |
| `crates/dbflux_storage/src/repositories/audit.rs` | `AuditRepository` + `AuditEventDto` |
