apatchy
An in-process fuzzing framework for Apache HTTPD
apatchy lets you fuzz Apache's full HTTP request processing pipeline - parsing, hooks, filters, handlers - without any network I/O. It replaces Apache's socket layer with custom I/O filters, feeding raw bytes directly into the same code paths that handle real HTTP traffic.
## Features
* Manage different build-trees & configurations
* Coverage reports generation
* Custom Introspection: LLVM Call-tree Analysis
* Manager for: Harness, Proto Mutators
* Triage bugs / re-play payloads
* Profiling (kcachegrind/qcachegrind) to analyze bottlenecks in your harness logic to get better perf.
* Custom toolchain to verify depndencies
* Compatability with older Apache versions
* 1day re-production system
* and more :D
## Quick Start
Recommended to run this on WSL2 and/or docker container
```bash
docker build --build-arg UID=$(id -u) -t apatchy-dev .
docker run -it --rm -p 9000:9000 -v $(pwd):/repo apatchy-dev
```
then run these commands in this order:
```bash
# 1. activate environment
cd framework/
uv venv .venv
uv pip install --python .venv -e ".[all]"
source .venv/bin/activate
# 2. init setup (one-time setup)
apatchy setup check # verify dependencies
apatchy setup --force llvm --llvm-version 18 # install LLVM tools locally
# 3. download
apatchy download --version 2.4.65
# 4. configure (vanilla root tree)
apatchy configure --asan --ubsan --ubsan-ignorelist ./configs/ubsan.ignorelist
# 5. build vanilla tree (`--bear` for IDE navigation)
apatchy make --tree vanilla --bear
# 6. build libfuzzer branch (inherits sanitizers from root)
apatchy make --tree lf
# 7. setup for protobuf
apatchy setup lpm
# 8. list avail. harnesses
apatchy link --list-harnesses
# 9. link target harness
apatchy link --harness mod_fuzzy_proto_session --bear
# 10. fuzz
apatchy fuzz \
--config configs/session-coverage.conf \
--seed-dir fuzz-seeds/session/ \
# 11. build coverage branch and generate HTML cov report
apatchy make --tree cov
apatchy coverage report \
--with-introspect \
--config configs/session-coverage.conf \
--harness mod_fuzzy_proto_session \
--suppress configs/ubsan.supp

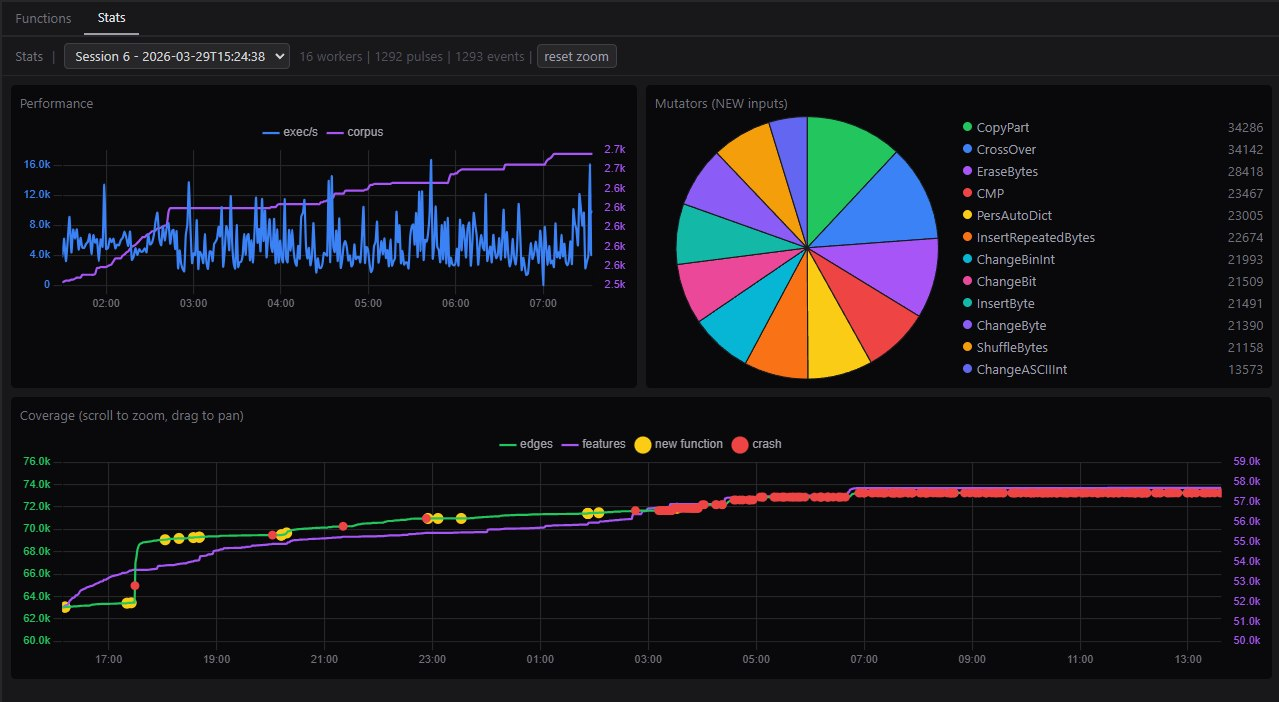

# 12. launch interactive gui w/ call-tree analysis
apatchy introspect \
--entry session_crypto_decode,session_crypto_encode,session_crypto_init
```
## Documentation
>Note: **This is still in progress**/not complete. I know the CLI needs more attention.
* The documentation is live at https://pwner.gg/apatchy/
* You can generate it locally via `apatchy docs --serve`
## License
See [LICENSE](LICENSE).
