QueryFoundry: fast, verifiable, recoverable database expansion

**Verifiable performance and durable recovery for the Kaggle *Python Database Performance Optimization* challenge.** [![License](https://img.shields.io/badge/license-Apache--2.0-38bdf8)](LICENSE) [![PostgreSQL](https://img.shields.io/badge/PostgreSQL-17-34d399)](docs/RULES.md) [![Status](https://img.shields.io/badge/status-local%20evidence%20only-fbbf24)](docs/STATUS.md) [![Official files](https://img.shields.io/badge/organizer%20files-32%2F32%20verified-a78bfa)](scripts/verify_upstream.py) [Español](README.es.md) · [Results](#results) · [How it works](#how-it-works) · [Recovery](#durable-recovery) · [Integrity](#integrity-guardrails) · [Reproduce](#reproduce) · [Limits](#honest-limits)

--- QueryFoundry is an **independent extension** of the organizer's Windows application. The official GUI, generator and fixed seed live byte-for-byte in `app/`; everything we add lives in `dbperf/`. Nothing here claims an official score or a 300-million-row capacity: every number below is a local, reproducible measurement with its scope stated. **Kaggle: Submitted, 5 October 2026.** [View the official writeup](https://www.kaggle.com/competitions/python-database-performance-optimization/writeups/queryfoundry-verifiable-jsonb-expansion-and-durab). Exact submitted source: `32c283f32fe35e9b5bd0e538bd6631f305863fb3`. [Verified receipt](reports/kaggle-submission.json). Source ZIP, PDF report and SHA-256 manifest are attached and their public downloads verified. No official score or rank has been assigned. ## Release evidence - 5 October 2026 [Consolidated report](docs/WRITEUP.md) and [reproduction guide](docs/REPRODUCIBILITY.md). Final 100k, three-round GUI/SSH/Linux medians: original **16.046 s**, payload_once with recovery **15.447 s**, experimental lazy_keys **12.792 s**; all nine runs passed six-table equivalence. These are local exploratory observations. Figures and animated charts below describe earlier historical series. Payload_once remains the primary profile. Independent planner tests exposed two unresolved multi-error SQLSTATE differences in lazy_keys; it remains opt-in. Actual SSH recovery passed at three transaction boundaries. The formal Kaggle receipt records submitted state and exact code separately; no official score or rank is claimed. ## How it works One expansion writes six destination tables in one transaction, then registers six versions

One expansion writes six destination tables in one transaction, then registers six versions

The unchanged GUI worker validates the source, expands `raw_data` into the six destinations (`table3, table4, table1, table5, table6, table2`) inside **one** `REPEATABLE READ` transaction and registers six versions in the control database. ### `payload_once`: reuse the values object per row The original recipe re-reads the JSON for every field; payload_once reads it once

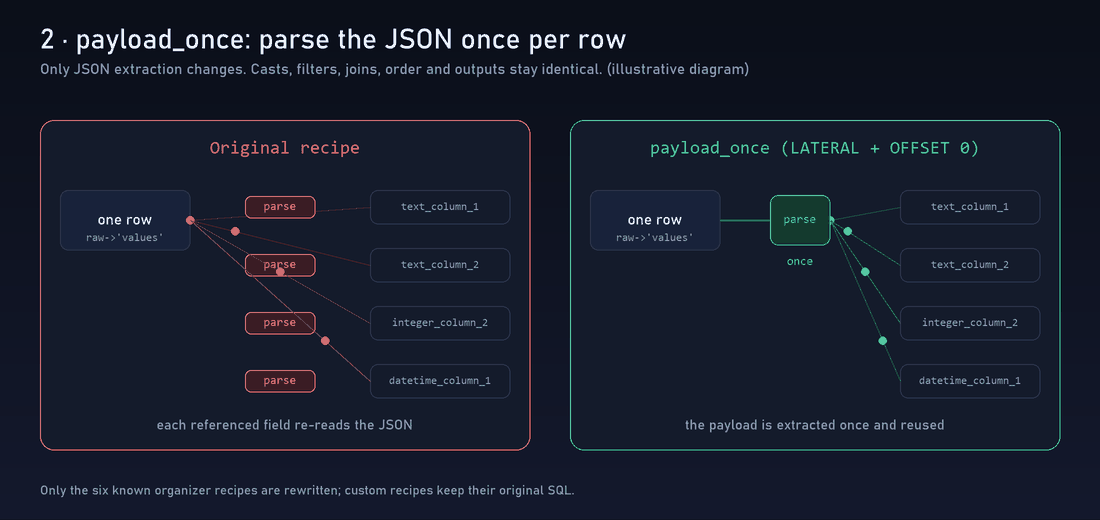

The original recipe re-reads the JSON for every field; payload_once reads it once

Only JSON extraction is rewritten (`LATERAL` with an `OFFSET 0` barrier). Casts, filters, joins, ordering and outputs are unchanged, and only the six known organizer recipes are touched; custom recipes keep their original SQL. See [`dbperf/recipes.py`](dbperf/recipes.py). ## Results Measured medians for the original and payload_once variants, with individual runs

Measured medians for the original and payload_once variants, with individual runs

| Series (100,000 official rows, 3 alternating repeats, full Windows GUI path) | Original | `payload_once` | Change | |---|---:|---:|---:| | Without receipts | 14.245 s | 13.239 s | −7.1 % | | Durable series¹ | 13.868 s | 12.911 s | −6.9 % | ¹ In the durable series only the candidate runs with receipts; the original does not (`scripts/benchmark_gui.py`). The ranges of the three runs overlap, so treat the gain as indicative, not established. Peak container working set ≈ 633–643 MiB. Peak temporary disk is **not yet measured**. Metric: `MEASURED PROCESSING TOTAL`. Reports: [`reports/`](reports). The subsequent **1,000,000-row capacity pilot** completed with equivalent six-table outputs: original155.491s, candidate145.662s (one pair, exploratory). Sampled working set1.863/1.926GiB under a2GiB limit. It measured the count-guard revision `bfb2b44`; this pilot predates content-fingerprint changes. See [`docs/RESEARCH-LOG.md`](docs/RESEARCH-LOG.md) and [`reports/scale-1000000/`](reports/scale-1000000/). The strengthened recovery revision `c0c7e27` has a separate **100,000-row** full-GUI benchmark: original **15.875 s** without recovery, candidate **15.094 s** with content/schema checks and receipts, three alternating repeats (**−4.92%** locally). Ranges overlap (15.375–16.698 s versus 14.925–15.837 s); this is exploratory. All six outputs match in every run. Sampled working set: 797.223/790.141 MiB. Reports: [`reports/research-fingerprint-100k/durable-gui/`](reports/research-fingerprint-100k/durable-gui/). Do not infer recovery overhead by comparing separate historical series. ### Current research candidate: `lazy_keys` Claude proposed deferred field extraction for `table2`. Codex reproduced 800 invalid-input differential cases on Linux plus 150 `payload_once` control cases; output checksums and exact error messages matched the original. A rejected rewrite was detected by the same harness. Qualification order remains planner-dependent; this is evidence for tested cases, not every possible execution plan. At 100,000 official rows, three balanced full-GUI rounds at `3c62b85` gave: | Variant | Median total | Median table2 insertion | |---|---:|---:| | Original, without recovery | 15.588 s | 6.741 s | | `payload_once`, with strengthened recovery | 15.567 s | 5.734 s | | `lazy_keys`, with strengthened recovery | 12.342 s | 3.423 s | `lazy_keys` reduced measured time locally by 20.82% versus the original and 20.72% versus `payload_once`. Six-table equivalence passed every run. All runs are retained, including the first original total of 25.973 s. No significance or official score is established. The old `payload_once` gain was not reproduced in this three-way series. Default remains `payload_once`; opt in with `python launch.py --recipe-mode lazy_keys --recovery`. Reports: [`reports/research-lazy-100k/durable-gui/`](reports/research-lazy-100k/durable-gui/). The subsequent 1,000,000-row pilot of the same runtime completed one run per variant: original 164.109 s / payload 152.427 s / lazy 126.772 s, all six outputs equivalent. Lazy reduced time locally by 22.75% versus original and 16.83% versus payload. Sampled working set 1.779/1.763/1.826 GiB respectively, under 2 GiB; n=1 is exploratory. Eight known malformed-input counterexamples also matched at this table scale. Reports: [`reports/research-lazy-1m/`](reports/research-lazy-1m/). JEV recommends retaining lazy as an opt-in research candidate pending independent recovery/planner replication. It is not an official score or 300M capacity claim. ## Durable recovery Effects and receipt commit together; a retry with the same job UUID replays the stored result

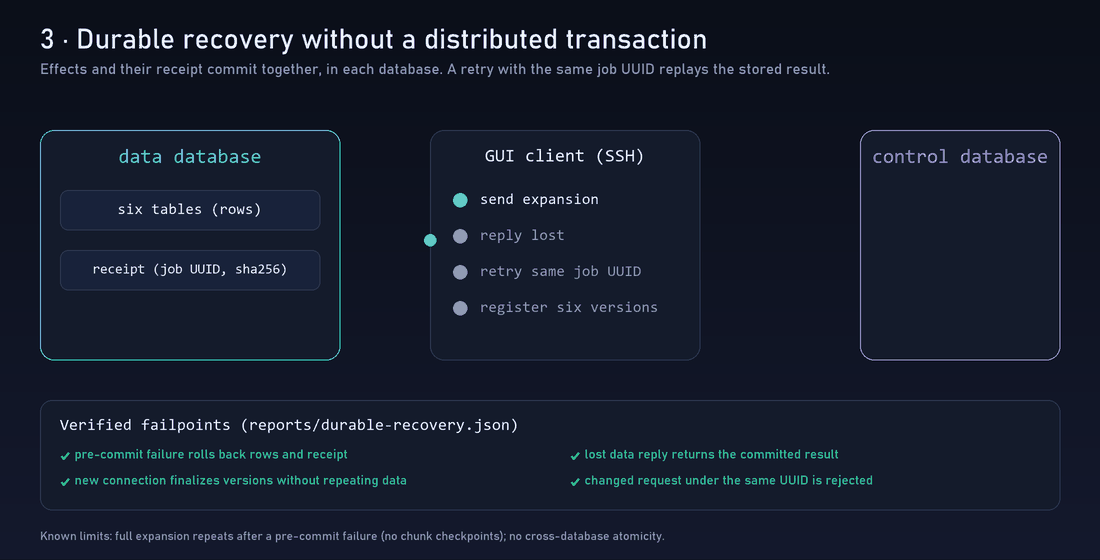

Effects and receipt commit together; a retry with the same job UUID replays the stored result

`--recovery` stores a durable receipt in the same transaction as the effects, in each database. A retry with the same job UUID returns the stored result instead of repeating work; a changed request under the same UUID is rejected. There is no distributed transaction: a restart between the two commits resumes version registration from the data receipt. Details and verified failpoints: [`docs/RECOVERY.md`](docs/RECOVERY.md), [`reports/durable-recovery.json`](reports/durable-recovery.json). ## Integrity guardrails 32 organizer files verified by SHA-256 and six-table equivalence checked with EXCEPT ALL

32 organizer files verified by SHA-256 and six-table equivalence checked with EXCEPT ALL

```bash python scripts/verify_upstream.py # 32 organizer files unchanged (SHA-256) ``` Outputs are compared with a bidirectional `EXCEPT ALL` against a reference, normalising surrogate identities and preserving relations. Source/destination guards, row counters, manifests and version records are preserved. ## Reproduce ```bash pip install -r requirements-lock.txt python scripts/verify_upstream.py python launch.py # measured recipes python launch.py --recovery # + durable receipts python launch.py --baseline # original recipes python scripts/build_assets.py # regenerate the animations in docs/assets ``` Lab setup (Docker, WSL, SSH) is described in [`docs/DOCKER-REPAIR.md`](docs/DOCKER-REPAIR.md); rules in [`docs/RULES.md`](docs/RULES.md); reuse in [`docs/REUSE.md`](docs/REUSE.md). ## Honest limits - No official score, no accepted submission, and no demonstrated capacity at 300 million rows. - A pre-commit failure repeats the full expansion: there are no chunk checkpoints yet. - Research receipts now check counts and typed row-hash sums before replay; tested deletions and same-count alterations are rejected. These are noncryptographic, version/locale-bound checksums; legacy receipts need independent validation. - Concurrency, server restart and dump/restore checks are recent, single-lab results (see `reports/research-consistency*.json`); they are not independent replications. - An early-filter position rewrite was rejected for changing malformed-input errors. Negative results are preserved in `experiments/` and `reports/sparse-semantics.json`. - Source manifests compare stored `raw_hash` metadata, not a recalculated JSON checksum. A clone-only race probe detected hash changes but accepted JSON edits preserving stored hashes. Such mutated fixtures are excluded from benchmarks. ## License Apache-2.0. Includes byte-preserving organizer sources from `igorsiecz/kaggle_postgre_challenge` (commit `5dfde9d`); original notices are kept in `app/` and [`NOTICE`](NOTICE).
