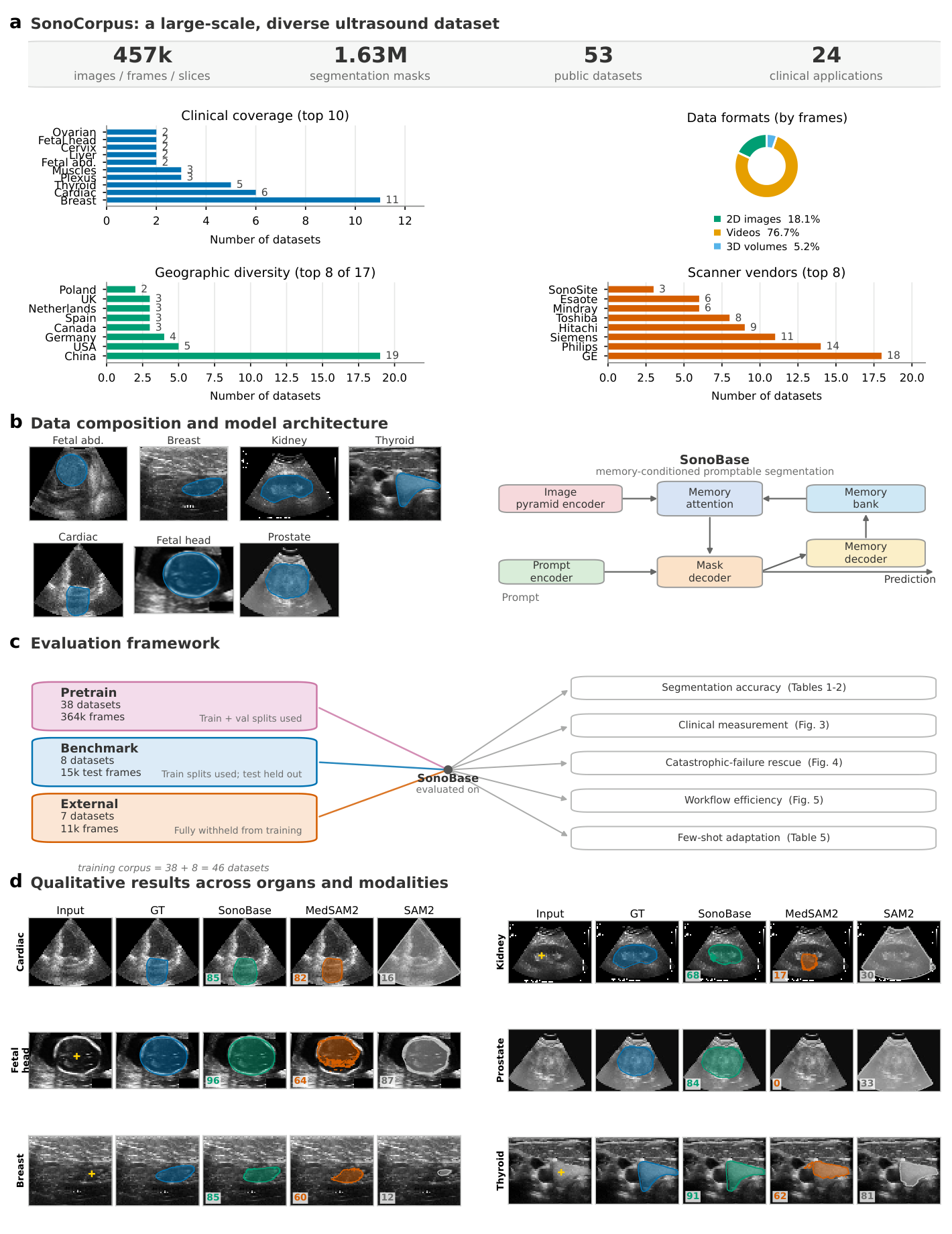

# SonoBase ### Open ultrasound foundation model for robust segmentation and clinical measurement across heterogeneous settings [![Paper](https://img.shields.io/badge/arXiv-2609.19230-b31b1b.svg)](https://arxiv.org/abs/2609.19230) [![Weights](https://img.shields.io/badge/%F0%9F%A4%97%20Hugging%20Face-SonoBase%20weights-yellow)](https://huggingface.co/AlfredQin/sonobase) [![Data](https://img.shields.io/badge/Zenodo-SonoCorpus%20manifest%2010.5281%2Fzenodo.22770825-1682D4)](https://doi.org/10.5281/zenodo.22770825) [![Demo](https://img.shields.io/badge/%F0%9F%A4%97%20Space-interactive%20demo-blue)](https://huggingface.co/spaces/AlfredQin/sonobase-demo) [![Website](https://img.shields.io/badge/Project-website-2ea44f)](https://alfredqin.github.io/sonobase-web/) [![License: MIT](https://img.shields.io/badge/Code%20license-MIT-green)](LICENSE) [![Weights: CC BY-NC 4.0](https://img.shields.io/badge/Weights-CC%20BY--NC%204.0-blue)](https://huggingface.co/AlfredQin/sonobase) SonoCorpus and SonoBase overview
**SonoBase** is an interactive segmentation foundation model for ultrasound. It adapts SAM2 with an image-pyramid hybrid encoder and is pretrained on **SonoCorpus**, the largest open ultrasound segmentation resource assembled to date: **53 public datasets, 456,963 images and frames, 1,626,085 expert masks, 24 clinical applications, 17 countries**. Across fifteen evaluation datasets that introduce new organs, devices, operators and geographies, SonoBase outperforms SAM2, SAM3, MedSAM2 and other baselines on every dataset, and clinical measurements derived from its segmentations (ejection fraction, fetal head circumference, gestational age) fall within inter-observer variability. ## Highlights - **SonoCorpus**: 53 public datasets unified into one SA-1B-style format with hand-curated acquisition metadata (vendor, site and country, operator context, image quality) and leak-free splits: 38 pretraining, 8 benchmark and 7 fully held-out external datasets. - **Image-pyramid hybrid encoder**: a Hiera-B transformer branch for global context at low resolution and two ConvNeXt branches for fine anatomical detail at higher resolutions, joined by cross-branch attention at every stage; the SAM2 prompt encoder, mask decoder and memory remain, so points, boxes and prompt-once video/volume propagation work out of the box. - **Four-axis evaluation**: cross-modality generalization (2D, video, 3D), robustness to distribution shift (geography, device, operator, quality), clinical measurement validity, and breadth (failure resolution, interaction burden, dense-prediction transfer, cross-species transfer, subgroup fairness, few-shot adaptation). - **Everything released**: checkpoints and optimizer states, data-split indices, deduplication hashes, the licence audit of every constituent dataset, and starter code for fine-tuning. ## Release artifacts | Artifact | Where | Notes | |---|---|---| | Paper | https://arxiv.org/abs/2609.19230 | preprint (arXiv:2609.19230), main text and supplementary information | | Code (this repository) | https://github.com/AlfredQin/sonobase | training, evaluation, few-shot, analysis and figure scripts | | Pretrained weights + optimizer states | https://huggingface.co/AlfredQin/sonobase | `sonobase_hiera_b_conv_s_conv_t.pt` (706 MB) and the full distributed checkpoint (2.1 GB) | | SonoCorpus manifest: dataset sources and licences, split lists, per-file checksums, per-unit metadata, evaluation records | https://doi.org/10.5281/zenodo.22770825 | manifest only (CC BY 4.0); no images or masks are re-hosted, datasets are obtained from their sources under their own terms; `tools/verify_manifest.py` checks a local copy against it | | Interactive demo | https://huggingface.co/spaces/AlfredQin/sonobase-demo | Hugging Face Space (ZeroGPU): point / box prompts on images, prompt-once propagation on clips | | Project website | https://alfredqin.github.io/sonobase-web/ | figures, results, dataset inventory and licence table | ## Installation ```bash git clone https://github.com/AlfredQin/sonobase.git cd sonobase/src/setup && bash setup-uv-env.sh # creates .venv from pyproject.toml + uv.lock # on a Slurm cluster with a container image: bash project-setup.sh cluster (see container.env) cd .. && export PYTHONPATH=$PWD:$PYTHONPATH # nemo_cv is imported from src/ ``` Set the asset locations once (defaults are read by every script through `${VAR:?}`): ```bash export DATASET_DIR=/path/to/SonoCorpus # converted datasets, one folder per dataset export ANNOTATION_DIR=/path/to/38_pt_8_bm_7_ext_v2 # split manifests from the Zenodo record export CHECKPOINT_DIR=/path/to/checkpoints # SAM2 base weights + SonoBase .pt ``` ## Quick start **Segment with SonoBase (image, point or box prompt)** ```python import torch, hydra from omegaconf import OmegaConf from nemo_cv.components.models.sam2.sam2_image_predictor import SAM2ImagePredictor cfg = OmegaConf.load("configs/analysis/model/sam2.yaml") # composes the TriBranch encoder model = hydra.utils.instantiate(cfg, _recursive_=True, _convert_="all").cuda().eval() sd = torch.load("sonobase_hiera_b_conv_s_conv_t.pt", map_location="cpu", weights_only=True)["model"] model.load_state_dict(sd, strict=False) pred = SAM2ImagePredictor(model) pred.set_image(image_rgb_uint8) # H x W x 3 masks, scores, _ = pred.predict(point_coords=[[x, y]], point_labels=[1], multimask_output=False) ``` **Reproduce the paper** | Phase | Entry point | Doc | |---|---|---| | Pretraining on SonoCorpus | `scripts/pretrain/pretrain_sonobase_on_sonocorpus.sh` | `scripts/pretrain/README.md` | | Per-dataset test | `scripts/pretrain/test_*.sh` | `scripts/pretrain/README.md` | | 15-dataset benchmark vs SAM2 / MedSAM2 | `scripts/benchmarks/test_sam2/` | `scripts/benchmarks/test_sam2/README.md` | | Clinical validation, subgroups, few-shot | `scripts/analysis/`, `scripts/few_shot/` | `scripts/analysis/README.md`, `scripts/few_shot/README.md` | | Detection / instance transfer | `scripts/us_rfdetr/` | `nemo_cv/recipes/us_rfdetr/` | | Paper figures | `scripts/analysis/make_paper_figures.py` | `scripts/analysis/README.md` | Per-sample evaluation records behind the reported numbers are part of the SonoCorpus manifest on Zenodo (`evaluation_records/`). ## SonoCorpus | Tier | Datasets | Role | |---|---|---| | Pretrain | 38 | train + val splits used for pretraining | | Benchmark | 8 | train splits used; test splits held out | | External | 7 | fully withheld from training | SonoCorpus itself is not redistributed. The Zenodo manifest (`sonocorpus_datasets.csv`) lists, for all 53 datasets, the source, the access conditions and licence as stated by the source, and per-file checksums. The converters in `src/data/us_datasets/` rebuild the SonoCorpus copy from the original downloads, and `tools/verify_manifest.py` checks the result against the manifest. How duplicates were removed and the leak-free splits generated is described in [docs/DATA_SPLITS.md](docs/DATA_SPLITS.md). ## Citation ```bibtex @article{sonobase2026, title = {Open ultrasound foundation model for robust segmentation and clinical measurement across heterogeneous settings}, author = {Qin, Chao and Khan, Fahad Shahbaz and Khan, Salman and Ather, Sarim and Anwar, Siddiq and Anwer, Rao Muhammad and Khan, Shadab}, journal = {arXiv preprint arXiv:2609.19230}, year = {2026}, eprint = {2609.19230}, archivePrefix = {arXiv}, primaryClass = {cs.CV}, doi = {10.48550/arXiv.2609.19230} } ``` Please also cite the original publication of every SonoCorpus dataset you use; the list is in the Zenodo record and in Supplementary Table S1 of the paper. ## Licence and disclaimer Code in this repository is released under the [MIT License](LICENSE). The SonoBase model weights and optimizer states on Hugging Face are released under CC BY-NC 4.0 (non-commercial), because several constituent datasets of SonoCorpus are non-commercial. The SonoCorpus manifest on Zenodo is CC BY 4.0; the constituent datasets keep the licences of their sources. SonoBase is a research tool and not a medical device. ## Acknowledgements Built on [SAM2](https://github.com/facebookresearch/sam2), [Hiera](https://github.com/facebookresearch/hiera), [ConvNeXt / DINOv3](https://github.com/facebookresearch/dinov3) and [NeMo AutoModel](https://github.com/NVIDIA/NeMo). We thank the authors of the 53 public datasets that make SonoCorpus possible.
