"# Post processing and visualization\n",
"\n",
"\n",
"\n",
"*Figure 1*: Heat flux computed from the solution to the heat equation on\n",
"the unit square, see previous example: Heat equation."
],
"metadata": {}
},
{
"cell_type": "markdown",
"source": [
"## Introduction\n",
"\n",
"After running a simulation, we usually want to postprocess and visualize the results in\n",
"different ways. Ferrite provides several tools to facilitate these tasks:\n",
"\n",
" - L2 projection of (discrete) data onto FE interpolations using the `L2Projector`\n",
" - Evalutation of fields (solutions, projections, etc) at arbitrary, user-defined, points\n",
" using the `PointEvalHandler`\n",
" - Builtin functionality for exporting data (solutions, cell data, projections, etc) to\n",
" the VTK format\n",
" - [Makie.jl](https://docs.makie.org/) based plotting using\n",
" [FerriteViz.jl](https://ferrite-fem.github.io/FerriteViz.jl/)\n",
"\n",
"This how-to demonstrates the VTK export, the `L2Projector` for projecting discrete\n",
"quadrature point data onto a continuous FE interpolation, and the `PointEvalHandler` for\n",
"evaluating the FE solution, and the projection, along a user-defined cut line through the\n",
"domain."
],
"metadata": {}
},
{
"cell_type": "markdown",
"source": [
"> **Custom visualization**\n",
">\n",
"> A common assumption is that the numbering of degrees of freedom matche the numbering\n",
"> of the nodes in the grid. This is *NOT* the case in Ferrite. If the available tools\n",
"> don't suit your needs and you decide to \"roll your own\" visualization you need to be\n",
"> aware of this and take it into account. For the specific case of evaluating the\n",
"> solution at the grid nodes you can use `evaluate_at_grid_nodes`.\n",
"\n",
"This example continues from the Heat equation example, where the temperature field was\n",
"determined on a square domain. In this example, we first compute the heat flux in each\n",
"integration point (based on the solved temperature field) and then we do an L2-projection\n",
"of the fluxes to the nodes of the mesh. By doing this, we can more easily visualize\n",
"integration points quantities. Finally, we visualize the temperature field and the heat fluxes along a cut-line.\n",
"\n",
"The L2-projection is defined as follows: Find projection $q(\\boldsymbol{x}) \\in U_h(\\Omega)$ such that\n",
"$$\n",
"\\int v q \\ \\mathrm{d}\\Omega = \\int v d \\ \\mathrm{d}\\Omega \\quad \\forall v \\in U_h(\\Omega),\n",
"$$\n",
"where $d$ is the quadrature data to project. Since the flux is a vector the projection function\n",
"will be solved with multiple right hand sides, e.g. with $d = q_x$ and $d = q_y$ for this 2D problem.\n",
"In this example, we use standard Lagrange interpolations, and the finite element space $U_h$ is then\n",
"a subset of the $H^1$ space (continuous functions).\n",
"\n",
"Ferrite has functionality for doing much of this automatically, as displayed in the code below.\n",
"In particular `L2Projector` for assembling the left hand side, and\n",
"`project` for assembling the right hand sides and solving for the projection."
],
"metadata": {}
},
{
"cell_type": "markdown",
"source": [
"## Implementation\n",
"\n",
"Start by simply running the Heat equation example to solve the problem"
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"include(\"../tutorials/heat_equation.jl\");"
],
"metadata": {},
"execution_count": 1
},
{
"cell_type": "markdown",
"source": [
"Next we define a function that computes the heat flux for each integration point in the domain.\n",
"Fourier's law is adopted, where the conductivity tensor is assumed to be isotropic with unit\n",
"conductivity $\\lambda = 1 ⇒ q = - \\nabla u$, where $u$ is the temperature."
],
"metadata": {}
},
{
"outputs": [
{
"output_type": "execute_result",
"data": {
"text/plain": "compute_heat_fluxes (generic function with 1 method)"
},
"metadata": {},
"execution_count": 2
}
],
"cell_type": "code",
"source": [
"function compute_heat_fluxes(cellvalues::CellValues, dh::DofHandler, a::AbstractVector{T}) where {T}\n",
"\n",
" n = getnbasefunctions(cellvalues)\n",
" cell_dofs = zeros(Int, n)\n",
" nqp = getnquadpoints(cellvalues)\n",
"\n",
" # Allocate storage for the fluxes to store\n",
" q = [Vec{2, T}[] for _ in 1:getncells(dh.grid)]\n",
"\n",
" for (cell_num, cell) in enumerate(CellIterator(dh))\n",
" q_cell = q[cell_num]\n",
" celldofs!(cell_dofs, dh, cell_num)\n",
" aᵉ = a[cell_dofs]\n",
" reinit!(cellvalues, cell)\n",
"\n",
" for q_point in 1:nqp\n",
" q_qp = - function_gradient(cellvalues, q_point, aᵉ)\n",
" push!(q_cell, q_qp)\n",
" end\n",
" end\n",
" return q\n",
"end"
],
"metadata": {},
"execution_count": 2
},
{
"cell_type": "markdown",
"source": [
"Now call the function to get all the fluxes."
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"q_gp = compute_heat_fluxes(cellvalues, dh, u);"
],
"metadata": {},
"execution_count": 3
},
{
"cell_type": "markdown",
"source": [
"Next, create an `L2Projector` using the same interpolation as was used to approximate the\n",
"temperature field. On instantiation, the projector assembles the coefficient matrix `M` and\n",
"computes the Cholesky factorization of it. By doing so, the projector can be reused without\n",
"having to invert `M` every time."
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"projector = L2Projector(ip, grid);"
],
"metadata": {},
"execution_count": 4
},
{
"cell_type": "markdown",
"source": [
"Project the integration point values to the nodal values"
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"q_projected = project(projector, q_gp, qr);"
],
"metadata": {},
"execution_count": 5
},
{
"cell_type": "markdown",
"source": [
"## Exporting to VTK\n",
"To visualize the heat flux, we export the projected field `q_projected`\n",
"to a VTK-file, which can be viewed in e.g. [ParaView](https://www.paraview.org/).\n",
"The result is also visualized in *Figure 1*."
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"VTKGridFile(\"heat_equation_flux\", grid) do vtk\n",
" write_projection(vtk, projector, q_projected, \"q\")\n",
"end;"
],
"metadata": {},
"execution_count": 6
},
{
"cell_type": "markdown",
"source": [
"## Point evaluation\n",
"\n",
"\n",

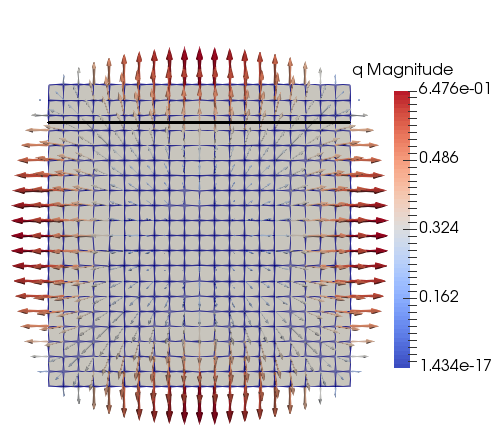

"*Figure 2*: Visualization of the cut line where we want to compute\n",
"the temperature and heat flux."
],
"metadata": {}
},
{
"cell_type": "markdown",
"source": [
"Consider a cut-line through the domain like the black line in *Figure 2* above.\n",
"We will evaluate the temperature and the heat flux distribution along a horizontal line."
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"points = [Vec((x, 0.75)) for x in range(-1.0, 1.0, length = 101)];"
],
"metadata": {},
"execution_count": 7
},
{
"cell_type": "markdown",
"source": [
"First, we need to generate a `PointEvalHandler`. This will find and store the cells\n",
"containing the input points."
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"ph = PointEvalHandler(grid, points);"
],
"metadata": {},
"execution_count": 8
},
{
"cell_type": "markdown",
"source": [
"After the L2-Projection, the heat fluxes `q_projected` are stored in the DoF-ordering\n",
"determined by the projector's internal DoFHandler, so to evaluate the flux `q` at our points\n",
"we give the `PointEvalHandler`, the `L2Projector` and the values `q_projected`."
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"q_points = evaluate_at_points(ph, projector, q_projected);"
],
"metadata": {},
"execution_count": 9
},
{
"cell_type": "markdown",
"source": [
"We can also extract the field values, here the temperature, right away from the result\n",
"vector of the simulation, that is stored in `u`. These values are stored in the order of\n",
"our initial DofHandler so the input is not the `PointEvalHandler`, the original `DofHandler`,\n",
"the dof-vector `u`, and (optionally for single-field problems) the name of the field.\n",
"From the `L2Projection`, the values are stored in the order of the degrees of freedom."
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"u_points = evaluate_at_points(ph, dh, u, :u);"
],
"metadata": {},
"execution_count": 10
},
{
"cell_type": "markdown",
"source": [
"Now, we can plot the temperature and flux values with the help of any plotting library, e.g. Plots.jl.\n",
"To do this, we need to import the package:"
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"import Plots"
],
"metadata": {},
"execution_count": 11
},
{
"cell_type": "markdown",
"source": [
"Firstly, we are going to plot the temperature values along the given line."
],
"metadata": {}
},
{
"outputs": [
{
"output_type": "execute_result",
"data": {
"text/plain": "Plot{Plots.GRBackend() n=1}",
