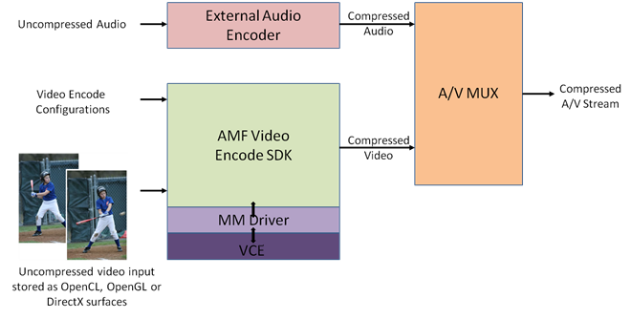

Figure 1 — System overview of the AMF Video Encode SDK The AMF Video Encoder Component compresses RAW uncompressed video to an HEVC elementary bitstream. The component does not provide a mechanism to handle audio compression, or stream multiplexing. The component provides four different sets of pre-defined usages, which provide a convenient way for developers to configure the encoder to match the intended application use case. Advanced developers can also adjust encoding parameters to tailor the behavior to their specific application requirements. HEVC encoding is currently supported on Windows only. ### 1.2 Pre-defined Encoder Usages The following table provides a brief overview of the encoding usage modes that have been defined: | Usage Mode | Intended use-cases | Comments | | :---------------- | :---------------------------------- | :------------------------------------------------------------------------------------------------------------------------------- | | Transcoding | Transcoding, video editing | Favor compression efficiency and throughput over latency. | | Ultra-low latency | Video game streaming | Optimize for extremely low latency use cases (e.g. cap the number of bits per frame), to enable high-interactivity applications. | | Low Latency | Video collaboration, remote desktop | Optimize for low latency scenarios, but allow occasional bitrate overshoots to preserve quality. | | Webcam | Video conferencing | Optimize for a low-latency video conferencing scenario. | | HQ | High quality mode | Optimize for best subjective video quality with possible loss of performance. | | HQLL | High quality low latency mode | Optimize for good quality with low latency. |
Table 1. Encoding usage modes
## 2 AMF Video Encoder UVD/VCN-HEVC Component The AMF Video Encoder HEVC component provides hardware accelerated HEVC encoding using AMD’s IP. To instantiate the AMF Video Encoder component, call the `AMFFactory::CreateComponent` method passing `AMFVideoEncoderHW_HEVC` component IDs defined in the `/include/components/VideoEncoderHEVC.h` header. ### 2.1 Input Submission and Output Retrieval The AMF Video Encoder component accepts `AMFSurface` objects as input and produces `AMFBuffer` objects for output. ### 2.2 Encode Parameters Annex A provides the detailed description of encoding parameters (i.e., encoder properties) exposed by the Video Encoder HEVC component for the following four usages: - Transcoding mode, - Ultra-low latency mode, - Low Latency mode, - Webcam mode, - HQ mode, and - HQLL mode. All properties are accessed using the `AMFPropertyStorage` interface of the Encoder object. #### 2.2.1 Static Properties Static properties (e.g., profile, tier, level, usage) must be defined before the `Init()` function is called, and will apply until the end of the encoding session. #### 2.2.2 Dynamic Properties All dynamic properties have default values. Several properties can be changed subsequently and these changes will be flushed to encoder only before the next `Submit()` call. #### 2.2.3 Frame Per-Submission Properties Per submission properties are applied on a per frame basis. They can be set optionally to force a certain behavior (e.g., force frame type to IDR) by updating the properties of the AMFSurface object that is passed through the `AMFComponent::Submit()` call. #### 2.2.4 ROI Feature Region of importance (ROI) feature provides a way to specify the relative importance of the macroblocks in the video frame. Encoder will further adjust the bits allocation among code blocks based on the importance, on top of the base rate control decisions. More important blocks will be encoded with relatively better quality. The ROI map can be attached to the input frame on a per frame basis. Currently, the ROI map can only use system memory. The ROI map includes the importance values of each 64x64 CTB, ranging from `0` (least important) to `10` (most important), stored in 32bit unsigned format. Refer to SimpleROI sample application for further implementation details. #### 2.2.5 Encoder Statistics Feedback If an application sets the `AMF_VIDEO_ENCODER_HEVC_STATISTICS_FEEDBACK` flag on for an input picture, the encoder will feedback to the application statistics for this specific picture. After the encoding ends, the application can retrieve by name the specific statistic(s) it is interested in. The supported encoder statistics are listed in Table A-3. This feature is supported by Radeon RX 5000 Series or newer GPUs as well as Ryzen 2000 U/H series or newer APUs. #### 2.2.6 Picture Transfer Mode If an application enables `AMF_VIDEO_ENCODER_HEVC_PICTURE_TRANSFER_MODE` for a specific input picture, it can dump out the reconstructed picture after encoding and/or it can inject a picture to be used as the reference picture during the encoding. It is worth noting that reference picture injection is a feature that is intended for advanced algorithm testing and exploration. It needs to be used with care since the internal DPB in the current encoding session will be overridden by the injected reference picture(s). The reader can refer to SimpleFrameInjection sample application for further implementation details. This feature is supported by Radeon RX 5000 Series or newer GPUs as well as Ryzen 2000 U/H series or newer APUs. #### 2.2.7 SVC Properties Scalable Video Coding (SVC) is enabled by setting `AMF_VIDEO_ENCODER_HEVC_NUM_TEMPORAL_LAYERS` to a value that is greater than `1`. `AMF_VIDEO_ENCODER_HEVC_NUM_TEMPORAL_LAYERS` is a dynamic property and can be changed at any time during an encoding session. To ensure proper support, `AMF_VIDEO_ENCODER_HEVC_MAX_NUM_TEMPORAL_LAYERS` needs to be set before initializing the encoder to a value that is not smaller than the number of temporal layers. As an example, the maximum number of temporal layers shall be set to `4` if the number of temporal layers will be changed from `3` to `4` in an encoding session. The maximum number of temporal layers supported by the encoder can be queried from the encoder capabilities before initializing the encoder. To define SVC parameters per layer, the following format must be used: `TLTable 2. Additional miscellaneous parameters of TranscodeHW application
--- **Name:** `CODEC` **Values:** `AVC` or `H264`, `HEVC` or `H265`, `AV1` **Default Value:** `AVC` **Description:** Specify codec type. --- **Name:** `OUTPUT` **Values:** File name, relative or absolute path **Default Value** `NULL` **Description:** Output HEVC file for encoded data. --- **Name:** `INPUT` **Values:** File name, relative or absolute path **Default Value:** `NULL` **Description:** Input file with frames. --- **Name:** `WIDTH` **Values:** Frame width **Default Value:** `0` **Description:** Frame width. --- **Name:** `HEIGHT` **Values:** Frame height **Default Value:** `0` **Description:** Frame height. --- **Name:** `AdapterID` **Values:** Number **Default Value:** `0` **Description:** Index of GPU adapter. --- **Name:** `ENGINE` **Values:** `DX9`, `DX11`, `Vulkan` **Default Value:** `DX11` **Description:** Specify Engine type. --- **Name:** `FRAMES` **Values:** Number of frames to be encoded **Default Value:** `100` **Description:** Number of frames to render. --- **Name:** `THREADCOUNT` **Values:** Number **Default Value:** `1` **Description:** Number of session run ip parallel. --- **Name:** `PREVIEWMODE` **Values:** `true`, `false` **Default Value:** `false` **Description:** Preview Mode. --- Additional parameters of `VCEEncoderD3D` application: | Name | Category | | :----------------- | :------- | | CODEC | string | | OUTPUT | string | | RENDER | string | | WIDTH | int | | HEIGHT | int | | FRAMES | int | | ADAPTERID | int | | WINDOWMODE | bool | | FULLSCREEN | bool | | QueryInstanceCount | bool | | UseInstance | int | | FRAMERATE | int |Table 3. Miscellaneous parameters of VCEEncoderD3D application
--- **Name:** `CODEC` **Values:** `AVC` or `H264`, `HEVC` or `H265`, `AV1` **Default Value:** `AVC` **Description:** Codec name. --- **Name:** `OUTPUT` **Values:** File name, relative or absolute path **Default Value:** `NULL` **Description:** Output `HEVC` file for encoded data. --- **Name:** `RENDER` **Values:** `DX9`, `DX9Ex`, `DX11`, `OpenGL`, `OpenCL`, `Host`, `OpenCLDX9`, `OpenCLDX11`, `OpenGLDX9`, `OpenGLDX11`, `OpenCLOpenGLDX9`, `OpenCLOpenGLDX11`, `HostDX9`, `HostDX11`, `DX11DX9`, `Vulkan` **Default Value:** `DX9` **Description:** Specifies render type. --- **Name:** `WIDTH` **Values:** Frame width **Default Value:** `1280` **Description:** Frame width. --- **Name:** `HEIGHT` **Values:** Frame height **Default Value:** `720` **Description:** Frame height. --- **Name:** `FRAMES` **Values:** Number of frames to be encoded **Default Value:** `100` **Description:** Number of frames to be encoded. --- **Name:** `ADAPTERID` **Values:** Number **Default Value:** `0` **Description:** Index of GPU adapter. --- **Name:** `WINDOWMODE` **Values:** `true`, `false` **Default Value:** `false` **Description:** Shows rendering window for D3D sample application. --- **Name:** `FULLSCREEN` **Values:** `true`, `false` **Default Value:** `false` **Description:** Enables full screen. --- **Name:** `QueryInstanceCount` **Values:** `true`, `false` **Default Value:** `false` **Description:** If the flag is set, the number of independent VCE instances will be quried and printed. --- **Name:** `UseInstance` **Values:** `0`... `number of instances - 1` **Default Value:** Depends on usage **Description:** If there are more than one VCE Instances, you can force which instance to use. --- **Name:** `FRAMERATE` **Values:** Render frame rate **Default Value:** `0` **Description:** Render frame rate. --- ### 3.2 Command line example #### 3.2.1 Transcoding application (TranscodeHW.exe) `TranscodeHW.exe -input input.h264 -output out.h265 –codec HEVC -width 1280 -height 720 -HevcUsage transcoding -HevcRateControlMethod cbr -HevcTargetBitrate 100000` This command transcodes H264 elementary stream to H.265 video. Encoder is created with “Transcoding” usage. #### 3.2.2 D3D application (VCEEncoderD3D.exe) `VCEEncoderD3D.exe -output VideoSample_1024x768.h265 –codec HEVC -width 1024 -height 768 -HevcUsage transcoding -HevcRateControlMethod cbr -HevcTargetBitrate 500000 -frames 400` This command encodes `400` frames through D3D renderer and creates an output file with the encoded data. Encoder is created with “Transcoding” usage. Initial configuration sets bitrate to a value of `500` kbits/sec. ## 4 Annex A: Encoding & frame parameters description ### Table A-1. Encoder parameters | Name (Prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :-------------------------------------- | :-------- | | USAGE | amf_int64 | | INSTANCE_INDEX | amf_int64 | | PROFILE | amf_int64 | | TIER | amf_int64 | | PROFILE_LEVEL | amf_int64 | | MAX_LTR_FRAMES | amf_int64 | | LTR_MODE | amf_int64 | | MAX_NUM_REFRAMES | amf_int64 | | LOWLATENCY_MODE | amf_bool | | FRAMESIZE | AMFSize | | ASPECT_RATIO | AMFRatio | | PRE_ANALYSIS_ENABLE | amf_bool | | MAX_NUM_TEMPORAL_LAYERS | amf_int64 | | NOMINAL_RANGE | amf_bool | | ENABLE_SMART_ACCESS_VIDEO | amf_bool |Table 4. Encoder static parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_USAGE` **Values:** `AMF_VIDEO_ENCODER_HEVC_USAGE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_USAGE_TRANSCONDING`, `AMF_VIDEO_ENCODER_HEVC_USAGE_TRANSCODING`, `AMF_VIDEO_ENCODER_HEVC_USAGE_ULTRA_LOW_LATENCY`, `AMF_VIDEO_ENCODER_HEVC_USAGE_LOW_LATENCY`, `AMF_VIDEO_ENCODER_HEVC_USAGE_WEBCAM`, `AMF_VIDEO_ENCODER_HEVC_USAGE_HIGH_QUALITY`, `AMF_VIDEO_ENCODER_HEVC_USAGE_LOW_LATENCY_HIGH_QUALITY` **Default Value:** `N/A` **Description:** Selects the AMF usage (see Section 1.2). --- **Name:** `AMF_VIDEO_ENCODER_HEVC_INSTANCE_INDEX` **Values:** `0`, `1` **Default Value:** `0` **Description:** Selects the encoder engine used for encoding. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_PROFILE` **Values:** `AMF_VIDEO_ENCODER_HEVC_PROFILE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_PROFILE_MAIN`, `AMF_VIDEO_ENCODER_HEVC_PROFILE_MAIN_10` **Default Value:** `AMF_VIDEO_ENCODER_HEVC_PROFILE_MAIN` **Description:** Selects the HEVC profile. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_TIER` **Values:** `AMF_VIDEO_ENCODER_HEVC_TIER_ENUM`: `AMF_VIDEO_ENCODER_HEVC_TIER_MAIN`, `AMF_VIDEO_ENCODER_HEVC_TIER_HIGH` **Default Value:** `AMF_VIDEO_ENCODER_HEVC_TIER_MAIN` **Description:** Selects the HEVC tier. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_PROFILE_LEVEL` **Values:** `AMF_VIDEO_ENCODER_LEVEL_ENUM`: `AMF_LEVEL_1`, `AMF_LEVEL_2`, `AMF_LEVEL_2_1`, `AMF_LEVEL_3`, `AMF_LEVEL_3_1`, `AMF_LEVEL_4`, `AMF_LEVEL_4_1`, `AMF_LEVEL_5`, `AMF_LEVEL_5_1`, `AMF_LEVEL_5_2`, `AMF_LEVEL_6`, `AMF_LEVEL_6_1`, `AMF_LEVEL_6_2` **Default Value:** `AMF_LEVEL_5_2` **Description:** Selects the HEVC Profile Level. Automatically adjusted upwards based on frame size. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MAX_LTR_FRAMES` **Values:** `0` … `16` **Default Value:** `0` **Description:** The number of long-term references controlled by the user. Remarks: - When == `0`, the encoder may or may not use LTRs during encoding. - When > `0`, the user has control over all LTR. - With user control of LTR, Intra-refresh features are not supported. - The actual maximum number of LTRs allowed depends on H.265 (HEVC) Annex A Table Level limits, which defines dependencies between the H.265 Level number, encoding resolution, and DPB size. The DPB size limit impacts the maximum number of LTR allowed. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_LTR_MODE` **Values:** `AMF_VIDEO_ENCODER_HEVC_LTR_MODE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_LTR_MODE_RESET_UNUSED`, `AMF_VIDEO_ENCODER_HEVC_LTR_MODE_KEEP_UNUSED` **Default Value:** `AMF_VIDEO_ENCODER_HEVC_LTR_MODE_RESET_UNUSED` **Description:** Remove/keep unused LTRs not specified inside the LTR reference bitfield. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MAX_NUM_REFRAMES` **Values:** `0` … `16` **Default Value:** `1` **Description:** Maximum number of reference frames. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_LOWLATENCY_MODE` **Values:** `true` (`on`), `false` (`off`) **Default Value associated with usages:** - Transcoding: `false` - Ultra low latency: `true` - Low latency: `false` - Webcam: `false` - HQ: `false` - HQLL: `true` **Description:** Enables low latency mode in the encoder. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_FRAMESIZE` **Values:** Width: `192` – `4096` Height: `128` – `2176` **Default Value:** Width: `0` Height: `0` **Description:** Frame width/Height in pixels, maximum value is hardware-specific, should be queried through `AMFCaps`. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_ASPECT_RATIO` **Values:** `(1,1)`...`(INT_MAX,INT_MAX)` **Default Value:** `(1,1)` **Description:** Pixel aspect ratio. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_PRE_ANALYSIS_ENABLE` **Values:** `true`, `false` **Default Value associated with usages:** - Transcoding: `false` - Ultra low latency: `false` - Low latency: `false` - Webcam: `false` - HQ: `true` - HQLL: `false` **Description:** Some encoder properties require this property to be set. Enables the pre-analysis module. Refer to *AMF Video PreAnalysis API* reference for more details on the pre-analysis module and its settings under different usages. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MAX_NUM_TEMPORAL_LAYERS` **Values:** `1` … `Maximum number of temporal layers supported` **Default Value:** `1` **Description:** Sets the maximum number of temporal layers. It shall not be exceeded by the number of temporal layers. The maximum number of temporal layers supported is determined by the corresponding encoder capability. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_NOMINAL_RANGE` **Values:** `AMF_VIDEO_ENCODER_HEVC_NOMINAL_RANGE_STUDIO`, `AMF_VIDEO_ENCODER_HEVC_NOMINAL_RANGE_FULL` **Default Value:** `AMF_VIDEO_ENCODER_HEVC_NOMINAL_RANGE_STUDIO` **Description:** Sets the minimum and maximum pixel values that can be encoded. The nominal range refers to the range of pixel values that represent the full dynamic range of a video signal. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_ENABLE_SMART_ACCESS_VIDEO` **Values:** `true`, `false` **Default Value:** `false` **Description:** When set to `true`, enables the SmartAccess Video feature, which optimally allocates the encoding task on supported APU/GPU pairings. --- | Name (Prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :- | :-------- | | TARGET_BITRATE | amf_int64 | | PEAK_BITRATE | amf_int64 | | RATE_CONTROL_METHOD | amf_int64 | | QVBR_QUALITY_LEVEL | amf_int64 | | RATE_CONTROL_SKIP_FRAME_ENABLE | amf_bool | | MIN_QP_I | amf_int64 | | MAX_QP_I | amf_int64 | | MIN_QP_P | amf_int64 | | MAX_QP_P | amf_int64 | | QP_I | amf_int64 | | QP_P | amf_int64 | | FRAMERATE | AMFRate | | VBV_BUFFER_SIZE | amf_int64 | | INITIAL_VBV_BUFFER_FULLNESS | amf_int64 | | ENFORCE_HRD | amf_bool | | PREENCODE_ENABLE | amf_bool | | ENABLE_VBAQ | amf_bool | | FILLER_DATA_ENABLE | amf_bool | | HIGH_MOTION_QUALITY_BOOST_ENABLE | amf_bool |Table 5. Encoder rate-control parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_TARGET_BITRATE` **Values:** `>0` **Default Value:** `20` mbps **Description:** Sets the target bitrate, bit/s based on use case. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_PEAK_BITRATE` **Values:** `>= TargetBitrate` **Default Value associated with usages:** - Transcoding: `30` mbps - Ultra low latency: `20` mbps - Low latency: `20` mbps - Webcam: `20` mbps - HQ: `80` mbps - HQLL: `30` mbps **Description:** Sets the peak bitrate. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD` **Values:** `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_ENUM`: `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_UNKNOWN`, `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_CONSTANT_QP`, `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_LATENCY_CONSTRAINED_VBR`, `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_PEAK_CONSTRAINED_VBR`, `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_CBR`, `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_QUALITY_VBR`, `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_HIGH_QUALITY_VBR`, `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_HIGH_QUALITY_CBR` **Default Value associated with usages:** - Transcoding: `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_PEAK_CONSTRAINED_VBR` - Ultra low latency: `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_LATENCY_CONSTRAINED_VBR` - Low latency: `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_PEAK_CONSTRAINED_VBR` - Webcam: `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_PEAK_CONSTRAINED_VBR` - HQ: `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_PEAK_CONSTRAINED_VBR` - HQLL: `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_METHOD_PEAK_CONSTRAINED_VBR` **Description:** Selects the rate control method: - CQP – Constrained QP, - VBR_LAT - Latency Constrained VBR - VBR - Peak Constrained VBR, - CBR - Constant Bitrate - QVBR – Quality VBR - HQVBR – High Quality VBR - HQCBR – High Quality CBR Remarks: - When SVC encoding is enabled, some rate-control parameters can be configured differently for a particular SVC-layer. An SVC-layer is denoted by an index pair `[SVC-Temporal Layer index][SVC-Quality Layer index]`. E.g. The bitrate may be configured differently for SVC-layers `[0][0]` and `[1][0]`. - We restrict all SVC layers to have the same Rate Control method. - QVBR, HQVBR and HQCBR are only supported if PreAnalysis is enabled. - QVBR, HQVBR and HQCBR target improving subjective quality with the possible loss of objective quality (PSNR or VMAF). --- **Name:** `AMF_VIDEO_ENCODER_HEVC_QVBR_QUALITY_LEVEL` **Values:** `1` – `51` **Default Value:** `23` **Description:** Sets the quality level for QVBR rate control method. Remarks: Only available for QVBR rate control method. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_SKIP_FRAME_ENABLE` **Values:** `true`, `false` **Default Value associated with usages:** - Transcoding: `false` - Ultra low latency: `true` - Low latency: `true` - Webcam: `true` - HQ: `false` - HQLL: `false` **Description:** Enables skip frame for rate control. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MIN_QP_I` **Values:** `0` – `51` **Default Value:** `0` **Description:** Sets the minimum QP for I frame. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MAX_QP_I` **Values:** `0` – `51` **Default Value:** `51` **Description:** Sets the maximum QP for I frame. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MIN_QP_P` **Values:** `0` – `51` **Default Value:** `0` **Description:** Sets the minimum QP for P frame. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MAX_QP_P` **Values:** `0` – `51` **Default Value:** `51` **Description:** Sets the maximum QP for P frame. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_QP_I` **Values:** `0` – `51` **Default Value:** `26` **Description:** Sets the constant QP for I-pictures.Remarks: Only available for CQP rate control method. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_QP_P` **Values:** `0` – `51` **Default Value:** `26` **Description:** Sets the constant QP for P-pictures. Remarks: Only available for CQP rate control method. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_FRAMERATE` **Values:** `1*FrameRateDen` … `60* FrameRateDen` **Default Value:** `30` fps **Description:** Frame rate numerator/denominator. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_VBV_BUFFER_SIZE` **Values:** `>0` **Default Value associated with usages:** - Transcoding: `20` mbits - Ultra low latency: `735` kbits - Low latency: `4` mbits - Webcam: `2` mbits - HQ: `40` mbits - HQLL: `10` mbits **Description:** Sets the VBV buffer size in bits based on use case. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_INITIAL_VBV_BUFFER_FULLNESS` **Values:** `0` - `64` **Default Value:** `64` **Description:** Sets the initial VBV buffer fullness. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_ENFORCE_HRD` **Values:** `true`, `false` **Default Value associated with usages:** - Transcoding: `false` - Ultra low latency: `true` - Low latency: `false` - Webcam: `false` - HQ: `false` - HQLL: `false` **Description:** Disables/enables constraints on rate control to meet HRD model requirement(s) with peak_bitrate, VBV buffer size and VBV buffer fullness settings. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_PREENCODE_ENABLE` **Values:** `true`, `false` **Default Value associated with usages:** - Transcoding: `false` - Ultra low latency: `false` - Low latency: `false` - Webcam: `false` - HQ: `false` - HQLL: `false` **Description:** Pre-analysis assisted rate control. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_ENABLE_VBAQ` **Values:** `true`, `false` **Default Value associated with usages:** - Transcoding: `false` - Ultra low latency: `false` - Low latency: `false` - Webcam: `false` - HQ: `true` - HQLL: `true` **Description:** Note: Cannot use when `RATE_CONTROL_METHOD` is CQP. - VBAQ stands for *Variance Based Adaptive Quantization*. - The basic idea of VBAQ: Human visual system is typically less sensitive to artifacts in highly textured area. In VBAQ mode, we use pixel variance to indicate the complexity of spatial texture. This allows us to allocate more bits to smoother areas. Enabling such feature leads to improvements in subjective visual quality with some content.Note: Cannot use when `RATE_CONTROL_METHOD` is CQP. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_FILLER_DATA_ENABLE` **Values:** `true`, `false` **Default Value:** `false` **Description:** Enable filler data for CBR usage. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_HIGH_MOTION_QUALITY_BOOST_ENABLE` **Values:** `true`, `false` **Default Value associated with usages:** - Transcoding: `false` - Ultra low latency: `false` - Low latency: `false` - Webcam: `false` - HQ: `true` - HQLL: `true` **Description:** Enable high motion quality boost mode to pre-analyze the motion of the video and use this information to improve encoding. --- | Name (Prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :-------------------------------------- | :-------- | | MAX_AU_SIZE | amf_int64 | | HEADER_INSERTION_MODE | amf_int64 | | GOP_SIZE | amf_int64 | | NUM_GOPS_PER_IDR | amf_int64 | | DE_BLOCKING_FILTER_DISABLE | amf_bool | | SLICES_PER_FRAME | amf_int64 | | INTRA_REFRESH_NUM_CTBS_PER_SLOT | amf_int64 |Table 6. Encoder picture-control parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_MAX_AU_SIZE` **Values:** `0` – `100 000 000` bits **Default Value:** `0` **Description:** Maximum AU size in bits. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_HEADER_INSERTION_MODE` **Values:** `AMF_VIDEO_ENCODER_HEVC_HEADER_INSERTION_MODE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_HEADER_INSERTION_MODE_NONE` `AMF_VIDEO_ENCODER_HEVC_HEADER_INSERTION_MODE_GOP_ALIGNED`, `AMF_VIDEO_ENCODER_HEVC_HEADER_INSERTION_MODE_IDR_ALIGNED` **Default Value:** `AMF_VIDEO_ENCODER_HEVC_HEADER_INSERTION_MODE_NONE` **Description:** Sets the headers insertion mode. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_GOP_SIZE` **Values:** `0` ... `1000` **Default Value associated with usages:** - Transcoding: `240` - Ultra low latency: `300` - Low latency: `300` - Webcam: `240` - HQ: `240` - HQLL: `240` **Description:** The period to insert IDR/CRA in fixed size mode. `0` means only insert the first IDR/CRA (infinite GOP size). --- **Name:** `AMF_VIDEO_ENCODER_HEVC_NUM_GOPS_PER_IDR` **Values:** `1` – `65535` **Default Value:** `1` **Description:** Determines the frequency to insert IDR as start of a GOP. `0` means no IDR will be inserted except for the first picture in the sequence. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_DE_BLOCKING_FILTER_DISABLE` **Values:** `true`, `false` **Default Value:** `false` **Description:** Disable/enable the de-blocking filter. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_SLICES_PER_FRAME` **Values:** `1` - #CTBs per frame **Default Value:** `1` **Description:** Sets the number of slices per frame. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_INTRA_REFRESH_NUM_CTBS_PER_SLOT` **Values:** `0` - #CTBs per frame **Default Value:** `0` **Description:** Sets the number of intra-refresh 64x64 coding-tree-blocks per slot. --- | Name (Prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :-------------------------------------- | :----------- | | QUALITY_PRESET | amf_int64 | | EXTRADATA | AMFBufferPtr | | PICTURE_TRANSFER_MODE | amf_int64 | | QUERY_TIMEOUT | amf_int64 | | INPUT_QUEUE_SIZE | amf_int64 | | OUTPUT_MODE | amf_int64 |Table 7. Encoder miscellaneous parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET` **Values:** `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_ENUM`: `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_BALANCED`, `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_QUALITY`, `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_SPEED` **Default Value associated with usages:** - Transcoding: `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_BALANCED` - Ultra low latency: `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_SPEED` - Low latency: `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_SPEED` - Webcam: `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_QUALITY` - HQ: `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_QUALITY` - HQLL: `AMF_VIDEO_ENCODER_HEVC_QUALITY_PRESET_QUALITY` **Description:** Selects the quality preset in HW to balance between encoding speed and video quality. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_EXTRADATA` **Values:** `AMFBufferPtr` **Default Value:** `NULL` **Description:** SPS/PPS buffer - read-only. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_PICTURE_TRANSFER_MODE` **Values:** `AMF_VIDEO_ENCODER_HEVC_PICTURE_TRANSFER_MODE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_PICTURE_TRANSFER_MODE_ON`, `AMF_VIDEO_ENCODER_HEVC_PICTURE_TRANSFER_MODE_OFF` **Default Value:** `AMF_VIDEO_ENCODER_HEVC_PICTURE_TRANSFER_MODE_OFF` **Description:** The application can turn on this flag for a specific input picture to allow dumping the reconstructed picture and/or injecting a reference picture. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_QUERY_TIMEOUT` **Values:** Timeout for `QueryOutput` call in ms **Default Value associated with usages:** - Transcoding: `0` (no wait) - Ultra low latency: `0` (no wait) - Low latency: `0` (no wait) - Webcam: `0` (no wait) - HQ: `50` - HQLL: `50` **Description:** Timeout for `QueryOutput` call in ms. Setting this to a nonzero value will reduce polling load when `QueryOutput` is called; it will be blocked until the frame is ready or until the timeout is reached. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_INPUT_QUEUE_SIZE` **Values:** `1` … `32` **Default Value:** `16` **Description:** Set encoder input queue size. For high-resolution sequence, recommend to set a smaller value to save storage. For low-resolution sequence, recommend to set a larger value to improve encoding speed. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_MODE` **Values:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_MODE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_OUTPUT_MODE_FRAME`, `AMF_VIDEO_ENCODER_HEVC_OUTPUT_MODE_TILE` **Default Value:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_MODE_FRAME` **Description:** Defines encoder output mode. --- | Name (Prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :-------------------------------------- | :------- | | MOTION_HALF_PIXEL | amf_bool | | MOTION_QUARTERPIXEL | amf_bool |Table 8. Encoder motion estimation parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_MOTION_HALF_PIXEL` **Values:** `true`, `false` **Default Value:** `true` **Description:** Turns on/off half-pixel motion estimation. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MOTION_QUARTERPIXEL` **Values:** `true`, `false` **Default Value:** `true` **Description:** Turns on/off quarter-pixel motion estimation. --- | Name (Prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :-------------------------------------- | :-------- | | COLOR_BIT_DEPTH | amf_int64 | | INPUT_COLOR_PROFILE | amf_int64 | | INPUT_TRANSFER_CHARACTERISTIC | amf_int64 | | INPUT_COLOR_PRIMARIES | amf_int64 | | OUTPUT_COLOR_PROFILE | amf_int64 | | OUTPUT_TRANSFER_CHARACTERISTIC | amf_int64 | | OUTPUT_COLOR_PRIMARIES | amf_int64 |Table 9. Encoder color conversion parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_COLOR_BIT_DEPTH` **Values:** `AMF_COLOR_BIT_DEPTH_ENUM`: `AMF_COLOR_BIT_DEPTH_UNDEFINED`, `AMF_COLOR_BIT_DEPTH_8`, `AMF_COLOR_BIT_DEPTH_10` **Default Value:** `AMF_COLOR_BIT_DEPTH_8` **Description:** Sets the number of bits in each pixel’s color component in the encoder’s compressed output bitstream. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_INPUT_COLOR_PROFILE` **Values:** `AMF_VIDEO_CONVERTER_COLOR_PROFILE_ENUM`: `AMF_VIDEO_CONVERTER_COLOR_PROFILE_UNKNOWN`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_601`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_709`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_2020`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_JPEG`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_FULL_601`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_FULL_709`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_FULL_2020` **Default Value:** `AMF_VIDEO_CONVERTER_COLOR_PROFILE_UNKNOWN` **Description:** Color profile of the input surface. SDR - Setting this parameter (`COLOR_PROFILE`) can fully describe a surface for SDR use case. HDR – For HDR use case the `TRANSFER_CHARACTERISTIC`, `COLOR_PRIMARIES`, and `NOMINAL_RANGE` parameters describe the surface. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_INPUT_TRANSFER_CHARACTERISTIC` **Values:** `AMF_COLOR_TRANSFER_CHARACTERISTIC_ENUM`: `AMF_COLOR_TRANSFER_CHARACTERISTIC_UNDEFINED`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_BT709`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_RESERVED`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_GAMMA22`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_GAMMA28`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_SMPTE170M`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_SMPTE240M`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_LINEAR`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_LOG`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_LOG_SQRT`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_IEC61966_2_4`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_BT1361_ECG`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_IEC61966_2_1`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_BT2020_10`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_BT2020_12`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_SMPTE2084`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_SMPTE428`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_ARIB_STD_B67` **Default Value:** `AMF_COLOR_TRANSFER_CHARACTERISTIC_UNDEFINED` **Description:** Characteristic transfer function of the input surface used to perform the mapping between linear light components (tristimulus values) and a nonlinear RGB signal.Used (alongside `COLOR_PRIMARIES` and `NOMINAL_RANGE` parameters) to describe surface in HDR use case. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_INPUT_COLOR_PRIMARIES` **Values:** `AMF_COLOR_PRIMARIES_ENUM`: `AMF_COLOR_PRIMARIES_UNDEFINED`, `AMF_COLOR_PRIMARIES_BT709`, `AMF_COLOR_PRIMARIES_UNSPECIFIED`, `AMF_COLOR_PRIMARIES_RESERVED`, `AMF_COLOR_PRIMARIES_BT470M`, `AMF_COLOR_PRIMARIES_BT470BG`, `AMF_COLOR_PRIMARIES_SMPTE170M`, `AMF_COLOR_PRIMARIES_SMPTE240M`, `AMF_COLOR_PRIMARIES_FILM`, `AMF_COLOR_PRIMARIES_BT2020`, `AMF_COLOR_PRIMARIES_SMPTE428`, `AMF_COLOR_PRIMARIES_SMPTE431`, `AMF_COLOR_PRIMARIES_SMPTE432`, `AMF_COLOR_PRIMARIES_JEDEC_P22` **Default Value:** `AMF_COLOR_PRIMARIES_UNDEFINED` **Description:** Color space primaries for the input surface which are the maximum red, green, and blue value permitted within the color space. Used (alongside `TRANSFER_CHARACTERISTIC` and `NOMINAL_RANGE` parameters) to describe surface in HDR use case. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_COLOR_PROFILE` **Values:** `AMF_VIDEO_CONVERTER_COLOR_PROFILE_ENUM`: `AMF_VIDEO_CONVERTER_COLOR_PROFILE_UNKNOWN`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_601`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_709`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_2020`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_JPEG`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_FULL_601`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_FULL_709`, `AMF_VIDEO_CONVERTER_COLOR_PROFILE_FULL_2020` **Default Value:** `AMF_VIDEO_CONVERTER_COLOR_PROFILE_UNKNOWN` **Description:** Color profile of the compressed output stream. SDR - Setting this parameter (`COLOR_PROFILE`) can fully describe a surface for SDR use case. HDR – For HDR use case the `TRANSFER_CHARACTERISTIC`, `COLOR_PRIMARIES`, and `NOMINAL_RANGE` parameters describe the surface. Determines the optional VUI parameter `matrix_coefficients`. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_TRANSFER_CHARACTERISTIC` **Values:** `AMF_COLOR_TRANSFER_CHARACTERISTIC_ENUM`: `AMF_COLOR_TRANSFER_CHARACTERISTIC_UNDEFINED`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_BT709`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_RESERVED`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_GAMMA22`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_GAMMA28`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_SMPTE170M`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_SMPTE240M`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_LINEAR`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_LOG`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_LOG_SQRT`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_IEC61966_2_4`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_BT1361_ECG`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_IEC61966_2_1`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_BT2020_10`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_BT2020_12`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_SMPTE2084`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_SMPTE428`, `AMF_COLOR_TRANSFER_CHARACTERISTIC_ARIB_STD_B67` **Default Value:** `AMF_COLOR_TRANSFER_CHARACTERISTIC_UNDEFINED` **Description:** Characteristic transfer function of the compressed output stream used to perform the mapping between linear light components (tristimulus values) and a nonlinear RGB signal. Used (alongside `COLOR_PRIMARIES` and `NOMINAL_RANGE` parameters) to describe surface in HDR use case. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_COLOR_PRIMARIES` **Values:** `AMF_COLOR_PRIMARIES_ENUM`: `AMF_COLOR_PRIMARIES_UNDEFINED`, `AMF_COLOR_PRIMARIES_BT709`, `AMF_COLOR_PRIMARIES_UNSPECIFIED`, `AMF_COLOR_PRIMARIES_RESERVED`, `AMF_COLOR_PRIMARIES_BT470M`, `AMF_COLOR_PRIMARIES_BT470BG`, `AMF_COLOR_PRIMARIES_SMPTE170M`, `AMF_COLOR_PRIMARIES_SMPTE240M`, `AMF_COLOR_PRIMARIES_FILM`, `AMF_COLOR_PRIMARIES_BT2020`, `AMF_COLOR_PRIMARIES_SMPTE428`, `AMF_COLOR_PRIMARIES_SMPTE431`, `AMF_COLOR_PRIMARIES_SMPTE432`, `AMF_COLOR_PRIMARIES_JEDEC_P22` **Default Value:** `AMF_COLOR_PRIMARIES_UNDEFINED` **Description:** Color space primaries for the compressed output surface which are the maximum red, green, and blue value permitted within the color space. Used (alongside `TRANSFER_CHARACTERISTIC` and `NOMINAL_RANGE` parameters) to describe surface in HDR use case. --- | Name (Prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :-------------------------------------- | :-------- | | NUM_TEMPORAL_LAYERS | amf_int64 |Table 10. Encoder SVC parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_NUM_TEMPORAL_LAYERS` **Values:** `1` … `Maximum number of temporal layers supported` **Default Value:** `1` **Description:** Sets the number of temporal layers. SVC with temporal scalability is enabled when the number of layers is greater than `1`. The maximum number of temporal layers supported is determined by the corresponding encoder capability. Remarks: Actual modification of the number of temporal layers will be delayed until the start of the next temporal GOP. Intra-refresh feature is not supported with SVC. --- | Name (Prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :-------------------------------------- | :--- | | TLTable 11. Encoder SVC per-layer parameters
--- **Name:** `TLTable 12. Frame per-submission parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_INSERT_HEADER` **Values:** `true`, `false` **Default Value:** `false` **Description:** Inserts SPS, PPS and VPS. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_INSERT_AUD` **Values:** `true`, `false` **Default Value:** `false` **Description:** Inserts AUD. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_FORCE_PICTURE_TYPE` **Values:** `AMF_VIDEO_ENCODER_HEVC_PICTURE_TYPE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_PICTURE_TYPE_NONE`, `AMF_VIDEO_ENCODER_HEVC_PICTURE_TYPE_IDR`, `AMF_VIDEO_ENCODER_HEVC_PICTURE_TYPE_I`, `AMF_VIDEO_ENCODER_HEVC_PICTURE_TYPE_P` **Default Value:** `AMF_VIDEO_ENCODER_HEVC_PICTURE_TYPE_NONE` **Description:** Forces the picture type determined by the picture management with the following precedence `IDR`, `I` and `P`. Force picture type will only take effect to override types with lower precedence. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_END_OF_SEQUENCE` **Values:** `true`, `false` **Default Value:** `false` **Description:** End of sequence. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_MARK_CURRENT_WITH_LTR_INDEX` **Values:** `-1` … `MaxOfLTRFrames - 1` **Default Value:** `N/A` **Description:** If != `-1`, the current picture is coded as a long-term reference with the given index. Remarks: - When the user controls N LTRs (using the corresponding Create parameter), then the LTR Index the user can assign to a reference picture varies from `0` to `N-1`. By default, the encoder will “use up” available LTR Indices (i.e. assign them to references) even if the user does not request them to be used. - When LTR is used with SVC encoding, only base temporal layer pictures can be coded as LTR. In this case, the request to mark the current picture as LTR would be delayed to the next base temporal layer picture if the current picture is in an enhancement layer. If the user submits multiple requests to mark current as LTR between base temporal layer pictures, then only the last request is applied. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_FORCE_LTR_REFERENCE_BITFIELD` **Values:** Bitfield `MaxOfLTRFrames` (max possible 16 bits) **Default Value:** `0` **Description:** Force LTR Reference allowed bitfield. If == `0`, the current picture should predict from the default reference. If != `0`, the current picture should predict from one of the LTRs allowed by the bitfield (bit# = LTR Index#). Remarks: - E.g. if Bit#0 = `1`, then the existing LTR with LTR Index = `0` may be used for reference. The bitfield may allow more than one LTR for reference, in which case the encoder is free to choose which one to use. This bitfield also disallows existing LTRs not enabled by it from current/future reference. - E.g. if Bit#1 = `0`, and there is an existing reference with LTR Index = `1`, then this LTR Index will not be used for reference until it is replaced with a newer reference with the same LTR Index. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_ROI_DATA` **Values:** Video surface in `AMF_SURFACE_GRAY32` format **Default Value:** `N\A` **Description:** Importance value for each 64x64 block ranges from `0` (least important) to `10` (most important), stored in 32bit unsigned format. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTICS_FEEDBACK` **Values:** `true` (`on`), `false` (`off`) **Default Value:** `false` **Description:** Instruct encoder to collect and feedback statistics. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_PSNR_FEEDBACK` **Values:** `true` (`on`), `false` (`off`) **Default Value:** `false` **Description:** Signal encoder to calculate PSNR score. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_SSIM_FEEDBACK` **Values:** `true` (`on`), `false` (`off`) **Default Value:** `false` **Description:** Signal encoder to calculate SSIM score. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_BLOCK_QP_FEEDBACK` **Values:** `true` (`on`), `false` (`off`) **Default Value:** `false` **Description:** Instruct encoder to collect and feedback block level QP values. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_REFERENCE_PICTURE` **Values:** `AMFSurface` **Default Value:** `N/A` **Description:** Injected reference picture. Valid with PICTURE_TRANSFER_MODE turned on. --- | Name (prefix “AMF_VIDEO_ENCODER_HEVC_”) | Type | | :-------------------------------------- | :--------- | | OUTPUT_DATA_TYPE | amf_int64 | | OUTPUT_MARKED_LTR_INDEX | amf_int64 | | OUTPUT_REFERENCED_LTR_INDEX_BITFIELD | amf_int64 | | OUTPUT_TEMPORAL_LAYER | amf_int64 | | OUTPUT_BUFFER_TYPE | amf_int64 | | RECONSTRUCTED_PICTURE | AMFSurface |Table 13. Encoded data parameters
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_DATA_TYPE` **Values:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_DATA_TYPE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_OUTPUT_DATA_TYPE_IDR`, `AMF_VIDEO_ENCODER_HEVC_OUTPUT_DATA_TYPE_I`, `AMF_VIDEO_ENCODER_HEVC_OUTPUT_DATA_TYPE_P` **Default Value:** `N/A` **Description:** Type of encoded data. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_MARKED_LTR_INDEX` **Values:** `-1` … `MaxOfLTRFrames -1` **Default Value:** `-1` **Description:** Marked as LTR Index. If != `-1`, then this picture was coded as a long-term reference with this LTR Index. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_REFERENCED_LTR_INDEX_BITFIELD` **Values:** Bitfield `MaxOfLTRFrames` (max possible 16 bits) **Default Value:** `0` **Description:** Referenced LTR Index bitfield. If != `0`, this picture was coded to reference long-term references. The enabled bits identify the LTR Indices of the referenced pictures (e.g. if Bit #0 = `1`, then LTR Index 0 was used as a reference when coding this picture). --- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_TEMPORAL_LAYER` **Values:** `0` … `Maximum number of temporal layers supported - 1` **Default Value:** `N\A` **Description:** Temporal layer of the encoded picture. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_BUFFER_TYPE` **Values:** `AMF_VIDEO_ENCODER_HEVC_OUTPUT_BUFFER_TYPE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_OUTPUT_BUFFER_TYPE_FRAME`,`AMF_VIDEO_ENCODER_HEVC_OUTPUT_BUFFER_TYPE_TILE`, `AMF_VIDEO_ENCODER_HEVC_OUTPUT_BUFFER_TYPE_TILE_LAST` **Default Value:** `N\A` **Description:** Encoder output buffer type. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_RECONSTRUCTED_PICTURE` **Values:** `AMFSurface` **Default Value:** `N\A` **Description:** Reconstructed picture. Valid with `PICTURE_TRANSFER_MODE` turned on. --- ### Table A-3. Encoder capabilities exposed in AMFCaps interface | Name (prefix with AMF_VIDEO_ENCODER_HEVC_CAP_) | Type | | :-------------------------------------------- | :-------- | |MAX_BITRATE |amf_int64| |NUM_OF_STREAMS |amf_int64| |MAX_PROFILE |amf_int64| |MAX_TIER |amf_int64| |MAX_LEVEL |amf_int64| |MIN_REFERENCE_FRAMES |amf_int64| |MAX_REFERENCE_FRAMES |amf_int64| |MAX_TEMPORAL_LAYERS |amf_int64| |NUM_OF_HW_INSTANCES |amf_int64| |COLOR_CONVERSION |amf_int64| |PRE_ANALYSIS |amf_bool| |ROI |amf_bool| |MAX_THROUGHPUT |amf_int64| |REQUESTED_THROUGHPUT |amf_int64| |QUERY_TIMEOUT_SUPPORT |amf_bool| |SUPPORT_SLICE_OUTPUT |amf_bool|Table 14. Encoder capabilities exposed in AMFCaps interface
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_MAX_BITRATE` **Values:** Integers, >=0 **Description:** Maximum bit rate in bits. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_NUM_OF_STREAMS` **Values:** Integers, >=0 **Description:** Maximum number of encode streams supported. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_MAX_PROFILE` **Values:** `AMF_VIDEO_ENCODER_HEVC_PROFILE_ENUM`: `AMF_VIDEO_ENCODER_HEVC_PROFILE_MAIN`, `AMF_VIDEO_ENCODER_HEVC_PROFILE_MAIN_10` **Description:** Maximum value of encoder profile. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_MAX_TIER` **Values:** `AMF_VIDEO_ENCODER_HEVC_TIER_ENUM`: `AMF_VIDEO_ENCODER_HEVC_TIER_MAIN`,`AMF_VIDEO_ENCODER_HEVC_TIER_HIGH` **Description:** Maximum profile tier. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_MAX_LEVEL` **Values:** `AMF_VIDEO_ENCODER_LEVEL_ENUM`: `AMF_LEVEL_1`, `AMF_LEVEL_2`, `AMF_LEVEL_2_1`, `AMF_LEVEL_3`, `AMF_LEVEL_3_1`, `AMF_LEVEL_4`, `AMF_LEVEL_4_1`, `AMF_LEVEL_5`, `AMF_LEVEL_5_1`, `AMF_LEVEL_5_2`, `AMF_LEVEL_6`, `AMF_LEVEL_6_1`, `AMF_LEVEL_6_2` **Description:** Maximum value of profile level. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_MIN_REFERENCE_FRAMES` **Description:** Minimum number of reference frames. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_MAX_REFERENCE_FRAMES` **Description:** Maximum number of reference frames. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_MAX_NUM_TEMPORAL_LAYERS` **Values:** `1` … `Maximum number of temporal layers supported` **Description:** The cap of maximum number of temporal layers. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_NUM_OF_HW_INSTANCES` **Values:** `0`... `number of instances - 1` **Description:** Number of HW encoder instances. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_COLOR_CONVERSION` **Values:** `AMF_ACCELERATION_TYPE` **Description:** Type of supported color conversion. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_PRE_ANALYSIS` **Values:** `true`, `false` **Description:** Pre analysis module is available. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_ROI` **Values:** `true`, `false` **Description:** ROI map support is available. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_MAX_THROUGHPUT` **Values:** Integers, >=0 **Description:** MAX throughput for HEVC encoder in MB (16 x 16 pixels). --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_REQUESTED_THROUGHPUT` **Values:** Integers, >=0 **Description:** Currently total requested throughput for encode in MB (16 x 16 pixels). --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_QUERY_TIMEOUT_SUPPORT` **Values:** `true`, `false` **Description:** Timeout supported for `QueryOutput` call. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_CAP_SUPPORT_SLICE_OUTPUT` **Values:** `true`, `false` **Description:** If tile output is supported. --- ### Table A-4. Encoder statistics feedback | Statistic Name (prefix "AMF_VIDEO_ENCODER_HEVC_") | Type | | :------------------------------------------------ | :---------| | STATISTIC_FRAME_QP | amf_int64 | | STATISTIC_AVERAGE_QP | amf_int64 | | STATISTIC_MAX_QP | amf_int64 | | STATISTIC_MIN_QP | amf_int64 | | STATISTIC_PIX_NUM_INTRA | amf_int64 | | STATISTIC_PIX_NUM_INTER | amf_int64 | | STATISTIC_PIX_NUM_SKIP | amf_int64 | | STATISTIC_BITCOUNT_RESIDUAL | amf_int64 | | STATISTIC_BITCOUNT_MOTION | amf_int64 | | STATISTIC_BITCOUNT_INTER | amf_int64 | | STATISTIC_BITCOUNT_INTRA | amf_int64 | | STATISTIC_BITCOUNT_ALL_MINUS_HEADER | amf_int64 | | STATISTIC_MV_X | amf_int64 | | STATISTIC_MV_Y | amf_int64 | | STATISTIC_RD_COST_FINAL | amf_int64 | | STATISTIC_RD_COST_INTRA | amf_int64 | | STATISTIC_RD_COST_INTER | amf_int64 | | STATISTIC_SATD_FINAL | amf_int64 | | STATISTIC_SATD_INTRA | amf_int64 | | STATISTIC_SATD_INTER | amf_int64 | | STATISTIC_VARIANCE | amf_int64 |Table 15. Encoder statistics feedback
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_FRAME_QP` **Description:** QP of the first encoded CTB in a picture. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_AVERAGE_QP` **Description:** Average QP of all encoded CTBs in a picture. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_MAX_QP` **Description:** Max QP among all encoded CTBs in a picture. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_MIN_QP` **Description:** Min QP among all encoded CTBs in a picture. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_PIX_NUM_INTRA` **Description:** Number of intra-coded pixels. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_PIX_NUM_INTER` **Description:** Number of inter-coded pixels. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_PIX_NUM_SKIP` **Description:** Number of skip-coded pixels. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_BITCOUNT_RESIDUAL` **Description:** Frame level bit count of residual data. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_BITCOUNT_MOTION` **Description:** Frame level bit count of motion vectors. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_BITCOUNT_INTER` **Description:** Frame level bit count of inter CTBs. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_BITCOUNT_INTRA` **Description:** Frame level bit count of intra CTBs. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_BITCOUNT_ALL_MINUS_HEADER` **Description:** Frame level bit count of the bitstream excluding header. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_MV_X` **Description:** Accumulated absolute values of MVX for full encoding. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_MV_Y` **Description:** Accumulated absolute values of MVY for full encoding. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_RD_COST_FINAL` **Description:** Frame level final RD cost. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_RD_COST_INTRA` **Description:** Frame level RD cost for intra mode. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_RD_COST_INTER` **Description:** Frame level RD cost for inter mode. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_SATD_FINAL` **Description:** Frame level final SATD. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_SATD_INTRA` **Description:** Frame level SATD for intra mode. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_SATD_INTER` **Description:** Frame level SATD for inter mode. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_VARIANCE` **Description:** Frame level variance for full encoding. --- ### Table A-5. Encoder PSNR/SSIM feedback | Statistic Name (prefix "AMF_VIDEO_ENCODER_HEVC") | Type | | :----------------------------------------------- | :--------- | | STATISTIC_PSNR_Y | amf_double | | STATISTIC_PSNR_U | amf_double | | STATISTIC_PSNR_V | amf_double | | STATISTIC_PSNR_ALL | amf_double | | STATISTIC_SSIM_Y | amf_double | | STATISTIC_SSIM_U | amf_double | | STATISTIC_SSIM_V | amf_double | | STATISTIC_SSIM_ALL | amf_double |Table 16. Encoder statistics feedback
**Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_PSNR_Y` **Description:** PSNR Y. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_PSNR_U` **Description:** PSNY U. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_PSNR_V` **Description:** PSNR V. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_PSNR_ALL` **Description:** PSNR YUV. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_SSIM_Y` **Description:** SSIM Y. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_SSIM_U` **Description:** SSIM U. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_SSIM_V` **Description:** SSIM V. --- **Name:** `AMF_VIDEO_ENCODER_HEVC_STATISTIC_SSIM_ALL` **Description:** SSIM YUV. --- ### Table A-6. Deprecated | Name (prefix "AMF_VIDEO_ENCODER_") | Type | Deprecated Starting | | :-------------------------------------- | :--------- | :-----------------: | | HEVC_RATE_CONTROL_PREANALYSIS_ENABLE | bool | v1.4.16 | | CAPS_HEVC_QUERY_TIMEOUT_SUPPORT | amf_bool | v1.4.30 |Table 17. Deprecated
--- **Name:** `AMF_VIDEO_ENCODER_HEVC_RATE_CONTROL_PREANALYSIS_ENABLE` **Values:** `true`, `false` **Default Value:** `false` **Description:** Enables pre-encode assisted rate control. Deprecated, please use `AMF_VIDEO_ENCODER_HEVC_PREENCODE_ENABLE` instead. --- **Name:** `AMF_VIDEO_ENCODER_CAPS_HEVC_QUERY_TIMEOUT_SUPPORT` **Values:** `true`, `false` **Default Value:** `N/A` **Description:** Timeout supported for `QueryOutput` call. Deprecated, please use `AMF_VIDEO_ENCODER_HEVC_CAP_QUERY_TIMEOUT_SUPPORT` instead. ---
