"# Psychoacoustics"
]
},
{
"cell_type": "code",
"execution_count": 5,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/Dp9NhFShaPM?rel=0\" frameborder=\"0\" allow=\"accelerometer; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/Dp9NhFShaPM?rel=0\" frameborder=\"0\" allow=\"accelerometer; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "slide"
}
},
"source": [
"## Block Diagram of a Perceptual Audio Encoder"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [
"<center>\n",
" <img src='./images/ac_04_01_psycho1.png' width='900'>\n",
"</center>"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"scrolled": true,
"slideshow": {
"slide_type": "slide"
}
},
"source": [
"## Structure of the Human Ear"
]
},
{
"cell_type": "code",
"execution_count": 7,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/BcVFpv1sczg?rel=0\" frameborder=\"0\" allow=\"accelerometer; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/BcVFpv1sczg?rel=0\" frameborder=\"0\" allow=\"accelerometer; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [
"<center>\n",

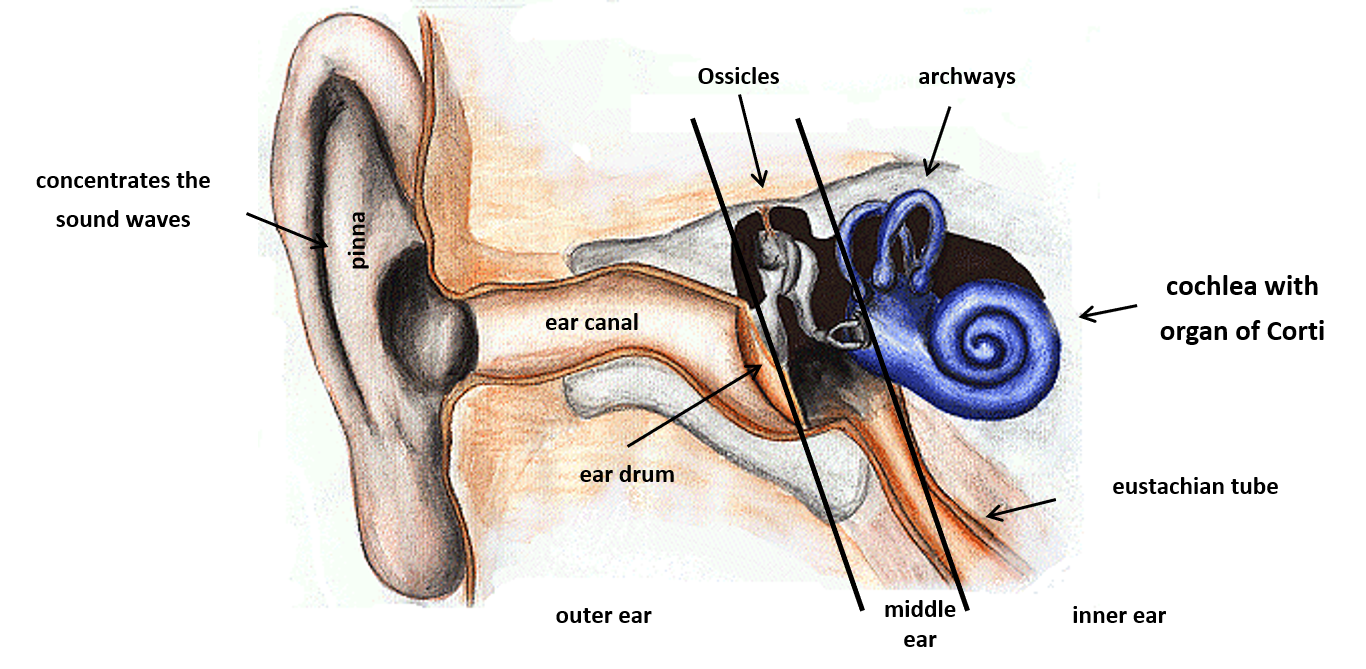

" <img src='./images/ac_04_02_structureEar.png' width='900'>\n",
" <cite>Quelle: Ars Auditus; http://www.dasp.uni-wuppertal.de/index.php?id=57, 2010</cite>\n",
"</center>\n",
"\n",
" - eardrum – transforms sound wave into vibrations\n",
" - ossicular bones - transfer the mechanical vibrations to the cochlea\n",
" - cochlear structure - induces traveling waves along the length of the basilar membrane\n",
" - neural receptors - connected along the length of the basilar membrane\n",
" - convert these traveling into chemical and electrical signals"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "subslide"
}
},
"source": [
"### Cochlea"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"<center>\n",
" <img src='./images/ac_04_03_cochlea.png' width='500'>\n",
"</center>\n",
"\n",

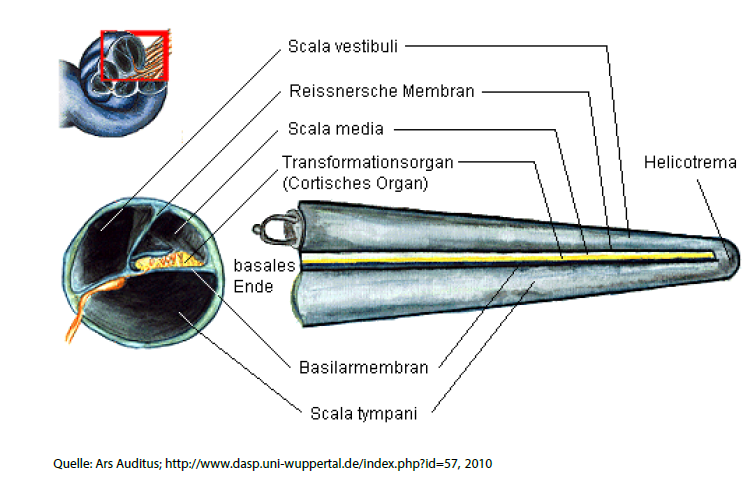

" - cochlea of a 5 month old fetus:\n",
" - spiral-shaped, fluid-filled structure\n",
" - contains the coiled basilar membrane\n",
" - blue arrow $\\rightarrow$ oval window\n",
" - yellos arrow $\\rightarrow$ round window\n",
" \n",
" <center>\n",
" <img src='./images/ac_04_04_cochlea2.png' width='600'>\n",
"</center>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "subslide"
}
},
"source": [
"### Organ of Corti"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" <center>\n",
" <img src='./images/ac_04_05_corti.png' width='600'>\n",
"</center>\n",
"\n",
" - organ of corti of a guinea pig\n",
" - white bar = 20 μm\n",
" \n",
" - $\\approx$ 3500 IHC and $\\approx$ 12000 OHC at humans.\n",
" - hair cells convert fluid motion into electrical impulses in auditory nerve."
]
},
{
"cell_type": "code",
"execution_count": 3,
"metadata": {
"hide_input": true,
"slideshow": {
"slide_type": "-"
}
},
"outputs": [
{
"name": "stdout",
"output_type": "stream",
"text": [
"https://acoustics.org/pressroom/httpdocs/146th/mountain.htm\n"
]
},
{
"data": {
"text/html": [
"\n",
" <iframe\n",
" width=\"900\"\n",
" height=\"600\"\n",
" src=\"https://acoustics.org/pressroom/httpdocs/146th/mountain.htm\"\n",
" frameborder=\"0\"\n",
" allowfullscreen\n",
" ></iframe>\n",
" "
],
"text/plain": [
"<IPython.lib.display.IFrame at 0x11d67e1be08>"
]
},
"execution_count": 3,
"metadata": {},
"output_type": "execute_result"
}
],
"source": [
"from IPython.display import IFrame\n",
"print('https://acoustics.org/pressroom/httpdocs/146th/mountain.htm')\n",
"IFrame('https://acoustics.org/pressroom/httpdocs/146th/mountain.htm', width=900, height=600)\n"
]
},
{
"cell_type": "code",
"execution_count": 4,
"metadata": {
"hide_input": true,
"slideshow": {
"slide_type": "-"
}
},
"outputs": [
{
"name": "stdout",
"output_type": "stream",
"text": [
"http://147.162.36.50/cochlea/cochleapages/overview/history.htm\n"
]
},
{
"data": {
"text/html": [
"\n",
" <iframe\n",
" width=\"900\"\n",
" height=\"600\"\n",
" src=\"http://147.162.36.50/cochlea/cochleapages/overview/history.htm\"\n",
" frameborder=\"0\"\n",
" allowfullscreen\n",
" ></iframe>\n",
" "
],
"text/plain": [
"<IPython.lib.display.IFrame at 0x11d67e53188>"
]
},
"execution_count": 4,
"metadata": {},
"output_type": "execute_result"
}
],
"source": [
"from IPython.display import IFrame\n",
"print('http://147.162.36.50/cochlea/cochleapages/overview/history.htm')\n",
"IFrame('http://147.162.36.50/cochlea/cochleapages/overview/history.htm', width=900, height=600)"
]
},
{
"cell_type": "code",
"execution_count": 6,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/eQEaiZ2j9oc?rel=0\" frameborder=\"0\" allow=\"accelerometer; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/eQEaiZ2j9oc?rel=0\" frameborder=\"0\" allow=\"accelerometer; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "slide"
}
},
"source": [
"## Preprocessing of Sound in the Peripheral System"
]
},
{
"cell_type": "code",
"execution_count": 3,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/tj069m7BUf0?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/tj069m7BUf0?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - frequency selectivity of the basilar membrane\n",
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_08_basilarMembrane.png' width='600'>\n",
" <cite>Source: http://cochlearimplanthelp.com/journey/choosing-a-cochlear-implant/electrodes-and-channels/</cite>\n",
" <br>\n",
"</center>\n",
"<br>\n",

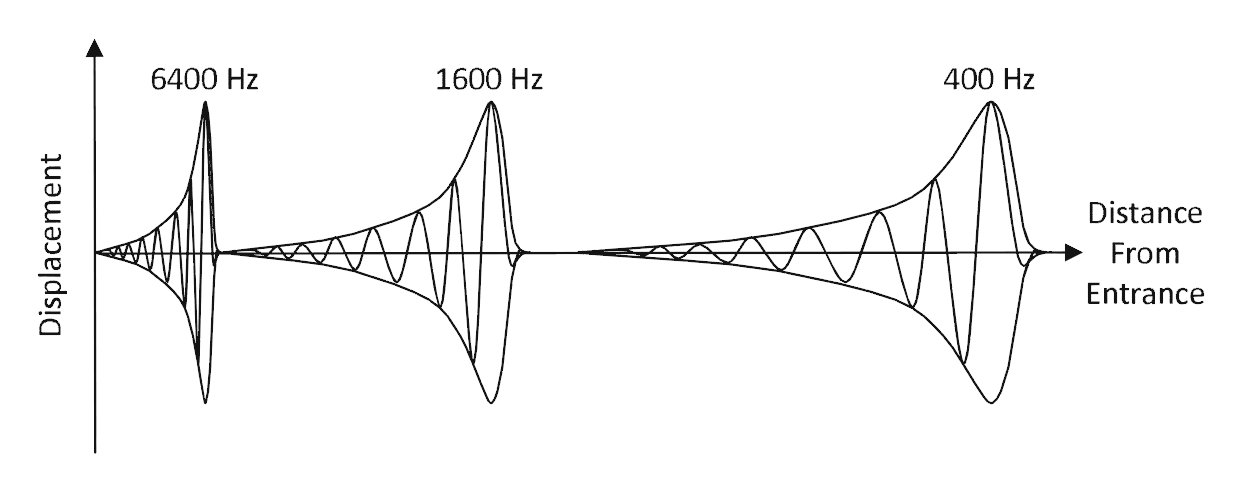

" - traveling wave envelopes occur in response to an acoustic tone complex containing e.g. sinusoids of 400 Hz, 1600 Hz and 6400 Hz\n",
" - peak responses for each sinusoid are localized along the membrane surface, with each peak occurring at a particular distance from the oval window (cochlear \"input\")\n",
"<center>\n",
" <br>\n",
" <img src='./images/ac_04_06_preprocessing.png' width='700'>\n",
" <cite>Source: Yuli You \"Audio Coding Theory and Applications\" </cite>\n",
" <br>\n",
"</center>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"## Information Processing in the Auditory System"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [

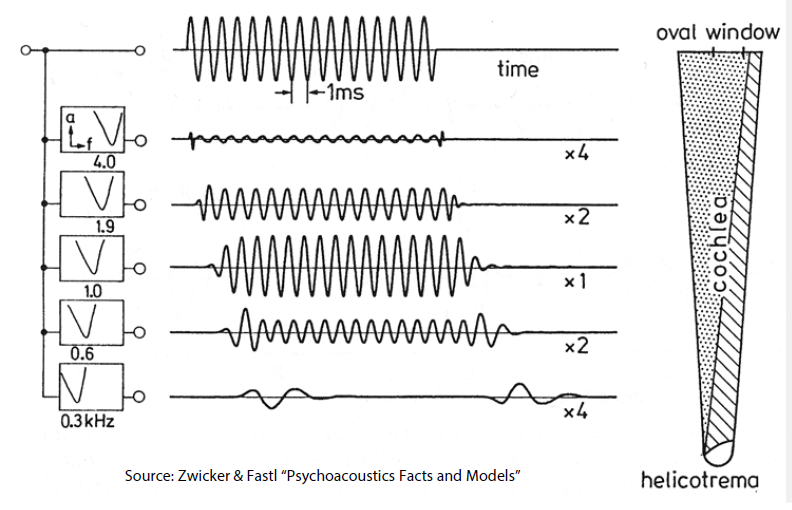

" - basilar membrane as a filter bank\n",
" - bank of highly overlapping bandpass filters\n",
" - the magnitude responses are asymmetric and nonlinear (level dependent)\n",
" - non-uniform bandwidth, and the bandwidths increase with increasing frequency\n",
" \n",
"<center>\n",
" <img src='./images/ac_04_07_preprocessing2.png' width='700'>\n",
"</center>\n"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "slide"
}
},
"source": [
"## Sound Perception"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [

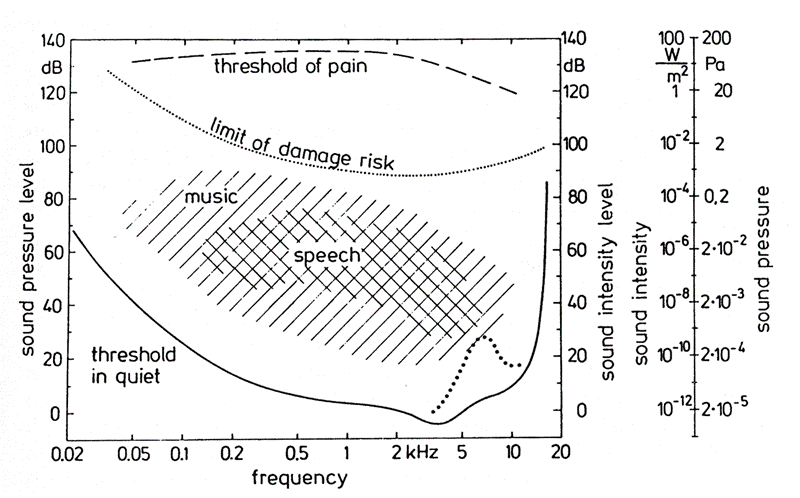

"### Frequency and Level Range of Human Hearing"
]
},
{
"cell_type": "code",
"execution_count": 1,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/sTGM9FhcNbw?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/sTGM9FhcNbw?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [
"<center>\n",
" <img src='./images/ac_04_09_frequency.png' width='700'>\n",
"</center>\n"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"### Threshold in Quiet or the Absolute Threshold"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [

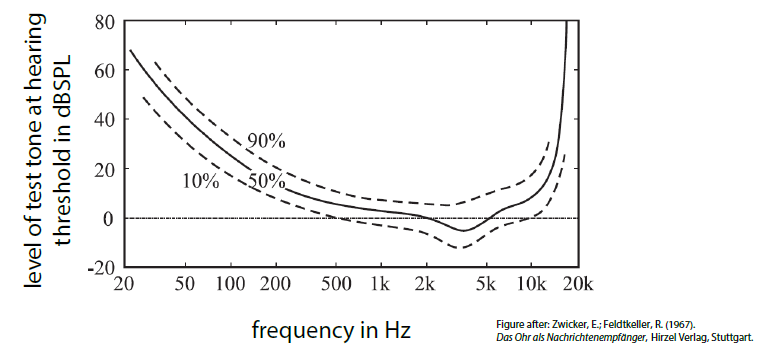

" - Hearing threshold of 100 persons with normal hearing for \n",
" sine tones (50% curve is the median).\n",
" <br>\n",
" <center>\n",
" <img src='./images/ac_04_10_threshold.png' width='800'>\n",
"</center>\n",
"<br>\n",
"\n",

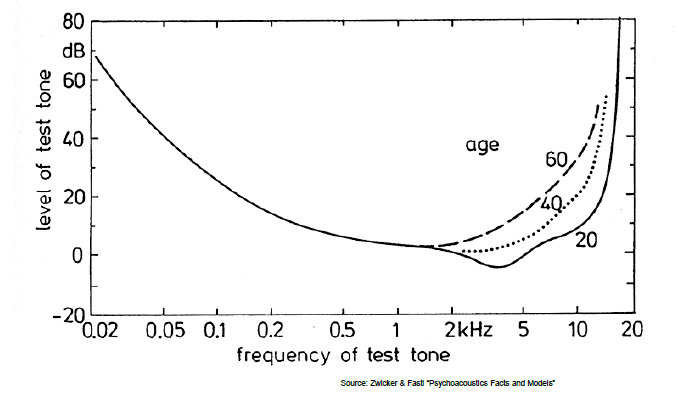

" - Approximations:\n",
" \n",
" $$\\large\n",
" \\dfrac{L_{T_q}}{dB} = 3.64 \\left( \\frac{f}{kHz} \\right)^{-0.8} - \\exp \\left( -0.6\\left(\\dfrac{f}{kHz}-3.3\\right)^2\\right)\n",
" + 10^{-3}\\left(\\dfrac{f}{kHz}\\right)^4\n",
" $$\n",
" <br>\n",
" <center>\n",
" <img src='./images/ac_04_11_threshold2.png' width='600'>\n",
"</center>\n",
" \n"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"### Hearing Threshold and Age"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [

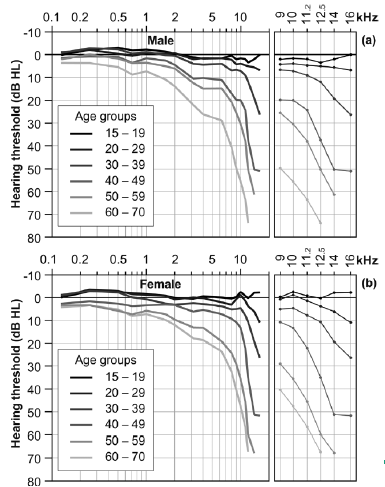

" - Average pure-tone audiograms in dB Hearing Loss in (a) men and (b) women grouped by their age in decades (the parameter is age group in years). The extended high-frequency range is zoomed for clarity.\n",
" \n",
" <br>\n",
" <center>\n",
" <img src='./images/ac_04_12_threshold_age.png' width='500'>\n",
"</center>\n",
"\n",
"\n",

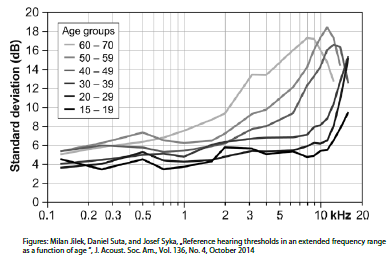

" - Pure-tone threshold standard deviation of all participants as a function of frequency (the parameter is age in 10-year groups). \n",
" \n",
" <br>\n",
" <center>\n",
" <img src='./images/ac_04_13_threshold_age2.png' width='500'>\n",
"</center>\n",
"\n",
"\n",
" "
]
},
{
"cell_type": "code",
"execution_count": 6,
"metadata": {
"hide_input": true,
"scrolled": false
},
"outputs": [
{
"name": "stdout",
"output_type": "stream",
"text": [
"http://newt.phys.unsw.edu.au/jw/hearing.html\n"
]
},
{
"data": {
"text/html": [
"\n",
" <iframe\n",
" width=\"900\"\n",
" height=\"600\"\n",
" src=\"http://newt.phys.unsw.edu.au/jw/hearing.html\"\n",
" frameborder=\"0\"\n",
" allowfullscreen\n",
" ></iframe>\n",
" "
],
"text/plain": [
"<IPython.lib.display.IFrame at 0x2c276328f08>"
]
},
"execution_count": 6,
"metadata": {},
"output_type": "execute_result"
}
],
"source": [
"from IPython.display import IFrame\n",
"print('http://newt.phys.unsw.edu.au/jw/hearing.html')\n",
"IFrame('http://newt.phys.unsw.edu.au/jw/hearing.html', width=900, height=600)"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "slide"
}
},
"source": [

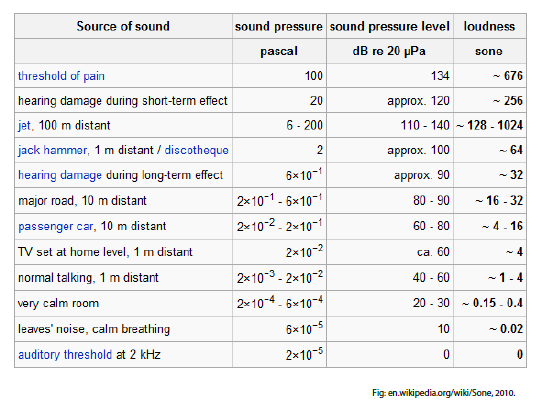

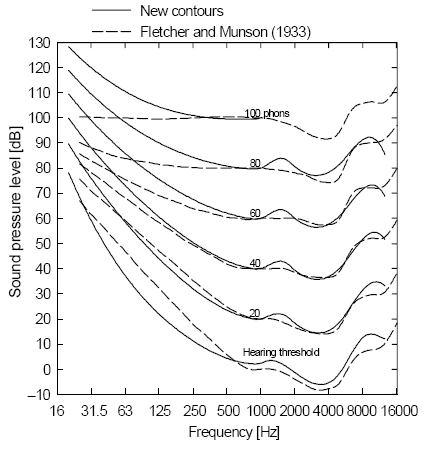

"## Loudness"
]
},
{
"cell_type": "code",
"execution_count": 2,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/BQPVCN1fmSQ?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/BQPVCN1fmSQ?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - Loudness LeveL:\n",
" - **Loudness N:** psychological concept to describe the magnitude of an <u>auditory sensation</u>, the loudness of a sound (measured in 'sone')\n",
" - **loudness level $L_N$** of a sound is measured in **'phon'**\n",
" - **$L_N$** of a sound is the sound pressure of a 1 kHz tone which is as loud as the sound\n",
" - 1 sone is equivalent to 40 phons, which is defined as the loudness level of a pure 1 kHz tone at $L_N$ 40 dB SPL.\n",
" \n",
" \n",
" - Equal-Loudness Level Contours:\n",
" - Equal loudness contours of pure tone sin a free sound field.\n",
" - The parameter is expressed in **loudness level**, $L_N$, and loudness, N. Can be observed:\n",
" - The sensitivity of the human ear -a function of frequency\n",
" - The most sensitive to sounds around 2–4 kHz\n",
" \n",
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_14_loudness.png' width='500'>\n",
"</center>\n",
"\n",
" - Loudness Scale:\n",
" - aim: double the number of units on this scale means magnitude of sensation is doubled\n",
" <br>\n",
" $\\rightarrow$ relation between loudness level $L_N$ and the loudness N (rule of thumb):\n",
" $$2 \\cdot N \\hat{=} L_N + 10 phon $$\n",
" - one potential experiment:\n",
" <br>\n",
" listen to a sound with $L_{N_1}$ 1and then adjust the same sound until <br>\n",
" $N_2 = 2 \\cdot N_1$, then compare $L_{N_1}$ and $L_{N_2}$\n",
" \n",
" <center>\n",
"<img src='./images/ac_04_15_loudness_scale.png' width='600'>\n",
"</center> \n",
" "
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "slide"
}
},
"source": [
"## Critical Bands"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Frequency Grouping in Human Hearing"
]
},
{
"cell_type": "code",
"execution_count": 3,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/UI9Y8B9A__0?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/UI9Y8B9A__0?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - Different interpretations that produce the same segmentation:\n",
" - Constant distance in the Cochlea\n",
" - By using tones under the threshold in quiet, their intensity add up in a critical band and are now audible\n",
" - Tones in a critical band above the threshold in quiet: their energy adds up\n",

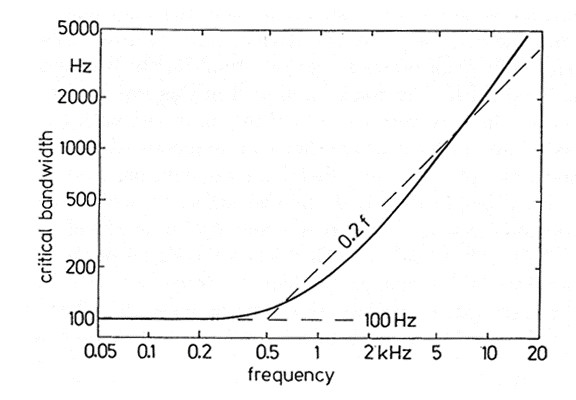

" - Formula for the width of the critical bands:\n",
" - for frequencies < 500 Hz: Constant 100Hz width\n",
" - for frequencies > 500 Hz: 0.2*frequency\n",
" \n",
"<center>\n",
"<img src='./images/ac_04_16_groupin.jpg' width='600'>\n",
" <cite>: Zwicker, Fastl “Psychoacoustics Facts and Models”, p.159 </cite>\n",
"</center> \n",
" \n",
" - Critical bandwidth as a function of frequency, that quantifies the cochlear filter passbands.\n",
" - Approximations for low and high frequency ranges are indicated by broken lines."
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "subslide"
}
},
"source": [
"#### Excursus - Critical Bands and Loudness"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - Spectral effects -influence of bandwidth:\n",
" - bandwidth of the signals plays an important role\n",
" - sound level also influence loudness level\n",
" - $\\rightarrow$ total sound intensity (SPL) have to be constant to measure loudness as function of bandwidth\n",
" - $\\rightarrow$ critical bandwidth\n",
" \n",
"<center>\n",
"<img src='./images/ac_04_17_bandwidth.png' width='500'>\n",
"</center> "
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "subslide"
}
},
"source": [
"### Bark Scale"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [

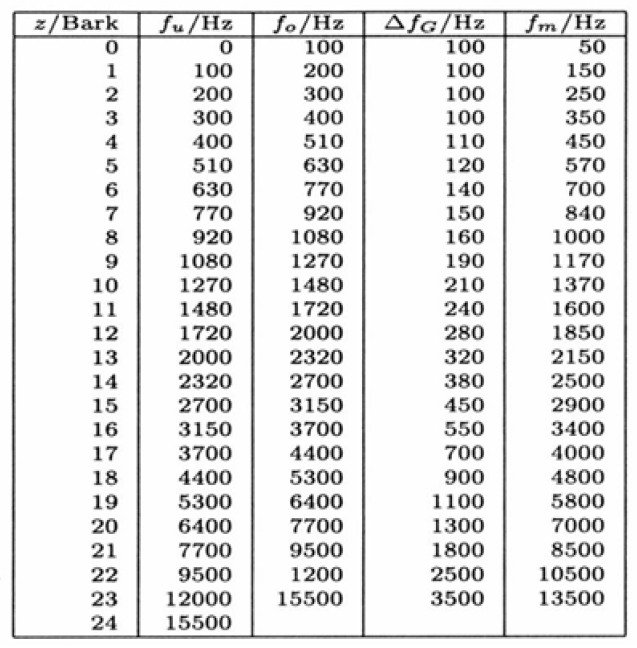

" - Critical-band concept used in many models and hypothesis <br>\n",
" $\\rightarrow$ unit was defined leading to so-called critical-band rate scale\n",
" - scale ranging from 0 –24, unit \"Bark\"\n",
" - relation between z and f is important for understanding many characteristics of human ear\n",
"\n",
"<center>\n",
"<img src='./images/ac_04_18_bark.png' width='500'>\n",
"</center> \n",
"\n",
" - Critical-band concept used in many models and hypotheses <br>\n",
" $\\rightarrow$ unit was defined leading to so-called critical-band rate scale\n",
" - scale ranging from 0 –24, unit \"Bark\"(after Zwicker)\n",
" - One Bark corresponds to one critical band\n",
" - Attempt to approximate critical bands with formulas:\n",
" \n",
"Critical Bandrate *z*:\n",
"\n",
"$$\\large\n",
"\\dfrac{z}{Bark} = 13 \\arctan \\left( 0.76 \\cdot \\dfrac{f}{kHz} \\right) + 3.5 \\cdot \\arctan \\left( \\dfrac{f}{7.5kHz}\\right)^2$$\n",
"\n",
"Critical Bandwidth:\n",
"\n",
"$$\\large\n",
"\\Delta f_b = 25 + 75 \\left( 1 + 1.4 \\left( \\dfrac{f}{kHz} \\right)^2 \\right)^{0.69} $$"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "slide"
}
},
"source": [
"## Masking"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - data compression:\n",
" - exploitation of perception in critical bands with reference to the threshold in quiet is not enough\n",
"\n",
"\n",
" - Basic principle:\n",
" - a **test signal**, called a **maskee** is placed at the center frequency of the critical bandwidth.\n",
" - one **masking signal**, called **masker** (equal power and distance from maskee).\n",
" - If the $P_{maskee}$ is weak relative to the total power of the maskers $\\rightarrow$ the test signal is not audible $\\rightarrow$ test signal is masked\n",
" - In order for the test signal to become audible, its power has to be raised to above a certain level – **masking threshold**.\n",
" "
]
},
{
"cell_type": "code",
"execution_count": 1,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/5Er45bT-hOE?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/5Er45bT-hOE?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Masking of Pure Tones by Noise -Broad-Band Noise"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [

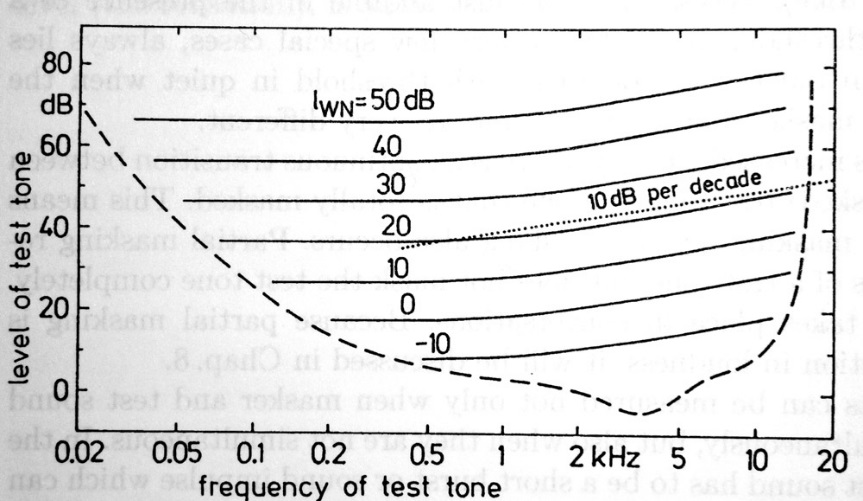

" - Broad-band noise:\n",
" - white noise from 20 Hz 20 - 20kHz.\n",
" \n",
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_19_broadnoise.png' width='600'>\n",
" <cite> Zwicker, Fastl \"Psychoacoustics - Facts and Models\", 2nd Edition, 1999. </cite>\n",
" <br>\n",
"</center>\n",
" \n",
" \n",
" - masking threshold for pure tones masked by broad band noise of different levels.\n",
" - uniform masking noise (UMN) by equalization of the 10 dB per decade slope.\n",
" "
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Masking of Pure Tones by Noise -Narrow-Band Noise"
]
},
{
"cell_type": "code",
"execution_count": 2,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/bHXbgLWkCUk?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/bHXbgLWkCUk?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"hide_input": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [

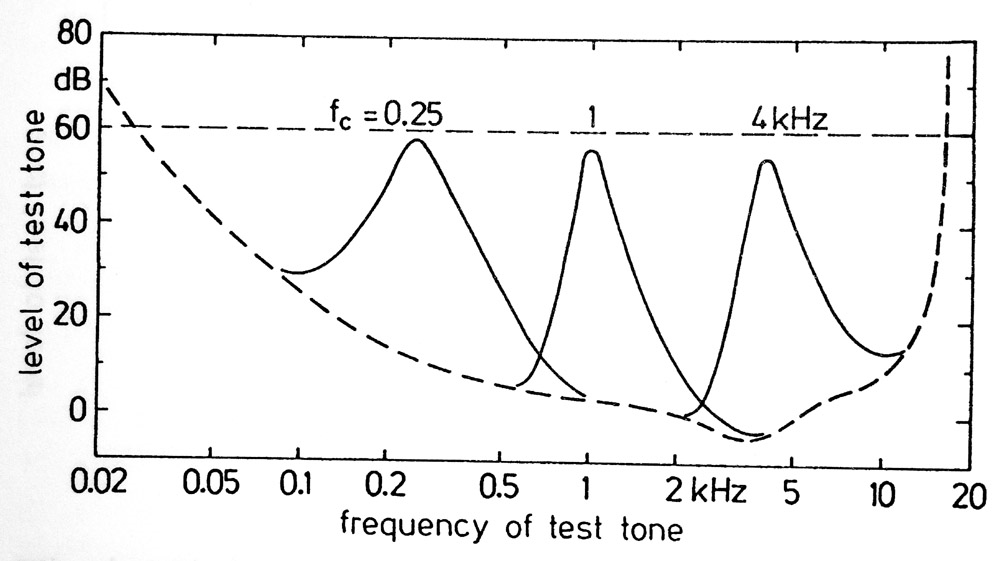

" - narrow-band noise:\n",
" - noise with a bandwidth equal or smaller than critical bandwidth\n",
" \n",
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_20_narrownoise.png' width='600'>\n",
" <cite> Zwicker, Fastl \"Psychoacoustics - Facts and Models\", 2nd Edition, 1999. </cite>\n",
" <br>\n",
"</center>\n",
" \n",
" \n",
" - threshold of pure tones masked by narrow-band noise for different centre frequencies.\n",
" - difference between maximum of masked threshold and test tone level.\n",
" \n",
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_21_narrownoise2.png' width='600'>\n",
" <br>\n",
"</center>\n",
"\n",

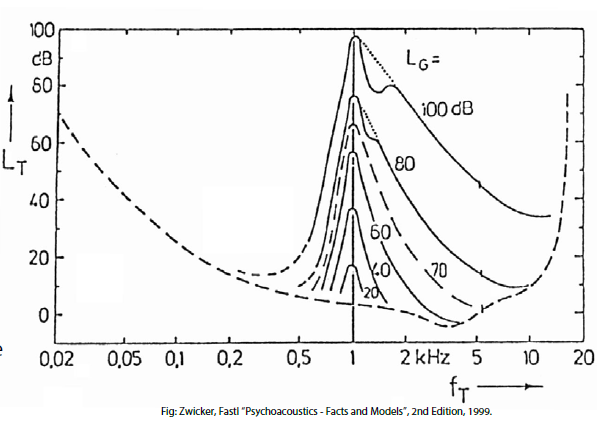

" - dependence of masked threshold on level of narrow-band noise.\n",
" - dips at higher levels $\\rightarrow$ nonlinear effects (difference noise caused by interactions between test tone and noise) "
]
},
{
"cell_type": "markdown",
"metadata": {
"scrolled": true,
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Masking of Pure Tones by Low-Pass or High-Pass Noise"
]
},
{
"cell_type": "code",
"execution_count": 3,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/yEc89bIIcAY?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/yEc89bIIcAY?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"scrolled": false,
"slideshow": {
"slide_type": "-"
}
},
"source": [
"<center>\n",
" <img src='./images/ac_04_22_LpHpnoise2.png' width='600'>\n",
"</center>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Masking of Pure Tones by Pure Tone"
]
},
{
"cell_type": "code",
"execution_count": 4,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/W01-mvdXP_c?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/W01-mvdXP_c?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [

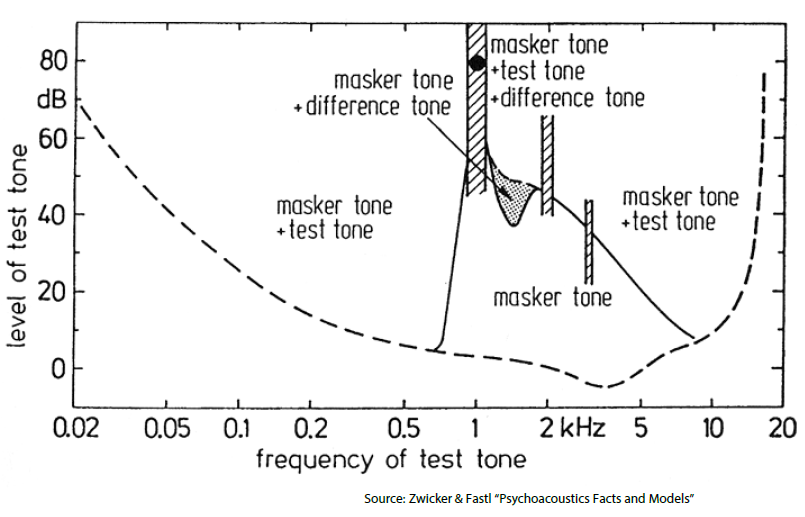

" - pure tone:\n",
" - single frequency\n",
" \n",
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_23_pureTone.png' width='600'>\n",
" <br>\n",
"</center> \n",
"\n",
" - 1 kHz masking tone with level of 80 dB.\n",
" - threshold for 'detection of anything'\n",
" \n",
" \n",
" - Difficulties:\n",
" - beats (hatching)\n",
" - masker and difference tone (stippling)"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Masking of Pure Tone by Complex Tones"
]
},
{
"cell_type": "code",
"execution_count": 5,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/zuQzj9cYwnk?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/zuQzj9cYwnk?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - complex tone:\n",
" - fundamental tone with its harmonics\n",
" \n",
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_24_complexTone.png' width='600'>\n",
" <cite> Zwicker, Fastl \"Psychoacoustics - Facts and Models\", 2nd Edition, 1999. </cite>\n",
" <br>\n",
"</center> \n",
"\n",
"\n",
" - threshold of pure tones masked by a complex tone with 200 Hz fundamental frequency and nine harmonics.\n"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [

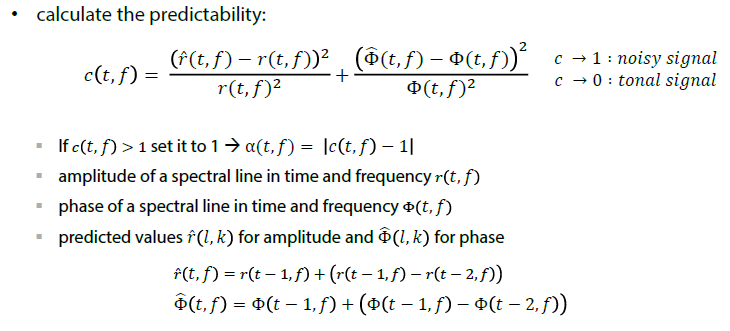

"### Tonality"
]
},
{
"cell_type": "code",
"execution_count": 7,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/pyRuUEB8Bqk?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/pyRuUEB8Bqk?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - Tonality index $\\alpha$:\n",
" - noisy signal: $\\alpha =0$\n",
" - tonal signal: $\\alpha =1$\n",
" - System theory:\n",
" - Sharp spectral lines = Signal is periodic = Signal is predictable.\n",
" - Approximation: If the signal is predictable then it should be periodic.\n",
" - Therefore we can use prediction to approximate if a signal is tonal (by periodicity). \n",
" - Example:\n",
" <center>\n",
" <img src='./images/ac_04_25_tonality.png' width='600'>\n",
" <br>\n",
"</center> \n"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [

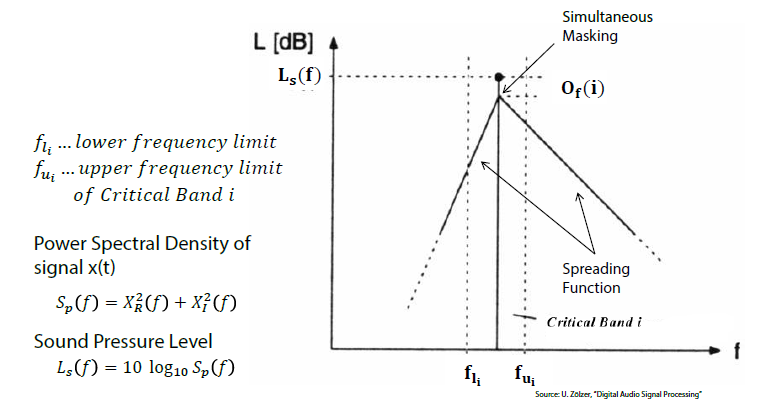

"### Masking - Spreading Function"
]
},
{
"cell_type": "code",
"execution_count": 8,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/2aGu9gCB1Ug?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/2aGu9gCB1Ug?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_26_spreadingF.png' width='900'>\n",
" <br>\n",
"</center> "
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Calculating the Masking Threshold"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - Comparison of the signal level to Masking Threshold:\n",
"\n",
"$$\\large\n",
"\\dfrac{O_f(i)}{dB} = \\alpha (14.5+i) + (1+\\alpha)\\cdot \\alpha_v$$\n",
"\n",
"$$\\large\n",
"\\alpha_v = -2 - 2.05 \\arctan \\left( \\dfrac{f}{4kHz} \\right) - 0.75 \\arctan \\left( \\dfrac{f^2}{2.56 kHz^2} \\right)$$\n",
"\n",
"where $\\alpha \\dots$ Tonality index, $\\alpha_v \\dots$ Noise Coefficient\n",
"\n",
" - Approxitamtion:\n",
"\n",
"$$\\large\n",
"\\dfrac{O_f(i)}{dB} = \\alpha(14.5+i) + (1 - \\alpha)\\cdot 5.5 $$\n",
"\n",
" - Simultaneous Masking Threshold\n",
" \n",
" $$\\large\n",
" T(f) = 10^{\\frac{L_s(f)- O_f(i)}{10}}$$\n",
" \n",
" where $L_s(f) \\dots$ Sound Pressure Level, $O_f{i} \\dots$ Distance to Masking Threshold"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [

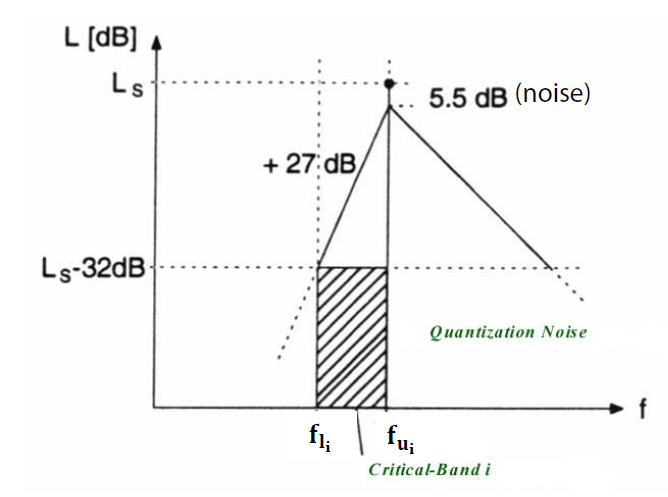

"### In-Band Making"
]
},
{
"cell_type": "code",
"execution_count": 1,
"metadata": {
"hide_input": true,
"slideshow": {
"slide_type": "-"
}
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/EX7x7LLJRKM?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/EX7x7LLJRKM?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" <center>\n",
" <img src='./images/ac_04_25_inBand.png' width='600'>\n",
" <cite> Zolzer, \"Digital Audio Signal Processig\" </cite>\n",
"</center> \n",
"\n"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Masking Neighboring Bands"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
" - spread of masking due to the non-linearity of auditory filters\n",
" - resulting masking threshold = sum of power of neighbouring spreading functions-\n",
" - here: value at intersection of neighbouringspreading functions taken\n",
" <center>\n",
" <br>\n",
" <img src='./images/ac_04_27_maskingBands.png' width='800'>\n",
" <cite> Zolzer, \"Digital Audio Signal Processig\" </cite>\n",
" <br>\n",
"</center> \n",
"\n",
"\n",
"$$\\large\n",
"S_1 = 27 \\cdot \\dfrac{dB}{Bark}$$\n",
"\n",
"$$\\large\n",
"S_2 = 24 + 0.23 \\left( \\dfrac{f}{kHz} \\right)^{-1} - 0.2 \\cdot \\dfrac{L_s(f)}{dB} \\dfrac{dB}{Bark}$$"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [
"### Temporal Masking Effects"
]
},
{
"cell_type": "code",
"execution_count": 2,
"metadata": {
"hide_input": true
},
"outputs": [
{
"data": {
"text/html": [
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/_TYpk4ekJGs?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>\n"
],
"text/plain": [
"<IPython.core.display.HTML object>"
]
},
"metadata": {},
"output_type": "display_data"
}
],
"source": [
"%%html\n",
"<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/_TYpk4ekJGs?rel=0\" frameborder=\"0\" allow=\"accelerometer; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen></iframe>"
]
},
{
"cell_type": "markdown",
"metadata": {
"slideshow": {
"slide_type": "-"
}
},
"source": [

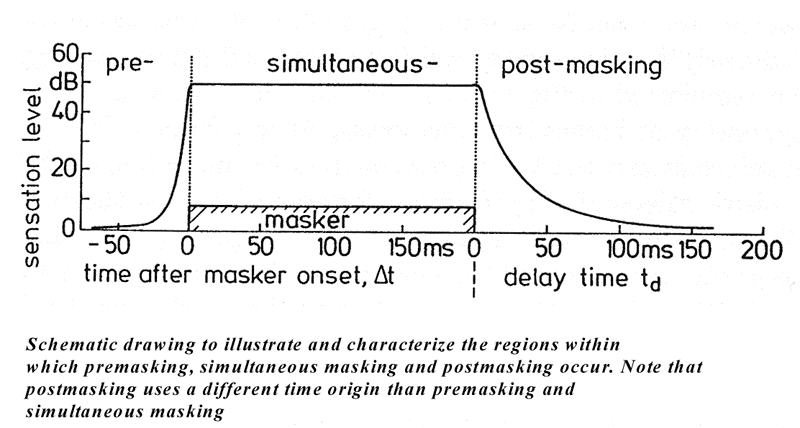

" - Post-Masking: corresponds to decay in the effect of the masker $\\rightarrow$ expected\n",
" - Pre-Masking: appears during time before masker is switched on:\n",
" - Quick build-up time for loud maskers\n",
" - Slower build-up time for faint test sounds\n",
" - Frequency resolution $\\leftrightarrow$ Blurringing time\n",
" - Frequency resolution in the ear $\\rightarrow$ Masking in time\n",
" - Because of in-ear fast processing between quiet to loud signals, we get Pre-Echoes\n",
" - Pre-Masking: 1-5 ms\n",
" - Post-Masking: ~100ms\n",
" \n",
" <center>\n",
" <img src='./images/ac_04_28_temporal.png' width='800'>\n",
" <cite> Zwicker. Fastl \"Psychoacoustics Facts and Models\" </cite>\n",
"</center> \n",
" "
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": []
}
],
"metadata": {
"kernelspec": {
"display_name": "Python 3",
"language": "python",
"name": "python3"
},
"language_info": {
"codemirror_mode": {
"name": "ipython",
"version": 3
},
"file_extension": ".py",
"mimetype": "text/x-python",
"name": "python",
"nbconvert_exporter": "python",
"pygments_lexer": "ipython3",
"version": "3.7.8"
},
"livereveal": {
"rise": {
"height": "90%",
"width": "90%"
},
"scroll": true,
"theme": "beige",
"transition": "zoom"
},
"widgets": {
"application/vnd.jupyter.widget-state+json": {
"state": {
"0b0c58e6c93a41799e09f406dbdefde6": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"0b3040b1b58e4b53a4509d1a39fd031d": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"0be2682832bd4bc8b51cb737e46ca28c": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"0e39b9742c5341378d14cd0ce7c6d7b2": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "HBoxModel",
"state": {
"children": [
"IPY_MODEL_2d9b7d0f8fe4439bb967b502ccdf02f7",
"IPY_MODEL_7042e1d3ab44462087773c8182c56c15"
],
"layout": "IPY_MODEL_0be2682832bd4bc8b51cb737e46ca28c"
}
},
"0f12a068f35a41949e7af2ab301fb1a9": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"15ad70cfa0aa41638667c356ae56295f": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"16c7c2a79a4a4203be047ae7aeee19fa": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ToggleButtonModel",
"state": {
"description": "Stop",
"layout": "IPY_MODEL_15ad70cfa0aa41638667c356ae56295f",
"style": "IPY_MODEL_0f12a068f35a41949e7af2ab301fb1a9"
}
},
"1d15c09691004b7080cdbe29a28d73ff": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "HBoxModel",
"state": {
"children": [
"IPY_MODEL_e2f6054e0fe24c10ac5c95a2b687f1ca",
"IPY_MODEL_2cf22153219242b180ccb47bc4b8f968"
],
"layout": "IPY_MODEL_b40a35cef38e4048b6a2d8149ff7e069"
}
},
"207bd58d7ad144f58b70b598ae30db8e": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"20f35183b9e74a438f97507b3d10929a": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonStyleModel",
"state": {}
},
"23ef77f7f8a84176907ef6949905623b": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "HBoxModel",
"state": {
"children": [
"IPY_MODEL_f61da7386157426ca81a202ffe23e162",
"IPY_MODEL_77a43b098d01405690eb7f9256544cc1"
],
"layout": "IPY_MODEL_3c3e2637ae684b7e95aca1d49d23f40b"
}
},
"2cf22153219242b180ccb47bc4b8f968": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ToggleButtonModel",
"state": {
"description": "Stop",
"layout": "IPY_MODEL_207bd58d7ad144f58b70b598ae30db8e",
"style": "IPY_MODEL_bd80f1c63a2b4a25900e5e5763317b7a"
}
},
"2d9b7d0f8fe4439bb967b502ccdf02f7": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonModel",
"state": {
"description": "Start",
"disabled": true,
"layout": "IPY_MODEL_77522a5639144548b35db6c4d7dd4fb1",
"style": "IPY_MODEL_7d63afec39bb49df9edf2873be48ac04"
}
},
"3276b4539f7144b6a21869875e9c4914": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"354ba59a5468408b962c72423d4e1c65": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"3c3e2637ae684b7e95aca1d49d23f40b": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"4131c38460e44eaf962c7017e2536232": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "HBoxModel",
"state": {
"children": [
"IPY_MODEL_d58265f7549a4e979a3c65b9bd5d76a5",
"IPY_MODEL_c5267597c945478f959c375f44a4d1a7"
],
"layout": "IPY_MODEL_4b10bbeb1b794eb697268d9a1bd106ba"
}
},
"435a7872da0d4c41be05e35d3d9570aa": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"4488c6e4c7834e098e81b481cb1003a4": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "CheckboxModel",
"state": {
"description": "LP Filters",
"disabled": false,
"layout": "IPY_MODEL_a6c7fc4e429c464e8fca3294d830542a",
"style": "IPY_MODEL_7fc76b30f0904d1ab285f634f82d7054",
"value": false
}
},
"470de88b8310448d864c97fad609f7de": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonStyleModel",
"state": {}
},
"4b10bbeb1b794eb697268d9a1bd106ba": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"5795130576114428a9f5f86ee4aa8c80": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"589c1be4bde643c899cf54d67ebfb42f": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "HBoxModel",
"state": {
"children": [
"IPY_MODEL_e8e1025d1bb44a08a500c0d3b8718796",
"IPY_MODEL_fb8ae2a4374c451eb7d78b16edcca16a"
],
"layout": "IPY_MODEL_354ba59a5468408b962c72423d4e1c65"
}
},
"5e41a5a9f29443f49a84cb3b28cfd887": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"5e7f58b91bbf4d1d839bbf49450afd8f": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "HBoxModel",
"state": {
"children": [
"IPY_MODEL_ac4c2b3e307640bdb74f11ec3cf0dafd",
"IPY_MODEL_e3db17127dba4e609008d860b5cf05c5"
],
"layout": "IPY_MODEL_5e41a5a9f29443f49a84cb3b28cfd887"
}
},
"5ec351197a1c442a8fa816d034b1eef6": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"6341affae71049aba97ec2ad0ff9583d": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"6c0e7d0a22a144458689ec0d86788548": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"6cb680fde00f4a6e8c0fb454c76857d3": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ToggleButtonModel",
"state": {
"description": "Stop",
"layout": "IPY_MODEL_de5153ef26c14561bb728c1e74b51aac",
"style": "IPY_MODEL_aed5c18ec1e44b1cb9c1c8a1164530bc"
}
},
"6d9b43798e7642019c6888b869c409a7": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonStyleModel",
"state": {}
},
"7042e1d3ab44462087773c8182c56c15": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ToggleButtonModel",
"state": {
"description": "Stop",
"layout": "IPY_MODEL_d869cf27021149409370838cc26ee878",
"style": "IPY_MODEL_b5d3845cf20e497ea0bddab2ce24c089"
}
},
"77480c26779c420390eabd1bbd64cbee": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonModel",
"state": {
"description": "Start",
"layout": "IPY_MODEL_7b0edd69218248ec89c22a9b29960928",
"style": "IPY_MODEL_470de88b8310448d864c97fad609f7de"
}
},
"77522a5639144548b35db6c4d7dd4fb1": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"77a43b098d01405690eb7f9256544cc1": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ToggleButtonModel",
"state": {
"description": "Stop",
"layout": "IPY_MODEL_5ec351197a1c442a8fa816d034b1eef6",
"style": "IPY_MODEL_f9ed9f912ac848a1a61cccea6d4c20c3",
"value": true
}
},
"7b0edd69218248ec89c22a9b29960928": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"7d63afec39bb49df9edf2873be48ac04": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonStyleModel",
"state": {}
},
"7e5dc995c0d54dc88ffba21751e34fd0": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonStyleModel",
"state": {}
},
"7fc76b30f0904d1ab285f634f82d7054": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"86fd6e4196864369a5e361e09e227412": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonStyleModel",
"state": {}
},
"892de2da73f84062be6382bed68d98e9": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "HBoxModel",
"state": {
"children": [
"IPY_MODEL_77480c26779c420390eabd1bbd64cbee",
"IPY_MODEL_16c7c2a79a4a4203be047ae7aeee19fa"
],
"layout": "IPY_MODEL_c65da4d48410402ca720e41ea2b1a532"
}
},
"a6c7fc4e429c464e8fca3294d830542a": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"a9d684453fac4de8a1da6b5678a9263d": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "HBoxModel",
"state": {
"children": [
"IPY_MODEL_adf8151b53c0458db8a2931959f9851c",
"IPY_MODEL_6cb680fde00f4a6e8c0fb454c76857d3"
],
"layout": "IPY_MODEL_6c0e7d0a22a144458689ec0d86788548"
}
},
"aba427d2152e4e5b95f68cd5fa6b869a": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"ac4c2b3e307640bdb74f11ec3cf0dafd": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "CheckboxModel",
"state": {
"description": "Downsampling/Upsampling",
"disabled": false,
"layout": "IPY_MODEL_ccebf79f7b6b4954afc304a9a913fe0b",
"style": "IPY_MODEL_5795130576114428a9f5f86ee4aa8c80",
"value": false
}
},
"adf8151b53c0458db8a2931959f9851c": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonModel",
"state": {
"description": "Start",
"layout": "IPY_MODEL_c8e686b7f1fd41fb950f6c64c28d1e38",
"style": "IPY_MODEL_20f35183b9e74a438f97507b3d10929a"
}
},
"aed5c18ec1e44b1cb9c1c8a1164530bc": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"b40a35cef38e4048b6a2d8149ff7e069": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"b5d3845cf20e497ea0bddab2ce24c089": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"b71122422f634440ba716e8c5537e52d": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "CheckboxModel",
"state": {
"description": "Downsampling/Upsampling",
"disabled": false,
"layout": "IPY_MODEL_c9f9cd5507994921a16488b925690ec8",
"style": "IPY_MODEL_e3d4389b65684b879575d18283ac20f2",
"value": false
}
},
"bd80f1c63a2b4a25900e5e5763317b7a": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"c1d5efb6eefa4af38df3245d97590b3a": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"c5267597c945478f959c375f44a4d1a7": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ToggleButtonModel",
"state": {
"description": "Stop",
"layout": "IPY_MODEL_6341affae71049aba97ec2ad0ff9583d",
"style": "IPY_MODEL_c1d5efb6eefa4af38df3245d97590b3a",
"value": true
}
},
"c65da4d48410402ca720e41ea2b1a532": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"c8e686b7f1fd41fb950f6c64c28d1e38": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"c9f9cd5507994921a16488b925690ec8": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"ccebf79f7b6b4954afc304a9a913fe0b": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"d58265f7549a4e979a3c65b9bd5d76a5": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonModel",
"state": {
"description": "Start",
"disabled": true,
"layout": "IPY_MODEL_0b0c58e6c93a41799e09f406dbdefde6",
"style": "IPY_MODEL_7e5dc995c0d54dc88ffba21751e34fd0"
}
},
"d869cf27021149409370838cc26ee878": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"dc8d5864ac8d4bb38cee8d043d030237": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"de5153ef26c14561bb728c1e74b51aac": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"e2f6054e0fe24c10ac5c95a2b687f1ca": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonModel",
"state": {
"description": "Start",
"layout": "IPY_MODEL_dc8d5864ac8d4bb38cee8d043d030237",
"style": "IPY_MODEL_6d9b43798e7642019c6888b869c409a7"
}
},
"e35d3e4323234d9287de5cd69a13219c": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonStyleModel",
"state": {}
},
"e3d4389b65684b879575d18283ac20f2": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"e3db17127dba4e609008d860b5cf05c5": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "CheckboxModel",
"state": {
"description": "LP Filters",
"disabled": false,
"layout": "IPY_MODEL_3276b4539f7144b6a21869875e9c4914",
"style": "IPY_MODEL_fbee3d37ce574d8da66ca40eea646dfc",
"value": false
}
},
"e8e1025d1bb44a08a500c0d3b8718796": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonModel",
"state": {
"description": "Start",
"layout": "IPY_MODEL_0b3040b1b58e4b53a4509d1a39fd031d",
"style": "IPY_MODEL_e35d3e4323234d9287de5cd69a13219c"
}
},
"f3b755ac64314b4c901f9ecb32965fd6": {
"model_module": "@jupyter-widgets/base",
"model_module_version": "1.2.0",
"model_name": "LayoutModel",
"state": {}
},
"f61da7386157426ca81a202ffe23e162": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ButtonModel",
"state": {
"description": "Start",
"disabled": true,
"layout": "IPY_MODEL_f3b755ac64314b4c901f9ecb32965fd6",
"style": "IPY_MODEL_86fd6e4196864369a5e361e09e227412"
}
},
"f9ed9f912ac848a1a61cccea6d4c20c3": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
},
"fb8ae2a4374c451eb7d78b16edcca16a": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "ToggleButtonModel",
"state": {
"description": "Stop",
"layout": "IPY_MODEL_aba427d2152e4e5b95f68cd5fa6b869a",
"style": "IPY_MODEL_435a7872da0d4c41be05e35d3d9570aa"
}
},
"fbee3d37ce574d8da66ca40eea646dfc": {
"model_module": "@jupyter-widgets/controls",
"model_module_version": "1.5.0",
"model_name": "DescriptionStyleModel",
"state": {
"description_width": ""
}
}
},
"version_major": 2,
"version_minor": 0
}
}
},
"nbformat": 4,
"nbformat_minor": 2
}
