# btwArch

btwArch is a custom mechanical macropad designed because I use Arch btw. This hackpad features a sleek design with customizable keys, RGB lighting, and modern connectivity options to enhance your workflow.

Built as part of the HackClub 2025 initiative, this project serves as both a functional tool and a learning experience in PCB design, 3D modeling, and firmware development.
(It was my first HackClub <3)

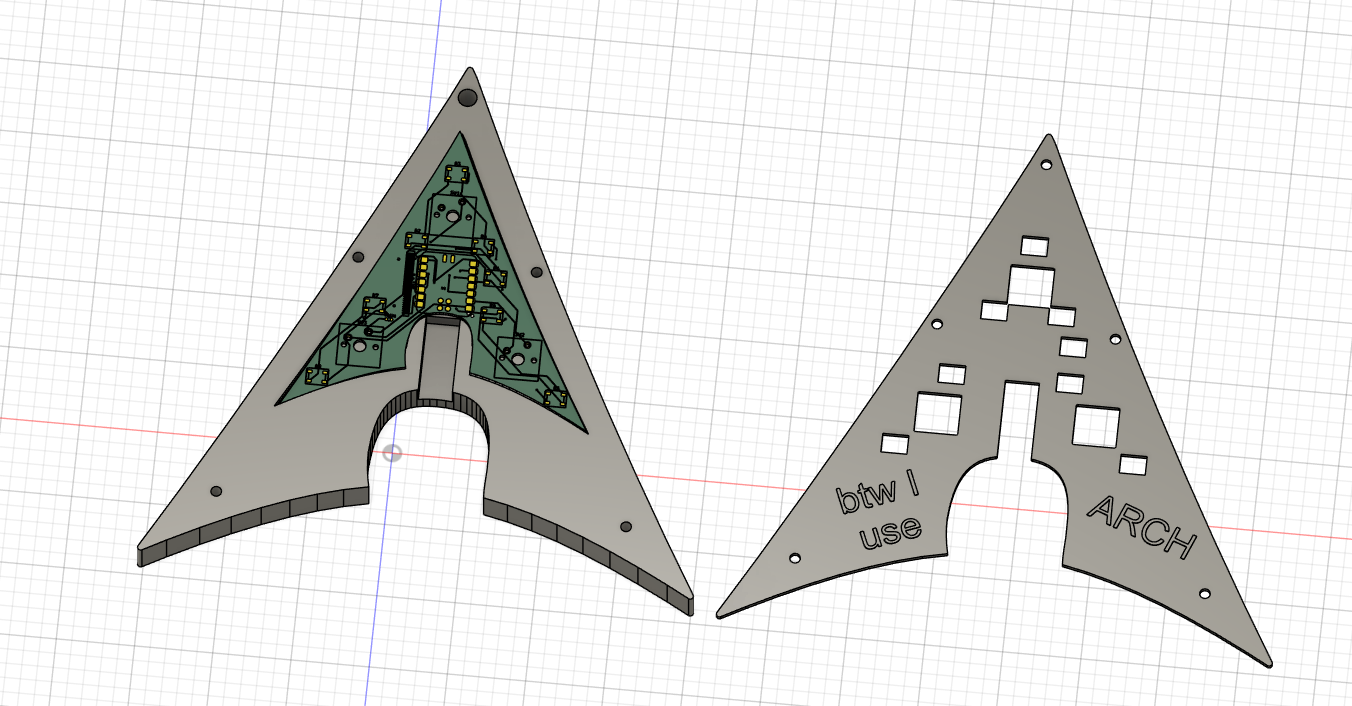

## Overall Design:

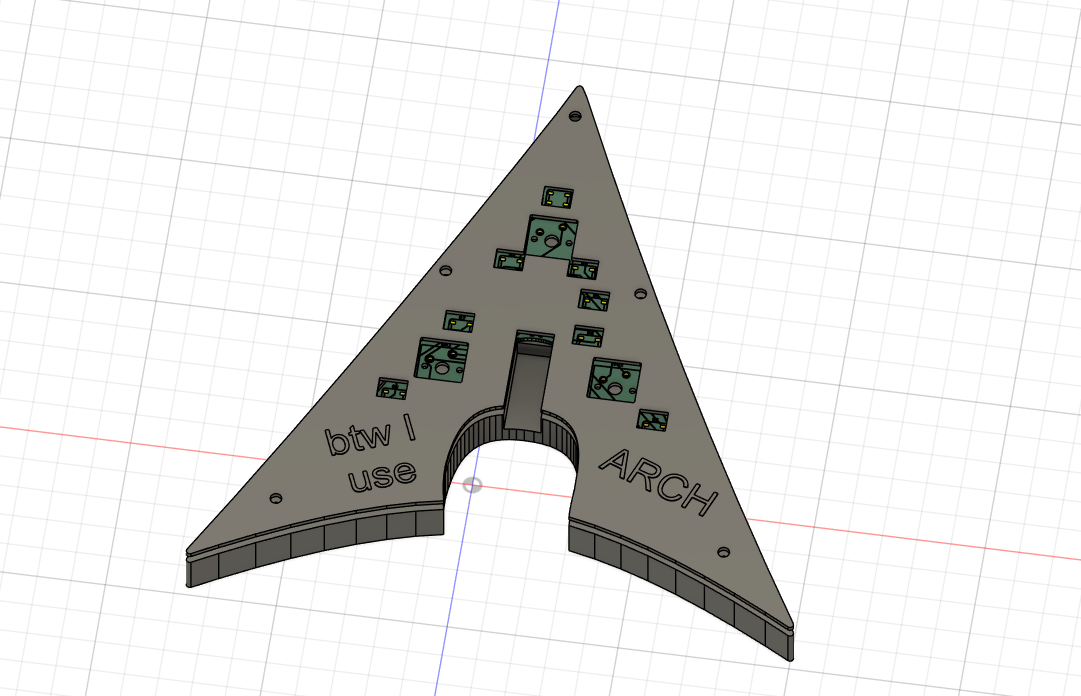

Here's the complete assembled btwArch showing the final product in action:

<img src="assets/right_CaseFit.png" alt="btwArch Overview" width="500"/>

*The finished btwArch ready for daily use*

## CAD Model & Case Design:
The case features a modern, minimalist design with precise tolerances for perfect component fit. The assembly uses standard hardware for easy manufacturing and repair.

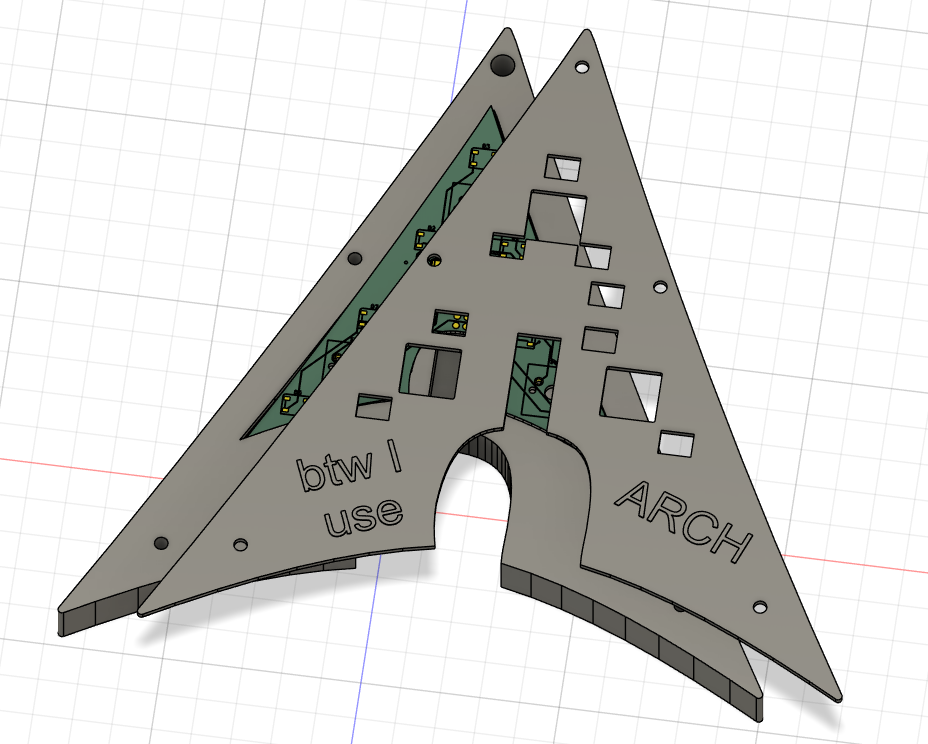

<img src="assets/left_CaseFit.png" alt="left_CaseFit" width="400"/>

*3D model showing how all components fit together from different angles*

## PCB Design
The PCB was designed with modern best practices, featuring proper ground planes, optimized routing, and robust component placement.

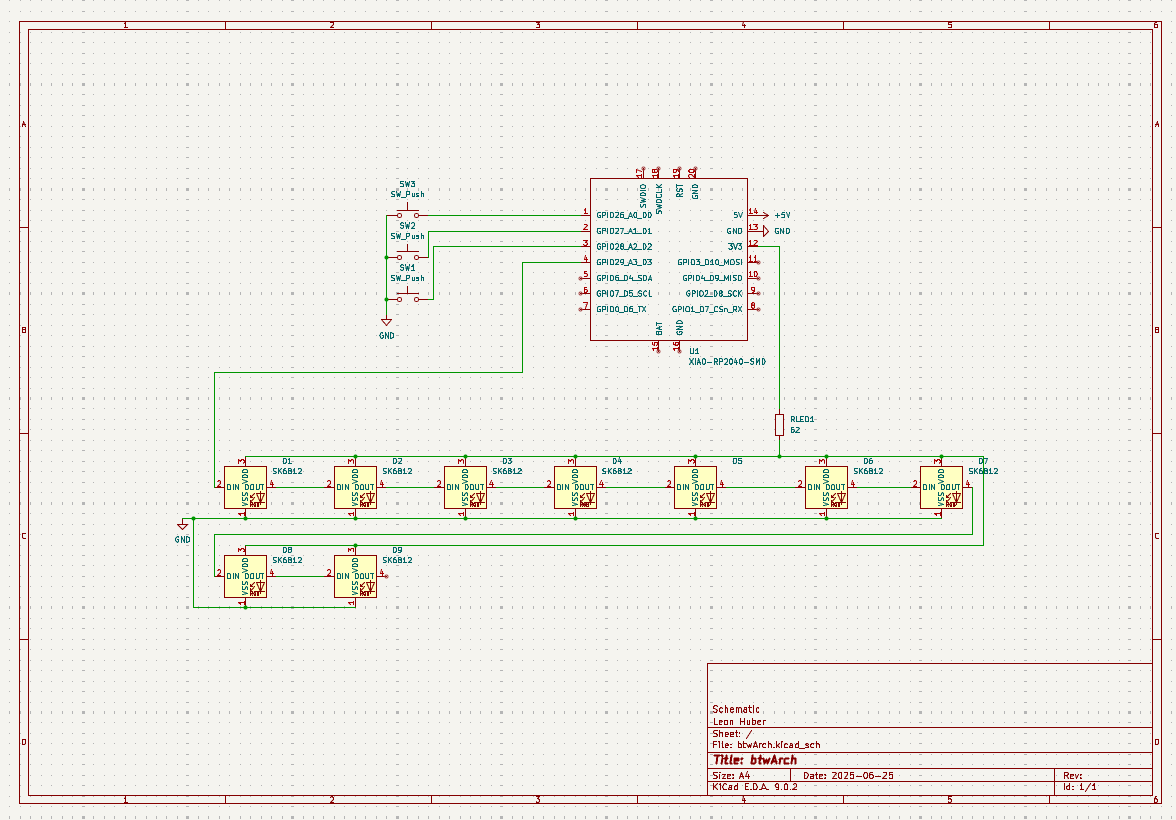

**Schematic:**

<img src="assets/schematic.png" alt="schematic" width="400"/>

*Complete electrical schematic showing all connections*

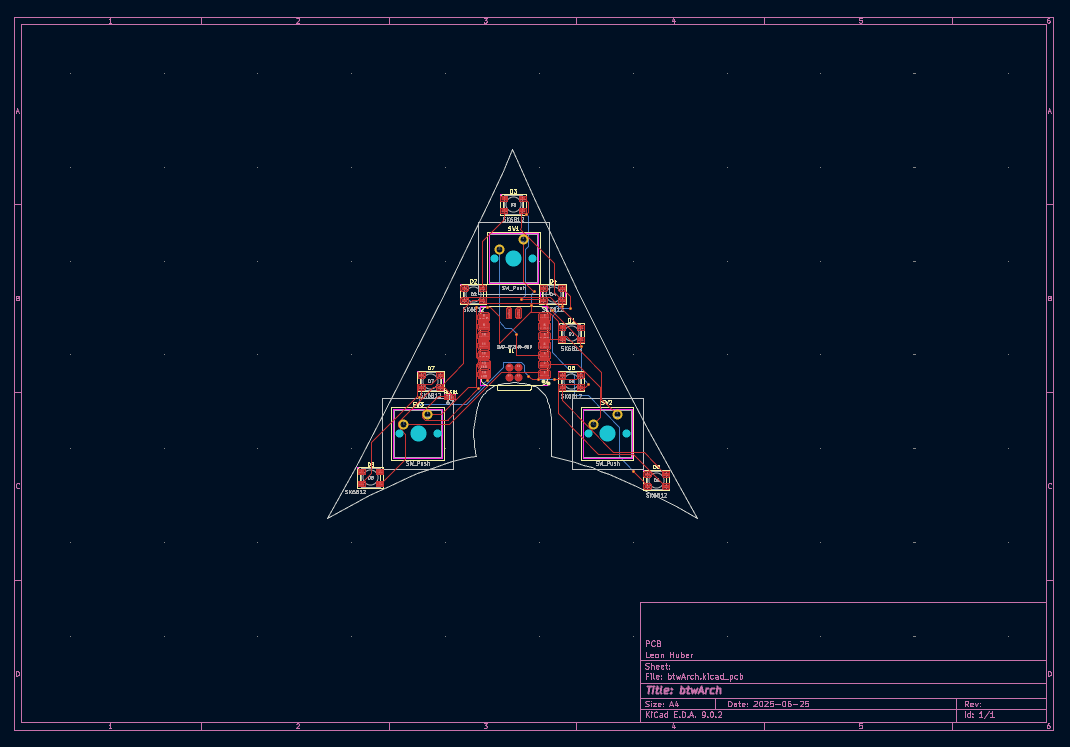

**PCB Layout:**

<img src="assets/pcb.png" alt="pcb" width="400"/>

*Final PCB layout with optimized routing and component placement*

## Firmware Overview
btwArch runs on KMK firmware, a powerful and flexible keyboard firmware that allows for extensive customization and macro programming.

**Features:**
- Customizable key macros via KMK
- RGB lighting effects and patterns

## Bill of Materials (BOM):

| Component | Quantity | Specification |
|-----------|----------|---------------|
| Mechanical Switches | 3x | Cherry MX Switches |
| Keycaps | 3x | Blank DSA keycaps (White) |
| RGB LEDs | 8x | SK6812 MINI-E LEDs |
| Microcontroller | 1x | Seeed XIAO RP2040-SMD |
| Resistors | 1 | 63 ohm |
| Case | 1 | 2 printed parts |
