# ClawPort **A visual command centre for your AI agent team.** [![npm version](https://img.shields.io/npm/v/clawport-ui.svg)](https://www.npmjs.com/package/clawport-ui) [![license](https://img.shields.io/npm/l/clawport-ui.svg)](LICENSE) [![tests](https://img.shields.io/badge/tests-781%20passed-brightgreen)](#testing) [Website](https://clawport.dev) | [Setup Guide](SETUP.md) | [API Docs](docs/API.md) | [npm](https://www.npmjs.com/package/clawport-ui)

--- ClawPort is an open-source dashboard for managing, monitoring, and talking directly to your [OpenClaw](https://openclaw.ai) AI agents. It connects to your local OpenClaw gateway and gives you an org chart, direct agent chat with vision and voice, a kanban board, cron monitoring, cost tracking, an activity console with live log streaming, and a memory browser -- all in one place. No separate AI API keys needed. Everything routes through your OpenClaw gateway. Org Map

More screenshots

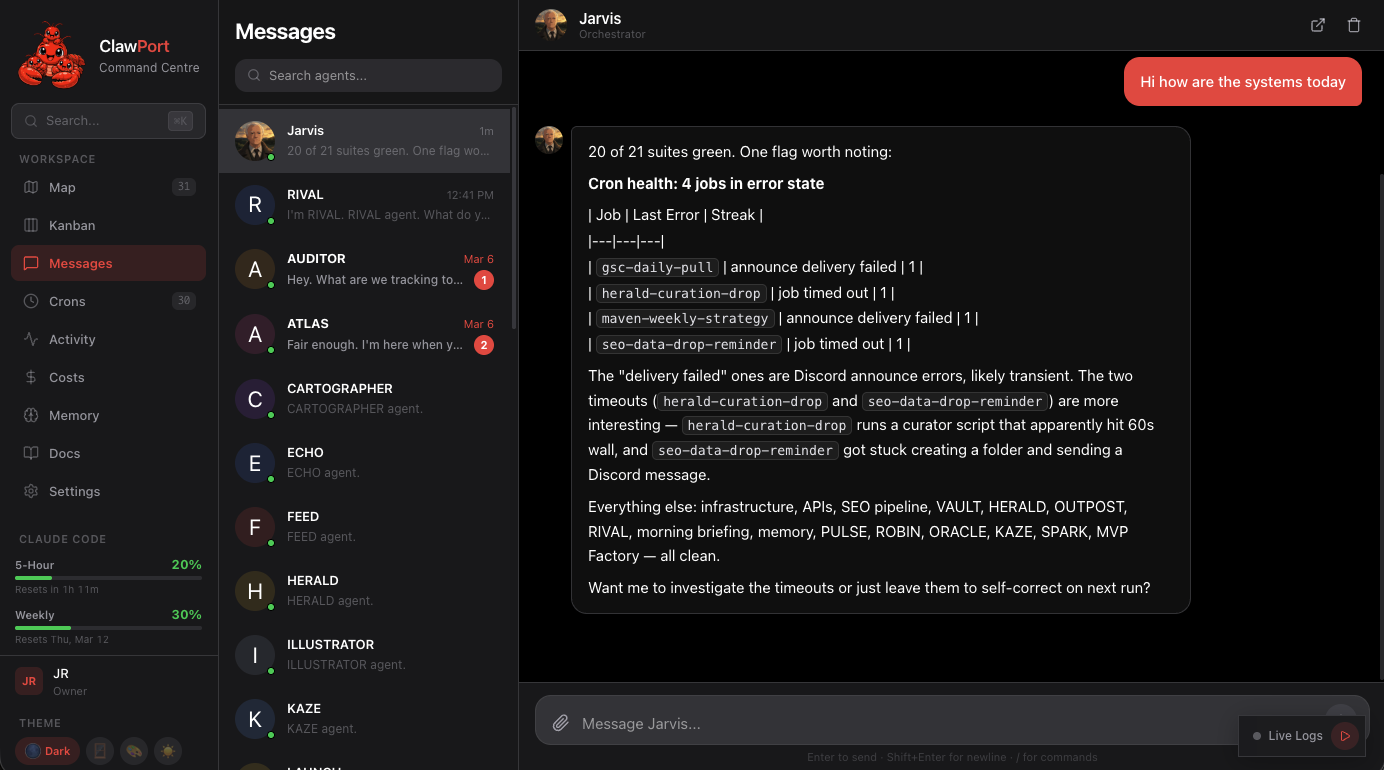

| | | |---|---| | Agent Chat

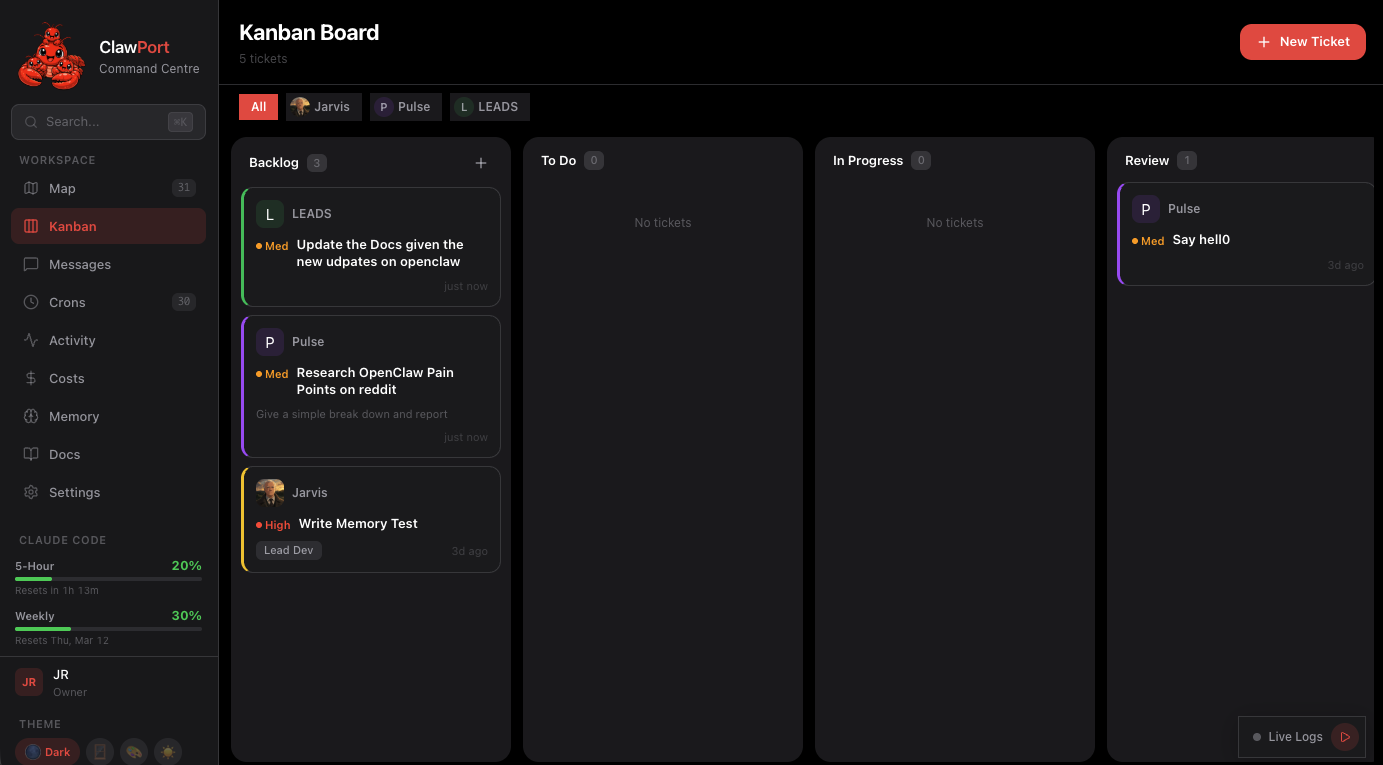

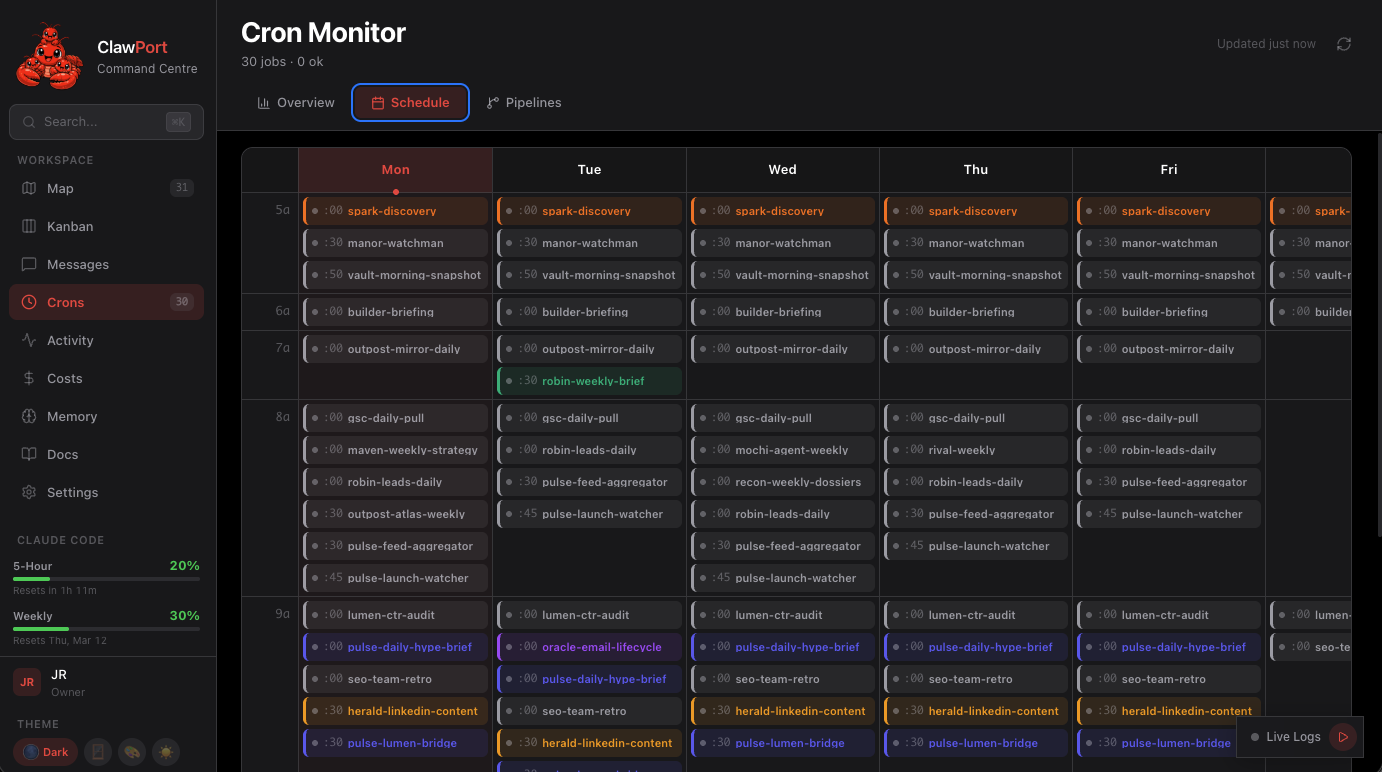

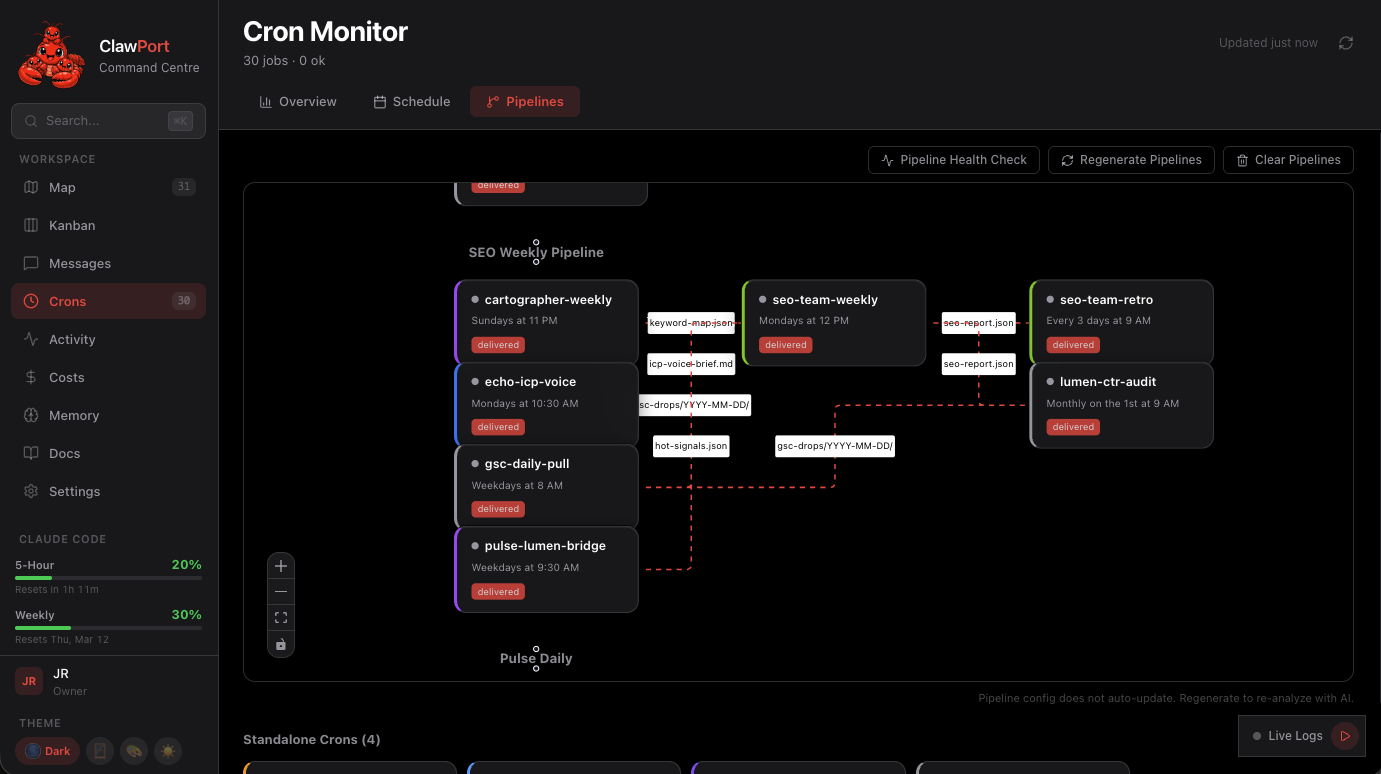

| | **Chat** -- streaming text, vision, voice, file attachments | **Kanban** -- drag-and-drop task board across agents | | Cron Pipelines

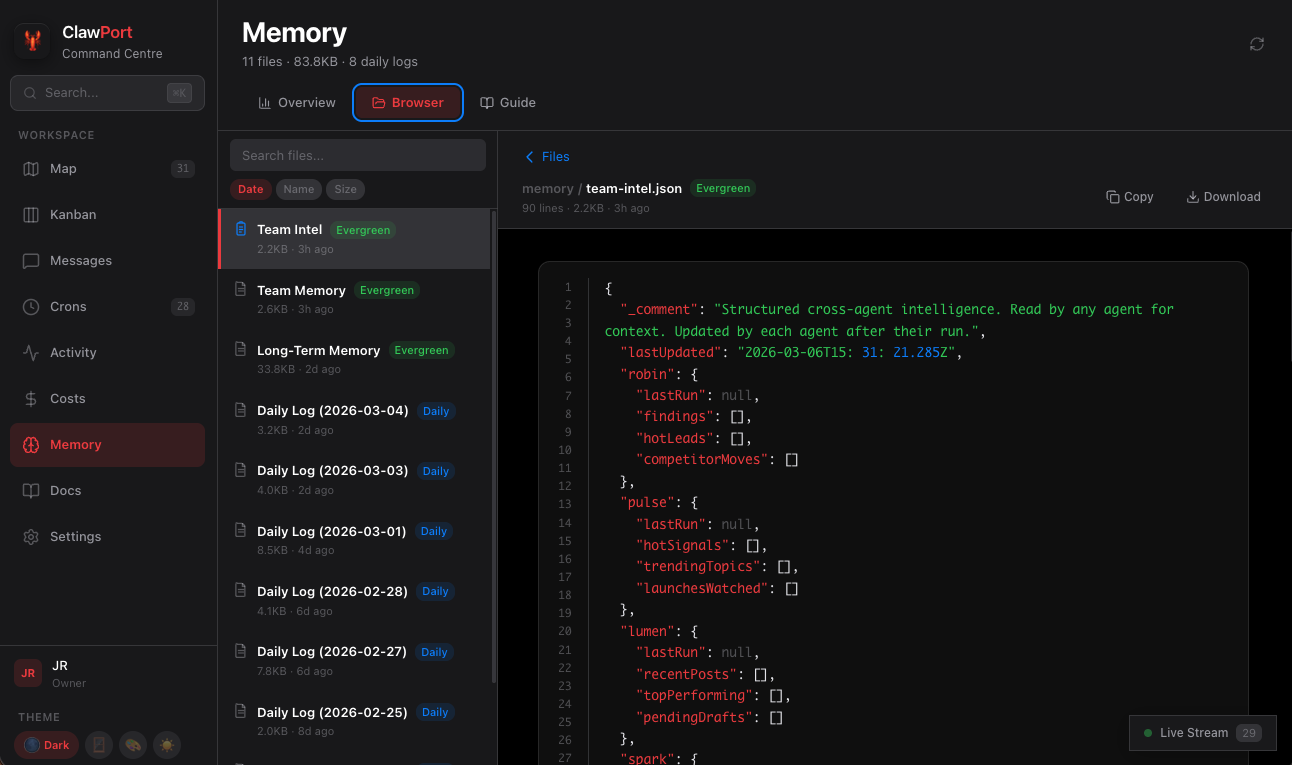

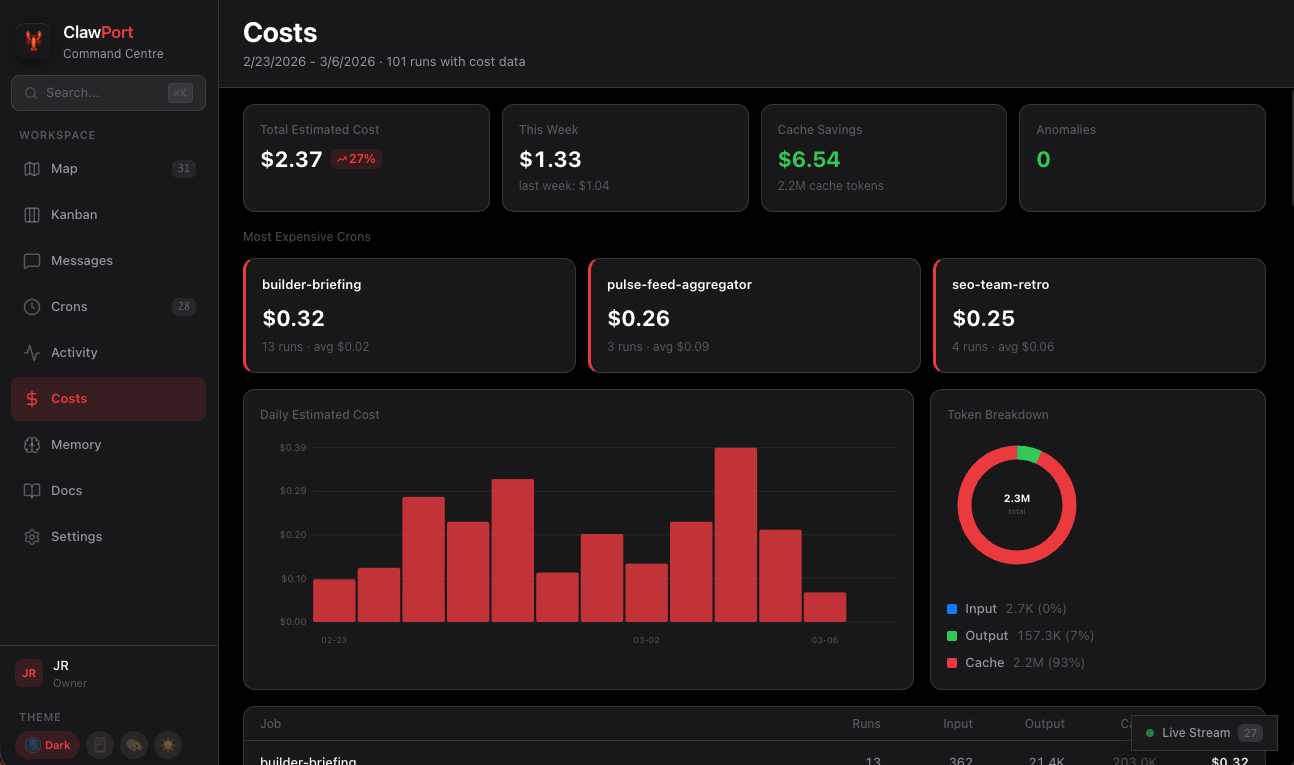

| | **Costs** -- token usage, anomalies, optimization insights | **Memory** -- team memory browser with markdown rendering |

--- ## Quick Start ### 1. Install OpenClaw ClawPort requires a running [OpenClaw](https://openclaw.ai) instance. If you don't have one yet: ```bash # Install OpenClaw curl -fsSL https://openclaw.ai/install.sh | bash # Run the onboarding wizard (sets up workspace, gateway, and daemon) openclaw onboard --install-daemon ``` After onboarding, verify the gateway is running: ```bash openclaw gateway status ``` You should see your gateway URL (default `localhost:18789`) and auth token. If you use a custom port, `clawport setup` will detect it automatically. See the [OpenClaw docs](https://docs.openclaw.ai/getting-started) for more detail. ### 2. Install ClawPort > **Note:** The npm package is `clawport-ui`. The CLI command is `clawport`. > Do not install the unrelated `clawport` package. ```bash npm install -g clawport-ui ``` ### 3. Connect and Launch ```bash # Auto-detect your OpenClaw config and write .env.local clawport setup # Start the dashboard clawport dev ``` Open [http://localhost:3000](http://localhost:3000). The onboarding wizard walks you through naming your portal, picking a theme, and setting up your operator identity.

Install from source instead

```bash git clone https://github.com/JohnRiceML/clawport-ui.git cd clawport-ui npm install npm run setup npm run dev ```

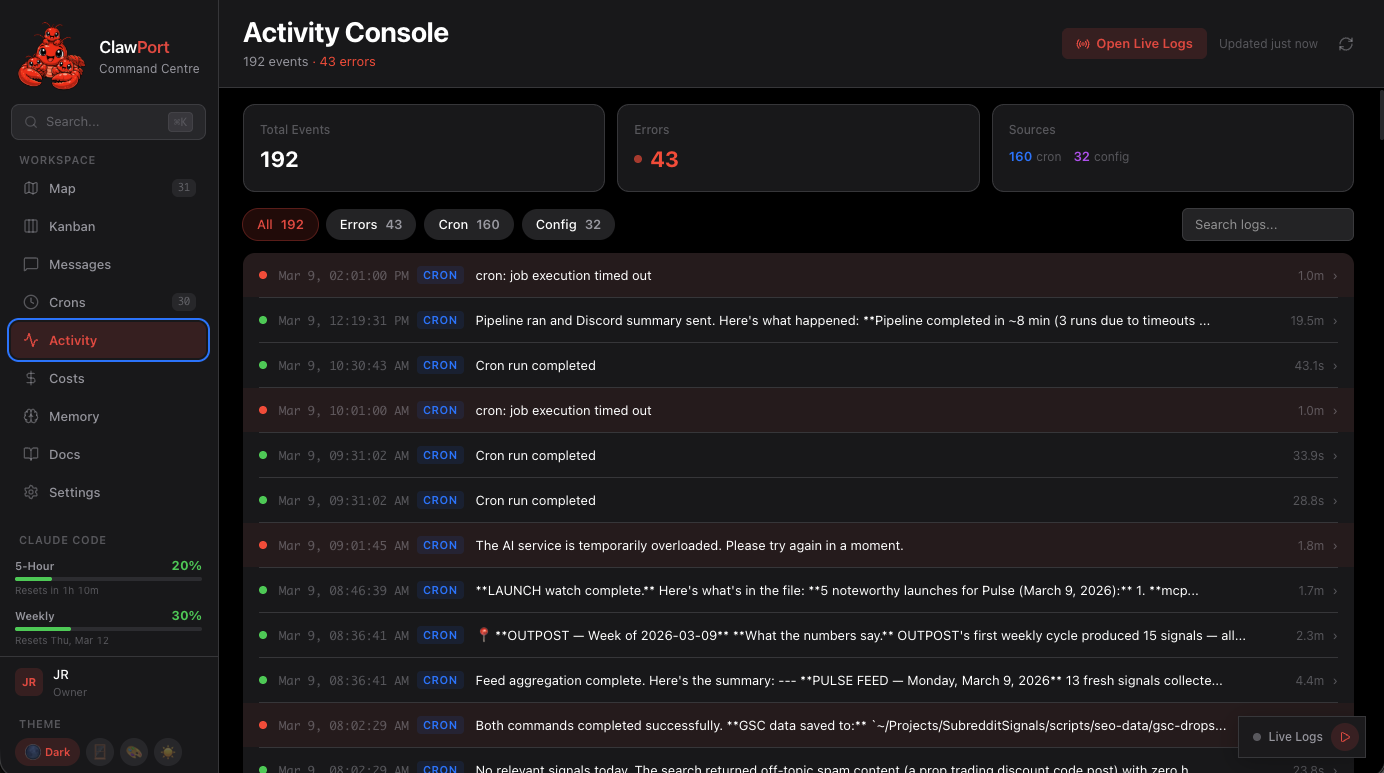

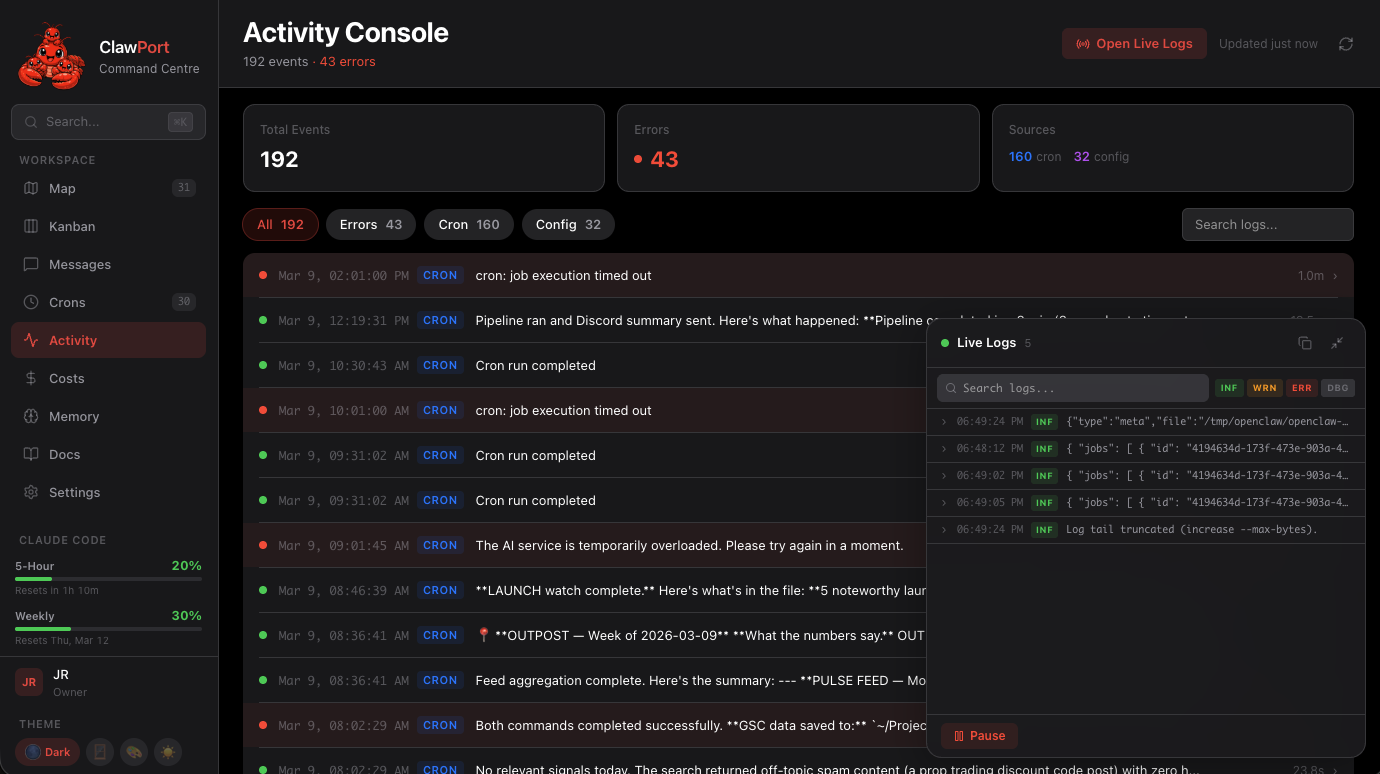

--- ## Features - **Org Map** -- Interactive org chart of your entire agent team. Hierarchy, cron status, and relationships at a glance. Powered by React Flow with auto-layout. - **Chat** -- Streaming text chat, image attachments with vision, voice messages with waveform playback, file attachments, clipboard paste and drag-and-drop. Conversations persist locally. - **Kanban** -- Task board for managing work across agents. Drag-and-drop cards with agent assignment and chat context. - **Cron Monitor** -- Live status of all scheduled jobs. Filter by status, sort errors to top, expand for details. Auto-refreshes every 60 seconds. - **Cost Dashboard** -- Token usage and cost analysis across all cron jobs. Daily cost chart, per-job breakdown, model distribution, anomaly detection, week-over-week trends, and cache savings. - **Activity Console** -- Log browser for historical events plus a floating live stream widget. Click any log row to expand the raw JSON. The live stream widget persists across page navigation. - **Memory Browser** -- Read team memory, long-term memory, and daily logs. Markdown rendering, JSON syntax highlighting, search, and download. Guide tab with categorized best practices. - **Agent Detail** -- Full profile per agent: SOUL.md viewer, tools, hierarchy, crons, voice ID, and direct chat link. - **Five Themes** -- Dark, Glass, Color, Light, and System. All CSS custom properties -- switch instantly. - **Auto-Discovery** -- Automatically finds agents from your OpenClaw workspace. No config file needed. --- ## How It Works ClawPort reads your OpenClaw workspace to discover agents, then connects to the gateway for all AI operations: ``` Browser --> ClawPort (Next.js) --> OpenClaw Gateway (localhost:18789 default) --> Claude | | | Text: /v1/chat/completions (streaming SSE) | Vision: openclaw gateway call chat.send (CLI) | Audio: /v1/audio/transcriptions (Whisper) | Reads from: $WORKSPACE_PATH/agents/ (agent SOUL.md files) $WORKSPACE_PATH/memory/ (team memory) openclaw cron list (scheduled jobs) ``` All AI calls -- chat, vision, TTS, transcription -- route through the gateway. One token, no separate API keys. --- ## Configuration ### Required Environment Variables | Variable | Description | How to find it | |----------|-------------|----------------| | `WORKSPACE_PATH` | Path to your OpenClaw workspace | Default: `~/.openclaw/agents/main/workspace` (or legacy `~/.openclaw/workspace`) | | `OPENCLAW_BIN` | Path to the `openclaw` binary | Run `which openclaw` | | `OPENCLAW_GATEWAY_TOKEN` | Gateway auth token | Run `openclaw gateway status` | ### Optional | Variable | Description | |----------|-------------| | `ELEVENLABS_API_KEY` | ElevenLabs API key for voice indicators on agent profiles | Running `clawport setup` auto-detects all required values and writes `.env.local`. When installed globally, if the package directory isn't writable, setup writes to `~/.config/clawport-ui/.env.local` instead. See [SETUP.md](SETUP.md) for manual configuration, agent customization, and troubleshooting. --- ## Agent Discovery ClawPort automatically discovers agents from your OpenClaw workspace. No configuration file needed. **What it scans:** - `$WORKSPACE_PATH/SOUL.md` -- root orchestrator - `$WORKSPACE_PATH/IDENTITY.md` -- root agent name and emoji - `agents//SOUL.md` -- top-level agents - `agents//sub-agents/*.md` -- flat sub-agent files - `agents//members/*.md` -- team member files - `agents///SOUL.md` -- nested subdirectory agents **What it ignores:** - Directories without `SOUL.md` (e.g., `briefs/`, data files) - Non-`.md` files in `sub-agents/` and `members/` For full control over names, colors, hierarchy, and tools, create `$WORKSPACE_PATH/clawport/agents.json`. See [SETUP.md](SETUP.md) for the schema and examples. --- ## CLI ```bash clawport dev # Start the development server clawport start # Build and start production server clawport setup # Auto-detect OpenClaw config, write .env.local clawport status # Check gateway reachability and config clawport help # Show usage ``` --- ## Testing ```bash npm test # 781 tests across 32 suites (Vitest) npx tsc --noEmit # Type-check (zero errors) npx next build # Production build ``` --- ## Stack - [Next.js 16](https://nextjs.org) (App Router, Turbopack) - [React 19](https://react.dev) / [TypeScript 5](https://typescriptlang.org) - [Tailwind CSS 4](https://tailwindcss.com) - [React Flow](https://reactflow.dev) -- org chart - [Vitest 4](https://vitest.dev) -- testing - [OpenClaw](https://openclaw.ai) -- AI gateway and agent runtime --- ## Documentation | Document | Description | |----------|-------------| | [SETUP.md](SETUP.md) | Full setup guide, agent customization, troubleshooting | | [docs/API.md](docs/API.md) | REST API reference for all endpoints | | [docs/COMPONENTS.md](docs/COMPONENTS.md) | UI component catalog (50+ components) | | [docs/THEMING.md](docs/THEMING.md) | Theme system, CSS tokens, settings API | | [CONTRIBUTING.md](CONTRIBUTING.md) | How to contribute | | [CHANGELOG.md](CHANGELOG.md) | Version history | | [docs/OPENCLAW.md](docs/OPENCLAW.md) | OpenClaw integration reference | | [CLAUDE.md](CLAUDE.md) | Developer architecture guide | --- ## Contributing Contributions are welcome. See [CONTRIBUTING.md](CONTRIBUTING.md) for development setup, code style, and PR guidelines. --- ## License [MIT](LICENSE) --- Built by [John Rice](https://github.com/JohnRiceML) with [Jarvis](https://openclaw.ai) (OpenClaw AI).
