# OpenAI-compatible API, KV contexts & web UI ## `coli serve` `coli serve` keeps one model process loaded and exposes a text-only OpenAI-compatible HTTP API. The gateway uses only the Python standard library; inference still runs in the same dependency-free C engine. ```bash cd c COLI_MODEL=/nvme/glm52_i4 COLI_API_KEY=local-secret ./coli serve \ --host 127.0.0.1 --port 8000 --model-id glm-5.2-colibri curl http://127.0.0.1:8000/v1/chat/completions \ -H 'Authorization: Bearer local-secret' \ -H 'Content-Type: application/json' \ -d '{ "model": "glm-5.2-colibri", "messages": [{"role": "user", "content": "Hello"}], "stream": true }' ``` Implemented endpoints are `GET /v1/models`, `GET /v1/models/{model}`, `POST /v1/chat/completions`, legacy `POST /v1/completions` and `POST /v1/systemone`, colibri's one decision API ([systemone.md](systemone.md)): the request and reply of TypeSafe's Jev API, scored by a language model through its logprob channel or answered natively by a decision model such as [Laya](laya.md), [GLiNER2.5-Decide](gliner_decide.md) or [Clef](clef.md). Chat and completion requests support JSON responses, SSE streaming, usage counts, `max_tokens`/`max_completion_tokens`, `temperature`, `top_p`, and up to four custom `stop` sequences. `max_tokens` is a ceiling, not a target: when the prompt leaves less room than the budget asks for, every engine clamps the budget to what the context holds and the reply ends with `finish_reason: "length"`; only a prompt that does not fit is refused, with `context_length_exceeded` (#260, #1641). Stop sequences are removed from the response and end generation early in both JSON and streaming modes. A trailing `assistant` message *continues* that turn instead of starting a new one: the prompt ends inside it, which is the official template rendered with `add_generation_prompt=False`. This is on by default — a message list ending in a non-empty `assistant` turn continues, the same contract as Anthropic's API — and there is no request field for it, because a trailing assistant turn already says "continue me" and a body extension would only be reachable by hand-written JSON rather than from the clients that want it. The server-side switch `COLI_CONTINUE_ASSISTANT=0` restores the old behaviour (fold the turn into a completed one and append a fresh cue). Continuation is refused together with `tools`/`tool_calls`, because the tool-call parsers read an assistant turn from its start, and the turn must carry text not ending in whitespace: the template strips trailing whitespace, so the model would resume from different bytes than the ones sent. A family whose renderer has no open-turn shape yet falls through to the old behaviour rather than erroring — though every shipped family supports continuation today, Kimi K3 included (its open turn is framed engine-side, in `kimi_k3.c`, not derived in the gateway renderer). A continuation resumes from the exact bytes you send, which makes the split point part of the prompt. Splitting mid-word puts the model at a token boundary it would not have produced itself, and the first generated token is conditioned on that split: measured on GLM-5.3-Flash, `The capital of France is Par` completes to `París`, not `Paris` — deterministically, across every effort level and both endpoints. The continuation is real (the model finished the partial word rather than restarting, which is the behaviour this feature exists for); the spelling is an artefact of where the split fell. This is inherent to resuming from an arbitrary byte offset rather than specific to this engine, and it is the same hazard as the trailing whitespace above — in the one form that cannot be refused, because splitting mid-word is sometimes exactly what the caller wants. Split at a token-ish boundary when the spelling matters. The extension `x_colibri_ignore_leading_stop: true` discards leading stop sequences until the first non-whitespace response content, which is useful for local templates that occasionally emit a role marker before the answer; strict OpenAI stop behavior remains the default for client-provided sequences. GLM chat requests with no client `stop` automatically use the template's `<|user|>` and `<|observation|>` role markers, patiently ignoring only leading markers; this prevents a model-completed turn from silently generating a new user or tool turn. Inkling chat and legacy completion requests receive no implicit GLM stop sequences. The extension `enable_thinking: true` enables GLM-5.2's reasoning block; the standard `reasoning_effort` field also enables it unless set to `none`. On Qwen3.6 the extension `preserve_thinking` is the official template's kwarg of the same name: past assistant turns keep their `` block, with the `reasoning_content` the client sends back, empty when it sends none. It defaults to `true` when thinking is off and to `false` when it is on. With thinking off, the empty block is the one each past turn was generated after, so a client that resends only `content` sends the history the engine already holds and the KV prefix is reused instead of prefilled again (#1759). With thinking on a standard client drops the reasoning, the history cannot match either way, and the template's default applies; a client that sends `reasoning_content` back can set `preserve_thinking: true` to get the reuse too. Both values render byte for byte like the official `chat_template.jinja`. The server serves one generation at a time: the model stays in one persistent process, so concurrent HTTP requests queue instead of loading duplicate model copies. Tool calling depends on the active engine; see the support matrix below. Images and token penalties return an explicit error rather than being silently ignored. The OpenAI-compatible endpoints request log probabilities only from a glm engine (see below); on every other engine such a request is refused with a named error, never silently ignored. `seed` is accepted and ignored (see below). Audio is accepted only by Inkling checkpoints with audio support. The default bind address is localhost; set `COLI_API_KEY` before exposing the server beyond the machine. The hosted-platform bookkeeping fields `store`, `metadata`, `service_tier`, `user`, `safety_identifier`, `parallel_tool_calls`, `prompt_cache_key`, `verbosity`, `web_search_options`, `moderation`, and `stream_options.include_obfuscation` are accepted and intentionally ignored: they have no local equivalent and do not affect generation. Unsupported result-shaping requests are refused explicitly: `best_of` values above 1, a non-empty `logit_bias`, and `suffix` infill. The optional `modalities` array accepts text output only; malformed values and requests for other output modalities receive a named 400 rather than silently returning text. ### `seed` `seed` is accepted (not rejected) for OpenAI-API request-shape compatibility; the value is not validated. This server sends no per-request seed on the wire, so the value has no effect at any temperature. ### Log probabilities and prompt echo `/v1/completions` accepts the legacy integer `logprobs` (**0–32**; 0 means no log probabilities at all, see below; the upper bound is the engine's top-32 read-out interface, and anything above 32 is a named 400) and boolean `echo`; `/v1/chat/completions` accepts boolean `logprobs` plus integer `top_logprobs` (0–32) and returns `choices[].logprobs.content[]` (`{token, logprob, bytes, top_logprobs}` per generated token) — chat has no `echo` concept and rejects one with a 400. Each endpoint takes the OpenAI request shape for it and refuses the other's by name. A non-boolean `echo` is a named 400 (`invalid_value`) on both endpoints, independent of whether `logprobs` is requested at all. On chat, `top_logprobs` is type- and range-checked even when `logprobs` is false or absent, so a malformed `top_logprobs` is a named 400 whether or not the gate it would feed is open; a valid `top_logprobs` with `logprobs` off remains a documented no-op. The zero semantics are explicit, not a truthiness accident: on `/v1/completions`, `logprobs: 0`, `false` and `null` all mean **no log probabilities** (the request succeeds with `choices[].logprobs: null`, exactly as if the field were omitted), while boolean `true` is a named 400 — the legacy field is an integer count, and a boolean carries no count. On `/v1/chat/completions` the field is a boolean gate (`null` behaves like `false`; any integer is a named 400). `echo: null` normalises to absent on both endpoints, so a client that serialises its whole request model with nulls is never refused for a field it did not mean to set. `logprobs` together with `stream` is a named 400: per-delta log probabilities are not built. `/v1/completions` with `echo: true` returns the full legacy `logprobs` object (`tokens`, `token_logprobs`, `top_logprobs`, `text_offset`) covering the echoed prompt plus any generated tokens, and `text` itself is the reconstructed prompt followed by the completion (the standard OpenAI legacy behavior for `echo: true`) rather than the completion alone; `echo: true` without an active `logprobs` request is a named 400 (`echo` requires `logprobs`): the prompt echo is built out of the engine's per-token records, so without them there is nothing to echo, and a request that asks for one is told so rather than served without it. Echoing a prompt with no logprobs at all is offered as a separate proposal. `text_offset` is a character offset into that same returned `text` string, always counted from 0 — including when `echo` is false, where `text` holds only the completion and the offsets describe only that text, not a position within the (unreturned) prompt. `"".join(tokens)` is the returned `text`: where a `stop` sequence matches partway through a token, that token's `tokens` entry is truncated to the characters actually emitted (a `stop` of `"lo"` against a token decoding to `"Hello"` reports `"Hel"`), rather than being dropped or reporting characters the client did not receive. On chat, a truncated entry's `bytes` — and its `top_logprobs` entries' `bytes` — are truncated with it, to the UTF-8 of the characters that entry reports. An entry that was not truncated keeps its frame's own payload, which need not be the encoding of its `token`: a frame carrying only part of a multi-byte codepoint reports `token: ""` with that frame's bytes. The requested top-k table is **unsorted** on the wire — do not assume the first entry is the argmax. Per-token values are printed by the engine to six decimal digits of precision. Non-finite values (a degenerate all-`-inf` logit row, say) serialize as JSON `null`, never a clamped number. These endpoints request the numeric per-token channel only from a glm or a MiMo engine, the two that read out every prompt position `echo` needs; on every other engine the request returns a named 400 rather than being silently ignored. That is a statement about what these endpoints request, and about nothing else. Known limitations, current build: - **Cost.** Requesting `logprobs` at all — completions or chat, `echo` or not — asks the engine for a full read-out pass over the whole prompt, because the request carries one opt-in and not a separate "echo" one. Such a request normally forfeits prefix-cache reuse. There is no cap on prompt length for it, so a very long prompt pays a correspondingly large one-shot cost. - **Waiting.** A logprobs request waits for the engine exactly as any other request waits. An engine that never acknowledges the submission — one older than this extension, or one whose parser disagrees about the header's shape — leaves the request waiting, as it would through a cold prefill. There is no separate bounded wait for the opt-in. A request whose per-token frames could not be read waits the same way: the turn belongs to the engine until it sends a terminal frame, so the refusal below is delivered then rather than the moment the unreadable frame arrives. The engine is sent one stop when that happens, so the turn does not spend the rest of its budget on a response nobody receives. - **Cancellation.** A cancel may not take effect until the read-out this request asked for has finished, so the window in which a disconnect goes unnoticed is wider on a long prompt than it is without `logprobs`. - **Alternative-token labels.** `top_logprobs` entries for candidate token ids other than the position's own actual token are not decoded text (no server-side tokenizer exists, by design) — they are labeled ``. Only the position's own token, identified by an exact logprob match rather than by id, gets its real decoded text. - **The sampled token is not guaranteed to appear in its own `top_logprobs` table.** The engine's numeric channel reports the top-k candidates by its own read-out; if the chosen token falls outside that table, no entry represents it, and the response's `token_logprobs`/`logprob` field is still the chosen token's own value read from the frame directly, not looked up in the table. - **The arrays describe the text the client received, exactly, and nothing beyond it.** Every generated token is located in the returned text by its span in the raw engine stream, so the stage that consumed a character decides how much of that token's entry reaches the array: a token a matched `stop` cut partway through reports the characters that were emitted, and generated text that does not reach `message.content` — reasoning, template markers, tool-call syntax, a swallowed role marker — is not described there. Reasoning, template and tool-call tokens are therefore not described by `logprobs.content`; a separate field for the full stream is proposed separately. On every response that carries logprobs, `"".join(tokens)` is the returned `text` and `"".join` over `logprobs.content` is `message.content`. When the engine's records cannot support that — they stop short of the generated text, or none arrive at all — the request is refused by name rather than answered with arrays describing a prefix. - **Engine-side faults are named, not generic.** When the engine's per-token records cannot answer the request, the 5xx body carries a `code` saying what the engine did: `engine_logprob_tail_malformed` (a numeric tail this server cannot read — it fails that one request and no other), `engine_echo_position_malformed` (an unreadable prompt-echo position, which is a different field of the same frame), `engine_duplicate_logprob_candidate` (a top-k table repeating a candidate at one position), `engine_logprob_records_incomplete` (records that stop short of the generated text, none at all, or — under `echo` — no prompt-echo records, any of which would leave the arrays describing a prefix), and `engine_pinned_prefix_not_echoed` (a KV slot holding a pin snapshot, so the echoed positions would not start at 0). No logprobs-bearing response is ever a truncated or half-described 200. - **Server-side buffering.** A request that asks to see the echoed prompt (`echo: true` on `/v1/completions`) has its full echo table held in memory for the request's lifetime; no streaming is allowed together with `logprobs`, so that hold is bounded by one non-streaming response. A logprobs request that does not ask for the echo — all of chat, and every `echo: false` completion — retains nothing: the engine still sends an ECHO frame for every prompt position, and they are dropped as they arrive rather than held. ### Tool-calling support | Engine | OpenAI `tools` | Anthropic `tool_use` | Native format | |---|---|---|---| | GLM-5.2 (`colibri`) | yes | yes | `` blocks | | GLM-5.3-Flash | yes | yes | `` blocks, with the 5.3 declaration block | | DeepSeek V4 | yes | yes | native DSML tool-call blocks | | Inkling | no | no | active tool declarations/choices return HTTP 400 | | Kimi K3 | yes | yes | native XTML `tools`/`call`/`argument` blocks (#1143) | | MiMo-V2.6 | yes | yes | native `` / `` blocks | | Qwen3.6 | yes | yes | native ``/`` blocks, the same XML-ish form as Qwen3.8 | | Qwen3.8-Flash-Next | yes | yes | native ``/`` blocks | | OLMoE | no | no | active tool declarations/choices return HTTP 400 | On supported engines, pass OpenAI `tools` and optionally `tool_choice` to `/v1/chat/completions`. The Anthropic endpoint translates `tools`, `tool_use`/`tool_result`, and the `auto`, `any`, `none`, and forced-tool choice modes into the active engine's native prompt and back into protocol responses. Protocol support does not guarantee that every quantized model emits valid tool syntax; `COLI_TOOL_SALVAGE=1` is an opt-in recovery path for malformed GLM int4 tool calls. DeepSeek V4 uses its strict native DSML parser instead. `tool_choice: "required"` is a prompt-level instruction, not a sampling constraint. Every renderer that offers a tool block appends the same one line to it, and no renderer filters tokens or forces the sampler, so a model that answers in prose anyway has done nothing the API said was impossible. Grammar forcing is not a remedy: that path feeds a draft the engine then verifies, so a schema the engine cannot compile costs the speedup and nothing else. An engine with no tool block to attach the instruction to (Inkling, OLMoE without `COLI_TOOL_FALLBACK=1`) answers HTTP 400 rather than accept the choice and ignore it. A forced choice, `tool_choice: {"type": "function", "function": {"name": …}}`, is applied per engine and the engines do not agree on how: some narrow the offered tools to the named one, some keep the full list and name the tool in prose instead, and some (Qwen3.6, Qwen3.8) do neither. Read the rendered prompt rather than assuming the request was honoured. For GLM calls that will execute tools, an OpenAI chat request may set `"strict_tool_calls": true`. This opt-in accepts only complete `` blocks whose function and arguments match the declared tool schema. It returns HTTP 502 with code `invalid_model_tool_call` for incomplete, duplicate, unknown, or invalid arguments and for a tool call cut off by the generation limit. It never recovers or salvages a malformed call. The default recovery behavior is unchanged. Strict mode currently requires `stream: false` and does not support `logprobs`; these combinations receive HTTP 400 before generation. When a reverse proxy or MagicDNS hostname preserves a public `Host` header, trust that exact hostname with repeatable `--allowed-host` options. The comma-separated `COLI_ALLOWED_HOSTS` environment variable is equivalent: ```bash COLI_ALLOWED_HOSTS=llm.example.com ./coli serve --model /nvme/glm52_i4 # or: ./coli serve --model /nvme/glm52_i4 --allowed-host llm.example.com ``` Only configure hostnames or IP addresses you control; there is no wildcard. This setting extends the DNS-rebinding allowlist and is independent of CORS and API-key authentication. Browser access from the Vite development server and Tauri local origins is enabled by default. Repeat `--cors-origin https://your-ui.example` to allow another exact origin, or use `--cors-origin '*'` only on a trusted local network. The engine owns its KV contexts, so HTTP generation uses a bounded FIFO admission queue instead of pretending to run unsafe parallel sequences. Configure it with `--max-queue N` (default 8) and `--queue-timeout SECONDS` (default 300), or the `COLI_MAX_QUEUE` / `COLI_QUEUE_TIMEOUT` environment variables. Saturated and timed-out requests receive OpenAI-shaped HTTP 429 errors before streaming headers are sent. With `--max-queue 0`, a request pinned to an occupied KV slot is rejected immediately even if another slot is free. Queue deadlines are checked before slot assignment: an expired waiter receives `queue_timeout` even if a slot is now available. `GET /health` exposes active/queued/completed/rejected counters, and successful generation responses include `x-colibri-queue-wait-ms`. Requests targeting any slot may use a free slot not reserved by earlier waiters. An earlier pinned request keeps priority for its target; an earlier any-slot request keeps priority across all slots. A full waiting queue does not reject a request that can immediately take an unreserved free slot; the queue limit bounds waiting requests, independently of active capacity. ## Prometheus metrics `GET /metrics` returns Prometheus text exposition (version 0.0.4). When an API key is configured, supply the same `Authorization: Bearer ...` or `x-api-key` header used for generation; missing or invalid credentials return 401. Without an API key, the endpoint follows the server's usual unauthenticated access policy. Metrics contain no prompts, model paths, or request-ID labels. All names start with `colibri_scheduler_`: | Suffix | Type | Meaning | |---|---|---| | `active`, `queued`, `capacity`, `max_queue` | gauge | Admitted requests, waiters, KV slot capacity, and queue limit | | `admitted_total` | counter | Requests admitted to a KV slot | | `completed_total` | counter | Admitted requests that returned normally | | `failed_total` | counter | Admitted requests that raised an error, excluding `ClientCancelled` | | `rejected_total`, `timed_out_total` | counter | Queue-full refusals and queue timeouts | | `cancelled_total` | counter | Cancellations detected before admission or during admitted work | | `queue_wait_seconds` | histogram | Wait until admission, for admitted requests only | | `slot_duration_seconds` | histogram | Slot occupancy until completion, failure, or cancellation | | `first_output_seconds` | histogram | Engine-call start to first nonempty text or tool-output callback | | `engine_call_seconds` | histogram | Duration of each finished engine generation call, including failure/cancellation | Histogram buckets are 0.001, 0.01, 0.05, 0.1, 0.5, 1, 5, 10, 30, 60, 300 seconds, and `+Inf`; each histogram exposes `_bucket`, `_sum`, and `_count`. Counters reset when the gateway restarts. Collection does not call the engine or consume a generation slot. `failed` is also included in `/health`'s authenticated scheduler snapshot; failures no longer increment `completed`. Cancellation is checked before acquiring an available KV slot, including when a waiting request wakes as capacity becomes free. A request cancelled at this point increments `cancelled_total`, but not `admitted_total`, and contributes no admission-wait or slot-duration sample. Queue-full and scheduler-closed checks can still reject a request before the cancellation check is reached. The engine-call histograms exclude admission queue wait and prompt rendering. First output is observed before the gateway's stop filtering, reasoning split, or HTTP serialization: it can be reasoning or tool data, not necessarily user-visible answer text. Empty callbacks, ACCEPT frames, and SSE keepalives do not count. Calls that finish or fail without output add no first-output sample; a failure after output retains that sample. Engine-call duration includes callback processing and response writes during generation. One request can invoke the engine multiple times (for example System One scoring), so these histogram counts are engine calls, not HTTP request counts. These are gateway observations, not end-to-end client TTFT, per-token latency, or GPU kernel measurements. Output callbacks need not correspond one-to-one to tokens. Slot occupancy includes any response handling while the slot is held. Validation/authentication failures before admission are not counted. `completed` means the admitted handler returned normally, not that the client received every response byte. Request exceptions can include client input or transport errors as well as engine failures. Example PromQL for the admitted-request queue-wait p95: ```promql histogram_quantile(0.95, sum by (le) (rate(colibri_scheduler_queue_wait_seconds_bucket[5m]))) ``` ## Anthropic-protocol endpoint (`/v1/messages`) The same server also speaks the **Anthropic Messages API**, so clients that only talk to Anthropic endpoints — Claude Code, the Anthropic SDKs — work against colibri without a shim. Nothing to enable: `/v1/messages` is served alongside `/v1/chat/completions` on the same port. ```bash curl http://127.0.0.1:8000/v1/messages \ -H 'x-api-key: local' -H 'content-type: application/json' \ -d '{"model":"glm-5.2-colibri","max_tokens":128, "messages":[{"role":"user","content":"Hello"}]}' ``` For Claude Code, point it at the server and give it any non-empty key: ```bash export ANTHROPIC_BASE_URL=http://localhost:8000 export ANTHROPIC_API_KEY=local # only enforced if you set COLI_API_KEY export ANTHROPIC_MODEL=glm-5.2-colibri claude ``` Supported on every served architecture: system prompts (string or text blocks), multi-turn `user`/`assistant` messages, streaming with the full named-event sequence (`message_start` → `content_block_*` → `message_delta` → `message_stop`, plus protocol `ping` keepalives during long prefills), `stop_reason`, Anthropic `usage` field names, and `x-api-key` authentication (`Authorization: Bearer` also works). The gateway renders each request with the active engine's native chat template; GLM, Inkling, Kimi K3, Qwen3.8, OLMoE, and DeepSeek V4 prompts are not interchangeable. Where the engine exposes a reasoning mode, extended thinking is enabled with `{"thinking": {"type": "enabled"}}` and translated to that architecture's reasoning protocol; OLMoE disables it explicitly. Tool use follows the per-engine matrix above. Unsupported engines reject active tool declarations and choices explicitly instead of feeding another architecture's markers to an incompatible tokenizer. Not supported, and refused explicitly rather than ignored: `stop_sequences`, `top_k`, and non-text content blocks (images, documents). Errors use Anthropic's own `{"type":"error","error":{...}}` envelope on this path. Architecture-local features that have not been wired to this protocol are likewise rejected with an explicit error. A trailing `assistant` message continues that turn by default on both the Anthropic- and OpenAI-compatible endpoints (`COLI_CONTINUE_ASSISTANT=0` restores the old behavior, where this endpoint appended a fresh cue). Note this changes what an existing Anthropic client sees on `/v1/messages`: a trailing assistant turn now continues rather than starting fresh — which is the real Anthropic contract — and the off-switch is the escape hatch for anyone relying on the old behavior. > The prefill warning below applies here too, and applies *hardest* to Claude Code: > its system prompt and tool catalog are large, and on a disk-streaming CPU path > that is a long silent wait before the first token. Read it before you connect. ## Connect a coding CLI or editor The API is OpenAI-compatible, so most coding CLIs and editor extensions work by pointing them at Colibri as an *OpenAI-compatible* provider. Three settings: - **Base URL** — `http://localhost:8000/v1` - **Model** — `glm-5.2-colibri` (or whatever you pass to `--model-id`) - **API key** — any non-empty string, e.g. `local` Colibri needs **no** API key by default, but many clients refuse to start without one — give them any dummy value. The key is only enforced if you set `COLI_API_KEY`. Smoke-test the endpoint first (no key needed unless you set one): ```bash curl http://127.0.0.1:8000/v1/chat/completions \ -H 'Content-Type: application/json' \ -d '{"model":"glm-5.2-colibri","messages":[{"role":"user","content":"hi"}]}' ``` **aider** ```bash export OPENAI_API_BASE=http://localhost:8000/v1 export OPENAI_API_KEY=local aider --model openai/glm-5.2-colibri # the openai/ prefix routes to OPENAI_API_BASE ``` **crush** — add a provider to `crush.json` (`~/.config/crush/crush.json`, or `%USERPROFILE%\AppData\Local\crush\crush.json` on Windows): ```json { "$schema": "https://charm.land/crush.json", "providers": { "colibri": { "name": "Colibri", "type": "openai-compat", "base_url": "http://localhost:8000/v1/", "api_key": "local", "models": [ { "name": "GLM-5.2 (Colibri)", "id": "glm-5.2-colibri", "context_window": 131072, "default_max_tokens": 1024 } ] } } } ``` The `"api_key": "local"` dummy is what satisfies clients that demand a key. `context_window` is only the client's budget display — set it to whatever your KV configuration actually allows. **pi** — add a custom provider to `~/.pi/agent/models.json` ([pi](https://github.com/earendil-works/pi-coding-agent) loads every OpenAI-compatible server through its `openai-completions` API): ```json { "providers": { "colibri": { "baseUrl": "http://localhost:8000/v1", "api": "openai-completions", "apiKey": "local", "compat": { "supportsDeveloperRole": false, "supportsReasoningEffort": false }, "models": [ { "id": "glm-5.2-colibri", "name": "GLM-5.2 (Colibri)", "contextWindow": 131072, "maxTokens": 1024 } ] } } } ``` The `apiKey` dummy satisfies pi's auth requirement; colibri only enforces a key if you set `COLI_API_KEY`. The `compat` flags tell pi to send the system prompt as a plain `system` message and to omit `reasoning_effort`, which keeps the request inside what the gateway accepts by default. If you serve GLM-5.2 and want its reasoning block, set `"reasoning": true` on the model and drop `supportsReasoningEffort` — the standard `reasoning_effort` field enables thinking on that engine. Then select the model with `pi --list-models` or the `/model` picker (`colibri / GLM-5.2 (Colibri)`). `contextWindow` is only the client's budget display — set it to whatever your KV configuration actually allows. Tool calling in pi works on the engines in the [tool-calling matrix](#tool-calling-support) above; on unsupported engines pi's tool calls fail the same way any OpenAI `tools` request does. **Continue, Cline / Roo, `llm`, the OpenAI SDKs, …** — set the provider's base URL to `http://localhost:8000/v1`, the model to `glm-5.2-colibri`, and any dummy key (`OPENAI_API_KEY` / `OPENAI_BASE_URL` for env-based tools). > **Set your expectations before connecting an agentic CLI.** Two costs dominate, > and the first one is invisible until you know it's there: > > 1. **Prefill.** Coding agents (crush, aider in repo-map mode, Cline, …) send a > large system prompt plus tool definitions — often 10–20k tokens — *before > your first word*. Prefill on the CPU-streaming path runs at a few tokens per > second (it is attention-bound, see #153), so a 15k-token agent preamble is > **an hour of silent "thinking" before the first output token**. The client > looks hung; it isn't. Smoke-test with the tiny `curl` above first — if that > answers in about a minute, the pipeline works and what you're paying for is > prompt size. > 2. **Decode.** Roughly 1 tok/s for a large model, so multi-turn agent loops > (which re-pay the growing context every turn) compound the cost. > > Practical guidance: single surgical asks with a short context work; iterative > agent sessions against a disk-streaming 744B model do not resemble a hosted > API and mostly won't be worth the wait. If your client lets you trim or disable > its system preamble and tool catalog, do it. ## Isolated KV contexts `coli serve --kv-slots N` allocates up to 16 independent sequence contexts. Requests select one with the optional integer `cache_slot` field; ordinary OpenAI clients omit it and keep the original slot 0 behavior. ```json { "model": "glm-5.2-colibri", "messages": [{"role": "user", "content": "Continue this conversation"}], "cache_slot": 1 } ``` Each slot owns its token history and its conversation's state: the KV cache, and on the engines that have them the DeltaNet, KDA and convolution states and the compressed DeepSeek attention. The engine matches each request's tokenized prompt against the slot's history and reuses the common prefix, so stateless HTTP turns keep their cache across requests. On GLM-5.2 each slot also has its MTP window and a crash-safe persistence file (`.coli_kv`, `.coli_kv.1`, ...), so the cache survives an engine restart too. Use `COLI_KV_SLOTS=N` as the environment equivalent. Start small: at the default 4096-token context, every slot costs hundreds of MB, and `coli plan` counts them. Every text engine serves the slots at the same time. Requests on different slots are decoded together: each step takes the next token of every active conversation as one batch, so the weights and the routed experts a step reads serve all of them, while each row's attention and recurrent state stay its own conversation's. A request gets the tokens it would get alone (greedy on the CPU, the same bytes; `tests/serve_mux_check.py` checks it on every engine). A prompt is prefilled when it arrives, between two steps. With more than one slot, the engines other than GLM-5.2 and GLM-5.3-Flash draft nothing (MTP, DSpark and prompt lookup follow one conversation), and their Vulkan dense chain, DeltaNet on the GPU and Metal paths stay off; the Vulkan expert tier serves every conversation's experts. ## Web dashboard One command serves the OpenAI-compatible API **and** the web console on the same port, then opens your browser when the engine is ready: ```bash cd web && npm install && npm run build # once ./coli web --model ``` `coli web` differs from `coli serve` only in opening a browser — both serve the dashboard on the same port. On a headless host (no display, often no GPU at all) use `coli serve`, or `coli web --no-browser`, and point a browser at it from another machine. Nothing in the dashboard needs a desktop session on the host. What you get is one workspace with a dock to switch page: - **Chat**: streaming answers, a reasoning toggle, image input where the engine supports it, the KV slot to answer in, and the conversation exported as a file; - **System One**: closed-set answers. A document, a question and the only answers allowed; the engine reads the probability of each answer, generates nothing, and reports an entropy that says when it is not sure. Same thing as `POST /v1/systemone` (see [systemone.md](systemone.md)); - **Brain**, two views. *Explore* draws the [measured expert atlas](https://github.com/JustVugg/colibri/issues/175) of GLM-5.2 as a cortex with ten regions to enter (publish `experts.json` from `tools/expert_atlas/analyze.py --web`). *Live routing* shows the model actually running: one cell per expert, colour = tier, brightness = routing heat, and the experts routed in each turn flash white and decay; - **Profiling**: where the engine spends each turn, by phase (I/O wait, expert matmul, attention, LM head, other), the disk service overlapped with compute, and the last 30 turns as a trend; - a light and a dark theme. The dashboard talks to the engine over a small line protocol and plain JSON endpoints — nothing heavier than the engine itself. `web/` is a pure OpenAI-API client (React + TypeScript) and also works against any other compatible endpoint; the terminal `coli chat` remains the first-class interface. The layout is responsive down to phone widths; the per-turn time breakdown and the tok/s trend live on the Profiling page:

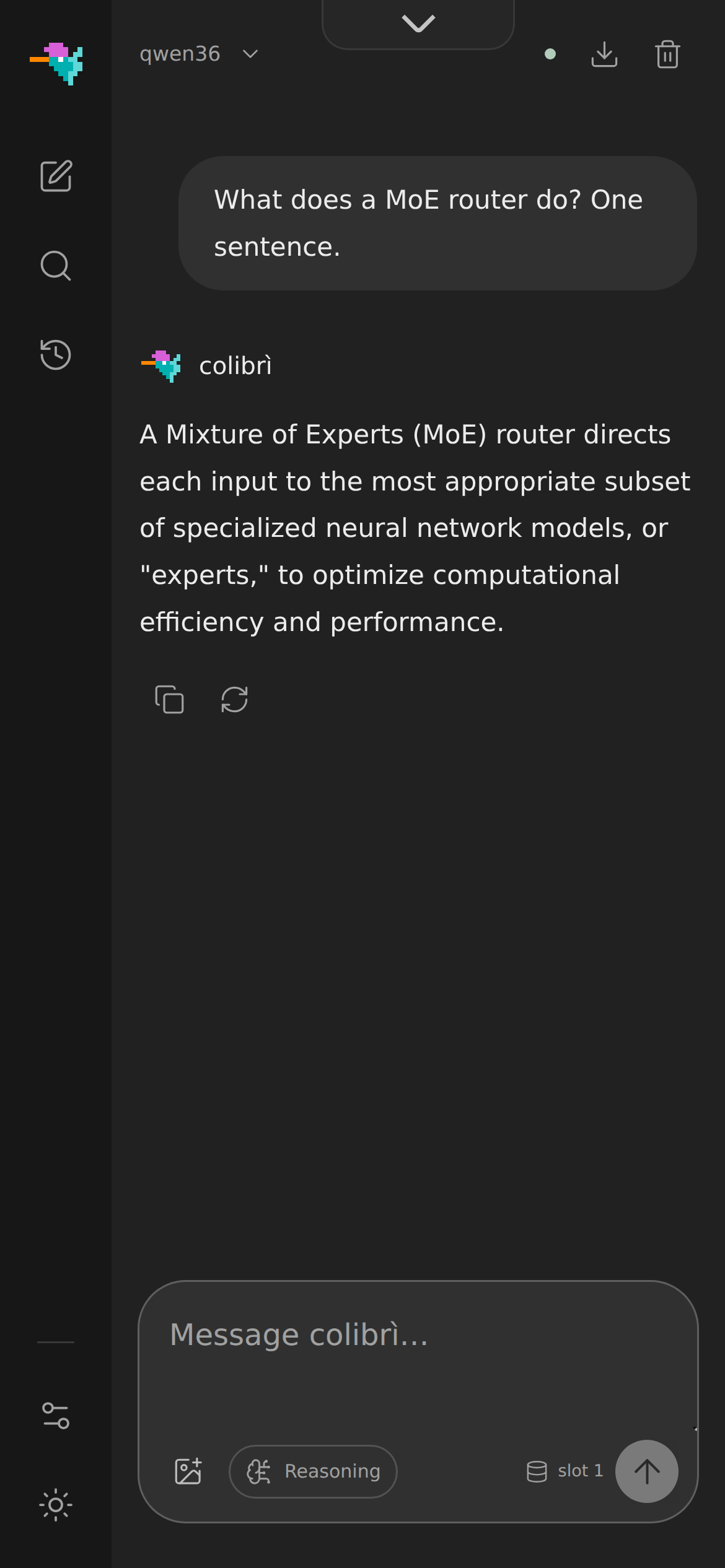

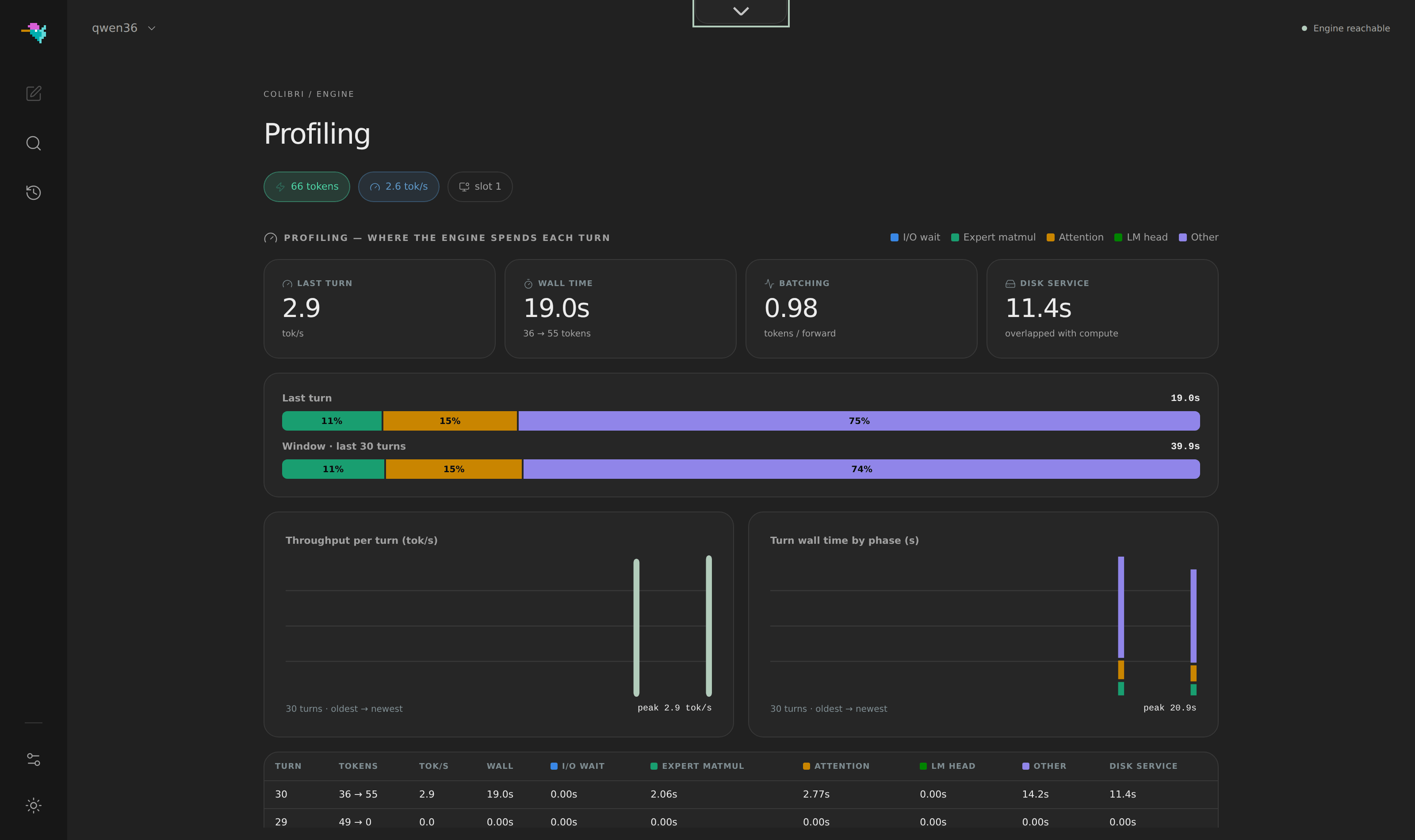

the dashboard on a phone-sized viewport    the Profiling page: where the engine spends each turn
