## Overview
The Citrix ADC Orchestrator remotely manages certificate objects on a Citrix ADC device. Since the ADC supports services including:
Load Balancing, Authentication/Authorization/Auditing (AAA), and Gateways, this orchestrator can bind to any of these virtual servers when using unique virtual server names for each service.
Starting with release 4.0.0, On Device Key Generation (ODKG) is also supported with the following keytypes/sizes supported/tested: RSA 1024, RSA 2048, RSA 3072, RSA 4096, ECDSA P-256, and ECDSA P-384.
## Compatibility
This integration is compatible with Keyfactor Universal Orchestrator version 10.4 and later.
## Support
The Citrix Netscaler Universal Orchestrator extension is supported by Keyfactor. If you require support for any issues or have feature request, please open a support ticket by either contacting your Keyfactor representative or via the Keyfactor Support Portal at https://support.keyfactor.com.
> If you want to contribute bug fixes or additional enhancements, use the **[Pull requests](../../pulls)** tab.
## Requirements & Prerequisites
Before installing the Citrix Netscaler Universal Orchestrator extension, we recommend that you install [kfutil](https://github.com/Keyfactor/kfutil). Kfutil is a command-line tool that simplifies the process of creating store types, installing extensions, and instantiating certificate stores in Keyfactor Command.
The Citrix ADC user needs permission to perform the following API calls:
API Endpoint|Methods
---|---
/nitro/v1/config/login|post
/nitro/v1/config/sslcertkey| get, add, update, delete, link
/nitro/v1/config/sslcertkey_binding| get
/nitro/v1/config/sslvserver_sslcertkey_binding| get, add, delete
/nitro/v1/config/sslcertificatechain| get
/nitro/v1/config/sslcertreq| add
/nitro/v1/config/sslrsakey| add
/nitro/v1/config/sslecdsakey| add
/nitro/v1/config/systemfile| get, add, delete
Here is a sample policy with Min Permissions:
* Action:
Allow
* Command Spec:
(^stat\s+(cr|cs|lb|system|vpn))|(^(add|rm|show)\s+system\s+file\s+.*)|(^\S+\s+ssl\s+.*)|(^(show|stat|sync)\s+HA\s+.*)|(^save\s+ns\s+config)|(^(switch|show)\s+ns\s+partition.*)
## CitrixAdc Certificate Store Type
To use the Citrix Netscaler Universal Orchestrator extension, you **must** create the CitrixAdc Certificate Store Type. This only needs to happen _once_ per Keyfactor Command instance.
#### Supported Operations
| Operation | Is Supported |
|--------------|------------------------------------------------------------------------------------------------------------------------|
| Add | ✅ Checked |
| Remove | ✅ Checked |
| Discovery | 🔲 Unchecked |
| Reenrollment | ✅ Checked |
| Create | 🔲 Unchecked |
#### Store Type Creation
##### Using kfutil:
`kfutil` is a custom CLI for the Keyfactor Command API and can be used to create certificate store types.
For more information on [kfutil](https://github.com/Keyfactor/kfutil) check out the [docs](https://github.com/Keyfactor/kfutil?tab=readme-ov-file#quickstart)
Click to expand CitrixAdc kfutil details
##### Using online definition from GitHub:
This will reach out to GitHub and pull the latest store-type definition
```shell
# CitrixAdc
kfutil store-types create CitrixAdc
```
##### Offline creation using integration-manifest file:
If required, it is possible to create store types from the [integration-manifest.json](./integration-manifest.json) included in this repo.
You would first download the [integration-manifest.json](./integration-manifest.json) and then run the following command
in your offline environment.
```shell
kfutil store-types create --from-file integration-manifest.json
```
Click to expand manual CitrixAdc details
Create a store type called `CitrixAdc` with the attributes in the tables below:
##### Basic Tab
| Attribute | Value | Description |
| --------- | ----- | ----- |
| Name | CitrixAdc | Display name for the store type (may be customized) |
| Short Name | CitrixAdc | Short display name for the store type |
| Capability | CitrixAdc | Store type name orchestrator will register with. Check the box to allow entry of value |
| Supports Add | ✅ Checked | Check the box. Indicates that the Store Type supports Management Add |
| Supports Remove | ✅ Checked | Check the box. Indicates that the Store Type supports Management Remove |
| Supports Discovery | 🔲 Unchecked | Indicates that the Store Type supports Discovery |
| Supports Reenrollment | ✅ Checked | Indicates that the Store Type supports Reenrollment |
| Supports Create | 🔲 Unchecked | Indicates that the Store Type supports store creation |
| Needs Server | ✅ Checked | Determines if a target server name is required when creating store |
| Blueprint Allowed | 🔲 Unchecked | Determines if store type may be included in an Orchestrator blueprint |
| Uses PowerShell | 🔲 Unchecked | Determines if underlying implementation is PowerShell |
| Requires Store Password | ✅ Checked | Enables users to optionally specify a store password when defining a Certificate Store. |
| Supports Entry Password | 🔲 Unchecked | Determines if an individual entry within a store can have a password. |

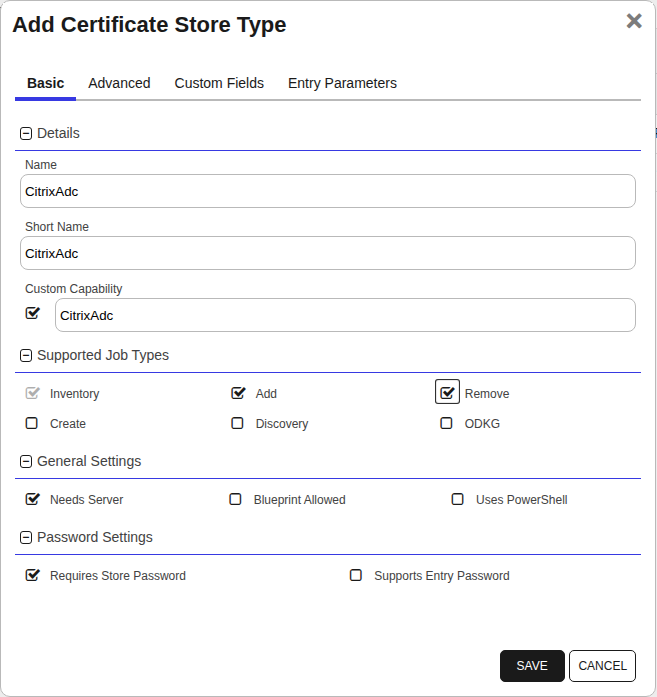

The Basic tab should look like this:
##### Advanced Tab
| Attribute | Value | Description |
| --------- | ----- | ----- |
| Supports Custom Alias | Required | Determines if an individual entry within a store can have a custom Alias. |
| Private Key Handling | Required | This determines if Keyfactor can send the private key associated with a certificate to the store. Required because IIS certificates without private keys would be invalid. |
| PFX Password Style | Default | 'Default' - PFX password is randomly generated, 'Custom' - PFX password may be specified when the enrollment job is created (Requires the Allow Custom Password application setting to be enabled.) |

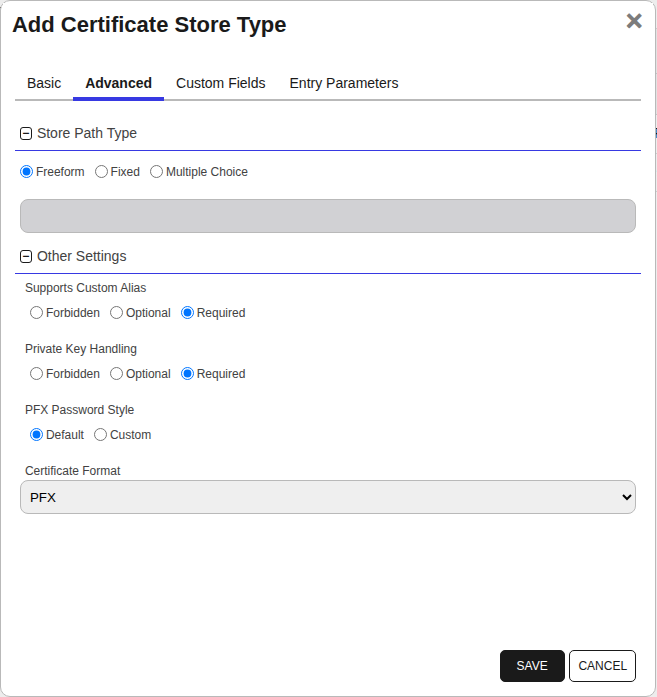

The Advanced tab should look like this:
> For Keyfactor **Command versions 24.4 and later**, a Certificate Format dropdown is available with PFX and PEM options. Ensure that **PFX** is selected, as this determines the format of new and renewed certificates sent to the Orchestrator during a Management job. Currently, all Keyfactor-supported Orchestrator extensions support only PFX.
##### Custom Fields Tab
Custom fields operate at the certificate store level and are used to control how the orchestrator connects to the remote target server containing the certificate store to be managed. The following custom fields should be added to the store type:
| Name | Display Name | Description | Type | Default Value/Options | Required |
| ---- | ------------ | ---- | --------------------- | -------- | ----------- |
| ServerUsername | Server Username | The Citrix username (or valid PAM key if the username is stored in a KF Command configured PAM integration) to be used to log into the Citrix device. | Secret | | 🔲 Unchecked |
| ServerPassword | Server Password | The Citrix password (or valid PAM key if the password is stored in a KF Command configured PAM integration) to be used to log into the Citrix device. | Secret | | 🔲 Unchecked |
| linkToIssuer | Link To Issuer | Determines whether an attempt will be made to link the added certificate (via a Management-Add or Reenrollment job) to its issuing CA certificate. | Bool | false | 🔲 Unchecked |
| timeout | Login Timeout in seconds | Determines timeout in seconds for all Citrix ADC API calls. | String | 3600 | 🔲 Unchecked |
| removeOldFiles | Remove Old Files | Delete previous certificate and key files after renewal/replace | Bool | false | 🔲 Unchecked |

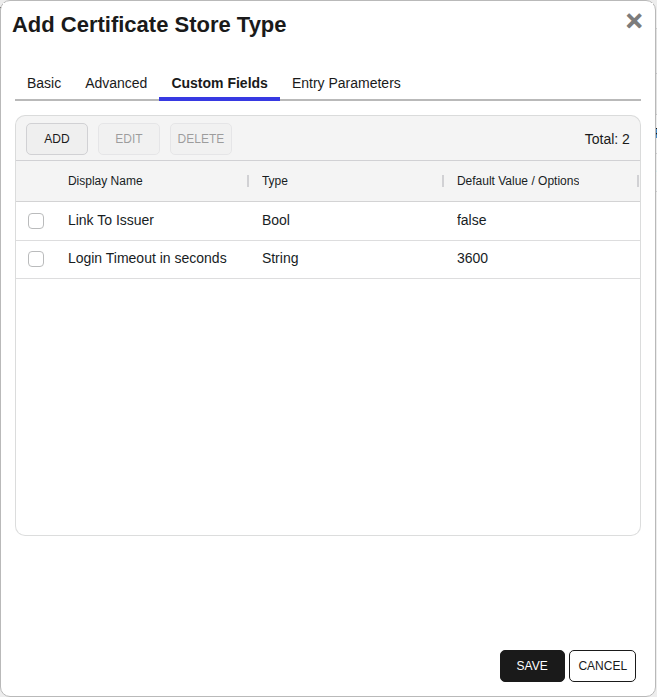

The Custom Fields tab should look like this:
###### Server Username
The Citrix username (or valid PAM key if the username is stored in a KF Command configured PAM integration) to be used to log into the Citrix device.
> [!IMPORTANT]
> This field is created by the `Needs Server` on the Basic tab, do not create this field manually.
###### Server Password
The Citrix password (or valid PAM key if the password is stored in a KF Command configured PAM integration) to be used to log into the Citrix device.
> [!IMPORTANT]
> This field is created by the `Needs Server` on the Basic tab, do not create this field manually.

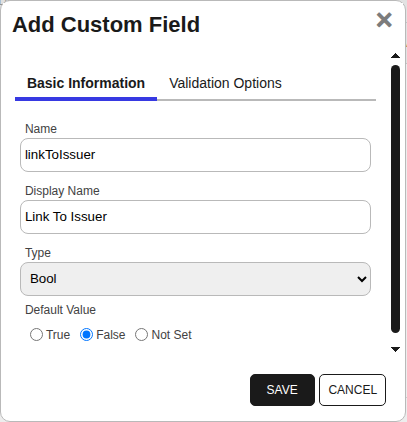

###### Link To Issuer
Determines whether an attempt will be made to link the added certificate (via a Management-Add or Reenrollment job) to its issuing CA certificate.

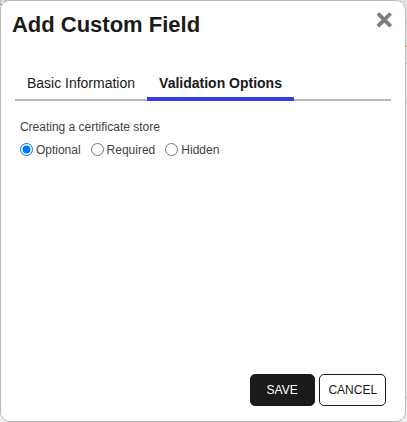

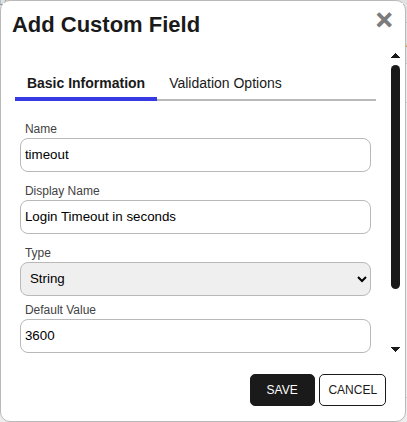

###### Login Timeout in seconds
Determines timeout in seconds for all Citrix ADC API calls.
###### Remove Old Files
Delete previous certificate and key files after renewal/replace
##### Entry Parameters Tab
| Name | Display Name | Description | Type | Default Value | Entry has a private key | Adding an entry | Removing an entry | Reenrolling an entry |
| ---- | ------------ | ---- | ------------- | ----------------------- | ---------------- | ----------------- | ------------------- | ----------- |
| virtualServerName | Virtual Server Name | When adding a certificate or reenrolling a new alias, this can be a single VServer name or a comma separated list of VServers to bind to Note: must match the number of Virtual SNI Cert values. | String | | 🔲 Unchecked | 🔲 Unchecked | 🔲 Unchecked | 🔲 Unchecked |
| sniCert | SNI Cert | When adding a certificate or reenrolling a new alias, this can be a single boolean value (true/false) or a comma separated list of boolean values to determine whether the binding should use server name indication. Note: must match the number of Virtual Server Name values. | String | | 🔲 Unchecked | 🔲 Unchecked | 🔲 Unchecked | 🔲 Unchecked |

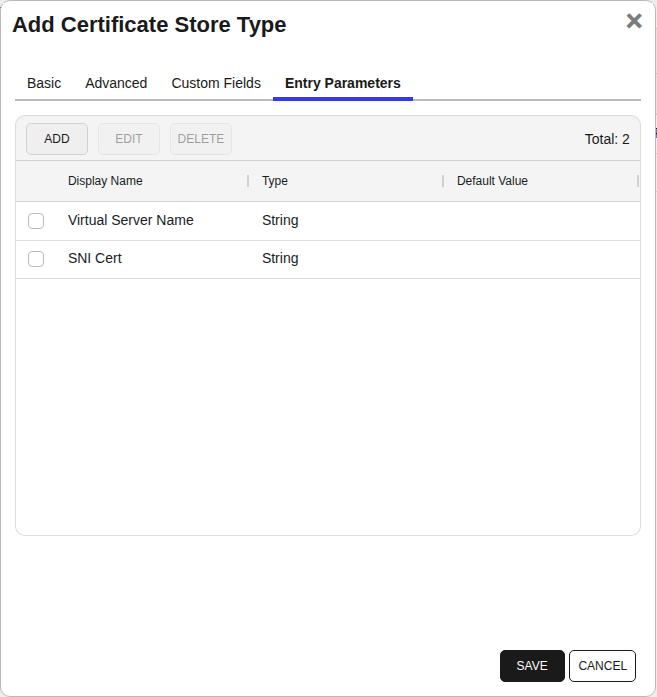

The Entry Parameters tab should look like this:

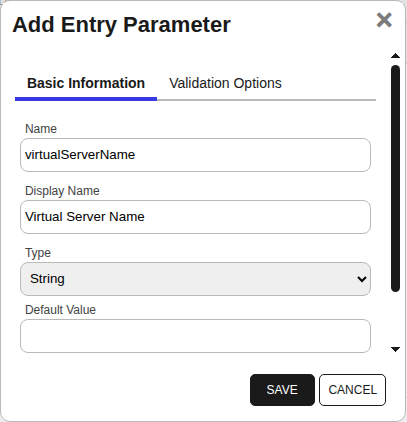

##### Virtual Server Name
When adding a certificate or reenrolling a new alias, this can be a single VServer name or a comma separated list of VServers to bind to Note: must match the number of Virtual SNI Cert values.

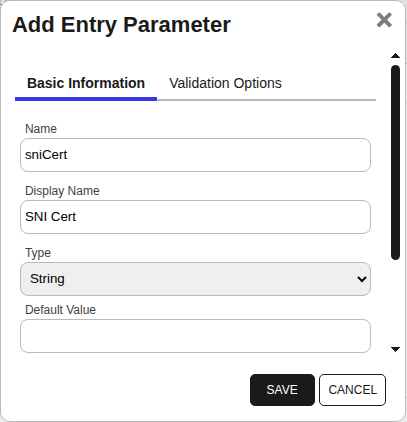

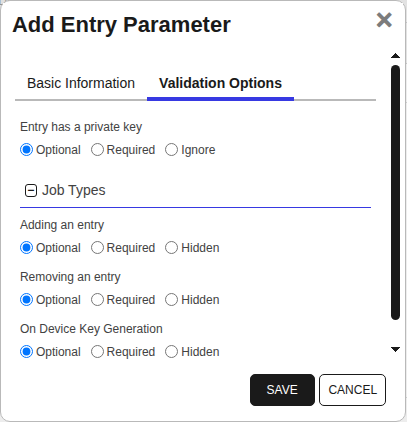

##### SNI Cert
When adding a certificate or reenrolling a new alias, this can be a single boolean value (true/false) or a comma separated list of boolean values to determine whether the binding should use server name indication. Note: must match the number of Virtual Server Name values.
Click to expand details
1. **Navigate to the _Certificate Stores_ page in Keyfactor Command.**
Log into Keyfactor Command, toggle the _Locations_ dropdown, and click _Certificate Stores_.
2. **Add a Certificate Store.**
Click the Add button to add a new Certificate Store. Use the table below to populate the **Attributes** in the **Add** form.
| Attribute | Description |
| --------- |---------------------------------------------------------|
| Category | Select "CitrixAdc" or the customized certificate store name from the previous step. |
| Container | Optional container to associate certificate store with. |
| Client Machine | The DNS or IP Address of the Citrix ADC Appliance. |
| Store Path | The path where certificate files are located on the Citrix ADC appliance. This value will likely be /nsconfig/ssl/ |
| Store Password | Enter a password that matches your Citrix validation rules to encrypt private keys when adding/replacing certificates. Select 'No Value' if you desire an unencrypted private key to be uploaded. |
| Orchestrator | Select an approved orchestrator capable of managing `CitrixAdc` certificates. Specifically, one with the `CitrixAdc` capability. |
| ServerUsername | The Citrix username (or valid PAM key if the username is stored in a KF Command configured PAM integration) to be used to log into the Citrix device. |
| ServerPassword | The Citrix password (or valid PAM key if the password is stored in a KF Command configured PAM integration) to be used to log into the Citrix device. |
| linkToIssuer | Determines whether an attempt will be made to link the added certificate (via a Management-Add or Reenrollment job) to its issuing CA certificate. |
| timeout | Determines timeout in seconds for all Citrix ADC API calls. |
| removeOldFiles | Delete previous certificate and key files after renewal/replace |
Click to expand details
1. **Generate a CSV template for the CitrixAdc certificate store**
```shell
kfutil stores import generate-template --store-type-name CitrixAdc --outpath CitrixAdc.csv
```
2. **Populate the generated CSV file**
Open the CSV file, and reference the table below to populate parameters for each **Attribute**.
| Attribute | Description |
| --------- | ----------- |
| Category | Select "CitrixAdc" or the customized certificate store name from the previous step. |
| Container | Optional container to associate certificate store with. |
| Client Machine | The DNS or IP Address of the Citrix ADC Appliance. |
| Store Path | The path where certificate files are located on the Citrix ADC appliance. This value will likely be /nsconfig/ssl/ |
| Store Password | Enter a password that matches your Citrix validation rules to encrypt private keys when adding/replacing certificates. Select 'No Value' if you desire an unencrypted private key to be uploaded. |
| Orchestrator | Select an approved orchestrator capable of managing `CitrixAdc` certificates. Specifically, one with the `CitrixAdc` capability. |
| Properties.ServerUsername | The Citrix username (or valid PAM key if the username is stored in a KF Command configured PAM integration) to be used to log into the Citrix device. |
| Properties.ServerPassword | The Citrix password (or valid PAM key if the password is stored in a KF Command configured PAM integration) to be used to log into the Citrix device. |
| Properties.linkToIssuer | Determines whether an attempt will be made to link the added certificate (via a Management-Add or Reenrollment job) to its issuing CA certificate. |
| Properties.timeout | Determines timeout in seconds for all Citrix ADC API calls. |
| Properties.removeOldFiles | Delete previous certificate and key files after renewal/replace |
3. **Import the CSV file to create the certificate stores**
```shell
kfutil stores import csv --store-type-name CitrixAdc --file CitrixAdc.csv
```
Attributes eligible for retrieval by a PAM Provider on the Universal Orchestrator
If a PAM provider was installed _on the Universal Orchestrator_ in the [Installation](#Installation) section, the following parameters can be configured for retrieval _on the Universal Orchestrator_.
| Attribute | Description |
| --------- | ----------- |
| ServerUsername | The Citrix username (or valid PAM key if the username is stored in a KF Command configured PAM integration) to be used to log into the Citrix device. |
| ServerPassword | The Citrix password (or valid PAM key if the password is stored in a KF Command configured PAM integration) to be used to log into the Citrix device. |
| StorePassword | Enter a password that matches your Citrix validation rules to encrypt private keys when adding/replacing certificates. Select 'No Value' if you desire an unencrypted private key to be uploaded. |
Please refer to the **Universal Orchestrator (remote)** usage section ([PAM providers on the Keyfactor Integration Catalog](https://keyfactor.github.io/integrations-catalog/content/pam)) for your selected PAM provider for instructions on how to load attributes orchestrator-side.
> Any secret can be rendered by a PAM provider _installed on the Keyfactor Command server_. The above parameters are specific to attributes that can be fetched by an installed PAM provider running on the Universal Orchestrator server itself.
