# Flow2Spec: Let Projects Naturally Grow a Knowledge Graph During Development
---
## I. Introduction

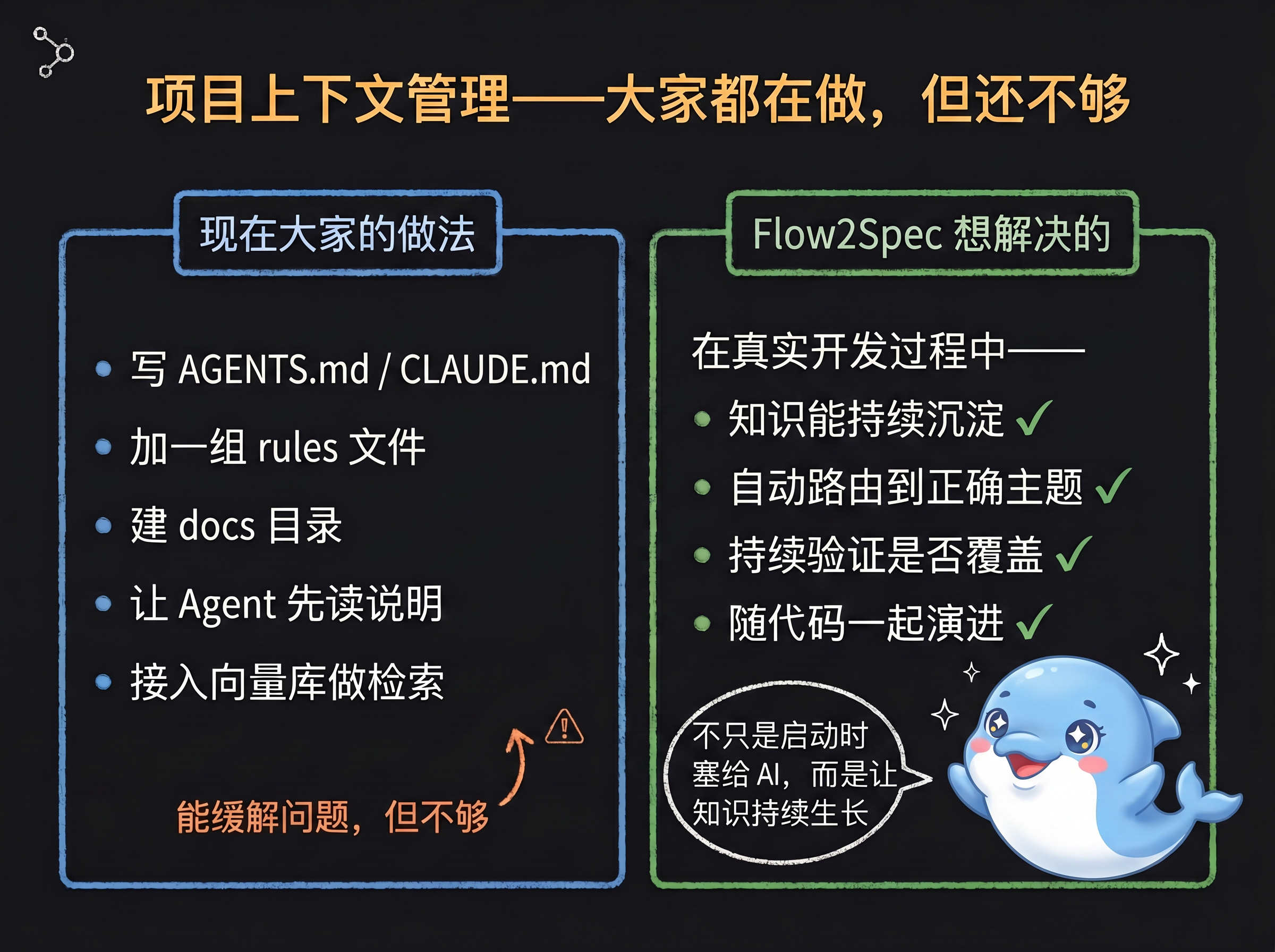

Over the past year, many AI coding tools have been solving the same problem: **helping Agents remember project context.**
That matters, of course. But talking about "project memory," "context management," and "rule files" alone is no longer enough.
Many open-source projects are already doing similar things: writing an `AGENTS.md` / `CLAUDE.md`, adding a set of rules, creating a docs directory, having the Agent read project documentation first, or wiring up a vector store for retrieval.
These approaches help, but what I really want to solve isn't "stuffing a bunch of context into the AI at startup." What I want to solve is:
**Can project knowledge be continuously accumulated, automatically routed, continuously validated, and evolve alongside the code — throughout the actual development process?**
That's Flow2Spec. In one line: **Flow2Spec is an Agent engineering framework that lets a project naturally grow a knowledge graph during development.**
---

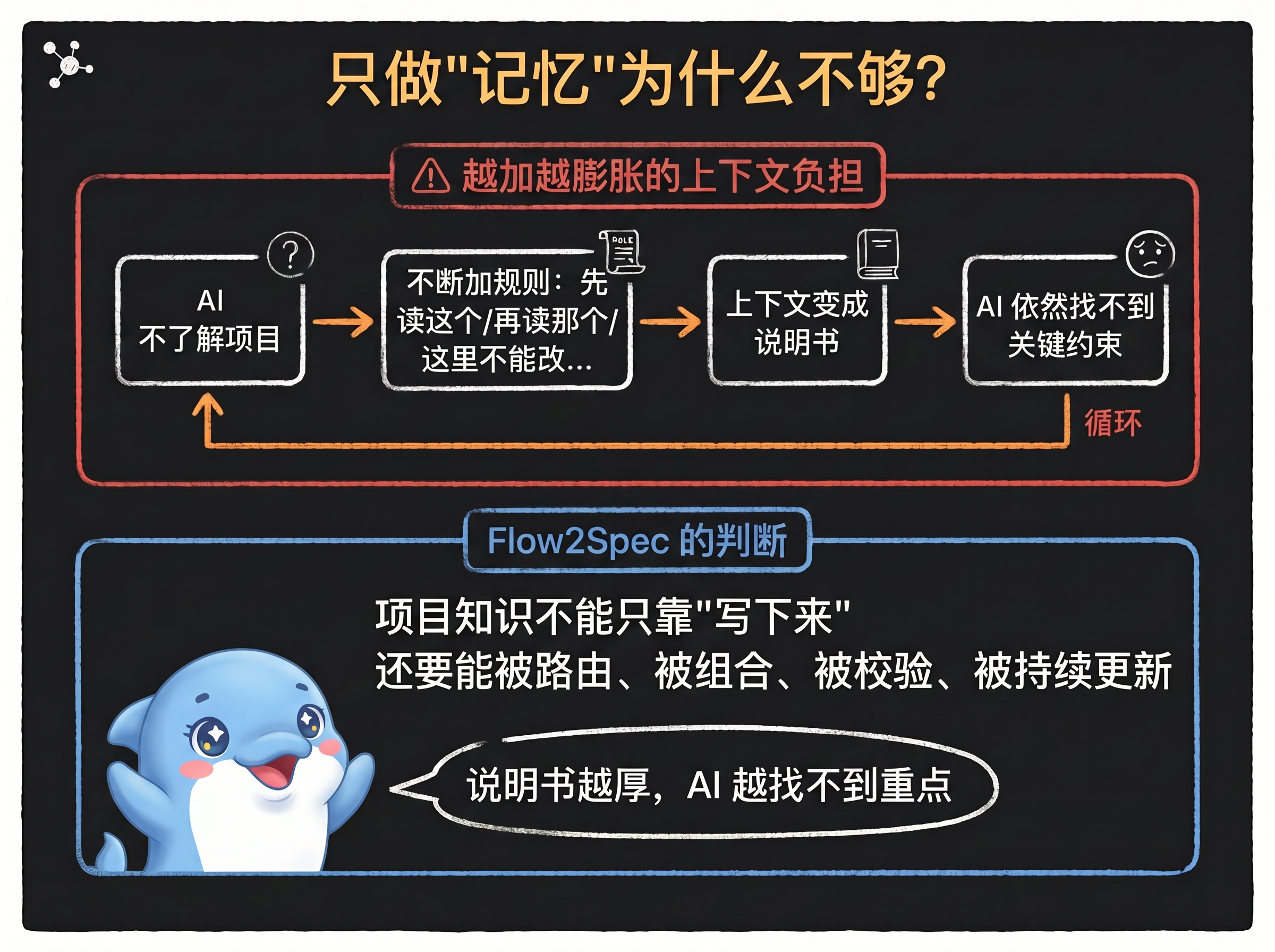

## II. Why "Memory" Alone Isn't Enough
After projects integrate AI, they quickly run into a paradox: you want the AI to understand the project better, but the more context you give it, the more likely it is to miss things, go off track, or forget what matters.
So people keep adding rules: read this file first, then that directory, don't touch this module, that interface has legacy compatibility, remember to update the docs after changes… Eventually the context becomes another burden. It looks like a knowledge base, but it's really more like an ever-growing instruction manual.
Flow2Spec's position is: **project knowledge can't just be "written down" — it needs to be routable, composable, verifiable, and continuously updated.**
---

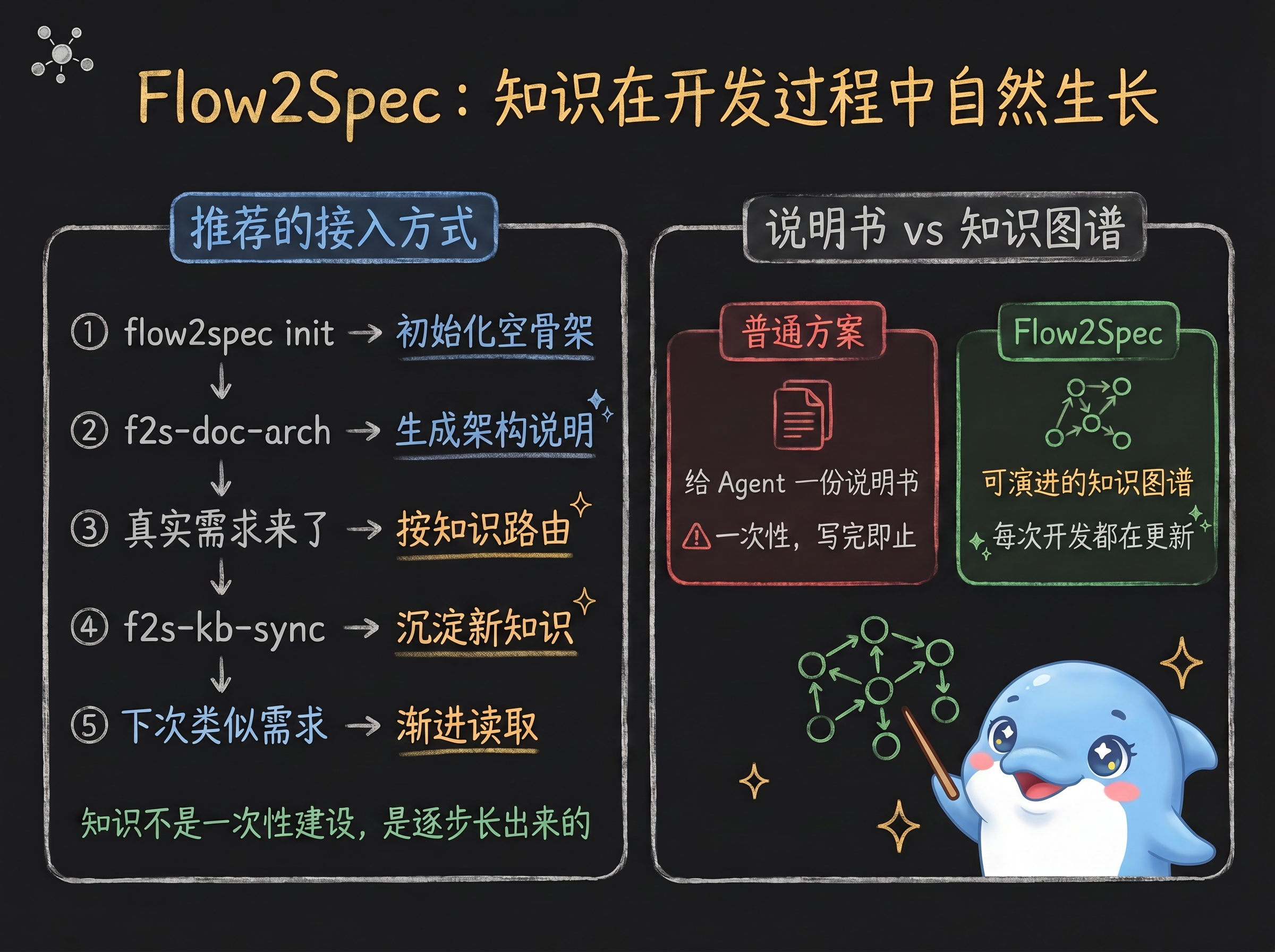

## III. Flow2Spec's Key Difference: A Knowledge Graph That Grows During Development
Flow2Spec doesn't ask you to do a massive documentation effort upfront. The recommended approach is:
1. Run `flow2spec init` to initialize an empty skeleton.
2. Use `f2s-doc-arch` to generate an architecture overview and bring it into the knowledge base.
3. When real requirements arrive, have the Agent route through existing knowledge first.
4. After a capability ships, use `f2s-kb-sync` to sync confirmed facts back into the knowledge base.
5. The next time a similar requirement comes up, draw from this knowledge incrementally.
**Knowledge isn't built all at once. It grows through requirements clarification, technical design, code implementation, bug fixing, knowledge sync, and committing code.**
This is what sets Flow2Spec apart from ordinary "project memory files": an ordinary solution hands the Agent a manual; Flow2Spec maintains an evolvable knowledge graph in the repository's `.Knowledge/` — diffable, reviewable, committed alongside code.
---

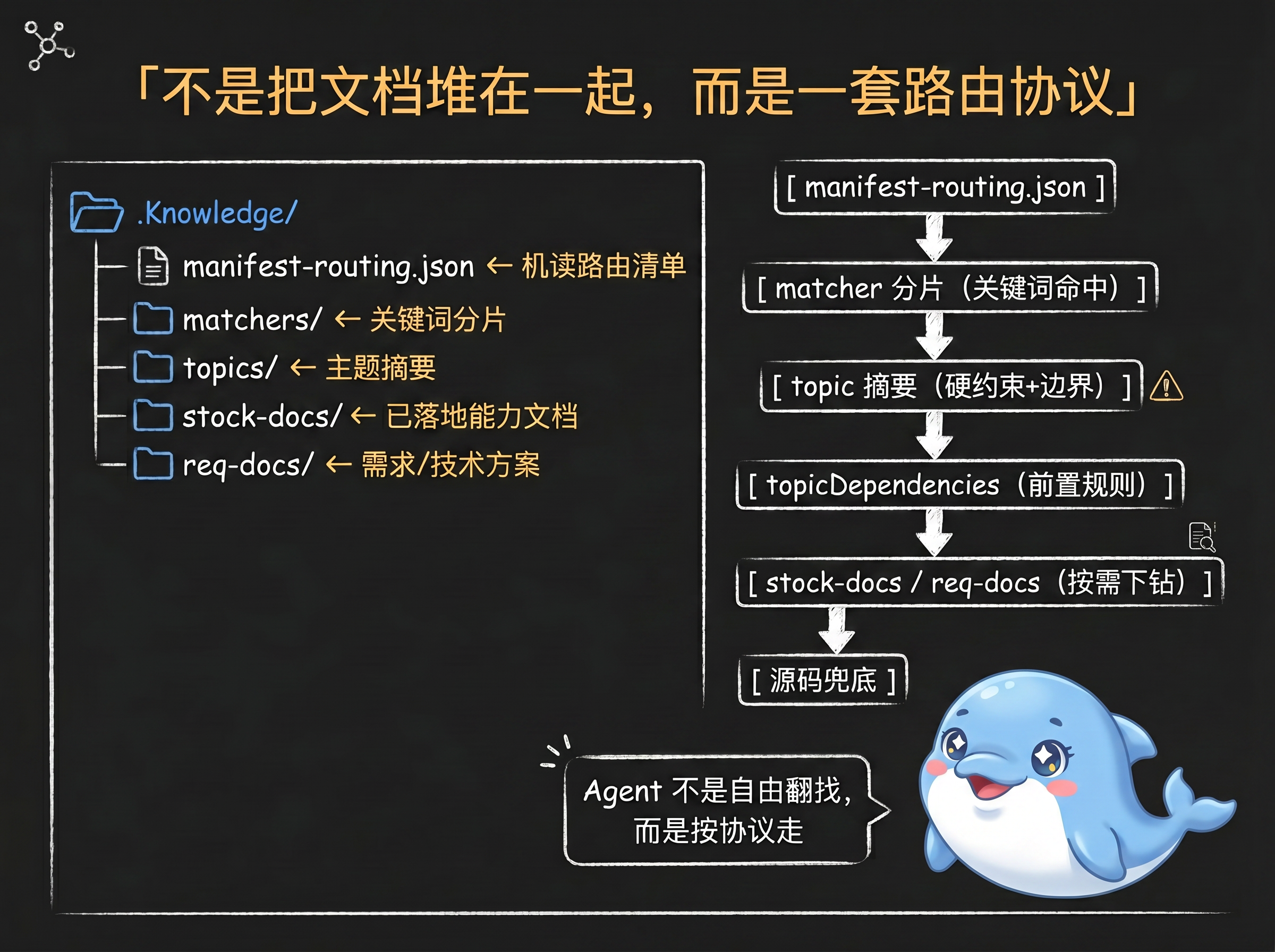

## IV. The Knowledge Base Interface: Not a Pile of Docs, but a Routing Protocol
Flow2Spec's knowledge base has a clear interface structure:
```Plain Text
.Knowledge/
manifest-routing.json # Machine-readable routing manifest
matchers/ # Keyword shards
topics/ # Topic summaries
stock-docs/ # Long-form docs for shipped capabilities
req-docs/ # Requirements / technical design docs
```
The Agent's reading order isn't free-form — it follows the protocol:
```Plain Text
manifest-routing.json
-> matcher shard (single file pointed to by matcherPath)
-> match (primary candidate)
-> expand (dependency topics first, then primary; keep secondary candidate)
-> verify (gap check)
-> sufficient: act
-> insufficient: stock-docs / req-docs (on demand)
-> still insufficient: fall back to source code
-> act or clarify
```
Figure 1: Incremental Knowledge Retrieval
```mermaid
flowchart LR
subgraph entry["Routing entry"]
direction LR
A["manifest-routing.json
Machine-readable manifest"] --> B["matchers
Keyword shards"]
end
B --> M["match
Primary candidate"]
M --> E["expand
Dependency topics first, then primary
+ secondary candidate"]
E --> V{"verify
Gap check"}
V -->|sufficient| H["act
Execute / clarify / suggest knowledge update"]
V -->|insufficient| F["stock-docs / req-docs
Long-form docs (on demand)"]
F --> V2{"Still insufficient?"}
V2 -->|yes| G["Fall back to source code"]
V2 -->|sufficient| H
G --> H
entry ~~~ M
```
The value of this structure: **the knowledge base doesn't expose "files" to the Agent — it exposes an interface for "how to find the right knowledge."**
`manifest-routing.json` tells the Agent what topics exist; `matchers/*.json` tells the Agent which topics a requirement might match; `topics/*.md` gives short summaries and hard constraints; `topicDependencies` tells the Agent which prerequisite rules must be read together; `stock-docs/` and `req-docs/` are only drilled into when needed.
---

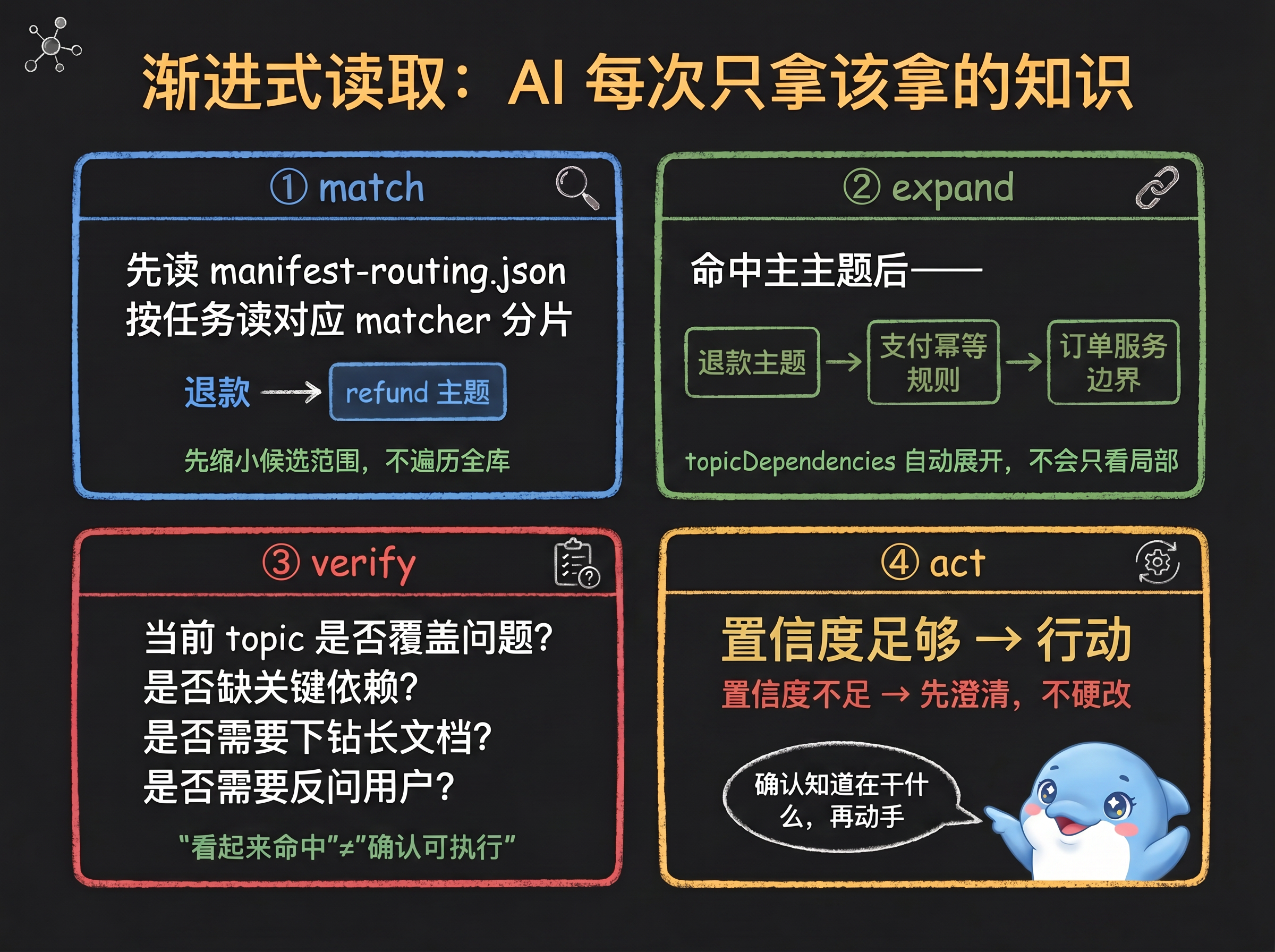

## V. Incremental Retrieval: The Agent Only Takes What It Needs
Flow2Spec's retrieval model can be summarized in four steps: **match → expand → verify → act**
**match**: The Agent reads `manifest-routing.json`, then reads the corresponding matcher shard for the task. It doesn't traverse the entire knowledge base — it narrows down candidates first.
**expand**: After hitting the primary topic, the Agent continues reading dependency topics via `topicDependencies`, avoiding partial rule coverage. For example, a feature might depend on common config rules, auth rules, and a specific business module's constraints all at once.
**verify**: Hitting a topic doesn't guarantee sufficient knowledge. Flow2Spec requires the Agent to check before acting: does the topic actually cover the user's question, are key dependencies missing, is a long-form doc needed, should the user be asked first? This turns "looks like a match" into "confirmed ready to act."
**act**: Only when knowledge coverage is sufficient and boundaries are clear does the Agent proceed to implement, modify, or commit. If confidence is low, it clarifies first — it doesn't forge ahead.
---

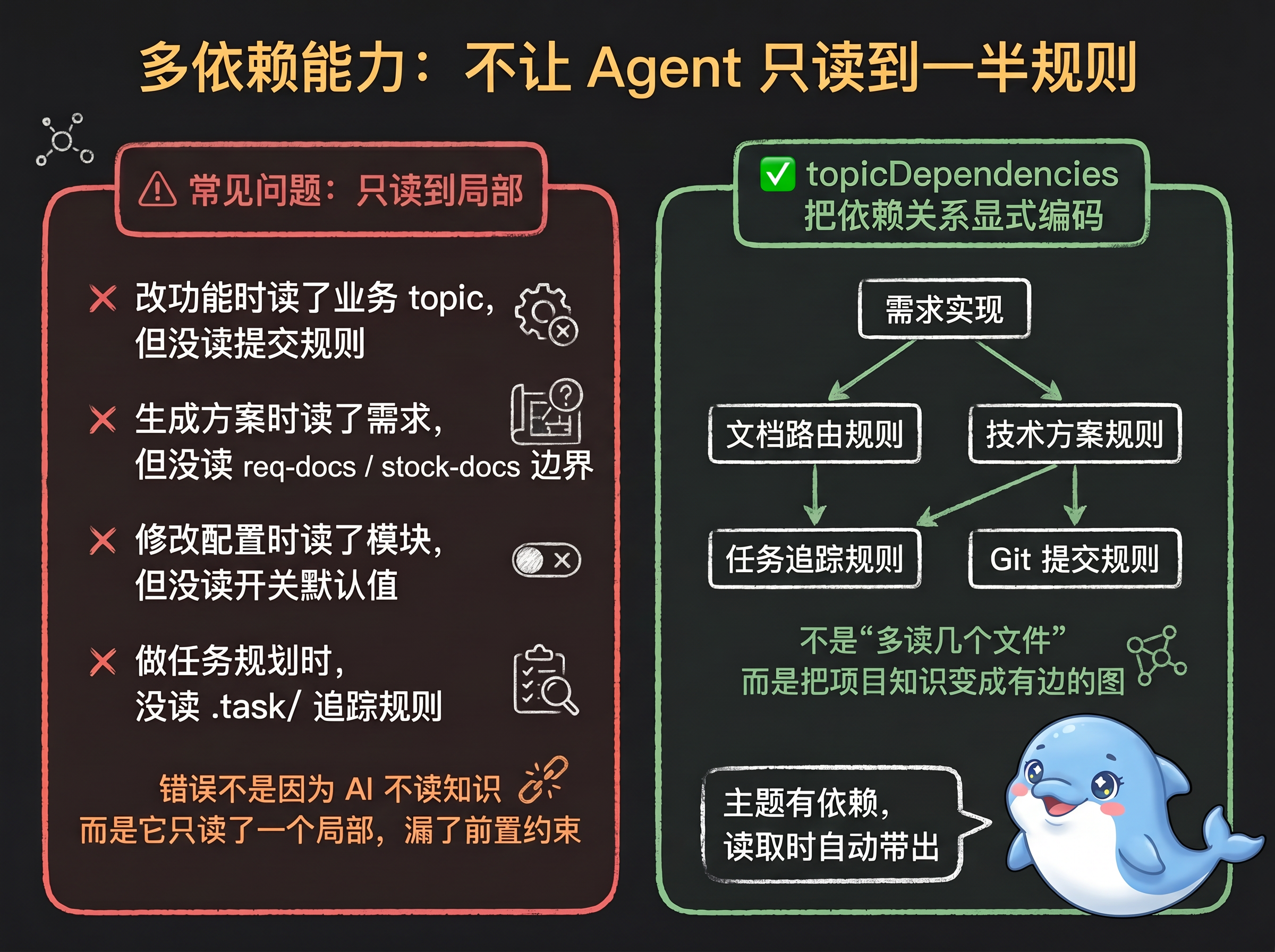

## VI. Multi-Dependency Capability: Don't Let the Agent Read Only Half the Rules
In real projects, many errors happen not because the AI didn't read knowledge at all, but because it read only a local piece and missed a prerequisite constraint:
- Changing a feature while reading the business topic, but missing commit rules
- Generating a technical design while reading requirements, but missing req\-docs / stock\-docs boundary rules
- Modifying config while reading the module description, but missing config switch defaults
Flow2Spec makes these dependencies explicit in the routing layer. A topic can declare which other topics it depends on; when the Agent hits a primary topic, it expands dependencies first. This isn't just "read a few more files" — it transforms project knowledge from flat documents into a graph with edges:
```Plain Text
Feature implementation
-> Document routing rules
-> Technical design rules
-> Task tracking rules
-> Git commit rules
```
This means every time the Agent reads, it gets a declared combination of context — not an isolated fragment.
---

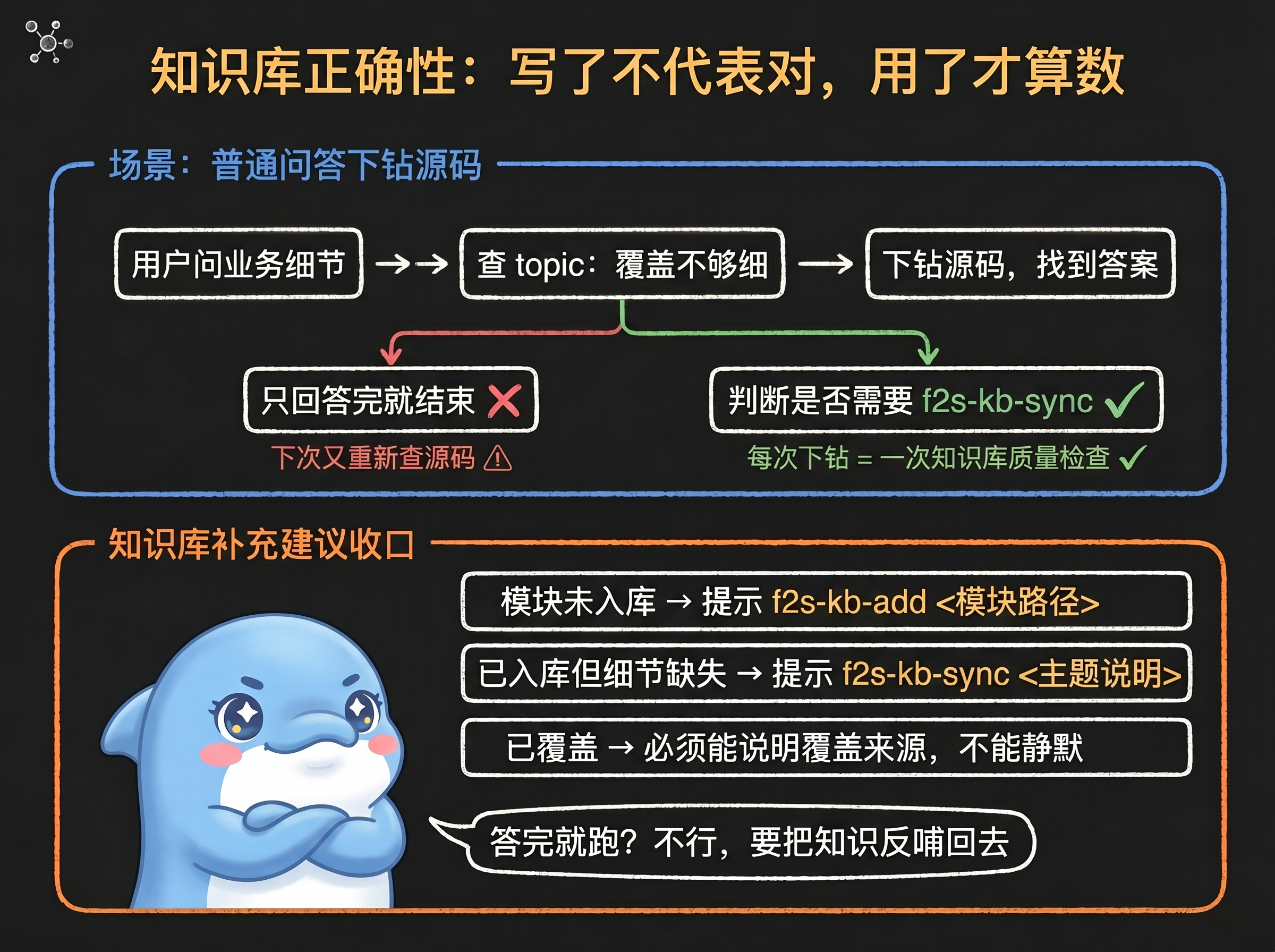

## VII. Knowledge Base Correctness: Writing a Topic Isn't Enough
Two things kill a knowledge base: going stale, and being wrong. Flow2Spec doesn't assume the knowledge base is always correct — it builds verification into the development process.
A typical scenario: the user asks a business detail; the Agent checks the knowledge base, finds topic coverage but not enough detail, then drills into source code for a more accurate fact. At this point Flow2Spec shouldn't just answer and move on — it also needs to determine:
- Has this fact already been written into the topic?
- If not (or coverage isn't detailed enough), should it suggest `f2s-kb-distill` to extract this round's Q&A into the knowledge base?
- If knowledge appears covered, can it prove the coverage source? If not, it can't stay silent.
This is the "knowledge base feedback closing step." **It ensures new knowledge found in source code doesn't just live in this one chat session — it feeds back into the knowledge base.**
---

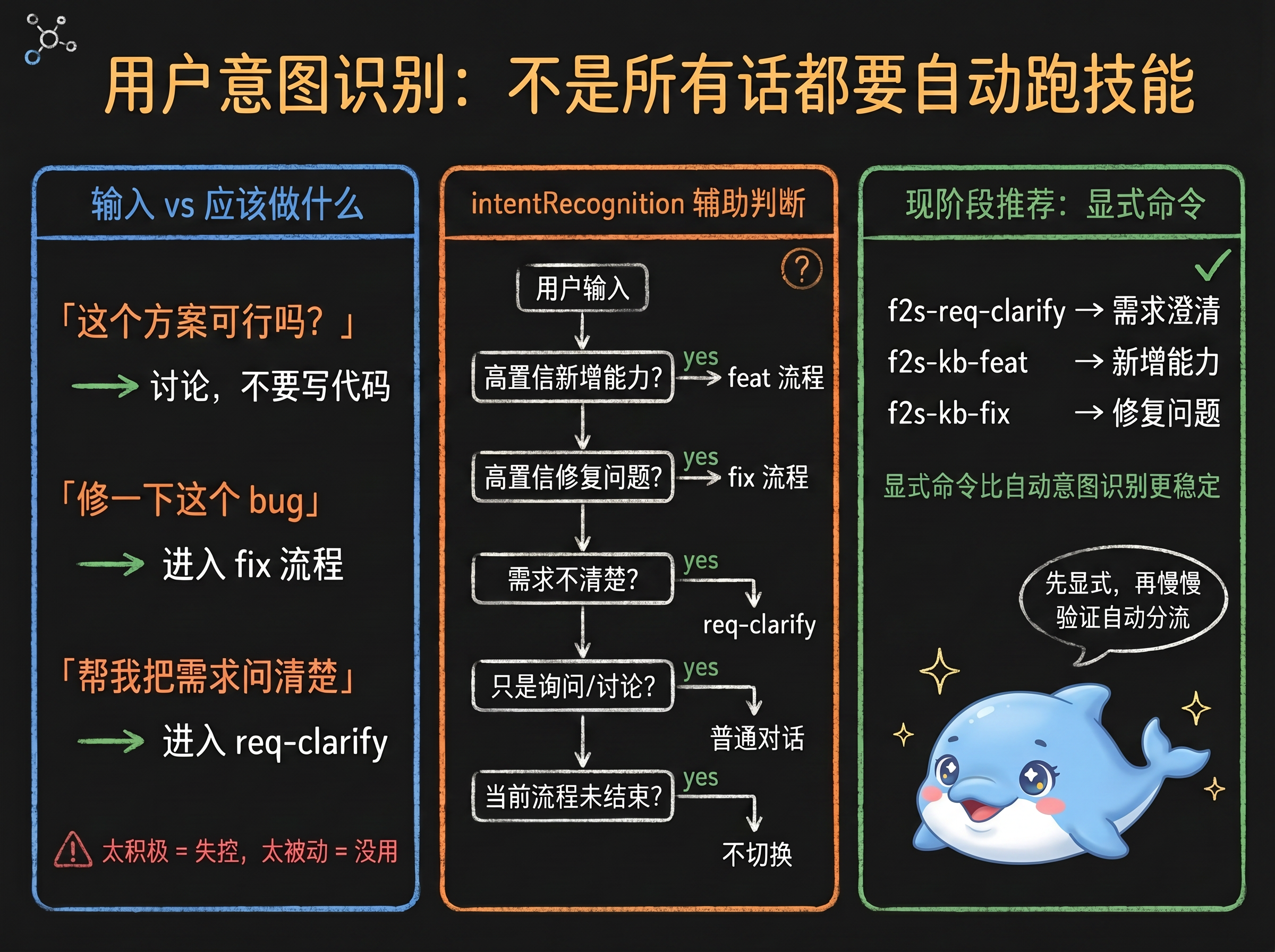

## VIII. User Intent Recognition: Not Every Message Should Trigger a Workflow
When the user says something, should the Agent answer, discuss, clarify, or jump straight into a development workflow?
- "Is this approach feasible?" → discussion, not automatic coding
- "Fix this bug" → enter the fix workflow
- "I want a new capability — help me clarify requirements first" → enter requirements clarification, not immediate implementation
Flow2Spec has an `intentRecognition` switch. When enabled, the Agent uses intent recognition rules to assist routing: high-confidence new capability → feat workflow; high-confidence bug fix → fix workflow; unclear requirements → req\-clarify; mere asking or discussing → stay in normal conversation.
After validation across real projects over time, **intent recognition is now stable enough that we recommend enabling it by default**, letting the Agent route automatically in most scenarios; you can still type `f2s-req-clarify`, `f2s-kb-feat`, `f2s-kb-fix`, etc. explicitly at any time to override the automatic decision. We also recommend using `f2s-*` skills explicitly more often — getting familiar with them is the most efficient way to use Flow2Spec.
---

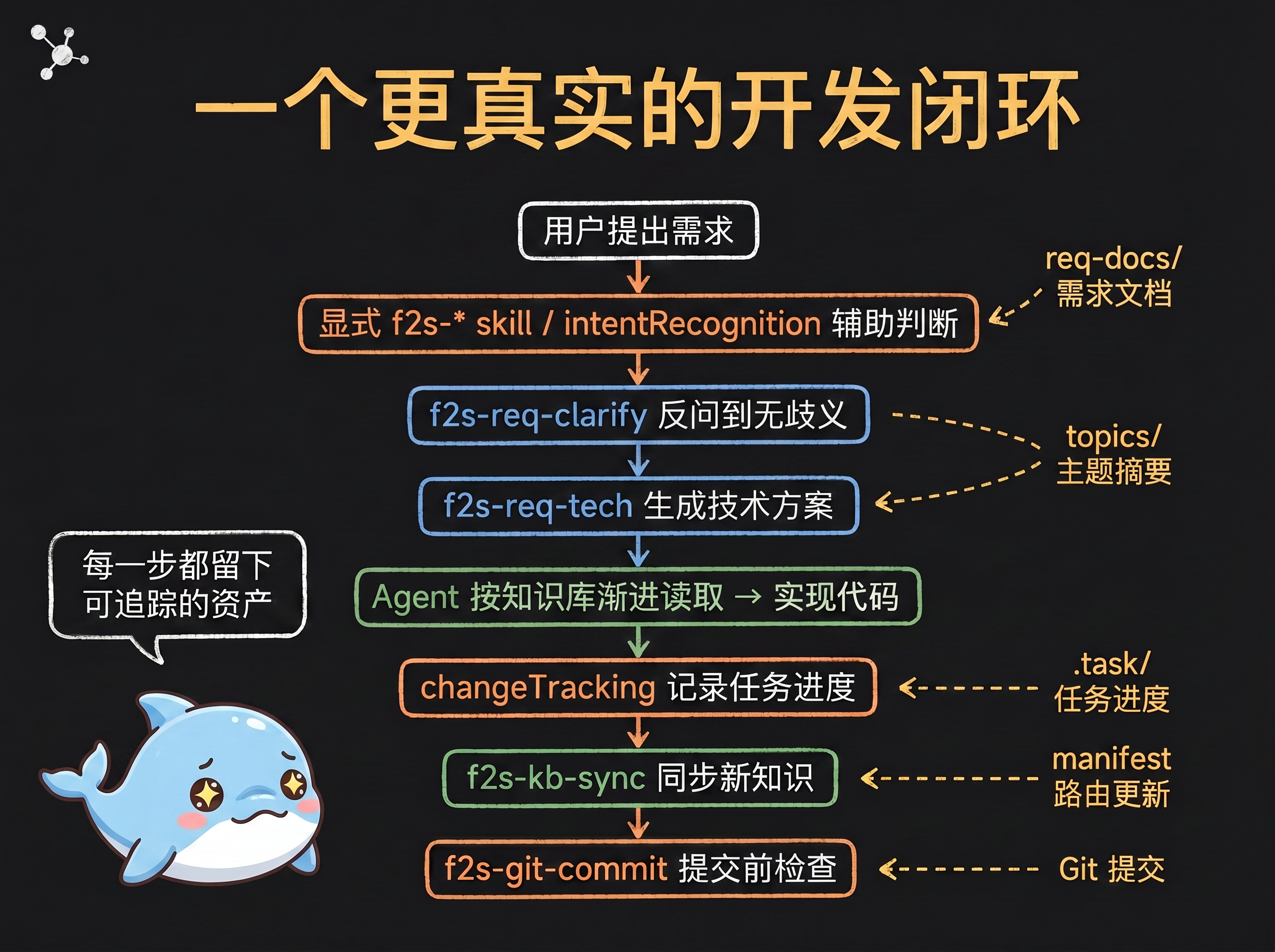

## IX. A More Realistic Development Loop
With Flow2Spec, a requirement might flow like this:
```Plain Text
User submits requirement
-> Explicit f2s-* skill / intentRecognition assists
-> f2s-req-clarify clarifies until no ambiguity
-> f2s-req-tech generates technical design
-> Agent reads knowledge base incrementally
-> Implements code
-> changeTracking records task progress
-> f2s-kb-sync syncs new knowledge
-> f2s-git-commit pre-commit check
```
Figure 2: Knowledge Graph Growing Through Development
```mermaid
flowchart TD
A[User submits requirement] --> B{Explicit f2s-* skill
or intentRecognition}
B -->|unclear requirement| C[f2s-req-clarify
Requirements clarification]
B -->|new capability| D[f2s-kb-feat
Add capability]
B -->|bug fix| E[f2s-kb-fix
Fix issue]
B -->|large requirement / needs design| F[f2s-req-tech
Technical design]
C --> F
D --> G[Incremental retrieval
match -> expand -> verify -> act]
E --> G
F --> G
G --> H[Code implementation / fix]
H --> I[changeTracking
Task progress persisted]
H --> J[f2s-kb-sync
Sync confirmed facts]
J --> K[.Knowledge
Knowledge graph incremental update]
I --> L[f2s-git-commit
Pre-commit check]
K --> L
L --> M[Next similar requirement
Reuse knowledge]
M --> G
```
Every step in this chain leaves a trackable asset: requirements in `req-docs/`, shipped knowledge in `stock-docs/`, topic summaries in `topics/`, routing in `manifest-routing.json`, task progress in `.task/`.
**Flow2Spec isn't about making the AI answer better in a single session — it's about turning each development process into an incremental update to the project's knowledge graph.**
---

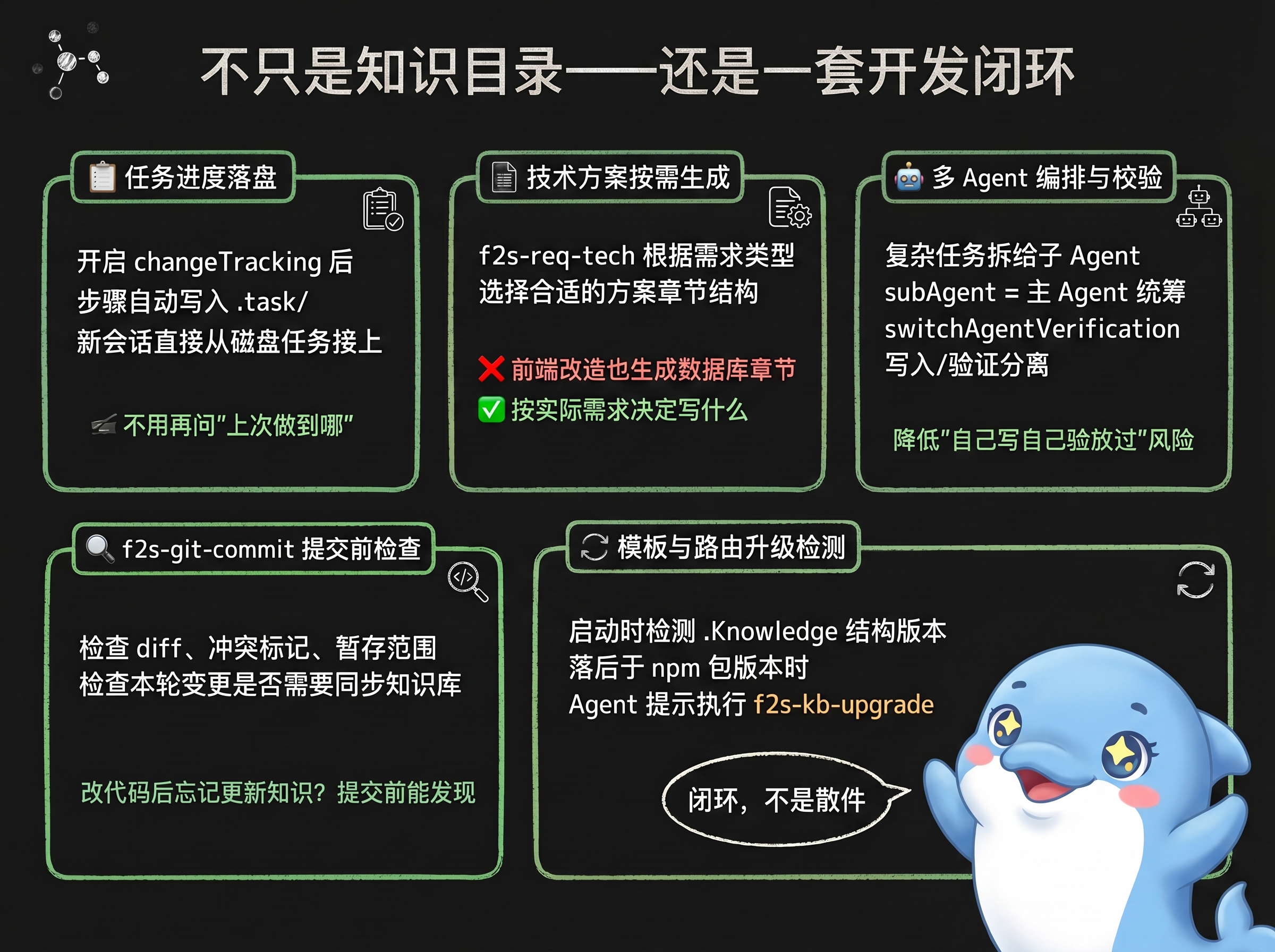

## X. It Manages More Than Knowledge — It Manages the Development Loop
**Task progress persistence**: When `changeTracking` is enabled, the Agent writes a task checklist to `.task/` during feature development or design implementation. New sessions resume from the on-disk task — no need to ask "where did we stop?"
**Technical designs don't follow a rigid template**: `f2s-req-tech` selects structure based on the current requirement, rather than mechanically filling every section — so a frontend change doesn't generate a template full of database chapters.
**Multi-Agent orchestration and verification**: Complex tasks can be split to sub-Agents via `subAgent`. When `switchAgentVerification` is enabled, writer and verifier are separated, reducing the risk of a single Agent writing, verifying, and approving its own work.
**Pre-commit knowledge coverage check**: `f2s-git-commit` checks the diff, conflict markers, and staging scope before committing, and checks whether the round's changes require a knowledge base sync — catching "changed code, forgot to update knowledge" before the commit lands.
**Template and routing upgrade detection**: At startup, Flow2Spec checks whether `.Knowledge/` is behind the npm package version and, if so, prompts `f2s-kb-upgrade` to keep the project's knowledge structure aligned with the tool version.
---

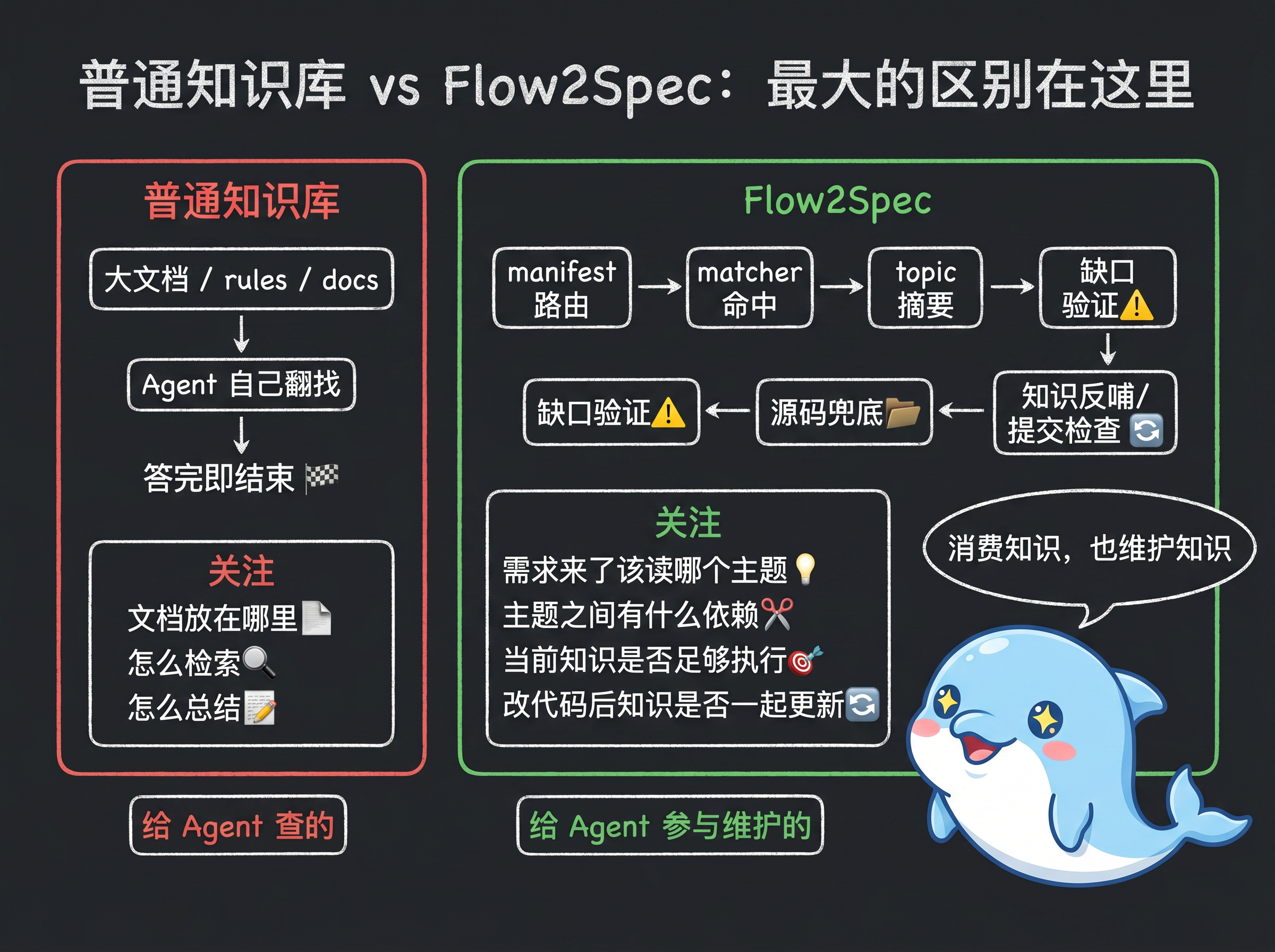

## XI. The Biggest Difference from Ordinary Knowledge Bases
In one sentence: **an ordinary knowledge base is something Agents query; Flow2Spec's knowledge base is something Agents help maintain.**
Figure 3: Ordinary Memory Files vs Flow2Spec Knowledge Graph
```mermaid
flowchart LR
L1["Large docs / rules / docs"] --> L2["Agent searches manually"] --> L3["Done after answering"]
```
```mermaid
flowchart LR
R5{"Gap verification"}
R6["Source code fallback"]
R7["Knowledge feedback / pre-commit check"]
R1["manifest routing"]
R2["matcher hit"]
R3["topic summary"]
R4["dependency expansion"]
R5 -->|insufficient| R6
R6 --> R7
R5 -->|sufficient| R7
R7 --> R1 --> R2 --> R3 --> R4
R4 --> R5
```
Ordinary knowledge bases focus on: where to put documents, how to retrieve them, how to summarize them.
Flow2Spec focuses more on: which topic to read when a requirement arrives, what dependencies exist between topics, whether current knowledge is sufficient to act, whether to feed knowledge back after a source code dive, whether user intent should trigger a workflow, whether knowledge gets updated alongside code changes, and whether knowledge coverage was checked before committing.
This is why Flow2Spec includes `.Knowledge/`, `.task/`, `f2s-*` skills, Agent rules, and `flow2spec.config.json` together — they aren't separate pieces, but a protocol organized around the development loop.
---

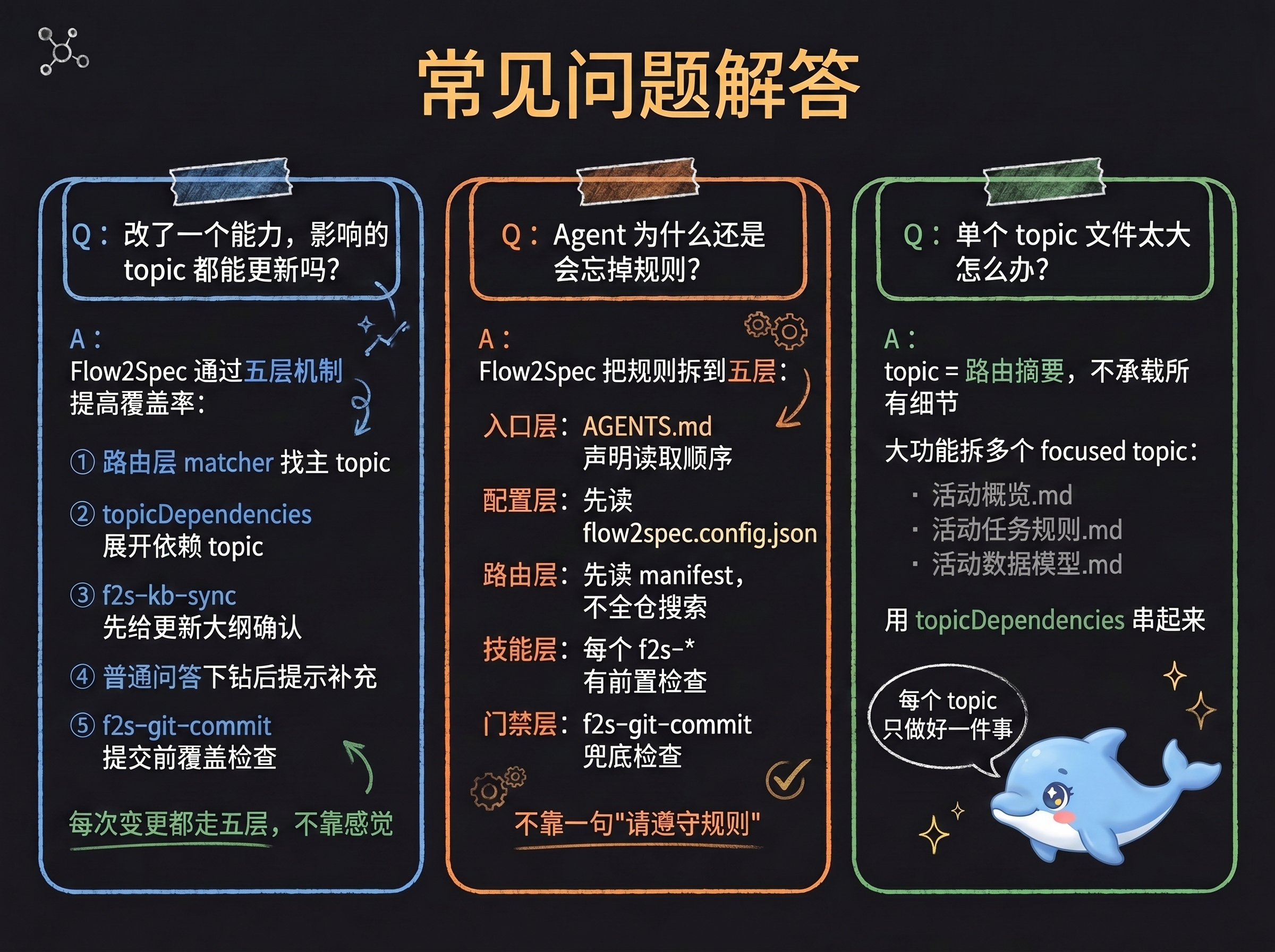

## XII. Common Questions
**Q: After changing a capability, how do I make sure all related topics get updated?**
Flow2Spec doesn't promise "the model will automatically know all impact areas" — it turns impact discovery into an executable process.
A single capability change often affects more than one topic. For example, changing "batch rescoring" might affect:
| Type | What to check |
| --- | --- |
| Business capability topic | How this feature now works |
| Config topic | Whether switches, defaults, or thresholds changed |
| Rules topic | Whether idempotency, locking, error codes, or pre-commit checks changed |
| Module topic | Whether shared methods, directory boundaries, or call chains changed |
Flow2Spec raises coverage through five mechanisms:
1. Routing layer: matcher finds the primary topic
2. Dependency expansion: `topicDependencies` expands dependency topics
3. Sync confirmation: `f2s-kb-sync` outputs an update outline for user confirmation
4. Q&A closing: after a source code drill-down in normal Q&A, prompts a supplement if gaps are found
5. Commit gate: `f2s-git-commit` checks knowledge coverage before commit
**Example**: when changing the "activity lottery count" feature, the knowledge update shouldn't just say "the lottery API changed" — it might also need to sync:
- Activity business topic: how lottery counts are calculated
- Data model topic: which fields record claimed / remaining counts
- Rules topic: restrictions on browsing tasks, purchase tasks, duplicate claims
- Config topic: prize lists, switches, activity timing
> Flow2Spec's goal isn't to have the Agent intuitively edit one file — it's to first list which topics this change might affect, confirm, then write to disk.
---
**Q: How does Flow2Spec solve the problem of Agents forgetting rules?**
Two sides.
**Usage side**: Rules aren't stuffed into one giant file — they're split into a routable, dependency-aware structure: entry rules in per-IDE config, business knowledge in `topics`, matching keywords in `matchers`, dependencies in `topicDependencies`, long-form docs in `stock-docs` / `req-docs`. The Agent doesn't act from memory — it re-fetches rules via `match → expand → verify → act` every time.
**Design side**: Five layers of constraints intercept "rules exist but aren't followed" at different stages:
1. Entry layer: declare reading order and prohibitions
2. Config layer: read config switches before executing any skill
3. Routing layer: read manifest first for all tasks — no direct full-codebase search
4. Skill layer: each skill defines pre-checks, confirmation points, and closing steps
5. Gate layer: gates at multiple nodes — checklist before task archival, outline confirmation before knowledge writes, mandatory closing self-check after Q&A source dives, diff and knowledge coverage check before commit
Two typical scenarios show how these layers work: preventing intent misfire (user still clarifying — Agent must not jump to implementation); and preventing knowledge from not being fed back after a source code answer (must determine whether `f2s-kb-distill` is needed to extract this round's Q&A into the knowledge base — silent skipping not allowed).
Flow2Spec's goal isn't to completely eliminate forgetting — it's to make "bypassing rules" harder at every stage.
---
**Q: What if a single topic file gets too large?**
A topic's role is "routing summary": trigger keywords, boundaries, key constraints, and next-step pointers — not all details. Long content goes in `stock-docs/`; large features split into multiple focused topics connected by `topicDependencies`.
**Split example** (a feature with ten thousand lines of code):
```text
topics/
activity-overview.md
activity-task-rules.md
activity-data-model.md
activity-external-dependencies.md
stock-docs/
activity-overview_final.md
activity-task-rules_final.md
activity-data-model_final.md
activity-external-dependencies_final.md
```
The Agent reads "activity-overview" first to judge relevance; task state machine questions → "activity-task-rules"; table field questions → "activity-data-model".
This avoids topics too large to read thoroughly, or trigger keywords so broad that one topic matches every requirement.
---
**Q: What if the knowledge base doesn't cover the current module?**
Flow2Spec offers three complementary commands, distinguished by who triggers them and at what granularity:
`f2s-kb-distill` is **auto-suggested by the Agent**: after a single Q&A drills into source code, it extracts this round's Q&A into the KB; internally the skill decides whether to create a new topic or supplement an existing one based on drill-down depth and topic hits.
`f2s-kb-add ` is **user-initiated**: use it when you want to parse an **entire module / legacy capability** into the KB in one go — accepts a path or multi-file aggregation, ideal for never-indexed blocks of code.
`f2s-kb-sync` is **user-initiated**: used for **global / batch sync** of shipped capabilities; supports zero-input inference and outputs an update outline before writing — ideal for periodic checkup-style reinforcement.
In short: **single Q&A → distill (auto), new module bulk import → add, periodic batch sync of shipped capabilities → sync**.
> Every time you "find an answer in source code," it can become a knowledge base improvement.
---

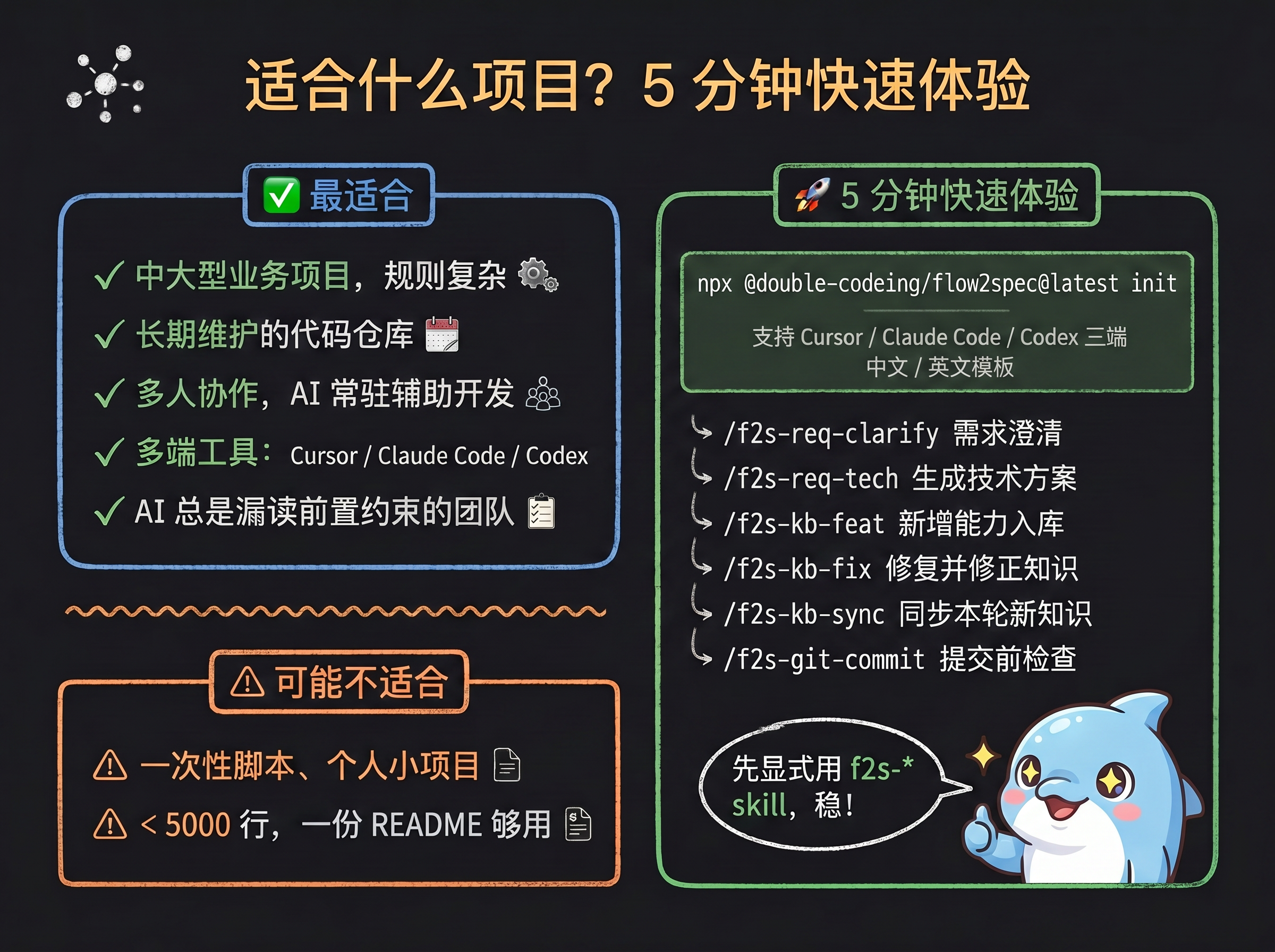

## XIII. What Projects Is This For + Quick Start
**Best for**: medium to large business projects, long-lived codebases, multi-person teams with many rules, teams using Cursor / Claude Code / Codex regularly, and projects where you want AI to participate in maintaining project knowledge — not just read docs.
**May not fit**: one-off scripts or very small personal projects (\< 5000 lines, a README is enough).
**5-minute quick start**:
```Plain Text
npx @double-codeing/flow2spec@latest init
```
When getting started, we recommend typing `f2s-*` skills explicitly first to get familiar with them — it's the most efficient way to learn Flow2Spec. Enabling `intentRecognition` by default then lets the Agent route common tasks automatically.
Common workflows:
```Plain Text
/f2s-req-clarify Requirements clarification
/f2s-req-tech Generate technical design
/f2s-kb-feat Add capability and sync knowledge
/f2s-kb-fix Fix issue and correct knowledge
/f2s-kb-add Parse an existing module into the knowledge base
/f2s-kb-sync Global / batch sync of shipped capabilities into the KB
/f2s-kb-distill Extract this round's Q&A into the KB (auto-decides new topic or supplement)
/f2s-git-commit Pre-commit check and generate commit message
```
Currently supports initialization for Cursor, Claude Code, and Codex, with both Chinese and English templates.
---
## Closing
The end goal of AI coding isn't "writing more code." The truly hard part is: **letting AI continuously understand context in long-lived projects, and accumulating the new knowledge produced by each development cycle.**
Flow2Spec turns project knowledge from static documents into a routable, dependency-aware, verifiable, feedback-capable knowledge graph. It makes Agents not just consumers of context, but participants in maintaining it.
If your project already has these problems — explaining the same business rules every time, AI missing prerequisite constraints, docs and code drifting apart — give it a try:
```Plain Text
npx @double-codeing/flow2spec@latest init
```
Repository: `https://github.com/Lands-1203/Flow2Spec`
Live demo: `https://lands-1203.github.io/Flow2Spec/`
---
If Flow2Spec has been helpful, consider giving it a Star on GitHub — your support keeps the project going!
👉 **https://github\.com/Lands\-1203/Flow2Spec**
---
