### XML设置Shape、Selector
> 在xml布局中设置样式我使用Databinding进行关联设置,现在MVVM架构的已经很流行,Databinding作为Android端MVVM架构的主力军,如果你还不了解,就有点落后。[Databinding了解一下?](https://blog.csdn.net/u013005791/article/details/78905401#studio_support)
>
> xml设置样式示例代码,使用套路基本差不多,这里我只展示一部分示例,具体示例可查看[xml布局文件](https://github.com/LiangLuDev/DevShapeUtils/blob/master/app/src/main/res/layout/activity_binding.xml)
#### 启用Databinding
在项目`build.gradle`文件中添加
```
android{
...
dataBinding {
enabled = true
}
}
```
#### 关联布局设置
> 因为我们利用Databinding设置布局,所以在关联布局的时候会有一些不(sao)一(cao)样(zuo),当然慌不要慌,只是多加一行代码的事情。
- `Activity` 关联布局示例代码
```
public class BindingActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ViewDataBinding viewDataBinding =
DataBindingUtil.setContentView(this, R.layout.activity_binding);
setContentView(viewDataBinding.getRoot());
}
}
```
- `Fragment` 关联布局示例代码
```
public class BindingFragment extends Fragment {
@Override
public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
ViewDataBinding dataBinding =
DataBindingUtil.inflate(inflater, R.layout.fragment_binding, container, false);
return dataBinding.getRoot();
}
}
```
- `RecyclerView.Adapter` 关联布局示例代码
```
public class BindingAdapter extends RecyclerView.Adapter{
@Override
public RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType){
ViewDataBinding binding =
DataBindingUtil.inflate(LayoutInflater.from(context), R.layout.adapter_binding, parent, false);
return new ViewHolder(binding.getRoot());
}
}
```
有的朋友很着急,说我用的是[`BaseRecyclerViewAdapterHelper`](https://github.com/CymChad/BaseRecyclerViewAdapterHelpe)怎么办?慌不要慌,官方提供了关于`Databinding`关联布局的代码,[查看代码](https://github.com/CymChad/BaseRecyclerViewAdapterHelper/blob/master/app/src/main/java/com/chad/baserecyclerviewadapterhelper/adapter/DataBindingUseAdapter.java)
#### 布局文件设置
在我们正常使用的xml布局文件最外层添加一层`layout`就完成了所有工作,可以看示例。
```
```
#### 布局使用示例代码
> 设置完上面的操作,就可以开始美美的写样式了。
设置`shape`部分属性
```
```

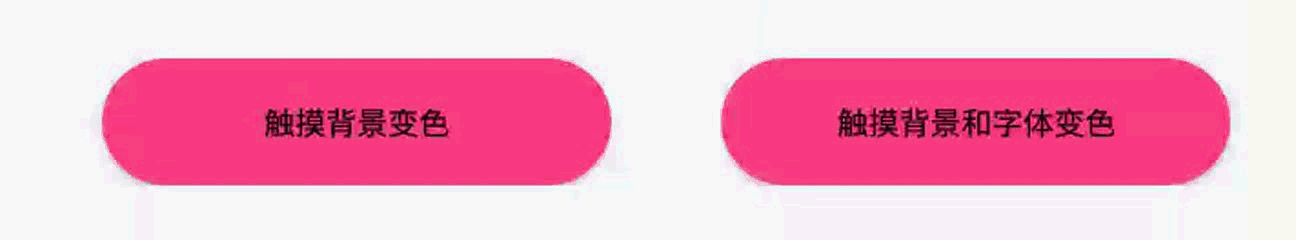

设置`selector`部分属性(预览)
![DevShapeUtils-Selector](./DevShapeUtils-Selector.gif)
```
```
#### 方法属性详解
>上面只示例了几个属性展示给大家看,下面的会针对具体的属性进行解释用处。
- **`Shape`** 属性详解
属性名| 类型 | 描述
----|------|----
shape | string | 样式类型 `OVAL`圆形和`RECTANGLE`矩形
默认`RECTANGLE`
solid | string | int | 背景颜色
line_width | int | 边框线宽度
line_color | string | int | 边框线颜色
dash_line_width | int | 虚线边框宽度
dash_line_color | string | int | 虚线边框颜色
dash_width | float | 虚线边框实线长度
dash_gap | float | 虚线边框间隙长度
radius | float | 圆角弧度 设置4个圆角
tr_radius | float | 右上角圆角弧度
tl_radius | float | 左上角圆角弧度
br_radius | float | 右下角圆角弧度
bl_radius | float | 左下角圆角弧度
gradient_linear_orientation | string | 线性渐变方向 默认`TOP_BOTTOM(上下)`
`BOTTOM_TOP(下上)`
`RIGHT_LEFT(右左)`
`LEFT_RIGHT(左右)`
`TR_BL(右上到左下)`
`BR_TL(右下到左上)`
`BL_TR(左下到右上)`
`TL_BR(左上到右下)`
gradient_linear_start_color | string | int | 线性渐变起始颜色
gradient_linear_gravity_color | string | int | 线性渐变中间颜色
gradient_linear_end_color | strinstring | intg或int | 线性渐变结尾颜色
gradient_sweep_colors | string | 扫描渐变颜色
**PS.** 最少设置两个颜色,多个颜色使用 | 分割
设置颜色值例如:#FFFFFF | #000000
gradient_radial_radius | float | 辐射渐变范围
gradient_radial_colors | string | 辐射渐变颜色
**PS.** 最少设置两个颜色,多个颜色使用 | 分割
设置颜色值例如:#FFFFFF| #000000
- **`Selector`** 属性详解
属性名| 类型 | 描述
----|------|----
shape | string | 样式类型 `OVAL`圆形和`RECTANGLE`矩形
默认`RECTANGLE`
radius | float | 圆角弧度 设置4个圆角
tr_radius | float | 右上角圆角弧度
tl_radius | float | 左上角圆角弧度
br_radius | float | 右下角圆角弧度
bl_radius | float | 左下角圆角弧度
selector_pressed_color | string | int | 触摸按下背景颜色
selector_pressed_normal_color | string | int | 触摸抬起背景颜色
selector_enable_color | string | int | 可点击背景颜色
selector_enable_normal_color | string | int | 不可点击背景颜色
selector_color | string | int | 选中背景颜色(需要设置selector状态)
selector_normal_color | string | int | 未选中背景颜色(需要设置selector状态)
selector_state | string | selector状态
`PRESSED`是否按压状态
`ENABLED`触摸或点击事件是否可用状态
`SELECTED`是否选中状态
`CHECKED`是否勾选状态
`CHECKABLE`勾选是否可用状态
`FOCUSED`是否获得焦点状态
`WINDOW_FOCUSED`当前窗口是否获得焦点状态
`ACTIVATED`是否被激活状态
`HOVERED`是否勾选状态
具体可查看[`Selector`状态详解](https://github.com/LiangLuDev/DevShapeUtils/blob/master/Selector%E7%8A%B6%E6%80%81%E8%AF%A6%E8%A7%A3.md)
selector_text_color | string | int | 选中字体颜色(仅支持TextView及其子类)
selector_normal_text_color | string | int | 未选中字体颜色(仅支持TextView及其子类)
**PS:** 以上类型为 **`string | int`** ,颜色值可以用 **#FFFFFF 或者 @color/color**两种方式设置颜色,但是为了兼容其他属性API,如果对一个`View`使用 **#FFFFFF** 方式设置颜色值,那么对于这个View设置其他属性包含颜色设置,也必须使用 **#FFFFFF** 设置,同理 **@color/color** 也是这样。`gradient_sweep_colors和gradient_radial_colors`属性例外,始终使用`#FFFFFF|#FFFFFF`。举个例子,看代码:
```
app:solid="@{`#FFFFFF`}"
app:line_color="@{`#FFFFFF`}"
/>
app:solid="@{@color/color`}"
app:line_color="@{@color/color}"
/>
app:gradient_radial_colors="@{`#FF4081|#3F51B5|#CCCCCC`}"
/>
```
#### 使用时容易出错的几个点
- `xml`设置`string`属性参数
```
```
- 渐变颜色和背景颜色不可同时设置
> 设置背景颜色同时设置渐变颜色,背景颜色会被渐变颜色所覆盖。
#### 啰嗦
由于使用`Databinding`关联布局,所以还是会有些限制(别骂我,技术太菜啦),可能使用起来并不是那么如意,遇到问题请及时反馈,我会第一时间回应,我会继续努力完善。
