# DockScope

[![npm version](https://img.shields.io/npm/v/dockscope?color=cb3837&logo=npm)](https://www.npmjs.com/package/dockscope)
[![Docker Image](https://img.shields.io/badge/ghcr.io-dockscope-blue?logo=docker)](https://github.com/ManuelR-T/dockscope/pkgs/container/dockscope)
[![CI](https://img.shields.io/github/actions/workflow/status/ManuelR-T/dockscope/ci.yml?branch=main&label=CI&logo=github)](https://github.com/ManuelR-T/dockscope/actions/workflows/ci.yml)
[![License: MIT](https://img.shields.io/badge/license-MIT-green.svg)](LICENSE)

**See your Docker stack instead of listing it.**

DockScope draws your containers as a live 3D dependency graph, then lets you dig
into any one of them: logs, metrics, a shell, and a guess at why it died.

![DockScope demo](assets/demo.gif)

## Run it

You need [Docker](https://docs.docker.com/get-docker/) running. That is the only
prerequisite. Either command below serves the dashboard at
**<http://localhost:4681>**, with nothing to configure and no account to make.

### Docker

The image is published at
[ghcr.io/manuelr-t/dockscope](https://github.com/ManuelR-T/dockscope/pkgs/container/dockscope).

```bash
docker run --name dockscope --restart unless-stopped -p 4681:4681 \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v dockscope-data:/data \
  ghcr.io/manuelr-t/dockscope
```

<details>
<summary>docker-compose.yml</summary>

```yaml
services:
  dockscope:
    image: ghcr.io/manuelr-t/dockscope
    container_name: dockscope
    restart: unless-stopped
    ports:
      - '4681:4681'
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - dockscope-data:/data

volumes:
  dockscope-data:
```

</details>

`dockscope-data` is what keeps a dashboard-set full-access token and installed
plugins. Without it they sit in the container's writable layer and vanish the
next time you recreate the container, pulling a new image for instance. See
[Where state lives](docs/configuration.md#where-state-lives).

To share an observational dashboard without handing out exec or mutation
access, configure distinct operator and reader secrets:

```bash
export DOCKSCOPE_TOKEN="$(openssl rand -hex 32)"
export DOCKSCOPE_READ_ONLY_TOKEN="$(openssl rand -hex 32)"

docker run --name dockscope --restart unless-stopped -p 4681:4681 \
  --env DOCKSCOPE_TOKEN \
  --env DOCKSCOPE_READ_ONLY_TOKEN \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v dockscope-data:/data \
  ghcr.io/manuelr-t/dockscope
```

Keep both values out of source control. The read-only token requires a
full-access token; DockScope refuses to start if it is configured alone.

Compose project management (up and down) is the one feature unavailable in a
container, since it cannot reach your host's compose files.

### With Node

No container, and it opens your browser for you:

```bash
npx dockscope up
```

Or `npm install -g dockscope` for a permanent `dockscope` command. This route
can manage Compose projects, since it runs on the host. Every flag it takes,
including `-H` to point at a remote Docker daemon, is in
[`dockscope up` options](docs/configuration.md#dockscope-up-options).

## What you can do with it

### Read the whole stack at a glance

The bundled **2D service map** plugin adds a **2D** tab above the graph.
Use the **3D / 2D** switch to read the same stack as a flat service map. 3D remains the default; selection, filters, live metrics and the
inspector are shared. Disable the 2D plugin from the plugin manager if you only
want 3D. Other graph-view plugins automatically add their own tabs.
In 2D, click a network to focus its members, drag the background to pan,
and scroll to zoom. The network strip shows shared membership,
not observed traffic, without drawing every network connection. Only networks
attached to known containers are shown.

Open the magnifying glass for search, scope, status filters and network colors
(`/` or `Ctrl/Cmd+K` also works). Active filters remain visible as a count when
the panel is closed. The **…** menu contains connections, Compose projects,
plugins, webhook alerts and security settings.

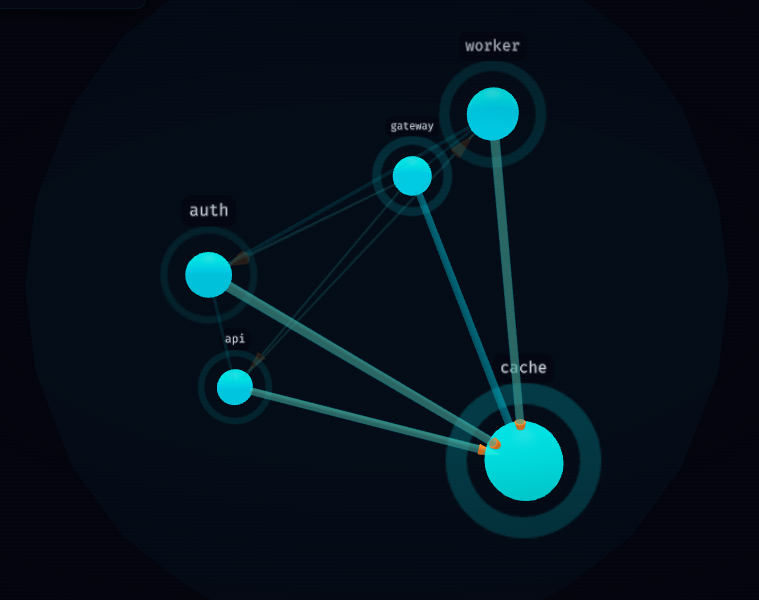

<img src="assets/screenshots/graph.png" alt="Compose stack rendered as a 3D graph, with cache sized largest because everything depends on it" width="620">

Containers are spheres, coloured by health and wired together by `depends_on`
arrows and shared networks. Size is not decorative: it scales with how central a
container is, so the thing everything leans on is visibly the biggest. Compose
projects sit in their own enclosure, so a stack reads as one thing.

Search by name or image, filter by running, stopped or unhealthy, and colour the
links by network when you need to see the wiring rather than the workload.

### A container just died. Why?

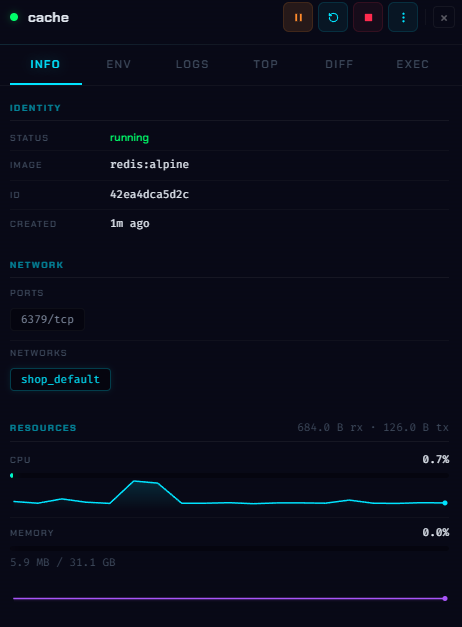

<img src="assets/screenshots/sidebar-info.png" alt="Info tab showing status, image, id, ports, networks and live CPU and memory" width="400">

DockScope reads the exit code, checks whether the kernel OOM-killed it, and
pulls the last log lines, then puts the likely cause in the sidebar instead of
making you piece it together from `docker inspect` and `docker logs`.

The Info tab keeps CPU and memory history across DockScope restarts. Switch
between 5 minutes, 1 hour and 24 hours to spot slow leaks or compare recent load.
History remains available after a workload stops.

Spikes get caught the same way. CPU and memory are watched for outliers, so a
container that starts misbehaving pulses on the graph and raises an alert rather
than waiting for you to go looking.

### What breaks if I take this down?

Select a node and press `I`. Everything that depends on it lights up and the
rest of the graph dims. Useful before a restart, and useful when something is
already broken and you want the blast radius.

### What is actually going on in there?

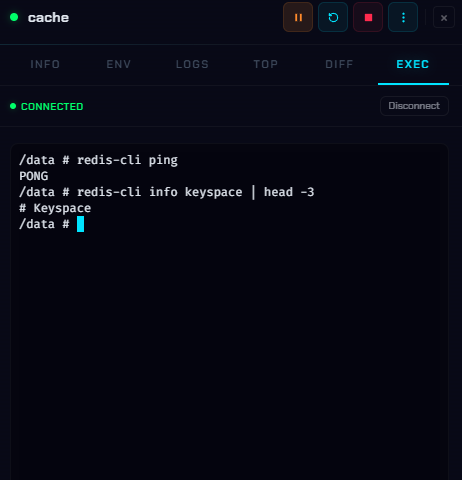

<img src="assets/screenshots/sidebar-exec.png" alt="Exec tab with an interactive shell running redis-cli" width="400">

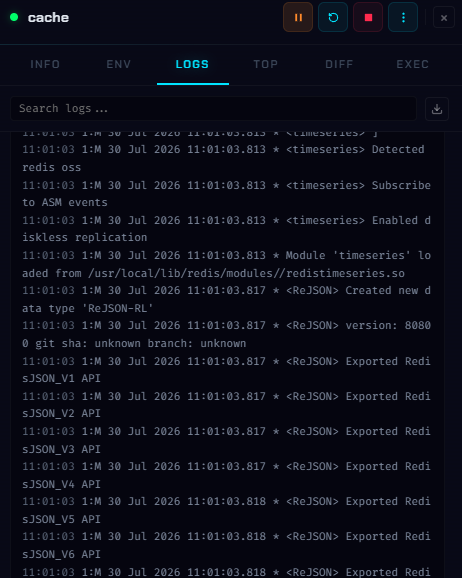

Every container opens a sidebar of tabs: live logs with colour and in-log
search, an interactive shell, env vars with secrets masked, labels, mounts,

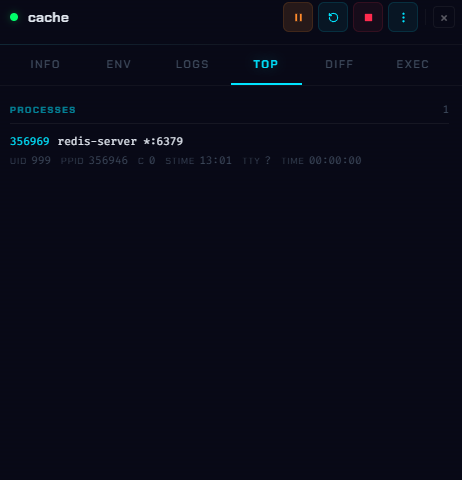

running processes, and the filesystem diff against the image.

| Environment and labels                                                                                                             | Processes                                                                                               |
| ---------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------- |

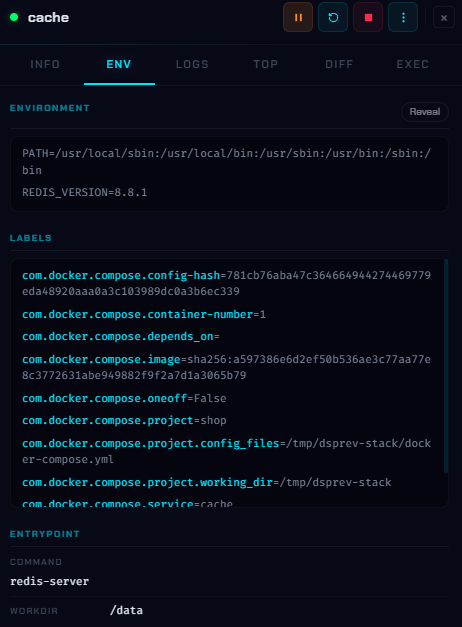

| <img src="assets/screenshots/sidebar-env.png" alt="Env tab with environment variables and Compose labels" width="330">             | <img src="assets/screenshots/sidebar-top.png" alt="Processes running inside the container" width="330"> |
| **Filesystem diff**                                                                                                                | **Logs**                                                                                                |

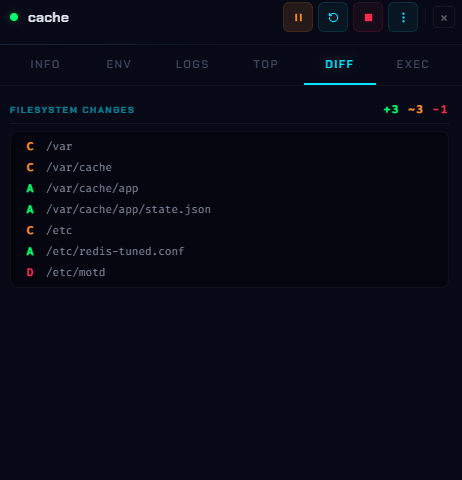

| <img src="assets/screenshots/sidebar-diff.png" alt="Filesystem changes against the image, added, changed and deleted" width="330"> | <img src="assets/screenshots/sidebar-logs.png" alt="Live log stream with in-log search" width="330">    |

Start, stop, restart, pause, kill and remove are all there, with a confirmation
step on the destructive ones. Whole Compose projects go up and down from the
project manager.

### Something broke last night and you missed it

Click **Save recent incident** to download up to the last 15 minutes of graph,
events, metrics, anomalies and crash diagnostics. The server captures these
continuously, even while the dashboard is closed. The buffer lives in memory
and resets on restart; size limits can shorten the available window.

Open **Webhook alerts** from the toolbar to set up anomaly and crash alerts
while the dashboard is closed, or configure `DOCKSCOPE_WEBHOOK_URL` on the server. Generic JSON, Slack and Discord formats are supported;
see [Webhook alerts](docs/configuration.md#webhook-alerts).

For a manual recording, hit `REC` to record into a JSON file.
Load that file on any other DockScope instance and replay it with a scrubber,
event markers and 1-8x speed. Live updates and actions are disabled during
replay. Recordings can contain sensitive operational data, including diagnostic
log excerpts; review them before sharing.

For a written postmortem, export the current view as PNG or SVG.

### It is not only Docker

Kubernetes ships as an official plugin that talks to your cluster directly, with
no `kubectl` needed. Deployments, StatefulSets, DaemonSets, Pods, Services,
Ingresses and HPAs render next to your containers, each pod attached to the
controller that owns it, with the same sidebar: metrics, env, logs and a shell.
Rollout restart, scale and delete included.

Install it from the Plugins panel, or write your own.

## Keyboard shortcuts

| Key             | Action                    |
| --------------- | ------------------------- |
| `/` or `Ctrl+K` | Focus search              |
| `Escape`        | Close panel, clear search |
| `F`             | Zoom to fit               |
| `R`             | Reset camera              |
| `C`             | Center on selected node   |
| `I`             | Toggle impact view        |
| `Space`         | Play or pause replay      |
| `?`             | Show this list            |

## Is it safe to run?

On your own machine, yes, and that is the default: DockScope listens on
localhost only, and websites you visit cannot reach it.

A few things to know before you expose it anywhere:

- Operator access controls your Docker daemon, including shell access to
  containers. Treat an operator token as access to the host.
- Reader access prevents mutations and exec, but it still exposes sensitive
  logs, environment values, inspection data, filesystem diffs and process
  arguments. It is not anonymous or public access.
- The first time you open a reachable instance, it offers to set an access
  token. Take it. If you already run Authelia, Authentik, oauth2-proxy or
  Cloudflare Access, DockScope can use that instead.
- Tokens and session cookies are bearer credentials. Across a LAN, use
  [direct TLS](docs/configuration.md#tls) or terminate TLS in a trusted reverse
  proxy; plain HTTP sends them in cleartext.

[**SECURITY.md**](.github/SECURITY.md) has the full picture.

## Documentation

| Guide                                           | What is in it                                       |
| ----------------------------------------------- | --------------------------------------------------- |
| [Configuration](docs/configuration.md)          | Every CLI flag, environment variable and state file |
| [Security](.github/SECURITY.md)                 | Access tokens, reverse proxy auth, the threat model |
| [HTTP API](docs/api.md)                         | Every endpoint, and the WebSocket messages          |
| [Writing plugins](docs/plugins.md)              | Build your own data source, panel or action         |
| [Publishing plugins](docs/plugin-publishing.md) | Package, sign and distribute one through a catalog  |
| [Operating plugins](docs/plugin-operations.md)  | Loading, permissions, health and quarantine         |
| [Contributing](CONTRIBUTING.md)                 | Development setup and how to send a PR              |
| [Roadmap](ROADMAP.md)                           | Where this is going, and what needs doing           |

## Contributing

Contributions are welcome, and there is a short list of issues tagged
[good first issue][gfi] that are self-contained enough to pick up cold. Larger
open work is tagged [help wanted][hw], and [ROADMAP.md](ROADMAP.md) groups it
all by theme.

```bash
git clone https://github.com/ManuelR-T/dockscope.git
cd dockscope
npm install
npm run dev
```

[CONTRIBUTING.md](CONTRIBUTING.md) covers the rest. Bug reports count too.

Built with Svelte 5, Three.js and Express. No account, no telemetry, no cloud.
