# ReKHCoM

PC and browser port of **Kingdom Hearts: Chain of Memories** (Game Boy Advance), built
on top of the matching decompilation by [Pheenoh/khcom](https://github.com/Pheenoh/khcom).

The decompiled game runs as a native program (Windows, Linux, Steam Deck, Android, the
browser and PS5), with its own renderer, audio and launcher, with widescreen and
ultrawide support at the cartridge's original speed.

<p align="center">
  <a href="https://github.com/MatyMeatBoy/ReKHCoM/releases/latest"><b>⬇ Download the latest release (v1.9.14)</b></a>
  &nbsp;·&nbsp; <a href="https://matymeatboy.github.io/ReKHCoM/"><b>▶ Play in your browser · Beta</b></a>
  &nbsp;·&nbsp; <a href="CHANGELOG.md">Changelog</a>
  &nbsp;·&nbsp; <a href="https://github.com/MatyMeatBoy/ReKHCoM/tags">Previous version tags</a>
</p>

Works with the **European, US and Japanese** cartridges (your own dump; no ROM is
included), in all five European languages, English (US) and Japanese.

<p align="center"><img src="docs/screenshots/battle.png" width="49%"> <img src="docs/screenshots/field.png" width="49%"></p>

Every release stays available: stable versions, and test builds marked as pre-release. The
current stable is **v1.9.14**; older stables can be picked again (for example in Quiver Launcher,
Versions → Change Version).

| Platform | Download | Status |
|---|---|---|
| Windows | `ReKHCoM-v1.9.14-windows-x86.zip` | Stable |
| Linux (x86) | `ReKHCoM-v1.9.14-linux-x86.tar.gz` | Stable |
| Steam Deck | `ReKHCoM-v1.9.14-steamdeck-i386.tar.gz` | Stable |
| Android | `ReKHCoM-v1.9.14-android-beta.apk` | Beta |
| Browser | [matymeatboy.github.io/ReKHCoM](https://matymeatboy.github.io/ReKHCoM/) | Beta |
| PS5 | `PPSA98511.zip` (shown as ReKHCoM-v1.9.14-ps5-beta) | Beta |
| PS4 (GoldHEN) | `ReKHCoM-v1.9.14-ps4-beta.pkg` | Beta |
| Nintendo Switch (Atmosphère) | `ReKHCoM-v1.9.14-switch-beta.nro` | Beta |
| PS Vita (HENkaku) | `ReKHCoM-v1.9.14-vita-beta.vpk` | Beta |
| Anbernic (RG34XX and similar) | `ReKHCoM-v1.9.14-linux-armhf-anbernic-beta.zip` | Beta |

Betas are still being debugged: reports are welcome.

## What's new in v1.9.14

- **Android:** phones that keep the game's usual memory range busy (Poco F8 Ultra, Huawei Mate XT)
  load the game elsewhere (#22, #34); the error box can share its log; remapping a key can be
  cancelled from a gamepad (#37); "Hide touch controls" hides every touch button (#38).
- **Windows:** faster widescreen drawing, spread over several CPU cores.
- **Nintendo Switch and PS Vita betas**, **Discord status**, **Return to title screen** from Options,
  and the **HD mod** (beta: Re:Chain of Memories' music, movies and subtitles imported from your own
  KINGDOM HEARTS HD 1.5+2.5 ReMIX), all from the v1.9.13 test build.

## Achievements

The official RetroAchievements set of the European cartridge (90 achievements, by its authors
at [retroachievements.org](https://retroachievements.org/)). From v1.9.11 they are earned as
you play, **with or without an account**, and kept on your computer; each one was checked
against the official definitions in the situation it rewards. The launcher, the web page and
the in-game Options list show the set with its badges. Signing in to RetroAchievements in the
launcher is optional: while you are signed in, each unlock is also sent to your RetroAchievements
account the moment it pops (softcore), so it shows up on your profile, and the launcher shows your
account's progress. Unlocks earned without an account stay on your computer.

<p align="center"><img src="docs/screenshots/achievement_unlock.png" width="49%"> <img src="docs/screenshots/achievement_unlock2.png" width="49%"></p>

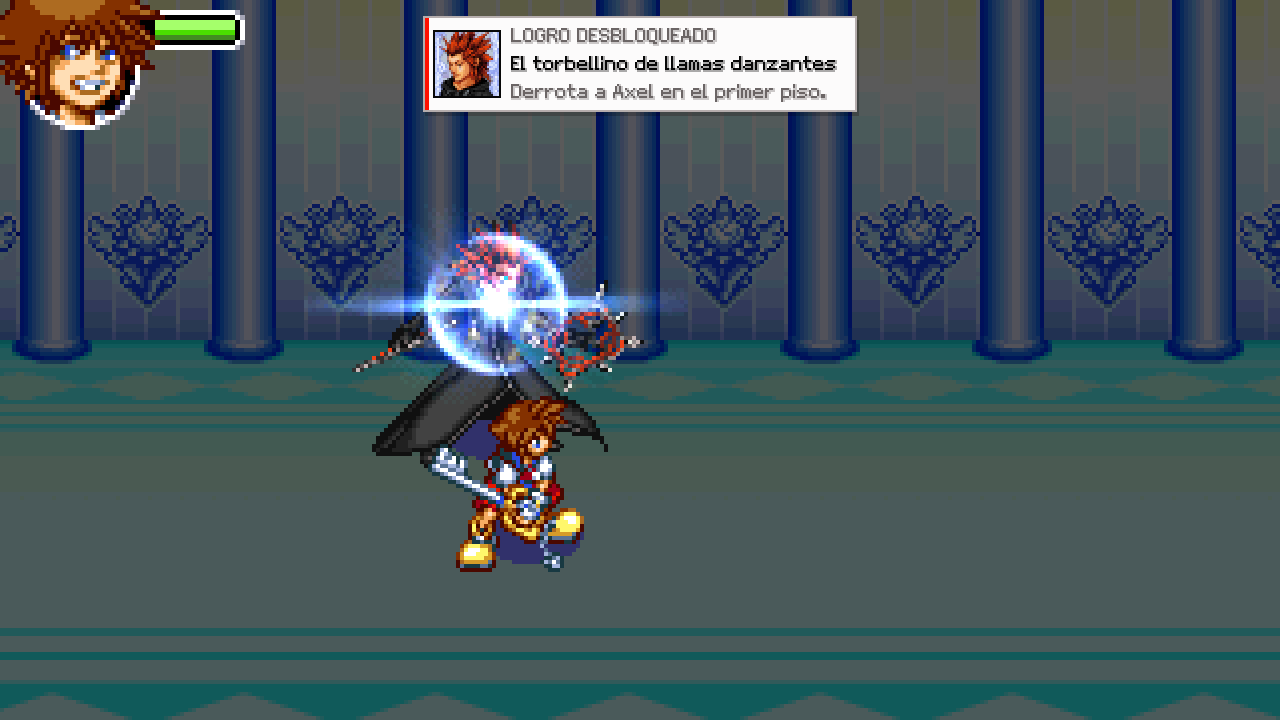

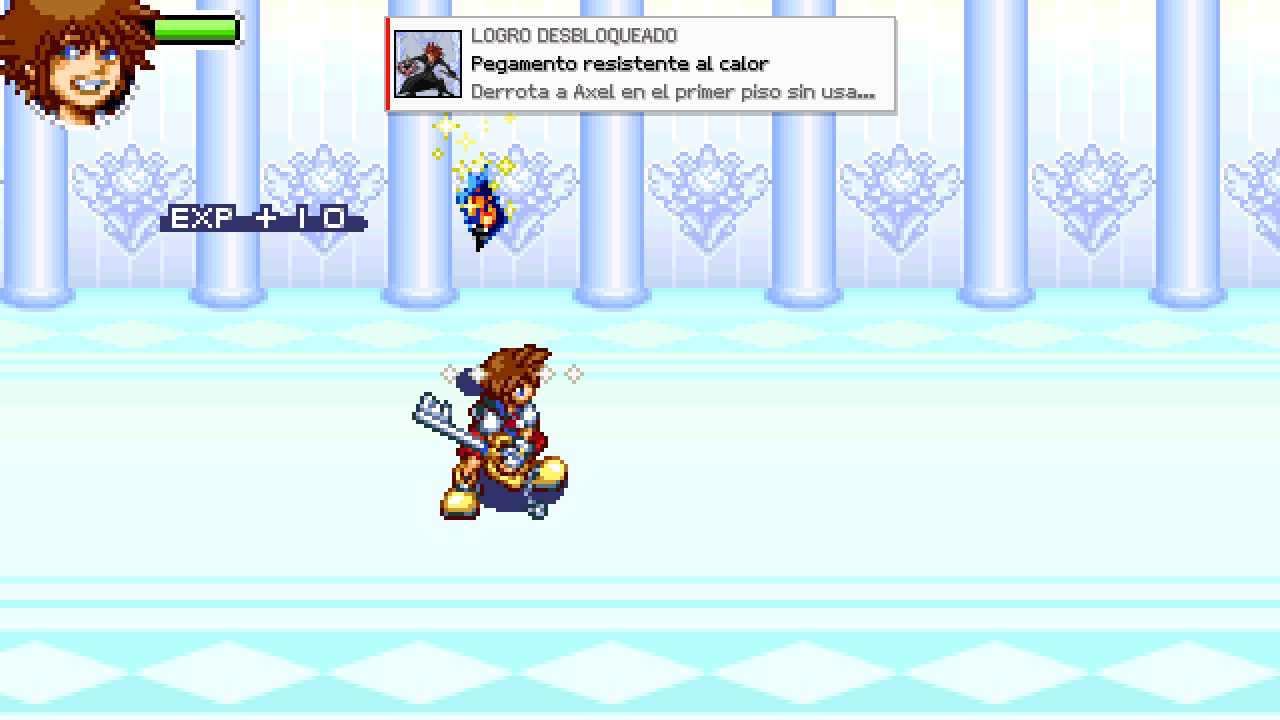

Two real unlocks from beating Axel on the first floor, with their badges and the game's language.

The gameplay, menu, language and launcher screenshots below were captured from
v1.8.3. The unchanged new-game selection screens remain reference images.

<p align="center"><img src="docs/screenshots/mapcards.png" width="49%"> <img src="docs/screenshots/status.png" width="49%"></p>

## Highlights

- **16:9 and ultrawide without stretching.** Fields and battles show more of
  the world on any window shape, 16:10 to 32:9; the menus that stay GBA-sized
  get margins drawn from the screen's own art (bars, boxes, panels, stipple,
  checkerboards) on the picture's exact pixel grid at any scale. An *Aspect
  ratio* option keeps the picture at 16:9 or 21:9 on wider monitors.
- **Original pace, smoother sound.** Play at the cartridge's original speed,
  with optional audio smoothing and native movie playback.
- **Launcher.** Installs and checks your dump (SHA-1), picks the version,
  language, graphics, sound, controls and saves; imports GBA saves.
- **Two ways to play.** New Game asks for the version: the original, exactly
  as on the cartridge, or Re:Chain of Memories, with PS2-inspired difficulty
  levels, HD text and one-button dodge and stock.
- **HD text and smooth audio** as optional enhancements.

<p align="center"><img src="docs/screenshots/deck.png" width="32%"> <img src="docs/screenshots/status.png" width="32%"> <img src="docs/screenshots/worldcards.png" width="32%"></p>
<p align="center"><img src="docs/screenshots/journal.png" width="32%"> <img src="docs/screenshots/worldmap.png" width="32%"> <img src="docs/screenshots/vortex.png" width="32%"></p>

### Ultrawide monitors

The view expands to 21:9 and 32:9 screens: the world gets wider, the HUD
stays in the corners and the menus carry their own art out to the edges.

<p align="center"><img src="docs/screenshots/ultrawide.png" width="98%"></p>
<p align="center"><img src="docs/screenshots/ultrawide_menu.png" width="98%"></p>

### Original or Re:Chain of Memories

Every new game starts by asking which version to play. **Original** is the Game
Boy Advance game exactly as on the cartridge. **Re:Chain of Memories** brings
improvements from the PS2 remake: a choice of difficulty, faster dialogue, HD
text and one-button dodge and stock. Each save remembers its version, and
everything can be changed later with START + SELECT.

| Difficulty | Effect |
|---|---|
| Beginner | Sora takes half damage and deals a quarter more. |
| Standard | As the original: the cartridge's damage. |
| Proud | Sora takes half again as much damage and deals less. |

<p align="center"><img src="docs/screenshots/newgame_version.png" width="49%"> <img src="docs/screenshots/newgame_difficulty.png" width="49%"></p>

### Movies, as large as your screen allows

In *Fill height* mode the movies are cropped to the video, without their
letterbox, and scaled up at their own proportions. With HD text on, the
subtitles use a crisp font at the window's resolution.

<p align="center"><img src="docs/screenshots/movie_extended.png" width="49%"> <img src="docs/screenshots/subtitles_hd.png" width="49%"></p>

### Pixel text or HD text

<p align="center"><img src="docs/screenshots/moogle_px.png" width="49%"> <img src="docs/screenshots/moogle_hd.png" width="49%"></p>

### Every language of every cartridge

| English (US) | Français | Deutsch |
|---|---|---|
| ![](docs/screenshots/lang_us.png) | ![](docs/screenshots/lang_fr.png) | ![](docs/screenshots/lang_de.png) |
| **Español** | **Italiano** | **日本語** |
| ![](docs/screenshots/lang_es.png) | ![](docs/screenshots/lang_it.png) | ![](docs/screenshots/lang_jp.png) |

### Launcher and in-game options

<p align="center"><img src="docs/screenshots/launcher.png" width="49%"> <img src="docs/screenshots/options.png" width="49%"></p>

### Compatible cartridges

Use your own cartridge dump with the launcher or the browser player:

| Version | Code | SHA-1 |
|---|---|---|
| Europe (EN, FR, DE, ES, IT) | `B8CP` | `8db73586cdb11b3795907edebf43228dbcd3e6b2` |
| USA | `B8CE` | `10729bd884f8fdca7a310b6d606c52e46657aa48` |
| Japan | `B8CJ` | `59ec0a0a4ccd1e6acb3bbd7bfb21d63988958cfa` |

Each region uses its own save file; the launcher picks the matching version.

## How it works

- The 269 decompiled C units are compiled for 32-bit x86, so pointers keep their GBA size.
- The GBA address space (work RAM, I/O, palette, VRAM, OAM, ROM, SRAM) lives at its original
  addresses inside the executable image; register writes and ROM pointers work unchanged.
- Asset data is read straight from your ROM: 61k data symbols are pinned to their ROM
  addresses, and the few ROM tables that point at code are patched at start-up.
- `port/` holds the platform layer: software PPU (all modes, affine, windows, blending,
  mosaic, HBlank effects), m4a sequencer/mixer in C, PSG emulation, BIOS, DMA, input,
  settings and the wide-view renderer.
- Where the original game reads stray memory (harmless on the GBA's open bus), the port
  answers as the GBA bus would instead of crashing.

## Play in your browser

Open [ReKHCoM Web · Beta](https://matymeatboy.github.io/ReKHCoM/), select your ROM and
press **Play**. Your ROM stays on your device. The web beta supports keyboard,
gamepad and centered touch controls, optional HD text with the PC fonts, and normal save import
and export. The website starts in English and also offers Spanish; game language
is selected separately. Fullscreen and embedded views readjust automatically.
Export a backup before clearing browser data.

[Development version tags](https://github.com/MatyMeatBoy/ReKHCoM/tags).

<p align="center"><img src="docs/screenshots/web-player.jpg" width="90%"></p>

## Running (Windows)

1. Download the [latest stable ZIP](https://github.com/MatyMeatBoy/ReKHCoM/releases/latest)
   and extract `ReKHCoM-v1.9.14-windows-x86.zip` into a writable folder of its own
   (for example `ReKHCoM`).
2. Run `ReKHCoM.exe` and install your cartridge dump with **Install ROM...** (or drag
   the file onto the window). The dump is checked by SHA-1 and copied to `roms/`.
3. Press **Play**. The launcher starts `khcom_eu.exe`, `khcom_us.exe` or `khcom_jp.exe`
   for the version you chose.

To update, extract the new ZIP over the same folder and replace the files: the package carries
no saves, settings or ROM, so those are kept (Quiver Launcher updates the same way). An install
from v1.9.10 or older lives in a versioned folder (`ReKHCoM-v1.9.10-windows-x86`): if the new
version ends up next to it instead, its launcher brings the saves, settings, ROMs and HD mod over
on the first start.

**Create a desktop shortcut** (below **Play**) makes a shortcut that starts the game
directly, without the launcher.

The launcher also sets the European game's language, shows each version's save
(open its folder, or back it up to `backups/` with a date stamp), and edits the
graphics, sound, enhancement and control settings shared with the game.

The ZIP includes SDL3; you do not need to install it separately. The executables
are 32-bit x86. The Linux and Steam Deck packages carry their own launcher script and
libraries; they have been tested in virtual machines, not yet on every device.

Settings (`kh_com.ini`), your cartridge saves (`kh_com.sav`, `kh_com_us.sav`,
`kh_com_jp.sav`), and the diagnostic log (`kh_com.log`) are stored next to the
executables. Back up your saves before trying new builds. Save states are specific
to the build that created them.

### Known limitations

- Some HD text can overlap the Deck View submenu; that separate issue is still open.
- Movie transitions during events and the ending still need verification.
- Neither Sora's story nor Reverse/Rebirth has a verified full playthrough.
- Some rendering, audio streaming, and widescreen scenes still need verification.
- macOS builds are not available.

## Building (Windows)

Requirements: Python 3 with PyYAML, [llvm-mingw](https://github.com/mstorsjo/llvm-mingw),
[SDL3 mingw devel](https://github.com/libsdl-org/SDL/releases) and [ninja](https://ninja-build.org).
By default the tools are looked up in `../toolchain/`.

```sh
git clone https://github.com/MatyMeatBoy/ReKHCoM.git
cd ReKHCoM
python -m pip install pyyaml
# Copy your dumps to roms/B8CP.gba, roms/B8CE.gba and/or roms/B8CJ.gba first.
python port/configure_pc.py              # European game + launcher, build/pc; --debug for a console build
python port/configure_pc.py --version us # USA game, build/pc-us
python port/configure_pc.py --version jp # Japanese game, build/pc-jp
ninja -f build/pc/build.ninja
build/pc/ReKHCoM.exe                     # launcher (decompui); or run a khcom.exe directly
```

The launcher, `ReKHCoM.exe` (source in `port/decompui`, Dear ImGui), installs your
dumps after checking their SHA-1, edits the game's settings and enhancements
and starts the executable built for the chosen version.

Use `--toolchain PATH --sdl PATH` when your dependencies are outside
`../toolchain/`. The SDL package must include `i686-w64-mingw32/`.
Build from the repository root. Asset glue and text are generated locally from
your dump during the first configure step.

To make a distributable ZIP without ROMs, saves or local settings:

```sh
python port/tools/package_release.py --version v1.9.14 --sdl ../toolchain/SDL3-3.4.18
```

## Controls

| GBA | Keyboard | Gamepad |
|---|---|---|
| A | X / K | A (south) |
| B | Z / J | B (east) |
| L / R | A / S | LB / RB, triggers |
| L + R (stock a card / sleight) | D | Y (north) |
| Dodge roll | C | X (west) |
| Start / Select | Enter / Backspace | Start / Back |
| D-pad | Arrows, W | D-pad, left stick |
| Change card / stock | | Right stick: left / right = L / R, up = L + R |

These are the defaults; every action takes two keys and a gamepad button, edited
on the launcher's Controls page (or `kb_*` / `pad_*` in `kh_com.ini`). The one-button
stock and dodge roll can be turned off in the options; their gamepad buttons then
act as A and B.

F11 or Alt+Enter toggles fullscreen.

F1, Esc, or Start + Select (keyboard or controller, as bound) opens the options
overlay anywhere; at the title screen Select alone opens it. F5 saves a state, F9
loads a state, and F6/F7 change the state slot. Save states do not include
cartridge SRAM.

During the opening movie, A shows a prompt; A again skips the movie.

## Development

See [CONTRIBUTING.md](CONTRIBUTING.md) for the project layout and verification
workflow.

## Credits

- Decompilation: [Pheenoh/khcom](https://github.com/Pheenoh/khcom) and contributors (CC0).
- Third-party asset credits: [NOTICE.md](port/assets/fonts/NOTICE.md).
- PC port: ReKHCoM contributors.

The original decompilation README is kept in [docs/README.decomp.md](docs/README.decomp.md).

This is an independent fan project, unaffiliated with Square Enix, Disney or
Nintendo. Their game content and trademarks are not covered by the source
code's [CC0 license](LICENSE.md). SDL3 is distributed under its own license,
included in the Windows package.
