# pg_ash: Active Session History for Postgres
[](https://github.com/NikolayS/pg_ash/actions/workflows/test.yml)
[](https://github.com/NikolayS/pg_ash)
[](LICENSE)
[](https://github.com/NikolayS/pg_ash)
pg_ash is Active Session History (ASH) for Postgres, implemented in plain SQL and PL/pgSQL.
pg_ash samples `pg_stat_activity`, stores compact wait-event history in the
database, and lets you answer "what was happening then?" after the problem is
gone. It works on managed Postgres because it is not a C extension: no
`shared_preload_libraries`, no provider approval, no restart.
## Why pg_ash
Postgres has excellent current-state views, but almost no built-in memory. If a
lock storm ended ten minutes ago, `pg_stat_activity` cannot tell you who waited,
when it peaked, or which query carried the load. pg_ash keeps that history
inside Postgres and exposes it as AAS: average active sessions.
Use pg_ash when you need:
- incident reconstruction after the spike is gone
- wait-event timelines without external agents
- query attribution through `pg_stat_statements`
- long-term AAS trends through rollups
- a tool that can run on RDS, Cloud SQL, AlloyDB, Supabase, Neon, and similar
managed platforms
## Quick start
The current `main` branch contains the 2.0 beta 1 SQL in `sql/`.
```sql
create extension if not exists pg_stat_statements;
\i sql/ash-install.sql
select ash.start('1 second');
select * from ash.periods();
select * from ash.top('wait_event_type');
select * from ash.top('query_id');
select * from ash.chart(since => now() - interval '5 minutes', color => true);
```
## Color output
`ash.chart()` can render its AAS timeline with ANSI colors when `color => true`
or `set ash.color = on` is used:
```sql
select *
from ash.chart(
since => now() - interval '1 hour',
until => now(),
color => true
);
```
`ash.chart()` — Average Active Sessions per minute, stacked by wait event, in
24-bit color straight out of `psql`. The glyph varies per series (`█ ▓ ░ ▒ ·`)
as well as the color, so the ranking still reads correctly for colorblind
viewers and in a monochrome terminal.
`ash.top('wait_event')` — the wait-event breakdown for the incident window,
ranked by Average Active Sessions, with the share of total active time. When
`Lock:transactionid` dominates, the database is not short of capacity — writers
are queueing behind one another's row locks.
Every image above is real `ash.*` output over real samples, regenerated with
`make -C demos all`. See [demos/README.md](demos/README.md).
For the latest stable v1.5 tag, check out `v1.5` first and use:
```sql
\i sql/ash-install.sql
```
## Upgrade to 2.0
2.0 is a breaking reader-API release. Upgrade scripts are cumulative; run the
missing scripts in order.
```sql
\i sql/migrations/ash-1.0-to-1.1.sql
\i sql/migrations/ash-1.1-to-1.2.sql
\i sql/migrations/ash-1.2-to-1.3.sql
\i sql/migrations/ash-1.3-to-1.4.sql
\i sql/migrations/ash-1.4-to-1.5.sql
\i sql/migrations/ash-1.5-to-2.0.sql
select * from ash.status() where metric = 'version';
-- version | 2.0-beta1
```
The old root-level upgrade paths, such as `sql/ash-1.5-to-2.0.sql`, are kept as
compatibility wrappers. New docs and scripts should use `sql/migrations/`.
The old 1.x reader functions are gone in 2.0:
| 1.x | 2.0 |
|---|---|
| `top_waits`, `top_by_type` | `top('wait_event')`, `top('wait_event_type')` |
| `top_queries`, `top_queries_with_text` | `top('query_id')` |
| `wait_timeline` | `timeline(...)` |
| `timeline_chart` | `chart(...)` |
| `activity_summary` | `summary(...)` |
| `query_waits(q)` | `top('wait_event', query_id => q)` |
| `event_queries(e)` | `top('query_id', wait_event => e)` |
| `samples_by_database` | `top('database')` |
Full mapping: [`blueprints/AAS_EXAMPLES.md`](blueprints/AAS_EXAMPLES.md).
## Reader API
Start with `ash.periods()`, then drill down with `ash.timeline()` and `ash.top()`.
Typed aggregate readers report `raw`, `rollup_1m`, `rollup_1h`,
`rollup_1h_flat`, or `none`; `ash.compare()` reports `source_1` / `source_2`,
`ash.report()` embeds provenance in JSON coverage, and `ash.summary()` includes
separate headline and wait/query drill source/bounds metrics. `ash.samples()`
is raw-only, and `ash.chart()` emits a planning `NOTICE` when hour grain widens
the request. `rollup_1h_flat` means a
minute-capable plan encountered legacy/incomplete detail and degraded honestly
to hour grain.
| Function | Use it for |
|---|---|
| `ash.periods([until])` | Standard trailing windows: 1m, 5m, 1h, 1d, 1w, 1mo |
| `ash.aas(since, until, filters..., [bucket])` | Scalar AAS for one window |
| `ash.timeline(since, until, [bucket], filters...)` | AAS time series |
| `ash.top(dimension, since, until, filters..., [n], [bucket], [order_by])` | Top waits, queries, databases, or wait classes |
| `ash.compare(since_1, until_1, since_2, until_2, [dimension], filters...)` | Before/after diff |
| `ash.samples(since, until, [n], filters...)` | Decoded raw samples |
| `ash.report(since, until, [vcpus], [n])` | Machine-readable JSON report |
| `ash.chart(since, until, [bucket], [n], [width], [color])` | Human ASCII AAS chart |
| `ash.summary(since, until)` | Human key/value summary |
Filters are consistent where they apply:
- `wait_event_type => 'IO'`
- `wait_event => 'IO:DataFileRead'`
- `query_id => 8231004856741017`
- `database => 'appdb'`
`ash.top()` dimensions are:
- `wait_event_type`
- `wait_event`
- `query_id`
- `database`
`order_by` is `avg`, `peak`, or `p99`. During incidents, `order_by => 'peak'`
is usually the right first cut because it surfaces short spikes that averages
hide. When retained grain is coarser than the requested bucket, peak/p99 are
NULL instead of being filled with an hour average. Hour-only partial-window
drills snap outward and disclose effective bounds/bucket; plain
`top('database')` keeps minute precision through per-database `minute_counts`.
## Investigation flow
### 1. Is it bad now, or was it a spike?
```sql
select period, source, bucket, buckets_with_data,
avg_aas, peak_aas, p99_aas
from ash.periods();
```
Typical output:
```text
period | source | bucket | buckets_with_data | avg_aas | peak_aas | p99_aas
--------+-----------+----------+-------------------+---------+----------+---------
1m | raw | 00:01:00 | 1 | 2.2 | 2.4 | 2.4
5m | raw | 00:01:00 | 5 | 5.1 | 12.0 | 11.4
1h | rollup_1m | 00:01:00 | 60 | 2.6 | 12.0 | 4.8
```
`peak_aas` far above `avg_aas` means a short storm. Both high means sustained
load.
### 2. What kind of wait dominated?
```sql
select key, query_text, source, avg_aas, peak_aas, p99_aas,
backend_seconds, pct
from ash.top(
'wait_event_type',
since => now() - interval '5 minutes',
order_by => 'peak'
);
```
```text
key | query_text | source | avg_aas | peak_aas | p99_aas | backend_seconds | pct
--------+------------+--------+---------+----------+---------+-----------------+------
Lock | | raw | 4.6 | 12.0 | 11.2 | 4180 | 68.4
CPU* | | raw | 1.1 | 2.0 | 1.9 | 830 | 20.0
IO | | raw | 0.4 | 1.0 | 0.9 | 290 | 7.0
```
`CPU*` means active backends with no reported wait event. The asterisk matters:
it can be real CPU or an uninstrumented Postgres path.
### 3. When did it land?
```sql
select *
from ash.timeline(
since => now() - interval '10 minutes',
bucket => '1 minute',
wait_event_type => 'Lock'
);
```
Use the busiest bucket as the next drill window.
### 4. Which query caused it?
```sql
select *
from ash.top(
'query_id',
since => now() - interval '5 minutes',
wait_event => 'Lock:tuple',
order_by => 'peak',
n => 5
);
```
Then reverse the drill-down:
```sql
select *
from ash.top(
'wait_event',
since => now() - interval '5 minutes',
query_id => 8231004856741017
);
```
Every explicit `query_id` filter reads raw samples: compacted rollups cannot
prove either an exact count or a true zero. A query breakdown combined with a
wait filter also needs the raw wait-to-query link. If coarser retained history
would otherwise cover data before raw retention, pg_ash raises with the
boundary instead of treating an omitted query as zero. On a young or
post-reset install with no older rollup history, a default window may begin
before the first sample and still reads the available raw rows — including
after the first rollup covers only the same retained minute as raw.
An unfiltered `ash.top('query_id')` can use rollups efficiently. Rollup query
IDs are compacted (low-volume IDs may be omitted, and hourly rows retain a top
set), so named rows describe only preserved attribution. A `NULL` row carries
everything not preserved — including uncaptured query IDs — and makes
`backend_seconds` and the percentage denominator reconcile to total load. The
residual competes for `n` like every named row, so use a large enough `n` when
you need the full reconciliation.
### 5. Pull raw evidence
```sql
select *
from ash.samples(
since => now() - interval '10 minutes',
n => 20
);
```
Dump a wider incident window with psql:
```sql
\copy (
select *
from ash.samples(
since => '2026-02-14 03:00',
until => '2026-02-14 03:05',
n => 10000000
)
) to '/tmp/ash-incident.csv' csv header
```
## Chart rendering
`ash.chart()` is for humans. `ash.timeline()` is the typed-data companion.
```sql
select bucket_start, aas, detail, chart
from ash.chart(
since => now() - interval '5 minutes',
bucket => '1 minute',
n => 4,
width => 50
);
```
Enable ANSI color per call:
```sql
select *
from ash.chart(
since => now() - interval '1 hour',
color => true
);
```
psql's aligned formatter escapes ANSI bytes. Add this to `.psqlrc` for colored
terminal output:
```sql
\set color '\\g | sed ''s/\\\\x1B/\\x1b/g'' | less -R'
```
Then run:
```sql
select * from ash.chart(since => now() - interval '1 hour', color => true) :color
```
## Machine report
`ash.report()` returns one JSONB payload for monitoring and health-assessment
systems.
```sql
select ash.report(
since => now() - interval '1 day',
vcpus => 16
);
```
It includes:
- `aas_avg`, `aas_worst1m`, `aas_p99`, `aas_p999`
- wait classes: `total`, `cpu`, `io`, `ipc`, `lock`, `lwlock`
- top wait events and top query IDs for extreme minutes
- `top_queryids_available`, so scrapers can branch without guessing
- `coverage`, so consumers can reconcile against `ash.aas()` and `ash.top()`;
its `minutes_with_data` counts activity-bearing rollup minutes, not verified
sampler heartbeats
`ash.report()` reads `ash.rollup_1m` only. If a requested window exists only
in raw samples or `ash.rollup_1h`, it returns SQL `NULL` and emits a NOTICE
naming that alternate source; it does not synthesize per-minute class data.
The payload contract is stable for the 2.0 minor line: keys may be added, not
renamed or removed.
## Admin API
| Function | Purpose |
|---|---|
| `ash.start([every])` | Enable sampling and schedule jobs when pg_cron is available (1–59 whole seconds, whole minutes, or whole hours up to 23h) |
| `ash.stop()` | Disable sampling and unschedule pg_cron jobs |
| `ash.status()` | Health, version, retention, partition, scheduler, and rollup state |
| `ash.take_sample()` | Take one sample manually; normally called by the scheduler |
| `ash.rotate()` | Rotate raw partitions and roll up endangered samples |
| `ash.rebuild_partitions(n, 'yes')` | Recreate raw partitions; destructive for raw samples |
| `ash.rollup_minute([batch])` | Fold raw samples into `rollup_1m` |
| `ash.rollup_hour()` | Fold minute rollups into `rollup_1h` |
| `ash.rollup_cleanup()` | Delete expired rollup rows |
| `ash.set_debug_logging([bool])` | Toggle sampler debug logging |
| `ash.grant_reader(role)` | Grant the monitoring-reader bundle |
| `ash.revoke_reader(role)` | Revoke the monitoring-reader bundle |
| `ash.uninstall('yes')` | Drop pg_ash and unschedule jobs |
Only `ash.rebuild_partitions` and `ash.uninstall` require the exact `'yes'` confirmation token.
## Scheduling
pg_cron is optional. For pg_cron scheduling, install pg_ash in the database
named by `cron.database_name`; it still observes activity from every database.
With pg_cron installed, `ash.start('1 second')` schedules:
- sampling
- raw partition rotation
- minute and hour rollups
- rollup cleanup
Without pg_cron, `ash.start()` records the intended interval and prints the
external jobs to schedule. The minimum useful external loop is:
```bash
while true; do
psql -qAtX -d mydb -c "set statement_timeout = '500ms'; select ash.take_sample();"
sleep 1
done
```
Also schedule maintenance:
```bash
0 0 * * * psql -qAtX -d mydb -c "select ash.rotate();"
* * * * * psql -qAtX -d mydb -c "select ash.rollup_minute();"
1 * * * * psql -qAtX -d mydb -c "select ash.rollup_hour();"
0 3 * * * psql -qAtX -d mydb -c "select ash.rollup_cleanup();"
```
At 1-second sampling, pg_cron `cron.job_run_details` can grow by about
12 MiB/day. Prefer:
```sql
alter system set cron.log_run = off;
```
This requires a restart because `cron.log_run` is postmaster-context.
## Retention and storage
Raw samples use a PGQ-style ring of partitions. Defaults:
- `num_partitions = 3`
- `rotation_period = '1 day'` (whole days only; minimum 1 day)
- readable raw retention is roughly `(num_partitions - 2) * rotation_period`
- `rollup_1m` retention is 30 days
- `rollup_1h` retention is 5 years
`ash.start()` checks rotation once a day. Multi-day periods work because early
checks skip until the configured period is due; sub-day and fractional-day
periods are rejected. The minute rollup must outlive the raw slot that rotation
is about to truncate:
```text
(num_partitions - 1) * rotation_period <= rollup_1m_retention_days
```
Configuration changes and `ash.rebuild_partitions()` reject unsafe geometry
with the full arithmetic and name the knobs to adjust. For example, 32
one-day partitions require at least 31 days of `rollup_1m` retention; the
default 30-day retention supports at most 31 partitions.
Increase raw retention:
```sql
select ash.stop();
select ash.rebuild_partitions(9, 'yes');
select ash.start();
```
`rebuild_partitions()` drops all raw samples and recreates the query-map view
and raw sample/query-map partitions. Rollups survive. Complete
`ash.grant_reader()` bundles are preserved automatically across the rebuild,
including the installer-default `pg_monitor` bundle.
Historical 1.x sizing estimates at 1-second sampling are shown below. Treat
them as rough planning inputs and measure the 2.0 payload on the target
workload:
| Active backends | Raw storage/day | Default raw on disk |
|---:|---:|---:|
| 10 | 11 MiB | 22 MiB |
| 50 | 30 MiB | 60 MiB |
| 100 | 50 MiB | 100 MiB |
| 500 | 245 MiB | 490 MiB |
The corresponding historical rollup estimate was about 120 MiB per database
for 5 years of trend data.
## Privileges
Install and run sampling as a role that can read stats:
```sql
grant pg_read_all_stats to ash_owner;
```
`pg_stat_activity.query_id` is visible only for activity owned by the current
role unless the sampler has `pg_read_all_stats`. Without it, other users'
activity collapses into unattributed `query_id = NULL` load.
The installer grants reader access to `pg_monitor` by default when possible.
For another monitoring role:
```sql
create role grafana login password '...';
select ash.grant_reader('grafana');
```
`ash.grant_reader()` deliberately does not grant admin functions, and it does
not grant `pg_read_all_stats`. Monitoring roles that need `query_text` from
`pg_stat_statements` usually need membership in `pg_monitor` or
`pg_read_all_stats` too.
If `pg_stat_statements` is installed after pg_ash, or moved to another schema:
```sql
select ash._apply_pgss_search_path();
```
## Catalog docs
pg_ash documents itself in the database:
```sql
select obj_description('ash'::regnamespace);
select obj_description(
'ash.top(text,timestamptz,timestamptz,text,text,bigint,name,int,interval,text)'::regprocedure
);
```
This is intentional: agents and monitoring tools can discover the reader
surface from the catalog alone.
## Requirements
- Postgres 14+
- `pg_stat_statements` optional but recommended for `query_text`
- `pg_cron` optional but recommended for built-in scheduling
`compute_query_id` must be on for useful query attribution:
```sql
alter system set compute_query_id = 'on';
select pg_reload_conf();
```
## Compared to alternatives
| | pg_ash | pg_wait_sampling / pgsentinel | External sampling |
|---|---|---|---|
| Install | `\i` SQL | C extension + restart | Agent and storage |
| Managed Postgres | Yes | Usually no | Yes, with effort |
| History survives restart | Yes | No | Depends |
| Query with SQL | Yes | Yes | Usually no |
| Storage | In database | Memory ring | External |
| Sampling frequency | Usually 1s | Usually 10ms | Usually 15-60s |
pg_ash is not a replacement for in-process 10ms samplers when you control the
server and need sub-second detail. It is for durable, portable ASH on managed
Postgres.
## Known limits
- Primary only: pg_ash writes sample and rollup rows.
- It samples one database installation but sees activity from all databases.
- `query_text` is best-effort through `pg_stat_statements`; pg_ash stores
`query_id`, not historical SQL text.
- The query map is capped at 50k entries per slot; volatile SQL comments can
exhaust it faster on older Postgres versions.
- Parallel workers share the leader query ID and count as separate active
backends.
- 2.0 does not persist the cadence in force for historical samples. AAS readers
weight every stored appearance with the current
`ash.config.sample_interval`, so changing it rescales earlier raw and rollup
history. Keep the interval fixed while that history is needed. At intervals
greater than one minute, the full tick weight lands in one minute, so
one-minute peaks and report worst-minute values can exceed the concurrency
actually observed.
- Successful idle sampler ticks write no row. `data_points`,
`buckets_with_data`, and report `minutes_with_data` describe
facts derived from stored activity, not verified sampling coverage; a
sampled-idle minute and a sampler outage are indistinguishable. Monitor
scheduler health independently. `ash.timeline()` calls these buckets “no
stored observation”; that wording does not add heartbeat storage.
- Sampling generates WAL, but pg_ash does not currently ship a maintained 2.0
benchmark for a portable per-sample estimate. Measure WAL on the target
workload.
- `sample_ts` is `int4` seconds since 2026-01-01 UTC; the horizon is around
2094. `ash.status()` exposes remaining epoch seconds.
- Advisory-lock squat DoS is possible for roles that can intentionally hold
pg_ash's advisory locks. See
[SECURITY.md](SECURITY.md#advisory-lock-squat-dos).
## Development
CI discovers install and upgrade paths from the repository:
```bash
python3 devel/scripts/ash_sql_chain.py fresh-install-path
python3 devel/scripts/ash_sql_chain.py full-upgrade-chain
```

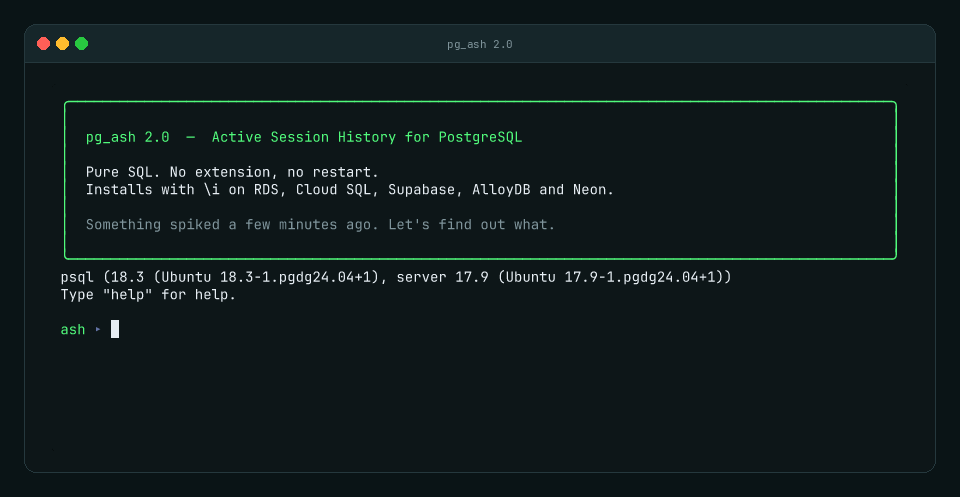

Run the experimental demo recorder:
```bash
cd demos
make record
```
## License
[Apache 2.0](LICENSE)
pg_ash is part of SAMO: self-driving Postgres.
