# 4 Methods for Saving the Crash Context
## 4.1 Saving the Crash Context to FLASH

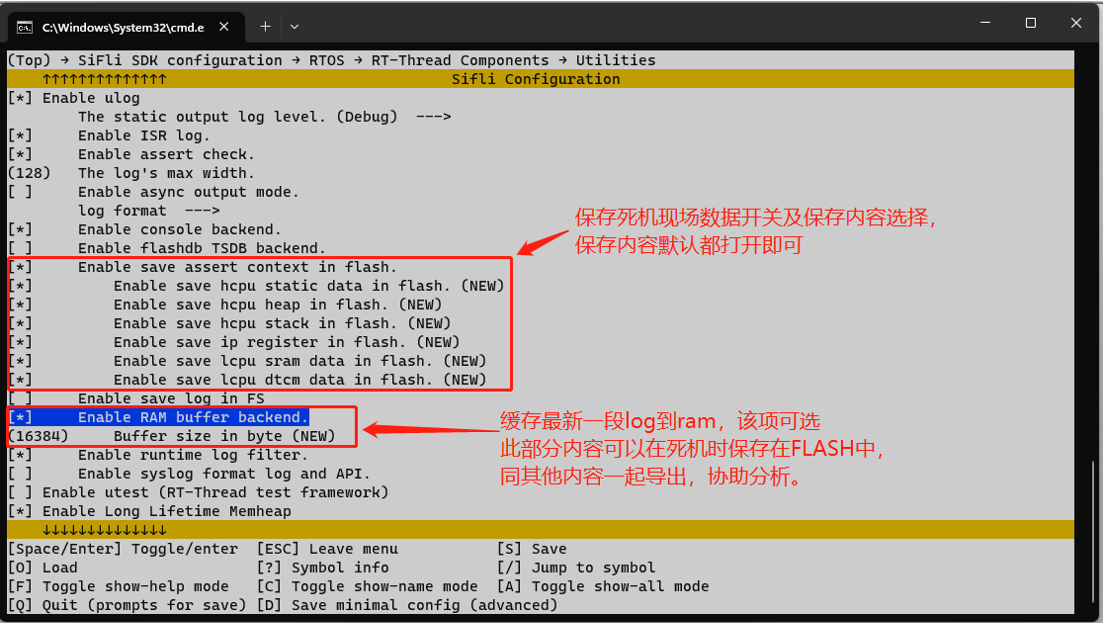

1. menuconfig configuration<br>
 `(Top) → RTOS → RT-Thread Components → Utilities → Enable save assert context in flash. `
<br>![alt text](./assets/crash/crash001.png)<br>

2. Space allocation (file system)<br>

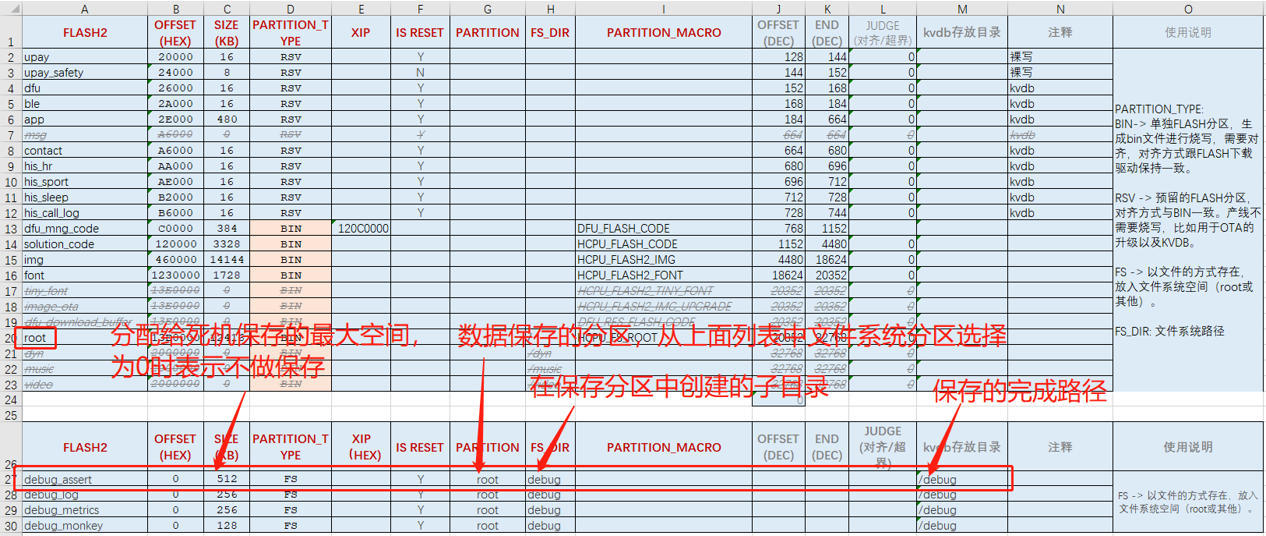

Configure the space and partition used for crash data storage in the flash_map excel table. To save directly as files, configure SIZE/partition/subdirectory as needed (for reference only; the flash_map excel table is currently supported only by solution projects). You can also create your own file storage.
<br>![alt text](./assets/crash/crash002.png)<br>

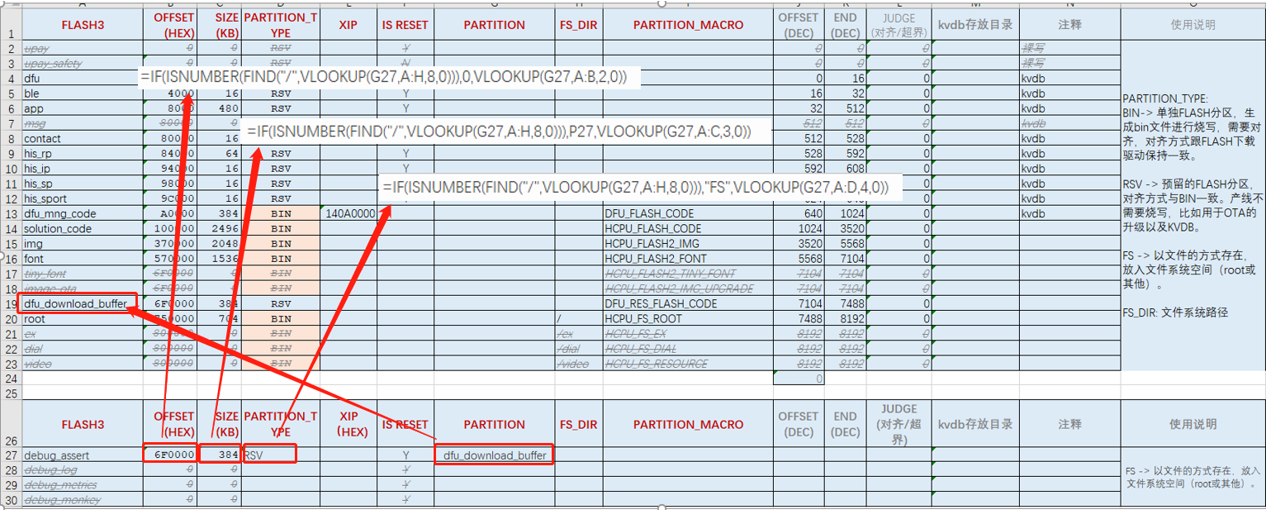

Configure the space and partition used for crash data storage in the flash_map excel table. You can use a shared buffer method: fill in the partition name of the shared buffer in the partition field, and use the formulas shown below to automatically obtain the address/SIZE/partition type.
<br>![alt text](./assets/crash/crash008.png)<br>

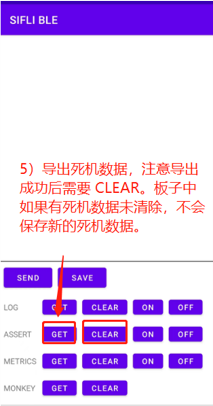

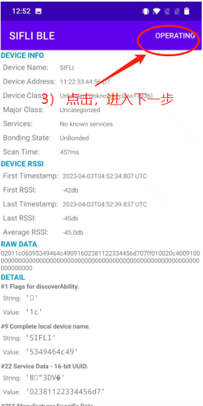

3. Data export<br>
After the terminal crashes, it saves data to the configured location. After rebooting, you can export it with the mobile APP `SiFli_BLE`. The SiFli APP apk installation package and source code can be downloaded from github:<br>
[SiFli APP Demo Release](https://github.com/OpenSiFli/SiFli_OTA_APP/releases/tag/1.0.10)<br>
[SiFli_OTA_APP Demo](https://github.com/OpenSiFli/SiFli_OTA_APP)

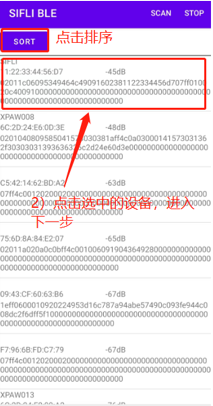

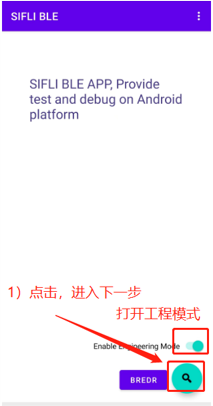

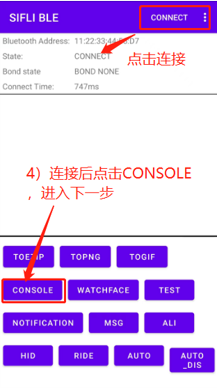

The steps are as follows:
<br>![alt text](./assets/crash/crash003.png)![alt text](./assets/crash/crash004.png)![alt text](./assets/crash/crash005.png)![alt text](./assets/crash/crash006.png)![alt text](./assets/crash/crash007.png)<br>

4. Data parsing<br>

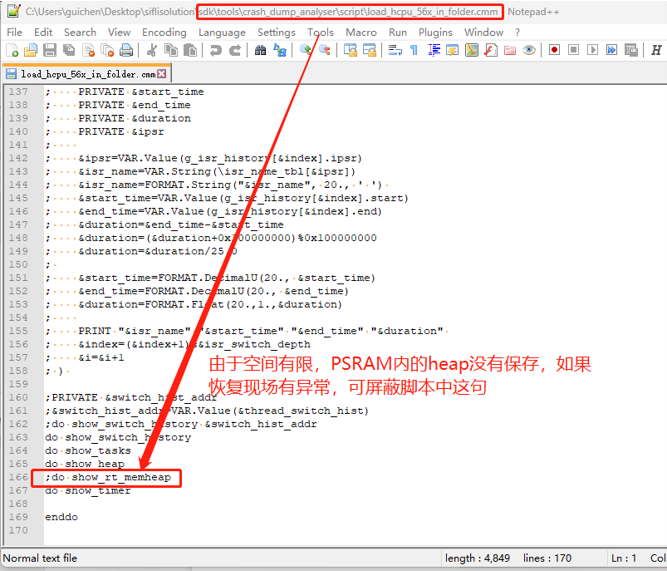

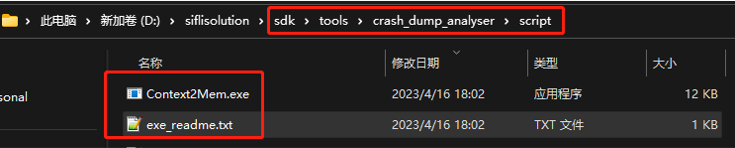

Parse the exported file with the following tool, and then you can directly use the trace32 tool for crash-site analysis.
<br>![alt text](./assets/crash/crash010.png)<br>
<br>![alt text](./assets/crash/crash009.png)<br>
For the analysis method, refer to the section:<br>
[6.2 Restoring the Hcpu Crash Context with Trace32](../tools/trace32.md#Mark_用Trace32恢复Hcpu死机现场)
