# SwaTex **KaTeX-compatible math rendering engine in pure Swift — no JavaScript, no WebView, no DOM.**

SwaTex is a ground-up Swift port of [RaTeX](https://github.com/erweixin/RaTeX), the Rust KaTeX-compatible math renderer, built and maintained by the team behind [Phrase](https://phrase.so?utm_source=github&utm_medium=readme&utm_campaign=swatex) — it renders every formula in Phrase's AI notes on iOS and macOS. One Swift core, one display list, native rendering on every Apple platform: ``` \frac{-b \pm \sqrt{b^2-4ac}}{2a} → iOS · macOS · tvOS · watchOS · visionOS · SVG · PNG ```

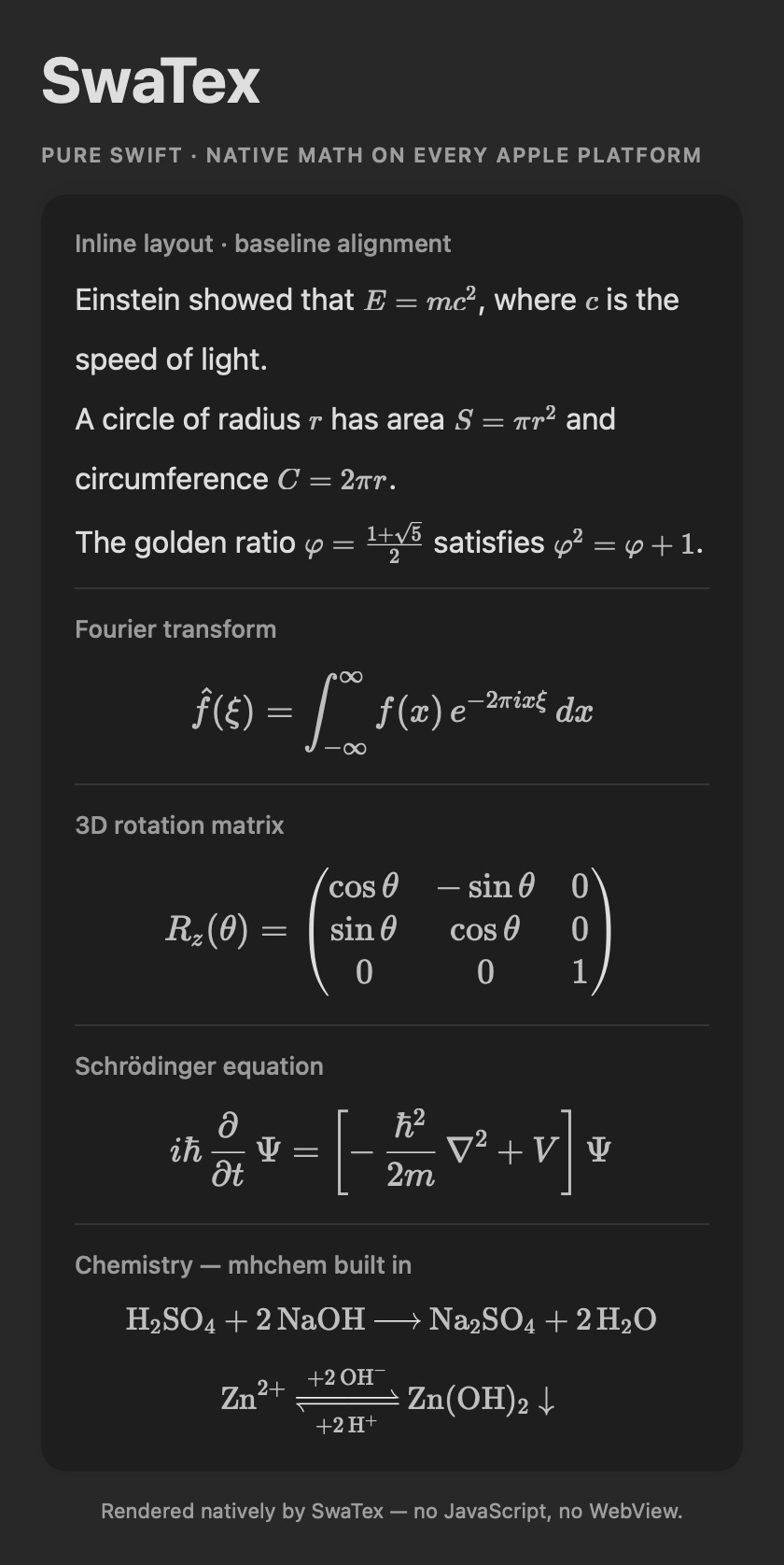

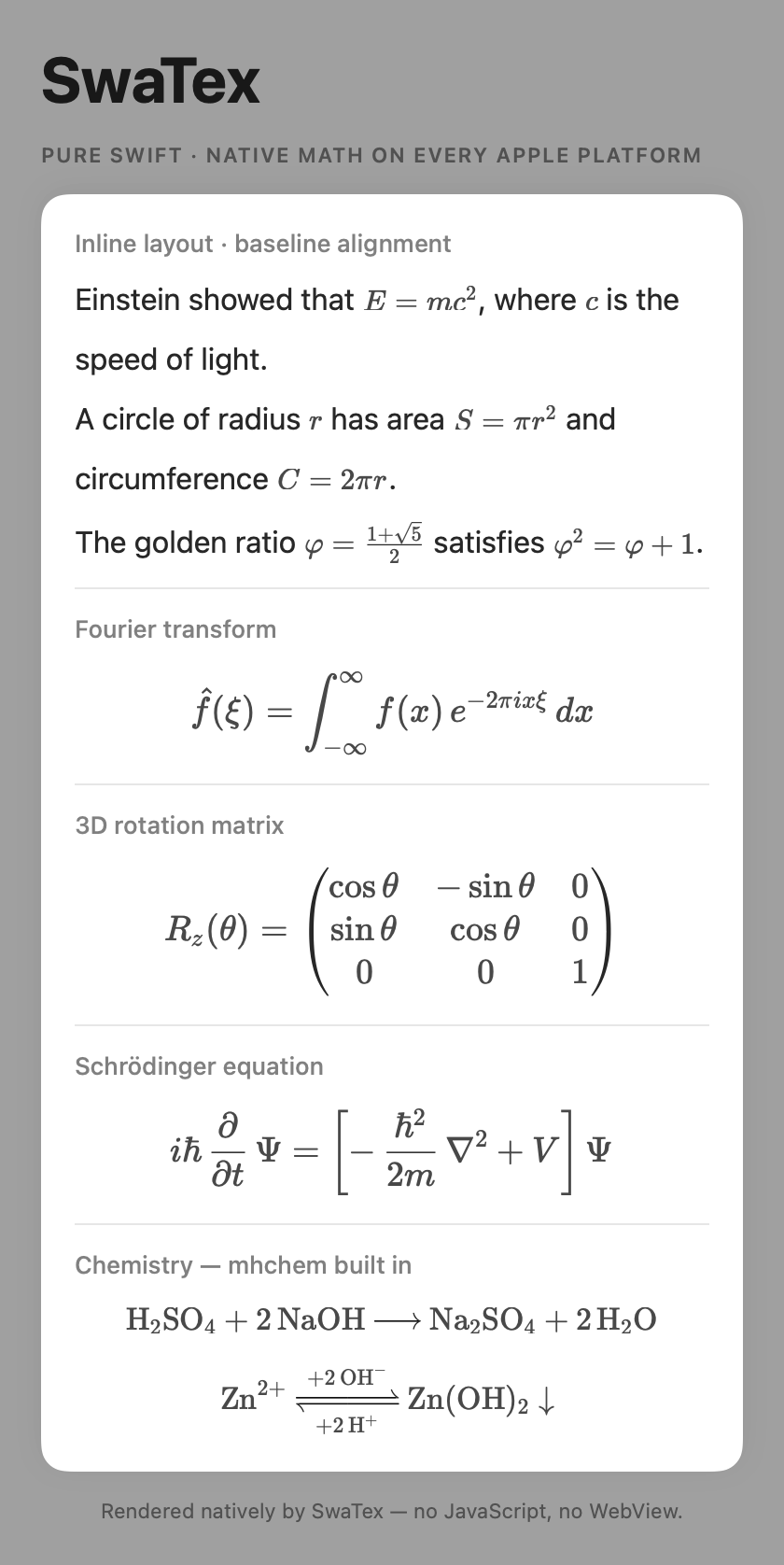

Light	Dark — adaptive colors built in

_{Generated straight from the library (SwiftUI `MathView`, dynamic
`.mathColor(.primary)`) by `Tests/SwaTexRenderTests/ScreenshotGenerator.swift` —
regenerate with `SWATEX_SCREENSHOTS=.github/assets swift test --filter Screenshot`.} ## Why Every major cross-platform math renderer runs LaTeX through a browser or JavaScript engine — a hidden WebView eating 50–150 MB RAM, startup latency before the first formula, no offline guarantee. SwaTex is the same KaTeX-compatible pipeline as a native Swift library: - **Pure Swift 6** — value types, `Sendable` throughout, typed throws, `Synchronization.Mutex`. No Objective-C, no C dependencies. - **KaTeX-metric-exact layout** — the layout engine drives TeX's box-and-glue rules from the bundled KaTeX font metrics, not from platform text APIs, so output matches KaTeX (and RaTeX) glyph-for-glyph. - **Flat display list** — layout produces a renderer-agnostic `DisplayList` (glyphs, lines, rects, paths) whose JSON wire format is byte-compatible with RaTeX's, enabling cross-engine differential testing. - **Native backends** — CoreText/CoreGraphics rendering with the bundled KaTeX fonts (no font registration side effects), SwiftUI `MathView`, PNG export via ImageIO, and an SVG string backend. ## What it renders **Math** — **1007 of 1008 entries in the official KaTeX support table**; the only exception is `\includegraphics`, which KaTeX itself gates behind `trust`. (Four `\html*` commands render their content but drop DOM-only attributes — there is no DOM in a native renderer.) Fractions, radicals, integrals, matrices, environments (`pmatrix`, `align`, `cases`, `CD`, …), stretchy delimiters, accents, macros (`\def`, `\newcommand`, `\expandafter`), and more. **Chemistry** — full mhchem support via `\ce` and `\pu` (state-machine port verified byte-identical to RaTeX on a 253-case corpus): ```latex \ce{H2SO4 + 2NaOH -> Na2SO4 + 2H2O} ``` **Proof trees** — bussproofs-style `prooftree` for inference rules and sequent calculi. ## Installation Swift Package Manager. In `Package.swift`: ```swift dependencies: [ .package(url: "https://github.com/PhraseHQ/SwaTex.git", from: "0.5.0") ] ``` Then add the product you need to your target — `SwaTexRender` for apps (SwiftUI/UIKit/AppKit views, PNG; pulls in the core), or `SwaTex` alone for the engine + SVG with zero platform dependencies: ```swift .target( name: "YourApp", dependencies: [ .product(name: "SwaTexRender", package: "SwaTex") ] ) ``` Or in Xcode: **File → Add Package Dependencies…** and paste `https://github.com/PhraseHQ/SwaTex.git`. Requires Xcode 16.3+ to build; deploys to iOS 18 / macOS 15 / tvOS 18 / watchOS 11 / visionOS 2. ## Usage ```swift import SwaTexRender // SwiftUI + UIKit/AppKit + CoreGraphics (Apple platforms) // SwiftUI MathView(#"\sum_{n=1}^{\infty} \frac{1}{n^2} = \frac{\pi^2}{6}"#) .font(size: 24) // UIKit / AppKit — built for block editors let view = SwaTexView() view.latex = #"\frac{a}{b}"# view.fontSize = 18 view.mathStyle = .text // inline let baseline = view.baselineFromTop // align with surrounding text runs // PNG let png = try ImageRenderer.png(latex: #"\frac{a}{b}"#) ``` `SwaTexView` is editor-grade by construction: parse+layout is memoized through a shared formula cache (~100 ns for repeated formulas), property sets are lazily coalesced (configuring a recycled cell costs one layout), and on macOS the view renders via `updateLayer` — it owns its rasterized bitmap, so scrolling and window redisplays never re-rasterize glyphs; rasterization happens only when content, backing scale, or orientation actually change (CI-asserted through real display cycles). ```swift import SwaTex // platform-independent core // Parse → layout → display list (em units) let list = try SwaTexEngine.displayList(for: #"x^2 + y^2 = z^2"#) // SVG string let svg = SVGRenderer().render(list) ``` ## Architecture ``` LaTeX string │ Lexer (KaTeX-compatible tokens, catcodes, \verb) │ MacroExpander (builtin macro table, \def/\newcommand, mhchem \ce/\pu) │ Parser (KaTeX ParseNode AST; functions + environments registries) │ Layout engine (TeX box/glue rules from KaTeX font metrics → LayoutBox) ▼ toDisplayList (flat, absolute-coordinate DisplayList in em units) DisplayList ──► CoreGraphics/CoreText (SwaTexRender) ──► CGImage / PNG / SwiftUI └─► SVG string (core) ``` | Target | Contents | Dependencies | |---|---|---| | `SwaTex` | lexer, parser, mhchem, layout engine, SVG backend | none | | `SwaTexRender` | CoreText/CG renderer, bundled KaTeX fonts, `MathView`, `SwaTexView` | `SwaTex` | | `LayoutDump` | differential-testing CLI (mirrors RaTeX's `layout` binary) | `SwaTex` | ## Performance Measured against the Rust reference engine on identical corpora, same machine, median of 3 runs, with all 2 541 golden formulas bit-exact between the engines. Every number is reproducible with the commands in [BENCHMARKS.md](BENCHMARKS.md): | Workload | RaTeX (Rust) | SwaTex | |---|---|---| | parse → layout → display list | 41.4 µs/formula | **12.5 µs/formula (3.3×)** | | PNG batch, 100 formulas @40px 2× | ~200 µs/formula | **34 µs effective (parallel, 5.9×)** | | repeated formula (editor cache hit) | 41.4 µs | **105 ns (~390×)** | | editor scroll | — | **0 glyph rasterization (`updateLayer`)** | ## Requirements - Builds with Swift 6.1+ (Xcode 16.3+); consuming apps can use any Swift language mode - Deploys to iOS 18 / macOS 15 / tvOS 18 / watchOS 11 / visionOS 2 (floor set by `Synchronization.Mutex`) ## Known limitations - `\includegraphics` is not supported (the one missing entry of KaTeX's 1008; KaTeX itself gates it behind `trust`). The four `\html*` commands render their content but drop DOM-only attributes. - Deployment floors are iOS 18 / macOS 15 / tvOS 18 / watchOS 11 / visionOS 2 (`Synchronization.Mutex`). Apps targeting older OS versions cannot adopt SwaTex yet. - Deliberate, documented divergences favor KaTeX over other engines: size units accept ASCII digits only (KaTeX's JS `\d`; Rust/Swift regex `\d` also accept Unicode digits), and tokenization steps by Unicode scalar, so combining marks on syntax characters behave like the JS/Rust references rather than Swift's grapheme clusters. Additional KaTeX-correct divergences from RaTeX (each pinned by a regression test): unterminated `\verb` and `x\limits^2` are parse errors instead of being silently accepted; `\vcenter` physically centers ink on the math axis; `\gdef`/`\xdef` survive group exit; zero-arg delimited `\def` macros validate and consume their parameter text; `\middle` nested deeper than 8 `\left…\right` stretch scopes renders at natural (unstretched) size. - Shared with KaTeX/RaTeX upstream: `\begin{alignat}{N}` does not bound `N`; hostile inputs should be length-limited by the host app. Deeply nested input is guarded (recursion count + stack headroom → parse error, never a crash). - Zero-redraw scrolling on macOS requires a layer-backed host hierarchy (`wantsLayer` — the default in modern AppKit apps). - Native Apple platforms only: no React Native / Flutter / Web wrappers. ## Demo app ```sh swift run SwaTexDemo # interactive gallery: formulas, styles, sizes (macOS) ``` ## Testing ```sh swift test ``` The suite ports RaTeX's Rust tests: lexer/token, symbol/metrics tables, parser spec (KaTeX katex-spec.ts–derived), environments, mhchem, layout primitives, KaTeX SVG geometry, and renderer smoke tests. Cross-engine layout parity is checked with `scripts/diff_layout.py`, which diffs `LayoutDump` against RaTeX's `layout` binary over the 1000+-formula golden corpus. ## Who's behind SwaTex

Phrase — Turn Recordings & PDFs into AI Notes

Capture anything. Turn it into notes you can trust.
Phrase turns recordings, PDFs, images, and videos into source-backed AI notes,
slide decks, study tools, and dashboards — Apple-native, for notes that need proof.
SwaTex is the engine that renders every math formula in Phrase.

## Contributing See [CONTRIBUTING.md](CONTRIBUTING.md) — the short version: keep the 2 541 golden fixtures green, pin parser fast paths with differential tests, run the formatter, and bring numbers for performance claims. Security reports: [SECURITY.md](SECURITY.md). ## Fonts & licenses The bundled KaTeX fonts (`Sources/SwaTexRender/Resources/Fonts`) are from the [KaTeX](https://github.com/KaTeX/KaTeX) project, licensed under the SIL Open Font License 1.1 (see `OFL.txt` / `FONT_NOTICE.txt` alongside the fonts).
