# QuecPython AI Chatbot Based on Xiaozhi Platform

## Table of Contents

- [Introduction](#Introduction)
- [Features](#Features)
- [Quick_Start](#Quick_Start)
  - [Prerequisites](#Prerequisites)
  - [Installation](#Installation)
  - [Running_Application](#Running_Application)
- [Contributing](#Contributing)
- [License](#License)
- [Support](#Support)

## Introduction

QuecPython introduces the Xiaozhi Platform AI Chatbot solution. This solution is based on the WebSocket protocol, offering cross-platform compatibility and supporting most QuecPython modules.

This demo uses an AI development board equipped with the EC800MCNLE module.



**Note: Business access is prohibited when the USB is plugged in. After unplugging the USB, long press the button to start the business. If you need to view the logs, you can connect a USB after startup to view the logs**



## Features

- Supports voice interruption/barge-in.
- Supports keyword-based voice wake-up.
- Uses Python for easy secondary development.

## Quick_Start

### Prerequisites

Before getting started, ensure you have the following prerequisites:

- **Hardware:**
  - Contact Quectel to obtain the AI development board and accessories.
  - Computer (Windows 7, Windows 10, or Windows 11)
  - Speaker
    - Any 2-5W speaker will work
    - [Purchase link from Quectel Mall](https://www.quecmall.com/goods-detail/2c90800c94028da201948249e9f4012d)
- **Software:**
  - Debugging tool [QPYcom](https://images.quectel.com/python/2022/12/QPYcom_V3.6.0.zip)
  - QuecPython firmware (beta firmware is available in the `fw` directory of the repository)
  - Python text editor (e.g., [VSCode](https://code.visualstudio.com/), [PyCharm](https://www.jetbrains.com/pycharm/download/))

### Installation

1. **Clone the Repository:**

   ```bash
   git clone https://github.com/QuecPython/solution-xiaozhiAI.git
   ```

2. **Flash the Firmware:**
   Follow the [instructions](https://python.quectel.com/doc/Application_guide/zh/dev-tools/QPYcom/qpycom-dw.html#%E4%B8%8B%E8%BD%BD%E5%9B%BA%E4%BB%B6) to flash the firmware onto the development board.

### Running_Application

1. **Hardware Connection:**

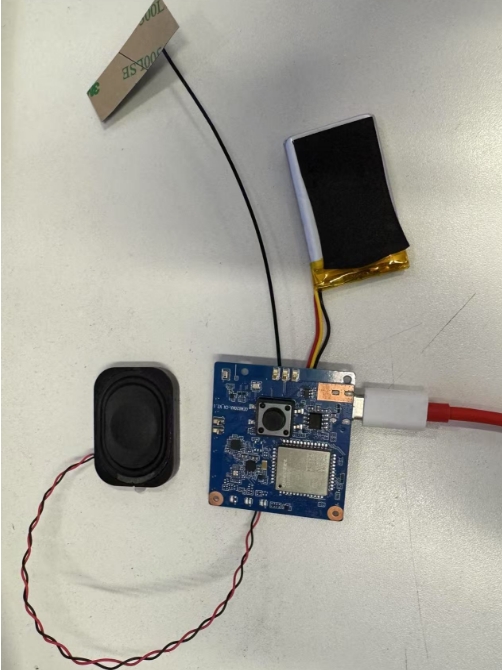

   This demo uses the Quectel AI development board. Contact Quectel if needed. Connect the hardware as shown below:

   <img src="./media/20250425131903.jpg" style="zoom:80%;" />

   1. Connect the speaker
   2. Connect the antenna
   3. Insert the battery

2. Connect to the host computer via Type-C.

3. **Download the Code to the Device:**

   - Launch the QPYcom debugging tool.
   - Connect the data cable to the computer.
   - Press the **PWRKEY** button on the development board to power on the device.
   - Follow the [instructions](https://developer.quectel.com/doc/quecpython/Getting_started/en/4G/first_python.html#PC与模组间的文件传输) to import all files from the `code` folder into the module's file system, preserving the directory structure.

4. **Run the Application:**

   - Select the `File` tab.
   - Choose the `_main.py` script.
   - Right-click and select `Run` or use the `Run` shortcut button to execute the script.

5. **After keyword wake-up, start a conversation. Refer to the runtime log:**

   If it is the first time to wake up, a voice verification code xxxx will be broadcast to remind the user to bind the device in the Xiaozhi backend. The link to the Xiaozhi backend is: https://xiaozhi.me/. After successful registration, re-run the script to wake up and you can have a normal conversation

   ![](./media/20250425132727.png)

6. For a usage example, refer to the demo video: `media/example_video.mp4`

## Contributing

We welcome contributions to improve this project! Follow these steps to contribute:

1. Fork this repository.
2. Create a new branch (`git checkout -b feature/your-feature`).
3. Commit your changes (`git commit -m 'Add your feature'`).
4. Push to the branch (`git push origin feature/your-feature`).
5. Open a Pull Request.

## License

This project is licensed under the Apache License. See the [LICENSE](https://license/) file for details.

## Support

If you have any questions or need support, refer to the [QuecPython Documentation](https://python.quectel.com/doc) or open an issue in this repository.
