InfiGUI-R1
InfiGUI-R1: Advancing Multimodal GUI Agents from Reactive Actors to Deliberative Reasoners

arXiv Paper Hugging Face Paper Hugging Face Model


This is the official repository for the paper InfiGUI-R1.

## ๐ŸŒŸ Overview In this work, we develop **InfiGUI-R1**, a multimodal large language model-based GUI agent primarily trained using **Reinforcement Learning** to enhance planning and error recovery skills for GUI tasks. Specifically, our agent is trained using a two-stage framework: first, we inject spatial reasoning capabilities by distilling reasoning trajectories from teacher models; second, we enhance the agent's planning and error recovery skills using Reinforcement Learning, employing techniques like rewarding accurate sub-goal generation and training on constructed error recovery scenarios.

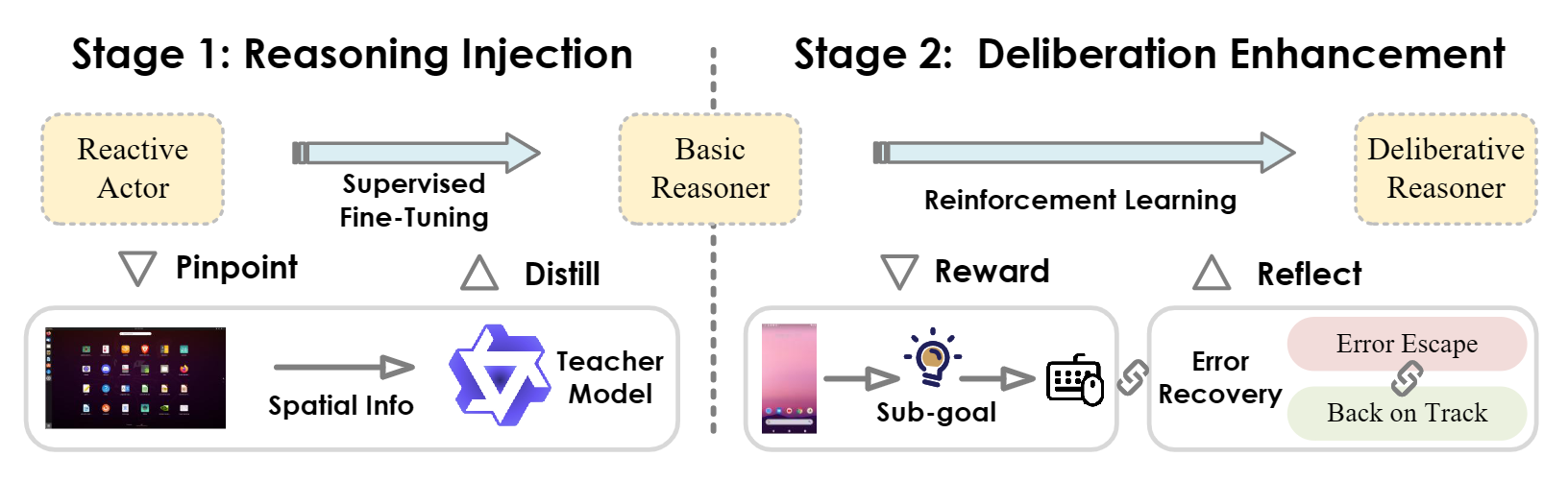

Method Overview

Our two-stage training framework

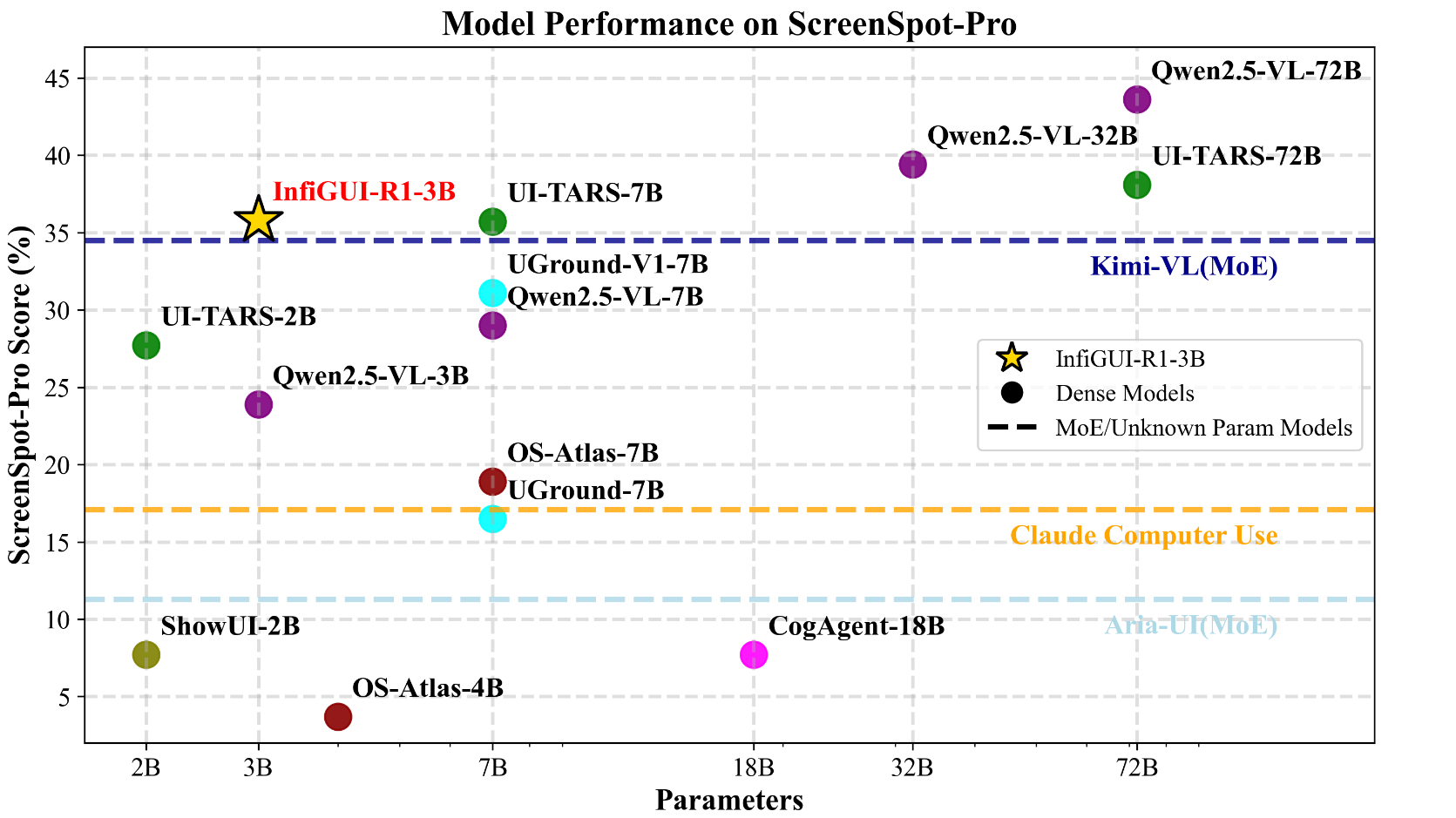

Results on ScreenSpot Pro

Performance results on ScreenSpot Pro benchmark

## ๐Ÿ”ฅ News - ๐Ÿ”ฅ ***`2025/11/8`*** Our paper "[InfiGUI-G1: Advancing GUI Grounding with Adaptive Exploration Policy Optimization](https://arxiv.org/abs/2508.05731)" is accepted by AAAI 2026 as an Oral Presentation. - ๐Ÿ”ฅ ***`2025/08/11`*** Our paper "[InfiGUI-G1: Advancing GUI Grounding with Adaptive Exploration Policy Optimization](https://arxiv.org/abs/2508.05731)" released. - ๐Ÿ”ฅ ***`2025/05/15`*** Our paper "[OS Agents: A Survey on MLLM-based Agents for Computer, Phone and Browser Use](https://os-agent-survey.github.io/)" is accepted by *ACL 2025*. - ๐Ÿ”ฅ ***`2025/4/19`*** Our paper "[InfiGUI-R1: Advancing Multimodal GUI Agents from Reactive Actors to Deliberative Reasoners](https://arxiv.org/abs/2504.14239)" released. - ๐Ÿ”ฅ ***`2025/1/9`*** Our paper "[InfiGUIAgent: A Multimodal Generalist GUI Agent with Native Reasoning and Reflection](https://arxiv.org/abs/2501.04575)" released. - ๐Ÿ”ฅ ***`2024/12/12`*** Our paper "[OS Agents: A Survey on MLLM-based Agents for Computer, Phone and Browser Use](https://os-agent-survey.github.io/)" released. - ***`2024/4/2`*** Our paper "[InfiAgent-DABench: Evaluating Agents on Data Analysis Tasks](https://infiagent.github.io/)" is accepted by *ICML 2024*. ## ๐Ÿš€ Updates - ***`2025/05/21`*** Added [AndroidControl evaluation](#-evaluation) methods and uploaded the [corresponding test data](https://huggingface.co/datasets/Reallm-Labs/android_control_test). - ***`2025/04/20`*** [Model weights](https://huggingface.co/Reallm-Labs/InfiGUI-R1-3B) have been uploaded to Hugging Face. - ***`2025/04/19`*** [Our preprint](https://arxiv.org/abs/2504.14239) has been published on arXiv. ## ๐Ÿ“Š Results ### ScreenSpot Results On the cross-platform [ScreenSpot](https://github.com/njucckevin/SeeClick) benchmark, InfiGUI-R1-3B achieves an average accuracy of **87.5%**. It leads across text and icon localization tasks on Mobile, Desktop, and Web platforms, reaching the state-of-the-art level for models of similar parameter size (as of 2025/04/19):
ModelMobileDesktopWebAvg.
TextIconTextIconTextIcon
Proprietary Models
GPT-4o30.523.220.619.411.17.818.8
Claude Computer Use------83.0
Gemini 2.0 (Project Mariner)------84.0
General Open-source Models
Qwen2-VL-7B61.339.352.045.033.021.842.9
Qwen2.5-VL-3B------55.5
Qwen2.5-VL-7B------84.7
GUI-specific Models
CogAgent67.024.074.220.070.428.647.4
SeeClick78.052.072.230.055.732.553.4
UGround-7B82.860.382.563.680.470.473.3
OS-Atlas-7B93.072.991.862.990.974.382.5
ShowUI-2B92.375.576.361.181.763.675.1
Aguvis-7B95.677.793.867.188.375.284.4
UI-R1-3B--90.259.385.273.3-
GUI-R1-3B--93.864.889.672.1-
GUI-R1-7B--91.873.691.375.7-
UI-TARS-2B93.075.590.768.684.374.882.3
Ours
InfiGUI-R1-3B97.181.294.377.191.777.687.5
### ScreenSpot-Pro Results On the more challenging [ScreenSpot-Pro](https://github.com/likaixin2000/ScreenSpot-Pro-GUI-Grounding) benchmark, which focuses on complex high-resolution desktop applications, InfiGUI-R1-3B achieves an average accuracy of **35.7%**. This performance rivals that of larger 7B models with excellent performance, reaching the state-of-the-art level for models of similar parameter size (as of 2025/04/19).
Model                         Avg.CADDevelopmentCreativeScientificOfficeOS
AccAvg.AccAvg.AccAvg.AccAvg.AccAvg.AccAvg.AccAvg.
TextIconTextIconTextIconTextIconTextIconTextIconTextIcon
Proprietary Models
GPT-4o1.30.00.82.00.01.51.30.00.71.00.00.62.10.01.21.10.00.90.00.00.0
Claude Computer Use23.47.117.114.53.711.922.03.912.625.93.416.833.915.825.830.116.326.911.04.58.1
General Open-source Models
Qwen2-VL-7B2.50.21.60.50.00.42.60.01.31.50.00.96.30.03.53.41.93.00.90.00.5
Qwen2.5-VL-3B--23.9------------------
Qwen2.5-VL-7B--29.0------------------
Kimi-VL--34.5------------------
GUI-specific Models
SeeClick1.80.01.12.50.01.90.60.00.31.00.00.63.50.02.01.10.00.92.80.01.5
CogAgent-18B12.00.87.77.13.16.114.90.78.09.60.05.622.21.813.413.00.010.05.60.03.1
Aria-UI17.12.011.37.61.66.116.20.08.423.72.114.727.16.418.120.31.916.14.70.02.6
OS-Atlas-4B5.01.73.72.00.01.57.10.03.73.01.42.39.05.57.55.13.84.85.60.03.1
OS-Atlas-7B28.14.018.912.24.710.333.11.417.728.82.817.937.57.324.433.95.727.427.14.516.8
ShowUI-2B10.82.67.72.50.01.916.91.49.49.10.05.313.27.310.615.37.513.510.32.26.6
UGround-7B25.02.816.514.21.611.126.62.114.727.32.817.031.92.719.331.611.327.017.80.09.7
UGround-V1-7B--31.1--13.5--35.5--27.8--38.8--48.8--26.1
UI-R1-3B--17.811.26.3-22.74.1-27.33.5-42.411.8-32.211.3-13.14.5-
GUI-R1-3B---26.47.8-33.84.8-40.95.6-61.817.3-53.617.0-28.15.6-
GUI-R1-7B---23.96.3-49.44.8-38.98.4-55.611.8-58.726.4-42.116.9-
UI-TARS-2B39.68.427.717.84.714.647.44.126.442.96.327.656.917.339.850.317.042.621.55.614.3
UI-TARS-7B47.816.235.720.89.418.058.412.436.150.09.132.863.931.850.063.320.853.530.816.924.5
Ours
InfiGUI-R1-3B49.114.135.733.014.128.451.312.432.444.97.029.058.320.041.765.528.357.043.912.429.6
### AndroidControl Results On the [AndroidControl](https://github.com/google-research/google-research/tree/master/android_control), which involves diverse Android trajectory tasks (with Low and High difficulty levels), InfiGUI-R1-3B achieves success rates on its test split of **92.1%** and **71.1%**, respectively. This reaches the state-of-the-art level for models of similar parameter size (as of 2025/04/19).
ModelAndroidControl-LowAndroidControl-High
TypeGroundingSRTypeGroundingSR
GPT-4o74.30.019.466.30.020.8
Aria-UIโ€“87.767.3โ€“43.210.2
OS-Atlas-4B91.983.880.684.773.867.5
Aguvis-7Bโ€“โ€“80.5โ€“โ€“61.5
Aguvis-72Bโ€“โ€“84.4โ€“โ€“66.4
UI-R194.382.688.5---
GUI-R1-3B---58.056.246.6
GUI-R1-7B---71.665.651.7
UI-TARS-2B98.187.389.381.278.468.9
Ours
InfiGUI-R1-3B96.093.292.182.774.471.1
## ๐Ÿงช Evaluation ### AndroidControl To reproduce the results on AndroidControl: 1. Install the `vllm` library: ```bash pip install vllm ``` 2. Navigate to the evaluation directory ([`eval/android_control`](https://github.com/Reallm-Labs/InfiGUI-R1/tree/main/eval/android_control)): ```bash cd eval/android_control ``` 3. Download the processed test set from Hugging Face ([`Reallm-Labs/android_control_test`](https://huggingface.co/datasets/Reallm-Labs/android_control_test)): ```bash huggingface-cli download --repo-type dataset --resume-download Reallm-Labs/android_control_test --local-dir ./ ``` 4. Extract the downloaded data: ```bash tar -xzf android_control_test.tar.gz ``` 5. Run the evaluation scripts for high and low difficulty tasks: ```bash python android_control.py --model_path Reallm-Labs/InfiGUI-R1-3B --eval_type high --thinking python android_control.py --model_path Reallm-Labs/InfiGUI-R1-3B --eval_type low --thinking ``` ## ๐Ÿ“š Citation Information If you find this work useful, citations to the following papers are welcome: ```bibtex @article{liu2025infigui, title={InfiGUI-R1: Advancing Multimodal GUI Agents from Reactive Actors to Deliberative Reasoners}, author={Liu, Yuhang and Li, Pengxiang and Xie, Congkai and Hu, Xavier and Han, Xiaotian and Zhang, Shengyu and Yang, Hongxia and Wu, Fei}, journal={arXiv preprint arXiv:2504.14239}, year={2025} } ``` ```bibtex @article{liu2025infiguiagent, title={InfiGUIAgent: A Multimodal Generalist GUI Agent with Native Reasoning and Reflection}, author={Liu, Yuhang and Li, Pengxiang and Wei, Zishu and Xie, Congkai and Hu, Xueyu and Xu, Xinchen and Zhang, Shengyu and Han, Xiaotian and Yang, Hongxia and Wu, Fei}, journal={arXiv preprint arXiv:2501.04575}, year={2025} } ``` ## ๐Ÿ™ Acknowledgements We would like to express our gratitude for the following open-source projects: [EasyR1](https://github.com/hiyouga/EasyR1), [VERL](https://github.com/volcengine/verl), [LLaMA-Factory](https://github.com/hiyouga/LLaMA-Factory), and [Qwen2.5-VL](https://github.com/QwenLM/Qwen2.5-VL).
