Actions
|
MCP Client
|
API Client
|
|
Request Initiation
|
AI Agents act as MCP client to send context-aware requests.
|
Applications use the API client to access services via REST, OData, or HTTP.
|
|
Server Processing
|
All MCP requests are processed through the MCP gateway, where the MCP Server capability is realized. The gateway provides::
- Tools and prompts for AI agents
|
All API requests are processed through the API gateway, which provides:
- Multi-protocol support \(REST, SOAP, and OData\)
- API artifacts for standard APIs
|
|
Backend Integration
|
Requests are routed to:
- SAP LOB cloud
- Third-party APIs \(for example, databases, GitHub, cloud storage\)
- Managed API on the same Integration Cell tenant
|
Requests are routed to:
- SAP LOB cloud
- Third-party APIs \(for example, databases, GitHub, cloud storage\)
|
|
Response Delivery
|
AI agents receive responses in a format that is compliant with the MCP protocol.
|
API clients get standard REST/OData responses.
|

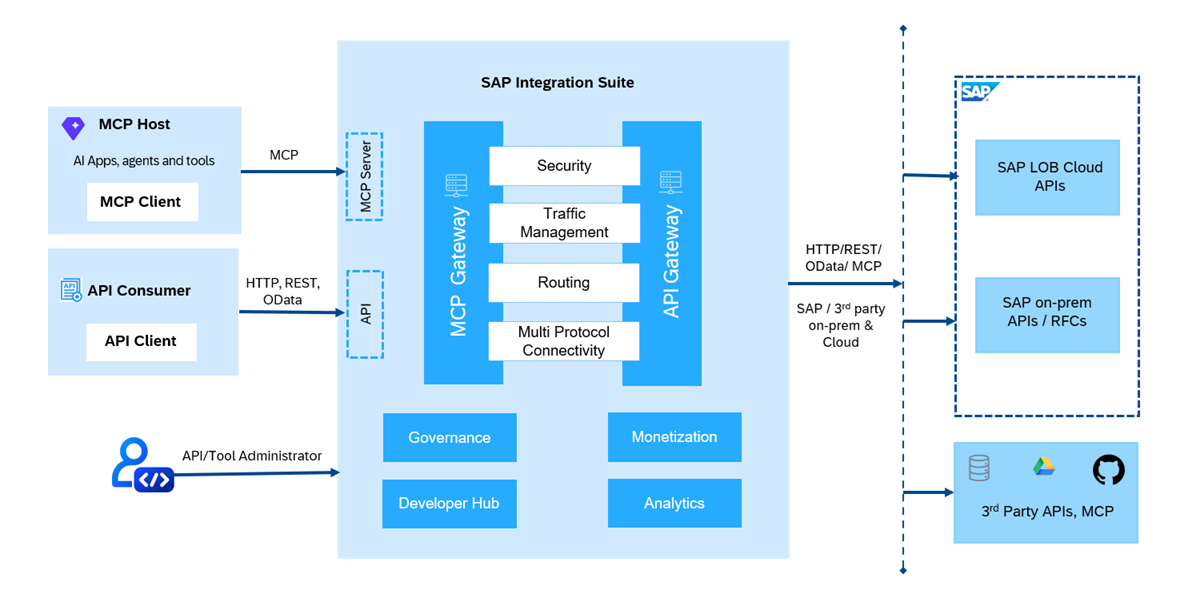

This architecture enables reuse of existing APIs for both AI and API clients—ensuring secure, scalable, and governed access to enterprise systems in both AI-driven and traditional use cases.
## **MCP Server Primitives**
MCP server primitives define the core capabilities that an MCP server exposes to AI agents. They provide standardized ways for agents to perform actions, access contextual data, and use predefined interaction patterns.
An MCP server supports three primary primitives: Tools, Resources, and Prompts.
Each primitive serves a distinct purpose and is exposed through the MCP protocol. Together, they enable structured and controlled interactions between AI agents and enterprise services.
- **MCP Tools**
MCP tools represent actions that an AI agent can invoke to perform specific operations.
They are derived from API operations and can represent actions such as retrieving, creating, updating, or deleting data. Each tool defines an input schema that specifies the parameters accepted from the agent and an output schema that describes the structure of the returned response.
Tools enable AI agents to interact with backend services in a structured and controlled manner.
- **MCP Resources**
MCP resources provide AI agents with access to data and contextual information exposed by an MCP server.
They represent information that agents can retrieve and use as context when performing tasks or generating responses. Resources are identified using URIs and can represent documents, records, configuration data, or other application-specific information.
Unlike tools, resources are intended for retrieving information rather than performing actions.
- **MCP Prompts**
MCP prompts define reusable interaction patterns for AI agents.
They provide predefined messages and instructions that guide how an agent performs a task. Prompts can accept arguments that dynamically customize their content. Messages can use **User** and **Assistant** roles to define a structured interaction flow.
Prompts help ensure consistent and repeatable interactions between AI agents and the MCP server.
