STM32CubeMP13 Firmware Examples for STM32MP13xx Series

The STM32CubeMP13 Firmware package comes with a rich set of examples running on STMicroelectronics boards, organized by board and provided with preconfigured projects for the main supported toolchains.

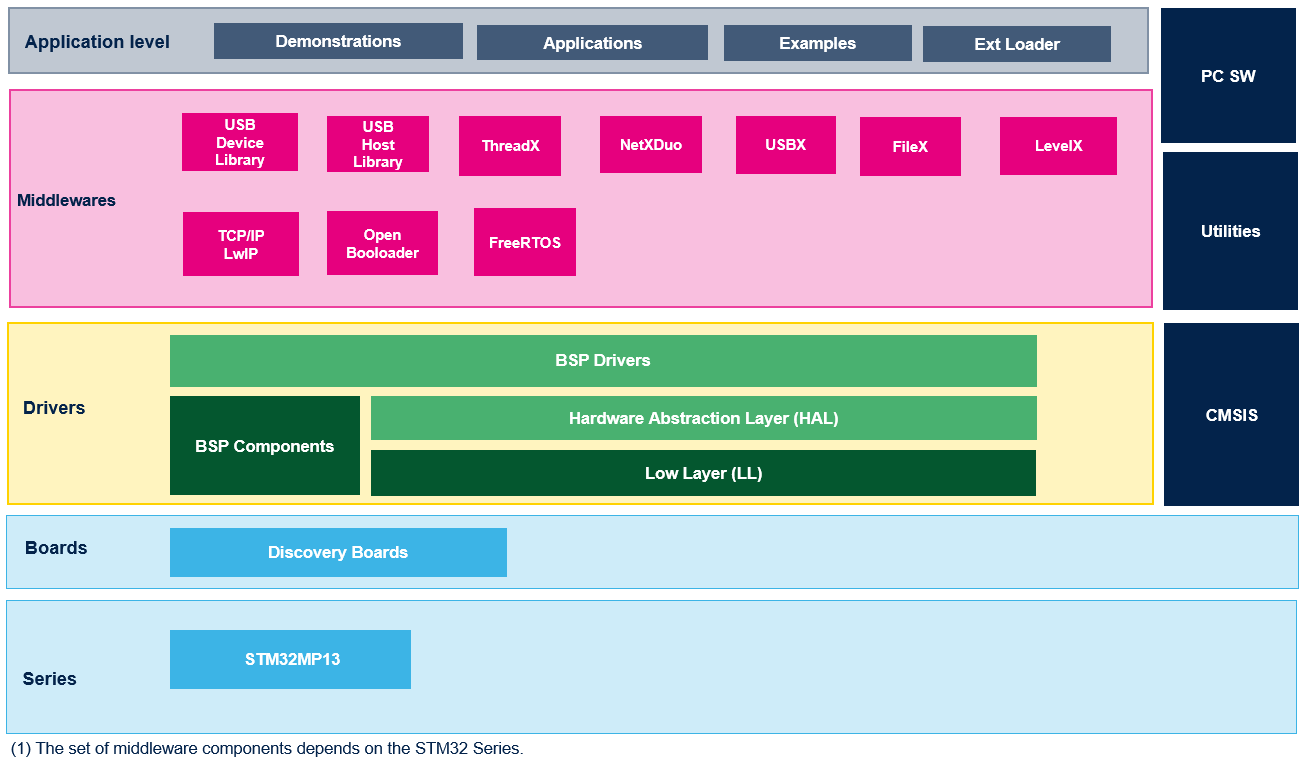

The examples are classified depending on the STM32Cube level they apply to, and are named as follows:

Examples uses only the HAL and BSP drivers (Middleware not used), having as objective to demonstrate the product/peripherals features and usage. The examples are organized per peripheral (a folder for each peripheral, ex. TIM) and offers different complexity level from basic usage of a given peripheral (ex. PWM generation using timer) till integration of several peripherals. Board resources usage is reduced to the strict minimum.
Applications intends to demonstrate the product performance and how to use the different Middleware stacks available. The Applications are organized per Middleware (a folder for each Middleware, ex. USB Host) or product feature that need high level firmware bricks (ex. Audio). Integration Applications that use several Middleware stacks are provided as well.
A Template project is provided to allow user to quickly build any firmware application on a given board.
External loader project is provided to allow user to load user applications from external memories e.g. SD Card, SNOR and eMMC on a given board.

The examples are located under STM32Cube_FW_MP13_VX.Y.Z\Projects\, and all of them have the same structure:

\Inc folder that contains all header files.
\Src folder for the sources code.
\STM32CubeIDE folders contain the preconfigured project for each toolchain.
A readme describing the example behavior and the environment required to run the example.

To run the example, you have to do the following:

Open the example using your preferred toolchain.
Rebuild all files and load the image into target memory.
Run the example by following the readme instructions.
Note: refer to section "Development Toolchains and Compilers" and "Supported Devices and EVAL, Nucleo and Discovery boards" of the Firmware package release notes to know about the SW/HW environment used for the Firmware development and validation. The correct operation of the provided examples is not guaranteed on some environments, for example when using different compiler or board versions.

The provided examples can be tailored to run on any compatible hardware; user simply need to update the BSP drivers for his board, if it has the same hardware functions (LED, LCD display, pushbuttons...etc.). The BSP is based on a modular architecture that allows it to be ported easily to any hardware by just implementing the low level routines.

Execution information :

Engineering boot mode:

All the examples could be run on SYSRAM memory, except LTDC_Display_2Layers, DCMIPP and TouchScreen examples (the binary size of these examples are larger than SYSRAM Size) => For these examples, DDR_Init should be run before.
For the same reason, all the AzureRTOS applications should be run after DDR_Init example.

SDCard boot mode (Possible on STM32MP135F_DK board):

The applications or examples (CubeExample) could be executed from SDCard. For the instance, the FSBLA_Sdmmc and the CubeExample should be copied using cube programmer (External_Loader is included in form of binaries for this purpose) or manually in the SD Card.

At the boot, the bootrom will copy the FSBLA_SDMMC in SYSRAM and execute it,
FSBLA_Sdmmc:

will initialize the clocks, the SDMMC and the DDR,

will read from SDMMC1 the CubeExample image length and load CubeExample into DDR.
will jump into DDR to execute this CubeExample

NOR boot mode (not possible on STM32MP135F_DK board because no XSPI_NOR available, but feature has been validated with internal ST Board customized - STM32MP13XX_CUSTOM_HW)

The applications or examples (CubeExample) could be executed from NOR. For the instance, the FSBLA_SNOR and the CubeExample could be copied using CubeProgrammer (External_Loader is included in form of binaries for this purpose) or with the provided debug tool debug tool "XSPI_NOR_Programmer".

At the boot, the bootrom will copy the FSBLA_SNOR in SYSRAM and execute it,
FSBLA_SNOR:

will initialize the clocks, the XSPI-NOR and the DDR,

will read from XSPI-NOR the CubeExample image length and load CubeExample into DDR.
will jump into DDR to execute this CubeExample

eMMC boot mode (not possible on STM32MP135F_DK board because no eMMC available, but feature has been validated with internal ST Board customized - STM32MP13XX_CUSTOM_HW)

The applications or examples (CubeExample) could be executed from eMMC(SDMMC2). For the instance, the FSBLA_eMMC and the CubeExample should be copied using cube programmer(External_Loader is included in form of binaries for this purpose) in the eMMC.

At the boot, the bootrom will copy the FSBLA_eMMC in SYSRAM and execute it,
FSBLA_eMMC:

will initialize the clocks, the SDMMC2(eMMC) and the DDR,

will read from SDMMC2(eMMC) the CubeExample image length and load CubeExample into DDR.
will jump into DDR to execute this CubeExample

The table below contains the list of examples provided within STM32Cube_FW_MP13 Firmware package.

Reference materials available on www.st.com/stm32cubefw

Wiki: Wiki STM32 Main Page.

Level	Module Name	Project Name	Description	STM32MP135C-DK	STM32MP13XX_ CUSTOM_HW
BSP_BasicTemplates_900MHz	-	-	This project provides a reference template that can be used to build any firmware application.	X
BSP_BasicTemplates_900MHz	Total number of bsp_basictemplates_900mhz: 1			1
BSP_BasicTemplates	-	-	This project provides a reference template that can be used to build any firmware application.	X	X
BSP_BasicTemplates	Total number of bsp_basictemplates: 2			1	1
Examples	ADC	ADC_MultiChannelSingleConversion	How to use an ADC peripheral to convert several channels. ADC conversions are performed successively in a scan sequence.	X
		ADC_SingleConversion_TriggerTimer_DMA	Use ADC to convert a single channel at each trig from timer, conversion data are transferred by DMA into an array, indefinitely (circular mode).	X
		ADC_SingleConversion_TriggerTimer_DMA_Secure	Use ADC to convert a single channel at each trig from timer, conversion data are transferred by secure DMA into an array, indefinitely (circular mode).	X
	BSP	BSP_TS_A7	How to configure the LCD BSP driver on disco board. The DDR memory need to be initialized with DDR_Init project. At the beginning of the main program the HAL_Init() function is called to reset all the peripherals, initialize the systick. The SystemClock_Config() function is used to configure the system clock for STM32MP13xx Devices : LCD is initialized in LCD_Config api.	X
	CRC	CRC_UserDefinedPolynomial	How to configure the CRC using the HAL API. The CRC (cyclic redundancy check) calculation unit computes the 8-bit CRC code for a given buffer of 32-bit data words, based on a user-defined generating polynomial.	X
	CRYP/SAES	CRYP_SAES_WrapKey	Use the Secure AES co-processor (SAES) peripheral to wrap application keys using hardware secret key DHUK then use it to encrypt in polling mode.	X
		CRYP_SAES_SharedKey	The Secure AES instance is configured in shared mode and hardware secret key DHUK is selected. The goal here to share application key with CRYP peripheral without being exposed in clear-text.	X
		CRYP_SAES_MDMA_ECB_CBC	How to use the SecureAES co-processor (SAES) peripheral to encrypt and decrypt data using AES ECB and CBC Algorithms with MDMA	X
		CRYP_AES_MDMA	This example provides a short description of how to use the CRYPTO peripheral to encrypt and decrypt data using AES-128 Algorithm with ECB chaining mode. For this example, MDMA is used to transfer data from memory to the CRYPTO processor IN FIFO and also to transfer data from CRYPTO processor OUT FIFO to memory.	X
		CRYP_TDESModes	How to use the CRYPTO peripheral to encrypt/decrypt data(Plaintext/Ciphertext) using TDES ECB and CBC algorithm.	X
	DCMIPP	DCMIPP_CaptureMode_A7	The goal of this example is to explain how to capture frames continuously.	X
	DCMIPP	DCMIPP_SnapshotMode_A7	The goal of this example is to explain how to capture single frame.	X
	DDR	DDR_Init	This example provides a reference to initialize the DDR on STM32MP13XX-DK (DDR3).	X	X
	DMA	DMA_FIFOMode	This example provides a description of how to use a DMA to transfer a word data buffer from Flash memory to embedded SYSRAM configured non-secure with FIFO mode enabled through the HAL API.	X
	DMA	DMA_FIFOMode_Secure	This example provides a description of how to use a DMA to transfer a word data buffer from Flash memory to embedded SYSRAM configured secure with FIFO mode enabled through the HAL API.	X
	DTS	DTS_GetTemperature	How to configure and use the DTS to get the temperature of the die.	X
	ETZPC	ETZPC_NonSecure_Access	This example describes non-secure accesses of memory using DMA.	X
	FDCAN	FDCAN_Loopback	How to configure the FDCAN to operate in loopback mode.	X
	GPIO	GPIO_EXTI	How to configure external interrupt lines.	X
	HASH	HASH_SHA3384SHA3512_MDMA	This example provides a short description of how to use the HASH peripheral to hash data using SHA3-384 and SHA3-512 Algorithms.	X
	I2C	I2C_TwoBoards_ComIT	How to handle I2C data buffer transmission/reception between two boards, using an interrupt.	X
	IWDG	IWDG_WindowMode	How to periodically update the IWDG reload counter and simulate a software fault that generates an MCU IWDG reset after a preset laps of time.	X
	LPTIM	LPTIM_PulseCounter	This example describes how to configure and use LPTIM to count pulses through the LPTIM HAL API.	X
	LTDC	LTDC_Display_2Layers	How to configure the LTDC peripheral to display two layers at the same time.	X
	MDMA	MDMA_Mem2MemTransfer	This example provides a description of how to use a MDMA (configured non-secure) to transfer a data buffer from SYSRAM to SRAM3 through the HAL API.	X
	MDMA	MDMA_Mem2MemTransfer_Secure	This example provides a description of how to use a MDMA (configured secure) to transfer a data buffer from SYSRAM to SRAM3 through the HAL API.	X
	PKA	PKA_ECCDoubleBaseLadder	How to use the PKA to run ECC Double Base Ladder operation	X
	PKA	PKA_ECDSA_Sign	How to compute a signed message regarding the Elliptic curve digital signature algorithm (ECDSA).	X
	PWR	PWR_STANDBY	This example show how to enter the Standby mode and wake up from this mode by using an external reset or the WKUP pin.	X
		PWR_STANDBY_RTC	How to enter the Standby mode and wake-up from this mode by using an external reset or the RTC wakeup timer.	X
		PWR_STOP_RTC	How to enter the Stop mode and wake up from this mode by using the RTC wakeup timer event connected to an interrupt.	X
	RNG	RNG_MultiRNG	Configuration of the RNG using the HAL API. This example uses the RNG to generate 32-bit long random numbers.	X
	RTC	RTC_Alarm	How to configure and generate an RTC alarm using the RTC HAL API.	X
		RTC_Tamper	How to configure RTC to write/read data to/from RTC Backup registers and to demonstrate the tamper detection feature.	X
		RTC_TimeStamp	Configuration of the RTC HAL API to demonstrate the timestamp feature.	X
	SD	SD_ReadWrite_DMALinkedList	This example performs some write and read transfers to SD Card with SDMMC IP internal DMA mode based on Linked list feature.	X
	SPI	SPI_FullDuplex_ComDMA_Master	Data buffer transmission/reception between two boards via SPI using Interrupt mode.	X
		SPI_FullDuplex_ComDMA_Slave	Data buffer transmission/reception between two boards via SPI using Interrupt mode.	X
		SPI_FullDuplex_ComIT_Master	Data buffer transmission/reception between two boards via SPI using Interrupt mode.	X
		SPI_FullDuplex_ComIT_Slave	Data buffer transmission/reception between two boards via SPI using Interrupt mode.	X
	TIM	TIM_DMABurst	This example shows how to update the TIMER TIM4_CH1 period and the duty cycle using the TIMER DMA burst feature.	X
	UART	UART_Receive_Transmit_Console	UART transmission (printf/getchar) via console with user interaction.	X
		UART_TwoBoards_ComDMA	UART transmission (transmit/receive) in DMA mode between two boards.	X
		UART_TwoBoards_ComIT	UART transmission (transmit/receive) in Interrupt mode between two boards.	X
	USART	USART_SlaveMode_DMA	This example describes an USART-SPI communication (transmit/receive) with DMA between two boards where the USART is configured as a slave.	X
Total number of examples: 46				45	1
Applications	FileX	Fx_emmc_File_Edit	This application provides an example of Azure RTOS FileX stack usage on STM32MP13XX_CUSTOM_HW board, it shows how to develop a basic eMMC file operations application. The application is designed to handle eMMC card insertion/removal events, and depending on that state, it starts and stops file operations from and into the eMMC card.		X
		Fx_MultiAccess	This application provides an example of Azure RTOS FileX stack usage on STM32MP135F-DK board, it demonstrates the FileX’s concurrent file access capabilities. The application is designed to execute file operations on the SD card device, the code provides all required software code for handling SD card I/O operations.	X
		Fx_Nand_Write_Read_File	This application provides an example of Azure RTOS FileX and LevelX stacks usage on STM32MP13XX_CUSTOM_HW board(doesn't run on STM32MP135F_DK board). It demonstrates how to create a Fat File system on the NAND flash using FileX alongside LevelX (without ECC). The application is designed to execute file operations on the Micron MT29F8G08ABACAH4 NAND flash device, the code provides all required software code for properly managing it.		X
		Fx_Nand_Write_Read_File_Sequencer	This application provides an example of Azure RTOS FileX and LevelX stacks usage on custom board STM32MP13XX_VALID1 (doesn't run on STM32MP135F-DK board unless a custom board is added). It used the hardware NAND sequencer instead of direct CPU accesses. It demonstrates how to create a Fat File system on the NAND flash using FileX alongside LevelX. The application is designed to execute file operations on the Micron MT29F8G08ABACAH4 NAND flash device, the code provides all required software code for properly managing it.		X
		Fx_SRAM_File_Edit_Standalone	This application provides an example of FileX stack usage on STM32MP135F-DK board, running in standalone mode (without ThreadX). It demonstrates how to create a Fat File system on the internal SRAM memory using FileX API. The application is designed to execute file operations on the SRAM-Disk device, it provides all required software code for properly managing it.	X

		Fx_uSD_File_Edit	This application provides an example of Azure RTOS FileX stack usage on STM32MP135F-DK board, it shows how to develop a basic SD card file operations application. The application is designed to handle SD card insertion/removal events, and depending on that state, it starts and stops file operations from and into the SD card.	X	X
	FreeRTOS	FreeRTOS_Semaphore	This application creates two threads that toggle LEDs through a shared semaphore. as following: The first thread which have the higher priority obtains the semaphore and toggle the LED7 each 200 ms. After 5 seconds it releases the semaphore and suspends itself.	X
	FreeRTOS	FreeRTOS_TaskCreation	This application creates two threads with the same priority, which execute in a periodic cycle of 15 seconds.	X
	FSBLA	FSBLA_Sdmmc1	This application describes how to load and execute a cubeExample binary from SDCARD into DDR on STM32MP135F-DK (DDR3).	X
		FSBLA_eMMC	This application describes how to load a cubeExample binary from eMMC into DDR, and execute it on STM32MP13XX_CUSTOM_HW Board.		X
		FSBLA_SNOR	This application describes how to load a cubeExample binary from XSPI-NOR into DDR, and execute it on STM32MP13XX_CUSTOM_HW Board.		X
	Debug PROGRAMMER	XSPI_NOR_Programmer	This application shows how to load a signed binary to an XSPI-NOR (MX25L51245G).		X
	Low_power_LPLV_Stop2	Low_power_LPLV_Stop2	This application shows a LPLV-Stop2 entry with DDR in self refresh to keep its content.	X
	Low_power_Standby	Low_power_Standby	This application shows a Standby entry with DDR in self refresh to keep its content.	X
	LwIP	LwIP_TCP_Echo_Client	This application guides STM32Cube HAL API users to run TCP Echo Client application based on Raw API of LwIP TCP/IP stack	X
		LwIP_TCP_Echo_Server	This application guides STM32Cube HAL API users to run TCP Echo Server application based on Raw API of LwIP TCP/IP stack	X
		LwIP_UDP_Echo_Client	This application guides STM32Cube HAL API users to run a UDP Echo Client application based on Raw API of LwIP TCP/IP stack	X
		LwIP_UDP_Echo_Server	This application guides STM32Cube HAL API users to run UDP Echo Server application based on Raw API of LwIP TCP/IP stack	X
		LwIP_UDPTCP_Echo_Server_Netconn_RTOS	This application guides STM32Cube HAL API users to run a UDP/TCP Echo Server application based on Netconn API of LwIP TCP/IP stack.	X
	NetXDuo	Nx_Iperf	This application provides an example of Azure RTOS NetXDuo stack usage . It shows performance when using different modes : TCP_server, UDP_server, TCP_client and UDP_client.	X
		Nx_MQTT_Client	This application provides an example of Azure RTOS NetX/NetXDuo stack usage. It shows how to exchange data between client and server using MQTT protocol in an encrypted mode supporting TLS v1.2.	X
		Nx_TCP_Echo_Client	This application provides an example of Azure RTOS NetX/NetXDuo stack usage. It shows how to develop a NetX TCP client to communicate with a remote sever using the NetX TCP socket API.	X
		Nx_TCP_Echo_Server	This application provides an example of Azure RTOS NetX/NetXDuo stack usage. It shows how to develop a NetX TCP server to communicate with a remote client using the NetX TCP socket API.	X
		Nx_UDP_Echo_Client	This application provides an example of Azure RTOS NetX/NetXDuo stack usage . It shows how to develop a NetX udp client to communicate with a remote sever using the NetX UDP socket API.	X
		Nx_UDP_Echo_Server	This application provides an example of Azure RTOS NetX/NetXDuo stack usage . It shows how to develop a NetX UDP server to communicate with a remote client using the NetX UDP socket API.	X
		Nx_WebServer	This application provides an example of Azure RTOS NetX Duo stack usage on STM32MP135F-DK board, it shows how to develop Web HTTP server based application. The application is designed to load files and dyncamic web pages stored in SD card using a Web HTTP server, the code provides all required features to build a compliant Web HTTP Server.	X
	ThreadX	Tx_MPU	This application provides an example of Azure RTOS ThreadX stack usage, it shows how to develop an application using the ThreadX Module feature. It demonstrates how to load, start and unload modules. In addition, it shows how to use ThreadX memory protection with modules using the Cortex-A7 MMU. This example has originally been designed for microcontrollers with an MPU (Memory Protection Unit) instead of a more advanced MMU (Memory Protection Unit). So the term MPU and MMU are used interchangeably.	X
		Tx_Thread_Creation	This application provides an example of Azure RTOS ThreadX stack usage, it shows how to develop an application using the ThreadX thread management APIs. It demonstrates how to create and destroy multiple threads using Azure RTOS ThreadX APIs. In addition, it shows how to use preemption threshold between threads and change priorities on-fly.	X
		Tx_Thread_MsgQueue	This application provides an example of Azure RTOS ThreadX stack usage, it shows how to develop an application using the ThreadX message queue APIs. It demonstrates how to send and receive messages between threads using ThreadX message queue APIs. In addition, it shows how to use the event chaining feature.	X
		Tx_Thread_Sync	This application provides an example of Azure RTOS ThreadX stack usage, it shows how to develop an application using the ThreadX synchronization APIs.	X
	USB_Device	CDC_Standalone	This application describes how to use USB device application based on the Device Communication Class (CDC) following the PSTN sub-protocol on the STM32MP13xx devices.	X
	USB_Host	CDC_Standalone	This is a typical application on how to use the STM32MP135xx USB OTG Host peripheral where the STM32 MPU behaves as a USB-to-UART bridge following the Virtual COM Port (VCP) implementation. - The STM32 exchanges data with a CDC device through USB interface in Host mode.	X
	USBX	Ux_Device_CDC_ACM	This application provides an example of Azure RTOS USBX stack usage on STM32MP135F-DK board, it shows how to develop USB Device communication Class "CDC_ACM" based application. The application is designed to emulate an USB-to-UART bridge following the Virtual COM Port (VCP) implementation, the code provides all required device descriptors framework and associated Class descriptor report to build a compliant USB CDC_ACM device.	X
		Ux_Device_HID	This application provides an example of Azure RTOS USBX stack usage on STM32MP135F-DK board, it shows how to develop USB Device Human Interface "HID" mouse based application. The application is designed to emulate an USB HID mouse device, the code provides all required device descriptors framework and associated Class descriptor report to build a compliant USB HID mouse device.	X
		Ux_Host_HID_CDC_ACM	This application provides an example of Azure RTOS USBX stack usage on STM32MP135C-DK. It shows how to develop a composite "USB HID CDC_ACM Host" that is able to enumerate and communicate with: - Composite USB HID CDC_ACM device - Simple HID/CDC_ACM device,	X
		Ux_Host_MSC	This application provides an example of Azure RTOS USBX stack usage. It shows how to develop USB Host Mass Storage "MSC" able to enumerate and communicates with a removable usb flash disk.	X
Total number of applications: 37				30	7
External_Loader	-	External_Mem_Loader	This application provides an example of loading a prebuild and signed user application on STM32MP13XX boards on external memory. User has to build its production application, sign it and replace its name in tsv file and finally use this tsv to load app using cube programmer tool.this is openbl application which is responsible to initialize programming with serial boot interface - uart and usb.it is responsible to load fsbl-extfl - EMMC_Ext_Loader, SD_Ext_Loader, or SNOR_Ext_Loader.	X	X
		EMMC_Ext_Loader	This application provides an example of loading a prebuild and signed user application on STM32MP13XX_CUSTOM_HW board from eMMC. User has to build its production application, sign it and replace its name in tsv file and finally use this tsv to load app using cube programmer tool. cube programmer will connect to board via uart/usb, then it will first copy fsbl-openbl to sysram, fsbl-openbl in turn call fsbl-extfl which will initialize eMMC and ddr and copy FSBLA_Sdmmc2_A7_Signed.bin and user app to eMMC and execute from ddr. next time when device boot in eMMC boot mode, it will load user application automatically.		X
		SD_Ext_Loader	This application provides an example of loading a prebuild and signed user application on STM32MP135F-DK board from SD Card. User has to build its production application, sign it and replace its name in tsv file and finally use this tsv to load app using cube programmer tool. cube programmer will connect to board via uart/usb, then it will first copy fsbl-openbl to sysram, fsbl-openbl in turn call fsbl-extfl which will initialize sd card and ddr and copy FSBLA_Sdmmc1_A7_Signed.bin and user app to SD Card and execute from ddr. next time when device boot in sd boot mode, it will load user application automatically	X
		SNOR_Ext_Loader	This application provides an example of loading a prebuild and signed user application on STM32MP13XX_CUSTOM_HW board from XSPI NOR. User has to build its production application, sign it and replace its name in tsv file and finally use this tsv to load app using cube programmer tool. cube programmer will connect to board via uart/usb, then it will first copy fsbl-openbl to sysram, fsbl-openbl in turn call fsbl-extfl which will initialize XSPI NOR and ddr and copy FSBLA_SNOR_A7_Signed.bin and user app to XSPI NOR and execute from ddr. next time when device boot in NOR boot mode, it will load user application automatically.		X
Total number of External Loader applications: 5				2	3
Total number of projects: 91				79	12
