Official codebase for PIXELRAG: Web Screenshots Beat Text for
Retrieval-Augmented Generation
Yichuan Wang*,
Zhifei Li*,
Zirui Wang,
Paul Teiletche,
Lesheng Jin
Matei Zaharia†,
Joseph E. Gonzalez†,
Sewon Min†
* Equal contribution † Equal advising
Work done at Berkeley SkyLab & BAIR & Berkeley NLP
Search any document by how it looks, not just the text it contains.
What it is ·
Give Claude eyes ·
How it works ·
Pipelines
---
```bash
pip install pixelrag
```
The two core operations — **render** a page to screenshots, **search** a visual index:
```bash
# Render any page or document to screenshot tiles
pixelshot https://en.wikipedia.org/wiki/Python --output ./tiles
# Search a hosted index of 8.28M Wikipedia pages — no setup, runs against the live API
curl -X POST https://api.pixelrag.ai/search \
-H "Content-Type: application/json" \
-d '{"queries": [{"text": "What is the capital of France?"}], "n_docs": 5}'
```
> **Live, hosted endpoint** — [`https://api.pixelrag.ai`](https://api.pixelrag.ai/status) serves a
> pre-built index of **8.28M Wikipedia pages**. No setup, no API key. It even takes an image as the query
> ([visual search](https://pixelrag.ai/docs#search)) — see the **[API reference →](https://pixelrag.ai/docs)**.
Or try it in the browser at **[pixelrag.ai](https://pixelrag.ai)**, or run the demo notebook in
Colab [](https://colab.research.google.com/github/StarTrail-org/PixelRAG/blob/main/demos/quickstart.ipynb) — it
renders a page and searches the hosted index, with the images inline.
## What it is
PixelRAG renders documents — web pages, PDFs, images — as screenshots and retrieves over the
images directly. Visual structure that HTML parsing throws away — tables, charts, layout,
infographics — stays intact, so the reader model can actually answer questions about it.
Wikipedia's 8.28M articles ship as a pre-built index; the pipeline itself is general-purpose.
## Give Claude eyes
The renderer also ships as a Claude Code plugin — the **pixelbrowse** skill. Instead of fetching
raw HTML, Claude screenshots a page with `pixelshot` and _reads the image_, so it sees
charts, diagrams, tables, and layout the way a person does.
Install it — no clone needed. Install the `pixelshot` CLI so it's on your `PATH`
(use `uv tool` or `pipx` to keep it isolated yet always available to Claude — a
plain `pip install` into a project venv may leave `pixelshot` off `PATH`):
```bash
uv tool install pixelrag # pixelshot on PATH (or: pipx install pixelrag)
claude plugin marketplace add StarTrail-org/PixelRAG
claude plugin install pixelbrowse@pixelrag-plugins
```
Then just ask Claude to look at a page:
```bash
claude -p "screenshot https://news.ycombinator.com and summarize the top stories"
claude -p "screenshot https://arxiv.org/abs/2404.12387 and explain the key findings"
```
Or use the slash command in an interactive session: `/screenshot https://example.com`.
No MCP server, no backend: the skill just calls `pixelshot` (Playwright/CDP) on your machine.
**opencode** users get the same `screenshot` tool via the `@startrail/pixelbrowse` npm package
— with `pixelshot` on `PATH`, add it to `opencode.json`:
```json
{
"$schema": "https://opencode.ai/config.json",
"plugin": ["@startrail/pixelbrowse"]
}
```
See [`plugin/opencode/`](plugin/opencode/) for details.
## How it works

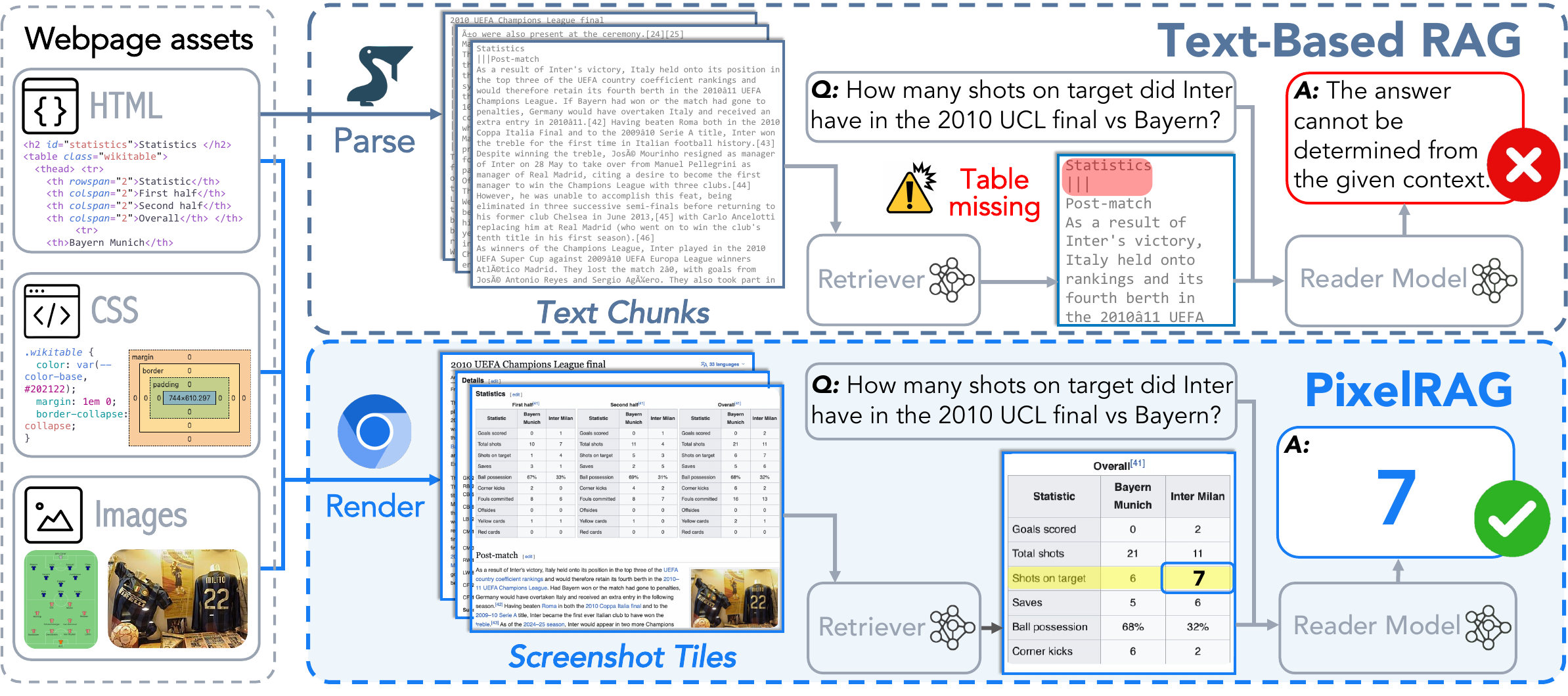

Text-based RAG parses the page to text chunks and **loses the table** — the reader can't find the
answer. PixelRAG renders the page to **screenshot tiles**, retrieves the right tile, and the reader
reads the number straight off the image.
Two pieces make this work: (1) rendering documents to images instead of parsing them to text, and
(2) a `Qwen3-VL-Embedding` model, LoRA-fine-tuned on screenshot data, that embeds page images into
a space where visual content is retrievable.
## Pipelines
Capture is the standalone `pixelshot` command; the rest of the pipeline runs through the
`pixelrag` umbrella — `pixelrag `. Install only the stages you need:
| Command | What it does | Install |
| ------------------------------------------ | --------------------------------------------------------------- | ------------------------------- |
| `pixelshot` | Document → image tiles (Playwright CDP, PDF) | `pip install pixelrag` |
| `pixelrag chunk` · `embed` · `build-index` | Tiles → vectors → FAISS index | `pip install 'pixelrag[embed]'` |
| `pixelrag index` | Orchestrates the full pipeline: source → ingest → embed → index | `pip install 'pixelrag[index]'` |
| `pixelrag serve` | FAISS search API (FastAPI, CPU or GPU) | `pip install 'pixelrag[serve]'` |
```
render ←── index ──→ embed serve (independent) train → serve (HTTP)
```
**`train` is a separate uv project** with its own pinned env (`torch==2.9.1+cu129`,
`transformers==4.57.1`, cuDNN 9.20) — install it from inside `train/`, not from the root.
### Search a pre-built index
```bash
pip install 'pixelrag[serve]'
# Download a pre-built index from Hugging Face. The dataset repo holds four FAISS indexes
# (base/LoRA Wikipedia pixel, Wikipedia text, news pixel); grab just the base one (~217G) here.
huggingface-cli download StarTrail-org/pixelrag-faiss-indexes \
--repo-type dataset --include "search_index_normed_v2/*" --local-dir ./index
# Serve, then query
pixelrag serve --index-dir ./index/search_index_normed_v2 --port 30001
curl -X POST http://localhost:30001/search \
-H "Content-Type: application/json" \
-d '{"queries": [{"text": "What is the capital of France?"}], "n_docs": 5}'
```
### Build an index from your own documents
Works on **Linux (CUDA)** and **macOS (Apple Silicon / MPS)** — `device: auto` picks the best backend.
```bash
pip install 'pixelrag[index]'
# Create pixelrag.yaml
cat > pixelrag.yaml << 'EOF'
source:
type: local
path: ./my_docs
embed:
model: Qwen/Qwen3-VL-Embedding-2B
device: auto # cuda on Linux, mps on macOS, cpu as fallback
output: ./my_index
EOF
# Build, then serve
pixelrag index build
pixelrag serve --index-dir ./my_index --port 30001
```
Try it: index a PDF and search it locally
No GPU required — runs on macOS (Apple Silicon) or any machine with Python 3.10+.
PDF rendering needs the `pdf` extra and poppler (`brew install poppler`, or
`apt-get install poppler-utils` on Debian/Ubuntu).
```bash
pip install 'pixelrag[index,pdf]'
# 1. Grab a sample PDF (or use your own)
curl -L -o paper.pdf https://raw.githubusercontent.com/StarTrail-org/PixelRAG/main/assets/pixelrag-paper.pdf
# 2. Create config (device: auto picks MPS on Mac, CUDA on Linux)
cat > pixelrag.yaml << 'EOF'
source:
type: local
path: ./paper.pdf
embed:
model: Qwen/Qwen3-VL-Embedding-2B
device: auto
output: ./paper_index
EOF
# 3. Build the index (~3 min on Apple M-series, ~1 min on GPU)
pixelrag index build
# 4. Serve it
pixelrag serve --index-dir ./paper_index --port 30001
# 5. Search — should return page 2 (the overview diagram)
curl -X POST http://localhost:30001/search \
-H "Content-Type: application/json" \
-d '{"queries": [{"text": "Overview of PixelRAG and the diagram"}], "n_docs": 1}'
```
### Render a page programmatically
To find pages on the open web before capturing them, try the optional
[Parallel Search MCP demo](demos/parallel_search/). It saves source URLs and text
excerpts, then can render selected pages as screenshot tiles without a search API key.
```python
from pixelrag_render import render_url
# render a single page to tiles — e.g. for an agent to read
tiles = render_url("https://en.wikipedia.org/wiki/Python", "./tiles")
```
The same rendering is available as a CLI — `pixelshot` ships with `pip install pixelrag`:
```bash
# Web page → tiles (headless Chromium via CDP)
pixelshot https://en.wikipedia.org/wiki/Python -o ./tiles
# PDF → tiles (requires poppler; install the pdf extra: pip install 'pixelrag[pdf]')
curl -sL -o paper.pdf https://arxiv.org/pdf/2503.09516
pixelshot paper.pdf -o ./tiles --dpi 200
# URLs and local files can be mixed freely
pixelshot https://github.com/StarTrail-org/PixelRAG paper.pdf -o ./tiles
```
> **Chrome on Windows/macOS** — the bundled turbo `headless_shell` auto-installs on
> **linux-x64** only. Elsewhere, `pixelshot` uses your system Chrome/Chromium (or
> Playwright's Chromium), auto-detected from the standard install locations. Point it at
> a specific binary with `CHROME_PATH=/path/to/chrome` if it isn't found automatically.
> Each render runs in an isolated, throwaway Chrome profile, so it works even while you
> have Chrome open.
### Embed tools (standalone)
Each stage runs independently, without the orchestrator:
```bash
pip install 'pixelrag[embed]'
pixelrag chunk --tiles-dir ./tiles
pixelrag embed --shard-dir ./tiles --output-dir ./embeddings --gpu-ids 0,1
pixelrag build-index --embeddings-dir ./embeddings --output-dir ./index
```
### Qdrant backend
[Qdrant](https://qdrant.tech) is an open-source vector search engine for high-performance and massive scale. [FAISS](https://ai.meta.com/tools/faiss/) remains the default for local indexes. Use Qdrant for configurable quantization, disk-backed vectors, payload filtering, and one collection shared by multiple PixelRAG servers.
Quantization compresses vectors to reduce memory use and speed up search, with a recall tradeoff that depends on the method and settings.
To configure quantization, pass any Qdrant `quantization_config` object in a JSON file.
See Qdrant's [quantization guide](https://qdrant.tech/documentation/manage-data/quantization/#setting-up-quantization-in-qdrant) for supported methods and parameters.
```json
{
"scalar": {
"type": "int8",
"quantile": 0.99,
"always_ram": true
}
}
```
```bash
pip install 'pixelrag[serve,qdrant]' # or 'pixelrag[index,qdrant]'
# Build against a Qdrant server.
# Start one locally with: docker run -p 6333:6333 qdrant/qdrant
pixelrag build-index --embeddings-dir ./embeddings --output-dir ./index \
--backend qdrant --qdrant-url http://localhost:6333 --collection pixelrag \
--qdrant-quantization-config ./quantization.json
# Add documents to an existing collection.
pixelrag build-index --embeddings-dir ./more --output-dir ./index \
--backend qdrant --qdrant-url http://localhost:6333 --collection pixelrag --append
# Replace an existing collection and its configuration.
pixelrag build-index --embeddings-dir ./embeddings --output-dir ./index \
--backend qdrant --qdrant-url http://localhost:6333 --collection pixelrag --recreate
# Serve the collection. PixelRAG reads the backend from summary.json.
pixelrag serve --index-dir ./index --qdrant-url http://localhost:6333 \
--qdrant-client-config ./qdrant-client.json --port 30001
```
Configure the orchestrator in `pixelrag.yaml`:
```yaml
index:
backend: qdrant
qdrant_url: http://localhost:6333
collection: pixelrag
client_config: ./qdrant-client.json
quantization_config: ./quantization.json
# Set append: true or recreate: true when the collection already exists.
```
### Run the API in Docker
`Dockerfile` builds a two-stage image that installs the `serve` extra and a pinned Chromium,
and `docker-compose.yml` runs `pixelrag serve` on port 8000 against the index and tiles you
mount from the host.
**Build an index first.** The container mounts `./data/index` read-only and cannot create one,
so `docker compose up` against an empty directory exits before the server starts — `pixelrag
serve` opens the index and `articles.json` during startup. Point `output:` at it in your
`pixelrag.yaml` (as above), then:
```bash
mkdir -p data/index data/tiles
pixelrag index build # writes index.faiss, metadata.npz and articles.json to ./data/index
docker compose up --build
# then query it
curl -X POST http://localhost:8000/search \
-H "Content-Type: application/json" \
-d '{"queries": [{"text": "What is the capital of France?"}], "n_docs": 5}'
```
Three things to know before using it:
- **Nothing in CI builds this image.** It is best-effort and can drift when dependencies or
source paths move, so build it yourself before relying on it.
- **On Apple Silicon the image builds without a renderer.** The pinned `headless_shell` is
published for linux-x64 only, so the build skips it on other architectures: search over a
prebuilt index works, on-demand rendering does not. For a renderer-capable image, build for
amd64 (emulated, and slower) by adding `platform: linux/amd64` to the `pixelrag-api` service.
- **The container runs as root, so Chrome renders with its sandbox disabled.** Chrome's
sandbox inside a container requires `--cap-add=SYS_ADMIN` or a tailored seccomp profile,
and a non-root `USER` without those stops Chrome launching entirely. Container isolation
is therefore the only boundary around the renderer — keep the container isolated and do
not point it at untrusted pages otherwise.
### Training
Fine-tuning lives in `train/` — a **separate uv project** (`wiki-screenshot-training`) with its own
pinned env. It LoRA-fine-tunes `Qwen/Qwen3-VL-Embedding-2B` for webpage retrieval; run it from
inside `train/` (`cd train && uv sync`). See [`train/README.md`](train/README.md) for the full recipe.
You don't need to retrain to use the model — the trained adapters are published at
[`Chrisyichuan/wiki-screenshot-embedding-lora`](https://huggingface.co/Chrisyichuan/wiki-screenshot-embedding-lora/tree/main/lora_vit/ckpt200).
We also release the full training set
([`Chrisyichuan/screenshot-training-natural-filtered-v2`](https://huggingface.co/datasets/Chrisyichuan/screenshot-training-natural-filtered-v2)),
so you can adapt other backbones yourself — a larger Qwen, or any other embedding model.
The data curation pipeline (LLM-augmented query generation, filtering, hard-negative mining)
is documented in [`train/docs/synthetic_data_pipeline.md`](train/docs/synthetic_data_pipeline.md).
## Citation
If you find PixelRAG useful, please cite our paper:
```bibtex
@misc{wang2026pixelragwebscreenshotsbeat,
title={PIXELRAG: Web Screenshots Beat Text for Retrieval-Augmented Generation},
author={Yichuan Wang and Zhifei Li and Zirui Wang and Paul Teiletche and Lesheng Jin and Matei Zaharia and Joseph E. Gonzalez and Sewon Min},
year={2026},
eprint={2606.28344},
archivePrefix={arXiv},
primaryClass={cs.IR},
url={https://arxiv.org/abs/2606.28344},
}
```
## Acknowledgments
Thanks to [Rulin Shao](https://rulinshao.github.io/) for support.
Thanks also to [Claude Code](https://github.com/anthropics/claude-code) and
[OpenAI Codex](https://github.com/openai/codex) for supporting open-source contributors with credits and plans,
which we earned by working on [LEANN](https://github.com/StarTrail-org/LEANN).
This work is done by the [Berkeley Sky Computing Lab](https://sky.cs.berkeley.edu/),
[BAIR](https://bair.berkeley.edu/), and the [Berkeley NLP Group](https://nlp.cs.berkeley.edu/).
## License
Apache-2.0
