# StateMachine

[![Swift](https://github.com/Tinder/StateMachine/actions/workflows/swift.yml/badge.svg)](https://github.com/Tinder/StateMachine/actions/workflows/swift.yml)

A state machine library in Kotlin and Swift.

`StateMachine` is used in [Scarlet](https://github.com/Tinder/Scarlet)

## Example State Diagram

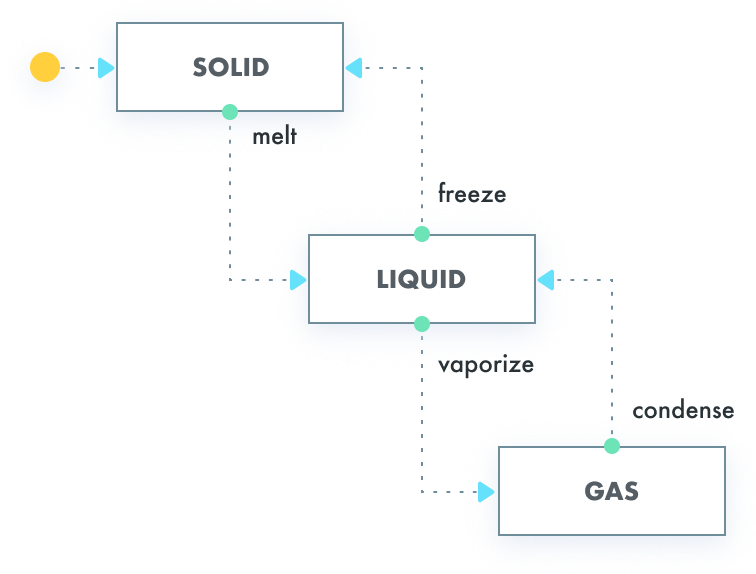

The examples below create a `StateMachine` from the following state diagram for matter:

<img src="./example/activity-diagram.png" width="378" />

## Kotlin Usage

Define states, events and side effects:

```kotlin
sealed class State {
    object Solid : State()
    object Liquid : State()
    object Gas : State()
}

sealed class Event {
    object OnMelted : Event()
    object OnFroze : Event()
    object OnVaporized : Event()
    object OnCondensed : Event()
}

sealed class SideEffect {
    object LogMelted : SideEffect()
    object LogFrozen : SideEffect()
    object LogVaporized : SideEffect()
    object LogCondensed : SideEffect()
}
```

Initialize state machine and declare state transitions:

```kotlin
val stateMachine = StateMachine.create<State, Event, SideEffect> {
    initialState(State.Solid)
    state<State.Solid> {
        on<Event.OnMelted> {
            transitionTo(State.Liquid, SideEffect.LogMelted)
        }
    }
    state<State.Liquid> {
        on<Event.OnFroze> {
            transitionTo(State.Solid, SideEffect.LogFrozen)
        }
        on<Event.OnVaporized> {
            transitionTo(State.Gas, SideEffect.LogVaporized)
        }
    }
    state<State.Gas> {
        on<Event.OnCondensed> {
            transitionTo(State.Liquid, SideEffect.LogCondensed)
        }
    }
    onTransition {
        val validTransition = it as? StateMachine.Transition.Valid ?: return@onTransition
        when (validTransition.sideEffect) {
            SideEffect.LogMelted -> logger.log(ON_MELTED_MESSAGE)
            SideEffect.LogFrozen -> logger.log(ON_FROZEN_MESSAGE)
            SideEffect.LogVaporized -> logger.log(ON_VAPORIZED_MESSAGE)
            SideEffect.LogCondensed -> logger.log(ON_CONDENSED_MESSAGE)
        }
    }
}
```

Perform state transitions:

```kotlin
assertThat(stateMachine.state).isEqualTo(Solid)

// When
val transition = stateMachine.transition(OnMelted)

// Then
assertThat(stateMachine.state).isEqualTo(Liquid)
assertThat(transition).isEqualTo(
    StateMachine.Transition.Valid(Solid, OnMelted, Liquid, LogMelted)
)
then(logger).should().log(ON_MELTED_MESSAGE)
```

## Swift Usage

Adopt `StateMachineBuilder` to gain access to the DSL builder methods:

```swift
class MyExample: StateMachineBuilder {

    ... state machine implementation ...
}
```

Define states, events and side effects:

```swift
@StateMachineHashable
enum State {
    case solid, liquid, gas
}

@StateMachineHashable
enum Event {
    case melt, freeze, vaporize, condense
}

enum SideEffect {
    case logMelted, logFrozen, logVaporized, logCondensed
}
```

Initialize state machine and declare state transitions:

```swift
let stateMachine = StateMachine<State, Event, SideEffect> {
    initialState(.solid)
    state(.solid) {
        on(.melt) {
            transition(to: .liquid, emit: .logMelted)
        }
    }
    state(.liquid) {
        on(.freeze) {
            transition(to: .solid, emit: .logFrozen)
        }
        on(.vaporize) {
            transition(to: .gas, emit: .logVaporized)
        }
    }
    state(.gas) {
        on(.condense) {
            transition(to: .liquid, emit: .logCondensed)
        }
    }
    onTransition {
        guard case let .success(transition) = $0, let sideEffect = transition.sideEffect else { return }
        switch sideEffect {
        case .logMelted: logger.log(Message.melted)
        case .logFrozen: logger.log(Message.frozen)
        case .logVaporized: logger.log(Message.vaporized)
        case .logCondensed: logger.log(Message.condensed)
        }
    }
}
```

Perform state transitions:

```swift
expect(stateMachine.state).to(equal(.solid))

// When
let transition = try stateMachine.transition(.melt)

// Then
expect(stateMachine.state).to(equal(.liquid))
expect(transition).to(equal(
    StateMachine.Transition.Valid(fromState: .solid, event: .melt, toState: .liquid, sideEffect: .logMelted))
)
expect(logger).to(log(Message.melted))
```

#### Pre-Swift 5.9 Compatibility

<details>

<summary>Expand</summary>

<br>

This information is only applicable to Swift versions older than `5.9`:

> ### Swift Enumerations with Associated Values
>
> Due to Swift enumerations (as opposed to sealed classes in Kotlin), any `State` or `Event` enumeration defined with associated values will require [boilerplate implementation](https://github.com/Tinder/StateMachine/blob/c5c8155d55db5799190d9a06fbc31263c76c80b6/Swift/Tests/StateMachineTests/StateMachine_Turnstile_Tests.swift#L198-L260) for `StateMachineHashable` conformance.
>
> The easiest way to create this boilerplate is by using the [Sourcery](https://github.com/krzysztofzablocki/Sourcery) Swift code generator along with the [AutoStateMachineHashable stencil template](https://github.com/Tinder/StateMachine/blob/main/Swift/Resources/AutoStateMachineHashable.stencil) provided in this repository. Once the codegen is setup and configured, adopt `AutoStateMachineHashable` instead of `StateMachineHashable` for the `State` and/or `Event` enumerations.

</details>

## Examples

#### Matter State Machine

- [Kotlin](https://github.com/Tinder/StateMachine/blob/c5c8155d55db5799190d9a06fbc31263c76c80b6/src/test/kotlin/com/tinder/StateMachineTest.kt#L18-L47)
- [Swift](https://github.com/Tinder/StateMachine/blob/c5c8155d55db5799190d9a06fbc31263c76c80b6/Swift/Tests/StateMachineTests/StateMachine_Matter_Tests.swift#L40-L69)

#### Turnstile State Machine

- [Kotlin](https://github.com/Tinder/StateMachine/blob/c5c8155d55db5799190d9a06fbc31263c76c80b6/src/test/kotlin/com/tinder/StateMachineTest.kt#L157-L185)
- [Swift](https://github.com/Tinder/StateMachine/blob/c5c8155d55db5799190d9a06fbc31263c76c80b6/Swift/Tests/StateMachineTests/StateMachine_Turnstile_Tests.swift#L36-L64)

## Kotlin Download

`StateMachine` is available in Maven Central.

Snapshots of the development version are available in [Sonatype's `snapshots` repository](https://oss.sonatype.org/content/repositories/snapshots/).

### Maven

```xml
<dependency>
    <groupId>com.tinder.statemachine</groupId>
    <artifactId>statemachine</artifactId>
    <version>0.3.0</version>
</dependency>
```

### Gradle

```groovy
implementation 'com.tinder.statemachine:statemachine:0.3.0'
```

## Swift Installation

### Swift Package Manager

```
.package(url: "https://github.com/Tinder/StateMachine.git", from: "0.3.0")
```

### Cocoapods

```
pod 'StateMachine', :git => 'https://github.com/Tinder/StateMachine.git'
```

## References

[A composable pattern for pure state machines with effects](https://gist.github.com/andymatuschak/d5f0a8730ad601bcccae97e8398e25b2) - [Andy Matuschak](https://gist.github.com/andymatuschak)

## Visualization

Thanks to [@nvinayshetty](https://github.com/nvinayshetty), you can visualize your state machines right in the IDE using the [State Arts](https://github.com/nvinayshetty/StateArts) Intellij [plugin](https://plugins.jetbrains.com/plugin/12193-state-art).
