# 量化学习 | 配对交易 backtrader实现
**配对交易**，其基本原理就是找出两只走势相关的股票。这两只股票的价格差距从长期来看在一个固定的水平内波动，如果价差暂时性的超过或低于这个水平，就买多价格偏低的股票，卖空价格偏高的股票。等到价差恢复正常水平时，进行平仓操作，赚取这一过程中价差变化所产生的利润。
其实就是找到两个关联性高的股票A和B，做出调仓策略，**如果觉得当前A价格过高就换B，这里的假设是历史走势相关性高，那么未来也是相关性高的，这里并不无道理，如果现在的价格是相关的，未来短期相关的假设是可以接受的。**
那我们可以用**tushare**获取**银行行业**的股票，基本面相同的情况下，我们认为其走势相关性更高，再在这个范围找出两个相关性高的股票。
本文大部分分析都是根据这篇文章做出的：https://bigquant.com/community/t/topic/260
我这里首先封装了一下**tushare**的常用获取接口后面通过**from stock_api import ***来获取
```python
import tushare as ts
mytoken = 'your_token'
ts.set_token(mytoken)
pro = ts.pro_api()
def get_daily(ts_code, start_date, end_date):
# get stock daily price and other info from start_date to end_date
try:
df = pro.daily(ts_code=ts_code,
start_date=start_date,
end_date=end_date)
except Exception as e:
print('Retry, We get error:', e)
df = get_daily()
return df
def get_stock_basic():
# get all stock basic info
try:
df = pro.stock_basic(
exchange='',
list_status='L',
fields='ts_code,symbol,name,area,industry,list_date')
except Exception as e:
print('Retry, We get error:', e)
df = get_stock_basic()
return df
def get_daily_basic(trade_date):
# get all stock daily_basic info
try:
df = pro.daily_basic(
ts_code='',
trade_date=trade_date,
fields='ts_code,trade_date,turnover_rate,volume_ratio,pe,pb')
except Exception as e:
print('Retry, We get error:', e)
df = get_daily_basic(trade_date)
return df
def get_income(code, start_date, end_date):
try:
income = pro.income(ts_code=code,
start_date=start_date,
end_date=end_date,
fields='ts_code,basic_eps,diluted_eps')
except Exception as e:
print('Retry, We get error:', e)
income = get_income(code, start_date, end_date)
return income
```
## 获取行业股票构造字典
```python
import backtrader.plot
import matplotlib
import matplotlib.pyplot as plt
import tushare as ts
from datetime import datetime
import backtrader as bt
import pandas as pd
import os
from stock_api import *
import numpy as np
import statsmodels.api as sm
import seaborn as sns
data = get_stock_basic()
last_year = '20180101'
start_date='20190102'
end_date='20200103'
instruments_code_bank = list(data[data.industry=='银行']['ts_code'])
prices_temp=pd.DataFrame()
for c in instruments_code_bank:
c_daily = get_daily(c,start_date,end_date)
prices_temp=prices_temp.append(c_daily)
prices_temp_code_close=prices_temp[['ts_code','close']]
# 获取20190102-20200103的股票出现最多的交易日期长度
# 因为有一些20190102以后中途出现停牌的情况
mode_num = np.argmax(np.bincount([len(i) for i in [prices_temp_code_close[prices_temp_code_close.ts_code==c] for c in instruments_code_bank]]))
print(mode_num) # 246
# 构造字典通过ts_code索引这一年的收盘价
price_dict_all = dict(list(prices_temp_code_close.groupby('ts_code')['close']))
# 筛选出字典中交易日期跟众数相等的股票，这样才可以分析出更多再股票池里相关性高的一对
price_dict = dict(filter(lambda x:len(x[1])==mode_num, price_dict_all.items()))
instruments_code=list(price_dict.keys())
print(instruments_code)
```
银行股票代码是下面这个列表：
**['000001.SZ', '002142.SZ', '002807.SZ', '002839.SZ', '002936.SZ', '600000.SH', '600015.SH', '600016.SH', '600036.SH', '600908.SH', '600919.SH', '600926.SH', '601009.SH', '601128.SH', '601166.SH', '601169.SH', '601229.SH', '601288.SH', '601328.SH', '601398.SH', '601577.SH', '601818.SH', '601838.SH', '601939.SH', '601988.SH', '601997.SH', '601998.SH', '603323.SH']**
## 相关性分析
```python
# 输入是一price_dict，每一列是一支股票在每一日的价格
def find_cointegrated_pairs(price_dict):
# 得到price_dict长度
n = len(price_dict)
# 初始化p值矩阵
pvalue_matrix = np.ones((n, n))
# 抽取列的名称
keys = list(price_dict.keys())
mode_num = np.argmax(np.bincount([len(i) for i in list(price_dict.values())]))
print("keys:",keys)
# 初始化强协整组
pairs = []
# 对于每一个i
for i in range(n):
# 对于大于i的j
stock1 = price_dict[keys[i]]
if len(stock1)!=mode_num:
continue
for j in range(i+1, n):
# 获取相应的两只股票的价格Series
stock2 = price_dict[keys[j]]
if len(stock2)!=mode_num:
continue
# 分析它们的协整关系
result = sm.tsa.stattools.coint(stock1, stock2)
# 取出并记录p值
pvalue = result[1]
pvalue_matrix[i, j] = pvalue
# 如果p值小于0.05
if pvalue < 0.05:
# 记录股票对和相应的p值
pairs.append((keys[i], keys[j], pvalue))
# 返回结果
return pvalue_matrix, pairs
pvalues, pairs = find_cointegrated_pairs(price_dict)
pairs_df = pd.DataFrame(pairs, index=range(0,len(pairs)), columns=list(['bank1','bank2','pvalue']))
#pvalue越小表示相关性越大,按pvalue升序排名就是获取相关性从大到小的股票对
pairs_df=pairs_df.sort_values(by='pvalue')
pairs_df
```
这里是相关性分析，每个股票之间都做**sm.tsa.stattools.coint**的协整性关系计算，p值小于0.05的放进pairs里考虑，**p值越小相关性越高**。
```python
%matplotlib inline
plt.rcParams['figure.figsize'] = [15, 8]
sns.heatmap(1-pvalues, xticklabels=instruments_code, yticklabels=instruments_code, cmap='RdYlGn_r', mask = (pvalues == 1))
```

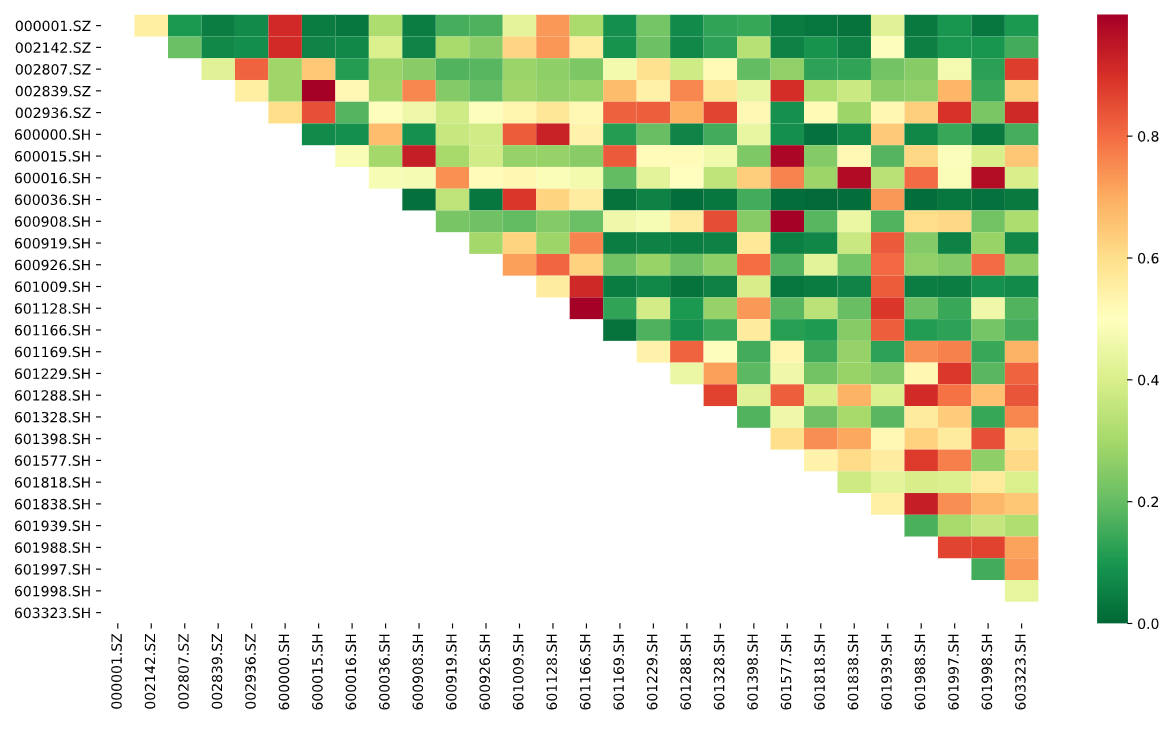

股票对的相关性热度图：
热度图中越红表示相关性越高，表示p值越小
pairs_df是下面这个表格显示：
| bank1 | bank2 | pvalue |
| --------: | --------: | -------- |
| 601128.SH | 601166.SH | 0.000734 |
| 600908.SH | 601577.SH | 0.002515 |
| 002839.SZ | 600015.SH | 0.002777 |
| 600015.SH | 601577.SH | 0.012600 |
| 600016.SH | 601838.SH | 0.027678 |
| 600016.SH | 601998.SH | 0.030310 |
可以看到601128.SH 和601166.SH 相关性最高，他们是
- **601128.SH 常熟银行 X**
- **601166.SH 兴业银行 Y**
```python
# bank_choose = ['601128.SH','601166.SH']
bank_choose = [pairs_df.iloc[0].bank1,pairs_df.iloc[0].bank2]
# bank_choose
x = price_dict[bank_choose[0]]
y = price_dict[bank_choose[1]]
X = sm.add_constant(x)
result = (sm.OLS(y,X)).fit()
print(result.summary())
```
```shell
OLS Regression Results
==============================================================================
Dep. Variable: close R-squared: 0.853
Model: OLS Adj. R-squared: 0.852
Method: Least Squares F-statistic: 1415.
Date: Fri, 20 Mar 2020 Prob (F-statistic): 1.51e-103
Time: 22:43:54 Log-Likelihood: -160.79
No. Observations: 246 AIC: 325.6
Df Residuals: 244 BIC: 332.6
Df Model: 1
Covariance Type: nonrobust
==============================================================================
coef std err t P>|t| [0.025 0.975]
------------------------------------------------------------------------------
const 6.1175 0.324 18.883 0.000 5.479 6.756
close 1.5575 0.041 37.617 0.000 1.476 1.639
==============================================================================
Omnibus: 9.358 Durbin-Watson: 0.324
Prob(Omnibus): 0.009 Jarque-Bera (JB): 9.387
Skew: 0.468 Prob(JB): 0.00915
Kurtosis: 3.199 Cond. No. 86.5
==============================================================================
```
可以看到OLS线性回归之后，算出它们是以什么系数线性组合的系数构成平稳序列的。
**Y = 1.5575*X + 6.1175**
画出数据和拟合线：
```python
fig, ax = plt.subplots(figsize=(8,6))
ax.plot(x, y, 'o', label="data")
ax.plot(x, result.fittedvalues, 'r', label="OLS")
ax.legend(loc='best')
```
后面我想观察一下**601128.SH 常熟银行 X 和601166.SH 兴业银行 Y**是否真的相关，历史行情看一下走势，为此封装了一下**plotly.graph_objects**的函数：
```python
def plot_scatter(fig, y, x=None, name=None, title=None, show=True):
fig.add_trace(go.Scatter(y=y, x=x, name=name))
fig.update_layout(title=title)
if show:
fig.show()
```
这里[::-1]都是为了把dataframe或者list倒过来，因为tushare获得的数据都是从最近的日期排下来的，譬如我这里20200103是index为0的数据，所以这里我为了画图倒过来了。
```python
trade_date = prices_temp['trade_date'].unique()
date_series = pd.to_datetime(trade_date[::-1])
date_series
fig = go.Figure()
plot_scatter(fig, y=price_dict[bank_choose[0]][::-1], x=date_series, name=bank_choose[0], show=False)
plot_scatter(fig, y=price_dict[bank_choose[1]][::-1], x=date_series, name=bank_choose[1], show=True)
```
```python
fig = go.Figure()
plot_scatter(fig, y=y-1.5575*x, x=date_series, name='Stationary Series', show=False)
plot_scatter(fig, y=[np.mean(y-1.5575*x)]*len(y), x=date_series, name='mean', show=True)
```
## 买卖时机的判断
这里，我们先介绍一下, z−score 是对时间序列偏离其均值程度的衡量，表示时间序列偏离了其均值多少倍的标准差。首先，我们定义一个函数来计算 z−score：
一个序列在时间 t 的 z−score，是它在时间 t 的值，减去序列的均值，再除以序列的标准差后得到的值。
```python
def zscore(series):
return (series - series.mean()) / np.std(series)
zscore_calcu = zscore(y-1.5575*x)
fig_bs=go.Figure()
plot_scatter(fig_bs,zscore_calcu,date_series,name='zscore',show=False)
plot_scatter(fig_bs,[0.]*len(y),date_series,name='Mean',show=False) # np.mean(zscore_calcu)=0.
plot_scatter(fig_bs,[1.]*len(y),date_series,name='upper',show=False)
plot_scatter(fig_bs,[-1.]*len(y),date_series,name='lower',show=True)
```
其实很简单的策略，就是当zscore大于1的时候我们认为Y的估值相对X已经过高，考虑卖出Y买入X，当小于-1的时候相反。

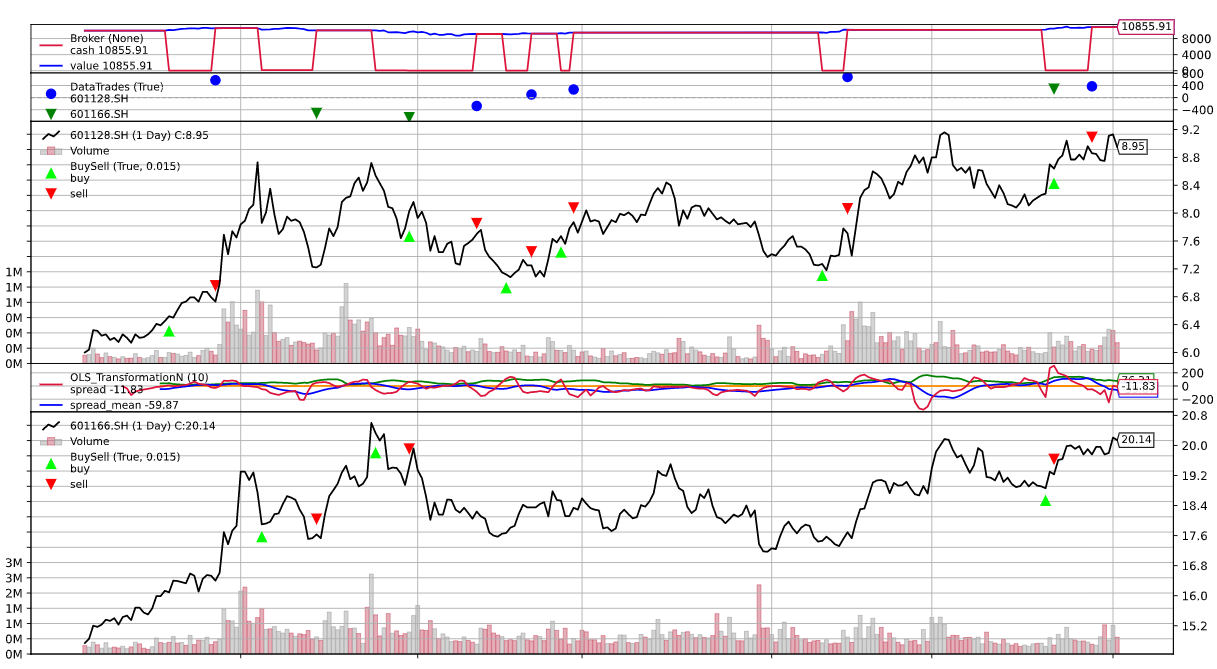

## backtrader策略实现
1.交易标的：**601128.SH 常熟银行 X和601166.SH 兴业银行 Y**
2.交易信号： 当zscore大于1时，全仓买入data0常熟银行，全仓卖出data1兴业银行→做空价差 当zscore小于-1时，全仓卖出data0常熟银行，全仓买入data1兴业银行→做多价差
策略如下，写完策略可以直接传递给runner：
```python
import backtrader as bt
import backtrader.feeds as btfeeds
import backtrader.indicators as btind
class PairTradingStrategy(bt.Strategy):
params = dict(
period=10,
qty1=0,
qty2=0,
printout=False,
upper=1,
lower=-1,
up_medium=0.5,
low_medium=-0.5,
status=0,
)
# 这里说明一下；self.p.upper即可访问params里的参数，这是bt.Strategy里实现的
# 所以这里params一般都是声明跟策略相关的变量，可以通过self.p的属性进行获取
def log(self, txt, dt=None):
if self.p.printout:
dt = dt or self.data.datetime[0]
dt = bt.num2date(dt)
def notify_order(self, order):
if order.status in [bt.Order.Submitted, bt.Order.Accepted]:
return # Await further notifications
if order.status == order.Completed:
if order.isbuy():
buytxt = 'BUY COMPLETE, %.2f' % order.executed.price
self.log(buytxt, order.executed.dt)
else:
selltxt = 'SELL COMPLETE, %.2f' % order.executed.price
self.log(selltxt, order.executed.dt)
elif order.status in [order.Expired, order.Canceled, order.Margin]:
self.log('%s ,' % order.Status[order.status])
pass # Simply log
# Allow new orders
self.orderid = None
def __init__(self):
# To control operation entries
self.orderid = None
self.qty1 = self.p.qty1
self.qty2 = self.p.qty2
self.upper_limit = self.p.upper
self.lower_limit = self.p.lower
self.up_medium = self.p.up_medium
self.low_medium = self.p.low_medium
self.status = self.p.status
# Signals performed with PD.OLS :
self.transform = btind.OLS_TransformationN(self.data0, self.data1,
period=self.p.period)
self.zscore = self.transform.zscore
def next(self):
if self.orderid:
return # if an order is active, no new orders are allowed
if self.p.printout:
print('Self len:', len(self))
print('Data0 len:', len(self.data0))
print('Data1 len:', len(self.data1))
print('Data0 len == Data1 len:',
len(self.data0) == len(self.data1))
print('Data0 dt:', self.data0.datetime.datetime())
print('Data1 dt:', self.data1.datetime.datetime())
print('status is', self.status)
print('zscore is', self.zscore[0])
if (self.zscore[0] > self.upper_limit) and (self.status != 1):
self.status = 1
self.order_target_percent(self.data1,0) # data1 = y
self.order_target_percent(self.data0,1) # data0 = x
elif (self.zscore[0] < self.lower_limit) and (self.status != 2):
self.order_target_percent(self.data0,0) # data0 = x
self.order_target_percent(self.data1,1) # data1 = y
self.status = 2
def stop(self):
print('==================================================')
print('Starting Value - %.2f' % self.broker.startingcash)
print('Ending Value - %.2f' % self.broker.getvalue())
print('==================================================')
```
根据之前写过的策略，我封装了一个Strategy_runner，后面继承为多数据策略的runner，这里不看也不妨碍理解：
```python
from datetime import datetime
import backtrader as bt
import pandas as pd
import os
import tushare as ts
import matplotlib
import matplotlib.pyplot as plt
from stock_api import get_daily
matplotlib.use('agg')
data_path = './data/'
if not os.path.exists(data_path):
os.makedirs(data_path)
mytoken = 'your_token'
class Strategy_runner:
def __init__(self,
strategy,
ts_code,
start_date,
end_date,
data_path=data_path,
pro=True,
token=mytoken):
ts.set_token(mytoken)
pro = ts.pro_api()
self.ts_code = ts_code
self.start_date = start_date
self.end_date = end_date
self.data_path = data_path
# convert to datetime
self.start_datetime = datetime.strptime(start_date, '%Y%m%d')
self.end_datetime = datetime.strptime(end_date, '%Y%m%d')
df = self.read_save(self.ts_code, pro)
self.df_bt = self.preprocess(df, pro)
self.strategy = strategy
self.cerebro = bt.Cerebro()
def read_save(self, ts_code, pro=True):
if pro:
csv_name = f'pro_day_{str(ts_code)}-{str(self.start_date)}-{str(self.end_date)}.csv'
else:
csv_name = f'day_{str(ts_code)}-{str(self.start_date)}-{str(self.end_date)}.csv'
csv_path = os.path.join(self.data_path, csv_name)
if os.path.exists(csv_path):
if pro:
df = pd.read_csv(csv_path)
else:
df = pd.read_csv(csv_path, index_col=0)
else:
if pro:
# self.pro = ts.pro_api()
# self.df = self.pro.daily(ts_code=self.ts_code, start_date=self.start_date, end_date=self.end_date)
df = get_daily(ts_code, self.start_date, self.end_date)
if not df.empty:
df.to_csv(csv_path, index=False)
else:
df = ts.get_hist_data(ts_code, str(self.start_datetime),
str(self.end_datetime))
if not df.empty:
df.to_csv(csv_path, index=True)
return df
def preprocess(self, df, pro=False):
if pro:
features = ['open', 'high', 'low', 'close', 'vol', 'trade_date']
# convert_datetime = lambda x:datetime.strptime(x,'%Y%m%d')
convert_datetime = lambda x: pd.to_datetime(str(x))
df['trade_date'] = df['trade_date'].apply(convert_datetime)
bt_col_dict = {'vol': 'volume', 'trade_date': 'datetime'}
df = df.rename(columns=bt_col_dict)
df = df.set_index('datetime')
# df.index = pd.DatetimeIndex(df.index)
else:
features = ['open', 'high', 'low', 'close', 'volume']
df = df[features]
df['openinterest'] = 0
df.index = pd.DatetimeIndex(df.index)
df = df[::-1]
return df
def run(self):
data = bt.feeds.PandasData(dataname=self.df_bt,
fromdate=self.start_datetime,
todate=self.end_datetime)
self.cerebro.adddata(data) # Add the data feed
self.cerebro.addstrategy(self.strategy) # Add the trading strategy
# self.cerebro.broker.setcash(1000.0)
# self.cerebro.addsizer(bt.sizers.FixedSize, stake=100)
self.cerebro.broker.setcommission(commission=0.0) # 佣金
self.cerebro.addanalyzer(bt.analyzers.SharpeRatio, _name='SharpeRatio')
self.cerebro.addanalyzer(bt.analyzers.DrawDown, _name='DW')
self.results = self.cerebro.run()
strat = self.results[0]
print('Final Portfolio Value: %.2f' % self.cerebro.broker.getvalue())
print('SR:', strat.analyzers.SharpeRatio.get_analysis())
print('DW:', strat.analyzers.DW.get_analysis())
return self.cerebro, strat
def plot(self, iplot=False):
plt.rcParams['figure.figsize'] = [15, 8]
self.cerebro.plot(iplot=iplot)
def test():
from SmaCross import SmaCross
ts_code = '600515.SH'
start_date = '20190101'
end_date = '20191231'
strategy_runner = Strategy_runner(strategy=SmaCross,
ts_code=ts_code,
start_date=start_date,
end_date=end_date,
pro=True)
results = strategy_runner.run()
strategy_runner.plot()
return results
if __name__ == '__main__':
test()
```
继承封装为其投入多条股票数据,主要就是多一个ts_code1：
```python
from Strategy_runner import Strategy_runner
data_path = './data/'
if not os.path.exists(data_path):
os.makedirs(data_path)
mytoken = 'your_token'
class Multidata_Strategy_runner(Strategy_runner):
def __init__(self, strategy, ts_code, ts_code1, start_date, end_date, data_path=data_path, pro=True, token=mytoken):
super().__init__(strategy, ts_code, start_date, end_date, data_path=data_path, pro=True, token=mytoken)
self.ts_code1 = ts_code1
df1 = super().read_save(self.ts_code1, pro)
self.df_bt1 = super().preprocess(df1, pro)
def run(self):
data = bt.feeds.PandasData(dataname=self.df_bt,
fromdate=self.start_datetime,
todate=self.end_datetime)
data1 = bt.feeds.PandasData(dataname=self.df_bt1,
fromdate=self.start_datetime,
todate=self.end_datetime)
self.cerebro.adddata(data, name=self.ts_code) # Add the data feed
self.cerebro.adddata(data1, name=self.ts_code1) # Add the data feed
self.cerebro.addstrategy(self.strategy) # Add the trading strategy
# self.cerebro.broker.setcash(1000.0)
# self.cerebro.addsizer(bt.sizers.FixedSize, stake=100)
self.cerebro.broker.setcommission(commission=0.0) # 佣金
self.cerebro.addanalyzer(bt.analyzers.SharpeRatio, _name='SharpeRatio')
self.cerebro.addanalyzer(bt.analyzers.DrawDown, _name='DW')
self.results = self.cerebro.run()
strat = self.results[0]
print('Final Portfolio Value: %.2f' % self.cerebro.broker.getvalue())
print('SR:', strat.analyzers.SharpeRatio.get_analysis())
print('DW:', strat.analyzers.DW.get_analysis())
return self.cerebro, strat
```
run一下：
```python
strategy_runner = Multidata_Strategy_runner(strategy=PairTradingStrategy, ts_code=bank_choose[0], ts_code1=bank_choose[1],start_date=start_date, end_date=end_date, pro=True)
cerebro, strat = strategy_runner.run()
strategy_runner.plot()
```
```shell
==================================================
Starting Value - 10000.00
Ending Value - 10855.91
==================================================
Final Portfolio Value: 10855.91
SR: OrderedDict([('sharperatio', 0.7663305721395932)])
DW: AutoOrderedDict([('len', 12), ('drawdown', 0.9858628237869406), ('moneydown', 108.09000000000015), ('max', AutoOrderedDict([('len', 202), ('drawdown', 18.257629657367524), ('moneydown', 1950.2799999999988)]))])
```
最后赚了855.91元。
## 总结
实现过程并不难，主要是为了分析这个策略的可行性，理解其思想，首先配对交易的假设是未来走势也与现在分析的存在较高相关性，但是是否真是如此，如果后面走势不一致，以及价值不符合市场，暴跌暴升是否能预测出呢？
