### Huawei Solar Modbus to Home Assistant via MQTT + Auto-Discovery 🇬🇧 **English** | [🇩🇪 Deutsch](README.de.md) [](https://www.home-assistant.io/) [](https://github.com/arboeh/huABus/releases/latest) [](https://github.com/arboeh/huABus/actions) [](https://codecov.io/gh/arboeh/huABus) [](https://github.com/arboeh/huABus/blob/main/SECURITY.md) [](https://github.com/arboeh/huABus/graphs/commit-activity) [](https://github.com/arboeh/huABus/blob/main/LICENSE) [](https://github.com/arboeh/huABus) [](https://github.com/arboeh/huABus) [](https://github.com/arboeh/huABus) [](https://github.com/arboeh/huABus) [](https://github.com/arboeh/huABus) **66 Essential Registers * 67 Entities * Optional MQTT Heartbeat * 30s Polling** **Changelog:** [CHANGELOG.md](huawei_solar_modbus_mqtt/CHANGELOG.md) > **⚠️ IMPORTANT: Single Modbus Connection Limit** > Huawei inverters allow **only ONE active Modbus TCP connection**. > > - ✅ Remove any other Huawei Solar integrations (wlcrs/huawei_solar, HACS, etc.) > - ✅ Disable monitoring tools and apps with Modbus access > - ✅ Note: FusionSolar Cloud may show "Abnormal communication" - this is expected ## Features - **Automatic Slave ID Detection:** Tries common values (1, 2, 100) automatically - **Modbus TCP → MQTT:** 67 entities with Auto-Discovery - **Complete Monitoring:** Battery, PV (1-4), Grid (3-phase), Energy counters - **Total Increasing Filter:** Prevents false counter resets in energy statistics - **Auto MQTT Configuration:** Automatically uses Home Assistant MQTT credentials - **Batch Reading (v1.10.1+):** Optional mode for up to 75% faster Modbus cycles with automatic fallback and safer default batching. - **Performance Diagnostics:** Per-register timing analysis at DEBUG level to identify bottlenecks - **TRACE Log Level:** Ultra-detailed debugging with Modbus byte arrays - **Comprehensive Test Suite:** 93% code coverage - **Performance:** ~2-5s read cycle, configurable poll interval (30-60s recommended) - **Cross-Platform:** All major architectures (aarch64, amd64, armhf, armv7, i386) - **Multi Architecture:** Home Assistant add-on builds via explicit `build.yaml` base image mapping ## 🚀 Quick Start 1. [](https://my.home-assistant.io/redirect/supervisor_add_addon_repository/?repository_url=https%3A%2F%2Fgithub.com%2Farboeh%2FhuABus) 2. Install "huABus | Huawei Solar Modbus to MQTT" 3. **Minimal Configuration:** ```yaml modbus_host: 192.168.1.100 modbus_auto_detect_slave_id: true log_level: INFO ``` 4. Start the addon → **Settings → Devices & Services → MQTT → "Huawei Solar Inverter"** ## Batch Reading Mode (v1.10.1+) Reads all 66 registers in 3-5 batches instead of individually. **Performance improvement:** up to 75% faster on high-latency networks. Automatic fallback to sequential mode if batching fails. **Configuration:** ```yaml enable_batching: true # Default: smart batching enabled batch_max_gap: 50 # Max address gap per batch (recommended: 30-50) ``` **Details:** - `enable_batching: true` - Groups registers by Modbus address proximity, reducing 66 individual reads to typically 3-5 batch requests. - `batch_max_gap: 50` - Maximum address gap (in Modbus units) within a batch. Smaller values create more batches with less risk of exceeding the inverter's internal limit (~125 registers per batch). Larger values reduce batch count but increase the risk of batch failures. - **Recommended:** `30-50` for most installations. Only increase to `100` if you have a stable, high-performance network. - Disable (`enable_batching: false`) if you experience repeated batch failures. ## EVCC Integration (No Modbus Proxy!) huABus publishes all data to a single MQTT topic (`huawei-solar`), enabling direct EVCC integration without Modbus proxy or conflicts. **Requirement:** Activated MQTT in [evcc HA Addon](https://github.com/evcc-io/hassio-addon) (evcc UI → Settings → MQTT) **Grid Meter:** ```yaml power: source: mqtt topic: huawei-solar jq: "(.meter_power_active * -1)" ``` **Solar Meter:** ```yaml power: source: mqtt topic: huawei-solar jq: ".power_input" ``` **Battery (optional):** ```yaml power: source: mqtt topic: huawei-solar jq: "(.battery_power * -1)" soc: source: mqtt topic: huawei-solar jq: ".battery_soc" capacity: 10 ```    ## Comparison: wlcrs/huawei_solar vs. This Addon | Feature | wlcrs/huawei_solar
(Integration) | This Addon

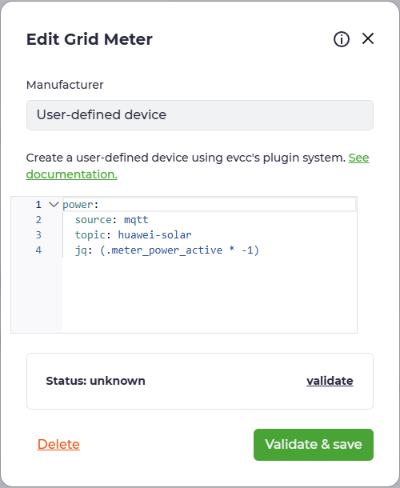

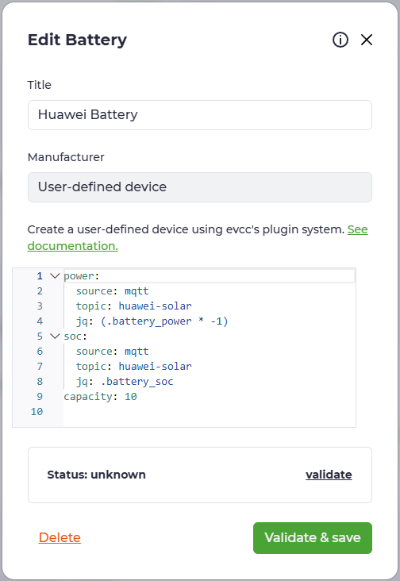

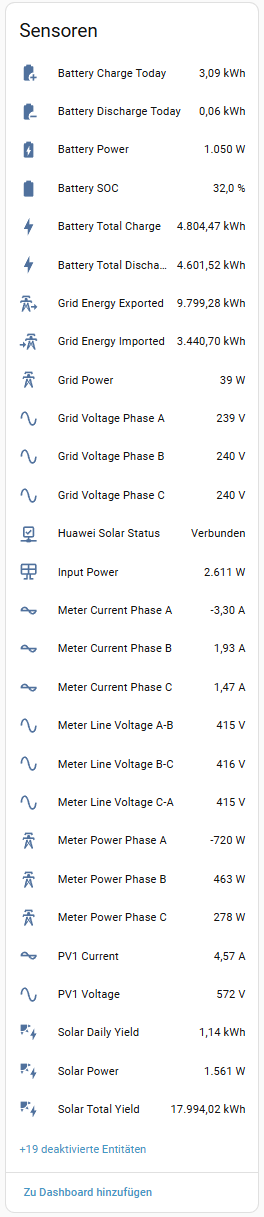

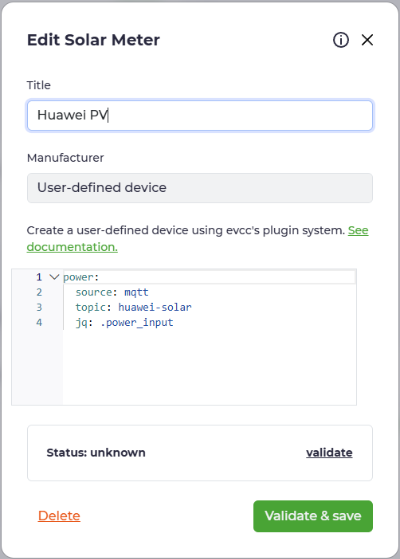

(MQTT Bridge) | | ----------------------- | ----------------------------------- | ---------------------------- | | Battery control | ✅ | ❌ (read-only) | | MQTT-native | ❌ | ✅ | | Batch reading | ❌ | ✅ (optional, auto fallback) | | Auto Slave ID detection | ❌ | ✅ | | Total Increasing filter | ❌ | ✅ | | External integrations | Limited | ✅ (EVCC, Node-RED, Grafana) | | Error tracking | Basic | Advanced | Both share the same limitation - only **ONE Modbus connection**. To use both simultaneously, you need a Modbus Proxy. ## Screenshots    ## Configuration - **Modbus Host:** Inverter IP address (e.g. `192.168.1.100`) - **Modbus Port:** Default: `502` - **Auto-detect Slave ID:** Default: `true` (tries 1, 2, 100 automatically) - **Slave ID (manual):** Only used when auto-detection disabled - **MQTT Broker:** Default: `core-mosquitto` (leave empty for auto-config) - **MQTT Port:** Default: `1883` - **MQTT Username/Password:** Optional (leave empty to use HA MQTT credentials) - **MQTT Topic:** Default: `huawei-solar` - **Log Level:** `TRACE` | `DEBUG` | `INFO` (recommended) | `WARNING` | `ERROR` - **Status Timeout:** Default: `180s` - **Poll Interval:** Default: `30s` (recommended: 30-60s) ## Troubleshooting **Multiple Modbus connections** (most common!): Disable all other Huawei integrations and monitoring tools. Only ONE connection allowed. **All Slave IDs fail:** Enable Modbus TCP in inverter settings, verify IP address, check firewall. **MQTT Errors:** Set broker to `core-mosquitto`, leave credentials empty. **Logs:** Addon → Huawei Solar Modbus to MQTT → Log Tab **Debug Mode:** Set `log_level: DEBUG` ## Latest Updates See [CHANGELOG.md](huawei_solar_modbus_mqtt/CHANGELOG.md) for detailed release notes. - **v1.11.0:** Library upgrade to huawei-solar 3.0.7 (tModbus transport), Python >=3.12, narrowed exception handling to READ_EXCEPTIONS, `get_error_tracker()` accessor, test coverage 93.23% → 93.33%, SECURITY.md updated (supported versions, 93% coverage), dependency changes (removed pymodbus/backoff/pytz, added tmodbus/serialx/tenacity) - ✅ **v1.10.4:** Modbus connection timeout on setup_modbus(), narrowed exception handlers in run_main_cycle to explicit RECOVERABLE_EXCEPTIONS, typed ErrorType in error tracker ## Credits **Based on:** [mjaschen/huawei-solar-modbus-to-mqtt](https://github.com/mjaschen/huawei-solar-modbus-to-mqtt) **Uses library:** [wlcrs/huawei-solar-lib](https://github.com/wlcrs/huawei-solar-lib) **Developed by:** [arboeh](https://github.com/arboeh) | **License:** MIT
