"## Fear of Bees: Extracting Ontologies from Wikidata\n",
"\n",
"Wikidata includes links between entities using predicates such as SubClassOf (P279). These form a classification hierarchy,\n",
"although as this comes from multiple sources, it may not conform to the same rules as ontology hierarchies.\n",
"\n",
"OntoBio includes a wikidata ontology factory, so we can transparently create an Ontology object from wikidata,\n",
"and leverage the same methods available in ontobio.\n",
"\n",
"This example is focused around [Anxiety disorders](https://www.wikidata.org/wiki/Q544006)\n"
]
},
{
"cell_type": "code",
"execution_count": 1,
"metadata": {},
"outputs": [
{
"name": "stderr",
"output_type": "stream",
"text": [
"WARNING:rdflib.term: does not look like a valid URI, trying to serialize this will break.\n"
]
}
],
"source": [
"from ontobio.ontol_factory import OntologyFactory\n",
"f = OntologyFactory()\n",
"\n",
"## OntologyFactory recognizes the prefix wdq for wikidata queries;\n",
"## We use this to make a sub-ontology\n",
"## (currently we have no lazy wrapper for WD, only Eager, so we limit the size)\n",
"ont = f.create('wdq:Q544006') # Anxiety disorder"
]
},
{
"cell_type": "code",
"execution_count": 2,
"metadata": {},
"outputs": [
{
"data": {
"text/plain": [
"[rdflib.term.URIRef('http://www.wikidata.org/entity/Q544006')]"
]
},
"execution_count": 2,
"metadata": {},
"output_type": "execute_result"
}
],
"source": [
"## Find terms starting with Anxiety in the sub-ontology\n",
"qids = ont.search('Anxiety%')\n",
"qids"
]
},
{
"cell_type": "code",
"execution_count": 3,
"metadata": {},
"outputs": [
{
"data": {
"text/plain": [
"['Aktualneurosen',\n",
" 'cognitive disorder',\n",
" 'Anti-French sentiment in the United States',\n",
" 'acarophobia',\n",
" 'Organic disease',\n",
" 'identifier',\n",
" 'Alektorophobia',\n",
" 'Katagelasticism',\n",
" 'answer',\n",
" 'Counterphobic attitude',\n",
" 'compulsive act',\n",
" 'physical condition',\n",
" 'Piblokto',\n",
" 'blood phobia',\n",
" 'category of being',\n",
" 'Childhood phobias',\n",
" 'ability',\n",
" 'disposition',\n",
" 'Entomophobia',\n",
" 'physiological condition',\n",
" 'property',\n",
" 'Cynophobia',\n",
" 'neurosis effects',\n",
" 'bowel-control anxiety',\n",
" 'Anxiety disorder']"
]
},
"execution_count": 3,
"metadata": {},
"output_type": "execute_result"
}
],
"source": [
"## Traverse up and down from query node in our sub-ontology\n",
"nodes = ont.traverse_nodes(qids, up=True, down=True)\n",
"labels = [ont.label(n) for n in nodes]\n",
"labels[:25]"
]
},
{
"cell_type": "code",
"execution_count": 16,
"metadata": {},
"outputs": [
{
"name": "stdout",
"output_type": "stream",
"text": [
"['http://www.wikidata.org/entity/Q1347367 ability', 'http://www.wikidata.org/entity/Q151885 concept', 'http://www.wikidata.org/entity/Q9081 knowledge', 'http://www.wikidata.org/entity/Q3695082 sign', 'http://www.wikidata.org/entity/Q853614 identifier', 'http://www.wikidata.org/entity/Q937228 property']\n"
]
}
],
"source": [
"## Test for cycles\n",
"import networkx as nx\n",
"g = ont.get_graph()\n",
"def show_cycle(nl):\n",
" print([\"{} {}\".format(n, ont.label(n)) for n in nl])\n",
"\n",
"cycles_list = list(nx.simple_cycles(g))\n",
"show_cycle(cycles_list[0])"
]
},
{
"cell_type": "code",
"execution_count": 5,
"metadata": {},
"outputs": [
{
"name": "stdout",
"output_type": "stream",
"text": [
". http://www.wikidata.org/entity/Q544006 ! Anxiety disorder * \n",
" % http://www.wikidata.org/entity/Q741713 ! panic disorder\n",
" % http://www.wikidata.org/entity/Q6374996 ! Katagelasticism\n",
" % http://www.wikidata.org/entity/Q845224 ! generalized anxiety disorder\n",
" % http://www.wikidata.org/entity/Q377493 ! selective mutism\n",
" % http://www.wikidata.org/entity/Q5354941 ! Elective mutism\n",
" % http://www.wikidata.org/entity/Q202387 ! post-traumatic stress disorder\n",
" % http://www.wikidata.org/entity/Q10547816 ! Counterphobic attitude\n",
" % http://www.wikidata.org/entity/Q13604751 ! lovesickness\n",
" % http://www.wikidata.org/entity/Q1316515 ! School refusal\n",
" % http://www.wikidata.org/entity/Q4386741 ! Olfactory Reference Syndrome\n",
" % http://www.wikidata.org/entity/Q424221 ! acute stress disorder\n",
" % http://www.wikidata.org/entity/Q1482034 ! combat disorder\n",
" % http://www.wikidata.org/entity/Q18967153 ! mixed disorder as reaction to stress\n",
" % http://www.wikidata.org/entity/Q18967156 ! acute stress reaction with predominant disturbance of consciousness\n",
" % http://www.wikidata.org/entity/Q178190 ! obsessive-compulsive disorder\n",
" % http://www.wikidata.org/entity/Q7458802 ! Sexual obsessions\n",
" % http://www.wikidata.org/entity/Q231624 ! compulsive act\n",
" % http://www.wikidata.org/entity/Q7310756 ! Relationship obsessive–compulsive disorder\n",
" % http://www.wikidata.org/entity/Q19000444 ! neurotic disorder\n",
" % http://www.wikidata.org/entity/Q181032 ! neurosis effects\n",
" % http://www.wikidata.org/entity/Q144119 ! hysteria\n",
" % http://www.wikidata.org/entity/Q336203 ! Abwehrhysterie\n",
" % http://www.wikidata.org/entity/Q1779438 ! Piblokto\n",
" % http://www.wikidata.org/entity/Q423509 ! Aktualneurosen\n",
" % http://www.wikidata.org/entity/Q2300749 ! separation anxiety disorder\n",
" % http://www.wikidata.org/entity/Q19000931 ! organic anxiety disorder\n",
" % http://www.wikidata.org/entity/Q175854 ! phobia\n",
" % http://www.wikidata.org/entity/Q560107 ! Tryophobia\n",
" % http://www.wikidata.org/entity/Q1343559 ! ochlophobia\n",
" % http://www.wikidata.org/entity/Q980010 ! Tokophobia\n",
" % http://www.wikidata.org/entity/Q5097985 ! Childhood phobias\n",
" % http://www.wikidata.org/entity/Q909355 ! Francophobia\n",
" % http://www.wikidata.org/entity/Q3427834 ! Anti-French sentiment in the United States\n",
" % http://www.wikidata.org/entity/Q174589 ! agoraphobia\n",
" % http://www.wikidata.org/entity/Q22906231 ! Afrophobia\n",
" % http://www.wikidata.org/entity/Q1363791 ! erythrophobia\n",
" % http://www.wikidata.org/entity/Q13 ! triskaidekaphobia\n",
" % http://www.wikidata.org/entity/Q2015728 ! specific phobia\n",
" % http://www.wikidata.org/entity/Q944108 ! animal phobia\n",
" % http://www.wikidata.org/entity/Q619261 ! Ornithophobia\n",
" % http://www.wikidata.org/entity/Q4694196 ! Agrizoophobia\n",
" % http://www.wikidata.org/entity/Q3321265 ! Fear of fish\n",
" % http://www.wikidata.org/entity/Q596505 ! Ophidiophobia\n",
" % http://www.wikidata.org/entity/Q4422074 ! Vermiphobia\n",
" % http://www.wikidata.org/entity/Q405385 ! Ailurophobia\n",
" % http://www.wikidata.org/entity/Q4297397 ! Fear of frogs\n",
" % http://www.wikidata.org/entity/Q2319444 ! Herpetophobia\n",
" % http://www.wikidata.org/entity/Q38579 ! Cynophobia\n",
" % http://www.wikidata.org/entity/Q5384517 ! Equinophobia\n",
" % http://www.wikidata.org/entity/Q2157130 ! Entomophobia\n",
" % http://www.wikidata.org/entity/Q2160101 ! Fear of bees\n",
" % http://www.wikidata.org/entity/Q2822642 ! acarophobia\n",
" % http://www.wikidata.org/entity/Q220783 ! arachnophobia\n",
" % http://www.wikidata.org/entity/Q3440772 ! Fear of mice\n",
" % http://www.wikidata.org/entity/Q16002436 ! Alektorophobia\n",
" % http://www.wikidata.org/entity/Q5439392 ! Fear of bats\n",
" % http://www.wikidata.org/entity/Q3381344 ! Blood-injection-injury type phobia\n",
" % http://www.wikidata.org/entity/Q886731 ! blood phobia\n",
" % http://www.wikidata.org/entity/Q6034425 ! Injury phobia\n",
" % http://www.wikidata.org/entity/Q169922 ! Fear of needles\n",
" % http://www.wikidata.org/entity/Q1127417 ! flying phobia\n",
" % http://www.wikidata.org/entity/Q3052614 ! nosophobia\n",
" % http://www.wikidata.org/entity/Q18557105 ! cancerophobia\n",
" % http://www.wikidata.org/entity/Q18557109 ! AIDS phobia\n",
" % http://www.wikidata.org/entity/Q281928 ! social phobia\n",
" % http://www.wikidata.org/entity/Q17147649 ! Specific social phobia\n",
" % http://www.wikidata.org/entity/Q1335831 ! paruresis\n",
" % http://www.wikidata.org/entity/Q612851 ! Telephone phobia\n",
" % http://www.wikidata.org/entity/Q7136497 ! Parcopresis\n",
" % http://www.wikidata.org/entity/Q2540262 ! Glossophobia\n",
" % http://www.wikidata.org/entity/Q3219948 ! bowel-control anxiety\n",
" % http://www.wikidata.org/entity/Q168995 ! Surdophobia\n",
" % http://www.wikidata.org/entity/Q1131359 ! Amaxophobia\n",
"\n",
"\n"
]
}
],
"source": [
"## Show our extract of the sub-ontology as an ascii tree\n",
"## (note this is resilient to cycles)\n",
"\n",
"## only traverse down from our query nodes\n",
"## (including ancestors causes multiple paths, and a verbose display)\n",
"nodes = ont.traverse_nodes(qids, up=False, down=True)\n",
"\n",
"from ontobio.io.ontol_renderers import GraphRenderer\n",
"w = GraphRenderer.create('tree')\n",
"w.write_subgraph(ont, nodes, query_ids=qids)\n"
]
},
{
"cell_type": "code",
"execution_count": 6,
"metadata": {
"collapsed": true
},
"outputs": [],
"source": [

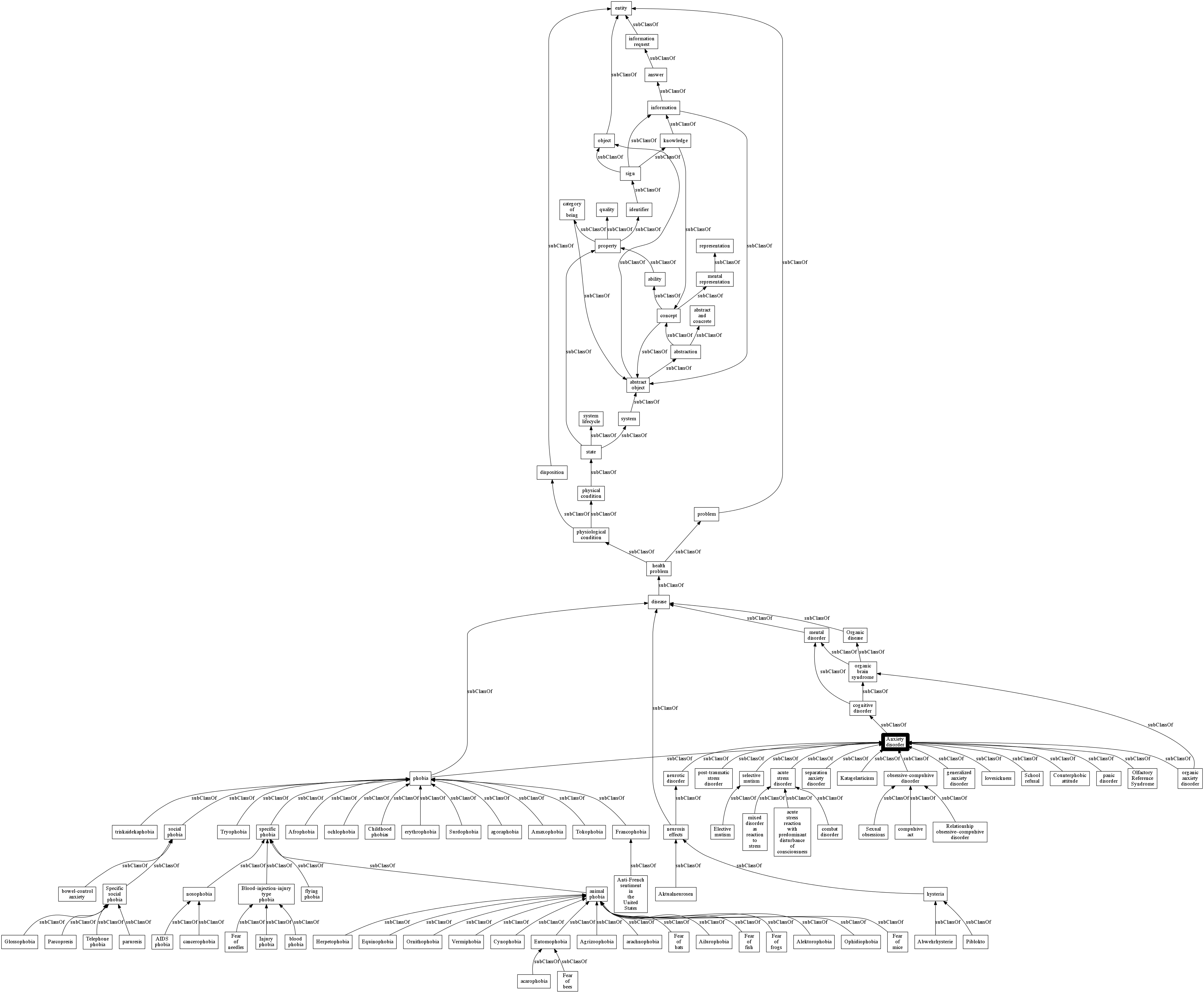

"## Show as graph using GraphViz\n",
"## We can do this for both descendants and ancestors\n",
"nodes = ont.traverse_nodes(qids, up=True, down=True)\n",
"\n",
"w = GraphRenderer.create('png')\n",
"w.outfile = 'output/anxiety-disorder.png'\n",
"w.write_subgraph(ont, nodes, query_ids=qids)\n"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
""
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Querying for associated entities\n",
"\n",
"TODO: Drugs\n"
]
},
{
"cell_type": "code",
"execution_count": 4,
"metadata": {},
"outputs": [],
"source": [
"## What proteins are associated with PTSD? (via GWAS)\n",
"[ptsd] = ont.search('post-traumatic stress disorder')\n",
"import ontobio.sparql.wikidata as wd\n",
"proteins = wd.canned_query('disease2protein', ptsd)"
]
},
{
"cell_type": "code",
"execution_count": 5,
"metadata": {},
"outputs": [
{
"data": {
"text/plain": [
"['UniProtKB:Q92831',\n",
" 'UniProtKB:P17252',\n",
" 'UniProtKB:Q8N9K7',\n",
" 'UniProtKB:O75899',\n",
" 'UniProtKB:Q92597',\n",
" 'UniProtKB:P40145',\n",
" 'UniProtKB:Q9HA38',\n",
" 'UniProtKB:P42658',\n",
" 'UniProtKB:Q9Y243',\n",
" 'UniProtKB:Q9NUQ9',\n",
" 'UniProtKB:Q9P272',\n",
" 'UniProtKB:Q9BY07',\n",
" 'UniProtKB:O43897',\n",
" 'UniProtKB:A0A024R9G4',\n",
" 'UniProtKB:Q4F7X0',\n",
" 'UniProtKB:E5RIR1',\n",
" 'UniProtKB:Q8IYG9',\n",
" 'UniProtKB:A7E2E4']"
]
},
"execution_count": 5,
"metadata": {},
"output_type": "execute_result"
}
],
"source": [
"proteins"
]
},
{
"cell_type": "code",
"execution_count": 10,
"metadata": {},
"outputs": [],
"source": [
"## Find GO terms for all genes/products associated with all nodes in Anxiety sub-ontology\n",
"\n",
"## First create a GO handle and get association sets for GO (in human)\n",
"go = f.create('go')\n",
"\n",
"from ontobio.assoc_factory import AssociationSetFactory\n",
"afactory = AssociationSetFactory()\n",
"aset = afactory.create(ontology=go,\n",
" subject_category='gene',\n",
" object_category='function',\n",
" taxon='NCBITaxon:9606')\n"
]
},
{
"cell_type": "code",
"execution_count": 19,
"metadata": {},
"outputs": [
{
"name": "stdout",
"output_type": "stream",
"text": [
"http://www.wikidata.org/entity/Q202387 post-traumatic stress disorder\n",
" GO:0007616 long-term memory\n",
" GO:0006171 cAMP biosynthetic process\n",
" GO:0007193 adenylate cyclase-inhibiting G-protein coupled receptor signaling pathway\n",
" GO:0016021 integral component of membrane\n",
" GO:0005524 ATP binding\n",
" GO:0003091 renal water homeostasis\n",
" GO:0005886 plasma membrane\n",
" GO:0004016 adenylate cyclase activity\n",
" GO:0004383 guanylate cyclase activity\n",
" GO:0006182 cGMP biosynthetic process\n",
" GO:0007165 signal transduction\n",
" GO:0007190 activation of adenylate cyclase activity\n",
" GO:0008294 calcium- and calmodulin-responsive adenylate cyclase activity\n",
" GO:0008074 guanylate cyclase complex, soluble\n",
" GO:0007189 adenylate cyclase-activating G-protein coupled receptor signaling pathway\n",
" GO:0046872 metal ion binding\n",
" GO:0007611 learning or memory\n",
" GO:0071377 cellular response to glucagon stimulus\n",
" GO:0016020 membrane\n",
" GO:0035556 intracellular signal transduction\n",
" GO:0034199 activation of protein kinase A activity\n",
" GO:0008198 ferrous iron binding\n",
" GO:0016706 oxidoreductase activity, acting on paired donors, with incorporation or reduction of molecular oxygen, 2-oxoglutarate as one donor, and incorporation of one atom each of oxygen into both donors\n",
" GO:0005634 nucleus\n",
" GO:0005737 cytoplasm\n",
" GO:0055114 oxidation-reduction process\n",
" GO:0016300 tRNA (uracil) methyltransferase activity\n",
" GO:0030488 tRNA methylation\n",
" GO:0002098 tRNA wobble uridine modification\n",
" GO:0000049 tRNA binding\n",
" GO:0006400 tRNA modification\n",
" GO:0008175 tRNA methyltransferase activity\n",
"http://www.wikidata.org/entity/Q741713 panic disorder\n",
" GO:0003713 transcription coactivator activity\n",
" GO:0030374 ligand-dependent nuclear receptor transcription coactivator activity\n",
" GO:0043565 sequence-specific DNA binding\n",
" GO:0044212 transcription regulatory region DNA binding\n",
" GO:0005515 protein binding\n",
" GO:0005634 nucleus\n",
" GO:0007165 signal transduction\n",
" GO:0045893 positive regulation of transcription, DNA-templated\n",
" GO:0003682 chromatin binding\n",
" GO:0001047 core promoter binding\n",
" GO:0003712 transcription cofactor activity\n",
" GO:0008022 protein C-terminus binding\n",
" GO:0043231 intracellular membrane-bounded organelle\n",
" GO:0045944 positive regulation of transcription from RNA polymerase II promoter\n",
" GO:0030518 intracellular steroid hormone receptor signaling pathway\n",
" GO:0006351 transcription, DNA-templated\n",
" GO:0008013 beta-catenin binding\n",
" GO:0070016 armadillo repeat domain binding\n",
" GO:0010628 positive regulation of gene expression\n",
" GO:0016055 Wnt signaling pathway\n",
" GO:0005829 cytosol\n",
" GO:0000790 nuclear chromatin\n"
]
}
],
"source": [
"for n in ont.nodes():\n",
" proteins = wd.canned_query('disease2protein', n)\n",
" anns = [a for p in proteins for a in aset.annotations(p)]\n",
" if len(anns) > 0:\n",
" print(\"{} {}\".format(n,ont.label(n)))\n",
" for a in anns:\n",
" print(\" {} {}\".format(a, go.label(a)))\n",
" \n",
" "
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {
"collapsed": true
},
"outputs": [],
"source": []
}
],
"metadata": {
"kernelspec": {
"display_name": "Python 3",
"language": "python",
"name": "python3"
},
"language_info": {
"codemirror_mode": {
"name": "ipython",
"version": 3
},
"file_extension": ".py",
"mimetype": "text/x-python",
"name": "python",
"nbconvert_exporter": "python",
"pygments_lexer": "ipython3",
"version": "3.5.2"
}
},
"nbformat": 4,
"nbformat_minor": 2
}
