# ByteAsk Embedded MCP **Page-cited answers from embedded & firmware reference docs — for coding agents that can't afford to guess a register value.** [![smithery badge](https://smithery.ai/badge/kulkarnianirudha8/byteaskai)](https://smithery.ai/servers/kulkarnianirudha8/byteaskai) [![License: MIT](https://img.shields.io/badge/License-MIT-green.svg)](LICENSE) [![Python 3.10+](https://img.shields.io/badge/Python-3.10%2B-3776AB.svg?logo=python&logoColor=white)](pyproject.toml) [![Model Context Protocol](https://img.shields.io/badge/Model_Context_Protocol-compatible-5FB3A3.svg)](https://modelcontextprotocol.io) [![Status: beta](https://img.shields.io/badge/status-beta-orange.svg)](#) [![PRs welcome](https://img.shields.io/badge/PRs-welcome-brightgreen.svg)](#contributing) [![Hosted](https://img.shields.io/badge/hosted-mcp.byteask.ai-5FB3A3.svg)](https://docs.byteask.ai/embedded) Official MCP Registry Namespace: `ai.byteask/embedded-docs` · Remote MCP Endpoint: `https://mcp.byteask.ai/mcp` [Quickstart](#quickstart) · [Tools](#tools) · [Connect a client](#connect-a-client) · [Configuration](#configuration) · [Hosted server](#hosted-server) · [Contributing](#contributing) A coding agent reaches for ETH_DMATDLAR from memory; byteask reads the corpus and the line snaps to the cited ETH_DMACTXDLAR with a page citation.

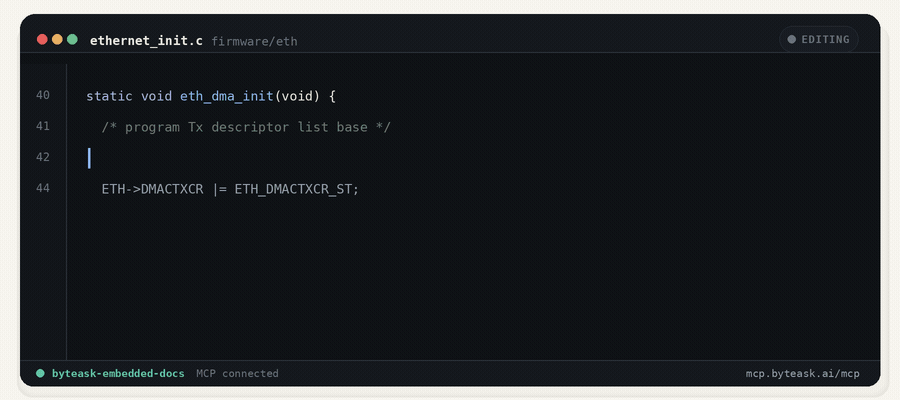

A coding agent reaches for ETH_DMATDLAR from memory; byteask reads the corpus and the line snaps to the cited ETH_DMACTXDLAR with a page citation.

--- ByteAsk Embedded MCP is the open-source server behind [ByteAsk Embedded Docs](https://docs.byteask.ai/embedded): a **source-grounded, page-cited evidence-retrieval** MCP server for coding agents (Claude Code, Codex, Cursor) that write firmware / driver / protocol code and need *exact* facts — SunSpec points, register offsets, Modbus function codes, trip thresholds, SCPI commands, API symbols. It returns **verbatim snippets with page citations** — never an authored answer — and when nothing is relevant enough it says **no match** rather than fabricate. Every document is treated equally: no authority layer, no filters. > [!NOTE] > **What's in this repo:** the MCP *server* — tools, transports (stdio + Streamable > HTTP), bearer auth, DNS-rebinding protection, result rendering — plus a small, > pluggable retrieval interface. > > **What's _not_ in this repo:** the retrieval engine and the document corpus. How > documents are parsed, chunked, embedded, and ranked, and the licensed source > material itself, sit behind the [`SearchBackend`](src/byteask_embedded_mcp/backend.py) > seam and power the hosted endpoint at `https://mcp.byteask.ai/mcp`. This repo ships > an in-memory [`SampleBackend`](src/byteask_embedded_mcp/backend.py) (a few > illustrative, public-knowledge records) so the server runs out of the box. ## Why - **Cited, or nothing.** Every hit is verbatim source text with a section + page citation. On a miss it returns an honest "no confident match" — it never invents a register value. - **Built for coding agents.** The tool descriptions and triggers are tuned so agents call `search_docs` reflexively the moment they see a hex literal, a Modbus code, an IEEE clause, a SCPI verb, or an MCU part number — before answering from memory. - **Two transports, one server.** `stdio` for local agents, Streamable HTTP for hosted. - **Bring your own retrieval.** The search engine is a two-method interface — swap in anything behind `BYTEASK_BACKEND` without touching the server. - **Zero-setup demo.** The bundled `SampleBackend` runs immediately. No API keys. ## Quickstart Requires Python ≥ 3.10 and [`uv`](https://docs.astral.sh/uv/). ```bash uv sync uv run byteask-embedded-mcp # run as an MCP server (stdio) ``` That's it — the bundled `SampleBackend` serves a couple of illustrative records, so `search_docs` works immediately. Run the offline tests with `uv run pytest`. ## Connect a client ### Hosted (no install) The hosted server speaks **Streamable HTTP** at `https://mcp.byteask.ai/mcp` and is backed by the full licensed corpus. [![Add to Cursor](https://cursor.com/deeplink/mcp-install-dark.svg)](https://cursor.com/install-mcp?name=byteask-embedded-docs&config=eyJ1cmwiOiJodHRwczovL21jcC5ieXRlYXNrLmFpL21jcCJ9) **Claude Code:** ```bash claude mcp add --transport http byteask-embedded-docs https://mcp.byteask.ai/mcp ```

Codex, Cursor, and other clients (mcp-remote)

```json { "mcpServers": { "byteask-embedded-docs": { "command": "npx", "args": ["-y", "mcp-remote", "https://mcp.byteask.ai/mcp"] } } } ```

### Local (this repo) The project-scoped [`.mcp.json`](.mcp.json) registers the stdio server for clients that read it. Manually, for Claude Code: ```bash claude mcp add byteask-embedded-docs -- uv run byteask-embedded-mcp ``` ## Tools Input is natural language (or an exact identifier). Output is compact markdown. | Tool | What it does | |------|--------------| | **`search_docs(query, limit=8)`** | Search the corpus; return ranked, page-cited evidence. Each hit has a document title, a section + page citation, the verbatim snippet, and a `result_id`. A "no confident match" response means *not found — do not fabricate*. | | **`get_context(result_id)`** | Expand a hit to its full source section. | | **`request_document(request)`** | Ask for a missing document to be added (logged server-side). | Example output: ```markdown ## Results for "what Modbus function code writes multiple registers" ### Sample — Modbus Application Protocol (illustrative) — §6.12, p.30 > Function code 16 (0x10), Write Multiple Registers, writes a block of contiguous > holding registers (1 to 123 registers) in a remote device. ... _ref: sample:modbus-fc16_ ``` ## Plug in your own retrieval The server depends only on a two-method interface ([`backend.py`](src/byteask_embedded_mcp/backend.py)): ```python class SearchBackend(Protocol): def search(self, query, limit=8, effort=None) -> dict: ... def get_context(self, result_id, effort=None) -> dict: ... ``` Implement it, expose a factory `make_backend(config) -> SearchBackend`, and point the server at it: ```bash BYTEASK_BACKEND="my_pkg.my_module:make_backend" ``` The exact return-value contracts are documented at the top of `backend.py`. ## Configuration All settings are environment variables (loaded from `.env`; see [`.env.example`](.env.example)). | Variable | Default | Notes | |----------|---------|-------| | `BYTEASK_BACKEND` | — | `module:callable` returning a `SearchBackend`; empty → `SampleBackend` | | `BYTEASK_LOGS` | `logs` | where query / request JSONL logs are written | | `MCP_TRANSPORT` | `stdio` | `stdio` (local agents) or `http` | | `MCP_HTTP_HOST` / `MCP_HTTP_PORT` | `127.0.0.1` / `8000` | HTTP bind address | | `MCP_HTTP_AUTH_TOKEN` | — | bearer token for HTTP (empty = unauthenticated, dev only) | | `MCP_ALLOWED_HOSTS` | — | comma-separated hosts allowed in the `Host` header (`*` disables) | | `LOG_LEVEL` | `INFO` | stderr log verbosity |

Running over HTTP

```bash MCP_TRANSPORT=http MCP_HTTP_AUTH_TOKEN=$(openssl rand -hex 32) \ uv run byteask-embedded-mcp --host 0.0.0.0 --port 8000 ``` Clients then send `Authorization: Bearer `. The bundled bearer check is a shared-secret **stub** — replace it with real auth (OAuth 2.1 resource server, mTLS, or a trusted reverse proxy) before exposing publicly. DNS-rebinding protection stays on independently via `MCP_ALLOWED_HOSTS`.

## Hosted server You don't need to run anything to use ByteAsk Embedded Docs. The hosted server gives Claude Code, Codex, Cursor, and any MCP client exact, page-cited facts from embedded and firmware reference docs — register maps, protocol function codes, SCPI commands, standard thresholds, datasheet specs. The guarantee: *verbatim source, or "no match" — never an invented value.* | | | |---|---| | **Name** | `byteask-embedded-docs` | | **Endpoint** | `https://mcp.byteask.ai/mcp` (Streamable HTTP) | | **Docs & per-client setup** | | This repository is the open-source server that powers that endpoint. ## Project layout ``` src/byteask_embedded_mcp/ server.py # FastMCP app + 3 tools (search_docs, get_context, request_document) backend.py # SearchBackend protocol + in-memory SampleBackend (swap for real retrieval) render.py # structured result -> compact markdown http_auth.py # Streamable HTTP entrypoint + stub bearer-token guard config.py # server config (transport, logging, backend selection) schemas.py # Hit / Section result types obs.py # per-call JSONL logging tests/ # offline unit tests (renderer, backend, server tools) assets/ # README demo GIF + its deterministic generator ``` ## Security - **stdout stays clean** in stdio mode (it is the JSON-RPC channel); all logs go to stderr / `logs/*.jsonl`. - The HTTP **bearer check is a stub** — unauthenticated if no token is set, a shared secret at best. Harden it before exposing widely. - **DNS-rebinding protection** is on by default for the HTTP transport. ## Contributing PRs and issues are welcome. ```bash uv sync # install (incl. dev tools) uv run pytest # run the offline test suite ``` A few conventions to keep the server clean: - **The backend seam is the extension point.** Retrieval internals (parsing, chunking, embeddings, ranking) are intentionally out of scope here — build them behind `SearchBackend` in your own package, not in this repo. - **Keep the dependency surface small** and the stdio path free of the HTTP stack. - **Add a test** for new behavior; the suite is fully offline (no network, no keys). ## License [MIT](LICENSE) © ByteAsk
