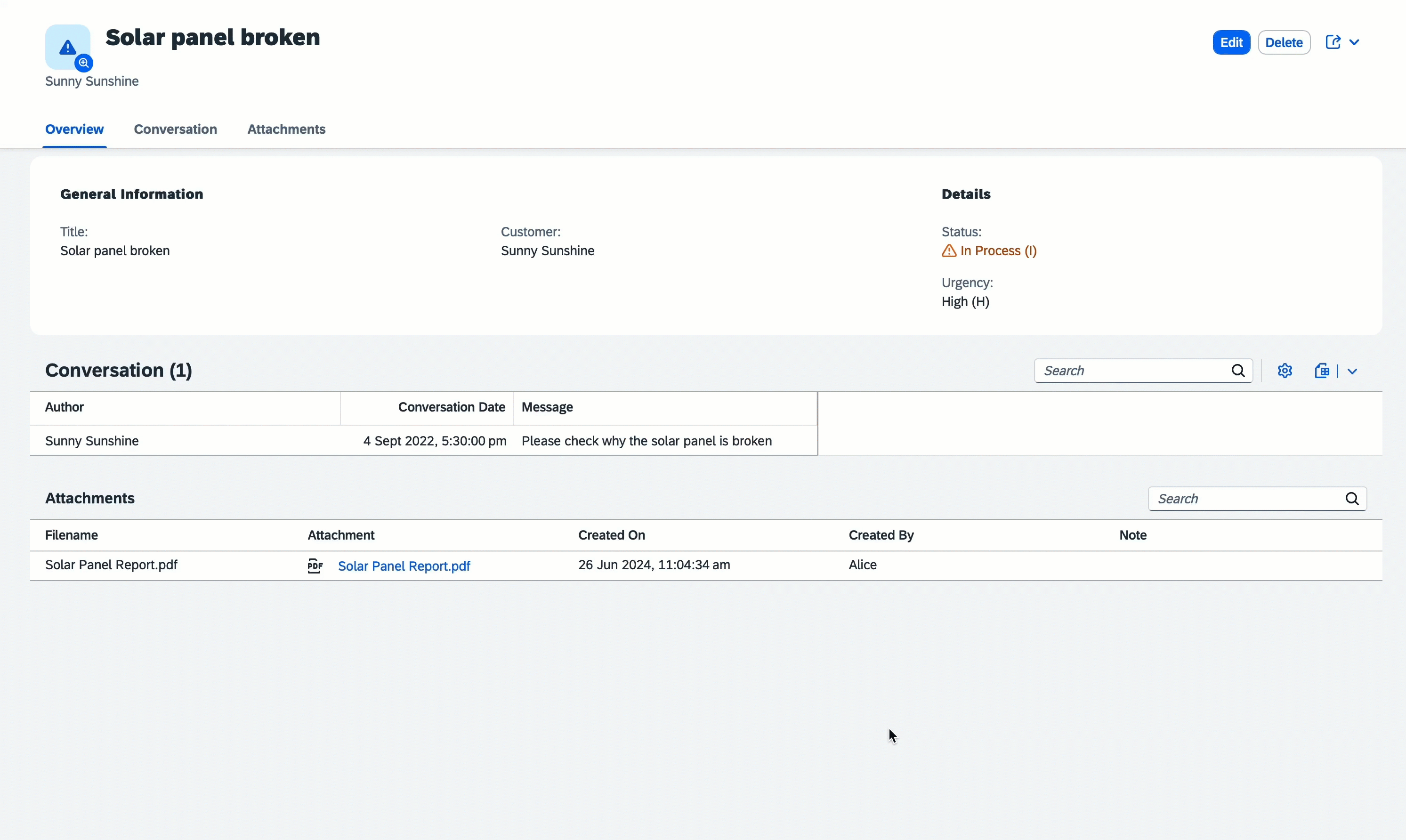

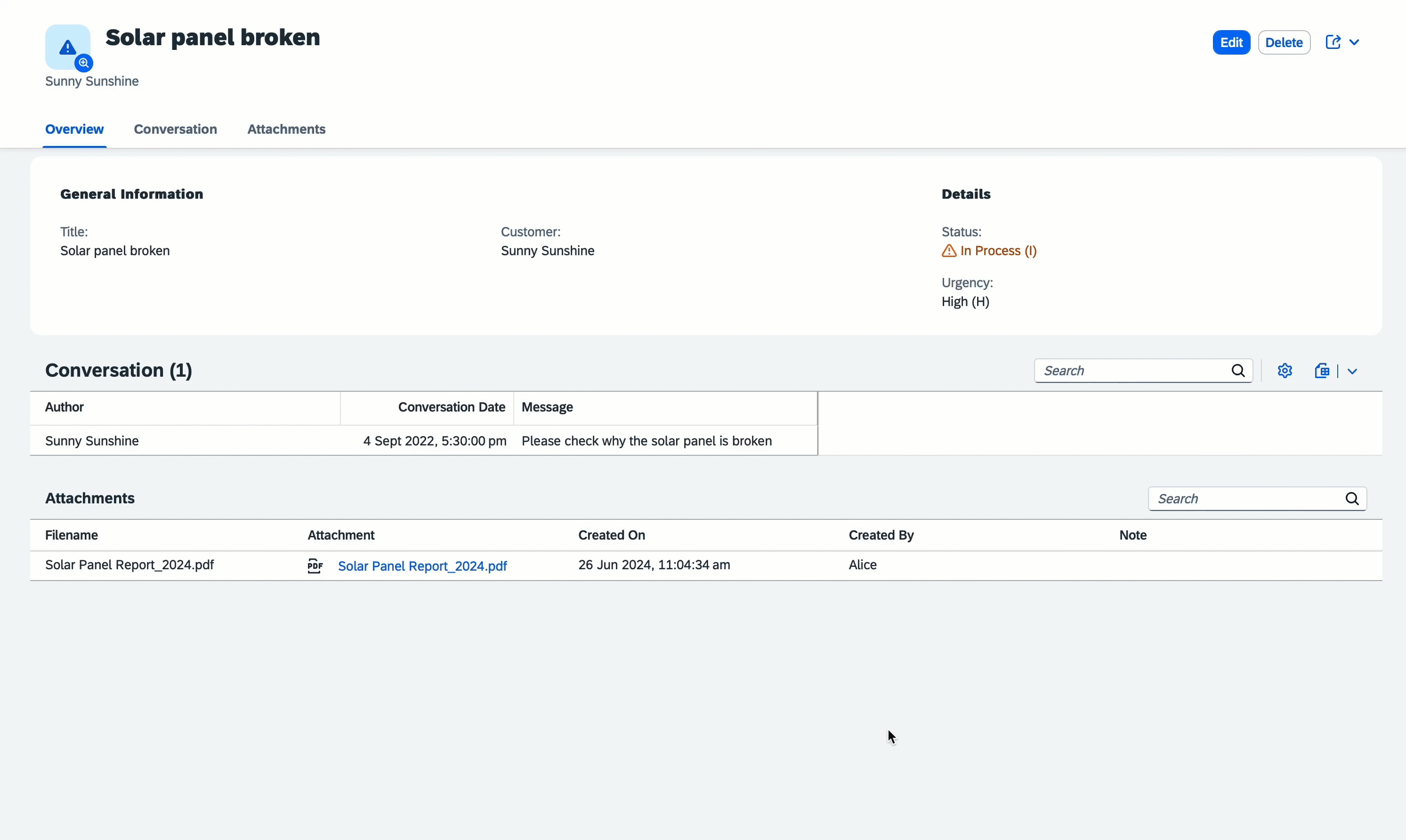

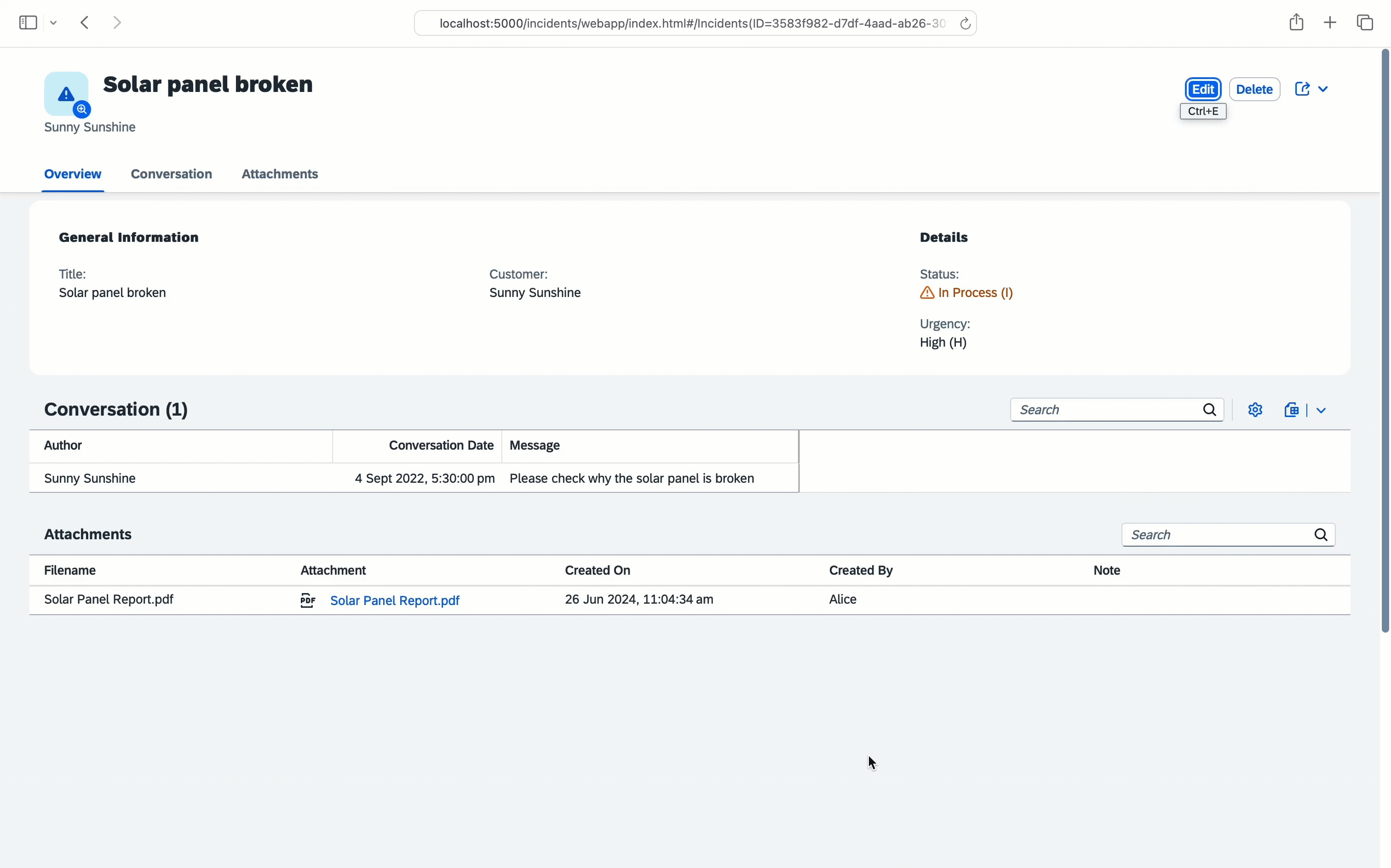

[![REUSE status](https://api.reuse.software/badge/github.com/cap-js/sdm)](https://api.reuse.software/info/github.com/cap-js/sdm) # CAP plugin for SAP Document Management Service The **@cap-js/sdm** package is [cds-plugin](https://cap.cloud.sap/docs/node.js/cds-plugins#cds-plugin-packages) that provides an easy CAP-level integration with [SAP Document Management Service](https://discovery-center.cloud.sap/serviceCatalog/document-management-service-integration-option). This package supports handling of attachments(documents) by using an aspect Attachments in SAP Document Management Service. This plugin can be consumed by the CAP application deployed on BTP to store their documents in the form of attachments in Document Management Repository. # Key features - Create attachment : Provides the capability to upload new attachments. - Open attachment : Provides the capability to preview attachments. - Delete attachment : Provides the capability to remove attachments. - Rename attachment : Provides the capability to rename attachments. - Virus scanning : Provides the capability to support virus scan for virus scan enabled repositories. - Draft functionality : Provides the capability of working with draft attachments. - Display attachments specific to repository: Lists attachments contained in the repository that is configured with the CAP application. - Custom properties in attachments : Provides the capability to define custom properties for attachments in SDM. - Link as attachments: Provides the capability to support link or URL as attachments. - Edit Link-type attachments: Provides the capability to update URL of link-type attachments. - Non-Draft Attachments: Provides the capability to work with attachments in non-draft (active) entities. - Technical user flow: Provides the capability to use technical user flow. ### Table of Contents - [Pre-Requisites](#pre-requisites) - [Setup](#setup) - [Use @cap-js/sdm plugin](#use-cap-jssdm-plugin) - [Support for Custom Properties](#support-for-custom-properties) - [Support for Link type attachments](#support-for-link-type-attachments) - [Support for Edit of Link type attachments](#support-for-edit-of-link-type-attachments) - [Support for Non-Draft Attachments](#support-for-non-draft-attachments) - [Support for Multiple attachment facets](#support-for-multiple-attachment-facets) - [Support for Large File Upload](#support-for-large-file-upload) - [Support for Technical User](#support-for-technical-user) - [Force Client Credentials Flow via Annotation](#force-client-credentials-flow-via-annotation) - [Support for Multitenancy](#support-for-multitenancy) - [Migration Notes](#migration-notes) - [Deploying and testing the application](#deploying-and-testing-the-application) - [Running the unit tests](#running-the-unit-tests) - [Known Restrictions](#known-restrictions) - [Support, Feedback, Contributing](#support-feedback-contributing) - [Code of Conduct](#code-of-conduct) - [Licensing](#licensing) ## Pre-Requisites * Node.JS 16 or higher * CAP Development Kit (`npm install -g @sap/cds-dk`) * SAP Build WorkZone should be subscribed to view the HTML5Applications. * [MTAR builder](https://www.npmjs.com/package/mbt) (`npm install -g mbt`) * [Cloud Foundry CLI](https://docs.cloudfoundry.org/cf-cli/install-go-cli.html), Install cf-cli and run command `cf install-plugin multiapps`. ## Setup In this guide, we use the [Incidents Management reference sample app](https://github.com/cap-js/incidents-app) as the base application, to integrate SDM CAP plugin. > [!Note] > To be able to use the Fiori *uploadTable* feature, you must ensure 1.121.0/ 1.122.0/ ^1.125.0 SAPUI5 version is updated in the application's _index.html_ ### Using the released version If you want to use the released version of SDM CAP plugin follow the below steps: 1. Clone the incidents-app repository: ```sh git clone https://github.com/cap-js/incidents-app.git ``` 2. Navigate to incidents-app root folder and checkout to the branch **incidents-app-deploy**: ```sh git checkout incidents-app-deploy ``` 3. Install SDM CAP plugin by executing the following command: ```sh npm add @cap-js/sdm ``` ### Using the development version If you want to use the version under development follow the below steps: 1. Clone the sdm repository: ```sh git clone https://github.com/cap-js/sdm.git ``` 2. Open terminal, navigate to sdm root folder and generate tarball: ```sh npm pack This will generate a file with name cap-js-sdm-x.y.z.tgz ``` 3. Clone the incidents-app repository: ```sh git clone https://github.com/cap-js/incidents-app.git ``` 4. Navigate to incidents-app root folder and checkout to the branch **incidents-app-deploy**: ```sh git checkout incidents-app-deploy ``` 5. Copy the path of .tgz file generated in step 2 and in terminal navigate to incidents-app root folder and execute: ```sh npm install ``` ## Use @cap-js/sdm plugin **To use sdm plugin in incidents-app, create an element with an `Attachments` type.** Following the [best practice of separation of concerns](https://cap.cloud.sap/docs/guides/domain-modeling#separation-of-concerns), create a separate file _db/attachments.cds_ and paste the below content in it: ``` using { sap.capire.incidents as my } from './schema'; using { Attachments } from '@cap-js/sdm'; extend my.Incidents with { attachments: Composition of many Attachments } ``` Create a SAP Document Management Integration Option [Service instance and key](https://help.sap.com/docs/document-management-service/sap-document-management-service/creating-service-instance-and-service-key). Using credentials from key [onboard a repository](https://help.sap.com/docs/document-management-service/sap-document-management-service/onboarding-repository). Configure the [REPOSITORY_ID](https://github.com/cap-js/incidents-app/blob/9327f550cde9f9666a1ffb3cbc727295b8d6fdb7/mta.yaml#L19) with the repository you want to use for deploying the application. Set the SDM instance name to match the SAP Document Management integration option instance you created in BTP and update this in the mta.yaml file under the [srv module](https://github.com/cap-js/incidents-app/blob/9327f550cde9f9666a1ffb3cbc727295b8d6fdb7/mta.yaml#L13) and the [resources section](https://github.com/cap-js/incidents-app/blob/9327f550cde9f9666a1ffb3cbc727295b8d6fdb7/mta.yaml#L134) values in the mta.yaml. Currently only non versioned repositories are supported. ## Support for Custom Properties Custom properties are supported via the usage of CMIS secondary type properties. Follow the below steps to add and use custom properties. 1. If the repository does not contain secondary types and properties, create CMIS secondary types and properties using the [Create Secondary Type API](https://api.sap.com/api/CreateSecondaryTypeApi/overview). The property definition must contain the following section for the CAP plugin to process the property. ```json "mcm:miscellaneous": { "isPartOfTable": "true" } ``` With this, the secondary type and properties definition will be as per the sample given below ```json { "id": "Working:DocumentInfo", "displayName": "Document Info", "baseId": "cmis:secondary", "parentId": "cmis:secondary", ... "propertyDefinitions": { "Working:DocumentInfoRecord": { "id": "Working:DocumentInfoRecord", "displayName": "Document Info Record", ... "mcm:miscellaneous": { <-- Required section in the property definition "isPartOfTable": "true" } } } } ``` 2. Using secondary properties in CAP Application. - Extend the `Attachments` aspect with the secondary properties in the previously created _db/attachments.cds_ file. - Annotate the secondary properties with `@SDM.Attachments.AdditionalProperty.name`. - In this field set the name of the secondary property in SDM. Refer the following example from a sample Incidents Management app: ```cds extend Attachments with { customProperty : String @SDM.Attachments.AdditionalProperty: { name: 'Working:DocumentInfoRecordString' } @(title: 'DocumentInfoRecordString'); } ``` > **Note** > > SDM supports secondary properties with data types `String`, `Boolean`, `Decimal`, `Integer` and `DateTime`. ## Support for link type attachments > **Note:** Row-press is the new recommended approach for handling actions on attachment rows. With row-press enabled, the Attachments column will no longer appear as a separate action button. Instead, clicking on a row will automatically perform the appropriate action — opening a link or downloading a file, based on the attachment type. This plugin provides the capability to create, open, rename and delete attachments of link type. ### Steps to Enable Row-Press for Open Link 1. **Add the `openAttachment` action to application's service definition** See this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/srv/service.cds#L19) from a sample incidents-management app. ```cds action openAttachment() returns String; ``` 2. **Add a custom controller extension** In webapp/controller/custom.controller.js, copy and paste below content. See this [example](https://github.com/cap-js/incidents-app/blob/sdmIncidents/app/incidents/webapp/controller/custom.controller.js) from a sample incidents-management app. ```js sap.ui.define( [ "sap/ui/core/mvc/ControllerExtension", "sap/m/library" ], function (ControllerExtension,library) { "use strict"; return ControllerExtension.extend("ns.incidents.controller.custom", { onRowPress: function(oContext) { this.base.editFlow .invokeAction("ProcessorService.openAttachment", { contexts: oContext.getParameter("bindingContext") }) .then(function (res) { let odataurl = ""; if(res.getObject().value == "None") { const lastSlashIndex = res.oModel.getServiceUrl().lastIndexOf('/'); let str = res.oModel.getServiceUrl(); if (lastSlashIndex !== -1) { str = str.substring(0, lastSlashIndex) + str.substring(lastSlashIndex + 1); } odataurl = str+res.oBinding.oContext.sPath+"/content"; } else { odataurl = res.getObject().value; } library.URLHelper.redirect(odataurl, true); }); } }); } ); ``` - Replace `ns.incidents` in `ControllerExtension.extend` with the `id` in `manifest.json` file or `id` in `component.js` file. See this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/app/incidents/webapp/manifest.json#L4). - Replace `ProcessorService` in `invokeAction("ProcessorService.openAttachment")` with the name of your service. 3. **Add controlConfiguration for Row Press** In your `sap.ui5.routing.targets` section, under the relevant Object Page (e.g., `IncidentsObjectPage`), add or extend the `controlConfiguration` for the facet you want to enhance by copy and pasting below content. See this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/app/incidents/webapp/manifest.json#L158). ```json "controlConfiguration": { "attachments/@com.sap.vocabularies.UI.v1.LineItem": { "tableSettings": { "type": "ResponsiveTable", "selectionMode": "Auto", "rowPress": ".extension.ns.incidents.controller.custom.onRowPress" } } } ``` - Replace `attachments` with your entity’s facet name as needed. - Replace `ns.incidents` in `"rowPress": ".extension.ns.incidents.controller.custom.onRowPress"` with the `id` in `manifest.json` file. Refer this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/app/incidents/webapp/manifest.json#L4) from a sample incidents-management app. 4. **Register the Custom Controller Extension** In the root of your `sap.ui5` section, add or extend the `extends` property to register your custom controller by copy and pasting below content. See this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/app/incidents/webapp/manifest.json#L191). ```json "extends": { "extensions": { "sap.ui.controllerExtensions": { "sap.fe.templates.ObjectPage.ObjectPageController#ns.incidents::IncidentsObjectPage": { "controllerName": "ns.incidents.controller.custom" } } } } ``` - Replace `ns.incidents` in `"sap.fe.templates.ObjectPage.ObjectPageController#ns.incidents::IncidentsObjectPage"` with the `id` in `manifest.json` file. Refer this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/app/incidents/webapp/manifest.json#L4) from a sample incidents-management app. - Replace `IncidentsObjectPage` in `"sap.fe.templates.ObjectPage.ObjectPageController#ns.incidents::IncidentsObjectPage"` with id of the relevant Object Page (e.g., IncidentsObjectPage). Refer this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/app/incidents/webapp/manifest.json#L145) from a sample incidents-management app. - Replace `ns.incidents` in `"controllerName": "ns.incidents.controller.custom"`with the `id` in `manifest.json` file. Refer this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/app/incidents/webapp/manifest.json#L4) from a sample incidents-management app. ## Support for edit of link type attachments This plugin provides the capability to update/edit the URL of attachments of link type. ### Steps to Enable Edit Link Feature in CAP Application 1. **Add the `editLink` action to application's service definition** See this [example](https://github.com/cap-js/incidents-app/blob/sdmIncidents/srv/service.cds#L19) from a sample incidents-app: ```cds action editLink( @mandatory @assert.format:'^(https?:\/\/)(([a-zA-Z0-9\-]+\.)+[a-zA-Z]{2,}|localhost)(:\d{2,5})?(\/[^\s]*)?$' @Common.Label:'URL' url: String @UI.Placeholder: 'Example: https://www.example.com' ); ``` - Purpose: Enables users to edit URL of previously created links. - Validation: Ensures only valid HTTP(S) URLs are accepted. - UI Support: Provides labels and placeholders for better user experience. ### UI Annotation Setup To enable the editing of links, you need to add a new button to the attachments table toolbar. This button will appear as an **inline button labeled "Edit Link"** on the attachment row of the attachments table for only link type attachments. When clicked, it will display a menu with the **"Edit Link"** option, allowing users to edit the URL of an existing link-type attachment. Add the following annotation block to your app/incidents/annotations.cds file. See this [example](https://github.com/cap-js/incidents-app/blob/sdmIncidents/app/incidents/annotations.cds#L215) ```cds annotate service.Incidents.attachments with @UI: { HeaderInfo: { $Type : 'UI.HeaderInfoType', TypeName : '{i18n>Attachment}', TypeNamePlural: '{i18n>Attachments}', }, LineItem : [ {Value: type, @HTML5.CssDefaults: {width: '10%'}}, {Value: filename, @HTML5.CssDefaults: {width: '25%'}}, {Value: content, @HTML5.CssDefaults: {width: '0%'}}, {Value: createdAt, @HTML5.CssDefaults: {width: '20%'}}, {Value: createdBy, @HTML5.CssDefaults: {width: '20%'}}, {Value: note, @HTML5.CssDefaults: {width: '25%'}}, { $Type : 'UI.DataFieldForActionGroup', ID : 'TableActionGroup', Label : 'Create', ![@UI.Hidden]: {$edmJson: {$Eq: [ {$Path: 'IsActiveEntity'}, true ]}}, Actions: [ { $Type : 'UI.DataFieldForAction', Label : 'Link', Action: 'ProcessorService.createLink', } ] }, { @UI.Hidden: {$edmJson:{$If:[{$Eq:[{$Path: 'IsActiveEntity' },true]},true,{$If:[{$Ne:[{$Path:'mimeType'},'application/internet-shortcut']},true,false]}]}}, $Type : 'UI.DataFieldForAction', Label : 'Edit Link', Action: 'ProcessorService.editLink', // -> Ensure the service name is correct Inline: true, IconUrl: 'sap-icon://edit', @HTML5.CssDefaults: {width: '4%'} } ] } { url @readonly; note @(title: '{i18n>Note}'); filename @(title: '{i18n>Filename}'); modifiedAt @(odata.etag: null); content @Core.ContentDisposition: { Filename: filename, Type: 'inline' } @(title: '{i18n>Attachment}'); folderId @UI.Hidden; mimeType @UI.Hidden; status @UI.Hidden; repositoryId @UI.Hidden; } annotate service.Incidents.attachments with { customProperty1 @Common.ValueListWithFixedValues; } ``` - Ensure `service.Incidents.attachments` is the correct path for your entity and its attachments element where you have defined `composition of many Attachments`. - Ensure ProcessorService in Action: `ProcessorService.editLink` is the name of your service. - Repeat this annotation for other entities if you have defined `composition of many Attachments` in multiple places. ## Known Restrictions ### Steps to Enable Create Link Feature in CAP Application > **Note:** Enabling row-press for open link (see steps above) is a prerequisite for link support. 1. **Add the `createLink` action to application's service definition** See this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/srv/service.cds#L14) from a sample incidents-management app: ```cds entity Incidents.attachments as projection on my.Incidents.attachments actions { @(Common.SideEffects : {TargetEntities: ['']},) action createLink( in:many $self, @mandatory @Common.Label:'Name' name: String @UI.Placeholder: 'Enter a name for the link', @mandatory @assert.format:'^(https?:\/\/)(([a-zA-Z0-9\-]+\.)+[a-zA-Z]{2,}|localhost)(:\d{2,5})?(\/[^\s]*)?$' @Common.Label:'URL' url: String @UI.Placeholder: 'Example: https://www.example.com' ); } ``` - Purpose: Enables users to create links with name and URL. - Validation: Ensures only valid HTTP(S) URLs are accepted. - UI Support: Provides labels and placeholders for better user experience. ### UI Annotation Setup To enable the creation of links, you need to add a new button to the attachments table toolbar. This button will appear as a **menu button labeled "Create"** on the toolbar of the attachments table. When clicked, it will display a menu with the **"Link"** option, allowing users to create a new link-type attachment. Add the following annotation block to your `app//.cds` file. See this [example](https://github.com/cap-js/incidents-app/blob/2126273e16e8a7d5efa18e06de12e06bade8adb5/app/incidents/annotations.cds#L188). ```cds annotate service.Incidents.attachments with @UI: { HeaderInfo: { $Type : 'UI.HeaderInfoType', TypeName : '{i18n>Attachment}', TypeNamePlural: '{i18n>Attachments}', }, LineItem : [ {Value: type, @HTML5.CssDefaults: {width: '10%'}}, {Value: filename, @HTML5.CssDefaults: {width: '25%'}}, {Value: content, @HTML5.CssDefaults: {width: '0%'}}, {Value: createdAt, @HTML5.CssDefaults: {width: '20%'}}, {Value: createdBy, @HTML5.CssDefaults: {width: '20%'}}, {Value: note, @HTML5.CssDefaults: {width: '25%'}}, { $Type : 'UI.DataFieldForActionGroup', ID : 'TableActionGroup', Label : 'Create', ![@UI.Hidden]: {$edmJson: {$Eq: [ {$Path: 'IsActiveEntity'}, true ]}}, Actions: [ { $Type : 'UI.DataFieldForAction', Label : 'Link', Action: 'ProcessorService.createLink', } ] }, ] } { url @readonly; note @(title: '{i18n>Note}'); filename @(title: '{i18n>Filename}'); modifiedAt @(odata.etag: null); content @Core.ContentDisposition: { Filename: filename, Type: 'inline' } @(title: '{i18n>Attachment}'); folderId @UI.Hidden; mimeType @UI.Hidden; status @UI.Hidden; repositoryId @UI.Hidden; } ``` - Replace `service.Incidents.attachments` with the correct path for your entity and element (for example, `my.YourEntity.yourElement`) where you have defined `composition of many Attachments`. - Replace `ProcessorService` in `Action: 'ProcessorService.createLink'` with the name of your service. ### Updating Tenant Databases for Link Feature To support the Link feature, additional database columns are introduced. Upon re-deployment of your multitenant application, you may encounter "invalid column" errors if tenant database containers are not updated. To resolve this, ensure the following task is added to the mta.yaml for the sidecar application. ```yaml tasks: - name: upgrade-db command: cds-mtx upgrade '*' ``` This will automatically update tenant databases during deployment. ## Support for Non-Draft Attachments This plugin provides full support for handling attachments in non-draft (active) entities, enabling direct CRUD operations without requiring draft mode. This is particularly useful for scenarios where entities don't use the draft pattern or where immediate attachment operations are needed. ### Key Features - **Direct Upload**: Upload attachments directly to active entities using PUT or CREATE operations - **Immediate Updates**: Update attachment metadata (filename, custom properties) without draft activation - **Direct Deletion**: Delete attachments immediately from active entities - **Filename Validation**: Automatic validation for restricted characters and empty filenames - **Custom Properties**: Full support for CMIS secondary type properties in non-draft mode - **Automatic Rename**: Rename attachments on entity UPDATE operations ### How It Works For entities **without** draft support (no `@odata.draft.enabled`), the plugin automatically: 1. **Handles PUT operations** on attachment entities for file uploads 2. **Handles CREATE operations** for creating new attachment records with content 3. **Handles UPDATE operations** for modifying attachment metadata and renaming files in SDM 4. **Handles DELETE operations** for immediate removal from both database and SDM ### Entity Definition To use non-draft attachments, simply define an entity without draft enablement. See this [example](https://github.com/cap-js/incidents-app/blob/6e78c3ce9b521c64583c560a03d1604bc2b607d8/db/schema.cds#L68) from a sample incidents-management app: ```cds entity Projects : cuid, managed { name : String @title: 'Project Name'; description : String @title: 'Description'; status : String @title: 'Status'; customer : Association to Customers; } ``` Note: **Do not** annotate the entity with `@odata.draft.enabled` for non-draft attachment support. ### Typical Workflow For non-draft entities, the standard workflow is: 1. **Create** attachment metadata using POST (Example 1) - creates the database record 2. **Upload** file content using PUT /content (Example 2) - uploads to SDM 3. **Update** metadata if needed using PATCH (Example 3) - modifies filename or properties 4. **Delete** when no longer needed using DELETE (Example 4) - removes from both DB and SDM ### Usage Examples #### 1. Create Attachment Metadata (POST) First, create the attachment record with metadata. See this [example](https://github.com/cap-js/sdm/blob/eb7b0d44b9abfb5bdb3c97c769ff323411ace522/test/integration/attachments-sdm-non-draft.test.js#L151): ```http POST /Projects(ID=)/attachments Content-Type: application/json { "filename": "report.pdf" } ``` **Optional fields**: You can also include `mimeType`, `note`, or custom properties: ```http POST /Documents(ID=)/attachments Content-Type: application/json { "filename": "report.pdf", "mimeType": "application/pdf", "note": "Annual report" } ``` This creates the database record without content. The response includes the generated attachment ID. #### 2. Upload File Content (PUT) Then, upload the actual file content to the attachment created in step 1. See this [example](https://github.com/cap-js/sdm/blob/eb7b0d44b9abfb5bdb3c97c769ff323411ace522/test/integration/attachments-sdm-non-draft.test.js#L179): ```http PUT /Projects(ID=)/attachments(ID=)/content Content-Type: application/pdf ``` The plugin validates the filename and uploads the file directly to SDM. This is where the actual file is stored. **Important Notes**: - The attachment record must already exist (created via POST in Example 1) before uploading content - The Content-Type header should match the file type (e.g., `application/pdf`, `application/vnd.openxmlformats-officedocument.wordprocessingml.document` for Word docs) #### 3. Update Attachment Metadata (PATCH) - Optional Update attachment properties like filename, notes, or custom properties. See this [example](https://github.com/cap-js/sdm/blob/eb7b0d44b9abfb5bdb3c97c769ff323411ace522/test/integration/attachments-sdm-non-draft.test.js#L608): ```http PATCH /Projects(ID=)/attachments(ID=) Content-Type: application/json { "filename": "updated-report.pdf", "note": "Updated documentation" } ``` The plugin automatically renames the file in SDM if the filename changes. **With Custom Properties**: You can also update CMIS secondary type properties. See this [example](https://github.com/cap-js/sdm/blob/eb7b0d44b9abfb5bdb3c97c769ff323411ace522/test/integration/attachments-sdm-non-draft.test.js#L732): ```http PATCH /Projects(ID=)/attachments(ID=) Content-Type: application/json { "filename": "quarterly-report.pdf", "customProperty1_code": "FIN-Q1", "customProperty2": 2025, "customProperty5": "2025-03-24T05:20:07Z", "customProperty6": true } ``` **Note**: If any invalid or unsupported custom property is included, the entire update operation will fail with a warning, and no properties will be updated (matching draft behavior). #### 4. Delete Attachment (DELETE) Delete a single attachment immediately from both database and SDM. See this [example](https://github.com/cap-js/sdm/blob/eb7b0d44b9abfb5bdb3c97c769ff323411ace522/test/integration/attachments-sdm-non-draft.test.js#L988): ```http DELETE /Projects(ID=)/attachments(ID=) ``` **Note**: When you delete the parent entity (e.g., the Document), all associated attachments are automatically deleted from both the database and SDM. ### Multiple Attachments You can create multiple attachments for a single entity by repeating the POST + PUT workflow: ```javascript // Create and upload multiple attachments for (const file of ['doc1.pdf', 'doc2.pdf', 'doc3.pdf']) { // 1. Create metadata const metadataResponse = await POST('/Projects(ID=)/attachments', { filename: file }); // 2. Upload content await PUT( `/Projects(ID=)/attachments(ID=${metadataResponse.ID})/content`, fileContent ); } ``` ### Validation and Error Handling The plugin performs automatic validation for non-draft attachments: - **Restricted Characters**: Rejects filenames containing forbidden characters (e.g., `/`, `\`) - **Empty Filenames**: Rejects null or empty filenames - **Attachment Existence**: Validates that attachments exist before operations - **Duplicate Detection**: Prevents duplicate filenames within the same entity (same filenames are allowed across different entities) ### Example: Complete Service Definition ```cds using { sap.capire.incidents as my } from '../db/schema'; using { sap.attachments.Attachments } from '@cap-js/sdm'; extend my.Projects with { attachments: Composition of many Attachments } // Service definition service ProcessorService { entity Projects as projection on my.Projects; // Non-draft entity entity Projects.attachments as projection on my.Projects.attachments; } ``` ## Support for Multiple attachment facets The plugin supports creating multiple attachment facets or sections, each allowing various documents to be uploaded. The names of these facets are fully customizable. All existing operations available for the default attachment facet are also supported for any additional facets you create. Refer the following example from a sample Incidents Management app to configure multiple attachment facets. > **Note** > > This is an example of adding the `references` facet. You can add as many facets as needed by following the same pattern. ### 1. Add facet entries in `annotations.cds` - [Example](https://github.com/cap-js/sdm/blob/develop/app/single-tenant/central-space/incidents-app/app/incidents/annotations.cds) Add `UI.ReferenceFacet` entries so each composition appears as a separate section on the object page. ```cds { $Type : 'UI.ReferenceFacet', ID : 'ReferencesFacet', Label : 'References', Target: 'references/@UI.LineItem', } ``` Add the following `references` annotation block in `annotations.cds`: ```cds //////////////////////////////////////////////////////////////////////////// // // References Details // annotate service.Incidents.references with @UI: { HeaderInfo: { $Type : 'UI.HeaderInfoType', TypeName : '{i18n>Attachment}', TypeNamePlural: '{i18n>Attachments}', }, LineItem : [ {Value: type, @HTML5.CssDefaults: {width: '10%'}}, {Value: filename, @HTML5.CssDefaults: {width: '25%'}}, {Value: content, @HTML5.CssDefaults: {width: '0%'}}, {Value: createdAt, @HTML5.CssDefaults: {width: '20%'}}, {Value: createdBy, @HTML5.CssDefaults: {width: '20%'}}, {Value: note, @HTML5.CssDefaults: {width: '25%'}}, { $Type : 'UI.DataFieldForActionGroup', ID : 'TableActionGroup', Label : 'Create', ![@UI.Hidden]: {$edmJson: {$Eq: [ {$Path: 'IsActiveEntity'}, true ]}}, Actions: [ { $Type : 'UI.DataFieldForAction', Label : 'Link', Action: 'ProcessorService.createLink', } ] }, { @UI.Hidden: {$edmJson:{$If:[{$Eq:[{$Path: 'IsActiveEntity' },true]},true,{$If:[{$Ne:[{$Path:'mimeType'},'application/internet-shortcut']},true,false]}]}}, $Type : 'UI.DataFieldForAction', Label : 'Edit Link', Action: 'ProcessorService.editLink', // -> Ensure the service name is correct Inline: true, IconUrl: 'sap-icon://edit', @HTML5.CssDefaults: {width: '4%'} }, ] } { url @readonly; note @(title: '{i18n>Note}'); filename @(title: '{i18n>Filename}'); modifiedAt @(odata.etag: null); content @Core.ContentDisposition: { Filename: filename, Type: 'inline' } @(title: '{i18n>Attachment}'); folderId @UI.Hidden; mimeType @UI.Hidden; status @UI.Hidden; repositoryId @UI.Hidden; } annotate service.Incidents.references with { customProperty1 @Common.ValueListWithFixedValues; } ``` ### 2. Expose each facet as a projection with actions in `srv/service.cds` - [Example](https://github.com/cap-js/sdm/blob/develop/app/single-tenant/central-space/incidents-app/srv/service.cds) Each facet must be projected and action-enabled, for example: ```cds entity Incidents.references as projection on my.Incidents.references actions { @(Common.SideEffects : {TargetEntities: ['']},) action createLink( in:many $self, @mandatory @Common.Label:'Name' name: String @UI.Placeholder: 'Enter a name for the link', @mandatory @assert.format:'^(https?:\/\/)(([a-zA-Z0-9\-]+\.)+[a-zA-Z]{2,}|localhost)(:\d{2,5})?(\/[^\s]*)?$' @Common.Label:'URL' url: String @UI.Placeholder: 'Example: https://www.example.com' ); action editLink( @mandatory @assert.format:'^(https?:\/\/)(([a-zA-Z0-9\-]+\.)+[a-zA-Z]{2,}|localhost)(:\d{2,5})?(\/[^\s]*)?$' @Common.Label:'URL' url: String @UI.Placeholder: 'Example: https://www.example.com' ); action openAttachment() returns { value: String; }; } ``` ### 3. Add `controlConfiguration` entries in `manifest.json` - [Example](https://github.com/cap-js/sdm/blob/develop/app/single-tenant/central-space/incidents-app/app/incidents/webapp/manifest.json) For row-press behavior in every facet table, configure each line item target: ```json "controlConfiguration": { "references/@com.sap.vocabularies.UI.v1.LineItem": { "tableSettings": { "type": "ResponsiveTable", "selectionMode": "Auto", "rowPress": ".extension.ns.incidents.controller.custom.onRowPress" } } } ``` ## Support for Large File Upload This plugin supports uploading files larger than 400 MB to SAP Document Management (SDM) without buffering the entire file in memory. The plugin automatically detects file size and routes the upload through either the single-POST path or a chunked path. Clients use the same OData `PUT .../content` request regardless of file size. ### Key Features - **Automatic Routing**: Files ≤ 400 MB use the existing single-POST path; files > 400 MB use a chunked upload path - **Streaming Upload**: Files > 400 MB are streamed in 20 MB chunks via CMIS `appendContentStream`, avoiding out-of-memory errors - **Read-Ahead Buffering**: Up to 4 chunks (80 MB max) are pre-loaded while the previous chunk is uploading, improving throughput - **Failure Recovery**: In-progress upload IDs are tracked in an orphan queue; incomplete documents are deleted with exponential-backoff retries on failure - **Client Disconnect Handling**: Partial uploads are cleanly cleaned up if the OData client drops the connection mid-upload - **Virus Scan Guard**: For repositories with virus scanning enabled, files > 400 MB are rejected upfront with HTTP 409 since SDM's virus scan service does not support files above this size ### How It Works For attachment uploads via OData `PUT .../content`, the plugin automatically: 1. **Detects file size** from the HTTP `Content-Length` header before any data is streamed 2. **Routes small files (≤ 400 MB)** through the existing single-POST `createDocument` path — no change in behavior 3. **Routes large files (> 400 MB)** through the chunked path: - Creates an empty placeholder document in SDM via `createDocument` - Streams the file in 20 MB chunks via `appendContentStream`, with the last chunk marked `isLastChunk=true` - Pre-loads up to 4 chunks in a read-ahead buffer while the previous chunk uploads 4. **Tracks orphans on failure**: if any chunk upload fails, the placeholder objectId is added to an orphan queue and the plugin attempts to delete the incomplete document with retry backoff 5. **Reconciles on restart**: any orphan queue entry that survived a previous failure is cleaned up by the startup reconciliation job ### Configuration No client-side or CDS-side configuration is required. The thresholds are constants in the plugin: | Constant | Value | Purpose | |---|---|---| | `FILE_SIZE_THRESHOLD` | 400 MB | Boundary between single-POST and chunked upload paths | | `CHUNK_SIZE` | 20 MB | Size of each `appendContentStream` chunk | ### Virus Scan Repositories SAP Document Management's virus-scan service does not support files above 400 MB. When `isVirusScanEnabled: true` is set on the SDM service binding, the plugin rejects uploads larger than 400 MB with HTTP 409 and a descriptive error message before any data is streamed, instead of letting the request fail later at the SDM side. Repositories without virus scanning are unaffected. ## Support for Technical User The CAP OData operations can be performed on attachments using a technical user. This flow can be used for machine-to-machine (M2M) interactions, where user involvement is not necessary. A leading CAP application's service should add the requires with annotation "system-user". For more detailed information on "system-user" within the SAP CAP framework, [Capire documentation](https://cap.cloud.sap/docs/guides/security/authorization#pseudo-roles). Here is an [example](https://github.com/cap-js/incidents-app/blob/sdmIncidents/srv/service.cds) from a sample Incident app demonstrating the implementation. ```cds service ProcessorService @(requires:['support','system-user']) { entity Incidents as projection on my.Incidents; } ``` ## Force Client Credentials Flow via Annotation By default, the plugin uses the JWT-bearer flow when a user context is present in the incoming token (named-user authentication), and falls back to client-credentials only for technical users that have no user origin. Some scenarios — for example, customer requirements where end users do not have SDM roles but the application still needs to upload, rename, edit links, and update attachment metadata on their behalf — need the client-credentials flow regardless of whether the token carries a user context. The `@SDM.useClientCredential: true` annotation on an attachments composition opts that composition into the client-credentials flow for all CRUD operations, irrespective of the calling user. ### Key Features - **Per-Composition Scope**: A parent entity can mix flows — one attachment composition using client-credentials, another using the default JWT-bearer flow - **Flow Override on All CRUD Paths**: Create, upload, rename, edit links, update metadata, and delete are all routed through the technical user when the annotation is set - **Aligned `createdBy` / `modifiedBy`**: The plugin DB columns are stamped with the SDM client_id so the UI matches `cmis:createdBy` / `cmis:modifiedBy` recorded by DMS / DI - **Default Preserved**: Without the annotation, existing behavior is unchanged — JWT-bearer when a user context is present, client-credentials only as a fallback ### How It Works For an attachments composition annotated with `@SDM.useClientCredential: true`, the plugin: 1. **Detects the annotation** on the composition target via `req.target` for direct attachment operations, and via composition walking on parent SAVE events 2. **Authenticates every SDM call** with the SDM service binding's `clientid` / `clientsecret` (resolved from `VCAP_SERVICES`) 3. **Stamps `createdBy` / `modifiedBy`** with the same `clientid` on freshly activated draft rows so the plugin DB and the SDM backend show identical principals ### Entity Definition The annotation must live on the attachments **target** (the composition target entity). In the sample Incidents app, the `footnotes` composition is annotated so footnote attachments are always uploaded under the technical user, while the human-user-authored `references` composition keeps the default flow: ```cds using { sap.attachments.Attachments } from '@cap-js/sdm'; service ProcessorService { entity Incidents as projection on my.Incidents; } // References — created by the human end-user (default flow) extend my.Incidents with { references : Composition of many Attachments; footnotes : Composition of many Attachments; } // Footnotes — always stored under the SDM technical user annotate my.Incidents.footnotes with @SDM.useClientCredential: true; ``` ### Configuration The SDM service binding must be available in `VCAP_SERVICES` so the plugin can resolve the client credentials. This is the normal binding setup; no extra configuration is required. ## Support for Multitenancy This plugin automates repository lifecycle management in a multi-tenant setup. On tenant subscription, it provisions a repository and stores its details, and on unsubscription, it securely cleans up the repository. Refer the following example from a sample Incidents Management app which demonstrates how to onboard a new repository for a subscribing tenant. 1. Add the cds.xt.DeploymentService to the package.json file ```json "cds": { "requires": { "cds.xt.DeploymentService": { "preset": "in-sidecar" } } } ``` 2. Add the @cap-js/sdm dependency to the mtx/sidecar/package.json 3. Add the external id of repository in properties of incidents-mtx-mtx in mta.yaml 4. Add SDMRepositoryConfig.js file in mtx/sidecar folder with the following content: ```js module.exports = { sdm: { repositoryConfig: { displayName: "SDM Repository", description: "Onboarded on tenant subscription", repositoryType: "internal", isVersionEnabled: "false", isVirusScanEnabled: "false", skipVirusScanForLargeFile: "true", hashAlgorithms: "SHA-256" } } }; ``` When the application is deployed as a SaaS application with above code, a repository is onboarded automatically when a tenant subscribes the SaaS application. The same repository is deleted when the tenant unsubscribes from the SaaS application. The necessary params for the Repository onboarding can be found in the [documentation](https://help.sap.com/docs/document-management-service/sap-document-management-service/internal-repository). ## Migration Notes ### Migration: Enabling HDI auto-undeploy Starting with @cap-js/attachments 3.13.2, the `ScanStates` code-list translations are shipped as a single consolidated table-import file (loading all locales via a `locale` column) instead of one file per locale. When you **redeploy an existing application** that was previously deployed with attachments 3.13.1 or earlier, the old per-locale import files remain in the HDI container and collide with the new consolidated file, causing the database deployment to fail: ``` HDI make failed (... errors ...) com.sap.hana.di.tabledata: The "include_filter" definitions in the table import files "...ScanStates_texts_.hdbtabledata" and "...ScanStates_texts.hdbtabledata" use key values that are not disjunct ... ``` To let HDI remove the obsolete artifacts automatically on redeploy, enable `auto_undeploy` in your application. **Single-tenant applications** — add `HDI_DEPLOY_OPTIONS` to the `hdb` deployer module in `mta.yaml`: ```yaml - name: type: hdb path: gen/db requires: - name: parameters: buildpack: nodejs_buildpack properties: HDI_DEPLOY_OPTIONS: '{"auto_undeploy":true}' ``` **Multitenant applications** — tenant databases are updated via `cds-mtx upgrade`, so set `HDI_DEPLOY_OPTIONS` on the mtx sidecar module in `mta.yaml`: ```yaml - name: type: nodejs path: gen/mtx/sidecar properties: HDI_DEPLOY_OPTIONS: '{"auto_undeploy":true}' ``` > **Note:** `HDI_DEPLOY_OPTIONS` takes a JSON object; the `--auto-undeploy` CLI flag maps to the `auto_undeploy` key. Enabling auto-undeploy only removes design-time artifacts that the current build no longer generates (here, the obsolete code-list import definitions, which the new version re-imports). It does not delete your attachment records or business data. Because it applies to the whole container, HDI will also remove any other artifact dropped from the model on future deploys — this is standard HDI behavior. ## Deploying and testing the application 1. Log in to Cloud Foundry space: ```sh cf login -a -o -s ``` 2. Bind CAP application to SAP Document Management Integration Option. Check the following reference from `mta.yaml` of Incidents Management app ``` modules: - name: incidents-srv type: nodejs path: gen/srv requires: - name: sdm-di-instance resources: - name: sdm-di-instance type: org.cloudfoundry.managed-service parameters: service: sdm service-plan: standard ``` 3. Add the similar code to your xs-security.json as shown below which enables to have your application specific and SDM roles coupled in to a role collection: ``` "role-collections": [ { "name": "@@Sample_Bookshop_Role Collection@@", "description": "SDM and application roles", "role-template-references": [ "$XSAPPNAME.admin", "$XSSERVICENAME(sdm).SDM_User" ] } ``` Here the name of role collection can be choice of yours and role template references can point to application roles. "$XSSERVICENAME(sdm).SDM_User" should be added to use SDM and "sdm" name should be the instance name from mta.yaml. > **Note:** If such a role collection is not configured then unauthorized user end up in misusing the attachments. 4. Build the project by running following command from root folder of incidents-app. ```sh mbt build ``` Above step will generate .mtar file inside mta_archives folder. 5. Deploy the application ```sh cf deploy mta_archives/*.mtar ``` 6. Launch the application ```sh * Navigate to Html5Applications menu in BTP subaccount and open the application (nsincidents v1.0.0) in a browser. * Click on incident with title Solar panel broken. ``` 7. The `Attachments` type has generated an out-of-the-box Attachments table (see highlighted box) at the bottom of the Object page: Attachments Table 8. **Upload a file** by going into Edit mode and either using the **Upload** button on the Attachments table or by drag/drop. The file is then stored in SAP Document Management Integration Option. We demonstrate this by uploading the PDF file from [_xmpl/db/content/Solar Panel Report.pdf_](./xmpl/db/content/Solar%20Panel%20Report.pdf): Upload an attachment 9. **Open a file** by clicking on the attachment. We demonstrate this by opening the previously uploaded PDF file: `Solar Panel Report.pdf` Delete an attachment 10. **Rename a file** by going into Edit mode and setting a new name for the file in the filename field. Then click the **Save** button to have that file renamed in SAP Document Management Integration Option. We demonstrate this by renaming the previously uploaded PDF file: `Solar Panel Report.pdf` Delete an attachment 11. **Delete a file** by going into Edit mode and selecting the file(s) and by using the **Delete** button on the Attachments table. Then click the **Save** button to have that file deleted from the resource (SAP Document Management Integration Option). We demonstrate this by deleting the previously uploaded PDF file: `Solar Panel Report_2024.pdf` Delete an attachment ## Running the unit tests To run the unit tests: ```sh npm run test ``` ## Known Restrictions - Repository : This plugin does not support the use of versioned repositories. - File size : Attachments are limited to a maximum size of 100 MB. ## Support, Feedback, Contributing This project is open to feature requests/suggestions, bug reports etc. via [GitHub issues](https://github.com/cap-js/sdm/issues). Contribution and feedback are encouraged and always welcome. For more information about how to contribute, the project structure, as well as additional contribution information, see our [Contribution Guidelines](CONTRIBUTING.md). ## Code of Conduct We as members, contributors, and leaders pledge to make participation in our community a harassment-free experience for everyone. By participating in this project, you agree to abide by its [Code of Conduct](CODE_OF_CONDUCT.md) at all times. ## Licensing Copyright 2024 SAP SE or an SAP affiliate company and contributors. Please see our [LICENSE](LICENSE) for copyright and license information. Detailed information including third-party components and their licensing/copyright information is available [via the REUSE tool](https://api.reuse.software/info/github.com/cap-js/sdm).
