Sonic CD (Mega-CD) recompilation / PC port, built for fidelity
Windows, macOS and Linux.

build download

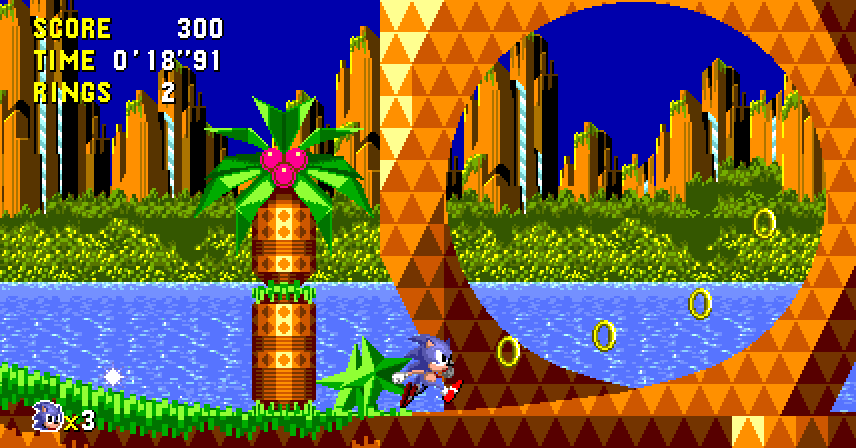

--- * **Runtime.** Both 68000s, the Z80, VDP, YM2612, PSG, RF5C164 PCM, the CD drive and decoder, CD audio and the Mega-CD graphics ASIC, written from scratch (YM2612 via [ymfm](https://github.com/aaronsgiles/ymfm)). No BIOS needed: the boot ROM and sub-CPU BIOS are replaced by a high-level implementation of the calls the game makes. * **Decomp.** A disassembly of all the game's code that reassembles byte-identical to the disc, and a static recompiler that turns it into C, which is what runs (checked frame by frame against the interpreter). * **Remastered opening.** [LuanUP](https://www.youtube.com/@LuanUP)'s 4K 60 fps remaster in place of the FMV, synced to the game; the original is one setting away. * **True16:9.** The stages drawn widescreen, showing more of the level instead of stretching it. On by default. * **Any disc image.** cue/bin (split or single), cue with wav/flac/ogg/mp3 audio, iso, ccd/img/sub and chd. * **Launcher.** Dressed like the 90s Japanese Sonic boxes. CRT filters, aspect options, pad support, save states.

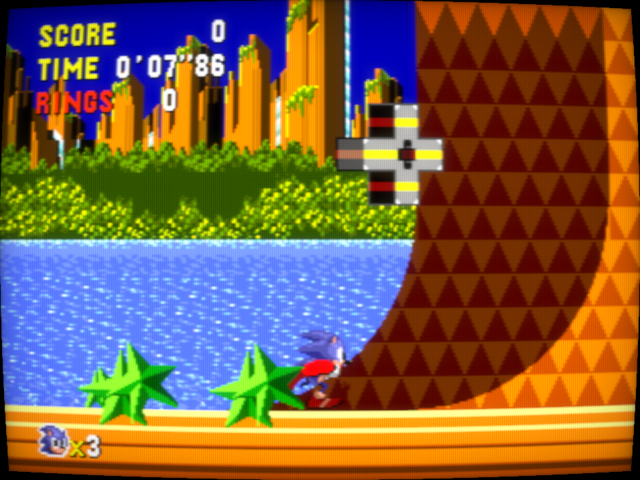

Palmtree Panic with the CRT filter Stardust Speedway

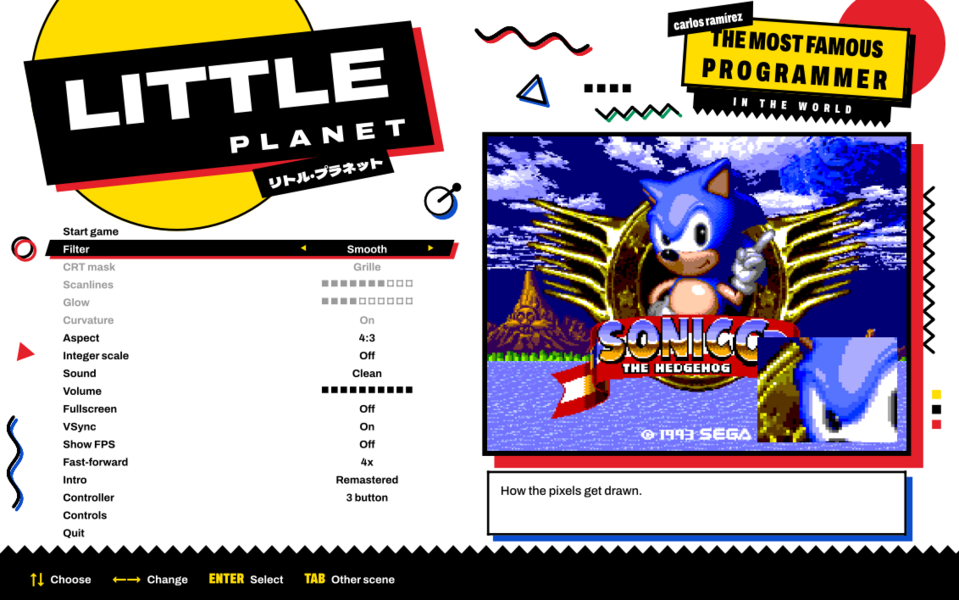

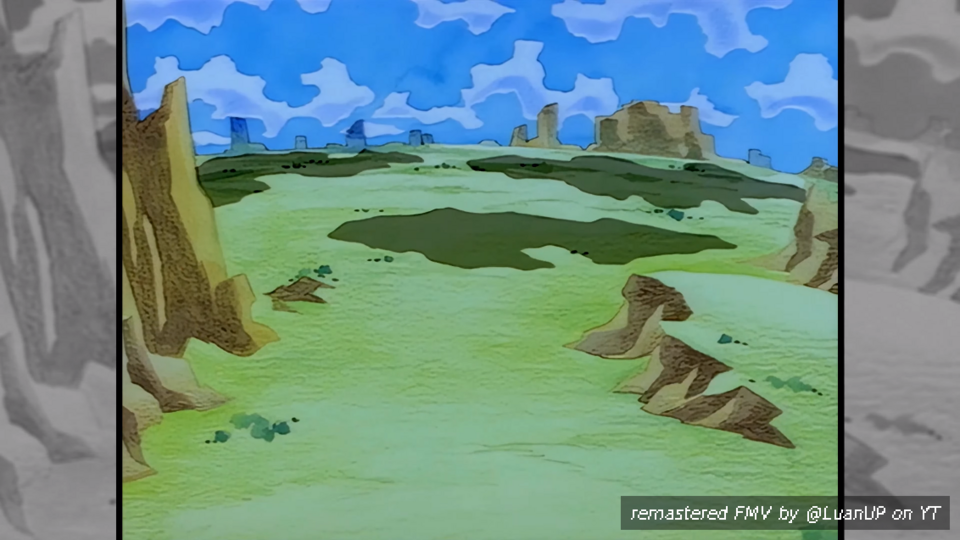

The remastered opening The setup menu

> [!IMPORTANT] > No game data is included. You need your own Sonic CD disc image. The Japanese release > (G-6021, data track SHA-1 `5b0ac16233028bcd8691c71b0a749b8d485dae7c`) is the tested one; other releases > boot but are untested. ## Play Grab the file for your system from the [latest release](https://github.com/carlosrmz009/littleplanet/releases/latest): | System | File | | |---|---|---| | Windows (x64) | `littleplanet.exe` | Run it to install. Or `littleplanet-windows-portable.zip`: unzip and run `Little Planet.exe`. | | macOS 11+ (Apple Silicon / Intel) | `littleplanet-macos.dmg` | Open it and run Little Planet. Not notarized: the first time, right-click → Open (macOS 15: System Settings → Privacy & Security → Open Anyway). | | Linux x86_64 | `littleplanet-linux.AppImage` | `chmod +x` it and run it. | | Linux ARM64 | `littleplanet-linux-aarch64.AppImage` | Same. | > [!NOTE] > **Antivirus warnings.** Some engines flag the Windows installer as a generic "trojan": it's a new, > unsigned program that unpacks a game, which is what their heuristics look for. Nothing in it is hidden: > every release file is built by [GitHub Actions](.github/workflows/build.yml) from this repository's source, > and you can check that a download is exactly that build with > `gh attestation verify littleplanet.exe --repo carlosrmz009/littleplanet`, or against `SHA256SUMS.txt` > in the release. The portable zip is there too if you'd rather scan the files one by one. The installer adds shortcuts, then asks for your disc image once and copies it (the .cue and everything it points to, or the .chd/.iso/.ccd) into the data folder: | | | |---|---| | Windows | `%APPDATA%\Little Planet` | | macOS | `~/Library/Application Support/Little Planet` | | Linux | `~/.local/share/littleplanet` | Saves (the Mega-CD's backup RAM) go to `backup_ram.bin` there, within a second of the game writing them. Uninstalling keeps that folder. The original saves only when a round starts, and CONTINUE goes back to that round's Zone 1. Here the game also saves after every zone: CONTINUE picks up at the next one (the good future so far, time stones and special stages included; score and lives start over, as they always do on CONTINUE). ### Fidelity * CD audio is streamed bit-exact from the disc and resampled to 48 kHz with a windowed-sinc filter. FM, PSG and PCM are each resampled the same way from their native rates (53.3 kHz, 223.7 kHz, 32.6 kHz). * The CD drive reads at 1x with seek times, like the real thing: load times and the FMV streaming are as on hardware. * Colours use measured VDP DAC levels, including shadow/highlight. Sprite limits, masking and the attribute cache behave like the hardware. * The CPU cores are checked against the [SingleStepTests](https://github.com/SingleStepTests) suites: the Z80 passes all 1.6M cases (undocumented flags, WZ, Q, timing), the 68000 all of the 1M cases apart from a few undocumented DIVS/ASR corner cases and address errors. ### Remastered opening image The opening animation is [LuanUP](https://www.youtube.com/@LuanUP)'s [4K 60 fps remaster](https://www.youtube.com/watch?v=O7ehCx2RC2A) of the Japanese opening, shown full screen (16:9) in place of the original FMV, with a credit on screen as it starts. It ships with the game. (Thanks, LuanUP!) Besides the title screen's attract loop, it also plays every time you start a new game; Start skips it. **Setup → Intro → Original** brings back the game's own opening. Playback uses a small LGPL build of [FFmpeg](https://ffmpeg.org) that ships with the game. ### True16:9 Widescreen Palmtree Panic in widescreen **Setup → Aspect → True16:9**
Simply the best way to enjoy Sonic CD on PC. ### Extras The setup menu has a live preview. In game, Start opens it during a stage (as in the 2011 version; on the title and the game's own menus Start stays the game's), and Esc, Home or Select+Start open it anywhere. | Option | | |---|---| | Filter | Sharp, Smooth, Scale4x, or CRT (grille/shadow/slot mask, scanlines, glow, curvature) | | Aspect | True16:9 (see above), 4:3 (as on a TV), or 16:9 blur-fill (4:3 with the picture blurred into the sides) | | 4:3 screens | In True16:9, what fills the sides of the screens that stay 4:3 (Time Attack, RAM Data, Visual Mode, the movies): Blur-fill (default) or Black bars | | Sound | Clean, or Accurate: adds the Model 1 Mega Drive's low-pass on FM and PSG (CD audio is never filtered) | | Intro | Remastered (LuanUP's 4K remaster, see above) or Original (the game's FMV) | | Controller | 3 button (default, what Sonic CD was made for) or 6 button (the real 6-button protocol) | | Misc | Integer scaling, fullscreen, VSync, FPS counter, volume, fast-forward speed | ### Controls Remap anything under *Controls*. Xbox pads, DualShock 4 / DualSense, Switch Pro (Bluetooth) and most USB pads work, hot-plugged. | Key | Pad | | Key | Action | |---|---|---|---|---| | Arrows | D-pad | | Tab | Fast-forward (hold) | | Z / X / C | A / B / C | | F2 / F4 | Save / load state | | Enter | Start | | F3 | Next state slot | | A / S / D | X / Y / Z (6 button) | | P | Pause | | Right Shift | Mode (6 button) | | F11, Alt+Enter | Fullscreen | | | | | F12 | Screenshot | ## Build **Windows:** Python 3.10+, Visual Studio 2022 Build Tools (MSVC x64), a static SDL3 in `build\sdl` (gamepads; CI builds it). **macOS:** Python 3, Xcode command line tools, SDL3 (in `build/sdl`, as CI builds it, or the system's). **Linux:** Python 3, gcc/g++, SDL3 (in `build/sdl` or the system's, through pkg-config). Packaging the AppImage also needs `appimagetool`. For the remastered opening, build FFmpeg once with `tools/build_ffmpeg.sh build/ffmpeg` (needs nasm; on Windows run it from an MSYS2 MINGW64 shell) and fetch the video with `tools/fetch_intro.sh`. The build scripts pick both up from `build/` and bundle them; without them the game builds and runs the same, with only the original opening. ```bash ./build_linux.sh # or ./build_mac.sh, or build.bat build/littleplanet path/to/sonic.cue ``` ### Matching build ```bash tools/decomp.sh path/to/sonic.cue # extract, reassemble asm/, compare with the disc ``` `asm/` is a disassembly of every executable file on the disc (boot program, main-CPU MMDs, sub-CPU programs): code only, seeded from runtime coverage (`--cov`) and followed by recursive descent. Graphics, sound and level data stay on your disc and are pulled in at build time. All 112 files reassemble byte-identical to the Japanese release. The build also recompiles `asm/` to C (no disc needed for that) and links it into the game. `tests/rc_check.sh path/to/sonic.cue` checks it against the interpreter over 96 stage runs. CI ([build.yml](.github/workflows/build.yml)) builds all four targets and tests them against a tiny homebrew test disc (`tools/mktestdisc.py`). Every push to `main` refreshes the release.
Command-line options | Option | | |---|---| | `--frames N` | run headless for N frames | | `--script FILE` | headless input: lines of `frame hexmask` (held from that frame on; bits: U D L R B C A Start) | | `--shot a,b,c` / `--shotprefix P` | save BMP screenshots at those frames | | `--wav FILE` | record audio (headless) | | `--hashlog FILE` | per-frame hash of main and PRG-RAM, to compare runs | | `--state FILE` / `--savestate FILE` | load a state before / save one after a headless run | | `--dump PREFIX` | write RAM, VRAM and the VDP's registers at the end | | `--bram FILE` | backup RAM (the saves) for a headless run: loaded before, written after | | `--uitest PREFIX` | scripted walk through the launcher and game, saving the real OpenGL output | | `--apptest PREFIX` | the app straight into the game (after `--state`), window screenshots at the `--shot` frames, the sound in `PREFIX.wav`, quits after `--frames` | | `--movie-check` | say whether FFmpeg (for the remastered opening) can be loaded | | `--interp` | run the game's code through the interpreter instead of the recompiled C | | `--rcstats` / `--rc-info` | how much ran recompiled and where the rest was / whether the recompiled code is built in | | `--version` | print the version | `tools/disctool` (built from `tools/disctool.c`) lists, hashes and extracts disc images.
## How it works 1. **Disc.** `src/disc.c` turns any image format into one view: data sectors by LBA, audio sectors by LBA, and the TOC. Track 1 index 01 is LBA 0, as the drive sees it. 2. **Boot.** `src/hle.c` does what the boot ROM does: loads the IP into main RAM and the SP into PRG-RAM, sets up both CPUs' vector and jump tables, and enters the game's code. BIOS entry points are tiny stubs whose line-A opcode traps into C. 3. **CD.** `src/cdc.c` is the drive (seek, 1x read, CD-DA play) plus the decoder's buffer and the gate array's transfer registers, so the game's own file engine runs unmodified. 4. **Machine.** `src/mcd.c` schedules everything on the 53.69 MHz master clock: main 68000 at /7, Z80 at /15, the sub 68000 on its own 12.5 MHz clock, the VDP per line. 5. **Recompiled code.** `tools/recomp.py` turns the code in `asm/` into C: each distinct instruction becomes a function calling the interpreter's own handler for its opcode with the operands compiled in, and straight-line runs become blocks (622k instructions in 112 files come down to 22,897 blocks, since the stages share their engine). `src/recomp.c` runs a block where memory holds the code it was compiled from (each instruction checks its own words, the ones the interpreter would fetch), and interprets anything else, such as the BIOS stand-ins. Blocks stop where the interpreter would let something else happen (cycle budget, interrupts, trace, exceptions), so the two produce the same machine state frame for frame: `tests/rc_check.sh` plays 96 stage runs both ways and compares every frame. ## Status | | | |---|---| | Boot, title, opening FMV, gameplay | yes | | CD audio, PCM music, FM/PSG | yes | | Save states | yes, bit-exact | | Disassembly, matching rebuild | yes: all 112 executable files reassemble byte-identical | | Static recompiler | yes: all game code runs as recompiled C, frame-identical to the interpreter | | Remastered opening (4K60, synced) | yes | ## Contributing Issues and PRs welcome. Never commit disc images. ## Layout ``` src/ m68k.c m68k_ops.h 68000 (ops shared with future recompiled code) z80cpu.c z80.c Z80 and its bus vdp.c VDP audio.c fm.cpp PSG, RF5C164, CD-DA, mixing; YM2612 through ymfm resample.c band-limited resampler mcd.c memory maps, gate array, scheduler cdc.c hle.c CD drive/decoder, HLE BIOS asic.c Mega-CD graphics ASIC disc.c version.c disc images, known releases movie.c intro.c remastered opening: FFmpeg playback, synced to the CD drive wide.c True16:9: the stage engine's patches, the picture's edges zones.c a save after every zone (patches the main program) recomp.c runs the recompiled game code (generated from asm/ at build time) app.c ui.c video.c config.c discwiz.c update.c state.c ui_art.c vg.c gfx.c launcher art, its vector renderer (text via stb_truetype), installer widgets win32.c input.c Windows front end sdl/ mac/ linux/ SDL front end, platform installers installer/ Windows installer (littleplanet.exe) third_party/ libchdr, ymfm, dr_mp3, stb_vorbis, stb_truetype res/fonts/ the launcher's fonts (OFL) tests/ CPU test-suite runners, pad protocol test, recompiler check (stages/: input scripts) asm/ disassembly of every executable file on the disc (code only; data comes from your disc) tools/ disctool, disassembler/assembler, recompiler, widescreen patch finder, test disc generator, FFmpeg build ``` ## Thanks * Sega and Sonic Team for Sonic CD. * [ymfm](https://github.com/aaronsgiles/ymfm), [libchdr](https://github.com/rtissera/libchdr), [dr_libs](https://github.com/mackron/dr_libs), [stb](https://github.com/nothings/stb), [SDL3](https://www.libsdl.org/). * [Archivo](https://github.com/Omnibus-Type/Archivo) and [Dela Gothic One](https://github.com/syakuzen/DelaGothic) (SIL Open Font License), the launcher's type. * [SingleStepTests](https://github.com/SingleStepTests) for the CPU test suites. * [LuanUP](https://www.youtube.com/@LuanUP) for the remastered opening. * [FFmpeg](https://ffmpeg.org) (LGPL 2.1), which plays it. ## License [MIT](LICENSE) for the runtime, tools and installer. Third-party code keeps its own license (see `third_party/`); the bundled FFmpeg libraries are LGPL 2.1 (`tools/build_ffmpeg.sh` builds them from the unmodified release). The remastered opening is LuanUP's work, included with their permission; it isn't covered by the MIT license. Nothing extracted from a disc is covered. **Unofficial fan project and intellectual property notice** This is an independent, unofficial software project. It is not affiliated with, endorsed by, or sponsored by SEGA. Sonic The Hedgehog and all associated trademarks and copyrighted game content belong to their respective rights holders. Any gameplay screenshots included in this README are used to document and compare technical features of the software. No original game ROMs or disc images are distributed with this project. Users must provide their own game copies. This notice does not claim ownership of third-party intellectual property or imply permission to use it. Not affiliated with or endorsed by Sega. Sonic the Hedgehog and Sonic CD are trademarks of Sega.
