# Creating Components [![](Logo-Tiny.png)](/../../#glossary)

| Type | Description |
| ------ | ----- |
| [```IComponent```](#struct-components) | Unmanaged data component. |
| [```ICopyable<T>```](#copyable-components) | Managed data component with custom ```CopyFrom()``` and ```OnRecycle()``` methods. |
| [```IComponentShared```](#shared-components) | Shared components are the same as default components, but this feature support shared component groups. |
| [```IComponentOneShot```](#oneshot-components) | Doesn't stored in state, automatically removed at the end of the tick. |
| [```IComponentStatic```](#static-components) | Feature to avoid any applying on entity when applying DataConfig. |
| [```IComponentRuntime```](#runtime-components) | Feature to avoid adding these components onto the DataConfig. |
| [```IComponentInitializable```](#initializable-components) | This call is done before copying component onto your entity when applying DataConfig. |
| [```IComponentDeinitializable```](#deinitializable-components) | Called on ```DataConfig::Apply``` on components removings. |
| [```IComponentBlittable```](#blittable-components) | Forces component to be blittable. |
| [```IVersioned```](#versioned-components) | Track version of component by calling ```entity.GetDataVersion<TComponent>()```. |
| [```IVersionedNoState```](#versioned-components-non-state) | Increment version of component on each change. |

### Struct Components

In struct components you don't have any methods and all copies make automatically.
If you store managed array here, only pointer will be copied, so if you have static array with some data you can use managed arrays here, but if you change data by your logic in these arrays, you will get sync problems. In some cases you can use **StackArray** to allocate struct array, but there are some limitations with data size. To use managed types in struct components you need to use ```[GeneratorIgnoreManagedType]``` attribute to avoid generator errors.
In order to use some arrays, you can use [**Intrusive collections**](https://github.com/chromealex/ecs-submodule/tree/master/Runtime/Core/Collections/Intrusive) (IntrusiveList, IntrusiveHashSet, IntrusiveDictionary, IntrusiveStack, IntrusiveQueue, etc.) to be free of copying any struct data. Also you can use DataArray<T>/DataObject<T> collection without Copyable component.

```csharp
public struct MyStructComponent : IComponent {

    public int someData;

}
```

In systems where you need to use components you could use these methods:
```csharp
void ISystemFilter.AdvanceTick(in Entity entity, in float deltaTime) {

    // Set data
    entity.Set(new MyStructComponent() {
    	someData = 123
    });

    // Read data (Here you can read data only, entity version has not been changed)
    ref readonly var dataReadonly = ref entity.Read<MyStructComponent>();

    // Change data (Any call of GetData inside Logic step will trigger entity version to change)
    ref var data = ref entity.Get<MyStructComponent>();
    ++data.someData;

    // Remove data
    entity.Remove<MyStructComponent>();

}
```

### Copyable Components

If you need to store managed data with custom copy interface, you should use **IStructCopyable<>** component where you need to implement CopyFrom(in T other) and OnRecycle() methods.
> **Note**
> Use this if you are really want to use managed data and you really changes this data in your systems. In other case use [**Intrusive collections**](https://github.com/chromealex/ecs-submodule/tree/master/Runtime/Core/Collections/Intrusive).

> **Warning**
> You **must** implement ```CopyFrom``` and ```Recycle``` methods and in CopyFrom you need to copy data from "other" component and in Recycle you need to reset you data to it's default state. Be sure you are copy and reset your data properly!

```csharp
public struct MyStructCopyableComponent : ICopyable<MyStructCopyableComponent> {

    public int someData;

    void IStructCopyable<MyStructCopyableComponent>.CopyFrom(in MyStructCopyableComponent other) {
	// Do some copy work here
    }

    void IStructCopyable<MyStructCopyableComponent>.OnRecycle() {
    	// Return data to the pool
    }

}
```

### Shared Components

Shared components are the same as default components, but this feature support shared component groups.
For example: you have an Entity1 and Entity2, also you have Component1 that you would like to add to Entity1 and to Entity2, but you don't want to create data copy for each entity, so you can store one copy for these entities.
Also you have an option to store shared components by the groupId. Provide groupId to store a copy for each unique groupId.

```csharp
struct MySharedComponent : IComponentShared {
    ...
}

void Example() {

    ...
    ref readonly var c = ref entity.ReadShared<MySharedComponent>([groupId]); // Read data if exist
    ref var c = ref entity.GetShared<MySharedComponent>([groupId]); // Get or create data for this entity
    // If you change component data, all entities with the same groupId will be changed
    entity.RemoveShared<MySharedComponent>([groupId]); // Remove data for this entity

}
```

### OneShot Components

In ME.ECS you could fire one-tick components without store them in state.<br>
These components are similar to NotifyAllSystemsBelow lifetime flag and automatically removed at the end of the tick.

```csharp
entity.SetOneShot(new YourOneShotComponent());
// Here you can get access to your component data or use filters
**(TICK END)**
// No component data exist at this point
```

### Versioned Components

In ME.ECS you could track version of component type by calling ```entity.GetDataVersion<TComponent>()```, it would return world's tick when component has changed on this entity. To enable this feature for component type, you should define ```IVersioned``` interface at your component:

```csharp
struct MyComponent : IComponent, IVersioned {
    ...
}
```

### Versioned Components (Non-state)

In ME.ECS you could track version of component type by calling ```entity.GetDataVersionNoState<TComponent>()```, it would return incremented number each time component has changed on this entity. To enable this feature for component type, you should define **IVersionedNoState** interface at your component:

```csharp
struct MyComponent : IComponent, IVersionedNoState {
    ...
}
```

### Static Components

> **Note**
> Useful with [DataConfigs](https://github.com/chromealex/ecs/blob/master/Docs/DataConfig-Readme.md) only.

If you don't want to store some components on entity, but you still want to get data by reading data configs - you can provide ```IComponentStatic``` interface to avoid any applying on entity.

```csharp
struct MyStaticComponent : IComponentStatic {
    ...
}

void Example() {

    ...
    var data = config.Get<MyStaticComponent>(); // Read data from DataConfig

    var emptyData = entity.Read<MyStaticComponent>(); // Fail! Returns an empty data

}
```

### Runtime Components

> **Note**
> Useful with [DataConfigs](https://github.com/chromealex/ecs/blob/master/Docs/DataConfig-Readme.md) only.

To be able to add only data components and to avoid components marked ```IComponentRuntime``` you can use this interface.

### Initializable Components

> **Note**
> Useful with [DataConfigs](https://github.com/chromealex/ecs/blob/master/Docs/DataConfig-Readme.md) only.

Sometimes you need to call initialization method for components, so you need to use ```IComponentInitializable``` interface. This call is done before copying component onto your entity.

### Deinitializable Components

> **Note**
> Useful with [DataConfigs](https://github.com/chromealex/ecs/blob/master/Docs/DataConfig-Readme.md) only.

Opposite to ```IComponentInitializable```. Called on ```DataConfig::Apply``` when you removing components.

### Blittable Components

> **Note**
> Useful with [FilterBag](https://github.com/chromealex/ecs/blob/master/Docs/Manual-Burst.md).

Forces component to be blittable, usefull especially with FilterBag because of FilterBag requires unmanaged components only. For example, tag components are not blittable because they are stored in special tag storage, so you need to force set tag component as blittable.

### Component Lifetime

For struct components there are lifetime property as described in the table below:
| Value | Description |
| ----- | ----------- |
| Infinite | Lifetime has not set, so you need to remove it manually by calling **RemoveData** method on entity. It is component default value. |
| NotifyAllSystemsBelow | If set all systems defined after executing system will be able to get this component. At the end of current tick this component will be destroyed automatically (see [custom lifetime](https://github.com/chromealex/ecs/blob/master/Docs/Manual-CreatingComponents.md#component-custom-lifetime) section). |
| NotifyAllSystems | If set all systems will be able to get this component, but only from the begining of the next tick. At the end of next tick this component will be destroyed automatically (see [custom lifetime](https://github.com/chromealex/ecs/blob/master/Docs/Manual-CreatingComponents.md#component-custom-lifetime) section). |

```csharp
// Set struct data with Lifetime = Infinite
entity.Set(new YourStructComponent());

// Set struct data with Lifetime = NotifyAllSystemsBelow
entity.Set(new YourAnotherStructComponent(), ComponentLifetime.NotifyAllSystemsBelow);
```

> **Note**
> If you set **Infinite** lifetime and after that set **non-Infinite** lifetime, **non-Infinite** will be ignored. First you need to call **RemoveData** before set another lifetime.

### Component Custom Lifetime

In some cases you need to set up custom lifetime for component, so you can use ```entity.Set(new YourStructComponent(), ComponentLifetime.NotifyAllSystemsBelow, lifetimeInSeconds)``` to determine how long your component should be alive. Note that NotifyAllSystems or NotifyAllSystemsBelow should work as expected because this parameter controls only creation time of the component.

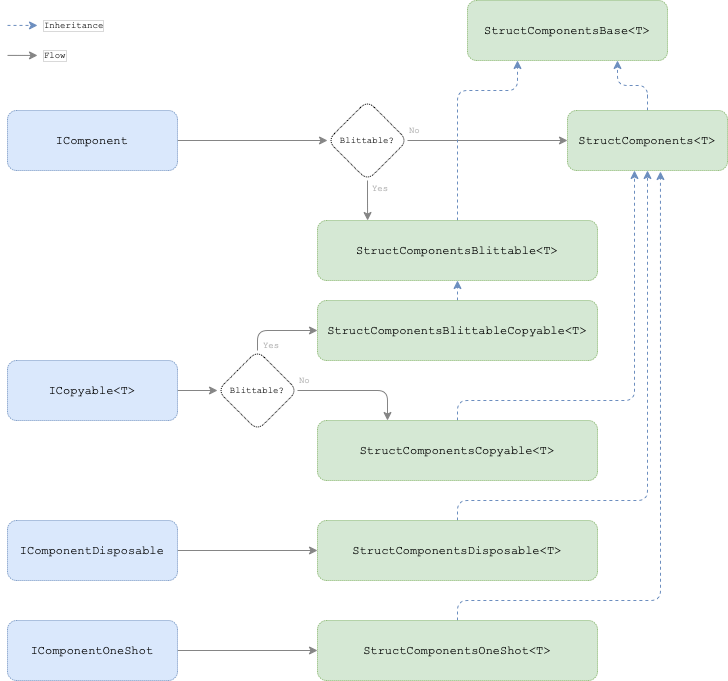

## Flow

<img src="ECS-ComponentsStorage.png" />
