# Overview
Vendor of the products: TRENDNet (https://www.trendnet.com/)
Reported by: johnawm of HIT-IDS ChunkL Team

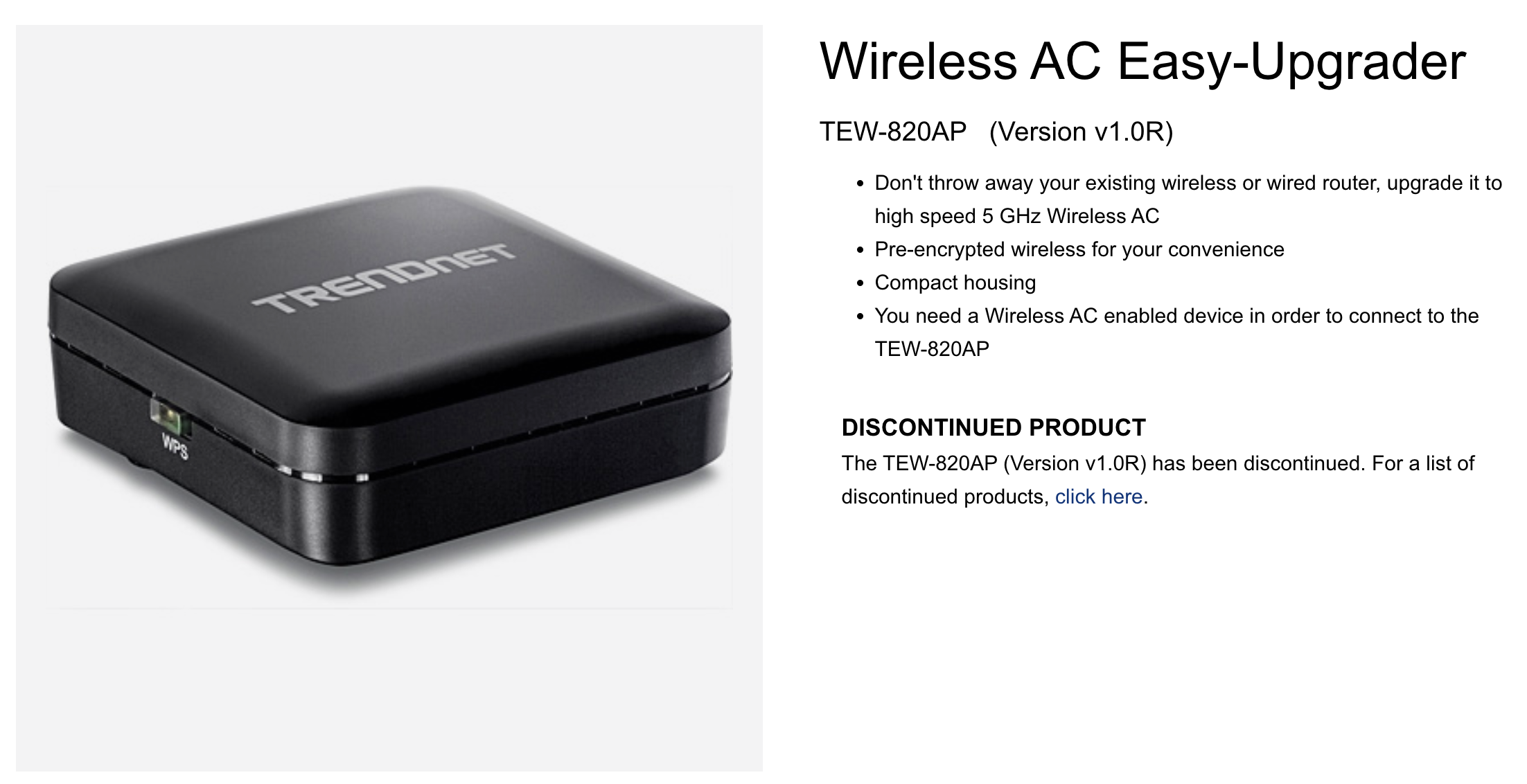

Product: TRENDNet TEW-820AP (Version v1.0R)
Affected Version: TRENDNet TEW-820AP 1.01.B01
Firmware: https://downloads.trendnet.com/tew-820ap/firmware/tew-820apv1_(fw1.01b01).zip
# Vulnerability Details
A stack overflow vulnerability exists in TrendNet Wireless AC Easy-Upgrader TEW-820AP (Version v1.0R, firmware version 1.01.B01) which may result in remote code execution or denial of service. The issue exists in the binary "boa" which resides in "/bin" folder, and the binary is responsible for serving http connection received by the device. While processing the post reuqest "/boafrm/formNewSchedule", the value of "submit-url" parameter (as shown at line 82-91 of Figure A) which can be arbitrarily long is copied onto stack memory by "sprintf" function (as shown at line 20 of Figure B), and could lead to a buffer overflow. The attackers can construct a payload to carry out arbitrary code attacks.

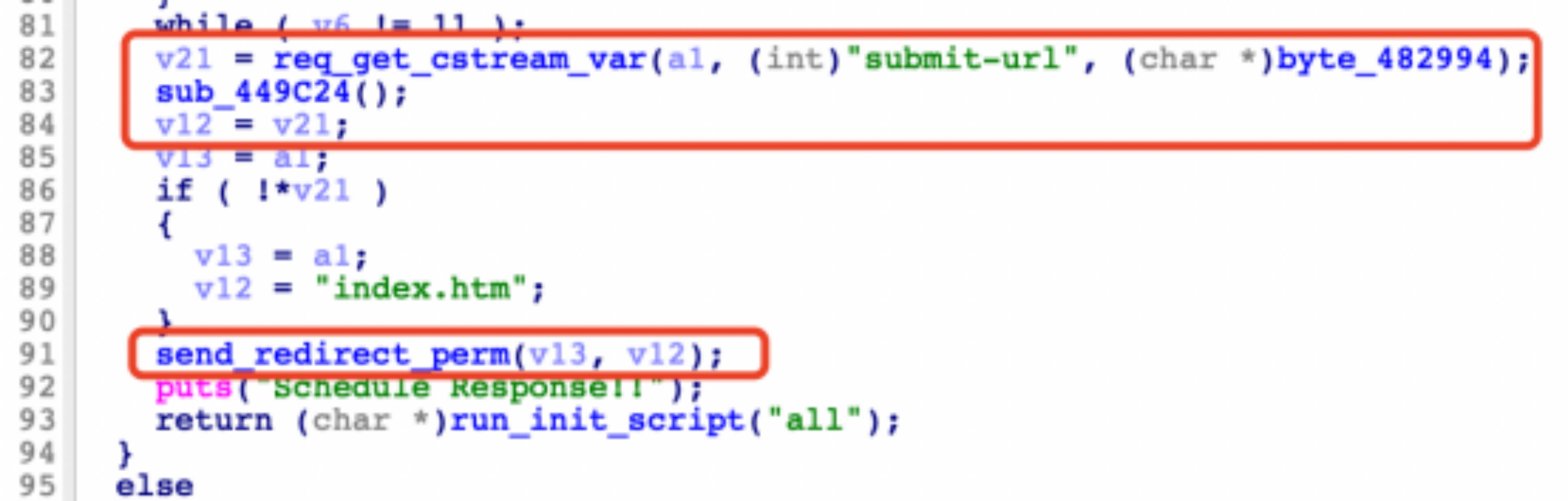

Figure A: The decompiled code of function which read value of parameter "submit-url" and call send_redirect_perm function with the value as a parameter.

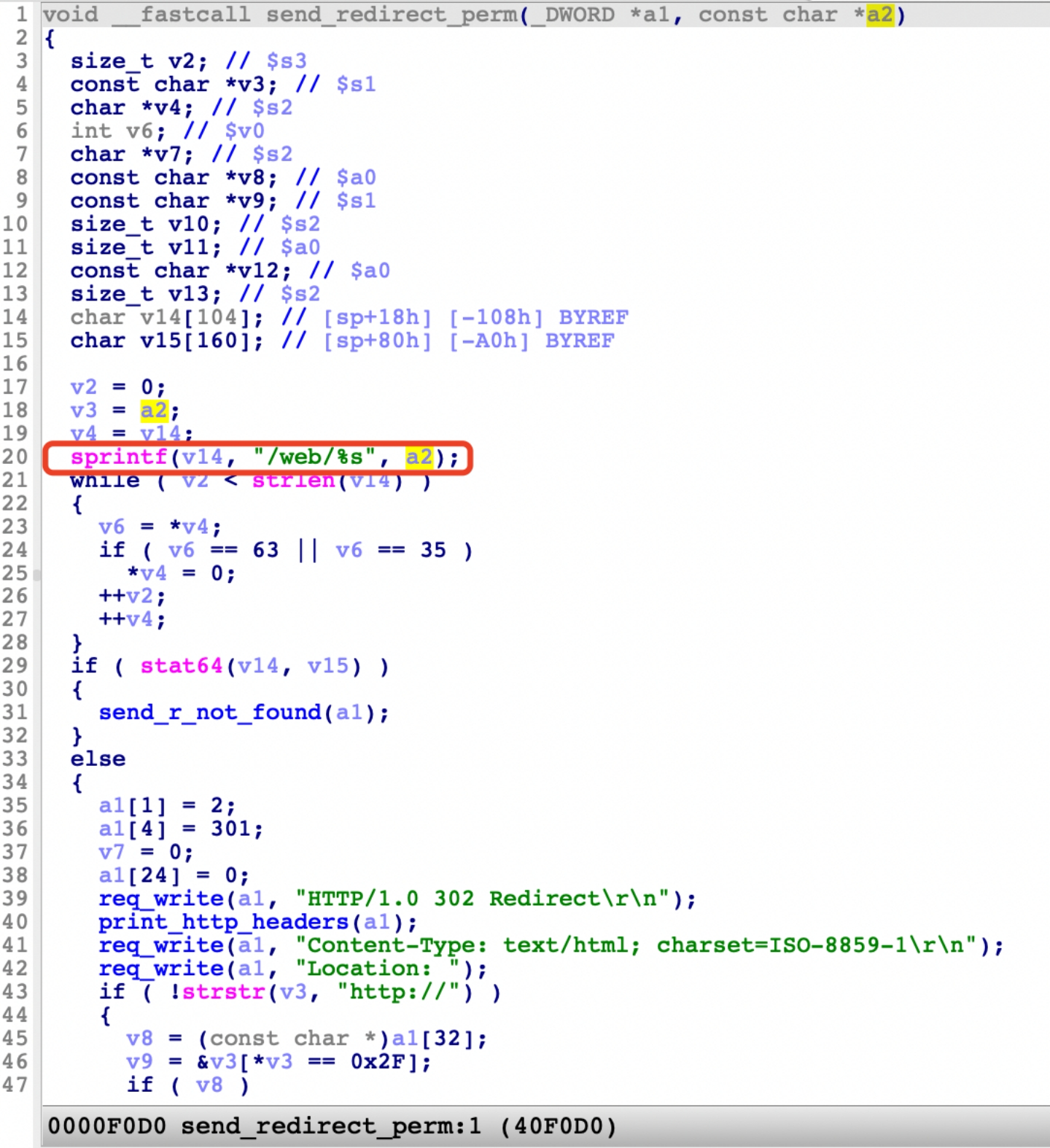

Figure B: The decompiled code of function send_redirect_perm.
# Reproduce and POC
To reproduce the vulnerability, the following steps can be followed:
1. Start frimware through QEMU system or other methods (real device)
2. Use the default username and password to login web.
3. Execute the poc script as follows:
```bash
python3 POC_for_formNewSchedule.py 192.168.1.1
```
# Reply by Official

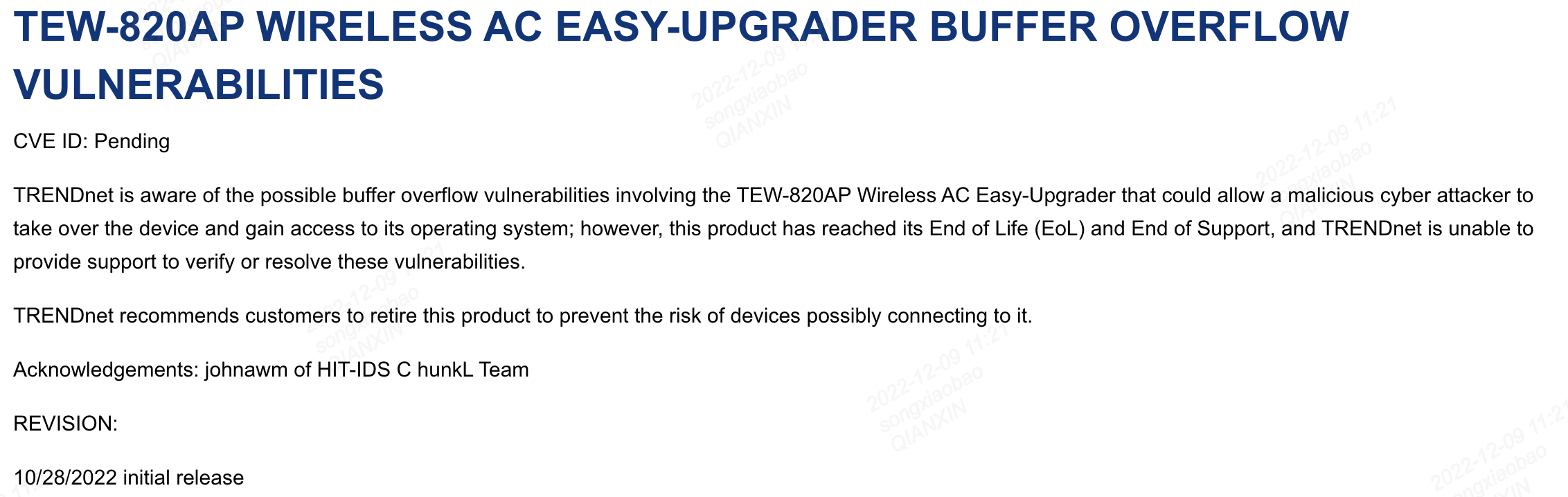

The official TRENDNet has replied on official web site https://www.trendnet.com/support/view.asp?cat=4&id=87
