# cbirds A flock of birds in your terminal.

tests version MIT license C99 no dependencies Linux, macOS sprites in Kitty and Ghostty mentioned in Awesome CLI Apps mentioned in Awesome TUIs mentioned in Awesome Ricing

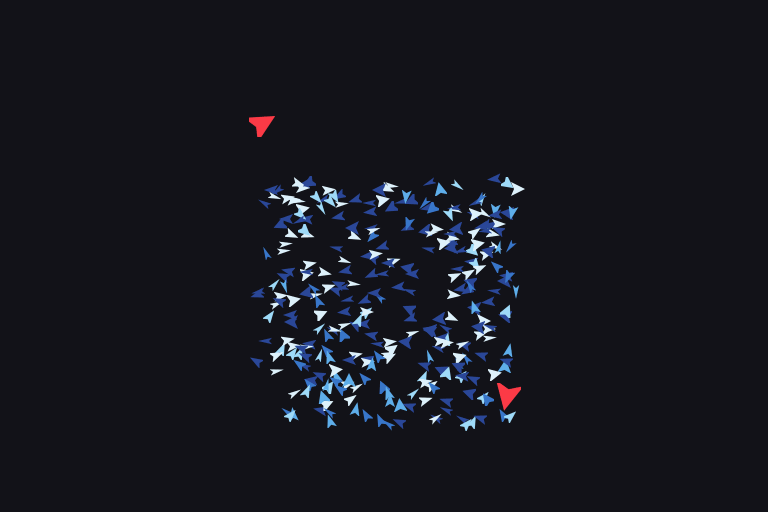

The flock writes BOIDS, lets go, and parts around two scarlet hawks in slow motion

cbirds --render kitty --hawks 2 --color ice --speed 0

Craig Reynolds' boids, drawn in braille in any terminal, and as sprites over the Kitty graphics protocol in Kitty and Ghostty. One C99 program, no dependencies. Every clip on this page was recorded by cbirds itself.

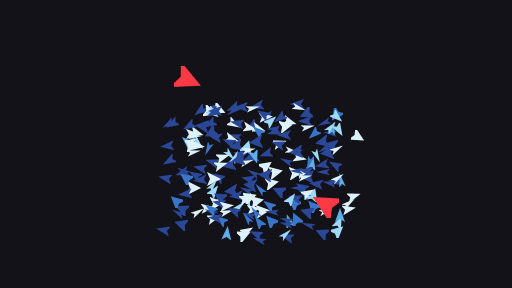

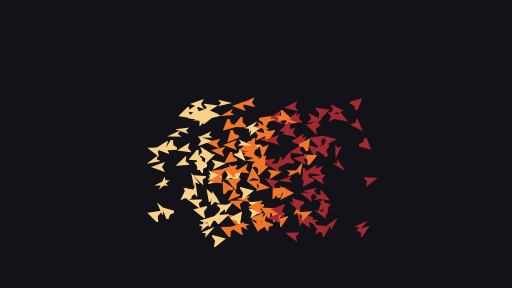

Two scarlet hawks hunt an ice-blue flock, which parts around them and closes behind Three flocks in gold, orange and red, each keeping to its own kind and crossing the others
cbirds --render kitty --hawks 2 --color ice --speed 0 cbirds --render kitty --flocks 3 --color ember

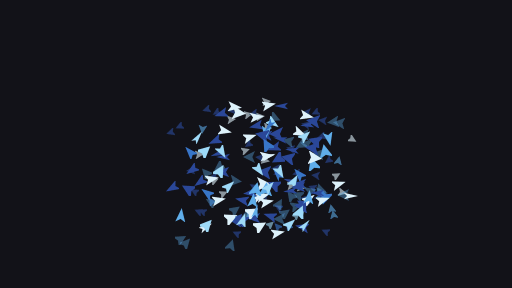

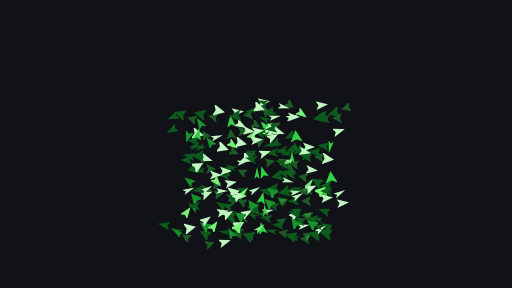

Matrix rain, as green birds with tails falling through the screen Two skies: birds with tails in front, smaller and dimmer birds drifting slower behind them
cbirds --render kitty --matrix --speed 0 cbirds --render kitty --depth --trails --color ice

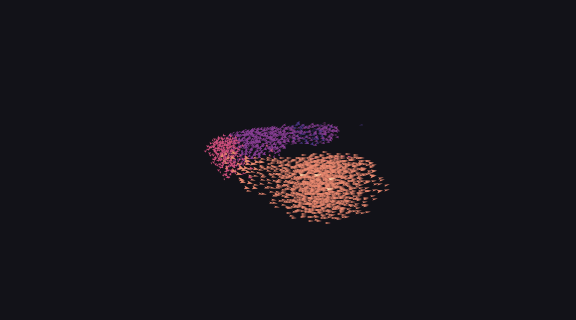

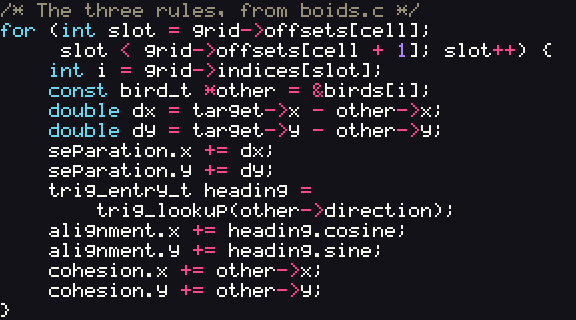

Syntax-highlighted C, the three rules from boids.c: a wave from the middle lifts the letters, they fly as a flock, and each one lands back on the cell it left A murmuration of two thousand birds at dusk, in three dimensions: those near the camera large and peach, those far from it small and indigo, and a stream of the nearest sweeps round in front of the camera before the flock folds back into one body
pygmentize -f 16m -O style=monokai docs/rules.c | cbirds cbirds --render kitty --3d --color dusk

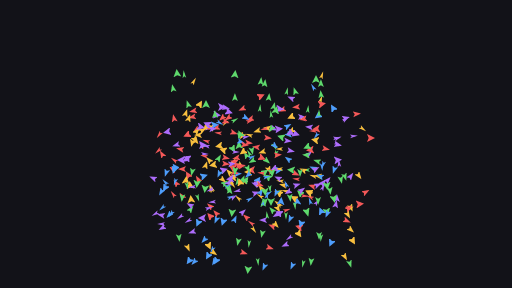

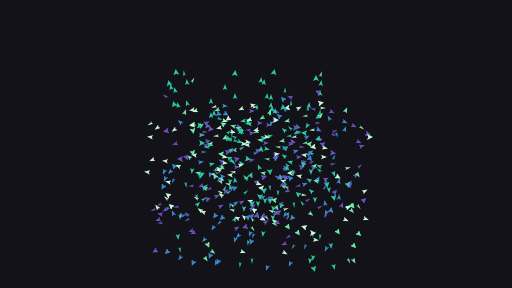

Birds gather into the word HELLO, red through violet, and hover in their places while the rest of the flock wheels round it The flock tells the time, 12:34:56, mint through to violet: the seconds tick as their birds hop over to the next digit, and at 12:35 the digit of the minute that changes lets go and other birds write the new one
cbirds --render kitty --say "hello" --color prism cbirds --render kitty --clock-at 12:34:56 --seconds --color aurora

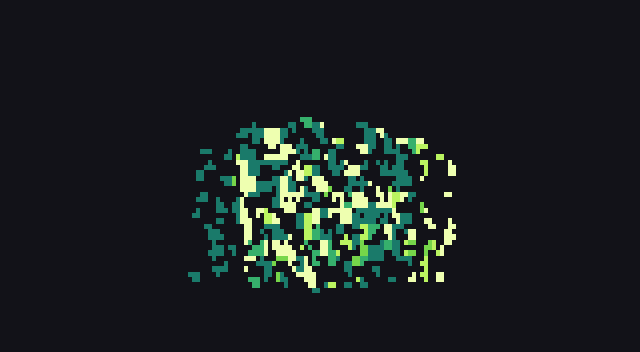

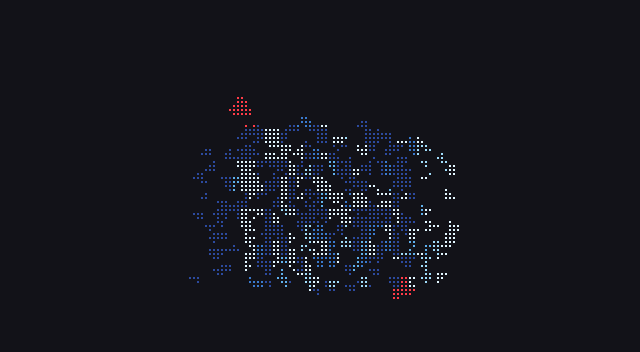

The same flock and hawks in braille dots, as a terminal without a graphics protocol shows it The flock in sextant blocks, as a text terminal with a font from 2020 or later shows it
cbirds --render braille --hawks 2 --color ice cbirds --render sextants --color acid --speed 2
## Install ### Homebrew macOS and Linux. Completions for bash, zsh and fish come with it, and `brew upgrade` keeps it up to date. ``` brew install clainstone/tap/cbirds ``` ### apt Debian 12, Ubuntu 22.04 and later, and their derivatives, on amd64 or arm64, from its [apt repository](https://clainstone.com/apt). Completions come with it, and `sudo apt upgrade` keeps it up to date. ``` sudo apt install curl curl -fsSL https://clainstone.com/apt/cbirds.gpg | sudo tee /etc/apt/keyrings/cbirds.gpg >/dev/null echo "deb [signed-by=/etc/apt/keyrings/cbirds.gpg] https://clainstone.com/apt stable main" | sudo tee /etc/apt/sources.list.d/cbirds.list sudo apt update sudo apt install cbirds ``` Or just the package, without the repository and so without updates: the `.deb` files are on the [release page](https://github.com/clainstone/cbirds/releases/latest), for `sudo apt install ./cbirds_*.deb`. ### From source ``` git clone https://github.com/clainstone/cbirds cd cbirds make sudo make install cbirds ``` That puts one file, `/usr/local/bin/cbirds`. Without sudo, in your home instead (`~/.local/bin` has to be on your `PATH`): ``` make install PREFIX="$HOME/.local" ``` Linux and macOS. You need a C compiler and `make`, nothing else. `make test` runs the tests. The build uses the system's `cc` and honours `CC`, `CFLAGS`, `LDFLAGS`, `PREFIX` and `DESTDIR`, so `make CC=clang` and packaging work as usual. ## Uninstall ### Homebrew The second line removes the tap as well; leave it out to keep it. ``` brew uninstall cbirds brew untap clainstone/tap ``` ### apt The last two lines remove the repository as well; leave them out to keep it. ``` sudo apt remove cbirds sudo rm /etc/apt/sources.list.d/cbirds.list /etc/apt/keyrings/cbirds.gpg sudo apt update ``` A `.deb` installed on its own goes with the first line alone. ### From source In the same directory, and with the same `PREFIX` it was installed with: ``` sudo make uninstall # installed with sudo make install make uninstall PREFIX="$HOME/.local" # installed in your home ``` Without the clone it is the one file: `sudo rm /usr/local/bin/cbirds`, or `rm ~/.local/bin/cbirds`. ## Use ``` cbirds a flock in braille, in your terminal's own colours cbirds --render kitty sprites, in Kitty or Ghostty cbirds --preset murmuration the starling look cbirds --hawks 2 --color ice something to watch cbirds --flocks 3 --color ember three flocks that keep to their own cbirds --color prism a turn runs a rainbow through the flock cbirds --depth --trails a second sky behind the first cbirds --3d a murmuration in three dimensions cbirds --link one sky across several terminals cbirds --matrix it is raining birds cbirds --say "back in five" the flock writes it, and holds it as a sign cbirds --clock the flock tells the time cbirds --clock --seconds and the seconds, HH:MM:SS cbirds --say "ciao" --font-size 8 letters eight rows tall, from 4 to 10 cbirds --picture logo.png the flock draws a PNG; --shape dot and -n 2000 suit it cbirds --screensaver --clock a lock screen that tells the time; any key quits fastfetch | cbirds the letters of anything take flight ``` It opens by writing BOIDS, lets go, and flocks. Move the pointer into the flock and it scatters. Press `q` and it flies off the top. Left alone for a minute, it starts moving the sliders itself; any key takes them back. `h` opens the panel of sliders in the corner, and `--panel` opens it from the start. Lowercase lowers, uppercase raises, one press is one notch. With two flocks or more there is one row more, `avoidance` on `g`/`G`. ``` ╭────────────────────────────────────╮ │ boundary ▓▓▓▓░░░░░░░░ 0.20 b/B │ │ separation ▓▓▓▓░░░░░░░░ 0.005 s/S │ │ alignment ▓▓▓▓░░░░░░░░ 1.50 a/A │ │ turning ▓▓▓▓▓▓▓▓░░░░ 70° t/T │ │ perception ▓▓▓▓▓▓░░░░░░ 36px p/P │ │ speed ▓░░░░░░░░░░░ 0.4× v/V │ │ frame 0.6ms 31KB 60fps │ │ quit q │ ╰────────────────────────────────────╯ ``` | key | | key | | |---|---|---|---| | `Space` | pause | `.` | one frame | | `+` `-` | more birds, fewer | `k` `K` | a hawk more, one fewer | | `e` | tails | `Tab` | next preset | | `0` | back to the defaults | `Enter` | letters off, or home | ## Anything can fly Pipe text into cbirds and the text is the flock. ``` fastfetch | cbirds figlet -f big hello | cbirds ls --color=always -la | cbirds git log --oneline --graph --color=always | cbirds cbirds --text poem.txt ```

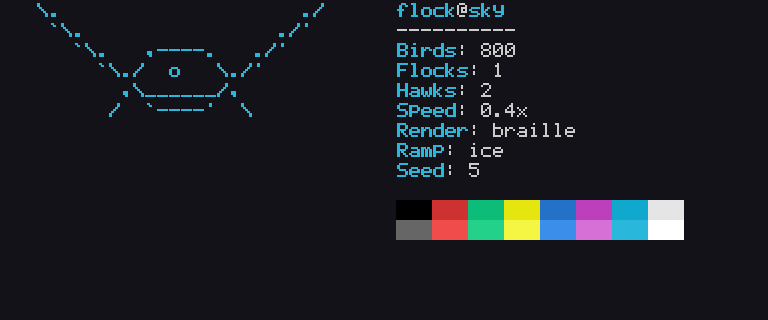

A bird drawn in letters, a list of settings beside it and rows of colour blocks: the letters take flight as a wave runs through them, fly as a flock, and land on the cells they left

cat docs/neofetch.txt | cbirds

It opens with the text exactly as the command printed it, in its own colours, laid out as a terminal would have laid it out: cbirds reads the escape sequences, so a logo with its information beside it comes out as a logo with its information beside it. A few seconds later one letter leaves and the ones near it follow, a wave that crosses the screen in about a second, and the letters fly as a flock. After twenty seconds or so they are called home, and every letter lands on its own cell: the screen is what the command printed again, to the cell. After a pause it happens again. `Enter` sends the letters off, or calls them home at once. Move the pointer through the text at rest and the letters it touches fly up, and they come back when it has gone. `q` sends them off the top, as it does the birds. A letter is drawn as itself, in its own colours, with its bold and underline, wherever it is; one with no colour of its own takes the flock's while it flies. A background colour stays where it was printed. Wide characters take two cells. Hawks work, and are arrows over text. `--birds`, `--flocks`, `--depth`, `--matrix`, `--shape`, `--sprite`, `--size` and tails do not apply: the text decides how many letters there are, and a letter has no sprite. `--render kitty` draws text too. The panel is laid over the text, and the letters under it still land there. When standard input is not a terminal, the keys are read from the terminal itself, its controlling one, `/dev/tty`, on Linux and on macOS alike; with no terminal at all, as from a service or an editor's run button, cbirds says that it needs one and stops. A pipe is read to its end, or until it has been quiet for a second and a half, or has gone on for eight seconds, or has sent a megabyte, and what is kept is the last screenful, as a terminal would keep it; `tail -f log | cbirds` shows what the log had when it went quiet. A pipe that sends nothing for three seconds, and text with nothing to see in it, give the ordinary flock. If the window changes size, the text is laid out again on the new one. A sign is what the flock writes, and text is the flock, so `--say`, `--clock`, `--seconds` and `--picture` stop with a usage error beside `--text` or beside text on a pipe, and so does `--3d`, whose sky has no screen to lay a text out on. Recordings take text too, and then run a whole cycle, 34 seconds, unless `--record-seconds` says otherwise. A recording never starts a wave it has no time to finish, so a whole cycle ends on the text as it was printed, and a GIF of it loops without a jump: ``` fastfetch | cbirds --record fetch.cast cbirds --text poem.txt --record poem.gif --record-fps 20 ``` A GIF of text is drawn with a 5 by 7 font in cells of 12 by 20 pixels, so it shows the letters rather than dots. `--snapshot` takes text, and `--bench` takes `--text` and never a pipe it happens to be in. ## Signs `--say TEXT` has the flock write TEXT where it would write BOIDS, and keep it up. A sign is for reading, so it is held for thirty to forty-five seconds, and then the flock lets go for eight to twelve, flies as a murmuration, and writes it again. The birds that write do not stand still: each hovers round its place in a small loop of its own, so the strokes shimmer and stay sharp. The colour runs along the text, from one end of the ramp to the other.

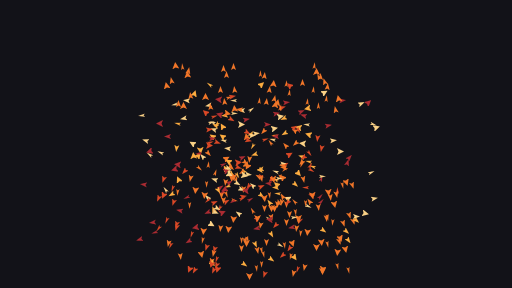

Birds gather into the words BACK IN FIVE on two lines, and hover in their places while the rest of the flock wheels round the sign

cbirds --render kitty --say "back in five" --color ember

The rest of the flock wheels round the sign, not through it: all of it the same way, on an ellipse round the text, as one river that bunches and thins, and the other way round the next time the sign is written. Each bird of it wears the colour of its heading, so the sky round the text turns like a wheel. The letters are a seventh of the window's rows tall: four rows at 80 by 24, five at 120 by 34, seven at 200 by 50. `--font-size ROWS` sets them from 4 to 10 rows, on any window. Under four the text is lost in the river, and over ten the birds, which are as wide as the cells of the letters, are as heavy as a flock with nothing to write and the river is two bands above and below the text. A sign never takes more than half the width of the screen and not quite half its height, or half and half on a small terminal, so that the river has room; a size that does not fit there is made as large as fits, on up to three lines, and a long text that would be too small to read takes up to two thirds by three fifths. On a small terminal more of the flock writes, so that the birds that are left have sky to fly in. Lower case is written in capitals, and an accented letter as its plain one, so that città is CITTA and Straße is STRASSE; a symbol, or a letter of another alphabet, has no plain letter and is left out. A text the flock has too few birds to write is said so on stderr and left unwritten, and one that turns out too big for the screen once the run has started is said so there when the run ends, after the terminal is given back. A key does not end a sign. Move the pointer through it and the birds it reaches scatter, and come back when it has gone. A hawk does the same to the places it flies over, for less time: a fifth of a second to two fifths, and only the places within a hawk's own width of its path. A hawk is turned from the text as the flock is, if less firmly than it is drawn to its prey, so it hunts round the sign with the river and crosses it when a chase takes it there. With one hawk up, 800 birds and a screen of 96 by 26 cells, about 3% of the writers are scattered at any moment, and about 7% with two; a clock stays readable. `--clock` writes the time, HH:MM, in local time, and follows the locale for the hour: twelve hours, with no AM or PM, if `LC_TIME` has a time format that shows the hour on a twelve hour clock, and twenty four otherwise. The colon rises and settles once a second. At each new minute the digits that change let go and other birds write the new ones, while the rest of the time stays where it is, so the clock can be read at any moment. On the hour the whole of it lets go for a few seconds, and the flock writes the next time.

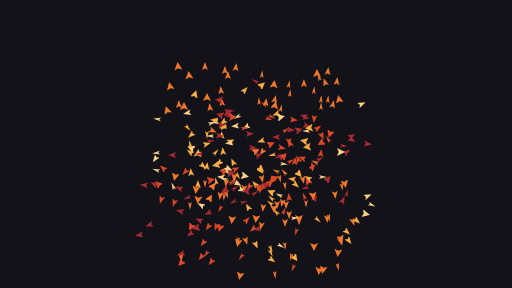

The flock writes 10:09, and a few seconds later the two digits that change let go and other birds write 10:10 while the rest of the time stays where it is

cbirds --render kitty --clock-at 10:09:52 --color ember

`--seconds` shows the seconds too, HH:MM:SS, and is a clock on its own, as `--clock-at` is. A digit of the seconds is not let go: its own birds hop over to the next one, which takes them a fraction of a second, so the seconds can be read as they tick. The minutes and the hour change as they do without it. `--picture FILE` has the flock draw a PNG instead. Every bird takes a place in the opaque part of the picture, where a pixel with an alpha above half is ink, the places spread evenly over it, and wears the picture's colour there. The picture is cut down to at most eight colours, which are the palette of the run; with `--color` given they are not, and the light and dark of the picture pick shades of that ramp. A bird keeps its colour while it flies, and the picture is held, let go of and drawn again as a sign is. `--shape dot` and more birds, `-n 2000`, draw it best. The file is read as `--sprite` reads one: a PNG of up to 4 MB, in any of the colour types PNG has. A sign picks a bird as wide as the distance between the cells of its letters unless you give `--size`, so larger letters are written by larger birds, up to the usual thirty pixels, and the whole flock flies at that size. `--shape dot` is the crispest, and more birds make thicker strokes. A recording runs on its own clock, not the wall's, so the time a recorded `--clock` tells is the local time at which the recording started, moved on by its frames. `--clock-at 10:09:50` starts it from a time you choose instead, which is how to record a change of minute. On its own it starts a clock. ## Screensaver `--screensaver` quits at once on any key, mouse click or pointer movement, with no flight out. Input in the first half second is ignored, because it is whatever started the lock. It goes with everything else, so `cbirds --screensaver --clock` is a lock screen that tells the time. For tmux, which locks a client after `lock-after-time` idle seconds and runs `lock-command` on it: ``` set -g lock-after-time 300 set -g lock-command "cbirds --screensaver --clock" ``` And in zsh, which sends itself an alarm after `TMOUT` idle seconds at the prompt and runs `TRAPALRM`: ``` TMOUT=300 TRAPALRM() { cbirds --screensaver --clock } ``` ## Three dimensions `--3d` takes the flock off the plane and into a sky: a murmuration over its roost, seen from a camera that goes once round it every two minutes. The depth shows even in a still picture: a nearer bird is bigger and brighter than a far one, and a bird flying at the camera is short where one flying across it is long.

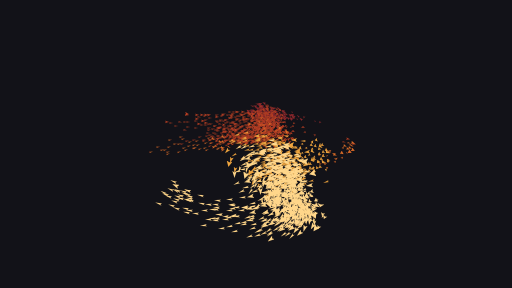

A murmuration in ember over a dark sky and a blue hawk: the birds near the camera are large and bright, those far from it small and dim, and the flock closes into a ring around the hawk and then folds into arcs and sheets

cbirds --render kitty --3d --color ember --hawks 1

The three rules are the same, but a bird heeds its seven nearest neighbours, as starlings do, and not everything within a radius. It turns at a limited rate a second, so it banks. A roost calls it home when it strays, and the air above the roost moves slowly, which folds the flock into sheets and ribbons. Without `-n`, `-s` or `-c` there are 2000 birds, of 8 pixels, or 5 in text, in `ink`: the ramp from your terminal's text colour to its background, asked for at startup, so the flock is grey on a dark terminal and near black on a light one. A terminal that does not answer, or whose text is the colour of its ground, and every recording, get `ash`. `--color ink` asks for it in the flat sky as well. In the panel the `boundary` row becomes `roost`, the pull home, and `perception` becomes `neighbours`, how many a bird heeds, from one to thirteen. The pointer is a stick poked into the sky: birds near the line from the camera through it get out of the way. `--hawks` hunts the flock through the air. `--screensaver` goes with it, and so do the keys. `--3d` replaces `--depth`, draws no tails, and is one flock: `--depth` and `--trails` give a note and are ignored, and `--flocks` and `--matrix` are refused. A text and a sign are made on the flat sky, with a screen to lay them out on, and a space has none, so they are refused as well, and so is `--link`, since a bird's place in a space does not travel to another window. ## Terminals cbirds draws in braille by default, in every terminal: no terminal is guessed at. `--render sextants` and `--render blocks` are bolder text versions; sextants need a font from 2020 or later, blocks work everywhere. In text mode only the cells that changed are sent, and the background is never painted, so the flock wears your theme. `--render kitty` draws real sprites over the Kitty graphics protocol, and is yours to ask for: it is made for **Kitty** and **Ghostty**. In any other terminal what it does is undefined. WezTerm, Konsole, iTerm2, Warp and Rio answer for the protocol and then draw too few birds, the wrong ones or none, and inside tmux the sprites never reach the terminal. If braille does not look right in your terminal, open an issue and say which terminal it is. That is the report that helps most. ## One sky, several terminals ``` cbirds --link # in one terminal cbirds --link # in another ``` Birds that fly out of the edge of one window fly in through the edge of the next, at the same height and in the same direction. Two terminals side by side, or two panes of a split, become one sky with a flock flowing across the gap. Hawks cross as well. The windows lie in a row in the order they were started, so start them from left to right: the second joins on the right of the first, the third on the right of the second. Only an edge that has a window behind it is open. At the ends of the row the outer edge is a wall, as it is alone. A window that closes leaves the row, and the two beside it become neighbours. Each window keeps its own settings, its own `--birds` among them, and its birds come and go: a window can empty and fill again. A window that holds 4080 birds says so, and its neighbours treat that edge as a wall until it has room; the few already on their way when it said so wait at its door and come in as places free, so no bird is lost between two windows. A bird sees only the birds of its own window, so a flock does not look across the gap; it follows its leaders across. While a window is writing BOIDS, or is paused, it has no room and takes nobody in, and nobody leaves it. A sign goes with it, `--say`, `--clock` or `--picture`. The birds that write hold their places and never cross, and the rest of the flock crosses as it does without one, but a window with a sign keeps the birds it takes to write it. `--screensaver` goes with it too: any key quits that window, and it leaves the sky. The windows talk through Unix sockets in a directory that is yours alone: `$XDG_RUNTIME_DIR/cbirds`, or `$TMPDIR/cbirds-UID`, or `/tmp/cbirds-UID`. cbirds refuses to use one that belongs to somebody else or that others can write in, and says which, and it looks again every second: a directory that has been removed is made again and the windows find each other in it, and one that has been made into anything else leaves each window alone. The sockets are removed when a window quits or is interrupted, and the one a killed window leaves behind is swept away by the others. A letter has its home in its own window, and a bird of `--3d` its place in a space, so `--link` with `--text`, with text piped in or with `--3d` is refused, and so is `--link` with `--record` or `--bench`: it joins the windows that are open now, so it needs a live terminal. No clip of it is on this page for the same reason: a recording has one window. ## Options ``` Flock -n, --birds COUNT how many birds (default 800) -s, --size PIXELS sprite size in pixels (default 30) -g, --flocks COUNT flocks that keep to their own kind (default 1) -k, --hawks COUNT predators hunting the flock (default 0) --preset NAME murmuration, swarm, storm --seed N the same seed gives the same flock Sliders 0 to 12, as the panel shows them --boundary NOTCH how hard the edges push back (default 4) --separation NOTCH how much a bird keeps its distance (default 4) --alignment NOTCH how much a bird matches its neighbours (default 4) --turning NOTCH sharpest turn a frame, 12 is instant (default 8) --perception PIXELS how far a bird sees, 12 to 60 (default 36) --speed NOTCH how fast the flock flies, 0.2x to 2.6x (default 1, 0.4x) --avoidance NOTCH how much flocks keep out of each other's way (default 4) Look -c, --color RAMP theme, ember, ice, acid, matrix, aurora, prism, potion, dusk, ash, ink --shape NAME bird, arrow, plane, dot --sprite FILE a PNG you supply, kept in its own colours -e, --trails faint tails behind the flock --depth a second sky further off: smaller, slower, dimmer birds --3d a murmuration in three dimensions -l, --panel the sliders in the corner from the start; h toggles them --render HOW braille by default; sextants, blocks, or kitty in Kitty and Ghostty Sign --say TEXT the flock writes TEXT and holds it as a sign --clock the flock tells the time, HH:MM, in local time --clock-at TIME start the clock at HH:MM or HH:MM:SS, not now --seconds the clock shows the seconds too, HH:MM:SS --font-size ROWS how many rows tall a sign's letters are, 4 to 10 --picture FILE the flock draws a PNG, in its colours unless --color is given Oddities --matrix it is raining birds --text FILE a file whose letters take flight; text piped in does the same Output --bench N run N frames with no terminal, print the numbers, quit --frames N quit after N frames, for recording --snapshot FILE write the last frame as a PNG --record FILE record a GIF, or a .cast for asciinema, with no terminal, and quit --record-fps RATE frames a second; a GIF can carry up to 50 (default 25) --record-seconds SECONDS how long the recording runs (default 6, 34 for text) --record-size COLSxROWS the size to record at, in cells (default 96x26) General --unlock-fps render as fast as the terminal allows --screensaver quit at once on any key, click or movement, for tmux's lock-command --link share one sky with other cbirds --link windows -h, --help the one-screen help --completion SHELL completions for bash, zsh or fish -V, --version print the version and quit ``` That is the options part of `cbirds --help`, as it prints it; the full help adds usage, examples and the keys. `--sprite` takes any PNG up to 4 MB: palette, grayscale, RGB or RGBA, at any bit depth, interlaced or not. `--seed` is the same flock on every system: the random numbers are cbirds' own, not the C library's. ## Recording ``` cbirds --record flock.gif --hawks 2 --seed 5 cbirds --record flock.cast --record-fps 30 cbirds --snapshot frame.png --frames 400 ``` `--record` needs no terminal: it runs the flock headless and writes the GIF with its own encoder. If the file name ends in `.cast` you get an [asciinema](https://asciinema.org) recording instead, which plays in any terminal and is about half the size. A GIF is drawn with sprites unless `--render braille` or `--render sextants` asks for the cells, as a text terminal would show them. `--snapshot` saves a live frame as a PNG, so it wants a terminal. The commands behind every clip here are in [docs/README.md](docs/README.md). ## How it works The bird is one PNG compiled into the binary. At startup it is rotated into sixty headings, squashed into three wing positions, and tinted into every shade on the ramp: about fifteen hundred small images, built in a fifth of a second. They are sampled down into braille, sextants or blocks, or, with `--render kitty`, uploaded once, and a frame is then one short command per bird. The wings beat six times a second, and now and then a bird glides. Neighbours are found with a grid, so eight hundred birds cost about half a millisecond of CPU a frame, and four thousand birds about four milliseconds. The PNG, GIF and DEFLATE code is all in the repository; there is no zlib, no libpng, no ncurses. `cbirds --bench 300` prints the numbers on your machine. ## The algorithm Each bird sees only its neighbours and follows three rules: keep your distance, fly the way they fly, drift towards their middle. Add a nudge away from the edges of the screen, sum the four pulls, and turn towards the result, but only so far in one frame. That limit is what gives the flock curved fronts instead of a cloud snapping into shape. Repeat sixty times a second and a murmuration falls out of it; nothing in the code knows what a flock looks like. Reynolds' paper, below, has the rest. ## Credits Much of cbirds' code, tests and documentation was written by large language models (Claude, by Anthropic), under my direction. The model is from Craig Reynolds' *Flocks, Herds, and Schools: A Distributed Behavioral Model*, SIGGRAPH 1987; his page on boids is at [red3d.com/cwr/boids](https://www.red3d.com/cwr/boids/). The Kitty graphics protocol is documented at [sw.kovidgoyal.net/kitty/graphics-protocol](https://sw.kovidgoyal.net/kitty/graphics-protocol/). `--3d` follows Ballerini and others, *Interaction ruling animal collective behavior depends on topological rather than metric distance: Evidence from a field study*, PNAS, 2008, for whom a bird heeds, and Hildenbrandt, Carere and Hemelrijk, *Self-organized aerial displays of thousands of starlings: a model*, Behavioral Ecology, 2010, for the roost and the banking. ## License MIT. See [LICENSE](LICENSE).
