# Arizona Vamp Recomp

**A native PC port of *Darkwatch* (original Xbox, 2005), made by static recompilation.**

The game's Xbox executable is translated ahead of time into native x86-64 code. Its graphics and sound calls are
answered by modern APIs: Direct3D 8 runs on **Direct3D 12**, DirectSound on **XAudio2**. Nothing is emulated at
run time, so the game runs at full speed with PC features layered on top: the **two-player co-op campaign** the
Xbox release left out, real display modes, render scaling, MSAA, keyboard and mouse, and an in-game settings menu.

> **No game data is included.** You need your own copy of Darkwatch for the original Xbox.
> This project is not affiliated with or endorsed by the game's publisher or developer.

<p align="center">

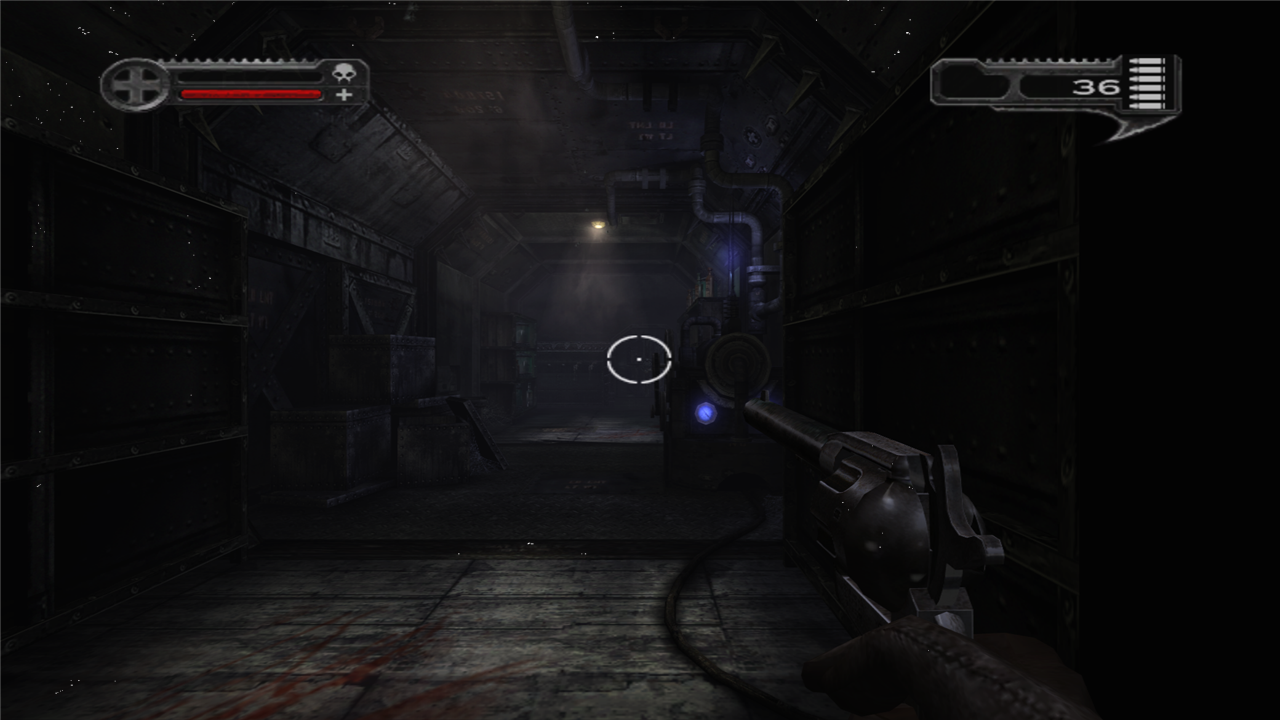

  <img src="docs/images/level1.png" width="49%" alt="THE WRONG TRAIN at 1080p with widescreen framing, field of view 80 and 8x MSAA">

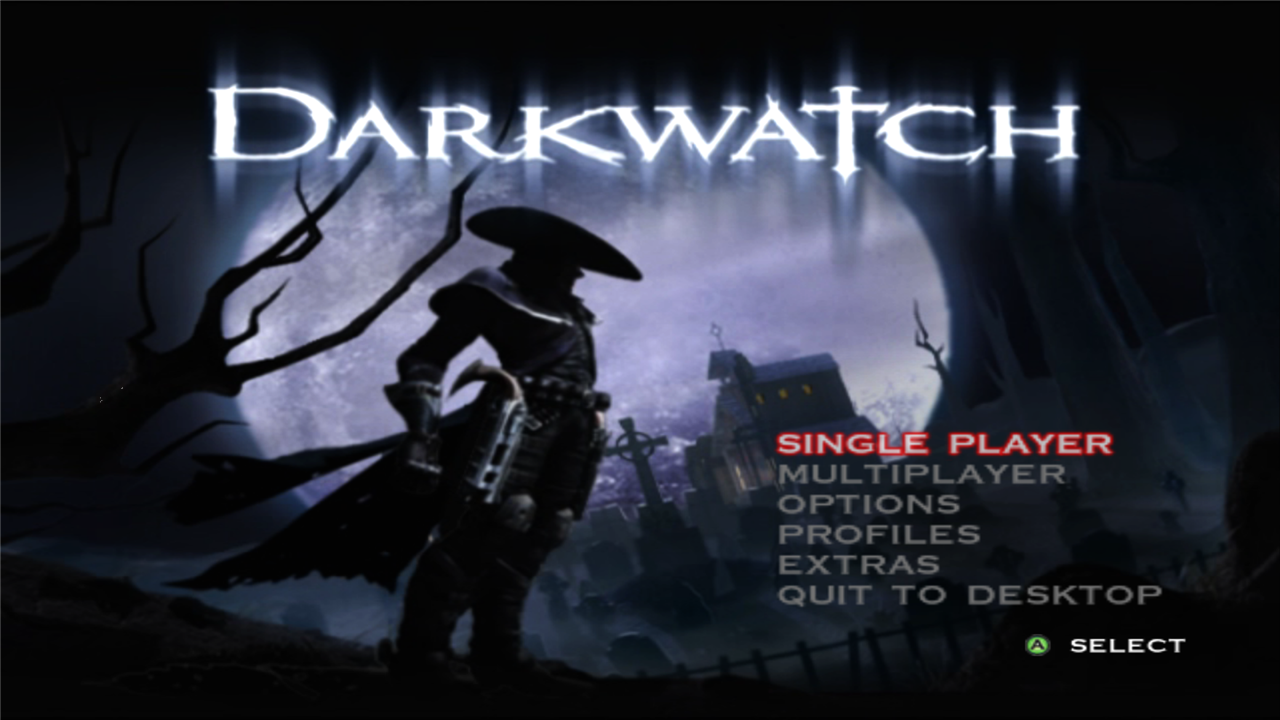

  <img src="docs/images/front-end.png" width="49%" alt="The main menu, with QUIT TO DESKTOP">

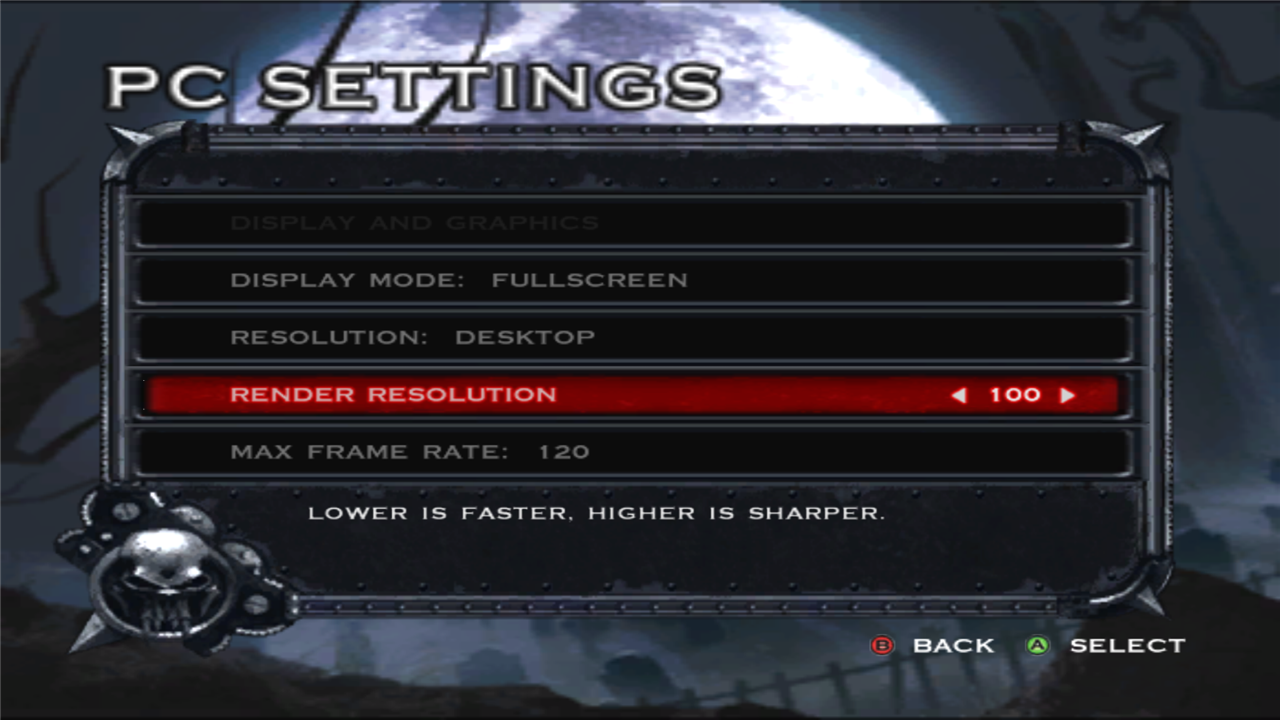

  <img src="docs/images/pc-settings-page.png" width="49%" alt="PC SETTINGS as the game's own page in OPTIONS and the pause menu">

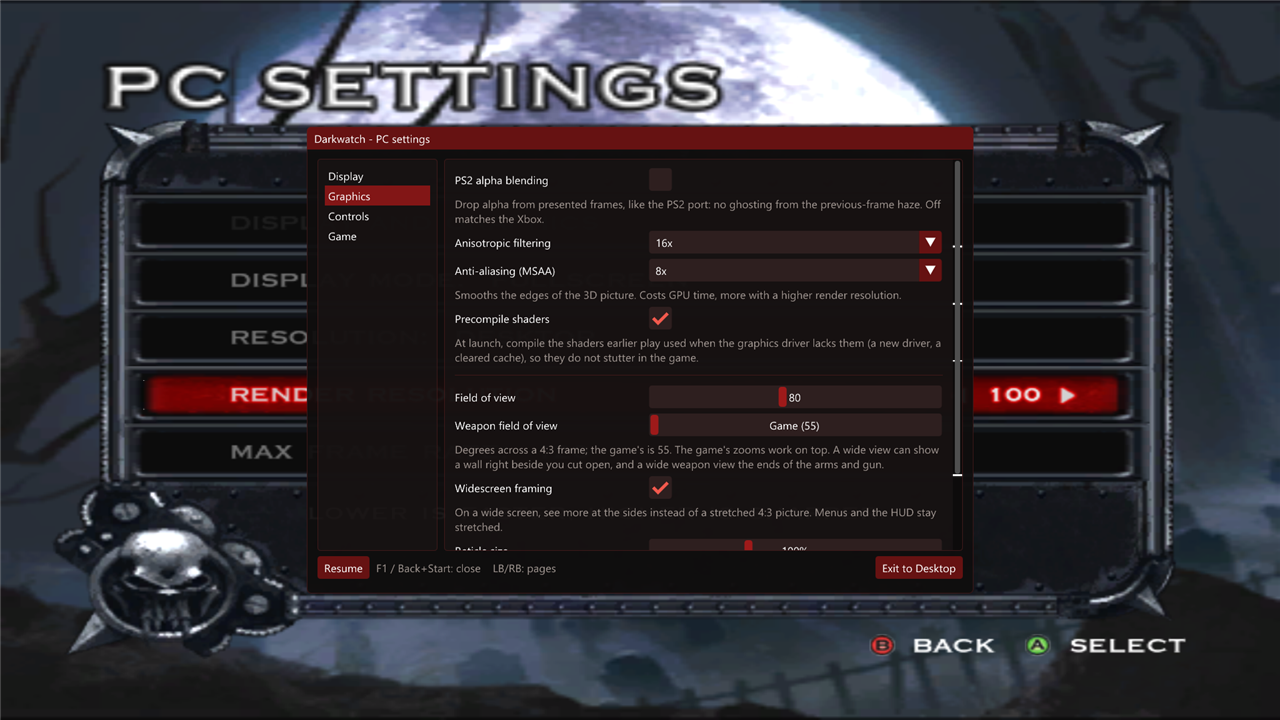

  <img src="docs/images/pc-settings.png" width="49%" alt="The F1 PC settings menu, Graphics page">
</p>

## Two-player Split-screen Co-op campaign

**Play the whole campaign with a friend, split screen, on one PC.** Co-op was a PlayStation 2 exclusive: the Xbox
release shipped without it. Its code and menus are still on the Xbox disc, switched off, and this port turns them
back on:

- Main menu, **MULTIPLAYER**: the game now asks **VERSUS** or **CO-OP**.
- **CO-OP** opens the two-player profile screen (both players press A), then the chapter list, and the chapters
  play split screen with two gunslingers.
- Player 1 uses the first controller (or keyboard and mouse), player 2 the second controller (Xbox, PlayStation
  or Switch).
- Versus split screen (up to four players) is unchanged.

Co-op runs on the single-player level files (the co-op versions of a few files were never put on the Xbox disc).
Both players currently look like the single-player hero; giving player 2 their own model is on the roadmap. Co-op has
been tested through the start of the first chapter so far: tell us how far you get (F4 report).

## Status

**Beta, playable on Windows.** The game boots, plays its movies and goes through the front end into the campaign,
with sound, music, lighting, fog and the HUD close to the console, at 60 fps or more. Testers have played into the
first chapter's boss fight on the train. A full play-through has not been done yet; that is the next big step, and
every F4 report helps.

| Platform | State |
|---|---|
| **Windows 10/11 x64** | Main target. Release zips on the [releases page](https://github.com/Clergyman0013/arizona-vamp-recomp/releases). |
| Linux (Proton) | Untested. A black-screen fix for Proton is in; reports welcome. |
| macOS (Apple silicon) | Later. A headless test harness builds and reaches PRESS START. |
| Android | Later. |

Day-to-day progress, findings and open bugs are in [STATUS.md](STATUS.md).

## Features

**Runs natively**
- Statically recompiled game code: no CPU emulation, no JIT.
- Direct3D 12 renderer with a **shader disk cache**: shaders compile once, later runs load without hitches.
- **Shader pre-compile at launch:** the pipelines earlier play used are kept for your graphics driver. When the
  driver changes (or the cache is cleared) they compile again at launch behind a progress bar, with **Skip**
  and **Don't show this again** (turn it back on under PC settings, Graphics).
- XAudio2 sound, including the game's XACT audio.

**PC settings**, in two places with the same options:
- **PC SETTINGS** in the main menu's OPTIONS and in the pause menu (it replaces the Xbox Live entry) is the game's own
  page, with its look, sounds and a help line for each row. Left and right change a value (arrow keys, d-pad or left
  stick), and the mouse works there too.
- **F1** (or **Back + Start** on a controller) opens the full menu anywhere, over the game.
- **Display:** fullscreen / borderless / windowed, resolution, render resolution 25-200%, frame-rate cap, V-Sync.
  A new display mode asks to be kept and goes back after 15 seconds.
- **Graphics:** **MSAA anti-aliasing (2x / 4x / 8x)**, field of view (55, the game's, to 110; 80 by default) and a
  separate weapon field of view, widescreen framing (a wide screen shows more at the sides instead of a stretched
  4:3 picture; on by default), reticle size, in-level cut-scene borders (off by default), anisotropic filtering (16x by default), optional *PS2 alpha blending*
  (removes the previous-frame ghosting that the Xbox version has).
- **Controls:** button prompts (the controller in use, or Xbox / PlayStation / Switch / keyboard and mouse),
  keyboard and mouse on or off, mouse look and sensitivity, direct mouse aiming, mouse in the game's menus, key rebinding.
- **Game:** frame-rate counter, the War Train chapter and Splitter grenades (below).
- Changes apply at once and are saved to `settings.toml`. Exit to Desktop is one click away.

**Input**
- Controllers work as on the console: Xbox, PlayStation and Switch Pro pads, and paired Joy-Cons (through SDL;
  the buttons go by position, so a Switch pad's bottom button is A).
- **Button prompts that match your controller:** with a PlayStation pad the game's prompts show cross, circle,
  square and triangle (and R2 / L2); with a Switch pad its letters (B, A, Y, X by position, and ZR / ZL). With the
  keyboard and mouse they show the key or mouse button bound to each control, and follow your rebinding. The
  pictures switch as soon as you pick up another controller, in the menus and in the in-level hints.
- Full keyboard and mouse support for player 1, with raw mouse look and rebindable keys.
- **Mouse in the game's menus:** point at a row to pick it, left click selects, right click goes back, the wheel
  steps through the rows. The cursor shows in menus and the mouse goes back to looking when play resumes.
- **Direct mouse aiming** on foot: the view turns by how far the mouse moves, with no stick curve and no aim
  assist. On the horse and in split screen the mouse works as the right stick.

**Content the Xbox disc leaves off**
- The **War Train** chapter and the **Splitter grenade** pickups (D-pad up, the Up arrow, changes grenade type),
  with the Xbox dynamite that stood in for them taken out. Your files are not changed: three selectors are swapped
  as the game reads them. On by default; PC settings, Game.

**For testers**
- **F4** opens a bug-report box: type what you saw, and a folder with your note, a frame capture, the log tail and
  your settings is saved to `reports\`.
- **F3** captures a frame (every draw call, render target and shader) for debugging.

**Fixes over a straight port**
- Frame rates above 100: the game's actor scripts skipped every frame shorter than 10 ms, so scripted things
  (doors, enemies) stood still at 120 or 144 fps. They now run every frame.
- **QUIT TO DESKTOP** in the main menu.
- 32 voices instead of three for streamed 3D sounds: two level-long loops held two of the three, and one-shots
  such as the horse's cry in THE WRONG TRAIN were dropped.
- No crash when the game stops a sound while the sound engine's timer updates the same list (issue #2): the host
  keeps the two apart as the console's single processor did.
- Starts from disc images and unpacked files with no or very old file dates (the game stopped on its own date
  check).
- Fog-streak fix in the meat-locker corridor (the game's own screen-space texture scale, patched).
- Xbox Live entries turned into the PC settings menu, and the front end's "Sign-in failed." status line gone.
- Saves stay beside the game (`hdd\E`), so a copied folder keeps them.

## Installing (Windows)

1. Download the zip from the [latest release](https://github.com/Clergyman0013/arizona-vamp-recomp/releases) and
   unpack it anywhere (about 3 GB free needed).
2. Put your game in the `assets` folder: your disc image (`.iso`), or `default.xbe` with the game's folders beside it.
3. Run `Darkwatch.exe`. The first start builds the game's code for your PC from your own copy, behind a progress
   window. That takes a while and happens only once; after it, the game starts straight away.

The release contains no game code: it ships the recompiler and a compiler (Clang and LLD) instead, and the game is
built on your PC from your files, as in [BLACK-XBERecomp](https://github.com/TGP482/BLACK-XBERecomp).

## Building from source (Windows)

You need:
- Windows 10 or 11, 64-bit, and a GPU with Direct3D 12.
- [Visual Studio 2022](https://visualstudio.microsoft.com/) (Community is fine) with **Desktop development with C++**.
  `build.bat` offers to add the Clang and CMake components it needs.
- [Git](https://git-scm.com/download/win).
- Your own Darkwatch game files: `default.xbe` and the folders beside it, from your disc.

```bat
git clone https://github.com/Clergyman0013/arizona-vamp-recomp.git
cd arizona-vamp-recomp

rem the recompilation SDK, at the tested commit, with this project's patch
git clone https://github.com/TGP482/XboxXBERecomp.git third_party\XboxXBERecomp
git -C third_party\XboxXBERecomp checkout 99078b1
git -C third_party\XboxXBERecomp apply ..\..\patches\xboxxberecomp-darkwatch.patch

rem copy default.xbe and the game's folders into darkwatch-hle\assets\, then:
darkwatch-hle\build.bat
```

The first build recompiles the game and takes **30 to 90 minutes**; later builds take a few minutes. The result
is `darkwatch-hle\out\build\release\Darkwatch.exe`, with the game code in `Darkwatch.dll` beside it. `build.bat`
offers to start it when it is done. `darkwatch-hle\release.bat` then makes the release zip (it needs
[7-Zip](https://www.7-zip.org/)), without the game code.

If CMake fails while fetching its dependencies (some PCs with Mandatory ASLR on cannot run Git's shell scripts),
run `darkwatch-hle\tools\deps_windows.bat` once, then `build.bat` again.

## Playing

Run `Darkwatch.exe`. Settings live in `settings.toml` beside it, written on the first run; the menu edits it for
you.

| Key | Action | Key | Action |
|---|---|---|---|
| W A S D | move | Mouse | look |
| Left click | fire | Right click | left trigger |
| Space / Enter | A (jump, select) | E / Backspace | B (back) |
| R / Q | X / Y | C / F | black / white |
| Left Shift | left stick click | Middle click / V | right stick click |
| Arrow keys | d-pad | Escape / Tab | Start / Back |
| **F1** | PC settings menu | F2 | free / take the mouse |
| F3 | frame capture | **F4** | report a problem |

The full list, with the key names `settings.toml` accepts, is in
[README-release-windows.txt](darkwatch-hle/tools/README-release-windows.txt).

## Roadmap

The quality bar is [BLACK-XBERecomp](https://github.com/TGP482/BLACK-XBERecomp), built on the same SDK.
The full list is in [ROADMAP.md](ROADMAP.md). In short:

1. **Play-through QA:** play the whole game, file F4 reports, fix as they come.
2. **Co-op:** player 2's own model, a full co-op play-through, keyboard and mouse for either player.
3. **More PC options:** SMAA, monitor choice, draw distance, FMV scaling, pause on focus loss, mouse invert, HDR10.
4. **Polish:** direct mouse aiming on the horse, the HUD kept in proportion on a wide screen, background shader
   compiles so even the very first run does not stutter.
5. **More platforms:** macOS, then Android.

## How it works

1. The SDK lifts every function in `default.xbe` to C++ (the `generated/` code, never committed: it is derived
   from the game) and builds it into `Darkwatch.dll`. A release does this on the player's PC on its first start.
2. The Xbox kernel and the XDK libraries (Direct3D 8, DirectSound, XInput, file system) are replaced by high-level
   implementations on Windows APIs. `config/game.toml` names the XDK functions inside the game.
3. Game-specific fixes hook single recompiled functions (`darkwatch-hle/src/game/`), and the PC menus sit on the
   SDK's ImGui layer (`darkwatch-hle/src/common/`).
4. Changes to the SDK itself are kept as one patch, [patches/xboxxberecomp-darkwatch.patch](patches/xboxxberecomp-darkwatch.patch),
   with each change explained in [patches/README.md](patches/README.md).

## Repository layout

```
darkwatch-hle/          the port (main line)
  src/common/           PC settings menu, bug-report box, game settings
  src/game/             game-specific hooks and fixes
  config/game.toml      XDK symbols found in the game
  tools/                build helpers, QA scripts, release notes
darkwatch/              the older xboxrecomp-based port, kept as a reference (docs/xboxrecomp-port.md)
patches/                changes to the two toolkits, as patches against upstream
references/             reference screenshots: console captures and the port's progress
STATUS.md               current state, findings and open bugs
BRINGUP.md, PLAN.md     bring-up history and decisions
```

## Contributing

Bug reports are welcome. The most useful report is an **F4 report folder** (zip it) with what you expected to see;
see [CONTRIBUTING.md](CONTRIBUTING.md). Please do not attach game files or anything extracted from them.

## Credits

- [XboxXBERecomp](https://github.com/TGP482/XboxXBERecomp) by TGP482: the static recompilation SDK this port is built on.
- [BLACK-XBERecomp](https://github.com/TGP482/BLACK-XBERecomp): the quality bar.
- [Darkwatch: Darker Edition](https://github.com/linkssy2/DarkwatchDarkerEdition) by linkssy2, another port on the
  same SDK. Its feature list was the reference for this port's PC features: field of view, widescreen framing,
  direct mouse aiming, reticle size, cut-scene borders, quit to desktop, the 100 fps script fix, War Train and the
  Splitter grenades, button prompts for PlayStation and Switch pads, mouse-driven menus, MSAA and the removed
  sign-in notices. Its game addresses and findings were our leads; each was checked in our own disassembly, and our
  code and pictures are our own.
- [xboxrecomp](https://github.com/sp00nznet/xboxrecomp) by sp00nznet: the toolkit behind the reference port
  (with parts from [xemu](https://xemu.app/), LGPL-2.1).
- [Dear ImGui](https://github.com/ocornut/imgui), [SDL](https://github.com/libsdl-org/SDL),
  [Zydis](https://github.com/zyantific/zydis), [toml++](https://github.com/marzer/tomlplusplus).
- High Moon Studios for making this classic.

## Legal

This repository holds only original code, patches and documentation, under the [MIT license](LICENSE). It contains
no game code, game data or Xbox system software, and building it requires a legally obtained copy of the game.
*Darkwatch* and all related names and marks belong to their respective owners.
