--- authors: - admin categories: - Stata - Instrumental Variables (IV) draft: false featured: false date: "2026-04-26T00:00:00Z" external_link: "" image: caption: "" focal_point: Smart placement: 3 links: - icon: file-code icon_pack: fas name: "Stata do-file" url: analysis.do - icon: database icon_pack: fas name: "Dataset (.dta)" url: reference/EL_regional_conflict_replication.dta - icon: file-alt icon_pack: fas name: "Stata log" url: analysis.log - icon: markdown icon_pack: fab name: "MD version" url: https://raw.githubusercontent.com/cmg777/starter-academic-v501/master/content/post/stata_iv_panel/index.md slides: summary: Replicate Hodler and Raschky (2014) to estimate the causal effect of economic shocks on civil conflict using 2SLS instrumental variables with panel data from 5,689 African regions tags: - stata - causal - causal inference - instrumental variables - panel - conflict - panel data title: "IV Estimation with Panel Data: Economic Shocks and Civil Conflict" url_code: "" url_pdf: "" url_slides: "" url_video: "" toc: true diagram: true --- ## 1. Overview Does poverty cause violence? This is one of the most important questions in development economics --- and one of the hardest to answer. The correlation between economic deprivation and civil conflict is well documented, but correlation is not causation. Poor regions may experience more conflict for reasons unrelated to their poverty, or conflict itself may destroy economic activity, creating reverse causality. In a landmark contribution, Miguel, Satyanath, and Sergenti (2004) proposed a clever solution: use **rainfall** as an instrument for economic shocks. The logic is simple --- rain affects agricultural output, agricultural output affects incomes, and incomes affect the incentives for violence. But rain itself is plausibly random, meaning it can isolate the causal direction from economics to conflict. This tutorial replicates and extends the analysis of **Hodler and Raschky (2014)**, who took this approach to the subnational level. Instead of comparing countries, they compared **5,689 administrative regions** across 53 African countries, using **nighttime light intensity** as a proxy for economic activity and **lagged rainfall and drought** as instrumental variables. Their finding: negative economic shocks significantly increase the probability of civil conflict. We will walk through the complete IV estimation workflow in Stata --- from descriptive statistics, through reduced-form and OLS estimates, to 2SLS/IV estimation with first-stage diagnostics. Along the way, we will learn why OLS produces biased estimates, how instruments fix this, and what diagnostic tests to check. ### Learning objectives - Understand the endogeneity problem in studying economic shocks and conflict - Implement fixed-effects panel regression with `xtreg` in Stata - Estimate 2SLS/IV models using `xtivreg2` with panel data - Interpret first-stage F-statistics and the Stock-Yogo weak instrument test - Evaluate instrument validity using the Hansen J overidentification test - Compare OLS and 2SLS estimates and explain the attenuation bias from measurement error - Visualize first-stage relationships with binned scatter plots ### Key concepts at a glance The post leans on a small vocabulary repeatedly. The rest of the tutorial assumes you can move between these terms quickly. Each concept below has three parts. The **definition** is always visible. The **example** and **analogy** sit behind clickable cards: open them when you need them, leave them collapsed for a quick scan. If a later section mentions "exclusion restriction" or "Stock-Yogo" and the term feels slippery, this is the section to re-read. **1. Endogeneity.** A regressor is *endogenous* if it correlates with the error term. The OLS slope is then a contaminated mix of the causal effect and the bias from omitted confounders, simultaneity, or measurement error. Endogeneity is the headline reason simple regressions can mislead.
Example In this post `llnlight01` (lagged nighttime light intensity, the proxy for local economic activity) is endogenous in the conflict regression. Conflict suppresses light AND light measures activity that conflict reflects — reverse causality plus measurement error. OLS returns 0.001 (p = 0.50). The IV estimate flips sign and grows.
Analogy A contaminated thermometer. The thermometer has two sources of contamination: it is held by the patient (reverse causality) and it is corroded (measurement error). Reading off the temperature gives nonsense.
**2. Instrumental variable** $Z$. An external variable that drives variation in the endogenous regressor without belonging in the outcome equation. Two requirements: $Z$ must predict the regressor (relevance) and $Z$ must affect $Y$ only through the regressor (exclusion).
Example This post uses two instruments for `llnlight01`: lagged log rainfall (`l2lnrain01`) and lagged Palmer Drought Severity Index (`l2meanpdsi`). Weather is plausibly exogenous to current conflict, but it shifts agricultural output and hence economic activity (light).
Analogy A clean thermometer that the contamination cannot reach. The instrument lives outside the contaminated system. Its readings on the regressor are clean. We use them to back out the temperature.

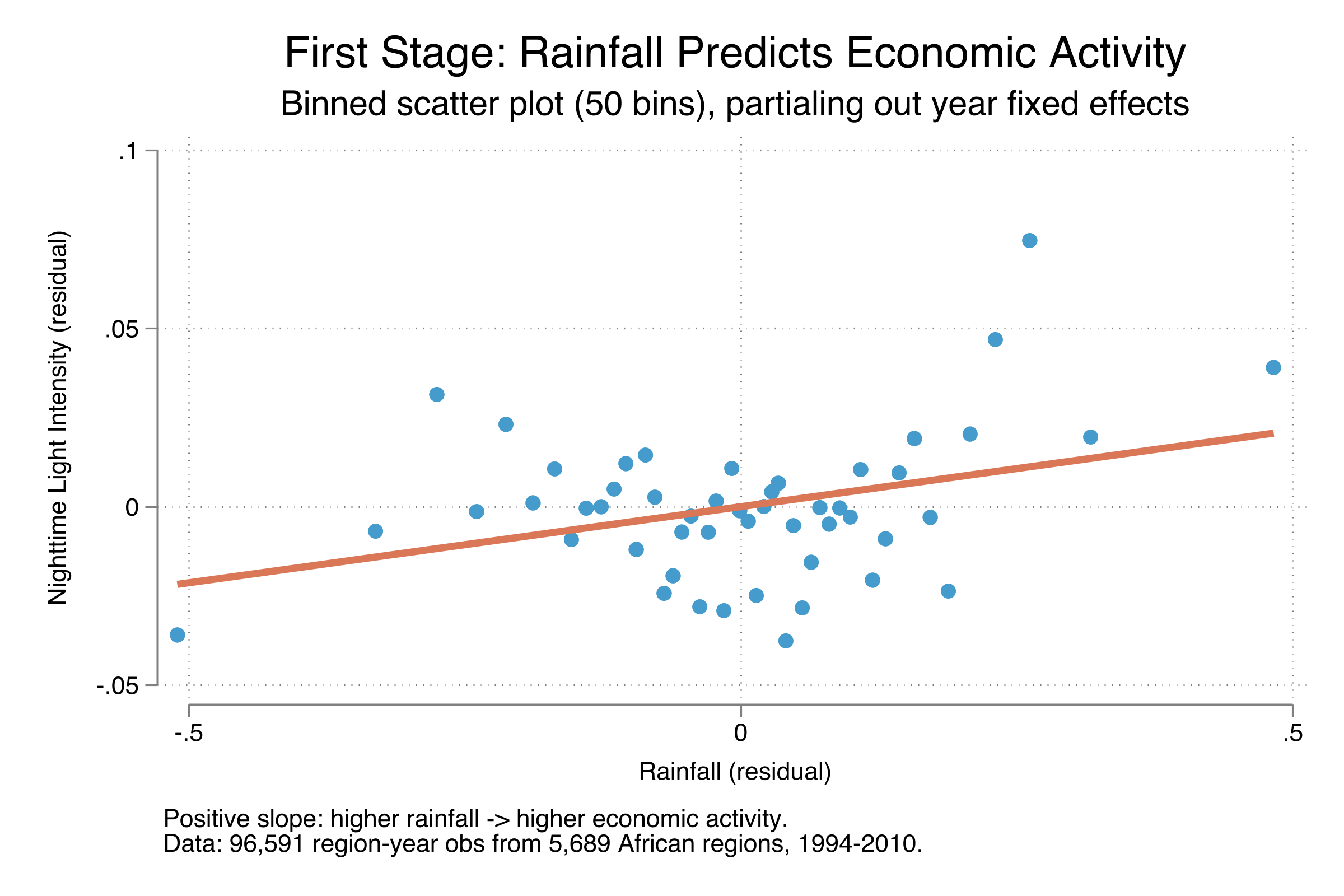

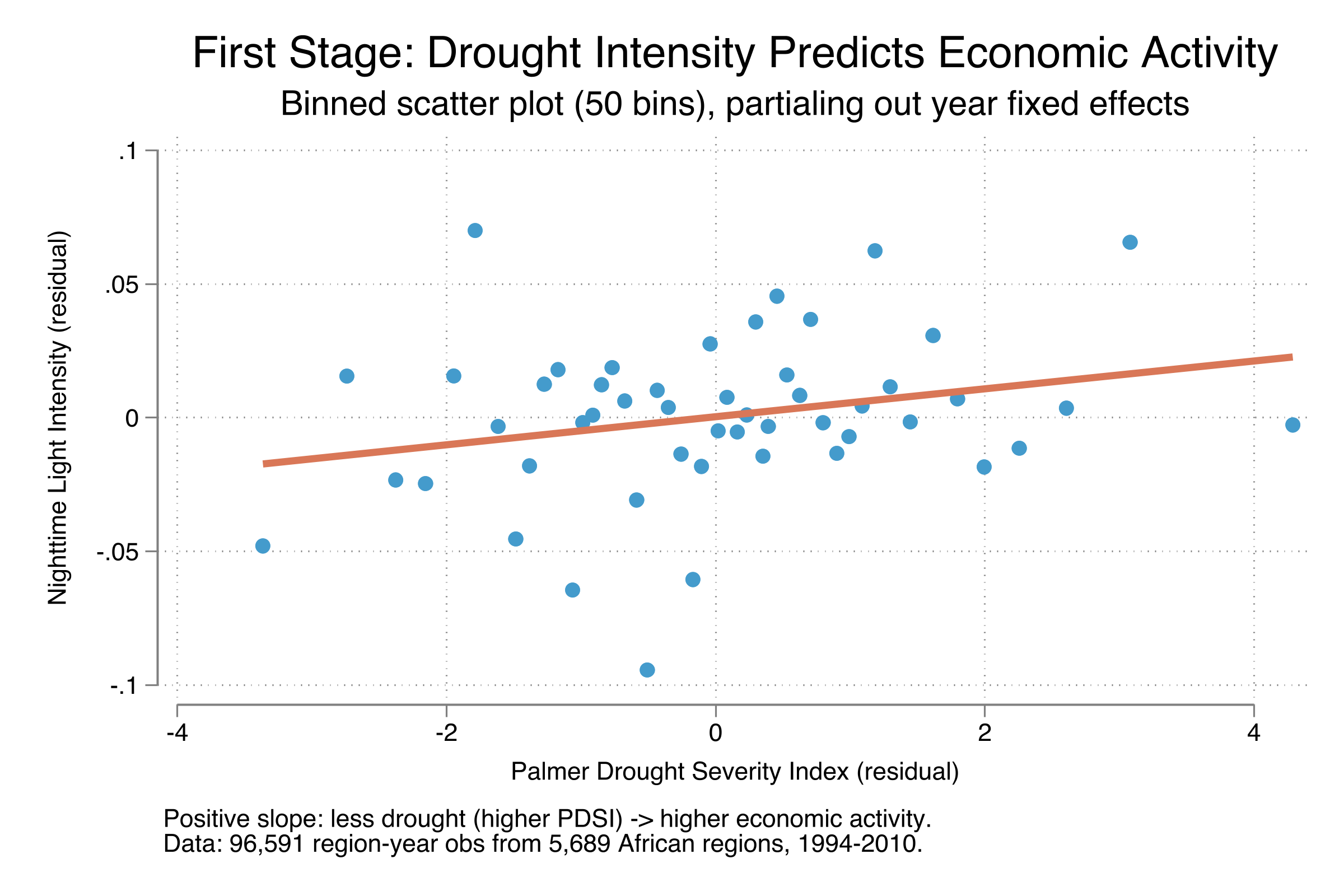

**3. Relevance and the first stage.** The first stage is the regression of the endogenous regressor on the instruments and controls. *Relevance* is the requirement that the instruments significantly predict the regressor in the first stage. The first-stage F-statistic measures instrument strength.
Example First-stage F is 24.62 with rainfall alone, 40.33 with drought alone, and high in the joint specification. Both single-instrument F-stats clear the conventional weak-instrument threshold of 10 by a wide margin.
Analogy The clean thermometer has to be sensitive enough. A thermometer that barely moves is useless. The first-stage F is the calibration test: does the clean thermometer respond strongly to the underlying signal?
**4. Exclusion restriction.** The assumption that the instrument $Z$ affects the outcome $Y$ only through the endogenous regressor. No direct effect of $Z$ on $Y$. The exclusion restriction is the most contested part of any IV design — it is fundamentally untestable when there is exactly one instrument.
Example For rainfall to be a valid instrument, lagged rainfall must affect conflict only through its effect on local economic activity. Direct effects (e.g. rain washing out a battlefield) would violate exclusion. The post discusses why African settings make this assumption defensible.
Analogy The clean thermometer is not also being heated by something else. If a hidden flame is warming the thermometer directly, its reading no longer maps cleanly to the patient's temperature. Exclusion is "no other heat source on the instrument."
**5. Stock-Yogo weak-IV test.** A formal test for weak instruments. The test compares the first-stage F-statistic against a critical value chosen to bound the bias of 2SLS at, e.g., 10% of OLS bias. With one endogenous regressor and one instrument, the rule-of-thumb critical value is 16.38 for the 10% maximal IV size criterion.
Example The post compares F = 24.62 (rainfall) and F = 40.33 (drought) against the Stock-Yogo critical value of 16.38. Both clear the bar comfortably. The instruments are not weak.
Analogy How sensitive does the thermometer have to be before its reading is trustworthy? Stock-Yogo gives the answer in numbers. Below the threshold, even a "significant" first stage produces unreliable IV estimates.
**6. 2SLS** --- Two-Stage Least Squares. The standard IV estimator. Stage 1: regress the endogenous variable on instruments and controls; obtain fitted values. Stage 2: regress the outcome on the fitted endogenous variable and controls. The second-stage slope is the IV estimate of the causal effect.
Example All four IV columns in this post use 2SLS via Stata's `xtivreg2`. The headline 2SLS estimate using both instruments is -0.296 (SE 0.076, p < 0.01). A one-unit increase in log nighttime light intensity reduces the conflict probability by ~0.30 percentage points.
Analogy Take two readings and combine. Stage 1 calibrates the clean thermometer to the contaminated one. Stage 2 reads off the patient's temperature using the calibrated mapping. Two careful steps replace one careless one.
**7. Hansen J overidentification test.** A joint test of instrument validity when there are *more* instruments than endogenous regressors. The J-statistic checks whether the multiple instruments give consistent answers; failing the test signals at least one instrument is invalid (likely violating exclusion).
Example With two instruments (rainfall, drought) and one endogenous regressor (`llnlight01`), the system is overidentified by one degree. The Hansen J p-value is 0.932 — far from rejection. The two instruments tell the same story. Joint validity is plausible.
Analogy Compare two clean thermometers. If both report the same temperature, you trust the reading more. If they disagree wildly, at least one is broken — but you don't know which. The Hansen test is "do the clean thermometers agree?"
**8. Attenuation bias.** Classical measurement error in a regressor produces *downward* bias toward zero in OLS. The slope is shrunk by the noise-to-signal ratio. IV with a clean instrument removes the bias and typically returns a *larger* estimate (in absolute value).

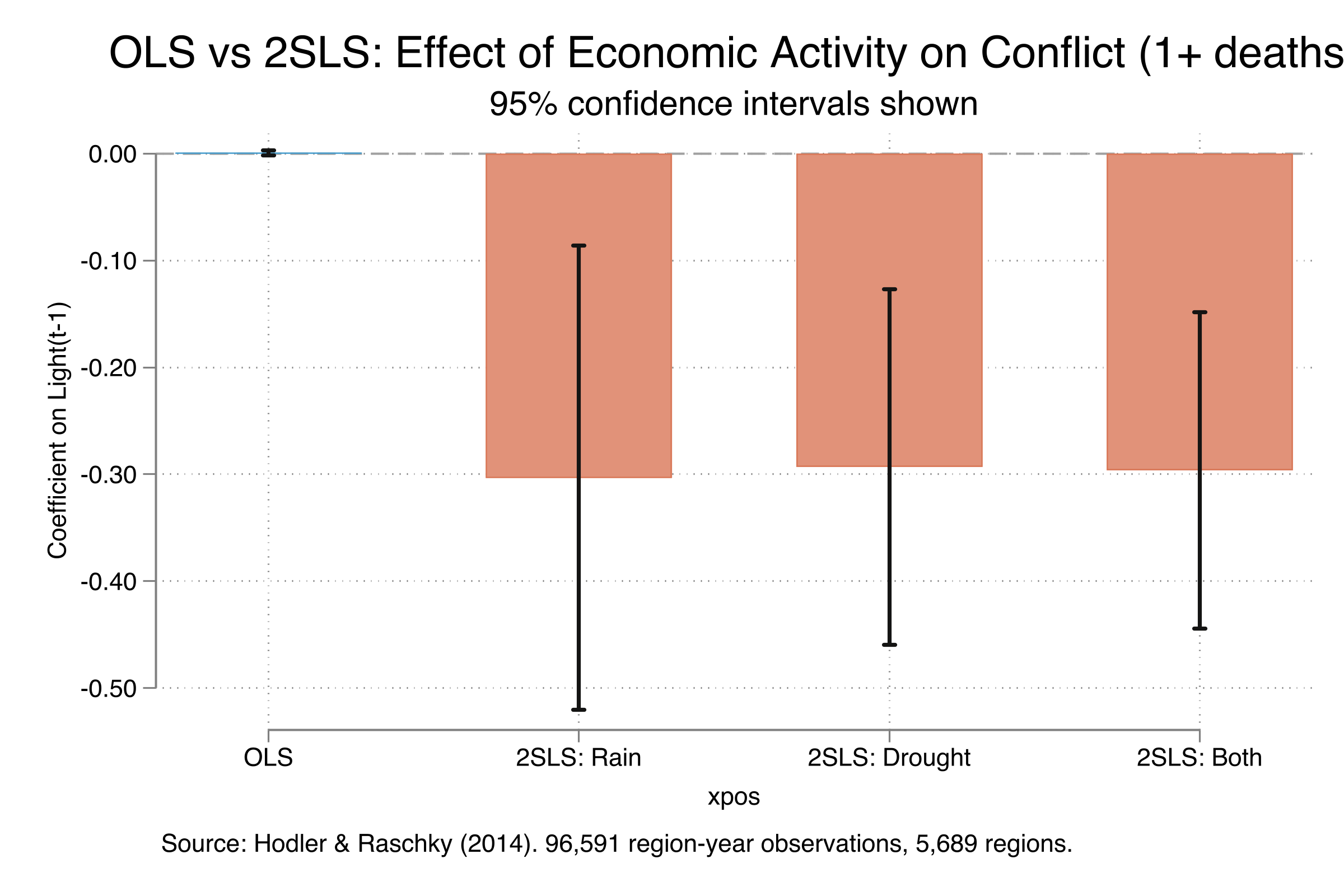

Example OLS on this dataset returns 0.001 (essentially zero). 2SLS returns -0.296 to -0.303 — two orders of magnitude larger and with the opposite sign. The OLS estimate was a small, contaminated reading; the IV estimates are the clean signal.
Analogy The contaminated thermometer reads 37.0°C when the patient is at 38.5°C. The contamination shrinks the deviation toward the average. IV cleans the contamination and reveals the larger underlying difference.
--- ## 2. The endogeneity problem Why can't we simply regress conflict on economic activity? The diagram below illustrates the three threats to identification. ```mermaid graph TD ECON["Economic Activity
(Nighttime lights)"] CONF["Civil Conflict"] U["Unobservables
(Institutions, geography,
ethnic fractionalization)"] ME["Measurement Error
(Lights ≠ true GDP)"] REV["Reverse Causality
(Conflict destroys
infrastructure)"] ECON -->|"Causal effect?"| CONF U -->|"Omitted variable bias"| ECON U -->|"Omitted variable bias"| CONF CONF -->|"Reverse causality"| ECON ME -->|"Attenuation bias"| ECON style ECON fill:#6a9bcc,stroke:#141413,color:#fff style CONF fill:#d97757,stroke:#141413,color:#fff style U fill:#141413,stroke:#d97757,color:#fff style ME fill:#141413,stroke:#6a9bcc,color:#fff style REV fill:#141413,stroke:#00d4c8,color:#fff ``` Three problems arise when estimating the causal effect of economic shocks on conflict with OLS: 1. **Omitted variable bias** --- Unobserved factors like institutional quality, ethnic diversity, or geography may simultaneously affect both economic activity and conflict. 2. **Reverse causality** --- Conflict destroys infrastructure and economic activity, making it hard to know which direction the causal arrow runs. 3. **Measurement error** --- Nighttime light intensity is a proxy for true economic activity. Classical measurement error in the explanatory variable biases the OLS coefficient toward zero (attenuation bias). The **instrumental variables** strategy addresses all three problems simultaneously. We need instruments that (a) predict economic activity (relevance) but (b) affect conflict only through their effect on economic activity (exclusion restriction). --- ## 3. The IV strategy Hodler and Raschky (2014) use **lagged rainfall** and **lagged drought intensity** as instruments for nighttime light intensity. The identification relies on a simple lag structure: ```mermaid graph LR W["Weather(t-2)
Rain / Drought"] L["Light(t-1)
Economic activity"] C["Conflict(t)"] W -->|"First stage"| L L -->|"Second stage"| C W -.->|"Excluded"| C style W fill:#6a9bcc,stroke:#141413,color:#fff style L fill:#d97757,stroke:#141413,color:#fff style C fill:#00d4c8,stroke:#141413,color:#141413 ``` Weather in year $t-2$ affects economic activity in year $t-1$ (the **first stage**), and economic activity in year $t-1$ affects conflict in year $t$ (the **second stage**). The exclusion restriction requires that weather in $t-2$ has no direct effect on conflict in $t$ other than through economic activity --- a plausible assumption given the two-year lag. The structural model (second stage) is: $$ Conflict\_{it} = \alpha\_i + \beta\_i t + \gamma\_t + \delta \cdot Light\_{i,t-1} + \epsilon\_{it} $$ where $\alpha\_i$ are region fixed effects, $\beta\_i t$ are region-specific time trends, and $\gamma\_t$ are year fixed effects. The parameter of interest is $\delta$ --- the causal effect of economic activity on conflict probability. The first stage is: $$ Light\_{i,t-1} = \widetilde{\alpha}\_i + \widetilde{\beta}\_i t + \widetilde{\gamma}\_t + \widetilde{\delta} \cdot Weather\_{i,t-2} + \widetilde{\epsilon}\_{it} $$ where $Weather\_{i,t-2}$ can be rainfall, drought (Palmer Drought Severity Index), or both. > **Estimand:** The parameter $\delta$ is the **Local Average Treatment Effect (LATE)** --- the causal effect of economic shocks on conflict for regions whose economic activity is affected by weather variation. This is the population of "compliers" in the IV framework. --- ## 4. Data loading and exploration The dataset contains 96,591 region-year observations from 5,689 subnational administrative regions across 53 African countries, with yearly data from 1994 to 2010. ```stata use "reference/EL_regional_conflict_replication.dta", clear tsset objectid year describe ``` ```text Contains data from reference/EL_regional_conflict_replication.dta Observations: 96,591 Variables: 14 Variable Storage Display Value name type format label Variable label ------------------------------------------------------------------------------- objectid long %12.0g Value year float %9.0g countrycode str3 %9s ISO countryname str32 %32s NAME_0 ucdp_death_du~y float %9.0g Conflict (>1 deaths) ucdp_25death_~y float %9.0g Conflict (>25 deaths) llnlight01 float %9.0g Ln Lights(t-1) l2lnrain01 float %9.0g Ln Rain(t-2) l2meanpdsi float %9.0g (Non) Drought(t-2) ucdp_death_du~t float %9.0g Conflict (>1 deaths) ucdp_25death_~t float %9.0g Conflict (>25 deaths) llnlight01_dt float %9.0g Ln Lights(t-1) l2lnrain01_dt float %9.0g Ln Rain(t-2) l2meanpdsi_dt float %9.0g (Non) Drought(t-2) ``` The dataset includes both raw variables and pre-detrended versions (the `*_dt` suffix). The detrended variables are residuals from region-specific linear time trends --- equivalent to including region-specific trends in the regression. We use the detrended variables throughout, following the original paper. ### Variables | Variable | Description | Type | |----------|-------------|------| | `objectid` | Region identifier | Panel ID | | `year` | Year (1994--2010) | Time variable | | `ucdp_death_dummy` | Conflict with 1+ deaths in region-year | Binary (outcome 1) | | `ucdp_25death_dummy` | Conflict with 25+ deaths in region-year | Binary (outcome 2) | | `llnlight01` | Log nighttime light intensity (t-1) | Continuous (endogenous) | | `l2lnrain01` | Log rainfall (t-2) | Continuous (instrument 1) | | `l2meanpdsi` | Palmer Drought Severity Index (t-2) | Continuous (instrument 2) | --- ## 5. Descriptive statistics Let us examine the key variables to understand the data before estimation. ```stata summarize ucdp_death_dummy ucdp_25death_dummy llnlight01 l2lnrain01 l2meanpdsi ``` ```text Variable | Obs Mean Std. dev. Min Max -------------+--------------------------------------------------------- ucdp_death~y | 96,591 .0455425 .2084919 0 1 ucdp_25dea~y | 96,591 .0144527 .1193481 0 1 llnlight01 | 96,591 -1.611658 2.619427 -4.60517 4.143293 l2lnrain01 | 96,591 3.8302 1.477743 -4.60517 6.093216 l2meanpdsi | 96,591 -1.215386 2.033711 -12.1292 12.6313 ``` Conflict is a rare event: only 4.6% of region-year observations experience at least one conflict-related death, and only 1.4% experience 25 or more deaths. The nighttime light variable (logged, lagged one year) averages -1.61, reflecting the low light intensity in most African regions --- many areas are effectively dark. The mean PDSI of -1.22 indicates that the average region leans slightly toward dry conditions. The panel decomposition reveals how much variation is between regions versus within regions over time. ```stata xtsum ucdp_death_dummy ucdp_25death_dummy llnlight01 l2lnrain01 l2meanpdsi ``` ```text Variable | Mean Std. dev. Min Max | Observations -----------------+--------------------------------------------+---------------- ucdp_d~y overall | .0455425 .2084919 0 1 | N = 96591 between | .1176404 0 1 | n = 5689 within | .1721562 -.8956339 .986719 | T-bar = 16.9786 llnli~01 overall | -1.611658 2.619427 -4.60517 4.143293 | N = 96591 between | 2.568635 -4.60517 4.140281 | n = 5689 within | .5277626 -7.699739 2.693339 | T-bar = 16.9786 l2lnr~01 overall | 3.8302 1.477743 -4.60517 6.093216 | N = 96591 between | 1.493749 -4.60517 5.514849 | n = 5689 within | .1993702 -2.741027 5.494656 | T-bar = 16.9786 ``` The decomposition reveals a critical pattern. For nighttime lights, the between-region standard deviation (2.57) is nearly five times the within-region standard deviation (0.53). This means most of the variation in economic activity is across regions, not over time within regions. For rainfall, the ratio is even more extreme: 1.49 between versus 0.20 within. The fixed-effects estimator exploits only the within-region variation, which is why we need strong instruments to identify the effect from this relatively small time-series variation. ![Conflict prevalence over time](stata_iv_panel_conflict_prevalence.png) The time series of conflict prevalence shows two patterns. First, conflict with 1+ deaths (steel blue line) peaked at around 7% of regions in 1998, then gradually declined to about 2.5% by 2010. Second, severe conflicts with 25+ deaths (warm orange line) tracked a similar but lower trajectory, averaging about one-third of the any-death rate. The 1998 peak coincides with major conflicts in the Democratic Republic of Congo, Ethiopia-Eritrea, and Sierra Leone. --- ## 6. OLS with fixed effects We begin with standard OLS panel regression as a benchmark. All regressions use the detrended variables and include year dummies, effectively controlling for region fixed effects, region-specific time trends, and year fixed effects. ```stata xtreg ucdp_death_dummy_dt llnlight01_dt Iyear*, fe robust cluster(objectid) ``` ```text Fixed-effects (within) regression Number of obs = 96,591 Group variable: objectid Number of groups = 5,689 R-squared: Within = 0.0041 Obs per group: avg = 17.0 (Std. err. adjusted for 5,689 clusters in objectid) ------------------------------------------------------------------------------- | Robust ucdp_death_~t | Coefficient std. err. t P>|t| [95% conf. interval] --------------+---------------------------------------------------------------- llnlight01_dt | .0007773 .0011548 0.67 0.501 -.0014866 .0030411 ``` The OLS coefficient on nighttime light intensity is 0.001 --- effectively zero and far from statistical significance (p = 0.50). This near-zero result is not evidence that economic shocks have no effect on conflict. Instead, it reflects the **attenuation bias** from measurement error: nighttime lights are a noisy proxy for true economic activity, and classical measurement error in an explanatory variable biases the coefficient toward zero. Miguel et al. (2004) found the same pattern --- their OLS estimates were also much smaller than their IV estimates --- and attributed it to "the problem of measurement error in African national income figures, which are widely thought to be unreliable" (p. 727). ### Reduced-form estimates Before running the IV regressions, we check whether the instruments directly predict conflict. These "reduced-form" regressions test the numerator of the IV estimand. ```stata xtreg ucdp_death_dummy_dt l2lnrain01_dt Iyear*, fe robust cluster(objectid) xtreg ucdp_death_dummy_dt l2meanpdsi_dt Iyear*, fe robust cluster(objectid) ``` ```text Rainfall -> Conflict: l2lnrain01_dt | -.0109408 .0033706 -3.25 0.001 Drought -> Conflict: l2meanpdsi_dt | -.0016168 .0003894 -4.15 0.000 ``` Both instruments predict conflict directly and with the expected signs. Higher rainfall (coefficient = -0.011, p = 0.001) and lower drought intensity (coefficient = -0.002, p < 0.001) are associated with fewer future conflicts. These reduced-form estimates are important: for the IV strategy to work, the instruments must not only predict the endogenous variable (first stage) but also show a relationship with the outcome (reduced form). The fact that both weather variables independently predict conflict in the expected direction is encouraging evidence for the causal mechanism: weather affects economic activity, which affects conflict. ![Reduced-form evidence](stata_iv_panel_reduced_form.png) --- ## 7. 2SLS/IV estimation Now we estimate the causal effect using two-stage least squares. The `xtivreg2` command handles panel IV estimation with fixed effects, clustered standard errors, and first-stage diagnostics. ### Conflict with 1+ deaths (Table 2) ```stata // IV with Rain as instrument xtivreg2 ucdp_death_dummy_dt (llnlight01_dt=l2lnrain01_dt) Iyear*, /// fe robust cluster(objectid) first // IV with Drought as instrument xtivreg2 ucdp_death_dummy_dt (llnlight01_dt=l2meanpdsi_dt) Iyear*, /// fe robust cluster(objectid) first // IV with Both instruments xtivreg2 ucdp_death_dummy_dt (llnlight01_dt=l2meanpdsi_dt l2lnrain01_dt) Iyear*, /// fe robust cluster(objectid) first ``` ```text === TABLE 2: Effects on regional conflicts (1+ deaths) === ------------------------------------------- (1) (2) (3) (4) (5) (6) (7) OLS OLS OLS OLS 2SLS 2SLS 2SLS ------------------------------------------- Ln Lights(t-1) 0.001 -0.303***-0.293***-0.296*** (0.001) (0.111) (0.085) (0.076) Ln Rain(t-2) -0.011*** -0.007* (0.003) (0.004) (Non) Drought -0.002***-0.001*** (0.000) (0.000) ------------------------------------------- Observations 96591 96591 96591 96591 96591 96591 96591 N Regions 5689 5689 5689 5689 5689 5689 5689 R-squared 0.00 0.00 0.00 0.00 -0.54 -0.51 -0.52 Instrument None None None None Rain(t-2) Drought Both ------------------------------------------- Standard errors clustered at the regional level. * p<0.10, ** p<0.05, *** p<0.01 ``` The 2SLS results are dramatically different from OLS. Using rainfall as the sole instrument (column 5), the coefficient on nighttime lights is **-0.303** (SE = 0.111, p < 0.01). Using drought alone (column 6) yields **-0.293** (SE = 0.085, p < 0.01), and using both instruments together (column 7) gives **-0.296** (SE = 0.076, p < 0.01). The remarkable consistency across all three specifications --- coefficients ranging from -0.293 to -0.303 --- strongly supports the robustness of the causal finding. The economic interpretation is striking. A negative economic shock that decreases nighttime light intensity by 10% (roughly 0.1 log points) increases the probability of conflict with at least one fatality by about **3 percentage points**. Given the baseline conflict rate of 4.6%, this represents a **66% increase** in conflict risk --- from 4.6% to approximately 7.6% in an average region. ![OLS vs 2SLS coefficient comparison](stata_iv_panel_coef_comparison.png) The coefficient comparison plot makes the attenuation bias visually obvious. The OLS coefficient (steel blue bar) is indistinguishable from zero, while all three 2SLS estimates (warm orange bars) are tightly clustered around -0.30 with non-overlapping confidence intervals relative to zero. The OLS-to-2SLS ratio is roughly 300:1 --- consistent with severe measurement error in nighttime lights as a proxy for true economic activity. > **Why is R-squared negative?** The R-squared values for the 2SLS regressions are negative (around -0.52). This is normal in IV estimation and does not indicate a problem. In 2SLS, the "R-squared" is computed from structural residuals using the actual endogenous variable, not the first-stage fitted values. When the instrument-induced variation in the endogenous variable explains the outcome differently than total variation, R-squared can be negative. ### Conflict with 25+ deaths (Table 3) ```stata xtivreg2 ucdp_25death_dummy_dt (llnlight01_dt=l2meanpdsi_dt l2lnrain01_dt) Iyear*, /// fe robust cluster(objectid) ``` ```text === TABLE 3: Effects on regional conflicts (25+ deaths) === ------------------------------------------- (1) (5) (6) (7) OLS 2SLS 2SLS 2SLS ------------------------------------------- Ln Lights(t-1) 0.001 -0.092 -0.093** -0.093** (0.001) (0.057) (0.046) (0.040) ------------------------------------------- Instrument None Rain(t-2) Drought Both ------------------------------------------- ``` For severe conflicts (25+ deaths), the pattern is similar but attenuated. The 2SLS coefficient is approximately **-0.09**, about one-third the magnitude of the 1+ death results. A 10% decline in economic activity increases the probability of severe conflict by approximately 0.9 percentage points, which represents a 62% increase over the baseline rate of 1.4%. The drought instrument and the both-instruments specification achieve significance at the 5% level, while the rain-only instrument narrowly misses significance (p = 0.11), consistent with rainfall being a somewhat weaker instrument. --- ## 8. First-stage results and IV diagnostics Strong instruments are essential for valid IV estimation. Weak instruments can produce biased and inconsistent 2SLS estimates, sometimes worse than OLS. We evaluate instrument strength using the first-stage F-statistic and related diagnostic tests. ```stata xtivreg2 ucdp_death_dummy_dt (llnlight01_dt=l2lnrain01_dt) Iyear*, /// fe robust cluster(objectid) first ``` ```text First-stage regression of llnlight01_dt: | Robust llnlight01_dt | Coefficient std. err. t P>|t| --------------+---------------------------------------- l2lnrain01_dt | .0360693 .0072692 4.96 0.000 F test of excluded instruments: F( 1, 5688) = 24.62 Prob > F = 0.0000 Stock-Yogo weak ID test critical values: 10% maximal IV size 16.38 15% maximal IV size 8.96 ``` The first-stage coefficient on rainfall is **0.036** (p < 0.001): a one-unit increase in log rainfall raises log nighttime light intensity by 0.036 units in the following year. The first-stage F-statistic is **24.62**, well above the Stock-Yogo 10% critical value of 16.38. This means we can reject the hypothesis that the instrument is weak enough to cause the 2SLS size distortion to exceed 10%. ```stata xtivreg2 ucdp_death_dummy_dt (llnlight01_dt=l2meanpdsi_dt) Iyear*, /// fe robust cluster(objectid) first ``` ```text First-stage regression of llnlight01_dt: | Robust llnlight01_dt | Coefficient std. err. t P>|t| --------------+---------------------------------------- l2meanpdsi_dt | .0055157 .0008685 6.35 0.000 F test of excluded instruments: F( 1, 5688) = 40.33 Prob > F = 0.0000 ``` Drought is an even stronger instrument, with a first-stage F-statistic of **40.33** --- nearly twice the strength of rainfall. The coefficient is 0.006 (p < 0.001): less drought (higher PDSI) predicts higher economic activity. This is intuitive --- drought reduces agricultural output, which reduces incomes and economic activity more broadly. ### Overidentification test When we use both instruments simultaneously, the model is **overidentified** (two instruments for one endogenous variable). This allows us to test whether both instruments satisfy the exclusion restriction using the Hansen J test. ```stata xtivreg2 ucdp_death_dummy_dt (llnlight01_dt=l2meanpdsi_dt l2lnrain01_dt) Iyear*, /// fe robust cluster(objectid) first ``` ```text First-stage F-stat (Both): 25.32 Hansen J statistic: 0.007 Hansen J p-value: 0.932 ``` The Hansen J statistic is 0.007 with a p-value of **0.932**. We strongly fail to reject the null hypothesis of instrument validity. Both rainfall and drought appear to satisfy the exclusion restriction --- they affect conflict only through their impact on economic activity, not directly. ### Summary of IV diagnostics | Test | Statistic | Threshold | Result | |------|-----------|-----------|--------| | First-stage F (Rain) | 24.62 | > 16.38 | **Strong** | | First-stage F (Drought) | 40.33 | > 16.38 | **Strong** | | First-stage F (Both) | 25.32 | > 16.38 | **Strong** | | Hansen J (overid) | 0.007 (p = 0.93) | p > 0.10 | **Valid** | All three instrument specifications pass the weak instrument test, and the overidentification test supports instrument validity. These diagnostics give us confidence that the 2SLS estimates are reliable. ![First stage: Rainfall predicts economic activity](stata_iv_panel_first_stage_rain.png) ![First stage: Drought predicts economic activity](stata_iv_panel_first_stage_drought.png) The binned scatter plots visualize the first-stage relationships. Each dot represents the average of 50 equal-sized bins after partialing out year fixed effects. Both plots show a clear positive slope: higher rainfall and less drought (higher PDSI) predict higher nighttime light intensity. The drought relationship appears somewhat tighter, consistent with the higher first-stage F-statistic (40.3 vs. 24.6). --- ## 9. Interpreting the OLS-2SLS gap The enormous gap between OLS (0.001) and 2SLS (-0.30) estimates deserves careful discussion. Three mechanisms could explain it: **Attenuation bias (most likely).** Nighttime lights are a noisy proxy for true economic activity. Classical measurement error in the explanatory variable biases OLS toward zero. The IV approach isolates the component of nightlight variation driven by weather --- which is a better signal of true economic changes --- effectively correcting this attenuation. Miguel et al. (2004) reached the same conclusion: "the problem of measurement error in African national income figures, which are widely thought to be unreliable" (p. 727) explains why their 2SLS estimates were also much larger than OLS. **Omitted variable bias (secondary).** Unobserved factors correlated with both economic activity and conflict could bias OLS in either direction. If regions with better institutions have both higher economic activity and less conflict, the OLS estimate of the economic activity effect would be biased toward zero or even positive --- consistent with what we observe. **LATE vs. ATE.** The IV estimate is a Local Average Treatment Effect, reflecting the causal effect for regions whose economic activity responds to weather shocks. If these regions are more agriculturally dependent (and thus more sensitive to economic disruptions), the IV estimate could exceed the population average effect. However, most African regions are heavily agricultural, so this distinction is likely small. --- ## 10. Key takeaways This replication confirms three important findings from Hodler and Raschky (2014): 1. **Economic shocks cause civil conflict.** A 10% decline in nighttime light intensity increases the probability of conflict with 1+ deaths by approximately 3 percentage points (from 4.6% to 7.6%) --- a 66% increase in risk. For severe conflicts (25+ deaths), the increase is about 0.9 percentage points (from 1.4% to 2.3%). 2. **OLS massively underestimates the effect.** The OLS coefficient is essentially zero (0.001), while the 2SLS coefficient is approximately -0.30. This 300-fold difference is consistent with severe attenuation bias from measurement error in nighttime lights as a proxy for economic activity. 3. **The instruments are strong and valid.** First-stage F-statistics (24.6--40.3) comfortably exceed the Stock-Yogo critical value of 16.38. The Hansen J test (p = 0.93) supports the exclusion restriction. The consistency of coefficients across three different instrument specifications further strengthens the causal claim. From a policy perspective, these results underscore that **poverty reduction is conflict prevention**. Programs that stabilize incomes in vulnerable regions --- through crop insurance, diversification support, or social safety nets --- may reduce the risk of violent conflict. The channel from weather to economic shocks to conflict also highlights the **security implications of climate change**, as more frequent droughts and erratic rainfall could increase conflict risk across Africa. --- ## References 1. Hodler, R. & Raschky, P.A. (2014). Economic shocks and civil conflict at the regional level. *Economics Letters*, 124(3), 530--533. 2. Miguel, E., Satyanath, S. & Sergenti, E. (2004). Economic shocks and civil conflicts: An instrumental variables approach. *Journal of Political Economy*, 112(4), 725--753. 3. Ciccone, A. (2011). Economic shocks and civil conflict: A comment. *American Economic Journal: Applied Economics*, 3(4), 215--227. 4. Couttenier, M. & Soubeyran, R. (2014). Drought and civil war in sub-Saharan Africa. *Economic Journal*, 124(575), 201--244. 5. Henderson, V.J., Storeygard, A. & Weil, D.N. (2012). Measuring economic growth from outer space. *American Economic Review*, 102(2), 994--1028. 6. Stock, J.H. & Wright, J.H. (2000). GMM with weak identification. *Econometrica*, 68(5), 1055--1096.
