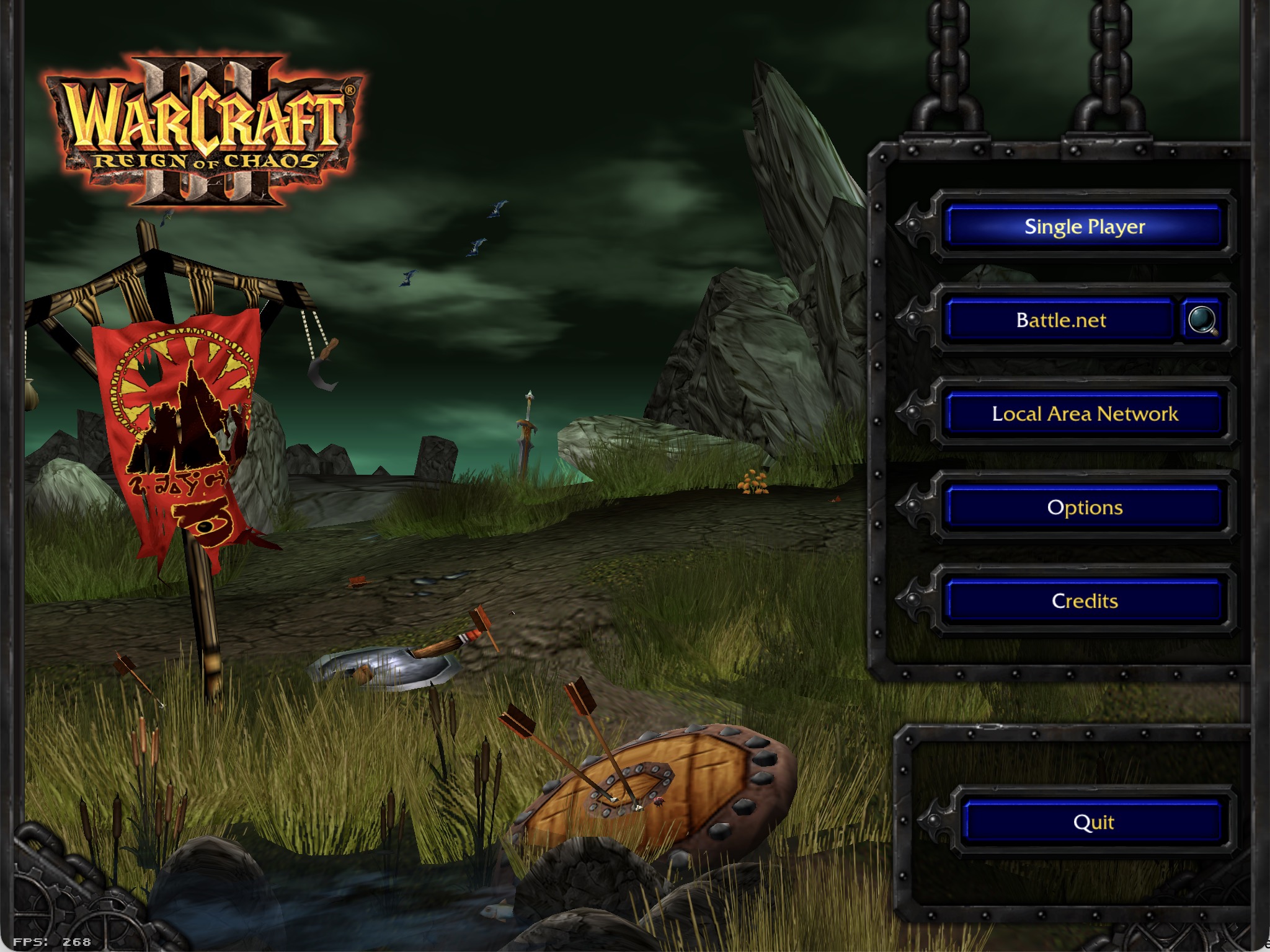

# OpenRealm OpenRealm is an open-source, Quake-style engine and compatibility project for Blizzard-era game data. Warcraft III is the primary playable target and runs on Windows, Linux, macOS, and iPad; StarCraft II and World of Warcraft provide additional format and renderer targets. [![License: MIT](https://img.shields.io/badge/License-MIT-yellow.svg)](LICENSE) [![CI](https://github.com/corepunch/open-realm/actions/workflows/c-cpp.yml/badge.svg)](https://github.com/corepunch/open-realm/actions/workflows/c-cpp.yml) [![Platform: Windows, Linux, macOS, iPadOS](https://img.shields.io/badge/Platform-Windows%20%7C%20Linux%20%7C%20macOS%20%7C%20iPadOS-lightgrey)](#run-on-ipad) [![Language: C](https://img.shields.io/badge/Language-C-blue.svg)](#) [![Discord](https://img.shields.io/badge/Discord-join-blue?logo=discord)](https://discord.gg/MxkUMWsKGs) The project does not include retail game data. Use it only with data you legally own. OpenRealm is not affiliated with Blizzard Entertainment.

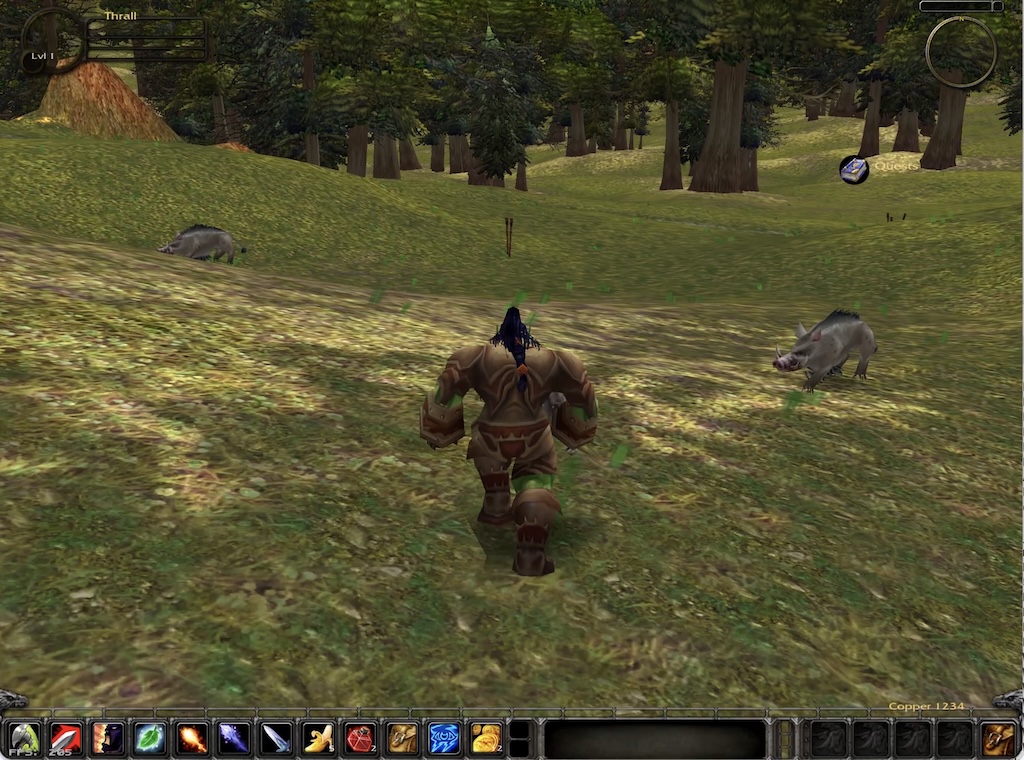

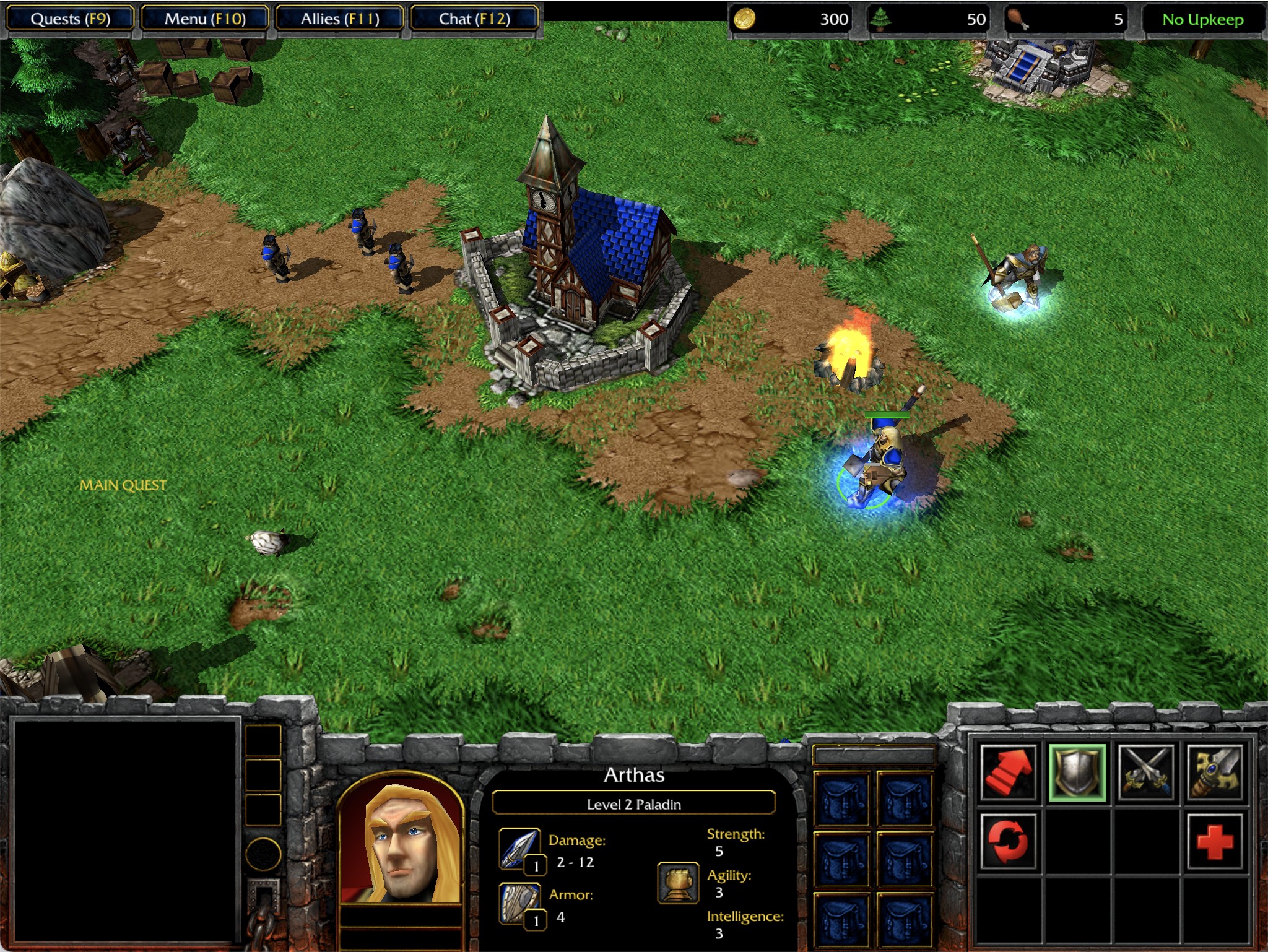

## Current targets - **Warcraft III** — `openwarcraft3`, the main development target, including the client/server runtime, JASS, SLK/profile data, FDF UI, campaign flow, maps, fog, units, and networking. Also builds as an iPad app with touch controls (see [Run on iPad](#run-on-ipad)). - **World of Warcraft** — `openwow`, an exploratory M2/WMO/DBC/MPQ and UI target with a Lua-backed interface. - **StarCraft II** — `opensc2`, an exploratory M3/SC2Map/SC2Layout target. The shared runtime contains the client, server, renderer backend, networking, archive loading, console/cvars, sound, and math libraries. Game-specific code lives under `games//` and is connected through Quake 2-style import/export tables. ## Download Pre-built binaries and Flatpak bundles are available from the [latest release](https://github.com/corepunch/open-realm/releases/latest). CI artifacts are published by the [CI workflow](https://github.com/corepunch/open-realm/actions/workflows/c-cpp.yml). Neither releases nor CI artifacts contain retail assets. For Flatpak and Steam Deck packaging, see [Flatpak And Steam Deck Packaging](docs/flatpak-steam-deck.md). ## Build The native build requires a C compiler, `make`, SDL2, and system OpenGL (or GLES3 on supported Linux systems). MPQ loading and most format tooling are provided by vendored or in-tree code. macOS: ```bash brew install sdl2 ``` Ubuntu/Debian: ```bash sudo apt-get install build-essential libsdl2-dev ``` Windows builds use MSYS2/MinGW or Visual Studio with SDL2 development libraries. ```bash git clone https://github.com/corepunch/open-realm.git cd open-realm make build ``` To include Warcraft III video playback and background music, install the FFmpeg development libraries and `pkg-config`, then build with: ```bash # Ubuntu/Debian sudo apt-get install pkg-config libavformat-dev libavcodec-dev libavutil-dev libswscale-dev libswresample-dev # Manjaro/Arch sudo pacman -S --needed pkgconf ffmpeg make clean make build -j4 FFMPEG=1 ``` On macOS, install these dependencies with `brew install pkg-config ffmpeg`. Ordinary sound effects and unit voices work without `FFMPEG=1`. See [Pre-Rendered Movies](docs/games/warcraft-3/pre-rendered-movies.md). Useful targets: ```bash make openwarcraft3 # Warcraft III executable make openwow # World of Warcraft executable make opensc2 # StarCraft II executable make tools # Asset/archive diagnostic tools make test # Generate fixtures and run tests make test-ui # Warcraft III UI parser/layout tests ``` The default build is diagnostic. Select release mode and renderer settings with: ```bash make clean && make BUILD=release openwarcraft3 make clean && make BUILD=release GL_BACKEND=gles3 MSAA=0 openwarcraft3 ``` Supported settings are `BUILD=debug|release`, `GL_BACKEND=gl|gles3`, `MSAA=0|2|4|8`, and `GLSL=120|140|150`. Run `make clean` when changing these values. See [Build And Renderer Platforms](docs/build-and-renderer-platforms.md). ## Run with game data Point the executable at a Warcraft III installation containing its MPQ archives: ```bash build/bin/openwarcraft3 -data "/path/to/Warcraft III" ``` The directory is scanned for top-level MPQs and an optional loose `Maps/` directory. The Makefile also supports `WC3DATA`: ```bash WC3DATA="/path/to/Warcraft III" make run ``` Useful examples: ```bash build/bin/openwarcraft3 -data "/path/to/Warcraft III" +menu_main build/bin/openwarcraft3 -data "/path/to/Warcraft III" +map 'Maps/Campaign/Orc01.w3m' build/bin/openwarcraft3 -data "/path/to/Warcraft III" -vid_modes +com_frame_limit 10 ``` Open the in-game Quake-style console with backtick/tilde. Use `build/bin/mpqtool` to inspect archives: ```bash build/bin/mpqtool -mpq "/path/to/Warcraft III/War3.mpq" ls Maps/Campaign ``` ## Run on iPad The iPad build needs macOS with Xcode (for the iOS SDK, `xcrun`, and `devicectl`), CMake, and no Xcode project. SDL2 is downloaded and built automatically on first use. 1. Connect the iPad by USB (or pair it over Wi-Fi in Xcode's *Devices and Simulators*), unlock it, and enable *Developer Mode* in Settings > Privacy & Security. 2. Make sure a development signing certificate and a matching iOS development provisioning profile for `com.openwarcraft3.warcraft3` (or a wildcard) are installed. Signing in to Xcode with your Apple ID and letting it create one for any app is enough. 3. Build, sign, install, and launch: ```bash make ipad-deploy ``` With several devices attached, list them and pick one; pass `TEAM`, `PROFILE`, or `BUNDLE_ID` to override signing: ```bash make list-devices make ipad-deploy DEVICE="iPad name or identifier" TEAM=ABCDE12345 ``` 4. Copy `War3.mpq` and `War3Local.mpq` (plus `War3x.mpq`/`War3xLocal.mpq` for The Frozen Throne) into *On My iPad > OpenWarcraft3* with the Files app or Finder, then relaunch. Without them the app shows a "data not found" alert. The iPad must be unlocked for the launch step. `make ipad-run` does the same in an iPad simulator. See [packaging/ipad/README.md](packaging/ipad/README.md) for details. ## Tests and diagnostics `make test` generates deterministic fixture archives under `build/tests/` and runs engine, parser, persistence, and format tests. For Warcraft III UI changes, run `make test-ui`. Useful tools include `mdxtool`, `maptool`, `m2tool`, `mpqtool`, `blp2jpg`, `blpgen`, and `mdxgen`. Bounded runtime diagnostics use `+com_frame_limit N`. ## Documentation - [Architecture](ARCHITECTURE.md) — module boundaries and API contracts - [Runtime configuration](docs/architecture/runtime.md) — paths, cvars, and startup order - [Rendering scene workflow](docs/rendering-scene-workflow.md) — launching maps and model scenes - [UI authoring](docs/ui-authoring.md) — FDF, bindings, and UI tests - [WC3 gameplay documentation](docs/games/warcraft-3/gameplay-features.md) - [Diagnostic tools](docs/diagnostic-tools.md) - [Contributing](CONTRIBUTING.md) ## License This project is licensed under the [MIT License](LICENSE).
