# PreTeXtual: a Sublime Text package for PreTeXt
PreTeXtual is a Sublime Text 3 package designed to assist authors using
[PreTeXt](https://github.com/rbeezer/mathbook) (formerly known as MathBook XML).
Parts of it, especially the Vagrant build system, are experimental and may
behave unexpectedly.
The package is inspired by the excellent
[LaTeXTools](https://github.com/SublimeText/LaTeXTools) package, which I have
enjoyed using for many years. I have borrowed very liberally from the
LaTeXTools codebase in order to implement the features I thought would be most
useful to MBX authors. Please let me know of any bugs you find or any features
you would like to include.
As of version 0.5.0, Sublime Text 2 is no longer supported.
- Installation
- Additional setup to use the automatic build systems
- Read before continuing
- Enable VT-X virtualization
- Install other required software
- A tour of the automated build systems
- Initialize your setup
- Installing the Vagrant box
- Activate the Vagrant box
- Compiling to HTML or PDF
- When compilation fails
- Building images
- Adding new projects
- Keep PreTeXt up to date
- Keep your Vagrant box up to date
- Editing settings manually
- Available settings
- Troubleshooting
- Future plans
- Conclusion
- Keybindings
- Usage
- Known issues
### Installation
*Note: We assume you are familiar with running Sublime Text commands via the
Command Palette. To bring up the palette, hit Ctrl+p
(Cmd+p on OS X). Then start typing the name of the command you want
to filter the list of results.*
It is recommended to install PreTeXtual via Package Control. If you have not
installed Package Control yet, you should
[do that first](https://packagecontrol.io) (and restart Sublime Text afterward).
After Package Control is installed, use the `Install Package` command (in the
Command Palette) to search for the PreTeXtual package, and select it from the
Quick Panel to install. This method of installation allows Package Control to
automatically update your installation and show you appropriate release notes.
You may also install PreTeXtual via `git`. Change directories into your
`Packages` folder. To find the `Packages` folder, select Browse Packages from
the Preferences menu (from the Sublime Text 3 menu on OS X). Make sure you are
in the `Packages` folder and *not* `Packages/User`.
Then, run
```
git clone https://github.com/daverosoff/PreTeXtual.git
```
and restart Sublime Text (probably not necessary).
### Additional setup to use the automatic build systems
PreTeXtual now comes with build systems that can process your PreTeXt source
into HTML or LaTeX and build your latex-image images into all image formats.
The result is output that is ready to preview in a browser (HTML) or compile
to PDF (LaTeX). All of this can be done from the command palette, if you
carefully follow the directions below.
#### Read before continuing
The build systems are also intended for *beginning* PreTeXt users, who may
wish to just get started as soon as possible without working too hard on
configuration or learning too much. So none of the possible configuration one
can do is described here at present. PreTeXtual can do things more flexibly
than described here, but this documentation has been written for simplicity
and the details are omitted.
The build systems are intended only for Windows users, since PreTeXt is much
more difficult and tedious to install on Windows than on Linux or Mac OS. As
of this release, it has only been successfully used on Windows 10. Windows 7
users are welcome to try to follow the directions, but Windows 7 seems to have
some difficulty installing current versions of Vagrant, see below. Future
support for Windows 7 is devoutly to be wished.
If your Windows 7 is 32-bits, it is unlikely that you will be able to use the
build systems with this version of PreTeXtual. Please open an issue if you
need 32-bit support. If there is sufficient demand, it is possible to create
compatible Vagrant boxes. (However you will still need to use Vagrant, which
may not always play nice with Windows 7, as described above.)
Users of other operating systems will not find the build systems in this
release useful without manual editing of some of the package resources. You
are welcome to [open an
issue](https://github.com/daverosoff/PreTeXtual/issues) with questions about
how to accomplish this. A future release will support use of the build systems
without Vagrant, which is preferable for any Mac OS or Linux users who might
want to use the build systems for convenience. Users with custom stylesheets
("thin xsl") will also benefit.
As you continue with the installation, it would be good to [visit this README
in a browser](https://packagecontrol.io/packages/PreTeXtual) so that you can
follow along while you do things in Sublime Text and other programs.
A final note before we begin the installation directions: as soon as your
project acquires some maturity, you will likely outgrow the build systems in
their present form. The present author recommends the use of a virtual machine
to continue your PreTeXt work, but there are several different solutions, all
of which you are invited to discuss at the
[pretext-support Google group](https://groups.google.com/forum/#!forum/pretext-support).
#### Enable VT-X virtualization
This is the hardest step, regrettably necessary for the current version of
PreTeXtual. Feel free to skip it and come back to it later if things don't
work properly.
Follow the directions linked below--very carefully! It is possible to really
mess up your system doing this. You may want to get help from your institution's
IT department. There is always "Quit without Saving" option you can use if you
get really stuck or scared.
Windows users will want to follow these directions (step 4 from
[the directions found here][vtxdirs]).
1. Power on the machine and open the BIOS (as per Step 1). This can usually be
done by pressing the `delete` key, the F1 key or Alt and F4 keys depending
on the system. You may have to try a few times. I'm usually not fast enough
to get it on the first try.
2. Open the "Processor" submenu. The processor settings menu may be hidden in
the "Chipset", "Advanced CPU Configuration" or "Northbridge" menus.
3. Enable "Intel Virtualization Technology" (also known as "Intel VT") or
"AMD-V" depending on the brand of the processor. The virtualization
extensions may be labeled "Virtualization Extensions", "Vanderpool" or
various other names depending on the OEM and system BIOS.
4. Enable "Intel VTd" or "AMD IOMMU", if the options are available.
4. Select "Save & Exit".
#### Install other required software
Note that the entire installation process from this point onward is documented
in the video available at https://mathbook.pugetsound.edu/doc/
At present, the build systems require the use of two other applications,
Virtualbox and Vagrant. Install these on your computer. Agree to the default
whenever you are prompted for a decision. *Not choosing default values will
break the PreTeXtual build systems.*
1. In Sublime Text, use Package Control to install the SideBarEnhancements
package and the Vagrant package.
1. [Download Virtualbox](https://www.virtualbox.org/wiki/Downloads)
2. [Download Vagrant](https://www.vagrantup.com/downloads.html)
### A tour of the automated build systems
#### Initialize your setup
At the present moment, the PreTeXtual build systems all make use of a Vagrant
virtual machine to do the XSL processing and image building steps of the PTX
document generation process. If you don't want to use Vagrant, then this version
of PreTeXtual's build systems won't work for you.
You need to organize your projects in a specific way for PreTeXtual to be able
to see and manage them. In particular, you must create a folder called
`C:\PreTeXt` (it **must** be on the C: drive). This folder should contain one
subfolder for each writing project you want to work on. Set this up before
continuing.
*Note: The rest of the procedure will take quite some time, up to two hours
depending on your selections.*
Once your folders are set up as described above, open a Sublime Text window
and run the command (from the Command Palette) "Initialize PreTeXt Vagrant".
Then follow the prompts. Each folder one level underneath `C:\PreTeXt` will be
recognized as a writing project. These will be added to PreTeXtual's simple
project management system. You can store some options for each project in your
User settings. In particular, you will need to type in a *root file* path for
each one. The root file of a PreTeXt project is the file containing the
`` XML element. You will need to enter the paths with double
backslashes `\\` rather than a single backslash `\`. A typical path might look
like
C:\\PreTeXt\\AATA\\src\\aata.xml
**Warning.** While Windows usually doesn't care much about capitalization in
paths, PreTeXtual does. You must enter all letters in your path names with
the correct case, or things may not work as desired.
You can always enter the paths later by editing your Settings file directly.
#### Installing the Vagrant box
*Note: this step is required, even if you already have installed PreTeXt in some
other way.*
After you have finished importing projects as described above, you will see a
menu with several choices. Most people will want either "PreTeXt" or
"PreTeXt-lite". If you need Sage or Asymptote, choose "PreTeXt". If you need a
full LaTeX installation but not Sage or Asymptote, choose "PreTeXt-lite". If you
only need to process HTML, you can try "PreTeXt-barebones" (not recommended).
The last option, "PreTeXt-no-images", is only for testing.
The full "PreTeXt" option will take between 45 and 60 minutes, or longer on a
slow connection, to download and install. The others will take less time, but
even the barebones option might take 10 to 15 minutes. Unfortunately, it is not
possible at this time for PreTeXtual to provide any progress bar or feedback.
The Sublime Text window may even appear to hang, with a "(Not responding)"
message in the title bar. Please don't worry!
#### Activate the Vagrant box
*Note. Perform this step whenever you start working on a PreTeXt project for
the first time after a reboot.*
In a new Sublime Text window, use the Open Folder command to open your entire
`C:\PreTeXt` folder. All your projects should appear in the sidebar. Then use
the Command Palette to run the command `vagrant up`. Wait for the text "Running
Vagrant...." to disappear from the status bar at the bottom of the window before
going on (it may take a minute or two). Alternatively, you may select `View/Show
Console` from the menu to check the progress of this command, which activates
the virtual machine on which you have installed PreTeXt.
#### Compiling to HTML or PDF
Now the fun starts. In an existing writing project, open any PreTeXt file.
Make sure that "PreTeXt" is showing in the far lower right corner of the
screen. Some commands will only be available in PreTeXt mode (provided by the
PreTeXtual package). If your source files end in `.xml` rather than `.ptx` or
`.mbx` you will need to do some configuration (use the `PreTeXtual: Set
PreTeXt File Exts` command, see below).
Having opened a PreTeXt file, bring up the build menu by pressing
Ctrl+Shift+B. Select "Process PreTeXt to HTML" from the menu and
click OK when the notification of processing appears. If you are watching the
sidebar, you will see an `output` folder appear next to your `src` folder. If
you expand it in the sidebar you can watch the HTML files appear as they are
generated. When the build is finished, Sublime Text should alert you to this
fact with a dialog box.
**Warning.** The dialog boxes are not very big or very insistent, but they
block Sublime Text from continuing. If you think your editor has crashed,
check first for any dialog boxes that may have gotten lost behind another
window.
Open the `output\html` folder and right-click one of the HTML files. Select
"Open in browser". Marvel at the relative simplicity of this process.
To compile to LaTeX, you can select "Process PreTeXt to LaTeX" from the menu. To
convert to PDF, I recommend you use the excellent LaTeXtools package, to which
PreTeXtual owes a great deal. A future version of PreTeXtual may support
compilation from within Sublime Text without the use of LaTeXtools. You will
need to install LaTeX on your computer to perform this step, not presently
documented here.
##### When compilation fails
PreTeXtual is not, at present, smart enough to realize when anything has gone
wrong. You will notice that your output isn't there, or didn't change; a very
quick "Build finished" dialog also usually indicates an error. To see the
messages PreTeXt generates when processing your source, use the Sublime Text
console: select `Show Console` from the View menu before, during, or after
compilation.
#### Building images
*Note.* This part of the build system may still be a bit buggy. In addition, it
will fail if you chose `pretext-barebones` or `pretext-no-images` above. It can
be time-consuming, especially for longer documents. Finally, some Asymptote 3D
images are not yet supported and raise exceptions that will stop the image build
process.
*Note.* Including images that are not generated from source is not yet
supported. If you urgently need this feature,
[open an issue](https://github.com/daverosoff/PreTeXtual/issues).
Building images should be as simple as processing to HTML or LaTeX. Use the
Ctrl+Shift+B menu to select a "Build images" command (this will
take a while if you have a large project). Dismiss the dialogs that appear as
the images are generated and do not be alarmed if Sublime Text should appear
to hang or become unresponsive. Just wait! After the final message "End of
PreTeXtual build routine", you can refresh your HTML output in the browser to
check that the images appear. They will now also be available for LaTeX compilation.
This concludes the tour of the build system. Run `vagrant suspend` in a command
shell before shutting down your system. This pauses the virtual machine in
a non-destructive way. Windows will complain that something is
stopping you from shutting down your computer otherwise---in fact, it may do
so anyway, but forcing a shutdown will not cause any problems to the virtual
machine (you can simply throw it away and create a new one if you need to).
*Note. If you wait a few minutes after running `vagrant suspend`
you should not get any error from Windows when you shutdown.*
#### Adding new projects
Currently, there is no separate command to add a project. The best way to do it
by hand is to manually edit your Settings file, as described below.
#### Keep PreTeXt up to date
PreTeXt is actively developed and changes frequently. To keep your installation
up to date, you should update it every few weeks. This may require some changes
to your source.
From the Command Palette, run the command `PreTeXtual: Update PreTeXt`. If it
is not available, try saving an empty file with the `.ptx` extension and try
again from within this file. You may see a new window open with some
`git`-related hieroglyphics. Just wait for it to close. All done!
#### Keep your Vagrant box up to date
Although it may never be necessary, it is probably a good idea to keep your
Vagrant box updated (new versions come out in the first week of each calendar
month). The simplest way to update it is to run the command `Vagrant: Destroy &&
Up` from the Command Palette. You can also use the command `vagrant box update`
from any command prompt (make sure to change to the `C:\PreTeXt` folder first).
#### Editing settings manually
All the PreTeXtual information is stored in the `pretext_projects` setting in
your User settings file. To edit it, select "Preferences/Settings" from the
Sublime Text 3 menu. A new Sublime Text window with two panes will appear. The
left side is for reference only and should not be edited. In the right side,
you should be able to find the `pretext_projects` setting. You can change the
values and save the file as you wish.
###### Available settings
1. `name`: each project has an internal id called `name`. By default this is the
same as the name of the directory it lives in.
2. `path`: each project knows the path to its directory. You need to escape the
backslashes (enter each backslash as `\\`).
3. `root_file`: each project knows the absolute path to its root file.
4. `xinclude`: (default: True) if you would like to disable the `xinclude` behavior
for some reason, set this value to `false` (note: no quotes).
5. `stringparam`: if you need some custom stringparams, enter them here as a
dictionary/hash of key-value pairs:
"stringparam": {
"html.css.file": "https://www.my.site/path/to/my.css",
"latex.font.size": "20pt"
}
6. (experts only) There are a few other settings that PreTeXt will recognize
that are not yet documented here. Inspect the file `beta_process.py` to
find out more about them.
#### Troubleshooting
As mentioned elsewhere, this system is still experimental, although it has
been tested to some extent. If you run into problems or things don't work as
expected, you will probably need to get some help, but one thing to try first
is to use the Sublime Text console to see what's going on. Enable the console
with `View/Show Console` from the Sublime Text menu. A new pane will appear
that updates you in real time on what Sublime Text is doing. In particular, if
PreTeXtual is throwing errors that the author hasn't anticipated, you will see
the error messages in the console. These messages will be helpful in debugging
your situation.
You can dismiss the console by putting the cursor in it and hitting
Esc, or by using `View/Hide Console`.
#### Future plans
We would like to support generation of thumbnails/static images for videos and
interactives. It might also be possible to provide some support for compiling
documents using WeBWorK/MyOpenMath problems, although it may end up being the
case that heavy use of these features means your project has "outgrown" the
Vagrant build system. In that event you will be best served by another way of
using PreTeXt.
Documentation of the Vagrant build system, and in particular the "graduation"
process when a project is sufficiently mature/advanced, is still spotty. We have
chosen to release it along with the present document and the video
demonstrations in the interest of getting people started more quickly. The
author is actively working on the documentation and welcomes your contributions.
#### Conclusion
This concludes the section of the documentation about the build system. Thank you
for reading and please address questions to the pretext-support Google group:
https://groups.google.com/forum/#!forum/pretext-support
or open an issue at
https://github.com/daverosoff/PreTeXtual/issues
The remainder of this document pertains to the other features of the PreTeXtual
package.
### Keybindings
PreTeXtual is inspired by
[LaTeXTools](https://packagecontrol.io/packages/LaTeXTools), and like that
package uses a Ctrl+l prefix for many commands. The Expand Selection
to Line command is bound to Ctrl+l by default. PreTeXtual rebinds that
command to Ctrl+l, Ctrl+l. Note that this is a keyboard shortcut
consisting of two separate keystroke combinations. Most PreTeXtual shortcuts are
like this.
### Usage
You can activate the package features by enabling the PreTeXt syntax. The
syntax definition looks for `.ptx` or the legacy `.mbx` file extension. If
your PreTeXt files end with `.xml` (or something else), you have several
choices.
1. Use the Preferences menu or the Command Palette to run the command `Set
PreTeXt File Extensions`, and use the input panel to add `.xml` or other
extensions of your choice to the comma-separated list. Sublime will look
for a project settings file first, then update user preferences if it
doesn't find one. If you have multiple PreTeXt projects, or if you edit XML
other than PreTeXt, it is best to start using Sublime Text projects so that
you can have project-specific settings.
3. Enable the syntax manually using the command palette. To enable it
manually, open a PreTeXt file and press Ctrl+Shift+P
(Cmd+Shift+P on OS X) and type `ptx`. Select `Set Syntax:
PreTeXt` from the list of options.
You should see the text `PreTeXt` in the lower right corner if you have
the status bar visible (command palette: Toggle Status Bar). Please excuse
the image which still shows the former name `PreTeXt`.
![Image of status bar showing PreTeXt active](media/mbx-syntax-active.png)
Here is a (non-exhaustive) list of features.
1. New in 0.6.0: an extensive interface with Vagrant virtual machine
management software is included, to enable Sublime Text 3 to behave more
like an API for PreTeXt. See the related section of this README for more
information.

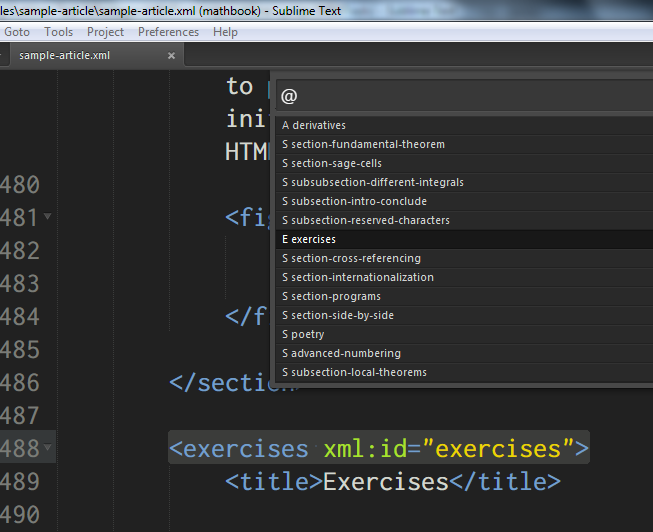

1. If you have some subdivisions (with `xml:id`) in your PreTeXt file, hit
Ctrl+R (Cmd+R on OS X) to run the Goto Symbol command.
You should see a panel showing all your available sections. Select one to
jump to it in the active view. This tool does not index subdivisions without
an `xml:id` attribute.
![Image of quick panel showing sections](media/quickpanel-sections.png)
2. Open your entire source folder as a project and use Goto Symbol in Project
(Ctrl+Shift+R/Cmd+Shift+R) to see all the `xml:id`
for all the PreTeXt files in the project (must use `.mbx` or `.ptx`
extension for indexing to succeed).
3. Try typing `
