# Simple IoT **The Minimal IoT Platform — lightweight, single-binary, ready in 60 seconds.** [![CI](https://github.com/dingdaoyi/simple-iot/actions/workflows/ci.yml/badge.svg)](https://github.com/dingdaoyi/simple-iot/actions/workflows/ci.yml) [![License](https://img.shields.io/github/license/dingdaoyi/simple-iot?color=blue)](LICENSE) [![Tests](https://img.shields.io/badge/tests-190%20passing-brightgreen)](https://github.com/dingdaoyi/simple-iot) [![Java](https://img.shields.io/badge/Java-25-orange?logo=openjdk)](https://openjdk.org/) [![Spring Boot](https://img.shields.io/badge/Spring%20Boot-4.0.2-6DB33F?logo=springboot)](https://spring.io/projects/spring-boot) [![Vue](https://img.shields.io/badge/Vue-3.x-42b883?logo=vue.js)](https://vuejs.org/) [![Docker](https://img.shields.io/badge/Docker-Ready-2496ED?logo=docker)](docker-compose.yml) [![GitHub Stars](https://img.shields.io/github/stars/dingdaoyi/simple-iot?style=social)](https://github.com/dingdaoyi/simple-iot/stargazers) **English** · [简体中文](README.zh-CN.md) · [Live Demo](https://dingdaoyi.github.io/simple-iot/guide/demo) · [Documentation](https://dingdaoyi.github.io/simple-iot/) · [Report Bug](https://github.com/dingdaoyi/simple-iot/issues)

--- ## ✨ What is Simple IoT? **Simple IoT** is a self-hosted IoT platform for teams that want to connect devices, model telemetry, build rule flows and operate alarms without assembling a large distributed stack first. The project keeps the runtime intentionally compact: one Spring Boot application, one Vue 3 console, PostgreSQL for business data, InfluxDB for telemetry and Docker Compose for deployment. It is easy to read, fork, run on a small server and adapt to real projects. ## 🌟 Release Highlights ### v0.3.0 - Drivers + Ingress (2026-07-31) | Area | What's new | |---|---| | **Webhook Ingress** | HMAC-SHA256 signed HTTP endpoint for third-party push. Per-webhook token + secret, replay protection, frontend CRUD with curl guide. | | **Modbus TCP** | Per-device polling, register mapping, multi-function-code read, scale + data-type conversion. Demo `modbus-sim` included. | | **System monitoring** | Real CPU / memory / disk metrics on dashboard (replaces placeholder zeros). | | **UI audit** | 8 pages unified to PageHeader + glass-card + el-empty empty states, -40 lines duplicate CSS. | ### v0.2.0 - Real-time + Operations (2026-07-23) | Area | What's new | |---|---| | **Real-time dashboard** | WebSocket push for telemetry & alarm channels, 2 new widget types (device status grid, alarm list). | | **Schedule triggers** | Cron-based rule chain execution via `INPUT_SCHEDULE` node. | | **IM push** | DingTalk, WeCom, Feishu webhook notifications with CRUD config UI. | | **Batch operations** | Multi-device command dispatch with per-device result tracking. | | **Device topology** | Parent-child device relationships for gateway-subdevice scenarios. | | **Data retention** | InfluxDB telemetry auto-purge (configurable, default 180 days). | | **Security** | API rate limiting (Bucket4j), audit logging (AOP), alarm suppression (5-min dedup). | | **Docs** | 8 new VitePress guide pages (zh + en). 190 unit tests. Platform maturity 75%. | ### v0.1.1 - Usability (2026-06-25) | Area | What's new | |---|---| | **International UI** | Full `zh-CN` / `en-US` frontend i18n, semantic translation keys, language switcher and Element Plus locale sync. | | **Rule-chain authoring** | Improved editor usability with canvas zoom/pan, keyboard shortcuts, node search, validation and debug path highlighting. | | **Scriptable automation** | Script filter nodes and safer protocol/script test handling: user script mistakes now return readable validation results instead of noisy server errors. | | **Integration reliability** | Push configuration validation, signed push testing and better delivery-setting checks. | | **Demo & release quality** | Hardened GitHub Actions, frontend lint in CI, stable demo deployment and public smoke verification. | > **In short** — Simple IoT is a practical, lightweight IoT console you can run yourself, inspect end-to-end and evolve with your product. --- ## 🚀 Quick Start (60 seconds with Docker) ```bash git clone https://github.com/dingdaoyi/simple-iot.git cd simple-iot chmod +x deploy.sh ./deploy.sh deploy ``` Then open: | Service | URL | Default credentials | |---------|-----|--------------------| | Web UI | http://localhost | `admin` / `123456` | | API docs | http://localhost:5010/iot/doc.html | — | | MQTT broker | `mqtt://localhost:1883` | — | | MQTT WebSocket | `ws://localhost:8083/mqtt` | — | The Docker stack seeds a demo sensor by default (`demo-sensor-001` / `demo-secret`) so the dashboard and MQTT smoke path are useful immediately. See [MQTT Quick Test](docs/guide/mqtt-test.md) for a copy-paste telemetry publish command. That's it. PostgreSQL, RustFS (S3-compatible), the backend and the frontend all spin up together. > Want to develop locally? See the [development guide](#-development). --- ## 🎯 Core Features | Module | What it does | |--------|--------------| | **Device Management** | Registration, online/offline tracking, batch operations, command dispatch | | **Product & Thing Model** | Product types, properties, services and events for structured device capabilities | | **Protocol Engine** | Hot-loaded scripts in **Java / JavaScript / Groovy / Lua**, no restart needed | | **Visual Rule Engine** | Drag-and-drop chain editor with validation, debug paths, script filters and reusable nodes | | **Alarm Center** | Severity levels (info / warning / critical / urgent), active / cleared lifecycle | | **Data Ingestion** | InfluxDB 3 time-series storage, Caffeine in-process cache | | **Dashboard** | Device totals, online stats, system metrics (CPU / memory / disk), live alarms, WebSocket real-time, device-grid & alarm-list widgets | | **Notifications** | Email & SMS push, HTTP callbacks, MQTT forward, device commands, DingTalk / WeCom / Feishu IM push | | **Real-time** | WebSocket push for telemetry, alarms, and device status changes | | **Data Retention** | InfluxDB telemetry auto-purge (configurable, default 180 days) | | **Security** | API rate limiting (Bucket4j), audit logging (AOP), alarm suppression (5-min dedup) | | **Auth & Permissions** | Sa-Token based, fine-grained, role/menu/button level | | **International UI** | Modern Vue 3 console with `zh-CN` / `en-US`, light/dark/auto theme, PWA support, responsive layouts | --- ## 🖼️ Screenshots

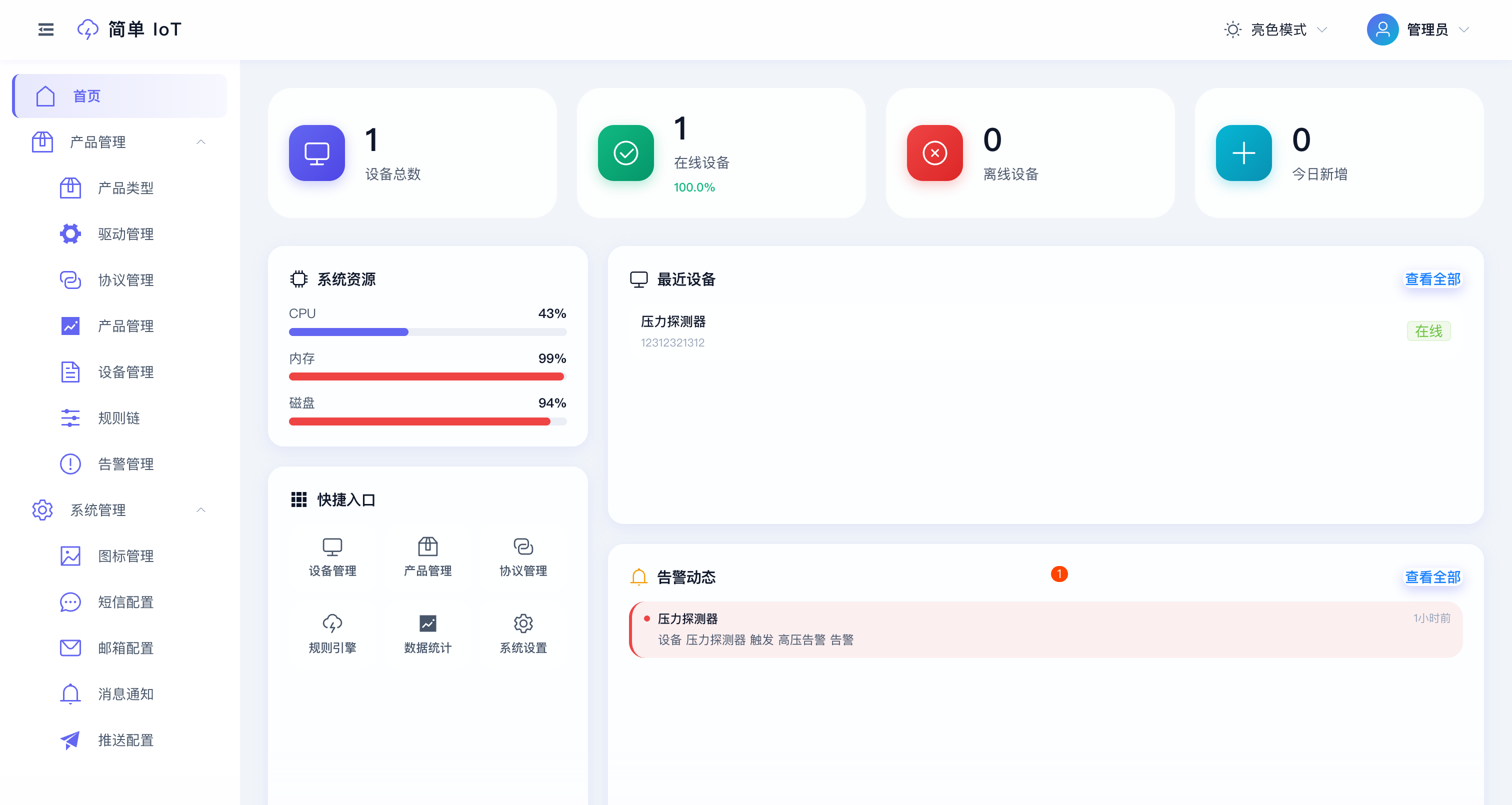

### Dashboard

Dashboard

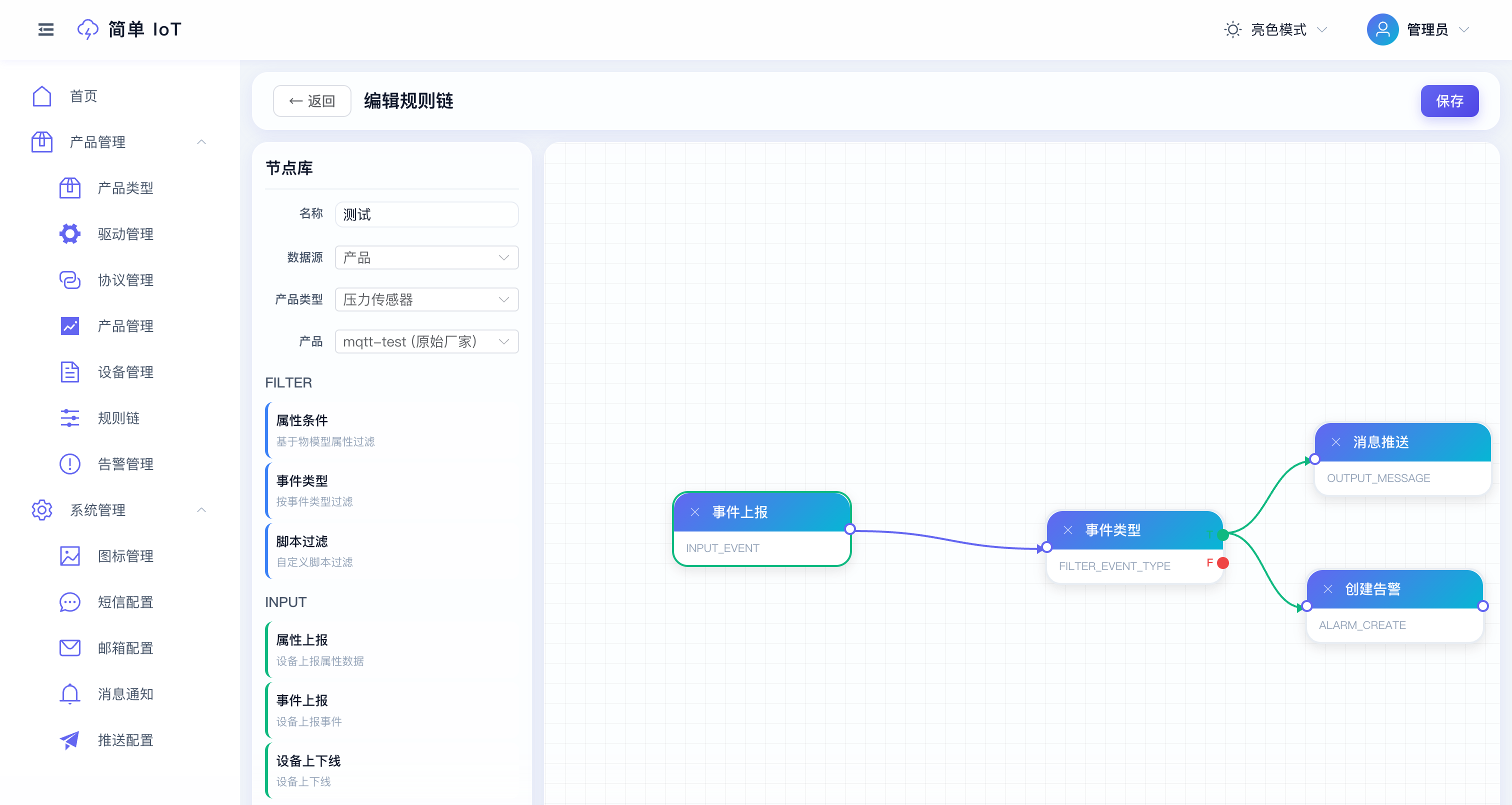

### Visual Rule Engine Rule Engine Editor

Rule Engine Editor

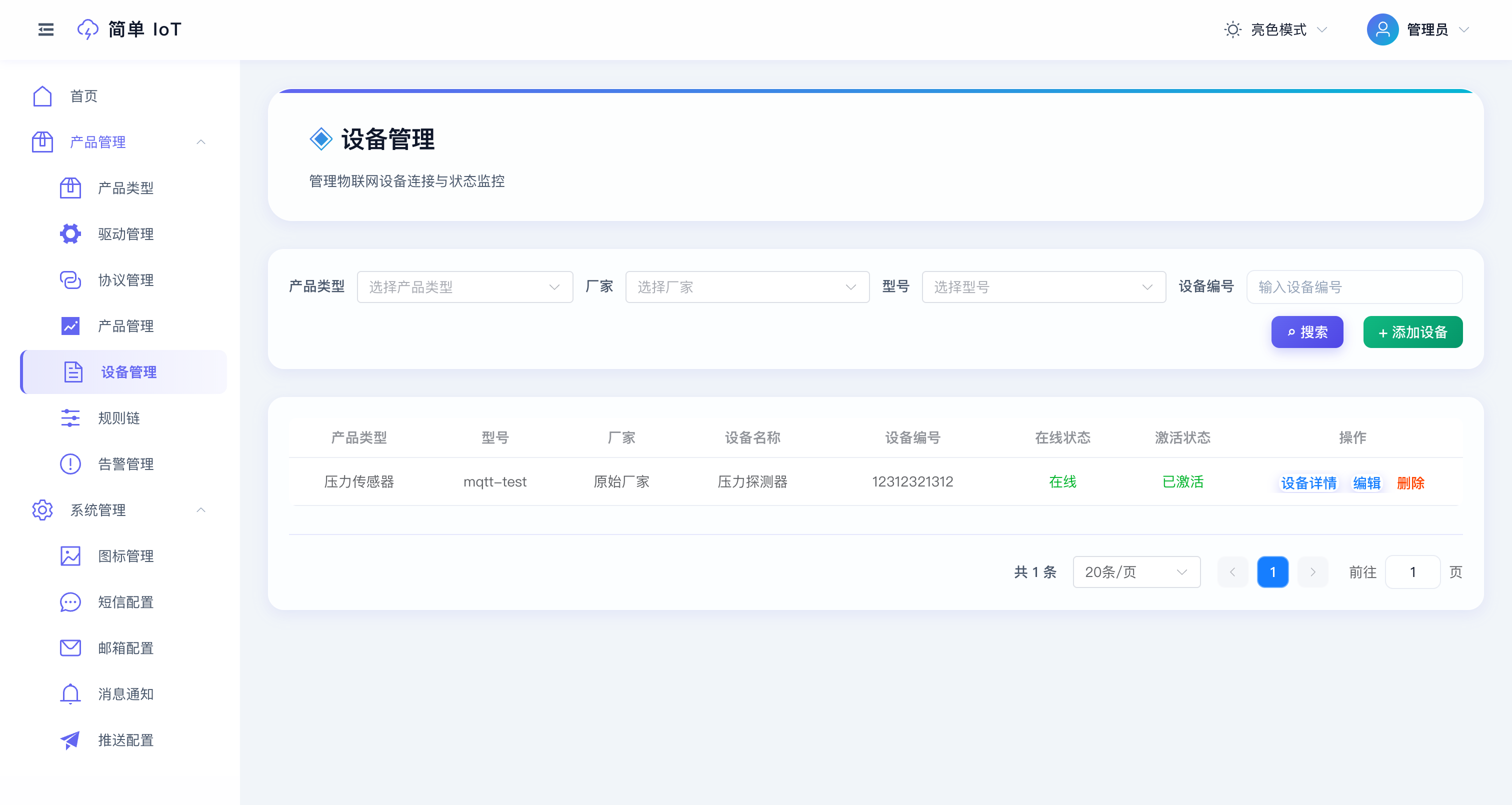

### Device Management Device

Device

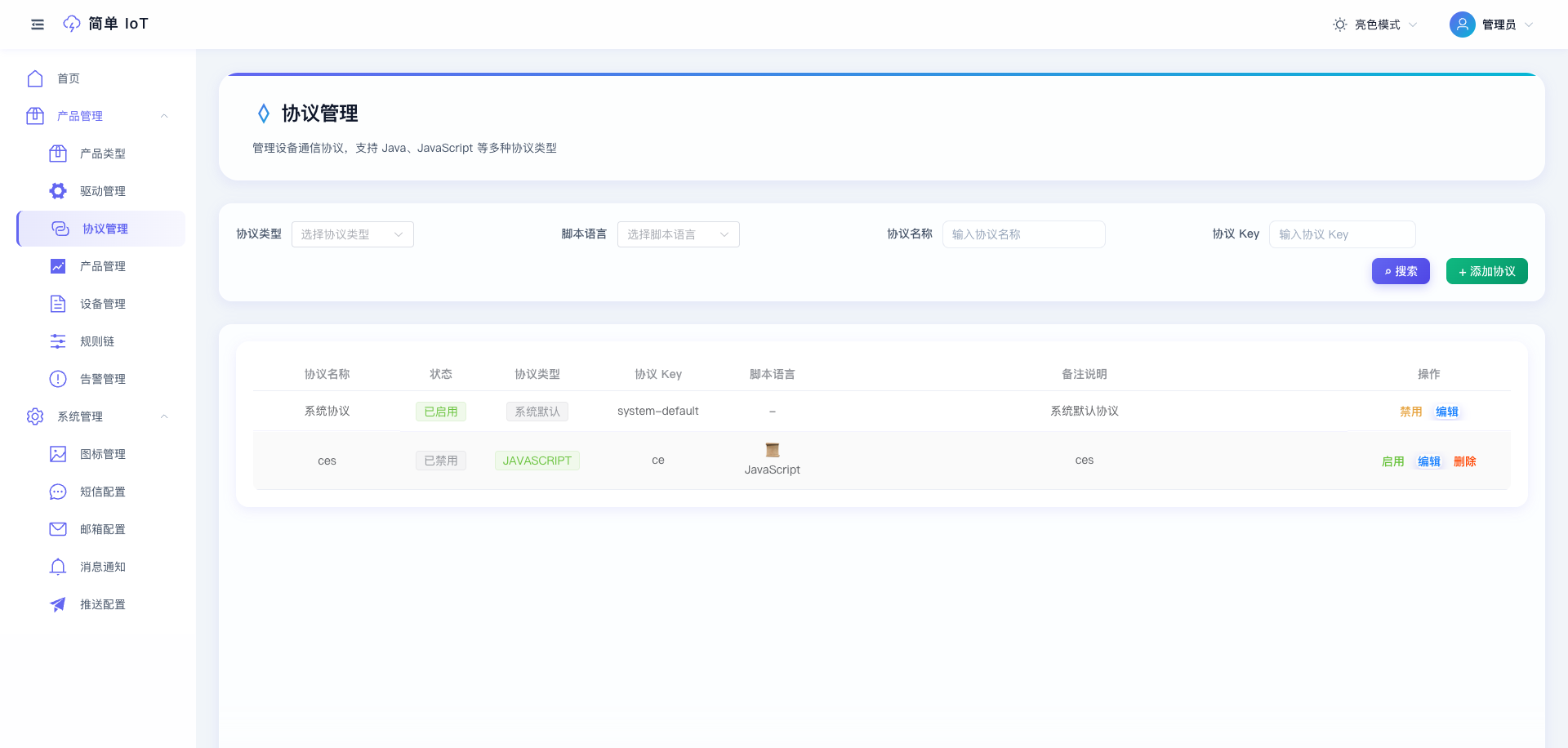

### Protocol Scripts

Protocol

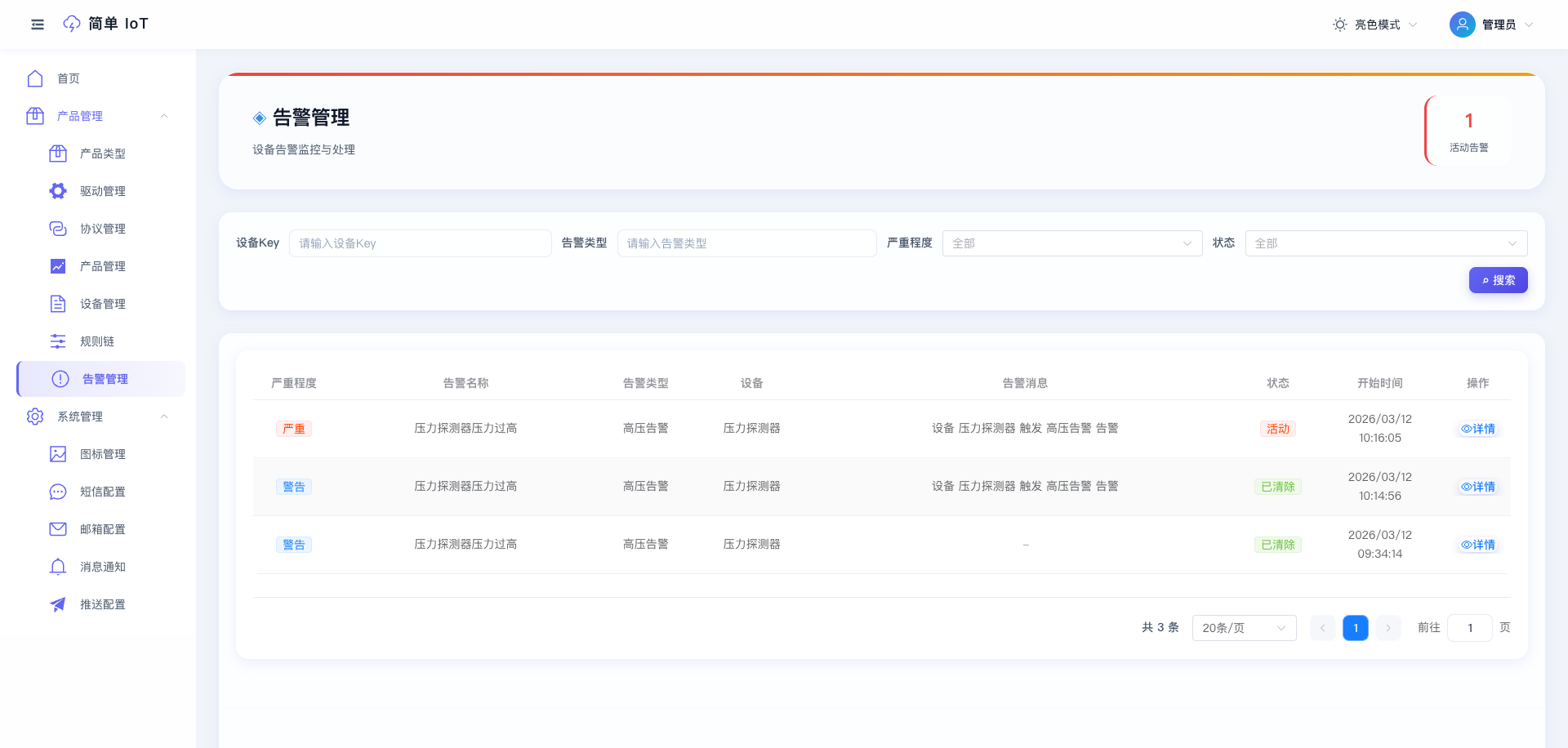

### Alarms Alarm

Alarm

--- ## 🏗️ Architecture ``` ┌──────────────────────────────────────────────────────────────────┐ │ Simple IoT │ ├──────────────────────────────────────────────────────────────────┤ │ │ │ Vue 3 + Vite + Element Plus (Minimal UI) │ │ │ │ │ ▼ REST / WebSocket │ │ ┌──────────────────────────────────────────────────────────┐ │ │ │ Spring Boot 4 (single JVM, single binary) │ │ │ │ │ │ │ │ • Sa-Token auth • MyBatis-Plus │ │ │ │ • Caffeine local cache • Knife4j OpenAPI │ │ │ │ • Visual rule engine • Hot-loaded protocol scripts │ │ │ │ • mica-mqtt broker (1883 / 8083 ws) │ │ │ └──────────────────────────────────────────────────────────┘ │ │ │ │ │ │ ▼ ▼ │ │ ┌──────────────┐ ┌────────────────┐ │ │ │ PostgreSQL │ │ InfluxDB 3 │ │ │ │ (business) │ │ (telemetry) │ │ │ └──────────────┘ └────────────────┘ │ │ │ │ ┌──────────────────────────────────────────────────────────┐ │ │ │ Devices → MQTT / TCP / HTTP → Protocol scripts │ │ │ └──────────────────────────────────────────────────────────┘ │ └──────────────────────────────────────────────────────────────────┘ ``` ### Stack **Backend** — Java 25 · Spring Boot 4.0.2 · Sa-Token · MyBatis-Plus · PostgreSQL · InfluxDB 3 · mica-mqtt · Caffeine · Hutool · AWS S3 SDK **Frontend** — Vue 3 · Vite · Element Plus · Pinia · Vue Router · Axios · ECharts **Infra** — Docker Compose · RustFS (S3-compatible) · GitHub Actions --- ## 📦 Project Layout ``` simple-iot/ ├── iot-server/ # Main Spring Boot service (REST + MQTT broker + rule engine) ├── iot-common/ # Shared base classes (BaseEntity, ResultCode, paging) ├── iot-driver/ # System-supplied protocol drivers ├── iot-web/ # Vue 3 admin frontend ├── doc/ # Docs, SQL schema, screenshots, brand assets ├── docker-compose.yml # Stack: postgres + rustfs + iot-server + iot-web ├── deploy.sh # One-command deploy / start / stop / logs └── pom.xml # Maven multi-module build ``` --- ## 🛠️ Development ### Prerequisites - JDK 25+ - Node.js 18+ - pnpm 8+ - PostgreSQL 14+ - Docker & Docker Compose (optional, recommended) ### Backend ```bash # 1. Start PostgreSQL + RustFS only (skip backend/frontend) docker compose up -d postgres rustfs # 2. Run the server in your IDE / via Maven cd iot-server mvn spring-boot:run ``` API ready at `http://localhost:5010/iot/`, OpenAPI at `http://localhost:5010/iot/doc.html`. ### Frontend ```bash cd iot-web pnpm install pnpm dev ``` Web ready at `http://localhost:5173`. Vite proxies `/iot` → `http://localhost:5010` automatically. > See [`AGENTS.md`](AGENTS.md) for the full coding conventions used by this project (component patterns, design tokens, naming rules). --- ## 🗺️ Roadmap - [x] **v0.1** — Stable single-node release, bilingual docs, CI, public demo - [x] **v0.2** — `zh-CN` / `en-US` UI, rule-chain editor polish, demo deploy hardening - [ ] **v0.3** — thing-model import/export, device groups - [ ] **v0.4** — Custom data dashboards (drag-and-drop widgets) - [ ] **v0.5** — OTA upgrade flow, edge gateway packaging - [ ] **v0.6** — Plugin system (protocol packs as standalone JARs) - [ ] **v1.0** — Production hardening, performance benchmarks, helm chart Open an issue or [Discussion](https://github.com/dingdaoyi/simple-iot/discussions) if there's a feature you want to see prioritised. --- ## 🤝 Contributing Contributions are very welcome. Whether it's a typo fix, a new protocol script, a UI tweak, or a translation — every PR helps. 1. Read [CONTRIBUTING.md](CONTRIBUTING.md) 2. Fork → branch → commit (use [Conventional Commits](https://www.conventionalcommits.org/): `feat:`, `fix:`, `docs:`, ...) 3. Open a Pull Request Found a bug or have a question? [Open an issue](https://github.com/dingdaoyi/simple-iot/issues/new/choose) or join the [Discussions](https://github.com/dingdaoyi/simple-iot/discussions). --- ## 🛡️ Security If you discover a security vulnerability, please **do not** open a public issue. See [SECURITY.md](SECURITY.md) for the responsible-disclosure process. --- ## ⭐ Star History

If this project helps you, please **drop a star ⭐** — it's the easiest way to support the work and helps others discover it. --- ## 📄 License [Apache License 2.0](LICENSE) © dingdaoyi & contributors ---

_{Built with ❤️ for makers, integrators and small teams shipping practical IoT products.}
