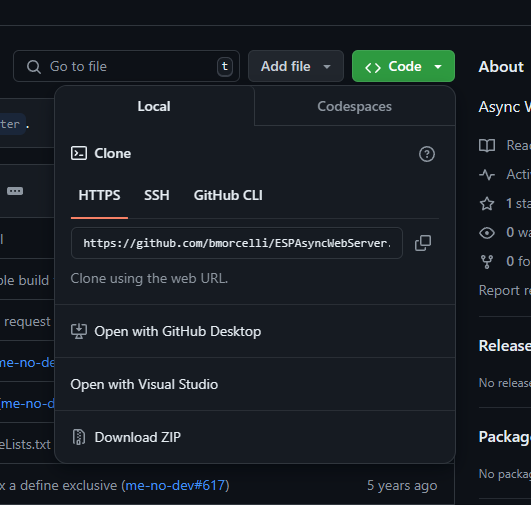

# Install guide Here you can find out how to install Minigotchi on the ESP32. Installing on the Raspberry Pi Pico or any other board with this code is not possible as this code is meant for the ESP32-\* boards. **For building on an ESP8266, see [this](https://github.com/Pwnagotchi-Unofficial/minigotchi/blob/main/INSTALL.md). Don't use this repository for the ESP866.** Please note that this guide requires that: - You know how to read - You can DIY a little - You can think for yourself - A little bit of programming experience is nice, but not **REQUIRED** Getting this project getting set up manually is **NOT** for the faint of heart, although in the end it gives you a lot of control over your new Minigotchi. ## Building using Arduino IDE ### Step 1: Configuration - Download the latest release [here](https://github.com/Pwnagotchi-Unofficial/minigotchi-ESP32/releases). - Unzip the file - Navigate to the `config.cpp` file in the unzipped folder, and open it up with the text editor of your choice. Configurations are always controlled here. **If any of these lines are not in your config, such as screens, do not add them. That information is for testers on the development branch. Only modify the config values you have. Some of the data types for these values have changed, keep them as is in your config.** - At the set of lines that says: ```cpp // define if features will be used bool Config::deauth = true; bool Config::advertise = true; bool Config::scan = true; ``` From here, you can turn off deauthing, advertising, or Pwnagotchi scanning. Since these are the main features of the minigotchi, I highly recommend you don't turn any of these off. - With `Config::shortDelay` and `Config::longDelay`, we can adjust the speed of our Minigotchi. ```cpp // define universal delays int Config::shortDelay = 500; int Config::longDelay = 5000; ``` A `Config::shortDelay` is a shorter delay used in between doing tasks, though sometimes too many of them can be problematic. A `Config::longDelay` is a longer delay which isn't used as much but it often used before and/or after something major, to allow the user to read serial/screen output. I put down the recommended default values but you can also change them to whatever you like. - We can also enable parasite mode, which requires the [minigotchi plugin](https://github.com/matrix224/pwnagotchi_plugins/tree/main). This will allow our Minigotchi to communicate with a Pwnagotchi over serial connection to the Pwnagotchi. ```cpp bool Config::parasite = false; ``` It's false by default, but you can enable it by making it `true`. - After that, there should be a line that states the baud rate. ```cpp // baud rate int Config::baud = 115200; ``` Here, you can adjust the baud rate, which is of course optional. Make sure your serial terminal is running at the same baud rate as the Minigotchi. - Here, we can adjust the channel we start on. ```cpp // define init channel int Config::channel = 1; ``` Replace the `1` with the channel you prefer(not in quotations). - After this, we can configure our screen (Not in any version `<= 3.0.1`) ```cpp // screen configuration bool Config::display = false; std::string Config::screen = ""; ``` There are multiple different screen types available: - `SSD1306` - `WEMOS_OLED_SHIELD` - `CYD` - `T_DISPLAY_S3` - `M5STICKCP` - `M5STICKCP2` - `M5CARDPUTER` - `M5ATOMS3` - `M5ATOMSR3` - `SSD1305` - `IDEASPARK_SSD1306` - `SH1106` Set `bool Config::lay = false;` to true, and `std::string Config::screen = "";` to one of those screen types if your screen is supported. - There should also be a line that says: ```cpp // define whitelist std::string Config::whitelist[] = {"SSID", "SSID", "SSID"}; ``` This defines our whitelist. The Minigotchi will not deauth these access points/any networks corresponding to that access point name. We can have up to ten values here. Three were added as an example, you can remove those. - Here, we set the channels we hop from time to time. ```cpp // define channels int Config::channels[13] = {1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13}; ``` Usually, this shouldn't be changed as these are the only channels we can access on the ESP32. Some ESP32s may be able to access 5ghz channels but not all of them. These are only 2.4 ghz channels. - Save and exit this file when you have configured everything to your liking. Note you cannot change this after it is flashed onto the board. - Additionally, you will need to change the file `config.h` - This line is also important, whether or not you use a screen. ```cpp #define disp 0 ``` Here, we define whether or not we use a display (at least for the libraries). The reason we need this is because it determines whether or not your screen libraries will be included in the final sketch. It saves a lot of space because libraries tend to take up most of the program memory. If you're not using a display, keep this setting at `0`. If you are, set it to `1`. - Additionally, if you are using a Flipper Zero Development Board, or any other board of similar chipset, you must pay attention to this following line ```cpp #define fz 0 ``` Setting it to `0` implies that any sort of Bluetooth functions, which most Flipper Development boards lack, will be enabled. However, if you set this option to `1`, it disables all of the Bluetooth functions and doesn't require you to download any of the libraries associated with it. Set this configuration value to this option if you are compiling this for a Flipper Zero Development Board or any other similar Espressif MCU that doesn't have Bluetooth. If you do not have a development board, keep it at `0`. - Scroll down in that file and find the following code: ```cpp #define SSD1306 0 #define WEMOS_OLED_SHIELD 0 #define CYD 0 #define T_DISPLAY_S3 0 #define M5STICKCP 0 #define M5STICKCP2 1 #define M5CARDPUTER 0 #define M5ATOMS3 0 #define M5ATOMSR3 0 #define SSD1305 0 #define IDEASPARK_SSD1306 0 #define SH1106 0 ``` This is an additional measure to save space and it allows the code to know which libraries you will use for your screen. For whichever screen type you used, set the variable which has the same name in question to `1`, turn the rest to `0` if not already `0`. - After you're done with that, save all your files and proceed to the next steps. Once you flash, you will not be able to change your settings unless you flash again. (The only exception of this is the whitelist) ### Step 2: Building and flashing - Download the [Arduino IDE](https://https://www.arduino.cc/en/software), preferably the latest version. - In the IDE, go to `File` > `Preferences`, then in the popup by clicking the box icon next to `Additional board manager URLS`, paste the following: ```sh https://dl.espressif.com/dl/package_esp32_index.json https://espressif.github.io/arduino-esp32/package_esp32_index.json https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_dev_index.json ``` - Now go to `Tools` > `Board` > `Boards Manager` and search `esp32` and click `Install` on `esp32`, using the version `2.0.10`. - Click `Ok` and plug the board into your computer. It should blink, and make sure it is receiving the correct amount of voltage, too much will burn it(I learned that the hard way) - Open up the Minigotchi folder through the IDE by pushing `Ctrl+O`, or by going to `File` > `Open`, then selecting the folder the .ino is in. If other tabs don't show up, along with `minigotchi-ESP32.ino`, make sure to copy and paste the files into the same directory/folder as that lone `.ino` file. It won't be able to compile if that happens. - Install the following dependencies (with their dependencies as well) with the library manager.: - `ArduinoJson` - `Adafruit GFX` - `AsyncTCP` - Remove/uninstall/modify your screen library depending on your display for `Config::screen` below, some of these dependencies may have already been installed previously. - Sometimes the repository owner of certain libraries may require you to install it a certain way, be sure to follow their guides if needed/included. - Keep in mind if `disp` is set to `0` in `config.h` then you won't need to install screen libraries at the cost of no screen being used | `SSD1306` | `WEMOS_OLED_SHIELD` | `CYD` | `T_DISPLAY_S3` | Any `M5`\* board except `M5ATOM`\* | `SSD1305` | `IDEASPARK_SSD1306` | `SH1106` | `M5ATOMS3` or `M5ATOMSR3` | | ---------------------------------------------------------------------------------- | ---------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | ------------------------------------------------ | -------------------------------------- | -------------------------- | -------------------------- | ------------------------------- | | Install `Adafruit SSD1306`, remove `Adafruit SSD1306 Wemos Mini OLED` if installed | Install `Adafruit SSD1306 Wemos Mini OLED`, remove `Adafruit SSD1306` if installed | Follow the [CYD documentation](https://github.com/witnessmenow/ESP32-Cheap-Yellow-Display/blob/main/SETUP.md), it uses a similar library much like the `T_DISPLAY_S3` | Follow the [T-Display-S3 documentation](https://github.com/Xinyuan-LilyGO/T-Display-S3/tree/main?tab=readme-ov-file#4%EF%B8%8F%E2%83%A3--arduino-ide-manual-installation), it uses a library similar to the `CYD`. If it's an off-brand/clone of some sort, install `TFT_eSPI` and follow this [guide](/TFT) | Install `TFT_eSPI` and follow this [guide](/TFT) | Install the `Adafruit SSD1305` library | Install the `u8g2` library | Install the `u8g2` library | Install the `M5Unified` library | Make sure you install the correct library, they aren't the same library and if you install the wrong one it will result in the compilation failing. - You'll also need to install this fork of [`ESPAsyncWebServer`](https://github.com/bmorcelli/ESPAsyncWebServer) by downloading a ZIP of that repository through ` Code` > `Download ZIP`. If you already have `ESPAsyncWebServer` installed please **remove it** and follow this guide. - After doing that you'll need to go back to Arduino IDE then add the library by going to `Sketch` > `Include Library` > `Add .ZIP library...`, then selecting the `.ZIP` file of the repository that was just downloaded. This will add the library to Arduino IDE. - Go to `Tools` > `Board` and use one of the boards in the `esp32` section. (Example: `Adafruit Feather ESP32-S3 TFT`) #### Pre-requisite for ESP32 boards <=2.0.10 - Open the following with your text editor `C:\Users\\AppData\Local\Arduino15\packages\esp32\hardware\esp32\2.0.10\platform.txt` and add the following: 1. For `build.extra_flags.esp32`, `build.extra_flags.esp32s2`, `build.extra_flags.esp32s3`, `build.extra_flags.esp32c3`, add `-w` to their compile settings 2. For `compiler.c.elf.libs.esp32`, `compiler.c.elf.libs.esp32s2`, `compiler.c.elf.libs.esp32s3`, `compiler.c.elf.libs.esp32c3`, add `-zmuldefs` to their compile settings 3. More may be added [here](https://github.com/justcallmekoko/ESP32Marauder/wiki/arduino-ide-setup#if-you-are-following-these-instructions-you-do-not-need-to-do-this). See an example `platform.txt` [here](/misc/2.0.10/platform.txt). #### Pre-requisite for ESP32 boards > 3.0.1 Please note that that is a WIP and may not work correctly. Users may get this error seen in [#80](https://github.com/dj1ch/minigotchi-ESP32/issues/80) ```sh C:\Users\USERNAME\AppData\Local\Arduino15\packages\esp32\tools\esp32-arduino-libs\idf-release_v5.1-dc859c1e67\esp32c6/include/esp_wifi/include/esp_private/wifi_os_adapter.h:84:29: error: operator '||' has no left operand 84 | #if CONFIG_IDF_TARGET_ESP32 || CONFIG_IDF_TARGET_ESP32S2 | ^~ C:\Users\USERNAME\AppData\Local\Arduino15\packages\esp32\tools\esp32-arduino-libs\idf-release_v5.1-dc859c1e67\esp32c6/include/esp_wifi/include/esp_private/wifi_os_adapter.h:116:29: error: operator '!' has no right operand 116 | #if !CONFIG_IDF_TARGET_ESP32 ``` - Look for the file `%localappdata%\Arduino15\packages\esp32\tools\esp32-arduino-libs\\esp32\flags\ld_flags` (the file doesn't have extension) - Add `-zmuldefs` at the beginning of the file - do the same in the following files: ```powershell "%localappdata%\Arduino15\packages\esp32\tools\esp32-arduino-libs\\esp32\flags\ld_flags" "%localappdata%\Arduino15\packages\esp32\tools\esp32-arduino-libs\\esp32c3\flags\ld_flags" "%localappdata%\Arduino15\packages\esp32\tools\esp32-arduino-libs\\esp32c6\flags\ld_flags" "%localappdata%\Arduino15\packages\esp32\tools\esp32-arduino-libs\\esp32h2\flags\ld_flags" "%localappdata%\Arduino15\packages\esp32\tools\esp32-arduino-libs\\esp32s2\flags\ld_flags" "%localappdata%\Arduino15\packages\esp32\tools\esp32-arduino-libs\\esp32s3\flags\ld_flags" ``` #### Compile and upload - Select your COM port/Serial port through `Tools` > `Port` where the ESP32 is plugged in - Enable the erasing of your entire flash by going to `Tools` > `Erase All Flash Before Sketch Upload` then enabling that setting - Click on the upload button(arrow pointing to the left). If you see any errors that you cannot solve, feel free to make an [issue](https://github.com/dj1ch/minigotchi/issues). ##### OR - Go to `Sketch` > `Export Compiled Binary` to generate a `.bin` file to flash to the board, which also works. This can also be done with `Alt+Ctrl+S`. **Note: if you get any errors, let me know ASAP with a GitHub issue, sending me a discord message, or perhaps even messaging me through my portfolio site.** ### Step 3: Post Install - After plugging in your Minigotchi, it should tell you that it's starting a Web Server. In order to use it, you have to: 1. Connect to the access point `minigotchi` or `minigotchi 2` (sometimes `minigotchi 2` pops up). If prompted use the password `dj1ch-minigotchi` 2. Go to the website 3. Add your whitelist in the first input box in a format like this. Click `Submit` after you're done ```sh SSID,SSID,SSID ``` 4. Make sure to turn off the WebUI going to the last text box and typing `true` so that your Minigotchi knows your configuration is done. 5. Exit the tab and disconnect from the `minigotchi` AP if it hasn't been done for you already. - You can click the _Serial Monitor_ button on the top bar of Arduino IDE to see the serial monitor output. Make sure the baud rate is `115200`. You can also use [Spacehuhn's Serial Terminal](https://serial.huhn.me/) as a serial monitor, I also recommend using this! - I also highly recommend doing the following: 1. Disabling AI on your Pwnagotchi so you can change your settings without AI changing them. 2. Setting `personality.channels[]` in your Pwnagotchi's `/etc/pwnagotchi/config.toml` to match your `Config::channels[13]` so that your Minigotchi has a higher chance of finding your Pwnagotchi. - Happy hacking!
