# ContactPose Documentation ## Table of Contents - [Getting Started](#getting-started) - [Demo Jupyter Notebook](#demo-notebook) - [Downloading Data](#downloading-data) - [Object and Hand depth maps and masks](#object-and-hand-depth-maps-and-masks) - [Image Preprocessing](#image-preprocessing) - [3D Models and 3D Printing](#3d-models-and-3d-printing) - [Data Analysis](#data-analysis) - [Miscellaneous](#miscellaneous) - [21 Joint Format](#21-joint-format) - [Transform Tree](#transform-tree) - [Contactmap Format](#contactmap-format) # Getting Started 1. Install [Miniconda](https://docs.conda.io/en/latest/miniconda.html). Create the `contactpose` conda environment: `conda env create -f environment.yml`. Activate it: ```bash $ conda activate contactpose ``` The following commands should be run after activating the conda env. 2. We will use the [Python requests library](https://requests.readthedocs.io/) to download data. If you use **proxies**, set them in [`data/proxies.json`](../data/proxies.json), or set the environment variables `HTTP_PROXY` and `HTTPS_PROXY` as mentioned in the [requests docs](https://requests.readthedocs.io/en/latest/user/advanced/#proxies). 3. Startup by downloading grasp data (pose annotations and camera calibrations) for the entire dataset, contact maps for participant \#28 all 'use' intent grasps, and RGB-D images for participant \#28 'bowl' object, 'use' intent grasp. By default it will download to `data/contactpose_data`, but you can also provide a directory of your choice. It will symlink that directory to `data/contactpose_data` for easy access. ```bash $ python startup.py --data_dir ContactPose data directory is data/contactpose_data Downloading 3D model marker locations... 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 103k/103k [00:05<00:00, 17.3kiB/s] Extracting... Downloading grasps... 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 126M/126M [03:45<00:00, 559kiB/s] Extracting... 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 100/100 [01:55<00:00, 1.15s/it] Downloading full28_use contact maps... 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 96.8M/96.8M [00:03<00:00, 29.1MiB/s] Extracting... Downloading full28_use images... 0%| | 0/1 [00:00 `semantic_hands_fingers` mode `semantic_hands_phalanges` mode `simple_mano` mode # [Demo Notebook](../demo.ipynb) Jupyter notebook demonstrating the ContactPose dataset API - accessing images, poses, and calibration data. [![Demo Notebook](../readme_images/demo_notebook_teaser.gif)](../demo.ipynb) # Downloading Data **NOTE**: We [fixed some annotation errors](https://github.com/facebookresearch/ContactPose/issues/7) for participants 31-35 on 12 Jan 2021. If you downloaded data before that date, please re-download it. Changes were made to data `--type` `grasps`, `images`, `depth_images`, and `color_images`. ## Main Script All downloads can be done through [`scripts/download_data.py`](../scripts/download_data.py): ```bash $ python scripts/download_data.py --help usage: download_data.py [-h] --type {grasps,color_images,depth_images,images,contact_maps,markers,3Dmodels} [--p_nums P_NUMS] [--intents INTENTS] [--images_dload_dir IMAGES_DLOAD_DIR] optional arguments: -h, --help show this help message and exit --type {grasps,color_images,depth_images,images,contact_maps} --p_nums P_NUMS Participant numbers E.g. 1, 1,2, or 1-5 --intents INTENTS use, handoff, or use,handoff --images_dload_dir IMAGES_DLOAD_DIR Directory where images will be downloaded.They will be symlinked to the appropriate location ``` ## Download Contact Maps You can download more contact maps: ```bash $ python scripts/download_data.py --p_nums 1-10 --intents use,handoff --type contact_maps ``` ## Download RGB-D Images And more RGB-D images: ```bash $ python scripts/download_data.py --p_nums 1-10 --intents use,handoff --type images \ --images_dload_dir ``` The entire RGB-D collection is ~ 2.5 TB. Hence the script provides the option to provide an image download directory. This can be on a large SSD drive, for example. It will automatically symlink the downloaded data to the appropriate location in `data/contactpose_data` for easy access. The image download directory defaults to `data/contactpose_data` and can be set through `--images_dload_dir`. ## Download RGB Images only **New**: Many users need only RGB images. So we have compressed RGB images into videos and provide separate download links, which reduces the download size ~4.5x. The compression is lossless. To use this, change the `--type` flag in the command above. - `--type images`: Both RGB and depth images, no video compression - `--type depth_images`: Same download as `--type images`, extract only depth images - `--type color_images`: Compressed RGB video download, 4-5x faster Depth images are (for now) still needed to [preprocess images for ML](#image-preprocessing). We are working on refactoring that code to allow RGB cropping without depth (see [issue](https://github.com/facebookresearch/ContactPose/issues/6)). ## Download 3D Models 3D models of objects and locations of markers placed on them (this is already done if you run [`startup.py`](../startup.py)): ```bash $ python scripts/download_data.py --type 3Dmodels $ python scripts/download_data.py --type markers ``` # Download Grasps All grasp information - 3D joints, MANO fits, camera calibrations - (this is already done if you run [`startup.py`](../startup.py)): ```bash $ python scripts/download_data.py --type grasps ``` # [Object and Hand Depth Maps and Masks](rendering.md) [![](../readme_images/rendering_teaser.png)](rendering.md) # Image Preprocessing [`scripts/preprocess_images.py`](../scripts/preprocess_images.py) crops RGB and depth images and randomizes the background of RGB images. It also saves information about the projected visible object mesh vertices. This data is useful for [training image-based contact models](https://github.com/samarth-robo/ContactPose-ML/tree/images). ```bash (contactpose) $ python scripts/preprocess_images.py --p_num 28 --intent use --object_name bowl --background_images_dir Inspecting background images directory... Found 128 images 28:use:bowl:kinect2_left 2%|██▌ | 10/558 [00:03<03:01, 3.02it/s] 28:use:bowl:kinect2_middle 2%|██▌ | 10/558 [00:03<02:47, 3.27it/s] 28:use:bowl:kinect2_right 2%|██▌ | 10/558 [00:08<07:28, 1.22it/s] ```

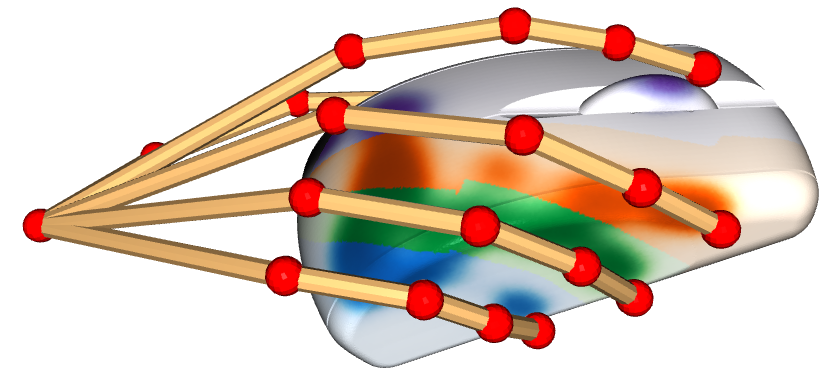

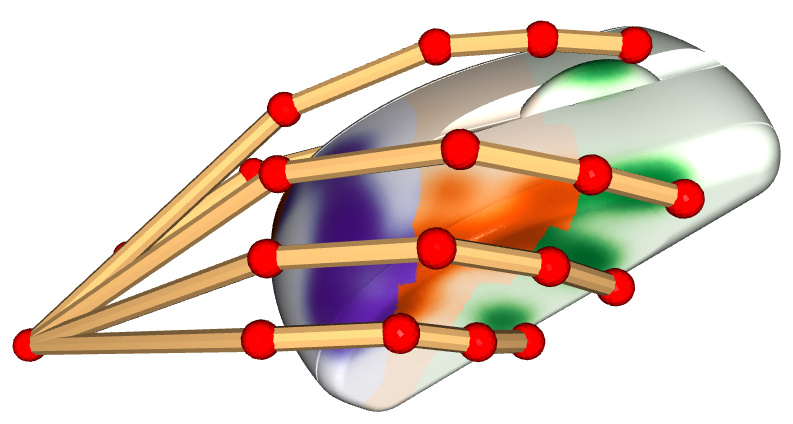

We also provide a wrapper script [`scripts/download_and_preprocess_images.sh`](../scripts/download_and_preprocess_images.sh) to download the images and crop them. # 3D Models and 3D Printing [STL files](https://www.dropbox.com/sh/g1nv595mvhnnxoi/AACEF0x4Hj22MctIpzFCkIVCa?dl=1) | [STL files with cylindrical recesses for markers](https://www.dropbox.com/sh/m14c4u2yr029f8k/AAA1yGl-k_4XEXElfmCgF1Fpa?dl=1) | [High-poly PLY files](https://www.dropbox.com/sh/l76a01eyx6sxoll/AACrvU_QYRG8A8pevM1QPCs9a?dl=1) The cylindrical recesses were produced using [this script](https://github.com/samarth-robo/contactpose_ros_utils/blob/master/scripts/embed_marker_points.py), and the locations of cylindrical recesses were aligned to the Optitrack (mocap) "rigid body" using [this script](https://github.com/samarth-robo/contactpose_ros_utils/blob/master/scripts/align_optitrack_rigid_body.py). Please see [this README](https://github.com/samarth-robo/contactdb_utils#3d-printing) for more details about 3D printing the objects. # [Data Analysis](data_analysis.md) # Miscellaneous ## 21 Joint Format The ordering and placement of joints follows the [OpenPose format](https://github.com/CMU-Perceptual-Computing-Lab/openpose/blob/master/doc/output.md#hand-output-format). In 3D, the joints are at the center of the finger-cylinders, not on the surface. The functions `mano2openpose()` and `mano_joints_with_fingertips()` in [`utilities/misc.py`](../utilities/misc.py) convert the joints from the MANO model to this format. For example, see how they are used in `load_mano_meshes()`. ## Transform Tree Transform matrices are consistently named in the code according to the following transform tree. For example, `oTh` is the pose of the hand w.r.t. the object. ``` world | |----wTc----camera | |----wTo----object | |----oTh----hand | |----hTm----MANO ``` Other matrices can be composed. For example, the pose of an object in the camera coordinate frame `cTo = inv(wTc) * wTo`. This naming convention, explained in [this blog post](https://gtsam.org/gtsam.org/2020/06/28/gtsam-conventions.html) makes keeping track of 3D transforms easier. ## Contactmap Format - Following the original [ContactDB paper](https://arxiv.org/abs/1904.06830), the contactmap is encoded as a per-vertex color in the object mesh. The value is in `[0, 1]`. All 3 components -- R, G and B -- of the vertex color are set to the same value. - Before using the contactmap, it needs to be pre-processed by fitting a sigmoid to its values, such that the min is at 0.05 and max at 0.95 (see [paper](https://arxiv.org/abs/1904.06830)). The `texture_proc()` function in [`utilities/misc.py`](../utilities/misc.py) does this. - Some small fraction of vertices will have their contact value set to `0`. That vertex of the object was not scanned with the thermal camera (mostly because of occlusion), and the contact value at these vertices should be considered "don't know", not "no contact". See how `texture_proc()` handles this. Again, this should be rare but worth documenting.
