[![CI](https://github.com/GhostlyGawd/codeweb/actions/workflows/ci.yml/badge.svg)](https://github.com/GhostlyGawd/codeweb/actions/workflows/ci.yml) [![npm](https://img.shields.io/npm/v/%40ghostlygawd%2Fcodeweb?style=flat-square&color=c6f24e)](https://www.npmjs.com/package/@ghostlygawd/codeweb) [![license: MIT](https://img.shields.io/npm/l/%40ghostlygawd%2Fcodeweb?style=flat-square&color=8a8794)](LICENSE) **Free & MIT-licensed. Runs entirely on your machine — no account, no server, no telemetry. Reads your code; never executes it.** **[Website](https://ghostlygawd.github.io/codeweb/)** · [Gate every PR](#gate-every-pull-request) · [See it in action](#see-it-in-action) · [Install](#install) · [Use](#use) · [For agents (MCP: Model Context Protocol)](#use-it-as-an-mcp-tool) · [How it works](#how-it-works) · [Free forever](#free-forever-and-where-the-paid-line-sits) · [Changelog](CHANGELOG.md) [![Try it with npx](https://img.shields.io/badge/Try_it_with_npx-060608?style=for-the-badge&logo=npm&logoColor=c6f24e)](#try-it-on-your-repo) [![Open the live demo](https://img.shields.io/badge/Open_the_live_demo-060608?style=for-the-badge&logoColor=c6f24e)](https://ghostlygawd.github.io/codeweb/demo/) [![Install the Claude Code plugin](https://img.shields.io/badge/Install_the_Claude_Code_plugin-060608?style=for-the-badge&logoColor=c6f24e)](#install)

**See what your AI edits affect.** ```bash npx -y @ghostlygawd/codeweb . ```

Latest seven-day npm download total with a line chart of completed daily downloads for @ghostlygawd/codeweb, generated from the public npm downloads API

_{The large number is the latest seven completed days; the line shows daily downloads. Package downloads are retrievals, not a count of users. Select the chart for the live data and reporting cutoff.}

**Structural checks for AI code changes.** codeweb's gate builds the call graph before and after a change, then fails the pull request on three regressions: a new dependency cycle, a new body-confirmed duplication, or an existing non-exported symbol that becomes an orphan with no mapped callers. [Gate conditions and limits](docs/ci-gate.md). No LLM is in the checks. The gate uses zero model tokens for its static analysis. A passing check does not prove the program works. Analysis can miss dynamic relationships; inspect unresolved results and run the relevant tests. Pure removals pass the structural rules. The verdict uses the mapped graph, not a model, and costs zero LLM tokens. Exported symbols are exempt from the diff’s orphan check. Inspect `analysis.checks`: skipped checks are not passes, and refresh drops the evidence needed to evaluate duplication. A green result does not establish complete dependency coverage or behavioral correctness. Pure removals do not count as structural regressions. [Put it on your PRs →](#gate-every-pull-request) The gate needs a map to compare, and that map is worth reading on its own. codeweb reads your code. It maps supported functions and the calls it can resolve between them. It maps 3,000 symbols in approximately 3 seconds. Static analysis produces the same map from the same code. No LLM is in the mapping loop. Static extraction can omit unsupported layouts, ambiguous calls, and runtime dispatch; the map is not a completeness guarantee. Your coding agents query the map instead of using grep. In measured tests, agents that used grep missed more than half of a function's real callers ([see the measurements](https://ghostlygawd.github.io/codeweb/research.html)). An incomplete caller list can cause an agent to break code that it did not inspect. - **Give agents structural data:** The Model Context Protocol (MCP) server provides 28 tools, including `codeweb_impact`, `codeweb_callers`, and `codeweb_find_similar`. - **Keep answers small:** Each query returns a bounded structural answer. Your agents can use their remaining context for implementation work. - **Inspect the same data:** The interactive report shows the extracted codebase map. The map also shows relationships that are not visible in one file. These relationships include **duplicated logic, dead code, hotspots, and tangled domains**.

_{Measured against fixed tasks and independent oracles. Select the proof strip for the methodology and receipts.}

--- ## Try it on your repo ``` cd your-project npx -y @ghostlygawd/codeweb . ``` For a repository with 3,000 symbols, the first map takes approximately 3 seconds. Open `.codeweb/report.html` to inspect the map.

Condensed real terminal run of codeweb 0.12.0 on Zod commit 912f0f5: 1,388 symbols and 1,616 edges from 409 files, followed by 66 actionable findings

_{Real run against Zod at commit 912f0f5, captured 2026-07-29. The replay shortens the absolute local path to .codeweb; the displayed values are unchanged.}

## Gate every pull request From a Codeweb source checkout, run the verdict locally; the GitHub Action can run it on every pull request: ``` node scripts/ci-gate.mjs --base origin/main --target src # exit 1 on a structural regression ``` The gate builds the graph from the pull request base and from its head, then diffs them. It posts a sticky structural review comment either way, so reviewers see the blast radius without installing anything. **Pin the Action to a release tag**, not a moving branch: a floating ref can change your gate's verdict semantics under you. Pin `codeweb-ref` to the same tag so the engine is fixed too. The workflow YAML, the monorepo matrix form, and every input live in [`docs/ci-gate.md`](docs/ci-gate.md). Want the gate hosted — no workflow YAML, cached base graphs, and history across every repo in the org? That is the planned scope of [codeweb Teams](https://ghostlygawd.github.io/codeweb/pricing.html), the paid half of [the boundary](#free-forever-and-where-the-paid-line-sits). Running it yourself stays free forever. ## See it in action Each screenshot below shows a generated report for **axios** (278 symbols, 7 domains). The screenshots are not mockups. codeweb found 3 real duplications in axios and rejected 12 false positives. Read [the case study](docs/case-study-axios.md), or [inspect the live map](https://ghostlygawd.github.io/codeweb/demo/). ### Know what an edit breaks — before you write Select a function in the [live map](https://ghostlygawd.github.io/codeweb/). The map highlights the function's **blast radius** and shows the symbols that the change can affect. Your agents can get the same answer from the `codeweb_impact` MCP tool before they edit the code.

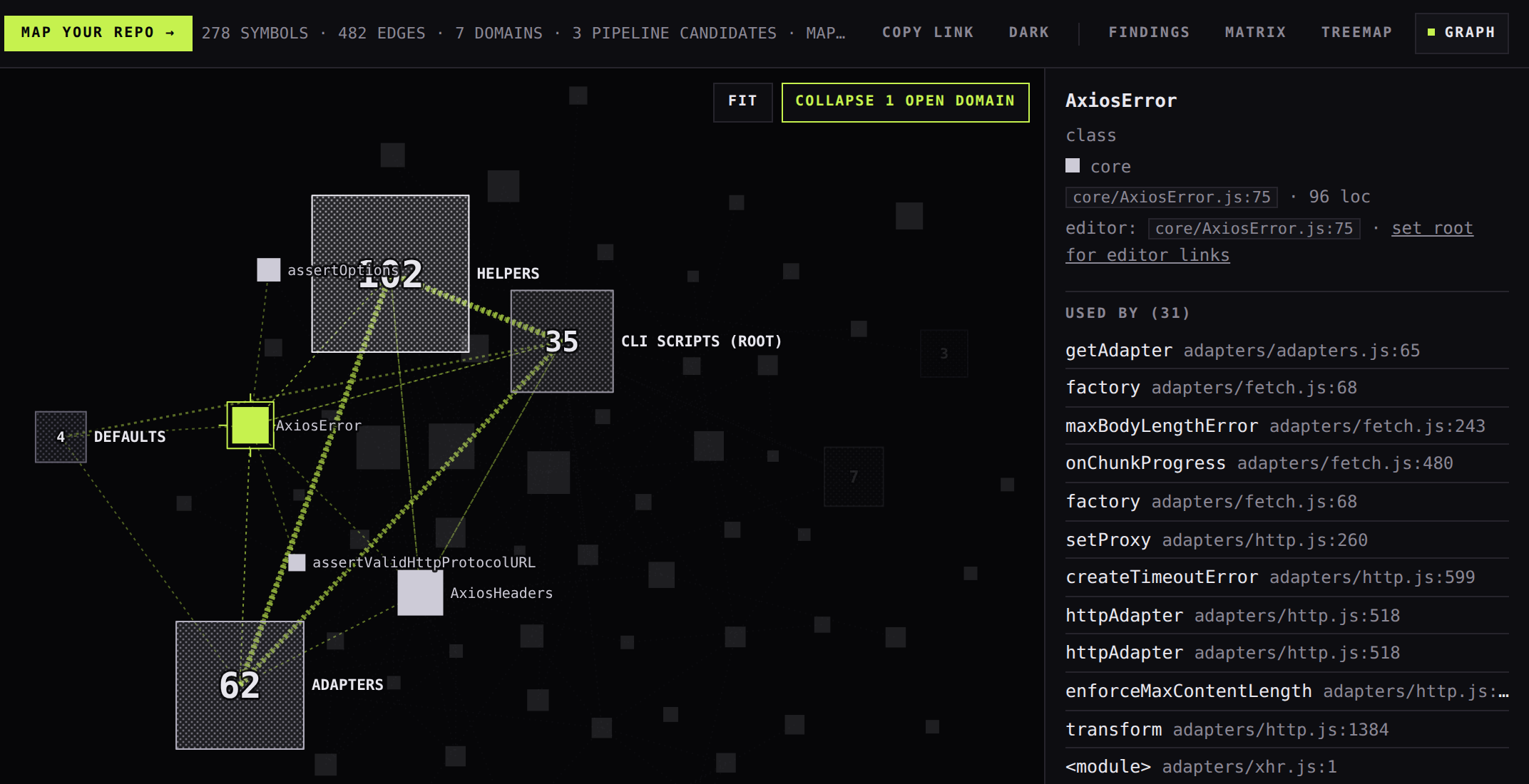

codeweb blast radius: AxiosError selected in the axios graph — the selected block wears the accent with a viewfinder frame, blast edges lit across three domains, 27 callers listed in the inspector

_{Selecting AxiosError in axios lights up its 31 callers across the domains that depend on it — try it yourself in the living map.}

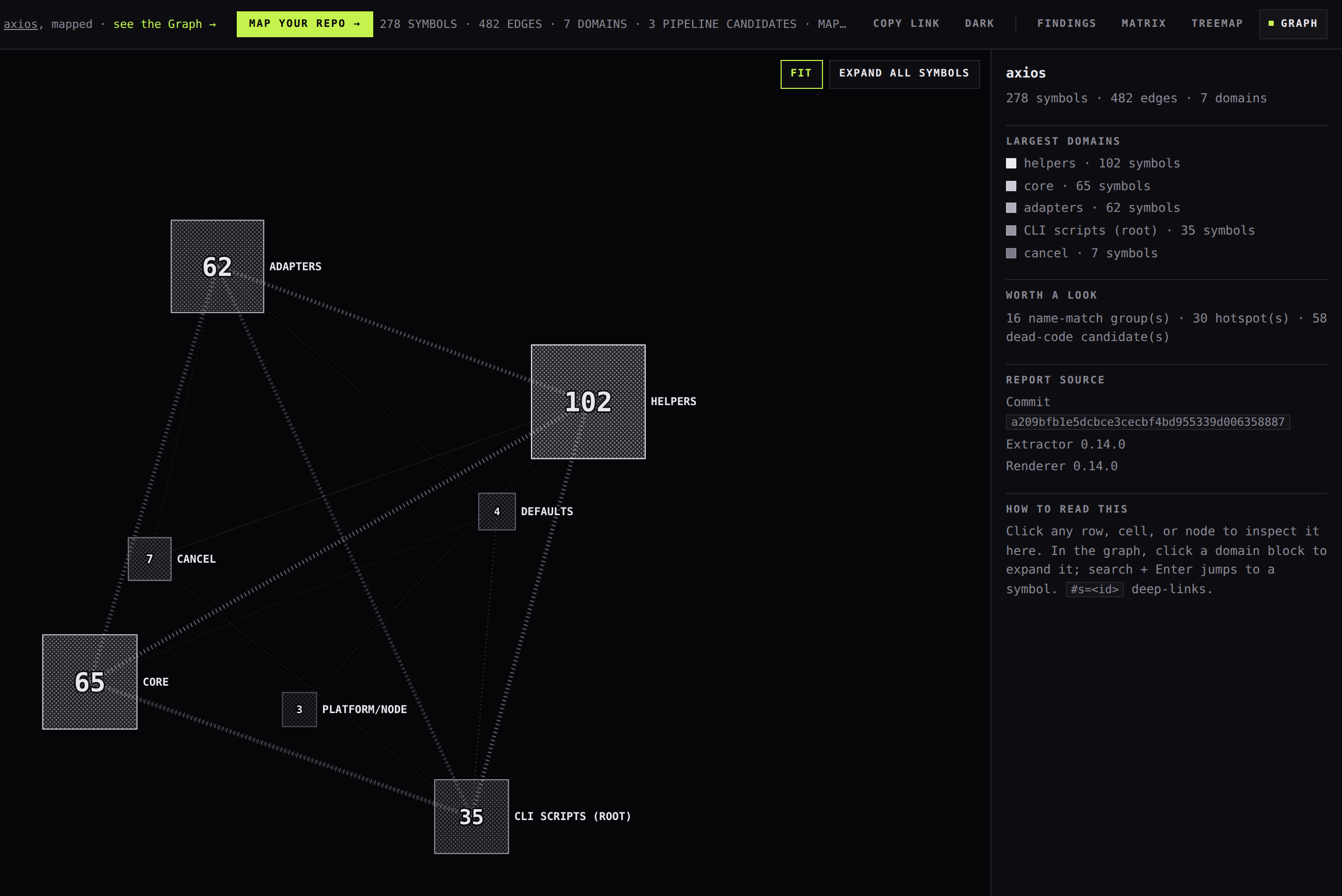

### Navigate the whole system The force-directed map shows the extracted symbols. You can collapse symbols into domains. Search, drag, zoom, or select a node to trace its callers and dependencies. codeweb Graph tab on axios: eight domain blocks (helpers, core, adapters, cancel, defaults, platform) sized by symbol count and linked by stippled call edges

codeweb Graph tab on axios: eight domain blocks (helpers, core, adapters, cancel, defaults, platform) sized by symbol count and linked by stippled call edges

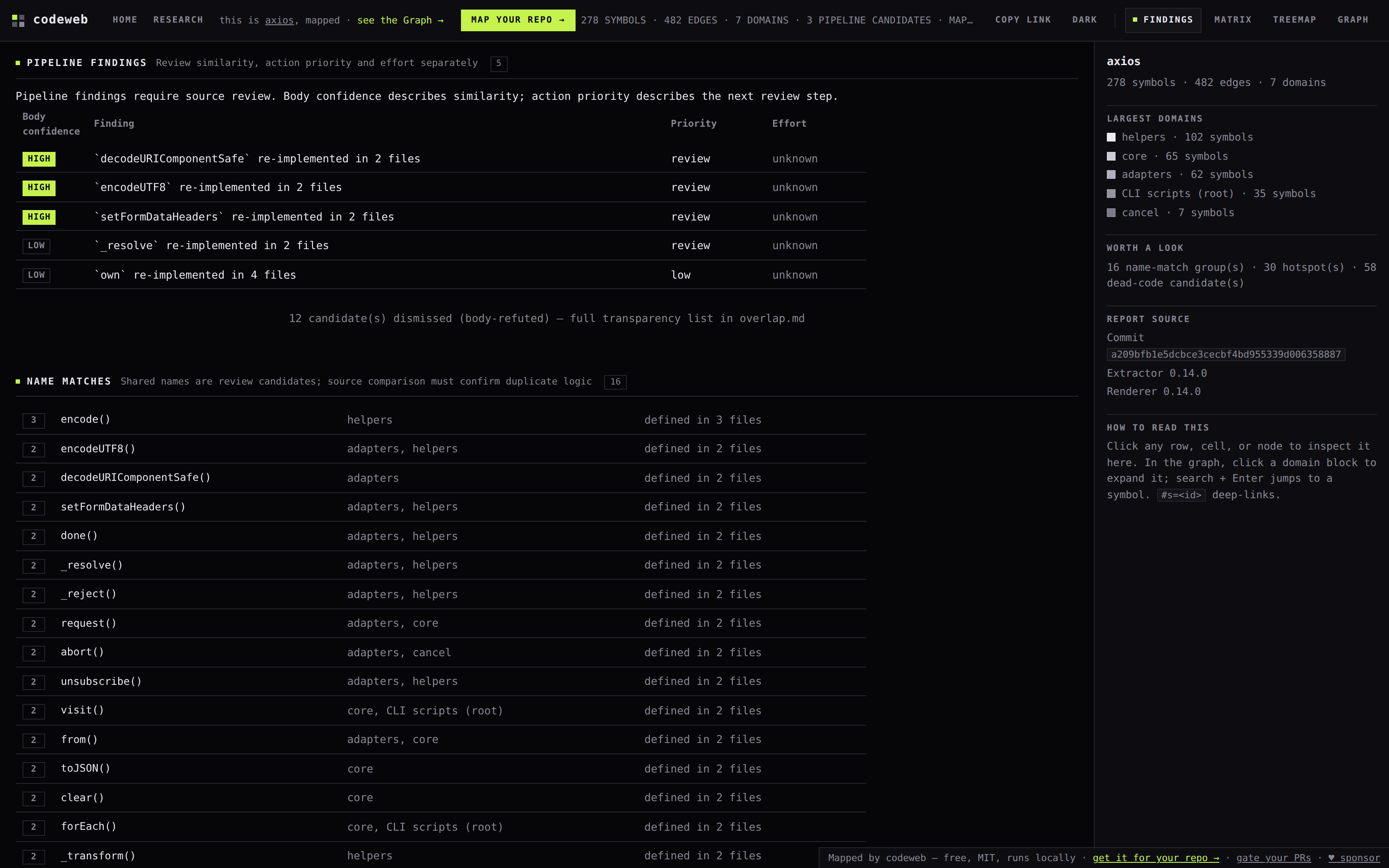

### Findings — stop guessing what to refactor The Findings tab ranks **duplication**, highly connected **hotspots**, and likely **dead code**. Select a row to inspect the symbol's callers and dependencies. codeweb Findings tab on axios: ranked duplication, hotspots, and likely-dead code, with a clickable detail panel

codeweb Findings tab on axios: ranked duplication, hotspots, and likely-dead code, with a clickable detail panel

### See duplication density, and where domains tangle

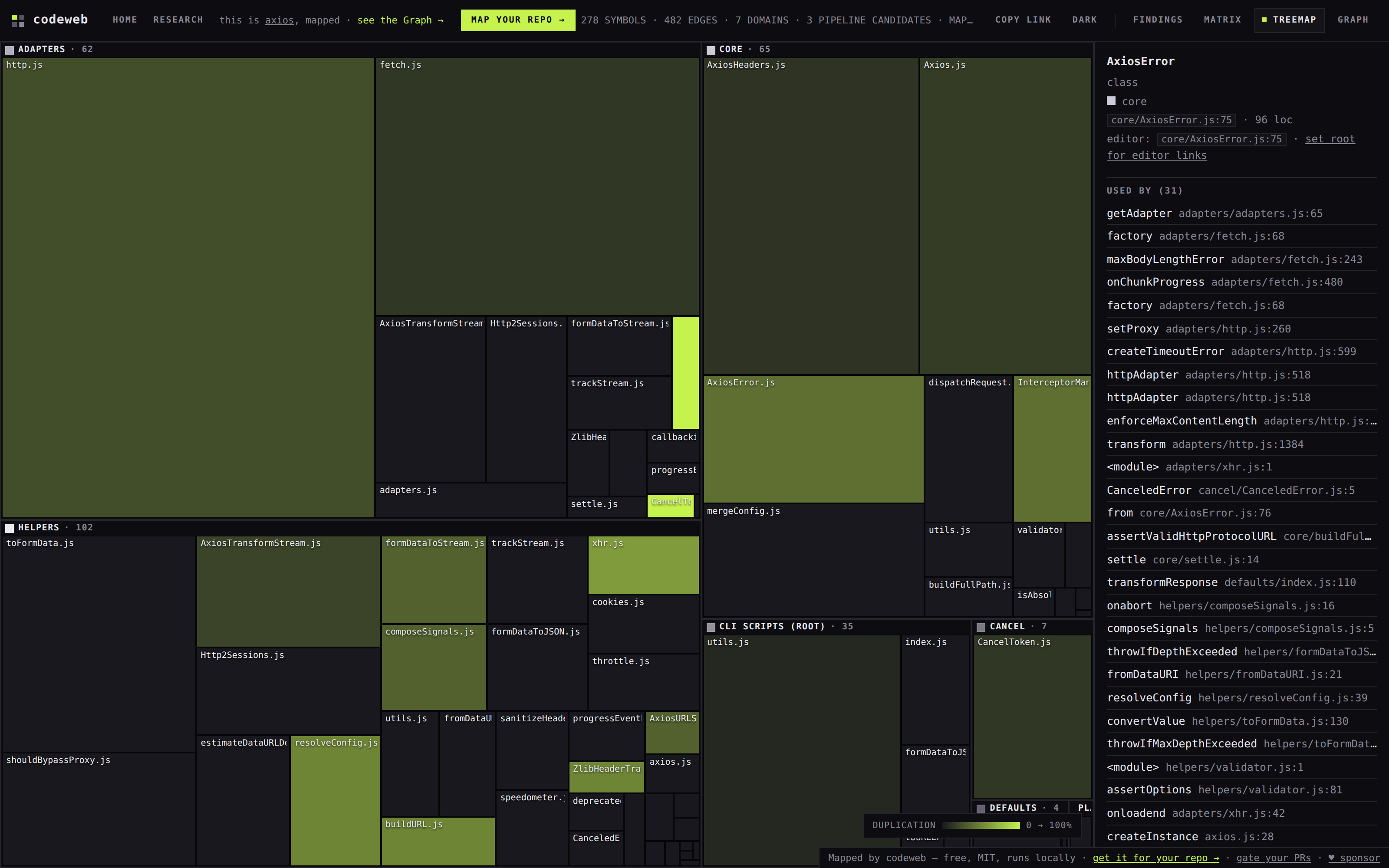

codeweb Treemap on axios: every file sized by lines of code, duplication density carried by a dark-to-lime lightness ramp

Treemap — The size of each block shows the file's lines of code. A brighter block contains more duplicated code. Use the bright blocks to identify possible consolidation targets.

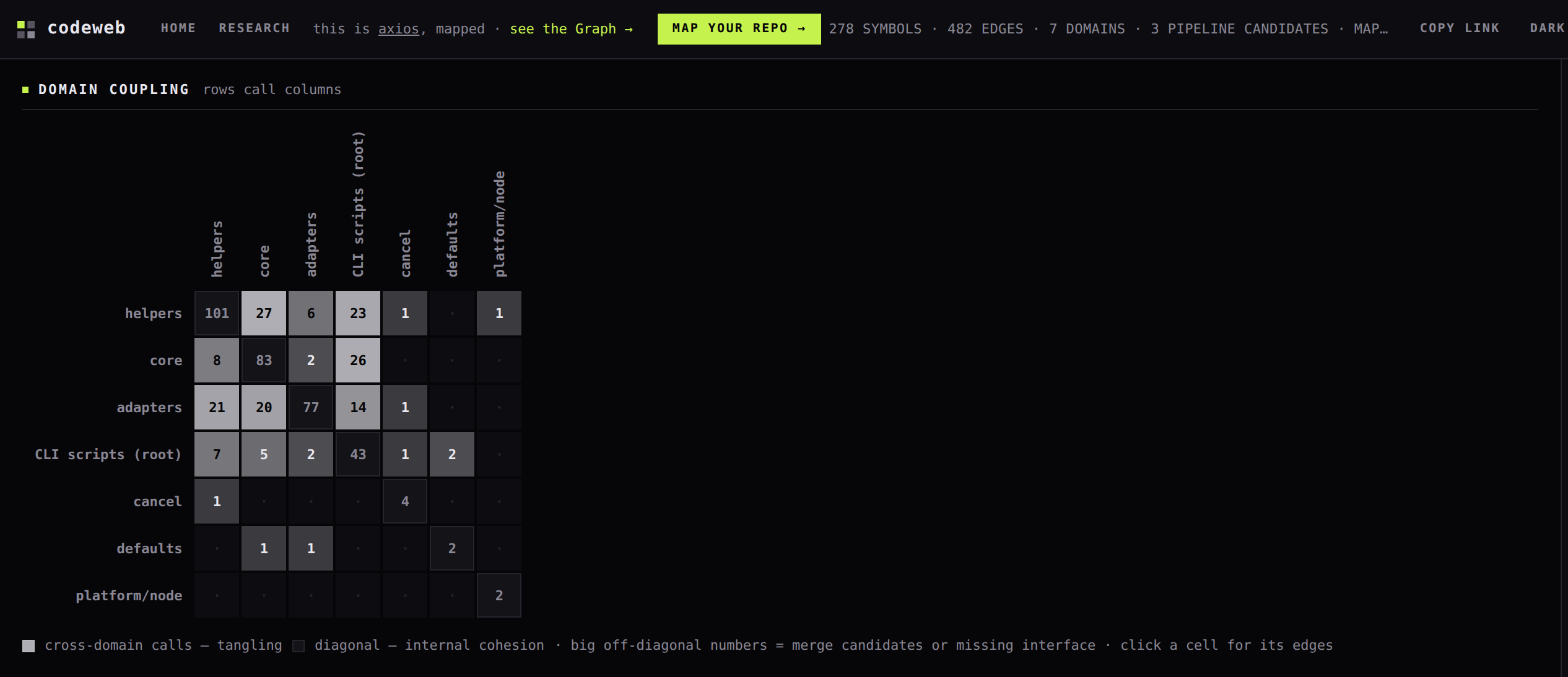

codeweb Matrix on axios: a heatmap of call coupling between domains

Matrix — The matrix shows coupling between domains. A large off-diagonal cell shows strong coupling. You can merge the domains or add a clear interface between them.

_{The deterministic pipeline, looping: extract → cluster → overlap → render.}

--- codeweb works at **symbol resolution**. It maps functions, classes, methods, and the call and import edges between them. A file-level scanner can show that two modules are similar. codeweb can show that two functions do the same work, identify their callers, and calculate the effect of a merge. ## Benchmarks - **Find callers before an edit:** In the v0.9.0 efficiency pilot, agents found **74%** of a function's real callers with codeweb and **44%** with grep at the same context spend. A missed caller can cause an edit to break working code. - **Calculate the effect of a change:** One codeweb call returned one small answer. A simulated graph-assisted grep loop used **126 times the context size** in the recorded comparison. This measures context-size differences, not total agent-session token savings. - **Detect duplicate code:** codeweb found **every planted duplicate with zero false alarms**, including renamed copies. Text search found 0% of the renamed copies. - **Check deterministic results:** Tests compared codeweb with the TypeScript compiler and other independent implementations more than **490,000 times, with zero disagreements**. - **Map and query quickly:** The first map takes approximately **3 seconds** for a repository with 3,000 symbols. Queries take approximately **0.1 seconds**. A repository with twice as many symbols takes approximately 1.3 times as long to map. - **Understand the limits:** A new map after a very large edit can take more time. Agents also completed simple tasks successfully without codeweb. Methodology, raw data, and per-claim receipts: [the evidence ledger](https://ghostlygawd.github.io/codeweb/research.html). Benchmark your own repo from a Codeweb source checkout: `npm run bench -- /.codeweb/graph.json`. CI re-runs the performance budgets on every PR; breaking a published number fails the build. codeweb also keeps a local activity tally. From a Codeweb source checkout, run `npm run stats` to see it: ``` codeweb this month: 41 pre-edit card(s) · 5 card-named caller(s) followed · 2 regression(s) flagged · 120 queries served ``` To evaluate a dependency, point codeweb at a repository that you do not own: `/codeweb https://github.com/owner/repo`. codeweb makes a read-only clone, maps the clone, and adds an adoption review. codeweb does not execute the target code. ## Install **Free & MIT-licensed. Runs entirely on your machine — no account, no server, no telemetry. Reads your code; never executes it.** - codeweb requires **Node.js ≥ 22**. - codeweb has zero required dependencies. CI verifies operation with an empty `node_modules` directory. - The optional `web-tree-sitter` wasm grammar improves extraction. codeweb does not require it. - CI publishes releases with **npm provenance**. Run `npm audit signatures` to verify a release. **Using Claude Code?** Install the plugin to add the `/codeweb` command, automatic pre-edit impact cards, and all 28 tools: ``` /plugin marketplace add GhostlyGawd/codeweb /plugin install codeweb ``` Restart Claude Code to register the `/codeweb` command, agents, and skill. **Choose your MCP client:** [The setup page](https://ghostlygawd.github.io/codeweb/start.html#other-clients) provides one recipe for Claude Code, Cursor, Windsurf, Gemini CLI, or Codex. Print a recipe and check local setup from your project: ```bash npx -y @ghostlygawd/codeweb setup --client cursor npx -y @ghostlygawd/codeweb doctor ``` Setup prints configuration without replacing files. Doctor checks the local server and graph; a successful local check does not prove an editor connection. Restart your client, ask your agents to run `codeweb_callers`, and check a returned source location. **Map a repository without an AI agent:** Run one command from your project directory: ``` cd your-project npx -y @ghostlygawd/codeweb . # ~3 s for 3,000 symbols — then open .codeweb/report.html ``` For a temporary evaluation, use the `npx` command. It creates the map without a permanent installation. **Run the engine from a clone:** ``` git clone https://github.com/GhostlyGawd/codeweb.git node codeweb/scripts/run.mjs /path/to/your/project ``` [`docs/cli.md`](docs/cli.md) lists each executable, flag, and exit code. **VS Code:** [`editor/vscode-codeweb`](editor/vscode-codeweb/) shows an **`N callers · blast M`** lens above each mapped symbol. Select the lens to open the report. ## What you can do Each link lands on full docs, flags, and examples in **[the reference](docs/reference.md)**. - **Know before you edit:** Find callers, calculate the effect of a change, and check for an existing implementation. → [Query the graph](docs/reference.md#query-the-graph-for-agents--humans) · [context & pre-flight](docs/reference.md#agent-tools--context--pre-flight-context-pack-simulate-edit) - **Gate every edit:** Get a structural regression result for an edit, pull request, or architecture rule. → [The `diff` verdict](docs/reference.md#guard-agent-edits-diff) · [the PR gate](docs/reference.md#gate-every-pr-github-action) · [the capability suite](docs/reference.md#agent-capability-suite-write--review--optimize) - **Clean up, ranked:** Rank consolidation and dead-code work by evidence. → [`optimize`](docs/reference.md#advise-consolidations-optimizemjs) · [`hotspots`](docs/reference.md#find-the-hotspots--where-to-refactor-first-hotspotsmjs) · [`campaign`](docs/reference.md#plan-a-whole-optimization-campaign-campaignmjs) · [`trend`](docs/reference.md#track-duplication-over-time-trendmjs) ## Use ``` /codeweb # map the current project /codeweb src/payments --depth symbol # deep-dive one subsystem /codeweb https://github.com/owner/repo # external review before adopting /codeweb owner/repo --open # clone, map, and open the report ``` Available flags include `--depth module|symbol|auto`, `--engine hybrid|read|tools`, `--focus `, `--mode internal|external`, and `--open`. See `commands/codeweb.md` for details. codeweb writes all outputs to `/.codeweb/`. Agents and other tools can read `graph.json`. You can open `report.html`. codeweb also creates Markdown versions. [See the description of each output file.](docs/reference.md#outputs-under-targetcodeweb) ## Use it as an MCP tool `scripts/mcp-server.mjs` is a zero-dependency Model Context Protocol (MCP) stdio server. It gives MCP clients access to **28 tools**. The tools help the client orient, read the structure, check before writing, gate an edit, and plan cleanup. The September 14 packaged assessment exercised the baseline loop with Codex CLI 0.154.0; it did not certify every tool in every client. Claude runtime compatibility and other clients were not tested in that assessment. See [the recorded scope](reports/paperclip-pilot/readiness-01/PACKAGED-ACCEPTANCE.md). **The plugin registers the server automatically.** To register the standalone server, run: ``` claude mcp add codeweb -- npx -y -p @ghostlygawd/codeweb codeweb-mcp ``` **Requires Codeweb 0.15.0 or later.** Use the installed MCP server, or register a source checkout using its absolute path as shown in the [reference](docs/reference.md#the-mcp-server-tool-by-tool). The loop an agent runs: 1. Orient with `codeweb_brief` (or `codeweb_find` when no symbol name is known). 2. **Before editing**, call `codeweb_refresh {baseline:true}` once to capture fresh source. Ask `codeweb_explain`, then `codeweb_context`, `codeweb_impact`, or `codeweb_dependents` about the symbol before changing it. 3. **After editing**, call `codeweb_diff {before:"baseline",refresh:true}`. 4. If red, repair the code and repeat that same diff against the **same baseline**. Do not capture another baseline during repair: `baseline:true` replaces the original. Ordinary and automatic refreshes preserve it. Start a new baseline for the next task. Known unsupported same-line JS/TS declarations produce `status: "inconclusive"` and `ok:false` instead of a clean gate. Inspect the diagnostic locations and callers in source. The detector covers known layouts; no diagnostic does not prove complete extraction. Read `analysis.checks`: a skipped check is not a pass. Refresh drops overlap evidence, so this loop does not evaluate duplication; structural green does not prove behavioral correctness. Run the project's tests too. If the baseline is missing, edited source cannot reconstruct it — recover the pre-edit source before beginning again. For npm v0.14.0, use the [snapshot quickstart](https://ghostlygawd.github.io/codeweb/start.html#npm-quickstart). For the unreleased checkout, try the [tiny cycle → repair → green walkthrough](https://ghostlygawd.github.io/codeweb/start.html#cycle-walkthrough). Clients that hide the server's built-in instructions can paste [the rules snippet](https://ghostlygawd.github.io/codeweb/start.html#rules-snippet) instead. The server includes these agent-specific features: - **Optional `graph` argument:** The server finds the nearest map when you omit `graph`. If no map exists, the error directs the agent to `codeweb_map`. - **Budgeted responses:** Responses include the highest-ranked items and the true totals. A context response that was approximately 300 KB is now approximately 10 KB. - **Staleness information:** A stale result identifies its state and directs the agent to `codeweb_refresh` — on the orient tools and on every spawned advisor answer. [All 28 tools, grouped and explained →](docs/reference.md#the-mcp-server-tool-by-tool) ## How it works For JavaScript, TypeScript, Python, Rust, Go, Java, C#, Ruby, PHP, Kotlin, Swift, C, and C++, codeweb uses a **deterministic Node pipeline** by default. One command creates the map. No LLM is in the pipeline, and the same input produces the same bytes. The map pipeline has the four stages in the following diagram. `scripts/run.mjs` also creates `optimize.md` after overlap analysis and before report rendering.

1. **Extract** (`extract-symbols.mjs`) parses each source file into atomic nodes such as functions, classes, and methods. It also records call and import edges. If a bare call can refer to more than one definition, codeweb omits the edge instead of guessing. Per-file caching makes extraction incremental and byte-identical to a full rebuild. An imported `.json` file enters the map as a file-level node without being parsed. An unreferenced `.json` file stays out of the map, which prevents lock-file noise. 2. **Cluster** (`cluster3.mjs`) removes genuine utility hubs and groups the remaining nodes into directory-anchored semantic domains. 3. **Overlap** (`overlap.mjs`) detects duplicated logic and parallel implementations. It compares each candidate with the actual function bodies by using token-shingle similarity. This check prevents name coincidences from becoming findings. A structural pass over identifier-normalized *skeletons* also finds renamed Type-2 clones (`find-similar --structural`). 4. **Render** (`build-report.mjs`) converts `graph.json` into the self-contained `report.html` and `report.md` files. For a language that the extractor cannot parse, codeweb **uses the agent path**. `codeweb-dissector` agents extract nodes and edges for each subsystem. `codeweb-domain-mapper` then assigns domains and overlaps. Both paths produce the same `graph.json` schema. In **external** mode, each path also adds an adoption verdict. **Versus a language server (LSP):** an LSP answers one hop on demand — definitions, direct references — inside an editor session. codeweb builds one deterministic whole-graph artifact: transitive impact, duplication with body evidence, dead code, and domain coupling. Agents query that artifact over MCP, and CI diffs it to gate a PR. The two compose — codeweb replaces the grep loop, not your language server. Choose a reading path in the [documentation index](docs/README.md), which also explains repository ownership. [The component map](docs/reference.md#components) details the engine. ## Roadmap - **Support more first-class languages:** codeweb currently supports thirteen native languages: JavaScript, TypeScript, Python, **Rust**, **Go**, **Java**, **C#**, **Ruby**, **PHP**, **Kotlin**, **Swift**, **C**, and **C++**. Other languages use the agent fallback. Dynamic-dispatch AST tiers cover JS/TS, Java, C#, Python, Go, Rust, **Ruby**, **PHP**, **C**, and **C++**. Kotlin and Swift dispatch requires a trusted wasm grammar at the pinned ABI. See `scripts/grammars/PROVENANCE.md`. _Recent releases added the agent-intelligence suite (**hotspots**, **campaign**, **reading-order**, Type-2 clone detection, and suppression memory), a **[live interactive demo](https://ghostlygawd.github.io/codeweb/demo/)**, Go and Rust on the fast path, duplication trend data, and the one-command CI regression gate with a GitHub Action. codeweb currently provides 28 tools._ ## Versioning & releases The maintenance commands below require a Codeweb source checkout. codeweb follows [Semantic Versioning](https://semver.org/). It records changes in [`CHANGELOG.md`](CHANGELOG.md), which uses the [Keep a Changelog](https://keepachangelog.com/) format. Each capability, benchmark, and fix ships in a **tagged GitHub release**. `package.json` is the source of truth for the version. `scripts/mcp-server.mjs` is the source of truth for the MCP tool count. The release tools derive and verify the other values: ```bash npm run version-sync # propagate version + tool count -> plugin.json, SKILL.md, README badge npm run check-consistency # fail if any public-facing surface has drifted npm run build:site # regenerate the docs/ website (zero-dependency, deterministic) npm run release -- --minor # roll the changelog, bump, sync, rebuild; prints the git/tag steps ``` `check-consistency` runs in CI. It gates version strings on every surface, recognized prose patterns for the tool and language counts, the CHANGELOG entry for the current version, and every evidence file the ledger cites. ## About Built by [GhostlyGawd](https://github.com/GhostlyGawd). AI agents helped write much of the code. The commit co-author trailers identify those contributions. Open an issue for questions or problems. Use [`SECURITY.md`](SECURITY.md) to report a security issue. **Stay current:** codeweb does not contact an update service. To receive release notifications, select **Watch → Custom → Releases** on GitHub. ## Free forever, and where the paid line sits The rule, ratified in [`CHARTER.md`](CHARTER.md): **anything that runs on one laptop against one repo is free forever; money buys hosting, multi-repo aggregation, and human attention.** Everything in this repository is that free half — the map, the MCP tools, the hooks, the report, the CLI, the self-hosted gate Action, and every language codeweb learns. MIT, no accounts, no telemetry, no license keys. Nothing here moves behind a payment later. The planned paid half is a separate hosted service, **codeweb Teams**: the gate run for you, and history held across every repo in an org. Billing lives only in that service, so a payment problem degrades the hosted tier and **never breaks** your local tooling or your CI. Hosted availability is not established by this repository’s local checks. The pricing page retains the sign-up doorway. Read the full contract on [the boundary page](https://ghostlygawd.github.io/codeweb/boundary.html), and the planned Teams price on [the pricing page](https://ghostlygawd.github.io/codeweb/pricing.html). ## Support the project [Sponsoring](https://github.com/sponsors/GhostlyGawd) supports the project. Sponsorship also provides advertising. Top sponsors can put their logo at the top of this README, and each sponsor can join the supporters list. See the [support page](https://ghostlygawd.github.io/codeweb/support.html) for details. Running codeweb at an organization and need help? Send email through the GitHub profile. ## Handoffs You can send codeweb outputs to `refactor-cleaner`, `codebase-onboarding`, or `code-tour` if you have those tools. codeweb does not require them. For a useful next step, apply the highest-ranked **ready** merge from `optimize.md`. Then run codeweb again and compare the findings count.
