# kMaX-DeepLab

[kMaX-DeepLab](https://arxiv.org/pdf/2207.04044.pdf) is an end-to-end method for
general segmentation tasks. Built upon
[MaX-DeepLab](https://arxiv.org/pdf/2012.00759.pdf) [1] and
[CMT-DeepLab](https://arxiv.org/pdf/2206.08948.pdf) [2], kMaX-DeepLab proposes a
novel view to regard the mask transformer [1] as a process of iteratively
performing cluster-assignment and cluster-update steps.

<p align="center">

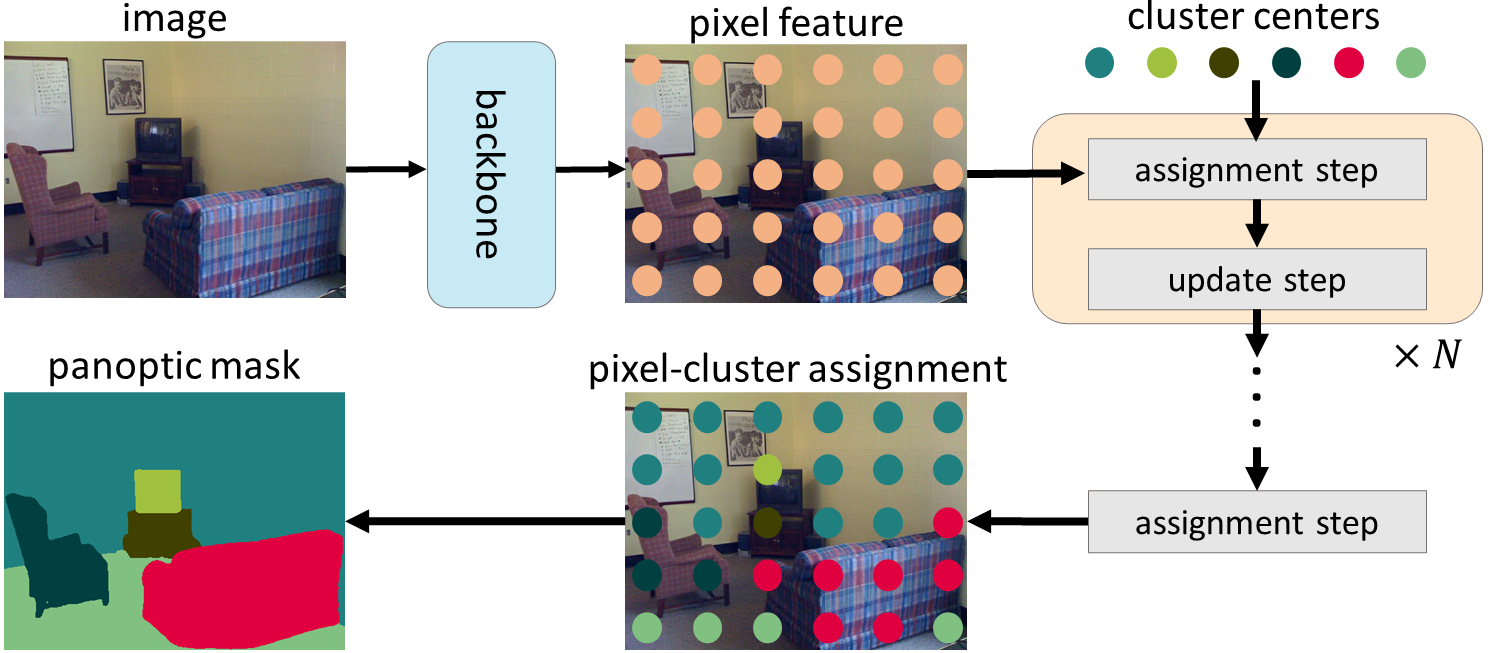

   <img src="../img/kmax_deeplab/clustering_view_of_mask_transformer.png" width=450>
</p>

Insipred by the similarity between cross-attention and k-means clustering
algorithm, kMaX-DeepLab proposes k-means cross-attention, which adopts a simple
modification by changing the activation function in cross-attention from
spatial-wise softmax to cluster-wise argmax.

<p align="center">
   <img src="../img/kmax_deeplab/kmax_decoder.png" width=500>
</p>

As a result, kMaX-DeepLab not only produces much more plausible attention map
but also enjoys a much better performance.

## Prerequisite

1.  Make sure the software is properly [installed](../setup/installation.md).
    Tensorflow>=2.6 is needed for kMaX-DeepLab training, because the attention
    layers depend on a
    [fix](https://github.com/tensorflow/tensorflow/commit/f5ead6f8e4de470fcf140360b304a4d788198090)
    for
    [SyncBatchNormalization](https://www.tensorflow.org/api_docs/python/tf/keras/layers/experimental/SyncBatchNormalization).
    The merging module (merge_semantic_and_instance_maps_op) is not needed for
    kMaX-DeepLab, so one could skip compiling the merging operation.

2.  Make sure the target dataset is correctly prepared (e.g.,
    [COCO](../setup/coco.md), [Cityscapes](../setup/cityscapes.md),
    [ADE20K](../setup/ade20k.md)).

3.  Download the ImageNet pretrained
    [checkpoints](./imagenet_pretrained_checkpoints.md), and update the
    `initial_checkpoint` (for ResNet and MaX-S backbones) or
    `pretrained_weights` (for ConvNeXt backbones) path in the config files.

4.  To run inference with provided models, please download the checkpoints in
    the model zoo below, and update the `initial_checkpoint` path (for all types
    of backbones) in the config files.

## Model Zoo

We explore kMaX-DeepLab model variants that are built on top of several
backbones (e.g., ResNet [3], MaX-S [1], and ConvNeXt [4]).

The ImageNet pretrained weights are located in
[checkpoints](./imagenet_pretrained_checkpoints.md). For the model zoo below,
we use the following pretrained checkpoints:

1. `Simple training strategy`: ResNet-50

2. `Strong training strategy`: Axial-ResNet-50 (MaX-S w/ GeLU)

3. `Converted from official weights`: ConvNeXt

### COCO Panoptic Segmentation

We provide checkpoints pretrained on COCO 2017 panoptic train set and evaluated
on the val set and test set. If you would like to train those models by
yourself, please find the corresponding config files under the directory
[configs/coco/kmax_deeplab](../../configs/coco/kmax_deeplab).

All the reported results are obtained by *single-scale* inference. ResNet-50 use
*ImageNet-1K* pretrained checkpoints, while the other backbones use
*ImageNet-22K* pretrained checkpoints.

Backbone                                                                                                                                                                                                                                | val PQ \[\*\] | val PQ<sup>thing</sup> \[\*\] | val PQ<sup>stuff</sup> \[\*\] | test PQ \[\*\] | test PQ<sup>thing</sup> \[\*\] | test PQ<sup>stuff</sup> | val PQ \[\*\*\]
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | :-----------: | :---------------------------: | :---------------------------: | :------------: | :----------------------------: | :---------------------: | :-------------:
ResNet-50 ([config](../../configs/coco/kmax_deeplab/kmax_meta_r50_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_resnet50_coco_train.tar.gz))                                              | 53.0          | 58.3                          | 44.9                          | 53.4           | 59.3                           | 44.5                    | 53.50
Axial-ResNet-50 (MaX-S w/ GeLU) ([config](../../configs/coco/kmax_deeplab/kmax_meta_axial_r50_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_maxs_gelu_coco_train.tar.gz))                  | 56.2          | 62.2                          | 47.1                          | 56.4           | 62.7                           | 46.9                    | 56.71
ConvNeXt-T ([config](../../configs/coco/kmax_deeplab/kmax_meta_convnext_tiny_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_tiny_coco_train.tar.gz))                              | 55.3          | 61.0                          | 46.7                          | 55.7           | 61.7                           | 46.7                    | 55.80
ConvNeXt-S ([config](../../configs/coco/kmax_deeplab/kmax_meta_convnext_small_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_small_coco_train.tar.gz))                            | 56.3          | 62.2                          | 47.5                          | 57.0           | 63.3                           | 47.5                    | 56.86
ConvNeXt-B ([config](../../configs/coco/kmax_deeplab/kmax_meta_convnext_base_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_base_coco_train.tar.gz))                              | 57.2          | 63.4                          | 47.8                          | 57.8           | 64.3                           | 48.1                    | 57.73
ConvNeXt-L ([config](../../configs/coco/kmax_deeplab/kmax_meta_convnext_large_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_large_coco_train.tar.gz))                            | 57.9          | 64.0                          | 48.6                          | 58.0           | 64.5                           | 48.2                    | 58.38
ConvNeXt-L w/ unlabeled set ([config](../../configs/coco/kmax_deeplab/kmax_meta_convnext_large_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_large_coco_train_unlabeled.tar.gz)) | 58.1          | 64.3                          | 48.8                          | 58.5           | 64.8                           | 49.0                    | 58.69

\[\*\]: Results evaluated by the official script. \[\*\*\]: Results evaluated by
our pipeline. See Q4 in [FAQ](../faq.md).

### Cityscapes Panoptic/Semantic/Instance Segmentation

We provide checkpoints pretrained on Cityscapes train-fine set below and
evaluated on the val set. If you would like to train those models by yourself,
please find the corresponding config files under the directory
[configs/cityscapes/kmax_deeplab](../../configs/cityscapes/kmax_deeplab).

All the reported results are obtained by *single-scale* inference. ResNet-50 use
*ImageNet-1K* pretrained checkpoints, while the other backbones use
*ImageNet-22K* pretrained checkpoints.

Backbone                                                                                                                                                                                                                           | PQ \[\*\] | PQ<sup>thing</sup> \[\*\] | PQ<sup>stuff</sup> \[\*\] | AP<sup>mask</sup> \[\*\] | mIoU \[\*\] | PQ \[\*\*\]
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | :-------: | :-----------------------: | :-----------------------: | :----------------------: | :---------: | :---------:
ResNet-50 ([config](../../configs/cityscapes/kmax_deeplab/kmax_meta_r50_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_resnet50_cityscapes_train.tar.gz))                             | 64.3      | 57.7                      | 69.1                      | 38.5                     | 79.7        | 64.65
Axial-ResNet-50 (MaX-S w/ GeLU) ([config](../../configs/cityscapes/kmax_deeplab/kmax_meta_axial_r50_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_maxs_gelu_cityscapes_train.tar.gz)) | 66.4      | 61.2                      | 70.2                      | 41.6                     | 82.1        | 66.73
ConvNeXt-T ([config](../../configs/cityscapes/kmax_deeplab/kmax_meta_convnext_tiny_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_tiny_cityscapes_train.tar.gz))             | 66.3      | 60.2                      | 70.8                      | 41.2                     | 82.6        | 66.65
ConvNeXt-S ([config](../../configs/cityscapes/kmax_deeplab/kmax_meta_convnext_small_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_small_cityscapes_train.tar.gz))           | 67.3      | 61.6                      | 71.5                      | 42.6                     | 83.1        | 67.71
ConvNeXt-B ([config](../../configs/cityscapes/kmax_deeplab/kmax_meta_convnext_base_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_base_cityscapes_train.tar.gz))             | 68.0      | 62.6                      | 72.0                      | 43.0                     | 83.1        | 68.30
ConvNeXt-L ([config](../../configs/cityscapes/kmax_deeplab/kmax_meta_convnext_large_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_large_cityscapes_train.tar.gz))           | 68.4      | 62.9                      | 72.4                      | 44.0                     | 83.5        | 68.73

\[\*\]: Results evaluated by the official script. \[\*\*\]: Results evaluated by
our pipeline. See Q4 in [FAQ](../faq.md).

### ADE20K Panoptic Segmentation

We provide checkpoints pretrained on ADE20K panoptic train set and evaluated on
the val set. If you would like to train those models by yourself, please find
the corresponding config files under the directory
[configs/ade20k/kmax_deeplab](../../configs/ade20k/kmax_deeplab).

All the reported results are obtained by *single-scale* inference. ResNet-50 use
*ImageNet-1K* pretrained checkpoints, while the other backbones use
*ImageNet-22K* pretrained checkpoints.

Backbone                                                                                                                                                                                                                         | Input Resolution | PQ \[\*\] | PQ<sup>thing</sup> \[\*\] | PQ<sup>stuff</sup> \[\*\] | mIoU \[\*\] | PQ \[\*\*\]
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | :--------------: | :-------: | :-----------------------: | :-----------------------: | :---------: | :---------:
ResNet-50 ([config](../../configs/ade20k/kmax_deeplab/kmax_meta_r50_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_resnet50_res641_ade20k_train.tar.gz))                            | 641 x 641        | 41.5      | 40.4                      | 43.7                      | 45.0        | 41.47
ResNet-50 ([config](../../configs/ade20k/kmax_deeplab/kmax_meta_r50_os32_res1281.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_resnet50_res1281_ade20k_train.tar.gz))                   | 1281 x 1281      | 42.3      | 42.2                      | 42.5                      | 45.3        | 42.37
ConvNeXt-L ([config](../../configs/ade20k/kmax_deeplab/kmax_meta_convnext_large_os32.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_large_res641_ade20k_train.tar.gz))          | 641 x 641        | 48.7      | 48.0                      | 50.0                      | 54.8        | 48.75
ConvNeXt-L ([config](../../configs/ade20k/kmax_deeplab/kmax_meta_convnext_large_os32_res1281.textproto), [ckpt](https://storage.googleapis.com/gresearch/tf-deeplab/checkpoint/kmax_convnext_large_res1281_ade20k_train.tar.gz)) | 1281 x 1281      | 50.9      | 51.0                      | 50.7                      | 55.2        | 50.92

\[\*\]: Results evaluated by the official script. \[\*\*\]: Results evaluated by
our pipeline. See Q4 in [FAQ](../faq.md).

Note that during inference, we resize the longer side to target size (641 or
1281) and then pad shorter side to target size. Our inference strategy is
different from the ways that other methods use on ADE20K, which instead resize
shorter side to target size, or adopt sliding window (which may yield a better
performance at the cost of more FLOPs). Our strategy makes sure the model is
trained and tested on the same input resolution.
