# Deploy to Google Kubernetes Engine (GKE)

<div class="language-support-tag">
  <span class="lst-supported">Supported in ADK</span>
  <span class="lst-python">Python</span>
  <span class="lst-go">Go</span>
</div>

[GKE](https://cloud.google.com/gke) is the Google Cloud managed Kubernetes
service. It allows you to deploy and manage containerized applications using
Kubernetes.

To deploy your agent you will need to have a Kubernetes cluster running on
GKE. You can create a cluster using the Google Cloud Console or the `gcloud`
command line tool.

The following example shows you how to deploy a simple agent to GKE. The Python agent is a
FastAPI application that uses `Gemini Flash` as the LLM. The Go agent uses the
ADK launcher and a statically-linked binary in a minimal container. You can
use Agent Platform or AI Studio as the LLM provider with the environment
variable `GOOGLE_GENAI_USE_ENTERPRISE`.

## Set environment variables

Set the variables as described in the
[Setup and Installation](../get-started/installation.md) guide. You will also
need to install the `kubectl` command line tool. You can find instructions to
do so in the
[Google Kubernetes Engine Documentation](https://cloud.google.com/kubernetes-engine/docs/how-to/cluster-access-for-kubectl).

```bash
export GOOGLE_CLOUD_PROJECT=your-project-id # Your GCP project ID
export GOOGLE_CLOUD_LOCATION=us-central1 # Or your preferred location
export GOOGLE_GENAI_USE_ENTERPRISE=true # Set to true if using Agent Platform
export GOOGLE_CLOUD_PROJECT_NUMBER=$(gcloud projects describe \
  --format json $GOOGLE_CLOUD_PROJECT | jq -r ".projectNumber")
```

If you don't have jq installed, you can use the following command to get the
project number:

```bash
gcloud projects describe $GOOGLE_CLOUD_PROJECT
```

And copy the project number from the output.

```bash
export GOOGLE_CLOUD_PROJECT_NUMBER=YOUR_PROJECT_NUMBER
```

## Enable APIs and permissions

* Ensure you have authenticated with Google Cloud (`gcloud auth login` and `gcloud config set project <your-project-id>`).
* Enable the necessary APIs for your project. You can do this using the `gcloud` command line tool.

```bash
gcloud services enable \
    container.googleapis.com \
    artifactregistry.googleapis.com \
    cloudbuild.googleapis.com \
    aiplatform.googleapis.com
```

Grant necessary roles to the default compute engine service account required by
the `gcloud builds submit` command.

```bash
ROLES_TO_ASSIGN=(
    "roles/artifactregistry.writer"
    "roles/storage.objectViewer"
    "roles/logging.viewer"
    "roles/logging.logWriter"
)

for ROLE in "${ROLES_TO_ASSIGN[@]}"; do
    gcloud projects add-iam-policy-binding "${GOOGLE_CLOUD_PROJECT}" \
        --member="serviceAccount:${GOOGLE_CLOUD_PROJECT_NUMBER}-compute@developer.gserviceaccount.com" \
        --role="${ROLE}"
done
```

## Deployment payload {#payload}

When you deploy your ADK agent workflow to the Google Cloud GKE,
the following content is uploaded to the service:

* Your ADK agent code
* Any dependencies declared in your ADK agent code
* ADK API server code version used by your agent

The default deployment *does not* include the ADK web user interface libraries,
unless you specify it as deployment setting, such as the `--with_ui` option for
`adk deploy gke` command.

## Deployment options

You can deploy your agent to GKE either **manually using Kubernetes
manifests** or **automatically using the `adk deploy gke` command**.
Choose the approach that best suits your workflow.

## Option 1: Manual deployment using gcloud and kubectl

### Create a GKE cluster

You can create a GKE cluster using the `gcloud` command line tool. This example
creates an Autopilot cluster named `adk-cluster` in the `us-central1` region.

!!! note "If you're creating a GKE Standard cluster"

    Make sure [Workload Identity](https://cloud.google.com/kubernetes-engine/docs/how-to/workload-identity)
    is enabled. Workload Identity is enabled by default in an AutoPilot cluster.

```bash
gcloud container clusters create-auto adk-cluster \
    --location=$GOOGLE_CLOUD_LOCATION \
    --project=$GOOGLE_CLOUD_PROJECT
```

After creating the cluster, you need to connect to it using `kubectl`. This
command configures `kubectl` to use the credentials for your new cluster.

```bash
gcloud container clusters get-credentials adk-cluster \
    --location=$GOOGLE_CLOUD_LOCATION \
    --project=$GOOGLE_CLOUD_PROJECT
```

### Create your agent

Use the `capital_agent` example defined on the [LLM agents](../agents/llm-agents.md) page as a reference.

=== "Python"

    Organize your project files as follows:

    ```txt
    your-project-directory/
    ├── capital_agent/
    │   ├── __init__.py
    │   └── agent.py       # Your agent code
    ├── main.py            # FastAPI application entry point
    ├── requirements.txt   # Python dependencies
    └── Dockerfile         # Container build instructions
    ```

=== "Go"

    Organize your project files as follows:

    ```txt
    your-project-directory/
    ├── main.go       # Agent code and launcher entry point
    ├── go.mod        # Go module definition
    ├── go.sum        # Go module checksums
    └── Dockerfile    # Container build instructions
    ```

### Code files

=== "Python"

    Create the following files (`main.py`, `requirements.txt`, `Dockerfile`, `capital_agent/agent.py`, `capital_agent/__init__.py`) in the root of `your-project-directory/`.

    1. This is the Capital Agent example inside the `capital_agent` directory

        ```python title="capital_agent/agent.py"
        from google.adk.agents import LlmAgent

        # Define a tool function
        def get_capital_city(country: str) -> str:
          """Retrieves the capital city for a given country."""
          # Replace with actual logic (e.g., API call, database lookup)
          capitals = {"france": "Paris", "japan": "Tokyo", "canada": "Ottawa"}
          return capitals.get(country.lower(), f"Sorry, I don't know the capital of {country}.")

        # Add the tool to the agent
        capital_agent = LlmAgent(
            model="gemini-flash-latest",
            name="capital_agent", #name of your agent
            description="Answers user questions about the capital city of a given country.",
            instruction="""You are an agent that provides the capital city of a country... (previous instruction text)""",
            tools=[get_capital_city] # Provide the function directly
        )

        # ADK will discover the root_agent instance
        root_agent = capital_agent
        ```

        Mark your directory as a python package

        ```python title="capital_agent/__init__.py"

        from . import agent
        ```

    2. This file sets up the FastAPI application using `get_fast_api_app()` from ADK:

        ```python title="main.py"
        import os

        import uvicorn
        from fastapi import FastAPI
        from google.adk.cli.fast_api import get_fast_api_app

        # Get the directory where main.py is located
        AGENT_DIR = os.path.dirname(os.path.abspath(__file__))
        # Example session service URI (e.g., SQLite)
        # Note: Use 'sqlite+aiosqlite' instead of 'sqlite' because DatabaseSessionService requires an async driver
        SESSION_SERVICE_URI = "sqlite+aiosqlite:///./sessions.db"
        # Example allowed origins for CORS
        ALLOWED_ORIGINS = ["http://localhost", "http://localhost:8080", "*"]
        # Set web=True if you intend to serve a web interface, False otherwise
        SERVE_WEB_INTERFACE = True

        # Call the function to get the FastAPI app instance
        # Ensure the agent directory name ('capital_agent') matches your agent folder
        app: FastAPI = get_fast_api_app(
            agents_dir=AGENT_DIR,
            session_service_uri=SESSION_SERVICE_URI,
            allow_origins=ALLOWED_ORIGINS,
            web=SERVE_WEB_INTERFACE,
        )

        if __name__ == "__main__":
            # Use the PORT environment variable provided by Cloud Run, defaulting to 8080
            uvicorn.run(app, host="0.0.0.0", port=int(os.environ.get("PORT", 8080)))
        ```

        *Note: We specify `agent_dir` to the directory `main.py` is in and use `os.environ.get("PORT", 8080)` for Cloud Run compatibility.*

    3. List the necessary Python packages:

        ```txt title="requirements.txt"
        google-adk
        # Add any other dependencies your agent needs
        ```

    4. Define the container image:

        ```dockerfile title="Dockerfile"
        FROM python:3.13-slim
        WORKDIR /app

        COPY requirements.txt .
        RUN pip install --no-cache-dir -r requirements.txt

        RUN adduser --disabled-password --gecos "" myuser && \
            chown -R myuser:myuser /app

        COPY . .

        USER myuser

        ENV PATH="/home/myuser/.local/bin:$PATH"

        CMD ["sh", "-c", "uvicorn main:app --host 0.0.0.0 --port $PORT"]
        ```

=== "Go"

    Create the following files in the root of `your-project-directory/`.

    1. Define the agent and embed the ADK launcher. The launcher handles the `web`,
       `api`, and `webui` subcommands that start the REST API server and web interface:

        ```go title="main.go"
        package main

        import (
            "context"
            "fmt"
            "log"
            "os"
            "strings"

            "google.golang.org/adk/v2/agent"
            "google.golang.org/adk/v2/agent/llmagent"
            "google.golang.org/adk/v2/cmd/launcher"
            "google.golang.org/adk/v2/cmd/launcher/full"
            "google.golang.org/adk/v2/model/gemini"
            "google.golang.org/adk/v2/tool"
            "google.golang.org/adk/v2/tool/functiontool"
            "google.golang.org/genai"
        )

        type getCapitalCityArgs struct {
            Country string `json:"country" jsonschema:"The country to look up."`
        }

        func getCapitalCity(_ tool.Context, args getCapitalCityArgs) (string, error) {
            capitals := map[string]string{
                "france":  "Paris",
                "japan":   "Tokyo",
                "canada":  "Ottawa",
            }
            capital, ok := capitals[strings.ToLower(args.Country)]
            if !ok {
                return "", fmt.Errorf("capital not found for %s", args.Country)
            }
            return capital, nil
        }

        func main() {
            ctx := context.Background()

            model, err := gemini.NewModel(ctx, "gemini-flash-latest", &genai.ClientConfig{
                APIKey: os.Getenv("GOOGLE_API_KEY"),
            })
            if err != nil {
                log.Fatalf("Failed to create model: %v", err)
            }

            capitalTool, err := functiontool.New(
                functiontool.Config{
                    Name:        "get_capital_city",
                    Description: "Retrieves the capital city for a given country.",
                },
                getCapitalCity,
            )
            if err != nil {
                log.Fatalf("Failed to create tool: %v", err)
            }

            capitalAgent, err := llmagent.New(llmagent.Config{
                Name:        "capital_agent",
                Model:       model,
                Description: "Answers questions about capital cities.",
                Instruction: "You are an agent that provides the capital city of a country.",
                Tools:       []tool.Tool{capitalTool},
            })
            if err != nil {
                log.Fatalf("Failed to create agent: %v", err)
            }

            config := &launcher.Config{
                AgentLoader: agent.NewSingleLoader(capitalAgent),
            }

            l := full.NewLauncher()
            if err = l.Execute(ctx, config, os.Args[1:]); err != nil {
                log.Fatalf("Run failed: %v\n\n%s", err, l.CommandLineSyntax())
            }
        }
        ```

        To use Agent Platform instead of AI Studio, set `genai.ClientConfig` to use
        the Agent Platform backend:

        ```go
        model, err := gemini.NewModel(ctx, "gemini-flash-latest", &genai.ClientConfig{
            Backend:  genai.BackendVertexAI,
            Project:  os.Getenv("GOOGLE_CLOUD_PROJECT"),
            Location: os.Getenv("GOOGLE_CLOUD_LOCATION"),
        })
        ```

    2. Define the container image. Go compiles to a self-contained static binary,
       so the container uses a minimal distroless base image — no runtime
       dependencies or package manager required:

        ```dockerfile title="Dockerfile"
        # Stage 1: Build the Go binary
        FROM golang:1.25 AS builder
        WORKDIR /app

        COPY go.mod go.sum ./
        RUN go mod download

        COPY . .
        # Compile a statically linked Linux/amd64 binary
        RUN CGO_ENABLED=0 GOOS=linux GOARCH=amd64 \
            go build -ldflags="-s -w" -o capital_agent .

        # Stage 2: Copy the binary into a minimal runtime image
        FROM gcr.io/distroless/static-debian12
        COPY --from=builder /app/capital_agent /app/capital_agent
        EXPOSE 8080

        # Start the API server and web UI
        CMD ["/app/capital_agent", "web", "-port", "8080", "api", "webui"]
        ```

### Build the container image

You need to create a Google Artifact Registry repository to store your
container images. You can do this using the `gcloud` command line tool.

```bash
gcloud artifacts repositories create adk-repo \
    --repository-format=docker \
    --location=$GOOGLE_CLOUD_LOCATION \
    --description="ADK repository"
```

Build the container image and push it to Artifact Registry:

=== "Python"

    Use Cloud Build to build and push the image directly from your source directory:

    ```bash
    gcloud builds submit \
        --tag $GOOGLE_CLOUD_LOCATION-docker.pkg.dev/$GOOGLE_CLOUD_PROJECT/adk-repo/adk-agent:latest \
        --project=$GOOGLE_CLOUD_PROJECT \
        .
    ```

=== "Go"

    The multi-stage Dockerfile handles compilation inside the builder stage, so you
    can use Cloud Build without needing a local Go toolchain:

    ```bash
    gcloud builds submit \
        --tag $GOOGLE_CLOUD_LOCATION-docker.pkg.dev/$GOOGLE_CLOUD_PROJECT/adk-repo/adk-agent:latest \
        --project=$GOOGLE_CLOUD_PROJECT \
        .
    ```

    Alternatively, compile the binary locally and build a smaller image without
    the multi-stage Dockerfile — useful if you already have Go installed:

    ```bash
    # Cross-compile for linux/amd64
    CGO_ENABLED=0 GOOS=linux GOARCH=amd64 go build -ldflags="-s -w" -o capital_agent .

    # Build and push the image
    docker build -t $GOOGLE_CLOUD_LOCATION-docker.pkg.dev/$GOOGLE_CLOUD_PROJECT/adk-repo/adk-agent:latest .
    docker push $GOOGLE_CLOUD_LOCATION-docker.pkg.dev/$GOOGLE_CLOUD_PROJECT/adk-repo/adk-agent:latest
    ```

Verify the image is built and pushed to the Artifact Registry:

```bash
gcloud artifacts docker images list \
  $GOOGLE_CLOUD_LOCATION-docker.pkg.dev/$GOOGLE_CLOUD_PROJECT/adk-repo \
  --project=$GOOGLE_CLOUD_PROJECT
```

### Configure Kubernetes service account for Agent Platform

If your agent uses Agent Platform, you need to create a Kubernetes service
account with the necessary permissions. This example creates a service account
named `adk-agent-sa` and binds it to the `Agent Platform User` role.

!!! note "Skip if using AI Studio"

    If you are using AI Studio and accessing the model with an API key you can skip this step.

```bash
kubectl create serviceaccount adk-agent-sa
```

```bash
PROJECT_ID=${GOOGLE_CLOUD_PROJECT}
PROJECT_NUM=${GOOGLE_CLOUD_PROJECT_NUMBER}
IAM_URL="principal://[iam.googleapis.com/projects/$](https://iam.googleapis.com/projects/$){PROJECT_NUM}"
WIP="locations/global/workloadIdentityPools/${PROJECT_ID}.svc.id.goog"
SA="subject/ns/default/sa/adk-agent-sa"

gcloud projects add-iam-policy-binding projects/${PROJECT_ID} \
    --role=roles/aiplatform.user \
    --member="${IAM_URL}/${WIP}/${SA}" \
    --condition=None
```

### Create the Kubernetes manifest files

Create a Kubernetes deployment manifest file named `deployment.yaml` in your
project directory. This file defines how to deploy your application on GKE.

```yaml title="deployment.yaml"
cat <<  EOF > deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: adk-agent
spec:
  replicas: 1
  selector:
    matchLabels:
      app: adk-agent
  template:
    metadata:
      labels:
        app: adk-agent
    spec:
      serviceAccount: adk-agent-sa
      containers:
      - name: adk-agent
        imagePullPolicy: Always
        image: $GOOGLE_CLOUD_LOCATION-docker.pkg.dev/$GOOGLE_CLOUD_PROJECT/adk-repo/adk-agent:latest
        resources:
          limits:
            memory: "128Mi"
            cpu: "500m"
            ephemeral-storage: "128Mi"
          requests:
            memory: "128Mi"
            cpu: "500m"
            ephemeral-storage: "128Mi"
        ports:
        - containerPort: 8080
        env:
          - name: PORT
            value: "8080"
          - name: GOOGLE_CLOUD_PROJECT
            value: $GOOGLE_CLOUD_PROJECT
          - name: GOOGLE_CLOUD_LOCATION
            value: $GOOGLE_CLOUD_LOCATION
          - name: GOOGLE_GENAI_USE_ENTERPRISE
            value: "$GOOGLE_GENAI_USE_ENTERPRISE"
          # If using AI Studio, set GOOGLE_GENAI_USE_ENTERPRISE to false and set the following:
          # - name: GOOGLE_API_KEY
          #   value: $GOOGLE_API_KEY
          # Add any other necessary environment variables your agent might need
---
apiVersion: v1
kind: Service
metadata:
  name: adk-agent
spec:
  type: LoadBalancer
  ports:
    - port: 80
      targetPort: 8080
  selector:
    app: adk-agent
EOF
```

### Deploy the Application

Deploy the application using the `kubectl` command line tool. This command
applies the deployment and service manifest files to your GKE cluster.

```bash
kubectl apply -f deployment.yaml
```

After a few moments, you can check the status of your deployment using:

```bash
kubectl get pods -l=app=adk-agent
```

This command lists the pods associated with your deployment. You should see a
pod with a status of `Running`.

Once the pod is running, you can check the status of the service using:

```bash
kubectl get service adk-agent
```

If the output shows a `External IP`, it means your service is accessible from
the internet. It may take a few minutes for the external IP to be assigned.
You can get the external IP address of your service using:

```bash
kubectl get svc adk-agent -o=jsonpath='{.status.loadBalancer.ingress[0].ip}'
```

## Option 2: Automated Deployment using `adk deploy gke`

!!! note "Python only"

    The `adk deploy gke` command is available for Python only. Go does not have
    an equivalent CLI command. Go agents must be deployed using the manual
    approach described in [Option 1](#option-1-manual-deployment-using-gcloud-and-kubectl).

ADK provides a CLI command to streamline GKE deployment. This avoids the need
to manually build images, write Kubernetes manifests, or push to Artifact
Registry.

#### Prerequisites

Before you begin, ensure you have the following set up:

1. **A running GKE cluster:** You need an active Kubernetes cluster on Google Cloud.

2. **Required CLIs:**
    * **`gcloud` CLI:** The Google Cloud CLI must be installed, authenticated, and configured to use your target project. Run `gcloud auth login` and `gcloud config set project [YOUR_PROJECT_ID]`.
    * **kubectl:** The Kubernetes CLI must be installed to deploy the application to your cluster.

3. **Enabled Google Cloud APIs:** Make sure the following APIs are enabled in your Google Cloud project:
    * Kubernetes Engine API (`container.googleapis.com`)
    * Cloud Build API (`cloudbuild.googleapis.com`)
    * Container Registry API (`containerregistry.googleapis.com`)

4. **Required IAM Permissions:** The user or Compute Engine default service account running the command needs, at a minimum, the following roles:

   * **Kubernetes Engine Developer** (`roles/container.developer`): To interact with the GKE cluster.

   * **Storage Object Viewer** (`roles/storage.objectViewer`): To allow Cloud Build to download the source code from the Cloud Storage bucket where gcloud builds submit uploads it.

   * **Artifact Registry Create on Push Writer** (`roles/artifactregistry.createOnPushWriter`): To allow Cloud Build to push the built container image to Artifact Registry. This role also permits the on-the-fly creation of the special gcr.io repository within Artifact Registry if needed on the first push.

   * **Logs Writer**  (`roles/logging.logWriter`): To allow Cloud Build to write build logs to Cloud Logging.

### Configure Workload Identity for Agent Platform

If your agent uses Agent Platform, the workload running in your cluster needs permission to call the Agent Platform API. Unlike the manual path, `adk deploy gke` generates a manifest that uses the `default` Kubernetes service account in the `default` namespace. Grant the `Agent Platform User` role to that service account through Workload Identity so the agent can access models such as Gemini.

!!! tip "Skip if using AI Studio"

    If you are using AI Studio and accessing the model with an API key you can skip this step.

```bash
gcloud projects add-iam-policy-binding projects/${GOOGLE_CLOUD_PROJECT} \
    --role=roles/aiplatform.user \
    --member=principal://iam.googleapis.com/projects/${GOOGLE_CLOUD_PROJECT_NUMBER}/locations/global/workloadIdentityPools/${GOOGLE_CLOUD_PROJECT}.svc.id.goog/subject/ns/default/sa/default \
    --condition=None
```

If you are using a Google Cloud project and skip this step, the agent's pods
start successfully, but requests to the model fail with a
`403 PERMISSION_DENIED` error when verifying your deployment.

### The `deploy gke` Command

The command takes the path to your agent and parameters specifying the target GKE cluster.

#### Syntax

```bash
adk deploy gke [OPTIONS] AGENT_PATH
```

### Arguments & options

| Argument    | Description | Required |
| -------- | ------- | ------  |
| AGENT_PATH  | The local file path to your agent's root directory.    |Yes |
| --project | The Google Cloud Project ID where your GKE cluster is located.     | Yes |
| --cluster_name   | The name of your GKE cluster.    | Yes |
| --region    | The Google Cloud region of your cluster (e.g., us-central1).    | Yes |
| --service_type | The type of Kubernetes service to create. Accepts `ClusterIP` (default) or `LoadBalancer`. | No |
| --with_ui   | Deploys both the agent's back-end API and a companion front-end user interface.    | No |
| --log_level   | Sets the logging level for the deployment process. Options: debug, info, warning, error, critical.     | No |


### How it works
When you run the `adk deploy gke` command, the ADK performs the following steps automatically:

* **Containerization:** It builds a Docker container image from your agent's source code.
* **Image Push:** It tags the container image and pushes it to your project's Artifact Registry.
* **Manifest Generation:** It dynamically generates the necessary Kubernetes manifest files (a `Deployment` and a `Service`).
* **Cluster Deployment:** It applies these manifests to your specified GKE cluster, which triggers the following:

The `Deployment` instructs GKE to pull the container image from Artifact Registry and run it in one or more Pods.

The `Service` creates a stable network endpoint for your agent. It defaults to
a `ClusterIP` service, which is only accessible within the cluster. To expose
your agent to the internet with a public IP address, you must specify
`--service_type=LoadBalancer`.

### Example of use
Here is a practical example of deploying an agent located at `~/agents/multi_tool_agent/` to a GKE cluster named test.

```bash
adk deploy gke \
    --project myproject \
    --cluster_name test \
    --region us-central1 \
    --with_ui \
    --log_level info \
    ~/agents/multi_tool_agent/
```

### Verify your deployment
If you used `adk deploy gke`, verify the deployment using `kubectl`:

* **Check the Pods:** Ensure your agent's pods are in the Running state.

```bash
kubectl get pods
```

You should see output like `adk-default-service-name-xxxx-xxxx ... 1/1 Running` in the default namespace.

* **Find the External IP:** Get the public IP address for your agent's service.

```bash
kubectl get service
```

By default, the service type is `ClusterIP`, and `EXTERNAL-IP` is `<none>`.

```bash
NAME                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
adk-default-service-name   ClusterIP   10.12.1.2       <none>        80/TCP    2m
```

To test your agent, you can use port-forwarding:

```bash
kubectl port-forward svc/adk-default-service-name 8080:80
```

You can then access your agent at `http://localhost:8080`.

If you deployed with `--service_type=LoadBalancer`, it may take a few minutes for an external IP to be assigned.

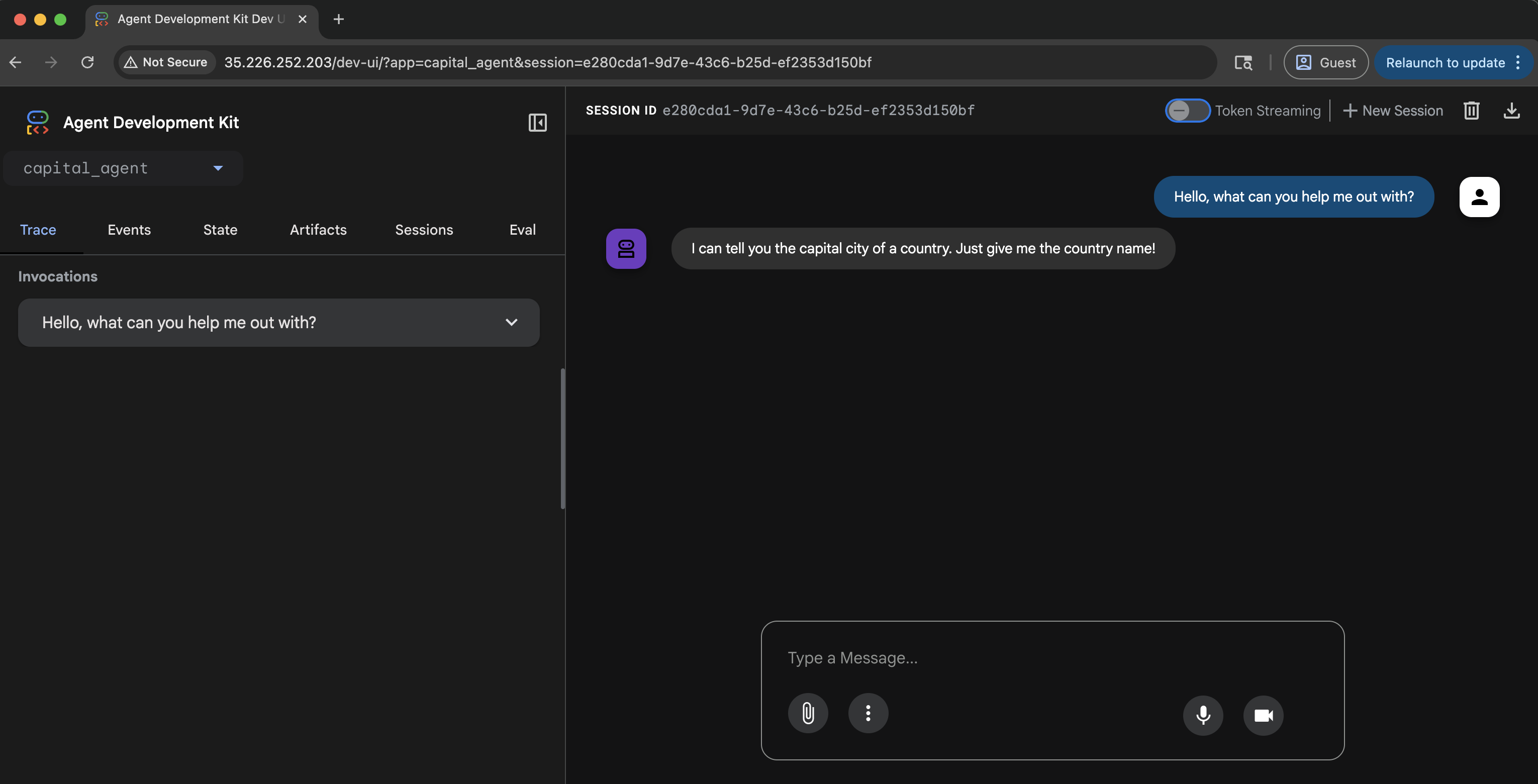

Once the `EXTERNAL-IP` is available, you can navigate to it to interact with your agent.
![alt text](../assets/agent-gke-deployment.png)

## Test your agent

Once your agent is deployed to GKE, you can interact with it via the deployed
UI (if enabled) or directly with its API endpoints using tools like `curl`.
You'll need the service URL provided after deployment.

=== "UI Testing"

    ### UI Testing

    If you deployed your agent with the UI enabled:

    You can test your agent by simply navigating to the kubernetes service URL in your web browser.

    The ADK dev UI allows you to interact with your agent, manage sessions, and view execution details directly in the browser.

    To verify your agent is working as intended, you can:

    1. Select your agent from the dropdown menu.
    2. Type a message and verify that you receive an expected response from your agent.

    If you experience any unexpected behavior, check the pod logs for your agent using:

    ```bash
    kubectl logs -l app=adk-agent
    ```

=== "API Testing (curl)"

    ### API Testing (curl)

    You can interact with the agent's API endpoints using tools like `curl`. This is useful for programmatic interaction or if you deployed without the UI.

    #### Set the application URL

    ```bash
    export APP_URL=$(kubectl get service adk-agent -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
    ```

    !!! note "Go: API path prefix"
        The Go ADK server serves all REST endpoints under the `/api` path prefix
        by default. Prepend `/api` to every path in the examples below when
        testing a Go deployment. For example:

        | Python | Go |
        |---|---|
        | `$APP_URL/list-apps` | `$APP_URL/api/list-apps` |
        | `$APP_URL/apps/…` | `$APP_URL/api/apps/…` |
        | `$APP_URL/run_sse` | `$APP_URL/api/run_sse` |

        The prefix can be changed at startup with `-path_prefix` on the `api`
        subcommand, e.g. `CMD ["/app/capital_agent", "web", "-port", "8080", "api", "-path_prefix", ""]`
        removes the prefix entirely.

    #### List available apps

    Verify the deployed application name.

    ```bash
    curl -X GET $APP_URL/list-apps
    ```

    *(Adjust the `app_name` in the following commands based on this output if needed. The default is often the agent directory name, e.g., `capital_agent`)*.

    #### Create or Update a Session

    Initialize or update the state for a specific user and session. Replace `capital_agent` with your actual app name if different.

    ```bash
    curl -X POST \
        $APP_URL/apps/capital_agent/users/user_123/sessions/session_abc \
        -H "Content-Type: application/json" \
        -d '{"preferred_language": "English", "visit_count": 5}'
    ```

    #### Run the Agent

    Send a prompt to your agent. Replace `capital_agent` with your app name and adjust the user/session IDs and prompt as needed.

    !!! note "Go: JSON field names are camelCase"
        The Python ADK REST API uses `snake_case` field names in the JSON request
        body (e.g. `app_name`, `user_id`, `new_message`). The Go ADK REST API
        uses `camelCase` (e.g. `appName`, `userId`, `newMessage`). Use the
        correct format for your deployment language.

    === "Python"

        ```bash
        curl -X POST $APP_URL/run_sse \
            -H "Content-Type: application/json" \
            -d '{
            "app_name": "capital_agent",
            "user_id": "user_123",
            "session_id": "session_abc",
            "new_message": {
                "role": "user",
                "parts": [{
                "text": "What is the capital of Canada?"
                }]
            },
            "streaming": false
            }'
        ```

    === "Go"

        ```bash
        curl -X POST $APP_URL/api/run_sse \
            -H "Content-Type: application/json" \
            -d '{
            "appName": "capital_agent",
            "userId": "user_123",
            "sessionId": "session_abc",
            "newMessage": {
                "role": "user",
                "parts": [{
                "text": "What is the capital of Canada?"
                }]
            },
            "streaming": false
            }'
        ```

    * Set `"streaming": true` if you want to receive Server-Sent Events (SSE).
    * The response will contain the agent's execution events, including the final answer.

## Troubleshooting

These are some common issues you might encounter when deploying your agent to GKE:

### 403 Permission Denied for Gemini's models

This usually means that the Kubernetes service account does not have the
necessary permission to access the Agent Platform API. Ensure that you have
created the service account and bound it to the `Agent Platform User` role as
described in the [Configure Kubernetes Service Account for Agent
Platform](#configure-kubernetes-service-account-for-agent-platform) section.
If you deployed with `adk deploy gke`, bind the `default` service account
instead, as described in the [Configure Workload Identity for Agent
Platform](#configure-workload-identity-for-agent-platform) section. If you
are using AI Studio, ensure that you have set the `GOOGLE_API_KEY` environment
variable in the deployment manifest and it is valid.

### 404 or Not Found response

This usually means there is an error in your request. Check the application logs to diagnose the problem.

```bash

export POD_NAME=$(kubectl get pod -l app=adk-agent -o jsonpath='{.items[0].metadata.name}')
kubectl logs $POD_NAME
```

### Attempt to write a readonly database

!!! note "Python only"
    This error applies to Python deployments that use SQLite for session storage.
    Go deployments use an in-memory session service by default and are not
    affected by this issue.

You might see there is no session id created in the UI and the agent does not
respond to any messages. This is usually caused by the SQLite database being
read-only. This can happen if you run the agent locally and then create the
container image which copies the SQLite database into the container. The
database is then read-only in the container.

```bash
sqlalchemy.exc.OperationalError: (sqlite3.OperationalError) attempt to write a readonly database
[SQL: UPDATE app_states SET state=?, update_time=CURRENT_TIMESTAMP WHERE app_states.app_name = ?]
```

To fix this issue, you can either:

Delete the SQLite database file from your local machine before building the
container image. This will create a new SQLite database when the container is
started.

```bash
rm -f sessions.db
```

or (recommended) you can add a `.dockerignore` file to your project directory
to exclude the SQLite database from being copied into the container image.

```txt title=".dockerignore"
sessions.db
```

Build the container image and deploy the application again.

### Insufficient Permission to Stream Logs `ERROR: (gcloud.builds.submit)`

This error can occur when you don't have sufficient permissions to stream build
logs, or your VPC-SC security policy restricts access to the default logs
bucket. To check the progress of the build, follow the link provided in the error
message or navigate to the Cloud Build page in the Google Cloud Console.

You can also verify the image was built and pushed to the Artifact Registry
using the command under the
[Build the container image](#build-the-container-image) section.

### Gemini models not supported in Live Api

When using the ADK Dev UI for your deployed agent, text-based chat works, but
voice (e.g., clicking the microphone button) fail. You might see a
`websockets.exceptions.ConnectionClosedError` in the pod logs indicating that
your model is "not supported in the live api".

This error occurs because the agent is configured with a model (like
`gemini-flash-latest` in the example) that does not support the Gemini Live
API. The Live API is required for real-time, bidirectional streaming of audio
and video.

## Cleanup

To delete the GKE cluster and all associated resources, run:

```bash
gcloud container clusters delete adk-cluster \
    --location=$GOOGLE_CLOUD_LOCATION \
    --project=$GOOGLE_CLOUD_PROJECT
```

To delete the Artifact Registry repository, run:

```bash
gcloud artifacts repositories delete adk-repo \
    --location=$GOOGLE_CLOUD_LOCATION \
    --project=$GOOGLE_CLOUD_PROJECT
```

You can also delete the project if you no longer need it. This will delete all
resources associated with the project, including the GKE cluster, Artifact
Registry repository, and any other resources you created.

```bash
gcloud projects delete $GOOGLE_CLOUD_PROJECT
```
