# Use the Visual Builder

<div class="language-support-tag">
  <span class="lst-supported">Supported in ADK</span><span class="lst-python">Python v1.18.0</span><span class="lst-preview">Experimental</span>
</div>

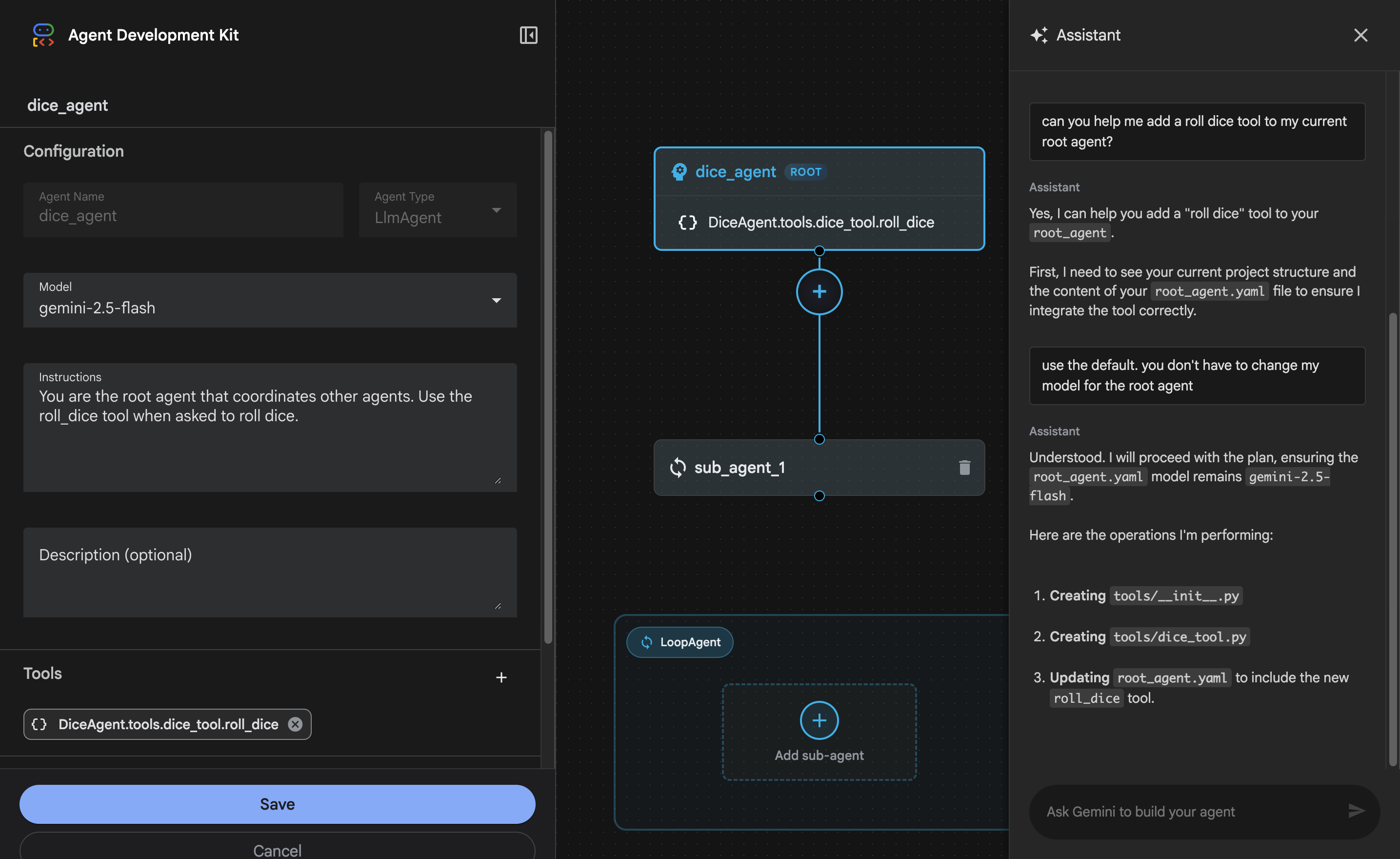

The ADK Visual Builder is a feature of the ADK web interface that provides a
visual workflow design environment for creating and managing agents. The Visual
Builder allows you to design, build, and test agents in a beginner-friendly
graphical interface, and includes an AI-powered assistant to help you build
agents.

![Visual Agent Builder](../assets/visual-builder.png)

!!! example "Experimental"

    The Visual Builder feature is an experimental release. We welcome your
    [feedback](https://github.com/google/adk-python/issues/new?template=feature_request.md)!

## Create an agent

To use the Visual Builder, start the ADK web interface:

```console
adk web
```

Then follow the steps below to create an agent.

??? tip "Tip: Run from a code development directory"

    The Visual Builder tool writes project files to new subdirectories located
    in the directory where you run ADK Web. Make sure you run this
    command from a developer directory location where you have write access.

![Visual Agent Builder start](../assets/visual-builder-start.png)

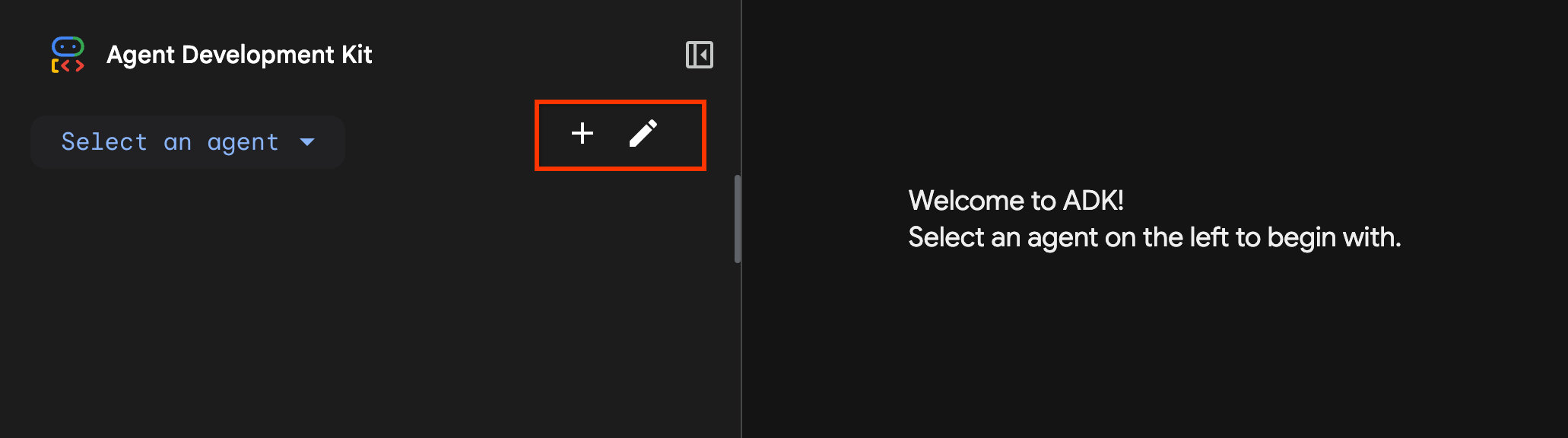

**Figure 1:** ADK Web controls to start the Visual Builder tool.

To create an agent with Visual Builder:

1. In the top left of the web UI, select the **+** (plus sign), as shown in
   *Figure 1*, to start creating an agent.
1. Type a name for your agent application and select **Create**.
1. Edit your agent by doing any of the following:
    - In the left panel, edit agent component values.
    - In the central panel, add new agent components.
    - In the right panel, use prompts to modify the agent or get help.
1. In the bottom left corner, select **Save** to save your agent.
1. Interact with your new agent to test it.
1. In the top left of the web UI, select the pencil icon, as shown in *Figure
   1*, to continue editing your agent.

Here are a few things to note when using Visual Builder:

- **Create agent and save:** When creating an agent, make sure you select
  **Save** before exiting the editing interface, otherwise your new agent may
  not be editable.
- **Agent editing:** Edit (pencil icon) for agents is *only* available for
  agents created with Visual Builder.
- **Add tools:** When adding existing custom Tools to a Visual Builder agent,
  specify a fully-qualified Python function name.

??? tip "Try this prompt with the Visual Builder assistant"

    ```none
    Help me add a dice roll tool to my current agent.
    Use the default model if you need to configure that.
    ```

## Supported components

The Visual Builder tool provides a drag-and-drop user interface for constructing
agents, as well as an AI-powered development Assistant that can answer questions
and edit your agent workflow. The tool supports all the essential components for
building an ADK agent workflow, including:

- **Agents**
    - **Root Agent**: The primary controlling agent for a workflow. All other
      agents in an ADK agent workflow are considered Sub Agents.
    - [**LLM Agent:**](/agents/llm-agents/)
      An agent powered by a generative AI model.
    - [**Sequential Agent:**](/agents/workflow-agents/sequential-agents/)
      A workflow agent that executes a series of sub-agents in a sequence.
    - [**Loop Agent:**](/agents/workflow-agents/loop-agents/)
      A workflow agent that repeatedly executes a sub-agent until a certain condition is met.
    - [**Parallel Agent:**](/agents/workflow-agents/parallel-agents/)
      A workflow agent that executes multiple sub-agents concurrently.
- **Tools**
    - [**Prebuilt tools:**](/integrations/)
      A limited set of ADK-provided tools can be added to agents.
    - [**Custom tools:**](/tools-custom/)
      You can build and add custom tools to your workflow.
- **Components**
    - [**Callbacks**](/callbacks/)
      A flow control component that lets you modify the behavior of agents at the start
      and end of agent workflow events.

Some advanced ADK features are not supported by Visual Builder due to
limitations of the Agent Config feature. For more information, see the Agent
Config [Known limitations](/agents/config/#known-limitations).

## Generated project structure

The Visual Builder tool generates code in the [Agent Config](/agents/config/)
format, using `.yaml` configuration files for agents and Python code for custom
tools. These files are generated in a subfolder of the directory where you ran
the ADK web interface. The following listing shows an example layout for a
DiceAgent project:

```text
DiceAgent/
    root_agent.yaml    # main agent code
    sub_agent_1.yaml   # sub agents (if any)
    tools/             # tools directory
        __init__.py
        dice_tool.py   # tool code
```

!!! note "Editing generated agents"

    You can edit the generated files in your development environment. However,
    some changes may not be compatible with Visual Builder.

For more information on the Agent Config code format used by Visual Builder, see
[Agent Config](/agents/config/) and [Agent Config YAML
schema](/api-reference/agentconfig/).

## Security and deployment

The Visual Builder saves agent configuration files to your project directory
through local API endpoints. For security reasons, these endpoints are available
only when the web UI is served (for example, `adk web`). In headless or API-only
deployments, such as the default `adk deploy cloud_run`, they are not
registered, which prevents unauthorized file writes.

!!! note "File upload restrictions"

    To prevent arbitrary file writes, file uploads through the Visual Builder
    accept only files with `.yaml` and `.yml` extensions. The server
    automatically rejects absolute paths, path traversal sequences (`..`), and
    YAML files containing blocked keys (such as `args`) that can execute
    arbitrary code.
