# Project Korosuke — Stage 3 (Launch): Fully On-Device Interactive Robot

<p>
<img src="docs/photo/D-Robotics_Logo.png" height="72" alt="D-Robotics">
<img src="docs/photo/event_logo1.png" height="72" alt="Robotics Dream Keeper Challenge">
</p>

D-Robotics **Robotics Dream Keeper Challenge** — Stage 3 showcase.
Korosuke (コロ助), the karakuri-robot from *Kiteretsu Daihyakka*, rebuilt as a ~46 cm
desktop animatronic whose brain is an **RDK X5** (10 TOPS BPU "Bayes-e", 8× Cortex-A55,
Ubuntu 22.04). A fan-made, non-commercial tribute.

![Korosuke revision 0.1 — fully assembled, smiling](docs/photo/20260725_korosuke-robot-revision_0.1.jpg)

> **Headline:** Korosuke **wakes up and greets you, sees you and follows you with its eyes, listens,
> thinks, talks back, smiles, ponders, reacts to gestures, waves
> its arms, and shuts itself down safely — 100 % on-device. No cloud. No dev PC at
> runtime.** Vision, speech-to-text, LLM dialogue, text-to-speech, expression, gesture
> and actuation all run on a single RDK X5 + an ESP32-S3 eye/arm co-MCU.

🎥 **[▶ Watch the 10-second on-device conversation demo →](docs/photo/korosuke_demo_10s.mp4)**

---

## 1. What Korosuke does (the integrated experience)

Power it on and, unattended:

0. **Wakes up** — on boot it auto-starts, self-checks its audio, blinks its eyes into a
   smile and says *"おはようナリ！コロ助、起きたナリ！"* while waving.
1. **Sees you** — BPU YOLO11-pose finds the largest person + 17-point skeleton.
2. **Looks at you** — the round eyes (2× GC9A01) track your position.
3. **Greets you** — a "…ナリ" greeting in a high childlike voice + waves both arms.
4. **Emotes** — smile / sad / angry / surprised / sleepy on the round displays.
5. **Reacts to gestures** — both hands up → *"バンザイ！"* + raises both arms; one hand
   up → *"はーい、ナリ！"*; one-hand wave → waves back with that arm.
6. **Talks with you** — your speech is transcribed on-device (sherpa-onnx JP); while the
   **on-device LLM** (TinySwallow-1.5B) thinks, the eyes show a **"考え中" pondering
   animation**; the reply is spoken via on-device TTS (Open JTalk) in Korosuke's
   "ワガハイ…ナリ" persona, and the eyes break into a smile.
7. **Misses you** — when you leave frame it droops, says a farewell, then settles back
   to a calm awake face.
8. **Sleeps safely** — a physical button runs a graceful shutdown: sleepy eyes →
   *"おやすみナリ…また会おうナリ！"* → **✕✕ "power-off-OK" eyes** that stay lit after the
   OS halts, so you know when it's safe to cut power.

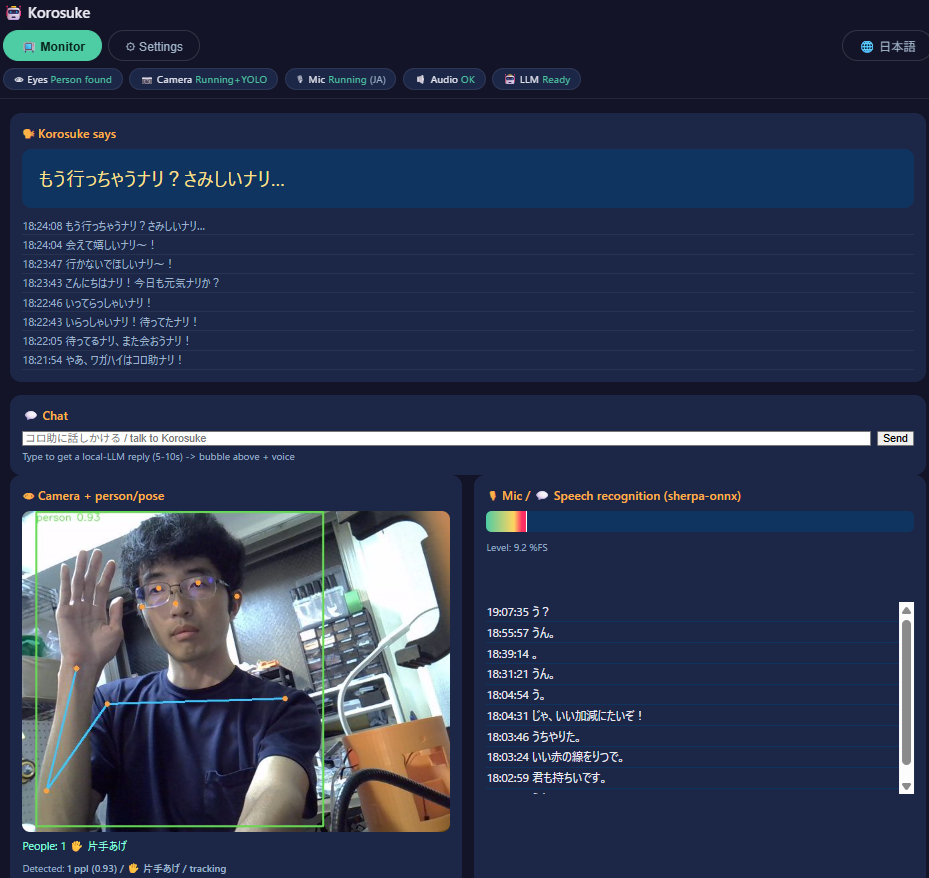

A **web dashboard** (`http://<board-ip>:8080`, tabbed **Monitor / Settings**) shows the
live camera + skeleton, mic level, recognition state and speech — and lets you tune every
parameter (volume, mic gain, voice pitch, thresholds, reaction toggles, eyes, arms, and a
**one-click audio self-test**) live from any PC on the LAN.

![Korosuke web dashboard — live camera + skeleton, recognition state and conversation log](docs/photo/korosuke-monitor.png)

## 2. Stage-3 technical achievements (all measured on the real board)

| Capability | Implementation | On-device measurement |
|---|---|---|
| Vision (person + pose) | BPU YOLO11n-pose (Bayes-e `.bin`) | live camera ~**19.5 FPS** |
| Speech-to-text | **sherpa-onnx SenseVoice** (multilingual JP/EN/…, int8) + Silero VAD | real-time on CPU |
| **On-device LLM dialogue** | **llama.cpp + TinySwallow-1.5B** *(Qwen2.5-1.5B-based)* Q5 (CPU) | load 24 s, **1.5–3.3 tok/s**, reply 5–10 s |
| Text-to-speech | **Open JTalk** (JP) / **espeak-ng** (EN), pitched childlike voice | dynamic, any text, instant |
| **Audio out (miniaturized)** | **MAX98357A** I2S Class-D amp on 40-pin **i2s1** + φ50 8Ω speaker | custom-built card, DSP-tuned |
| Expression | 2× GC9A01 on ESP32-S3 (LovyanGFX): 8 states incl. smile / pondering / ✕✕ | ≥30 FPS render |
| Gesture recognition | skeleton (wrist-vs-shoulder): both/one raise + wave | in the pose loop, no extra model |
| Arm actuation | 2× SG90 rope-pull bellows arms on ESP32-S3 LEDC PWM | GPIO4/5, auto-detach to save current |
| Safe power | GPIO shutdown button + boot auto-start (systemd) | goodnight voice + ✕✕-eyes signal |
| Maintenance net | eth0 **static 192.168.0.200** + usb0 gadget lifeline | auto-assigned on boot |

**Whole-stack thermal benchmark** (camera + pose + STT + LLM + TTS + eyes + arms all at
once, LLM pinning ~**600 % CPU**): CPU **≈50 °C** / BPU **≈50 °C** / DDR **≈51 °C**
(target < 60 °C ✅, no fan throttling), RAM ~2.2 GiB / 6.9 GiB used. The full experience
fits with headroom on one 8 GB board.

## 3. Hardware, miniaturized and packed into the body

The Stage-3 build moved the whole brain **inside the 3-D-printed body** (OpenSCAD,
color-split printing). Two size problems were solved this stage:

- **Speaker → MAX98357A.** The oversized 5 cm enclosed speakers were replaced by a small
  **φ50 mm 8 Ω driver** driven by a **MAX98357A I2S digital amp** off the RDK X5 40-pin
  I2S1. Because the RDK kernel ships **no** MAX98357A codec driver (and no in-tree dummy
  codec), we **built `snd-soc-max98357a` out-of-tree** against the on-board
  `hobot-kernel-headers`, authored a **device-tree overlay** (`simple-audio-card`,
  `dw_i2s1` ↔ `maxim,max98357a`), and made it auto-load. See
  [docs/rdk_x5_40pin_i2s_max98357a.md](docs/rdk_x5_40pin_i2s_max98357a.md).
- **Camera → bare UVC webcam** in the chest, behind the nose/chest port (see the lens in
  the chest cut-out of the hero photo). It is auto-detected (USB-preference, so RDK
  internal video nodes are never mistaken for the camera) and its built-in mic feeds STT.

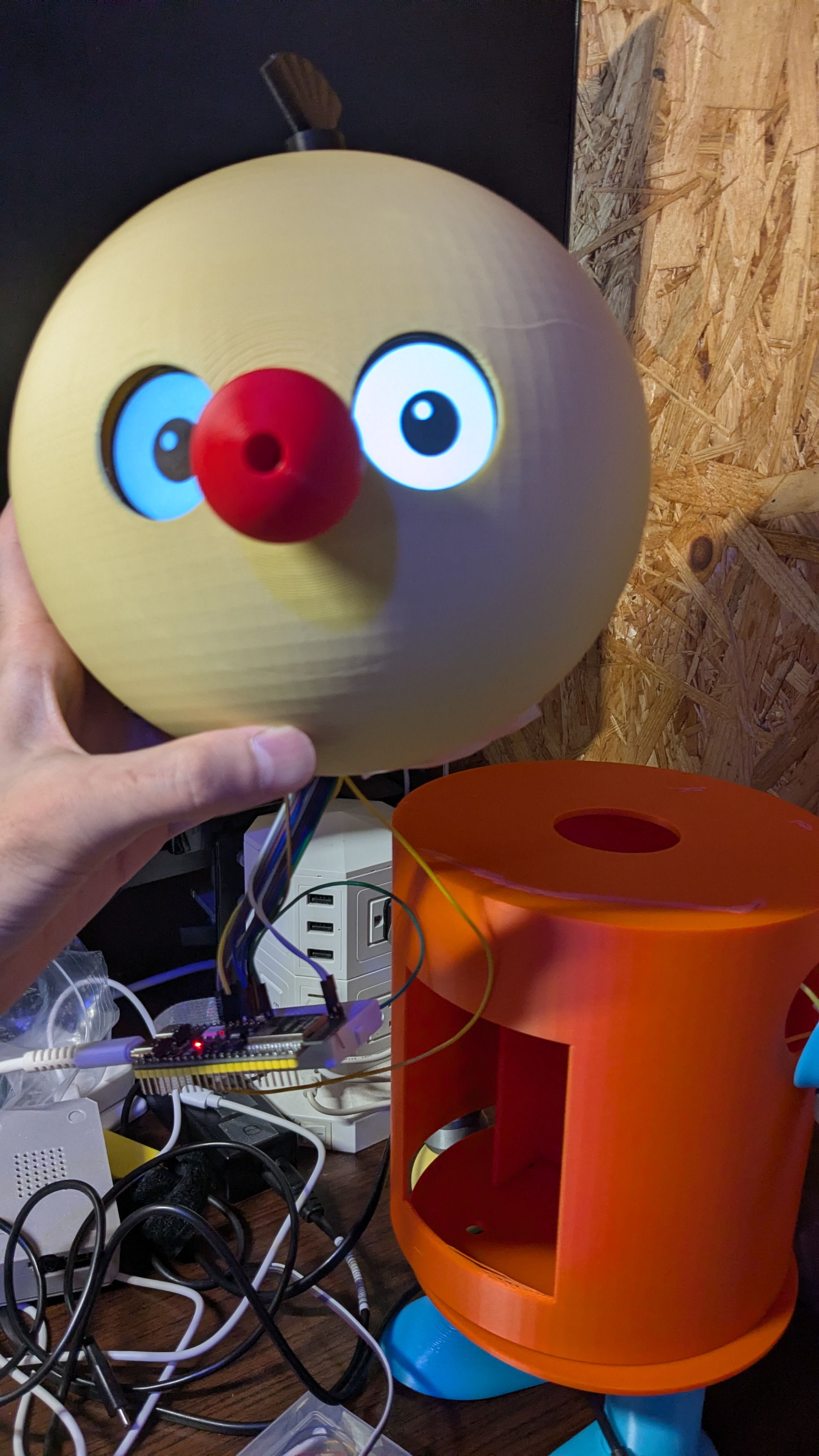

![Korosuke's head — 2× GC9A01 round eyes + red camera-nose, driven by the ESP32-S3 co-MCU](docs/photo/Korosuke_Eye.jpg)

*The head carries the two round GC9A01 eye displays (here in the wide "awake" look) and
the camera-in-nose port; the ESP32-S3 co-MCU on the bench drives the eyes and arms. The
orange body hides the RDK X5 + fan + MAX98357A amp + φ50 speaker.*

<p>
<img src="docs/photo/head_v1.jpg" width="49%" alt="Inside the head — eye displays behind the face, ESP32-S3 co-MCU on its tray">
<img src="docs/photo/body_ver2.jpg" width="49%" alt="Inside the torso — RDK X5, power bank, SG90 arm servos and speaker packed in">
</p>

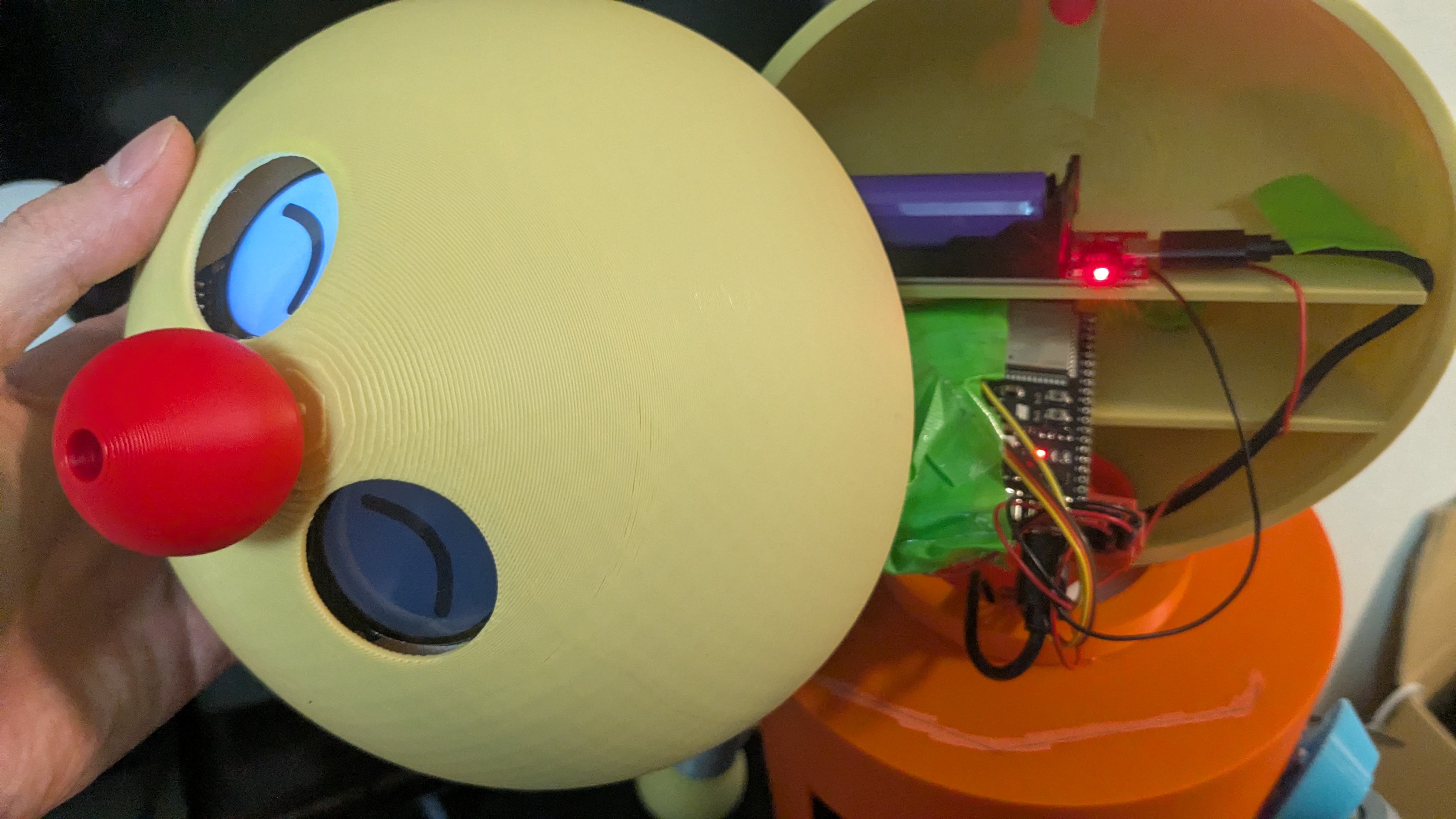

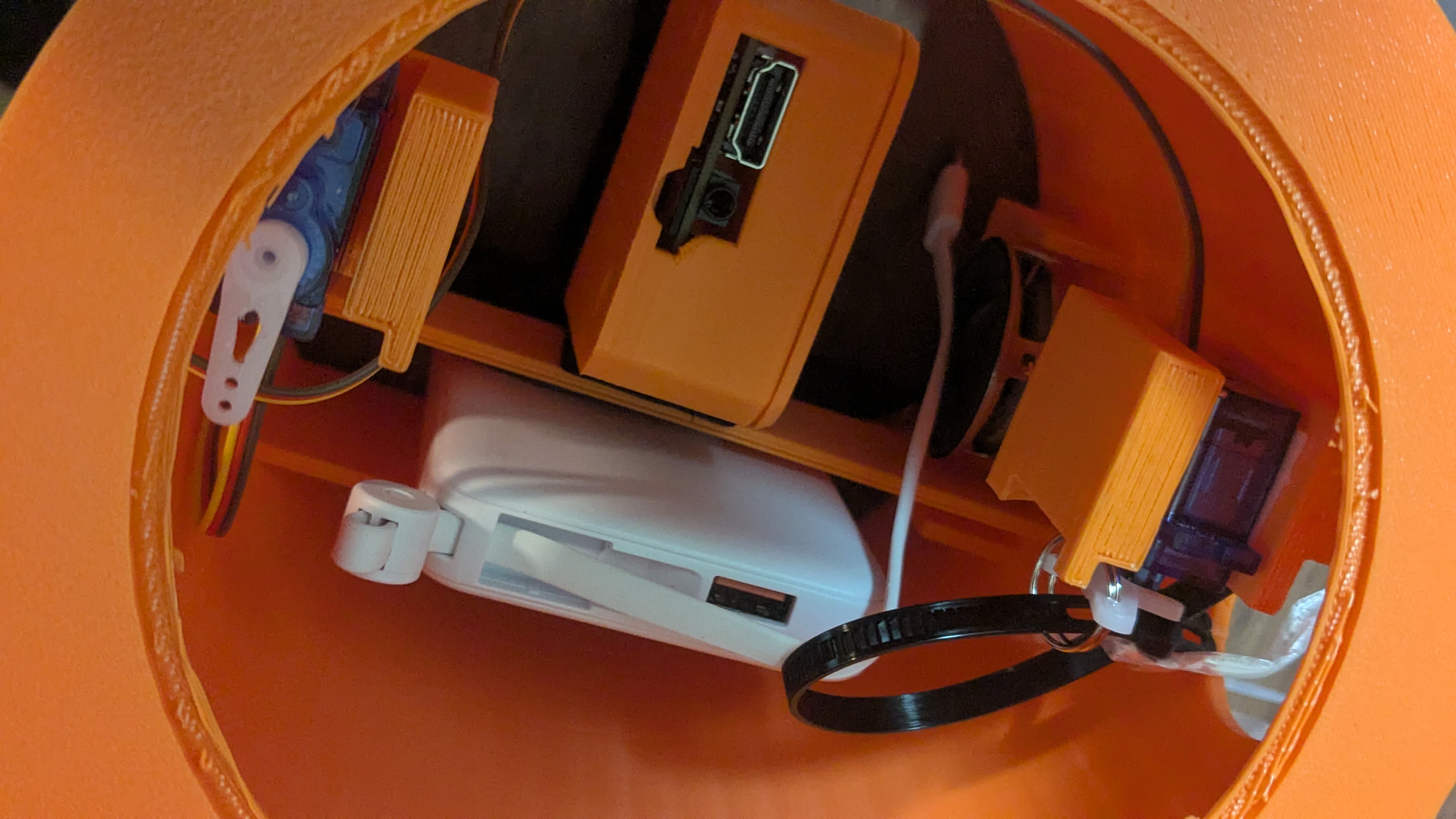

*As-built internals: **inside the head** (eye displays behind the face, ESP32-S3 co-MCU on its tray) and
**inside the torso** (RDK X5 case, power bank, 2× SG90 rope-pull servos and the φ50 speaker — everything packed in).*

🎥 **Watch:** [**10-second on-device conversation demo**](docs/photo/korosuke_demo_10s.mp4) ·
[rope-pull arm driven by the SG90 servo](docs/photo/arm_rope_pull.mp4)

### How it all wires together

```mermaid
flowchart LR
  %% All parts are boxes. Colour = category. Pin numbers are on the wires (edge labels).
  PB["🔋 Mobile battery<br/>(power bank) 5V/3A"]:::power
  LIPO["🔋 LiPo<br/>(for servos)"]:::power
  RDK["🧠 RDK X5 (10 TOPS)<br/>(brain — everything on-device)"]:::main
  ESP["ESP32-S3<br/>(eyes/arms MCU)"]:::compute
  AMP["MAX98357A<br/>I2S amp (GAIN=9dB)"]:::module
  EYES["2× GC9A01<br/>round LCD (eyes)"]:::module
  CAM["📷 Camera C270<br/>(built-in mic)"]:::periph
  BTN["⏻ Shutdown button"]:::periph
  SPK["🔊 φ50 speaker"]:::periph
  SRV["💪 2× SG90<br/>servos (arms)"]:::periph

  PB   -->|"USB-C 5V/3A"| RDK
  CAM  -->|"USB (video + audio)"| RDK
  BTN  -->|"pin18(GPIO24) / pin20(GND)"| RDK
  RDK  -->|"USB (power + data · ttyACM0)"| ESP
  RDK  -->|"5V:pin2/4 · GND:pin6<br/>BCLK:pin12 · LRC:pin35 · DIN:pin40"| AMP
  AMP  -->|"analog +/−"| SPK
  ESP  -->|"SPI: SCK12·MOSI11·DC9·RST8<br/>CS_L10·CS_R14 · 3V3·GND"| EYES
  ESP  -->|"PWM: GPIO4(L) / GPIO5(R)"| SRV
  LIPO -->|"LiPo voltage direct (no BEC)"| SRV
  LIPO -.->|"common GND ⚠ (required)"| ESP

  classDef power   fill:#f6b73f,color:#3a2a00,stroke:#c98a12,stroke-width:2px;
  classDef compute fill:#1f6feb,color:#fff,stroke:#58a6ff,stroke-width:2px;
  classDef module  fill:#8957e5,color:#fff,stroke:#bc8cff,stroke-width:2px;
  classDef periph  fill:#2da44e,color:#fff,stroke:#3fb950,stroke-width:2px;
  classDef main    fill:#1f6feb,color:#fff,stroke:#ffffff,stroke-width:4px,font-size:22px;
```

**Two power rails** (power bank → RDK X5 · LiPo → servos) with a **shared common ground**;
pin numbers are on the wires. Full connection table & notes: [docs/wiring.md](docs/wiring.md).

## 4. Engineering deep-dives (what made this hard, and how we proved it)

- **The BPU does vision; the CPU does language — and we proved the BPU *cannot* do the
  LLM on X5.** A multi-language, source-verified investigation
  ([docs/rdk_x5_bpu_llm.md](docs/rdk_x5_bpu_llm.md)) concludes: the RDK X5 Bayes-e BPU has
  **no official LLM toolchain** — the "large-model toolchain" is **RDK S100 (Nash)
  only**. Decisive evidence: D-Robotics' *own* X5 packages (`magicbox_qwen_llm`,
  `InternVL2_5-1B-GGUF-BPU`) run the language model on **llama.cpp/CPU**; the BPU only
  accelerates the vision (ViT) tower. So Korosuke's design — perception on the BPU,
  dialogue on the 8× A55 CPU — is the *correct* architecture for this board, not a
  limitation we failed to overcome.
- **"Loud but clean" on a tiny speaker.** We measured the small driver's clean ceiling at
  **≈ −6 dBFS** and built a playback DSP (high-pass to protect the cone + compressor +
  brick-wall limiter + peak-normalize to the ceiling) so the childlike voice is loud
  without the onset clipping we first heard. Output is a modest ~0.1–0.4 W — deliberately
  speaker-limited, not amp-limited.
- **Self-healing audio.** A cold-boot module load-order race can leave the I2S card in an
  un-openable state. A boot-time root service **and** a web **"🔈 audio self-test"**
  button verify the card and, if needed, re-bind it automatically.
- **Robust to hardware reality.** Debugged live: ESP32-S3 LEDC is **14-bit max** (16-bit
  silently emits no PWM); the eye's native-USB port resets on host open (use the CH343
  UART); servo release needs `ledcDetachPin`, not duty-0; a half-inserted USB power cable
  and a bad USB cable were diagnosed straight from `dmesg` (`Cannot enable. Maybe the USB
  cable is bad?`); camera/mic device names and indices are auto-detected so swapping the
  webcam "just works."

## 5. Architecture (no cloud)

**The BPU does perception; the CPU does language** — two parallel workloads, one board,
zero cloud. (GitHub renders the Mermaid diagram below.)

```mermaid
flowchart LR
    CAM([UVC Camera]):::s --> YOLO
    MIC([USB Mic]):::s --> STT
    BTN([Shutdown button]):::s --> BRAIN

    subgraph RDK["RDK X5 · fully on-device"]
      direction TB
      subgraph BPU["BPU (10 TOPS) — PERCEPTION"]
        YOLO["YOLO11n-pose (19.5 FPS)"]
      end
      subgraph CPU["CPU 8× A55 — LANGUAGE"]
        STT["STT: sherpa-onnx"]
        LLM["LLM: TinySwallow-1.5B"]
        TTS["TTS: Open JTalk"]
      end
      BRAIN{{"brain (korosuke-monitor)"}}
    end

    YOLO --> BRAIN
    STT --> BRAIN
    BRAIN --> LLM --> BRAIN
    BRAIN --> TTS --> AMP["MAX98357A amp"] --> SPK([φ50 speaker]):::o
    BRAIN -->|USB / UART| ESP32["ESP32-S3 (eyes + arms)"]:::m
    ESP32 --> EYES["2× GC9A01 eyes"]:::m
    ESP32 --> ARMS["2× SG90 arms"]:::m

    classDef s fill:#1f6feb,color:#fff,stroke:#58a6ff;
    classDef m fill:#8957e5,color:#fff,stroke:#bc8cff;
    classDef o fill:#2da44e,color:#fff,stroke:#3fb950;
```

The board brings up its own network — reachable at **eth0 static `192.168.0.200`** on the LAN,
**or `192.168.128.10` over the Type-C (USB-C) gadget link** to a PC — and every component is a
**systemd** service that auto-starts on power-on. **No dev PC at runtime.**

### 5.1 ROS 2 node / topic graph (as-built)

The same pipeline is also implemented as a **ROS 2 graph** — 6 nodes + 2 custom messages,
started with `ros2 launch korosuke_nodes korosuke.launch.py` (code: [`ros2_ws/`](ros2_ws/);
Stage-2 design: [PROPOSAL.md §2.2](PROPOSAL.md)):

```mermaid
flowchart LR
    ASR[/"user_text · String<br/>(from STT)"/]:::ext
    VIS(["vision_node"]):::n
    BRAIN(["brain_node"]):::n
    DIAG(["dialogue_node"]):::n
    VOICE(["voice_node"]):::n
    BRIDGE(["serial_bridge_node"]):::n
    ESP["ESP32-S3<br/>eyes + arms"]:::hw
    SPK["φ50 speaker"]:::hw

    VIS -->|"/korosuke/face_pose · FacePose"| BRAIN
    BRAIN -->|"/korosuke/greet · String"| DIAG
    ASR -->|"/korosuke/user_text · String"| DIAG
    DIAG -->|"/korosuke/say_text · String"| VOICE
    BRAIN -->|"/korosuke/eye_cmd · EyeCmd"| BRIDGE
    DIAG -->|"/korosuke/eye_cmd · EyeCmd"| BRIDGE
    BRIDGE -->|"UART frames"| ESP
    VOICE -->|"Open JTalk"| SPK

    classDef n fill:#8957e5,color:#fff,stroke:#bc8cff;
    classDef hw fill:#2da44e,color:#fff;
    classDef ext fill:#1f6feb,color:#fff;
```

**Two integrations of one on-device pipeline.** The ROS 2 graph above (custom messages
`FacePose` / `EyeCmd`, topic-based nodes) satisfies the challenge's ROS 2 requirement; its
`dialogue_node` / `voice_node` run the **same fully on-device stack as the monolith —
TinySwallow-1.5B via llama.cpp and Open JTalk (no cloud, no API keys)**. For the interactive
showcase we also ship a **single low-latency `korosuke-monitor` service** that fuses the same
stages in one process (adding the Web dashboard, audio DSP and the 8-state eyes).

> **Verification status (honest).** All live testing and the demo video use the **monolith**.
> In the ROS 2 graph, the `vision_node → brain_node → serial_bridge → eyes` path is
> **verified on hardware**; the full graph including `dialogue_node` / `voice_node` is
> **code-complete and reuses the monolith's proven on-device modules, but has not yet been
> run end-to-end on the board.** Listening (STT) is **not yet a ROS node** — `dialogue_node`
> consumes `/korosuke/user_text`, which the monolith's sherpa-onnx STT (or manual input)
> publishes; a dedicated `stt_node` is future work.

**Web control of the ROS graph.** Launch with `with_web:=true` to also start
`rosbridge_server` (WebSocket :9090); then open [`ros2_ws/.../web/console.html`](ros2_ws/src/korosuke_nodes/web/console.html)
in a browser and connect to `ws://<board-ip>:9090`. The page is **dependency-free** — it
speaks the rosbridge JSON protocol over a raw WebSocket (no roslibjs, no CDN, on-device
friendly) — and lets you talk to `/korosuke/user_text`, drive `/korosuke/eye_cmd`
(emotions incl. thinking/✕✕, gaze, blink), and watch `/korosuke/say_text` +
`/korosuke/face_pose` live. (The monolith keeps its own richer dashboard at `:8080`.)

## 6. Innovation highlights

- **A complete on-device conversational + expressive robot on a $140-class board** —
  ASR, a real LLM, TTS, 8-state emotion, gesture and actuation, zero cloud.
- **Bilingual, on the fly (日本語 / English)** — one switch flips the *whole* robot between
  Japanese and English: speech recognition (sherpa-onnx), the LLM's persona & replies
  (TinySwallow-1.5B), the voice (Open JTalk / espeak-ng) **and** the web dashboard — with
  **no cloud, no API keys**. The dashboard shows the live AI stack in use (LLM / persona /
  STT / TTS) so what's running is always transparent.
- **Aligned with D-Robotics' own reference voice stack** — the on-device pipeline mirrors
  D-Robotics' official RDK
  [voice-interaction guide](https://developer.d-robotics.cc/magicbox_doc/en/algorithm-development/voice-interaction):
  **SenseVoice** multilingual ASR (sherpa-onnx) + a **Qwen2.5-1.5B-family** LLM — we run the
  Japanese-tuned **TinySwallow-1.5B** (built on Qwen2.5-1.5B) on llama.cpp/CPU.
- **Character-faithful & alive**: pitched "ワガハイ…ナリ" voice; hand-tuned **smile** and a
  **"thinking" eye animation** during the LLM's think time so the wait feels intentional;
  a rope-pulled bellows arm matching the 3-D-printed center-bore.
- **Custom kernel work**: an out-of-tree ALSA codec driver + device-tree overlay to add a
  digital I2S amp the vendor kernel didn't support — turning a $2 amp into a body-fit speaker.
- **Ships like a product**: power-on-to-greeting auto-start, a physical safe-shutdown with
  a clear "safe to unplug" signal, a static maintenance IP, and a web self-test.

## 7. Build / BOM

📋 **Full itemized BOM (with rationale) is in the Stage-2 design → [PROPOSAL.md §3.1](PROPOSAL.md).**
To avoid duplication, this section lists only the **Stage-3 as-built hardware changes** vs. that plan:

| Change in Stage 3 | Part | Why / ref |
|---|---|---|
| **Speaker miniaturized** | MAX98357A I2S amp + φ50 mm 8 Ω driver (WYGD50D-8-03) | fit the body; needed a **custom out-of-tree kernel driver + DT overlay** — [build](docs/rdk_x5_40pin_i2s_max98357a.md) · [firmware/max98357a/](firmware/max98357a/) · [g109012](https://akizukidenshi.com/catalog/g/g109012/) |
| **Camera** | UVC USB webcam (Logitech C270), mic built-in | on-device vision + STT; auto-detected on replug |
| **Safe power** | GPIO shutdown button | graceful halt (goodnight voice → ✕✕ eyes) — [deploy/](deploy/) |
| Mic | uses the C270's built-in mic (INMP441 in the plan not needed) | one fewer part |

> Louder-speaker upgrade path (optional): a φ40 mm **4 Ω / 3 W** full-range
> ([DXYD40-22P-4A](https://akizukidenshi.com/catalog/g/g116025/)) in a small sealed baffle
> roughly doubles clean output (mind the DSP ceiling, §8).

**Wiring & diagnostics:** [hardware block diagram](docs/hardware_block_diagram.md) ·
[40-pin I2S / MAX98357A](docs/rdk_x5_40pin_i2s_max98357a.md) ·
[network / maintenance](docs/network_setup.md) ·
[power/USB brown-out](docs/power_usb_troubleshooting.md).

## 8. Known issues, limitations & failure recovery

| Area | Known limitation | Recovery / mitigation |
|---|---|---|
| **LLM latency** | on-device 1.5B on CPU → 5–10 s to reply (the BPU *cannot* accelerate LLM on X5) | "考え中" eye animation covers the wait; canned "…ナリ" fallbacks — see [BPU-LLM analysis](docs/rdk_x5_bpu_llm.md) |
| **Power / USB brown-out** | an inadequate USB-C cable/adapter → no green LED, USB peripherals drop, flaky network | 5 V/3 A+ certified supply + short thick cable; diagnose from `dmesg`; full guide → [power_usb_troubleshooting.md](docs/power_usb_troubleshooting.md) |
| **Audio-card cold-boot race** | module load-order can leave the I2S card un-openable | boot-time root service **+** web **"🔈 audio self-test"** auto-rebind |
| **Peripheral swap** | camera index / mic-card name can change on replug | auto-detected (USB-preference + name lookup) |
| **No RTC** | battery-less clock resets offline | fake-hwclock; NTP when online |
| **Bipedal gait** ✴️ | stretch only — the salvaged QDD motors are unreliable | MVP is seated/standing; decoupled from the critical path |

**Not implemented in this build (deferred, not claimed as done):**
- **2-axis mouth / lip-sync** — no mouth mechanism is fitted; all expression is via the eyes and voice. Lip-sync (proposed as G4) is deferred.
- **Bipedal "penguin" walking (QDD legs)** — stretch only; the salvaged QDD motors are unreliable, so the MVP is a seated/standing torso.
- **Back-mounted sword prop** — not built.
- **Neck servo (head turn)** — face tracking is **eyes-only**; no neck actuator is fitted.
- **Head touch / "petting" reaction** — the firmware has a touch path, but no working touch sensor is fitted in this build.

**Safe shutdown / soft E-STOP:** a GPIO button runs a graceful halt (goodnight voice → ✕✕
"power-off-OK" eyes that persist after the OS halts); the arm servos **auto-detach** (zero
torque) between moves and on a web "🪫 relax" command — documented safety limit.

## 9. Stage-3 requirement coverage (for reviewers)

| Requirement | Where |
|---|---|
| System architecture | §5 Mermaid + ROS 2 graph ([PROPOSAL.md §2.2](PROPOSAL.md), code [`ros2_ws/`](ros2_ws/)) |
| **BPU-accelerated model** (name + runtime) | **YOLO11n-pose on Bayes-e BPU, ~19.5 FPS** (§2, table below) |
| Continuous real-time detection | pose loop runs live (not single-frame) |
| Multi-task (2+ parallel workloads) | BPU vision **+** CPU STT/LLM/TTS concurrently; CPU/BPU load & thermal in §2 |
| Motor/actuator control + safety limits | 2× SG90 rope-pull arms, auto-detach; 14-bit LEDC (§4, §8) |
| Safe shutdown / E-STOP | GPIO button + ✕✕-eyes signal (§8) |
| Interface spec / calibration | [docs/rdk_x5_40pin_i2s_max98357a.md](docs/rdk_x5_40pin_i2s_max98357a.md), [docs/TESTING.md](docs/TESTING.md) |
| Known issues / failure recovery | §8 + docs/ |
| Reproducible build / Quick Start | §10 + repo `README.md` |
| **Demo video 3–7 min (YouTube)** | ✅ [youtu.be/NJwj6Iazd20](https://youtu.be/NJwj6Iazd20) |
| **LICENSE · community post · showcase PR** | ⚠️ **TODO** before final submission |

**Benchmark (measured on the board):**

| Task | Model / tool | Version | Result |
|---|---|---|---|
| Person + pose | YOLO11n-pose (Bayes-e `.bin`) | RDK OS 3.x / hbdk | ~**19.5 FPS** |
| STT | sherpa-onnx **SenseVoice** multilingual int8 + Silero VAD | onnxruntime | real-time (CPU) |
| LLM | TinySwallow-1.5B Q5_K_M *(Qwen2.5-1.5B-based)* | llama.cpp | load 24 s, **1.5–3.3 tok/s** |
| TTS (JP) | Open JTalk (pitched) | apt | instant |
| Thermal — full stack, LLM at ~600 % CPU | — | `hrut_somstatus` | CPU/BPU/DDR **≈50–51 °C** (<60 °C ✅) |

> **BPU-acceleration proof:** YOLO11n-pose runs as a compiled Bayes-e `.bin` on the BPU
> (`hrut_somstatus` shows non-zero `bpu0` utilisation during inference); the LLM stays on
> the 8× A55 CPU **by design** (see [docs/rdk_x5_bpu_llm.md](docs/rdk_x5_bpu_llm.md)).

## 10. Reproduce

```bash
# On the RDK X5 — everything is one integrated service, auto-starting on boot:
sudo systemctl status korosuke-monitor   # camera+pose+STT+LLM+TTS+eyes+arms
#   → open http://<board-ip>:8080  (Monitor / Settings tabs)
# Safe shutdown: hold the GPIO button ~1 s (goodnight voice → ✕✕ eyes → halt).
```
Component research + decisions:
[docs/dialogue_stack_research.md](docs/dialogue_stack_research.md) (LLM/TTS),
[docs/stt_research.md](docs/stt_research.md) (STT),
[docs/rdk_x5_bpu_llm.md](docs/rdk_x5_bpu_llm.md) (why BPU-LLM is S100-only),
[docs/mocap_capabilities.md](docs/mocap_capabilities.md) (gesture),
[docs/implementation_plan.md](docs/implementation_plan.md) (roadmap),
[docs/TESTING.md](docs/TESTING.md) (test commands),
[docs/diary/](docs/diary/) (build log).

---
*"ワガハイはコロ助ナリ！" — fully on-device, powered by RDK X5.*
Character © Fujiko F. Fujio — fan-made, non-commercial tribute.
