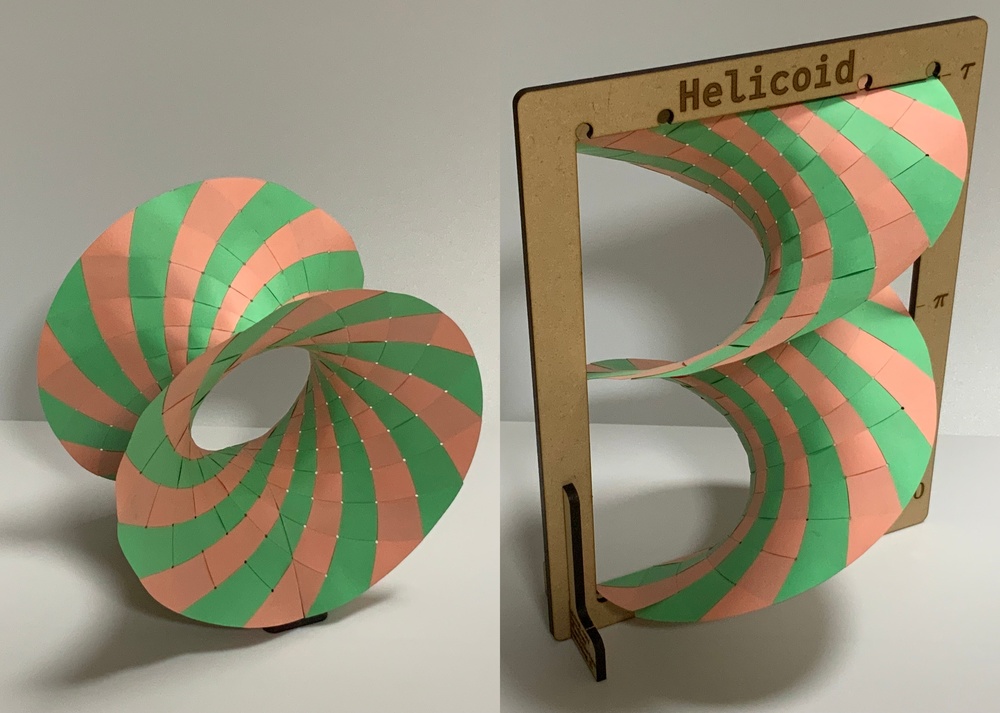

"Weaving a transformable curved surface from catenoid to helicoid.\n",
"You can buy the kit [via my Booth site](https://hyrodium.booth.pm/items/5046306)!"
],
"metadata": {}
},
{
"cell_type": "markdown",
"source": [
""
],
"metadata": {}
},
{
"cell_type": "markdown",
"source": [
"## Load packages"
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"using Luxor\n",
"using IntervalSets\n",
"using BasicBSpline\n",
"using BasicBSplineFitting\n",
"using StaticArrays\n",
"using ElasticSurfaceEmbedding\n",
"using LinearAlgebra"
],
"metadata": {},
"execution_count": 1
},
{
"cell_type": "markdown",
"source": [
"## Define the shape of the surface"
],
"metadata": {}
},
{
"outputs": [
{
"output_type": "execute_result",
"data": {
"text/plain": "f2 (generic function with 1 method)"
},
"metadata": {},
"execution_count": 2
}
],
"cell_type": "code",
"source": [
"const N = 8\n",
"const J = 1\n",
"f0(s) = max(-abs(s+1/2N-1)-(1/2N-1), 0)\n",
"f1(s) = -1/2+f0(mod(s-J/N, 2))\n",
"f2(s) = 1/2-f0(mod(s-1-J/N, 2))"
],
"metadata": {},
"execution_count": 2
},
{
"cell_type": "markdown",
"source": [
"0≤u≤2π, -π/2≤v≤π/2\n",
"0≤s≤2, 0≤t≤1"
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"u(s,t) = π*s\n",
"v(s,t) = π*(f1(s)*(1-t) + t*f2(s))\n",
"catenoid(u,v) = SVector(cos(u)*cosh(v),sin(u)*cosh(v),v)\n",
"ElasticSurfaceEmbedding.𝒑₍₀₎(s,t) = catenoid(u(s,t), v(s,t))"
],
"metadata": {},
"execution_count": 3
},
{
"cell_type": "markdown",
"source": [
"## Compute the shape of the embeddings"
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"splitat = [-1/N, -1/2N, 0, 1/2N, 1/N, 1, 1+1/2N, 1+1/N]\n",
"steptree = StepTree()\n",
"for shift in [0, -1/N, -2/N, -3/N]\n",
" initial_state!(steptree, (0+shift..2+shift, 0..1), splitat)\n",
" newton_onestep!(steptree, fixingmethod=:fix5points)\n",
" newton_onestep!(steptree, fixingmethod=:fix3points)\n",
" newton_onestep!(steptree)\n",
" refinement!(steptree, p₊=(0,1), k₊=ElasticSurfaceEmbedding.suggest_knotvector(steptree))\n",
" for _ in 1:5 newton_onestep!(steptree) end\n",
" pin!(steptree)\n",
"end"
],
"metadata": {},
"execution_count": 4
},
{
"cell_type": "markdown",
"source": [
"## Helper functions to export svg images"
],
"metadata": {}
},
{
"outputs": [
{
"output_type": "execute_result",
"data": {
"text/plain": "svector2point (generic function with 1 method)"
},
"metadata": {},
"execution_count": 5
}
],
"cell_type": "code",
"source": [
"function create_bezierpath(C::BSplineManifold{1,(3,),Point})\n",
" P = bsplinespaces(C)[1]\n",
" k = knotvector(P)\n",
" k′ = 3*unique(k) + k[[1,end]]\n",
" P′ = BSplineSpace{3}(k′)\n",
" C′ = refinement(C,P′)\n",
" a′ = controlpoints(C′)\n",
" n′ = dim(P′)\n",
" m = (n′-1) ÷ 3\n",
" bezierpath = BezierPath([BezierPathSegment(a′[3i-2], a′[3i-1], a′[3i], a′[3i+1]) for i in 1:m])\n",
" return bezierpath\n",
"end\n",
"function svector2point(M::BSplineManifold)\n",
" P = bsplinespaces(M)\n",
" a = controlpoints(M)\n",
" a′ = [Point(p[1], -p[2])*100/π for p in a]\n",
" M′ = BSplineManifold(a′, P)\n",
" return M′\n",
"end"
],
"metadata": {},
"execution_count": 5
},
{
"cell_type": "markdown",
"source": [
"## Settings for export"
],
"metadata": {}
},
{
"outputs": [
{
"output_type": "execute_result",
"data": {
"text/plain": "400"
},
"metadata": {},
"execution_count": 6
}
],
"cell_type": "code",
"source": [
"xlims=(-2,2)\n",
"ylims=(-2,2)\n",
"unitlength = (100, \"mm\")\n",
"\n",
"width = (xlims[2] - xlims[1]) * unitlength[1]\n",
"height = (ylims[2] - ylims[1]) * unitlength[1]"
],
"metadata": {},
"execution_count": 6
},
{
"cell_type": "markdown",
"source": [
"## Export embeddings"
],
"metadata": {}
},
{
"outputs": [],
"cell_type": "code",
"source": [
"mkpath(\"helicatenoid2\")\n",
"for i in 1:(N+1)÷2\n",
" filepath = joinpath(\"helicatenoid2\", \"embedding-$(i).svg\")\n",
" M = svector2point(steptree.steps[10i].manifold)\n",
" D¹ = domain(bsplinespaces(M)[1])\n",
" D² = domain(bsplinespaces(M)[2])\n",
" u²₋ = minimum(D²)\n",
" u²₊ = maximum(D²)\n",
"\n",
" Drawing(width, height, filepath)\n",
" origin()\n",
" background(\"white\")\n",
" sethue(\"red\")\n",
"\n",
" C = M(:,u²₋)\n",
" path = create_bezierpath(C)\n",
" drawbezierpath(path, :stroke)\n",
" C = M(:,u²₊)\n",
" path = create_bezierpath(C)\n",
" drawbezierpath(path, :stroke)\n",
"\n",
" p1 = controlpoints(M)[begin,begin]\n",
" p2 = controlpoints(M)[begin,end]\n",
" p3 = controlpoints(M)[end,begin]\n",
" p4 = controlpoints(M)[end,end]\n",
"\n",
" v12 = p1-p2\n",
" q1 = p1 - Point(v12[2],-v12[1])/norm(v12) * 6\n",
" q2 = p2 - Point(v12[2],-v12[1])/norm(v12) * 6\n",
" line(p1,q1)\n",
" line(q2)\n",
" line(p2)\n",
" strokepath()\n",
"\n",
" v34 = p3-p4\n",
" q3 = p3 + Point(v34[2],-v34[1])/norm(v34) * 6\n",
" q4 = p4 + Point(v34[2],-v34[1])/norm(v34) * 6\n",
" line(p3,q3)\n",
" line(q4)\n",
" line(p4)\n",
" strokepath()\n",
"\n",
" finish()\n",
" preview()\n",
"\n",
" script = read(filepath, String)\n",
" lines = split(script, \"\\n\")\n",
" lines[2] = replace(lines[2],\"pt\\\"\"=>\"mm\\\"\")\n",
" write(filepath, join(lines,\"\\n\"))\n",
"end"
],
"metadata": {},
"execution_count": 7
},
{
"cell_type": "markdown",
"source": [
"The output files will be saved as `embedding-$(i).svg`."
],
"metadata": {}
},
{
"cell_type": "markdown",
"source": [
"\n",
"\n",
"\n",
""
],
"metadata": {}
},
{
"cell_type": "markdown",
"source": [
"# References\n",
"- [懸垂面螺旋面製作キット](https://hackmd.io/@hyrodium/Hy4D5r633)"
],
