Column Type Size Nulls Auto Default Children Parents Comments
ID integer 10
FBSCHEDULE.REPORTID INTEG_1164 R
MODULE.REPORTID INTEG_826 R
REPORTPARAMETER.REPORTID INTEG_831 R
REPORTSECURITY.REPORTID INTEG_857 R
REPORTTOMODULE.REPORTID INTEG_851 R
NAME varchar 64
DESCRIPTION blob sub_type 1 0  √  null
REPORTTREEID integer 10
REPORTTREE.ID INTEG_818 R
PATH varchar 256
ACTIVEFLAG smallint 5  √  1
DATECREATED timestamp 19  √  null
DATELASTMODIFIED timestamp 19  √  null
READONLY smallint 5  √  0
LASTCHANGEDUSERID integer 10  √  1
USERID integer 10  √  NULL

Analyzed at Mon Jul 01 09:44 PDT 2013

Indexes:
Column(s) Type Sort Constraint Name
Performance RDB$FOREIGN637
Performance RDB$FOREIGN638
Performance RDB$FOREIGN639
USERID Performance Asc RDB$FOREIGN640
Performance RDB$FOREIGN641
ID Must be unique Asc RDB$PRIMARY636
Performance RECEIPTLOCATIONGROUPID
Performance RECEIPTORDERID
Performance RECEIPTORDERTYPEID_IDX
Performance RECEIPTSTATUSID_IDX
Performance RECEIPTTYPEID_IDX
USERID Performance Asc RECEIPTUSERID

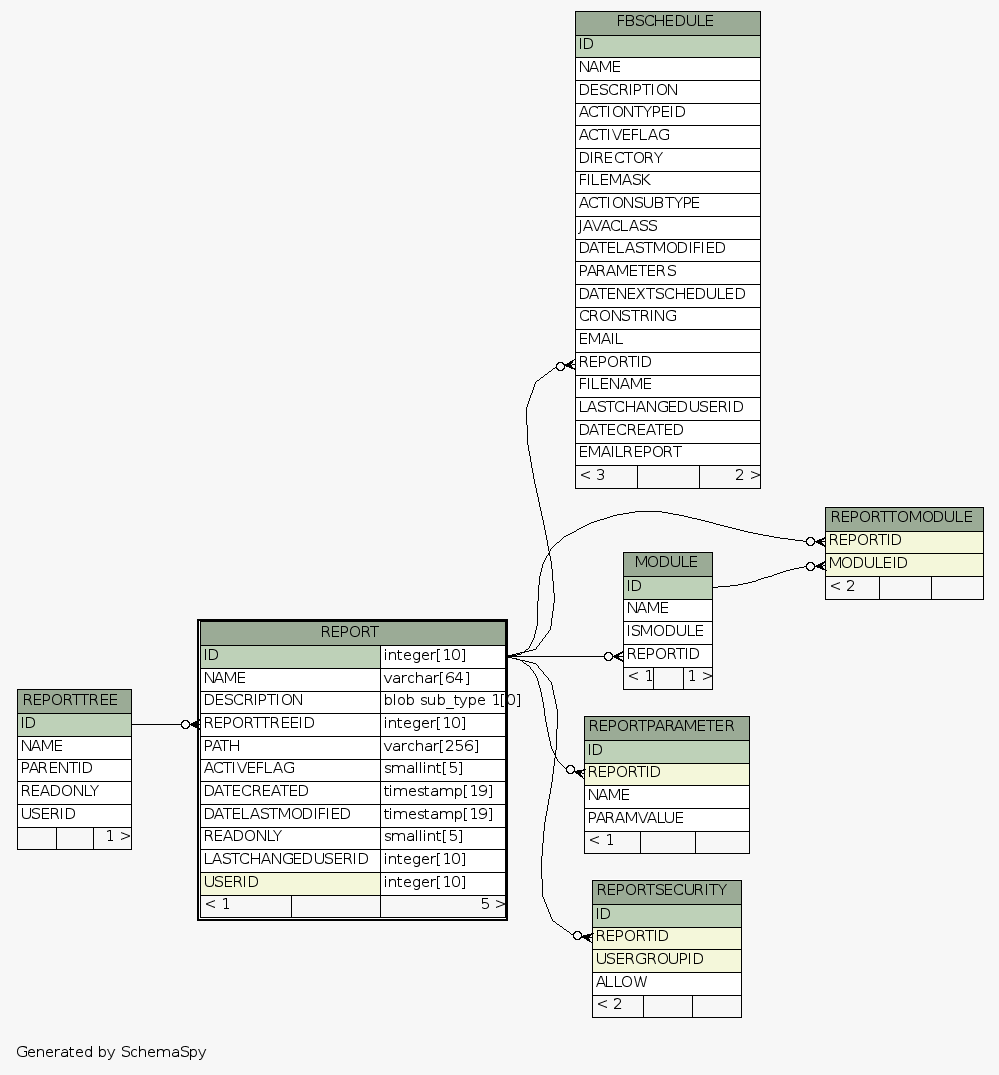

Close relationships  within of separation:
