"# Interacting Tanks"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Problem Statement\n",
"\n",

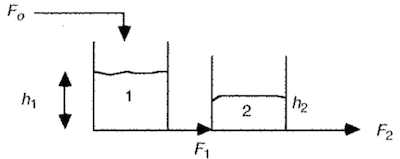

"The following diagram shows a pair of interacting tanks.\n",
"\n",
"![Image of a two interacting tanks](figures/InteractingTanks.png)\n",
"\n",
"Assume the pressure driven flow into and out of the tanks is linearly proportional to tank levels. The steady state flowrate through the tanks is 3 cubic ft per minute, the steady state heights are 7 and 3 feet, respectively, and a constant cross-sectional area 5 sq. ft. The equations are written as\n",
"\n",
"$$\\begin{align*}\n",
"\\frac{dh_1}{dt} & = \\frac{F_0}{A_1} - \\frac{\\beta_1}{A_1}\\left(h_1-h_2\\right) \\\\\n",
"\\frac{dh_2}{dt} & = \\frac{\\beta_1}{A_2}\\left(h_1-h_2\\right) - \\frac{\\beta_2}{A_2}h_2\n",
"\\end{align*}$$\n",
"\n",
"**a.** Use the problem data to determine values for all constants in the model equations.\n",
"\n",
"**b.** Construct a Phython simulation using `odeint`, and show a plot of the tank levels as function of time starting with an initial condition $h_1(0)=6$ and $h_2(0)$ = 5. Is this an overdamped or underdamped system."
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Solution"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"### Part a. \n",
"\n",
"The parameters that need to be determined are $\\beta_1$ and $\\beta_2$. At steady state all of the flows must be identical and\n",
"\n",
"$$\\begin{align*}\n",
"0 & = F_0 - \\beta_1(h_1 - h_2) \\\\\n",
"0 & = \\beta_1(h_1 - h_2) - \\beta_2h_2 \n",
"\\end{align*}$$\n",
"\n",
"Substituting problem data,\n",
"\n",
"$$\\beta_1 = \\frac{F_0}{h_1-h_2} = \\frac{3\\text{ cu.ft./min}}{4\\text{ ft}} = 0.75\\text{ sq.ft./min}$$ \n",
"\n",
"$$\\beta_2 = \\frac{\\beta_1(h_1 - h_2)}{h_2} = \\frac{3\\text{ cu.ft./min}}{3\\text{ ft}} = 1.0\\text{ sq.ft./min}$$ "
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"### Part b.\n",
"\n",
"The next step is perform a simulation from a specified initial condition. "
]
},
{
"cell_type": "code",
"execution_count": 1,
"metadata": {},
"outputs": [
{
"data": {
"text/plain": [
" "
]
}
],
